mp-554899-2/CsAlF4/anharm

Space group: P-62m (189)
Link: Materials Project
Download: mp-554899-2.tar.gz

Equation of state

../../_images/fig_bm4438.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr8792.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos12384.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo8792.png — (c) Thermodynamic properties

Grüneisen parameters

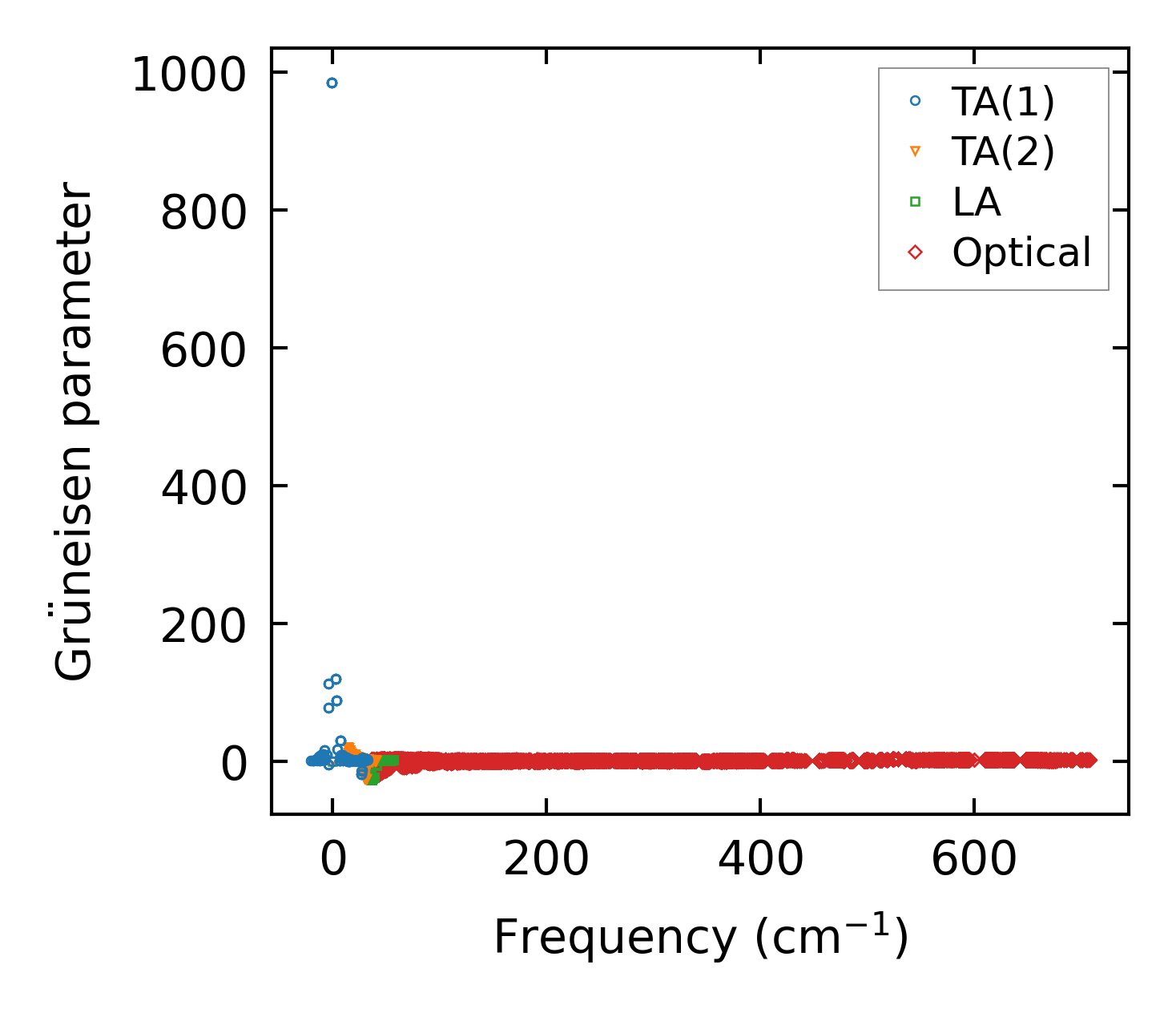

../../_images/fig_gru_all3540.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3540.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x3 — q-mesh: 7x7x20, supercell: 2x2x3

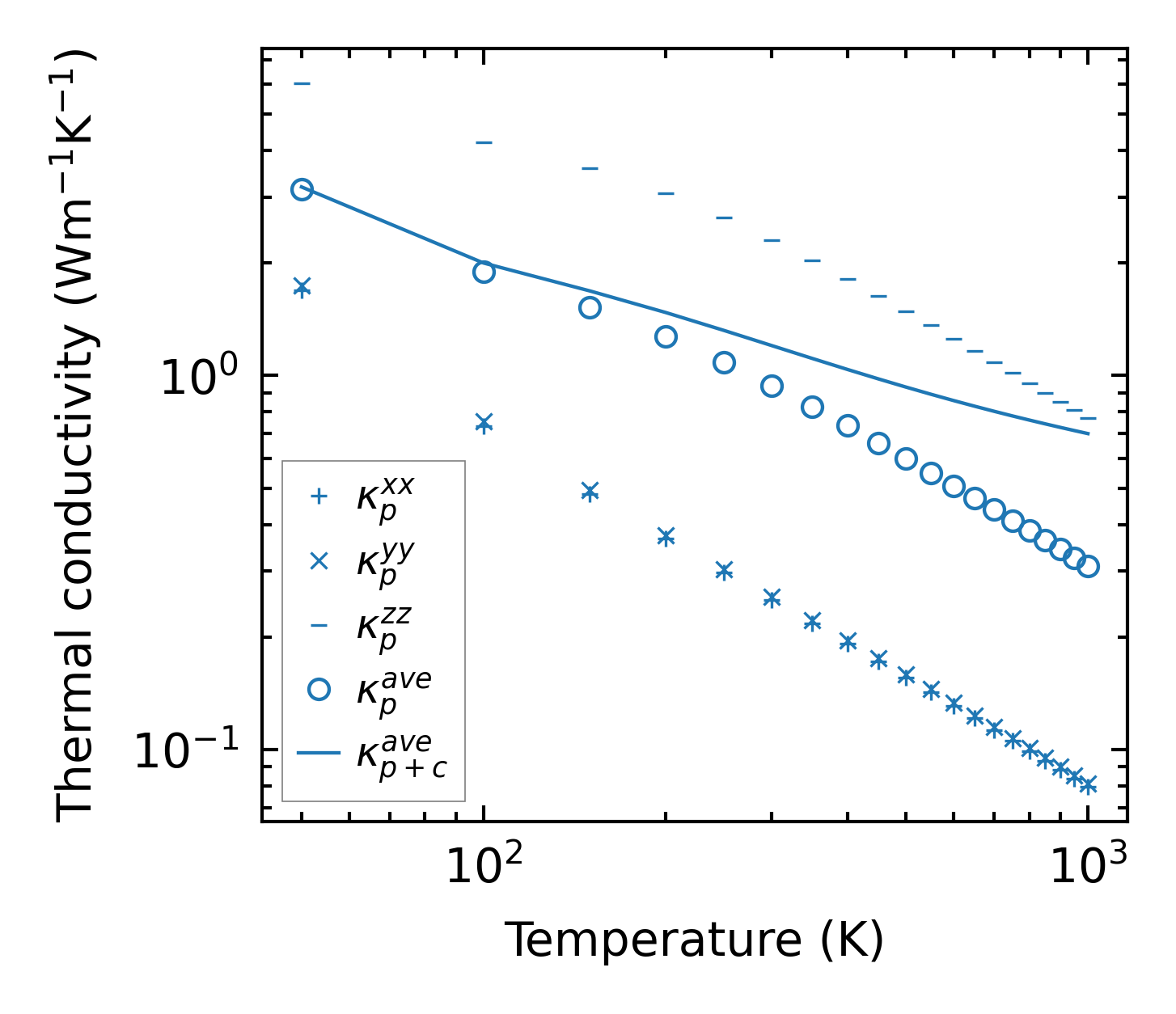

../../_images/fig_kappa6692.png — (a) Temperature-dependent lattice thermal conductivity

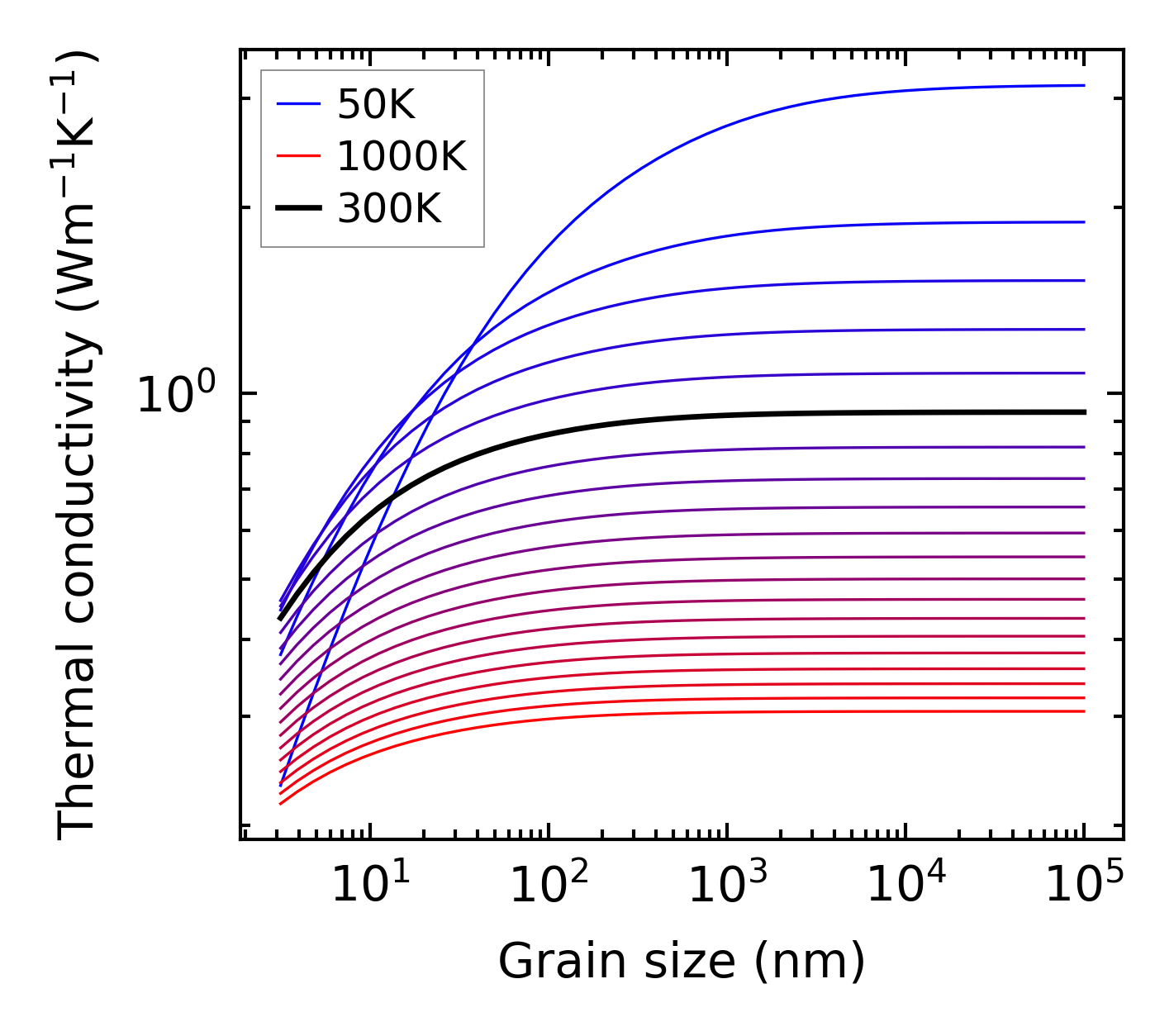

../../_images/fig_kappa_vs_grain_size3584.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

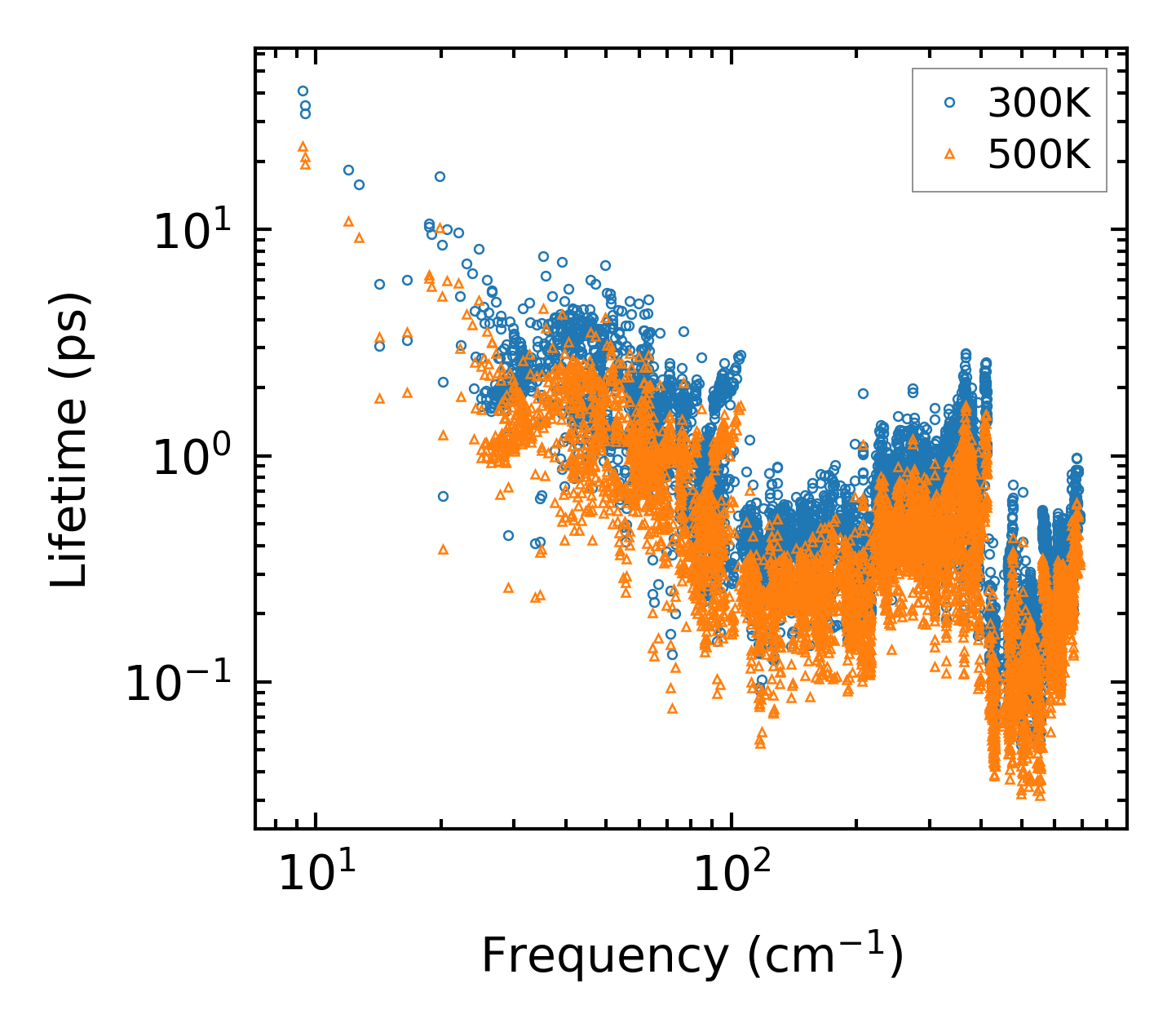

../../_images/fig_lifetime3507.png — (a) Phonon lifetime due to phonon-phonon scattering

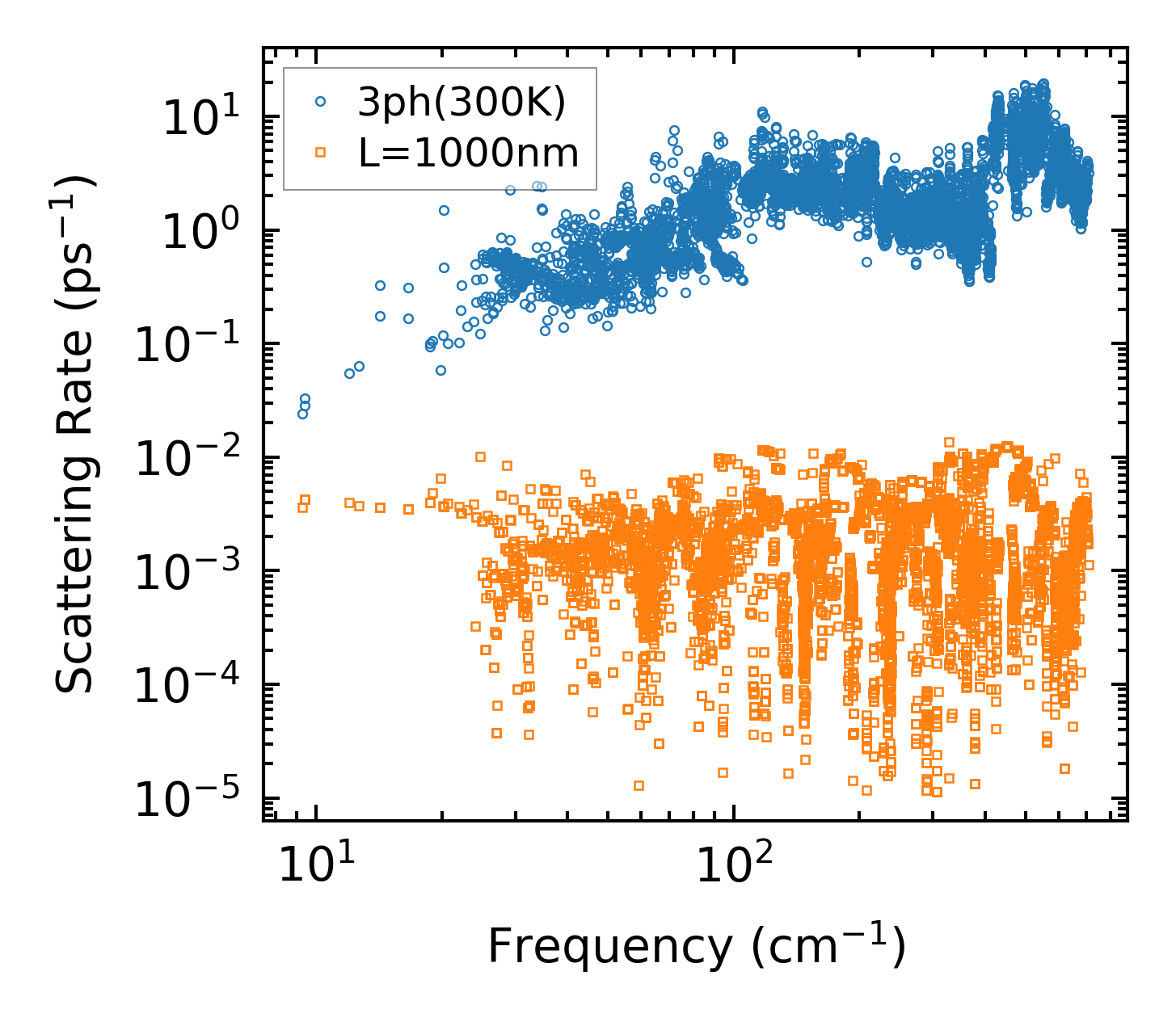

../../_images/fig_scat_rates3506.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency3507.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

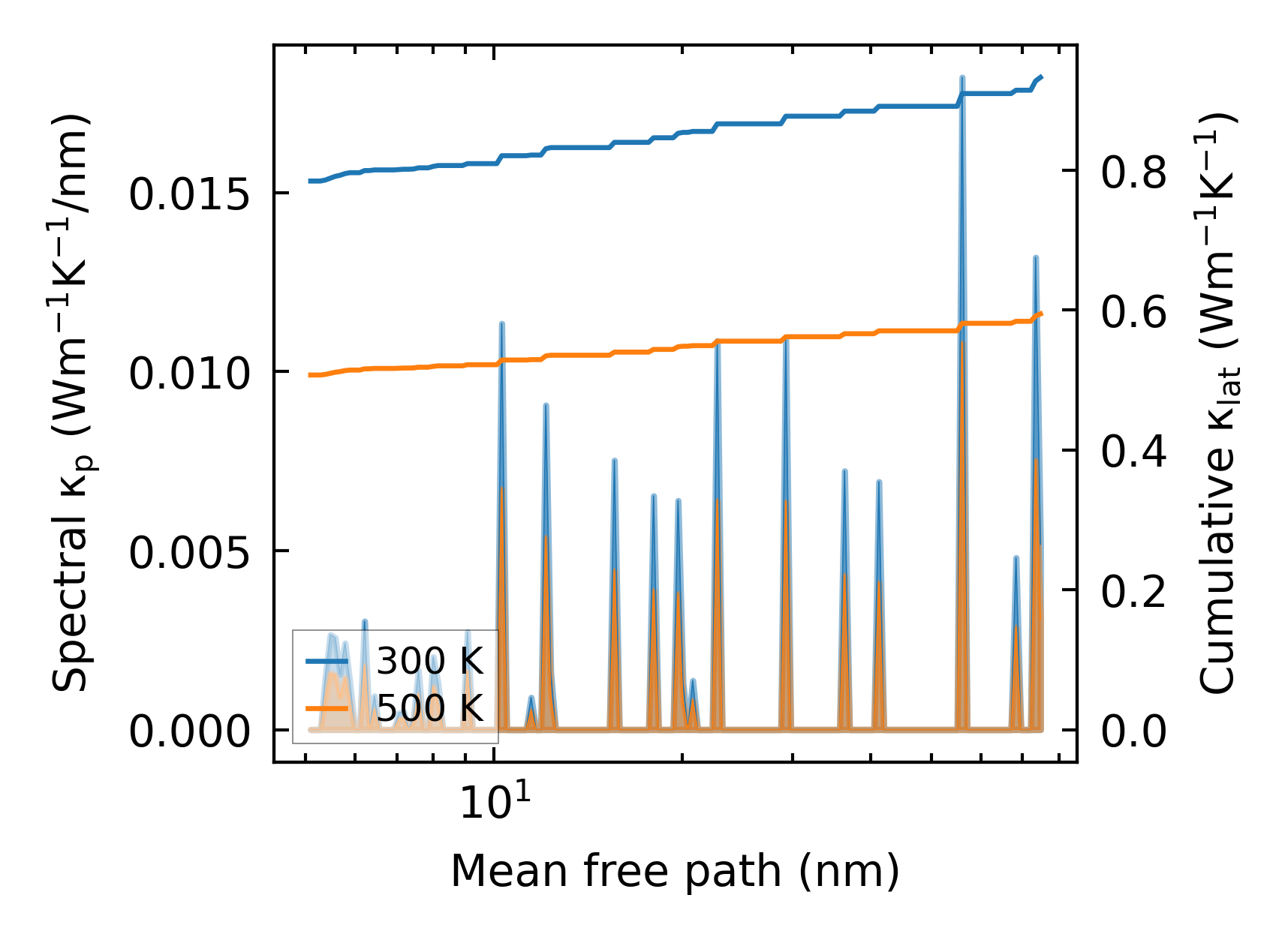

../../_images/fig_cumu_mfp3506.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

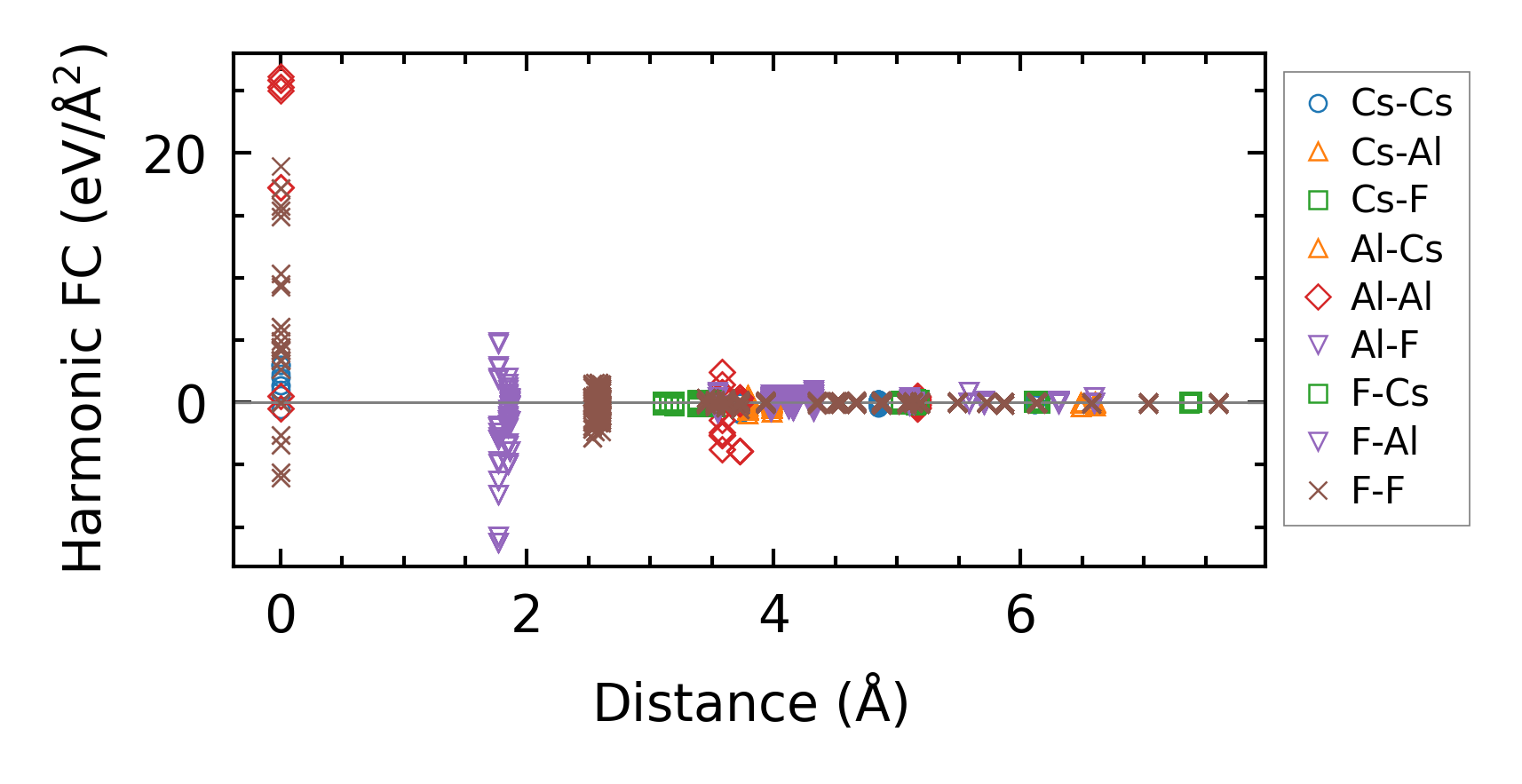

../../_images/fig_fc28553.png — (a) Force constants w.r.t atomic distance

Summary

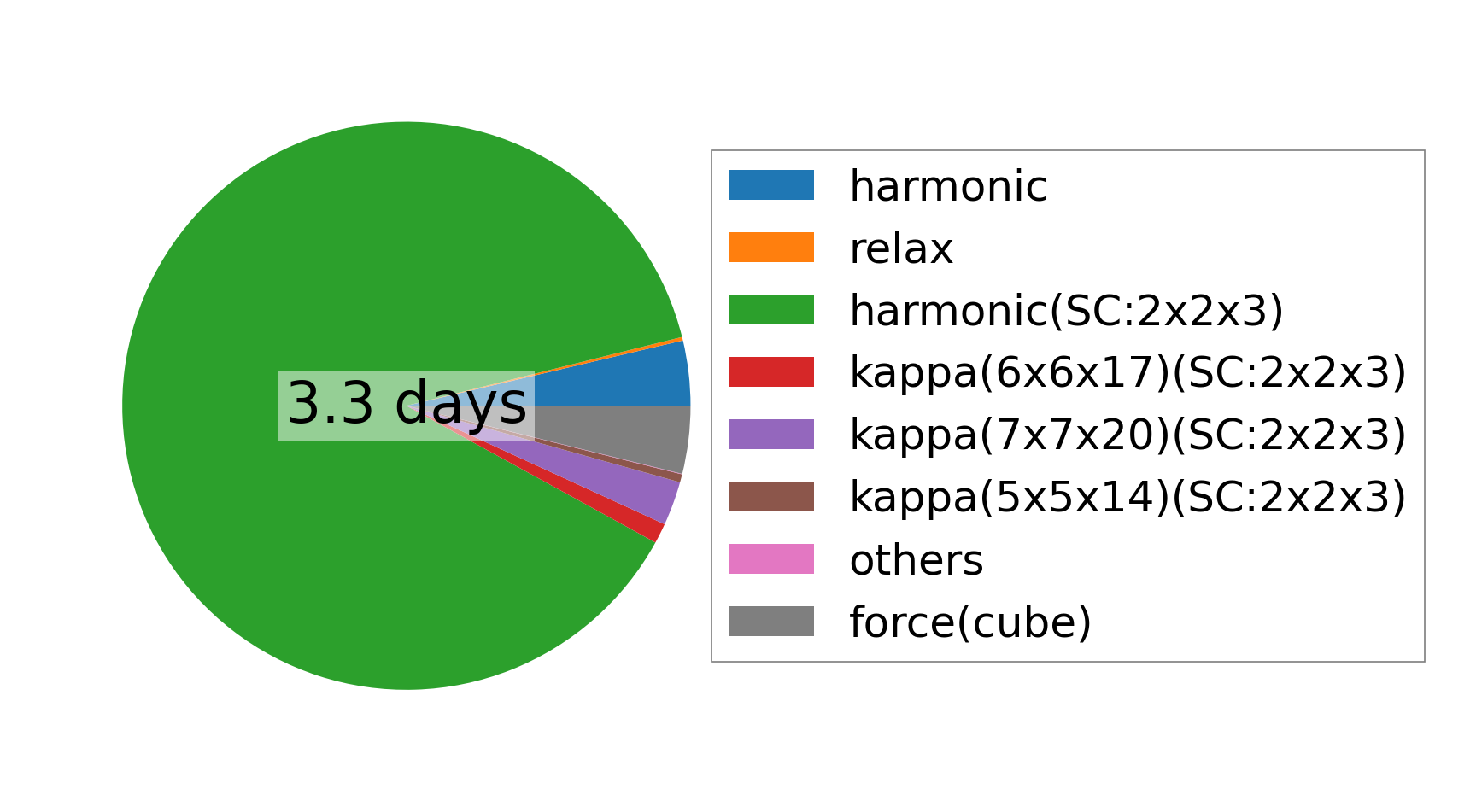

../../_images/fig_times15418.png — (a) Computation time
