mp-554066/Ba3Lu2Zn5O11/anharm

Space group: F-43m (216)
Link: Materials Project
Download: mp-554066.tar.gz

Harmonic properties

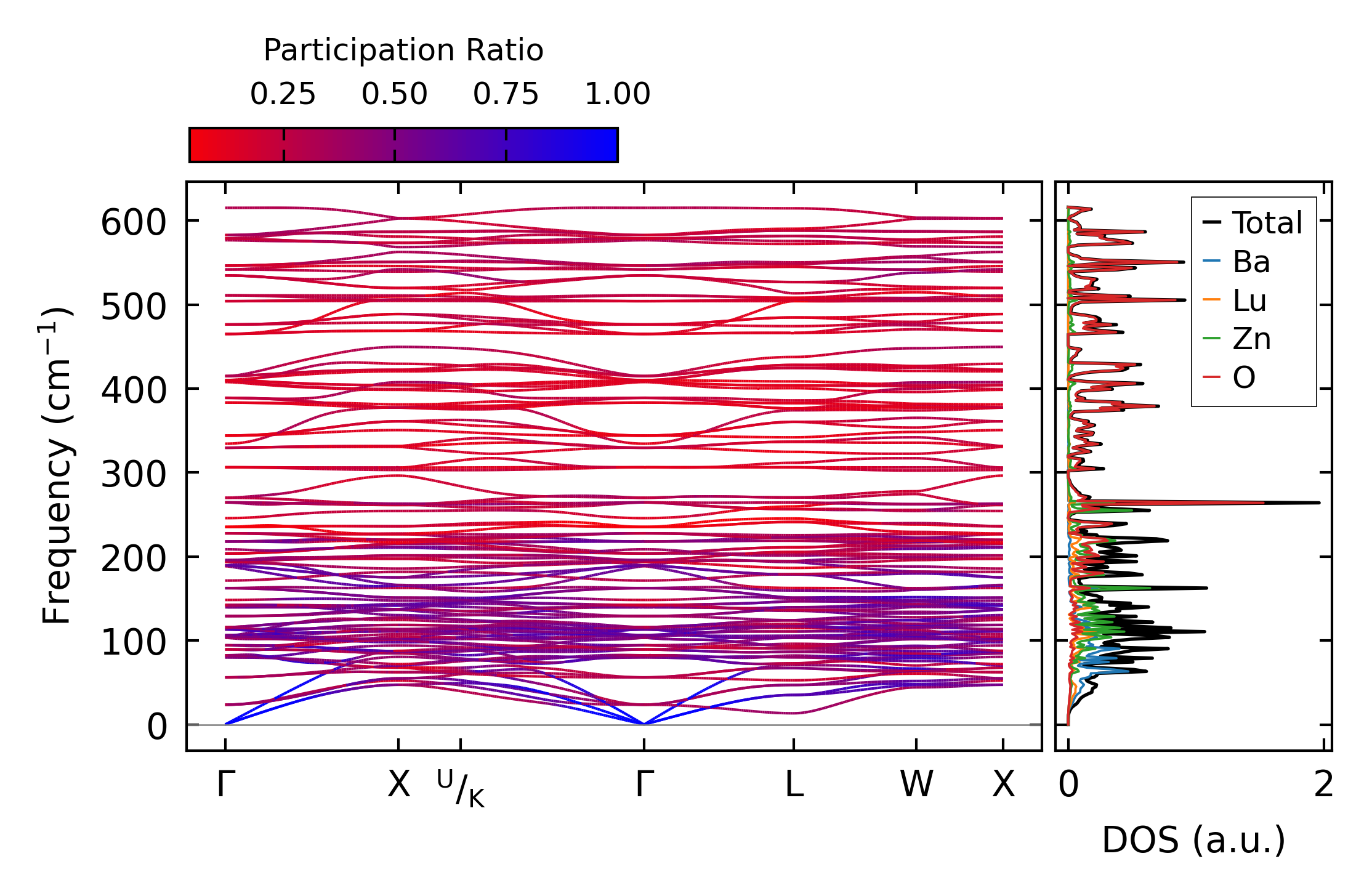

../../_images/fig_bandos_pr9253.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9253.png — (b) Thermodynamic properties

Grüneisen parameters

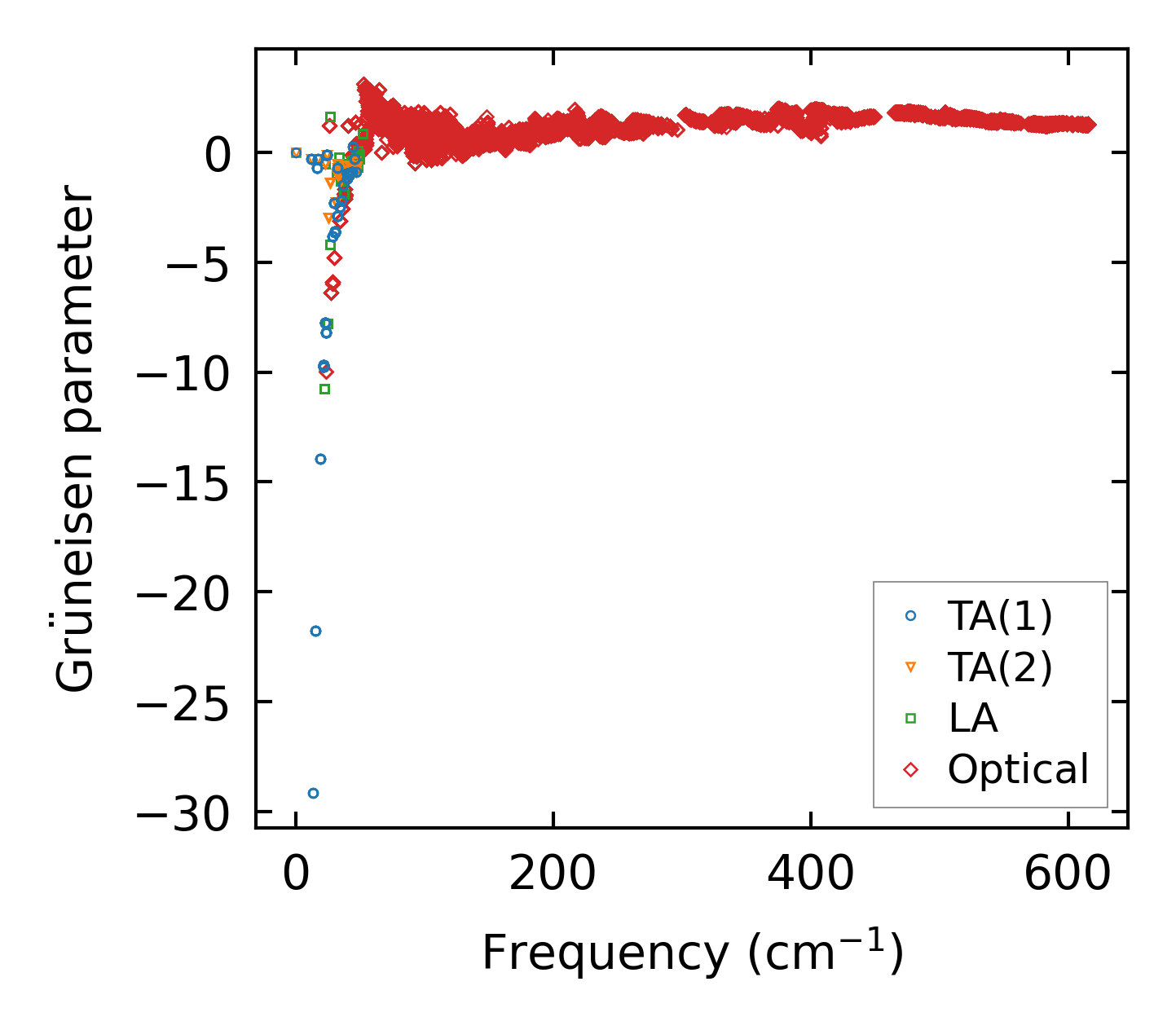

../../_images/fig_gru_all3690.png — (a) Grüneisen parameters

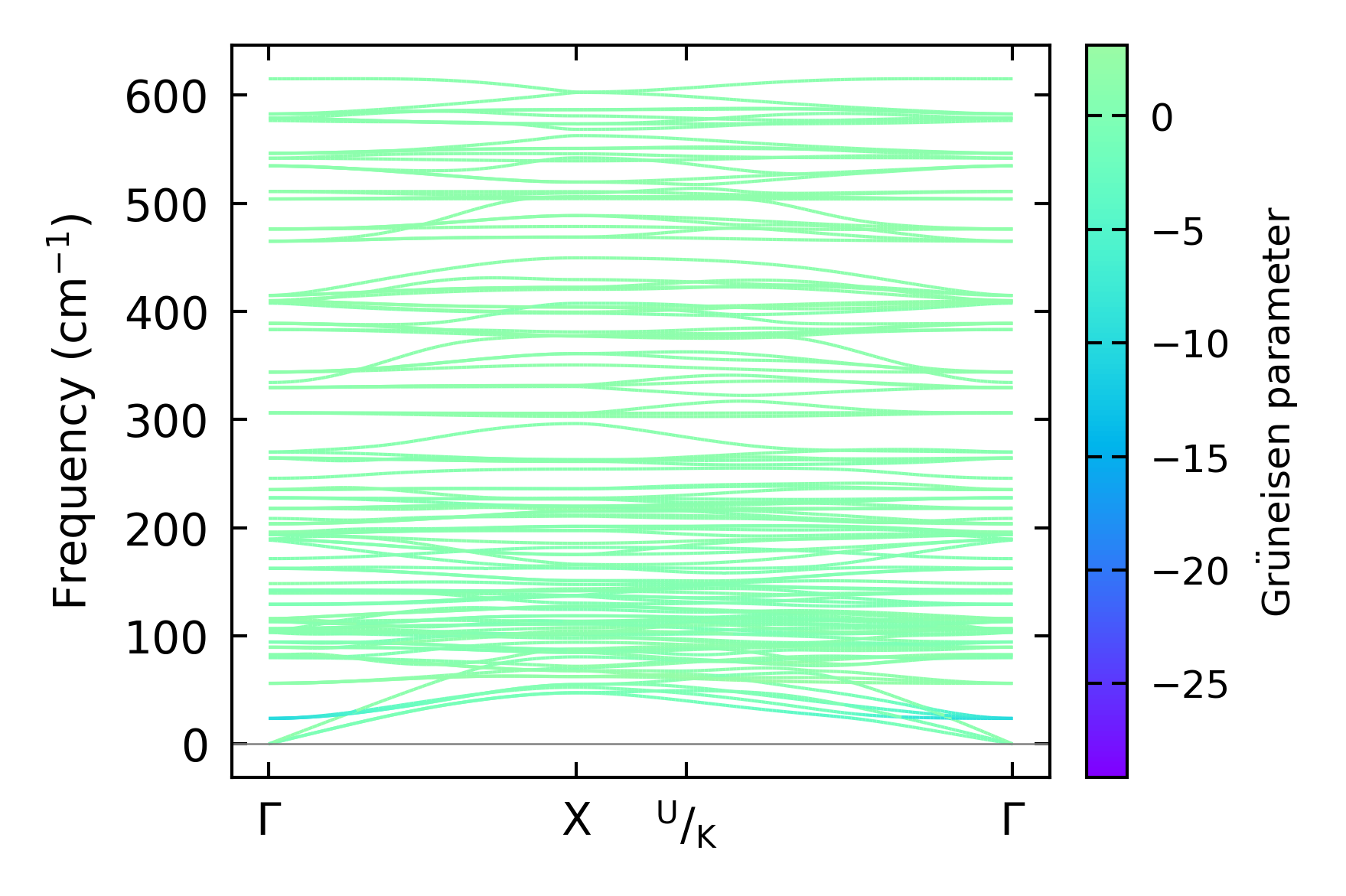

../../_images/fig_gruneisen3690.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x8, supercell: 1x1x1

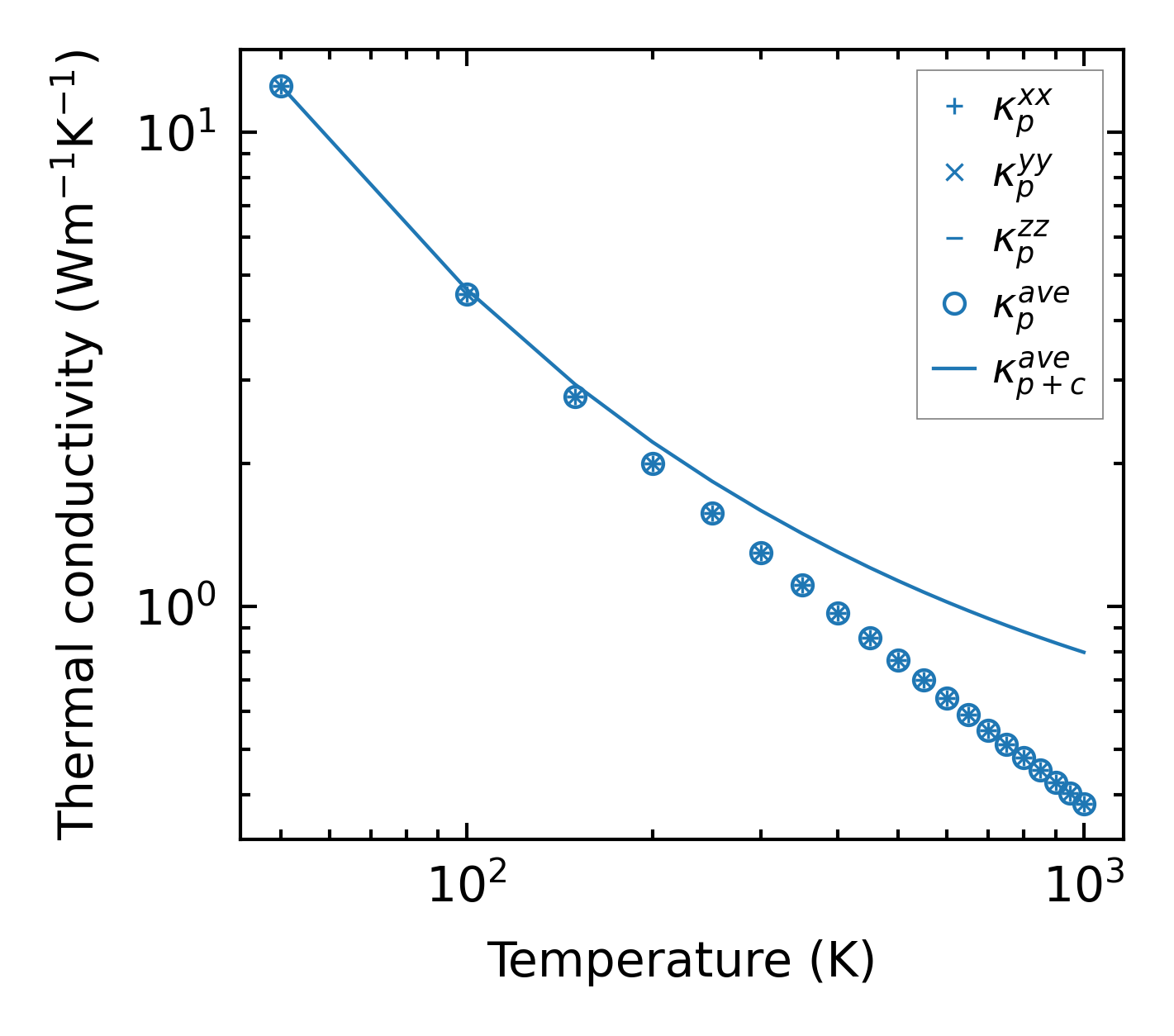

../../_images/fig_kappa6970.png — (a) Temperature-dependent lattice thermal conductivity

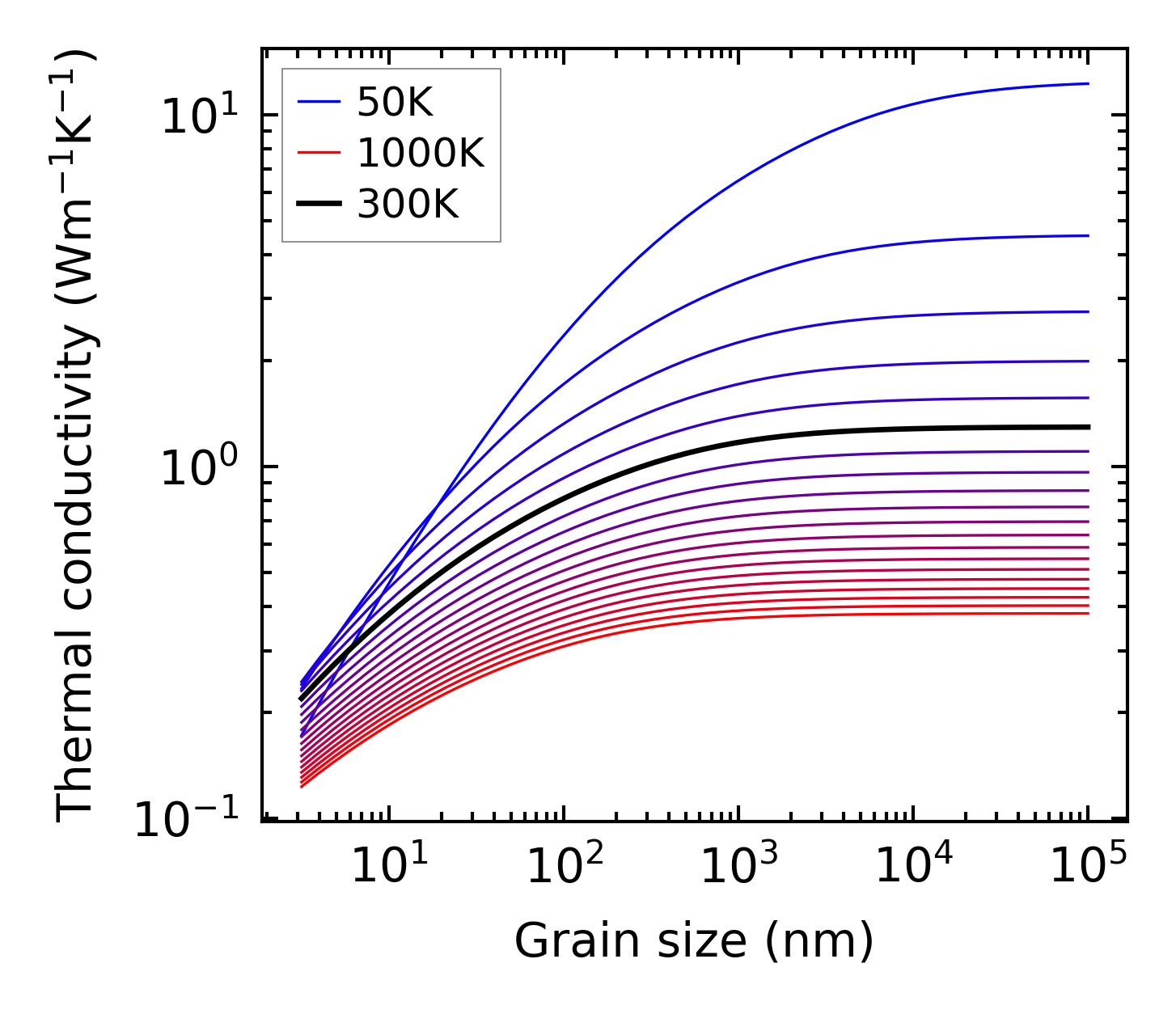

../../_images/fig_kappa_vs_grain_size3739.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

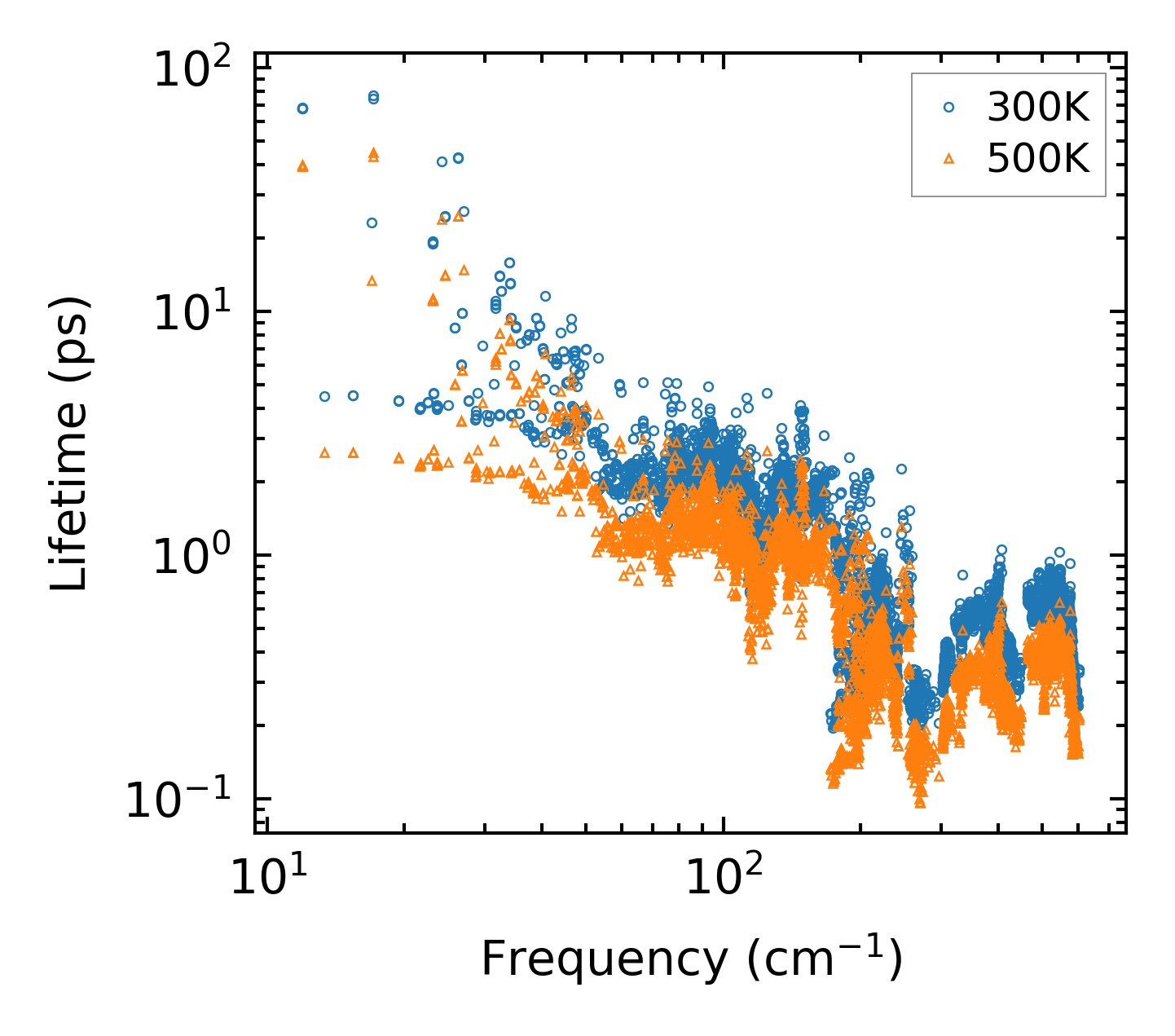

../../_images/fig_lifetime3656.png — (a) Phonon lifetime due to phonon-phonon scattering

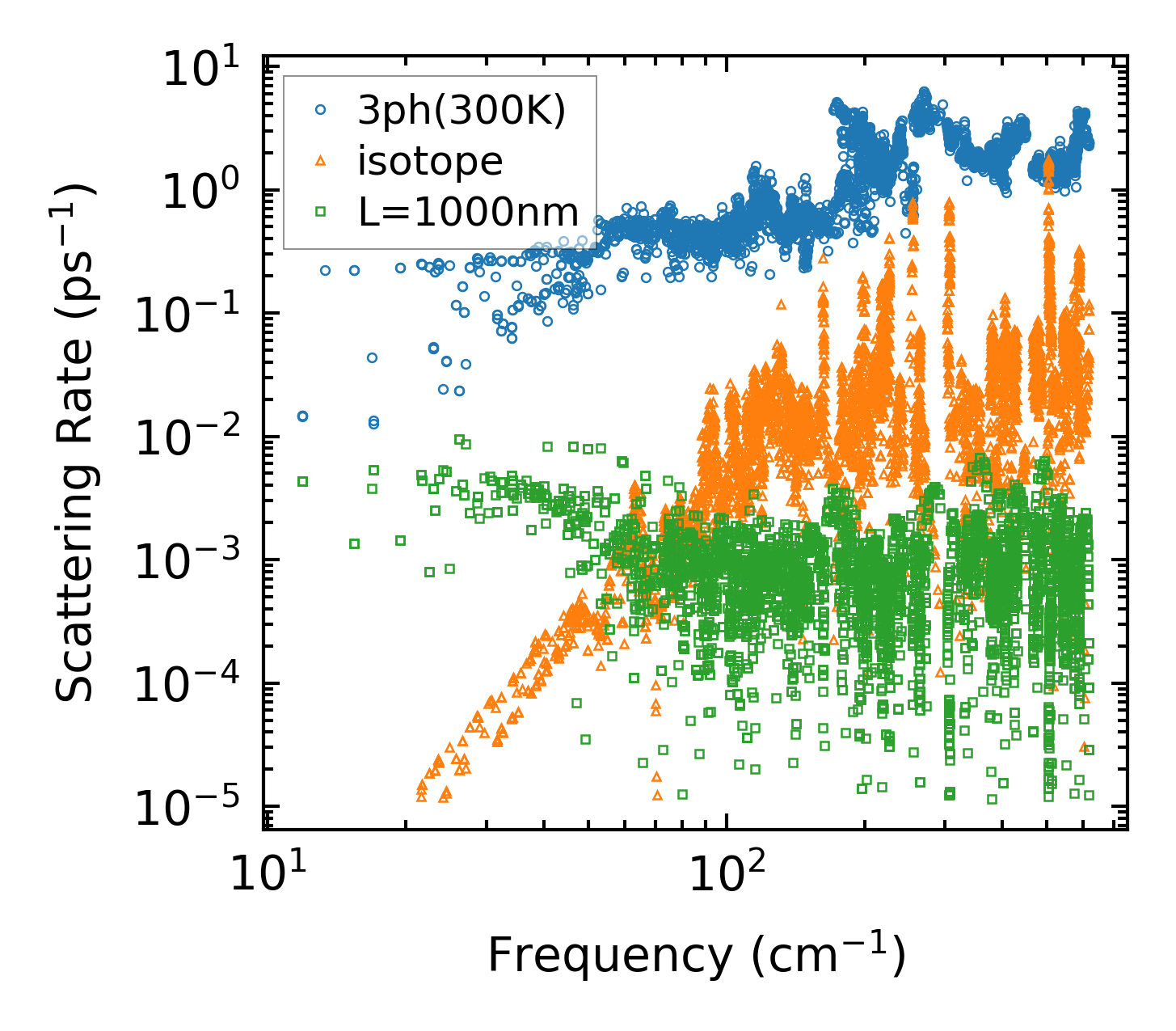

../../_images/fig_scat_rates3655.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

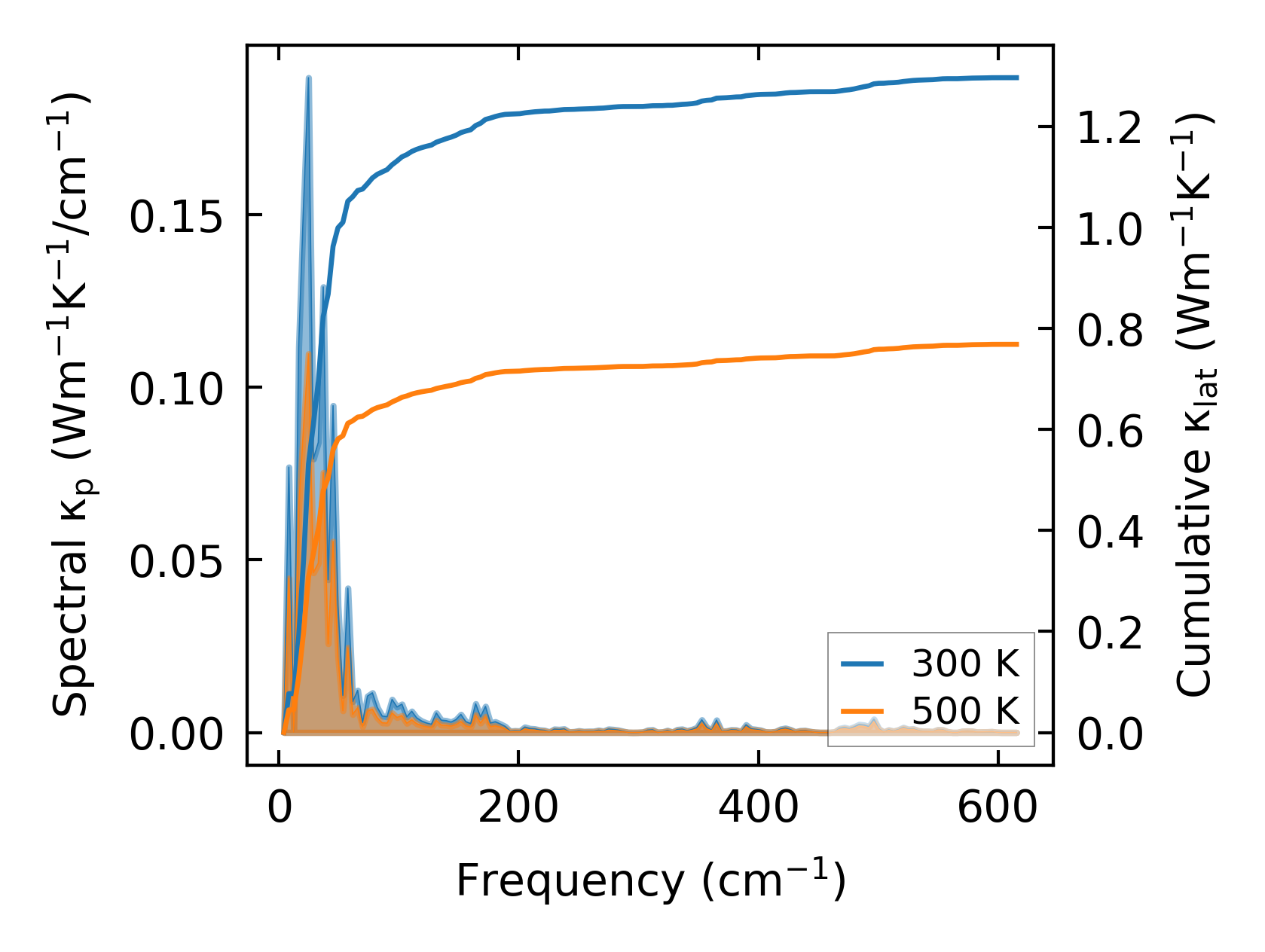

../../_images/fig_cumu_frequency3656.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

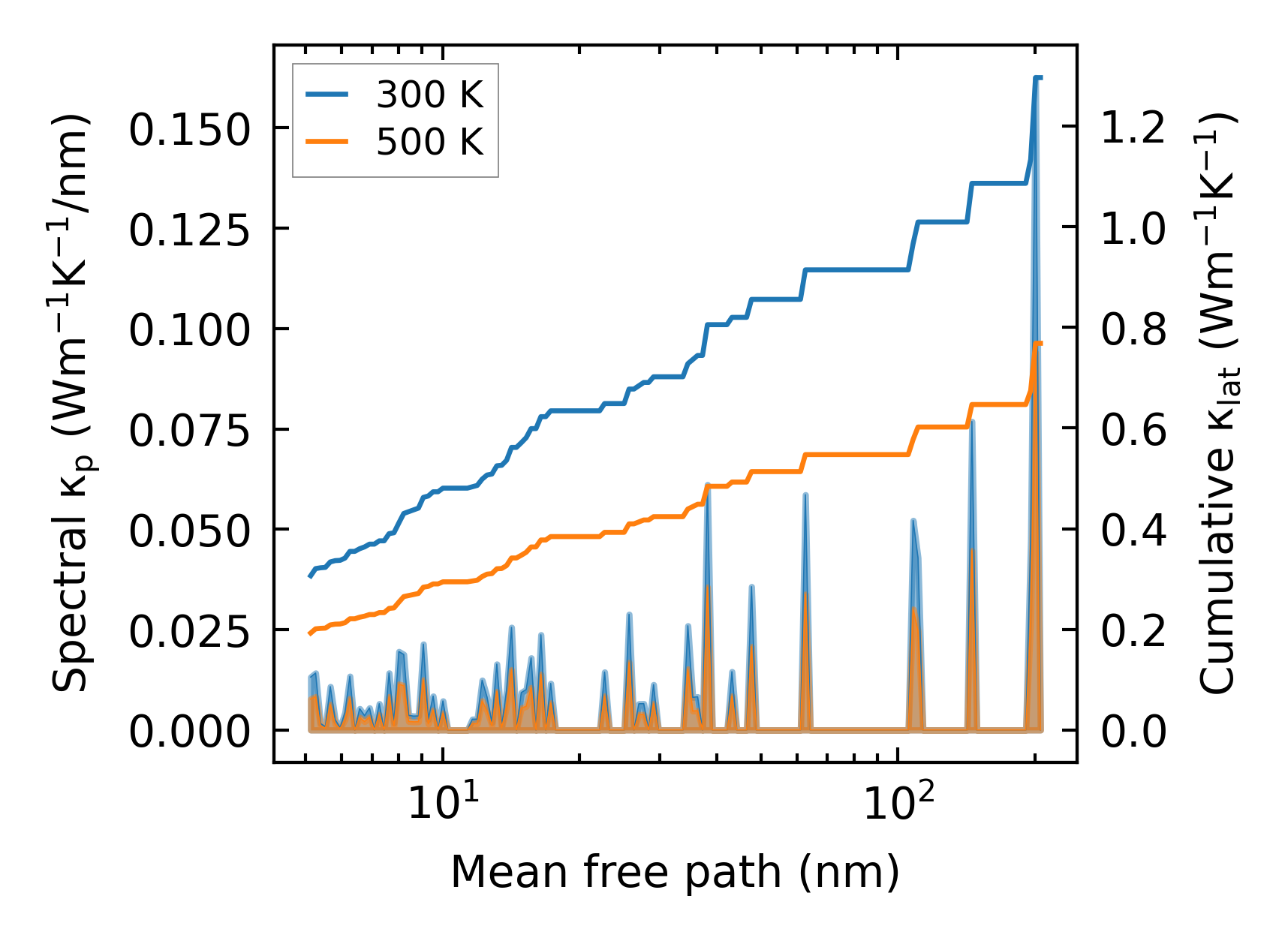

../../_images/fig_cumu_mfp3655.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

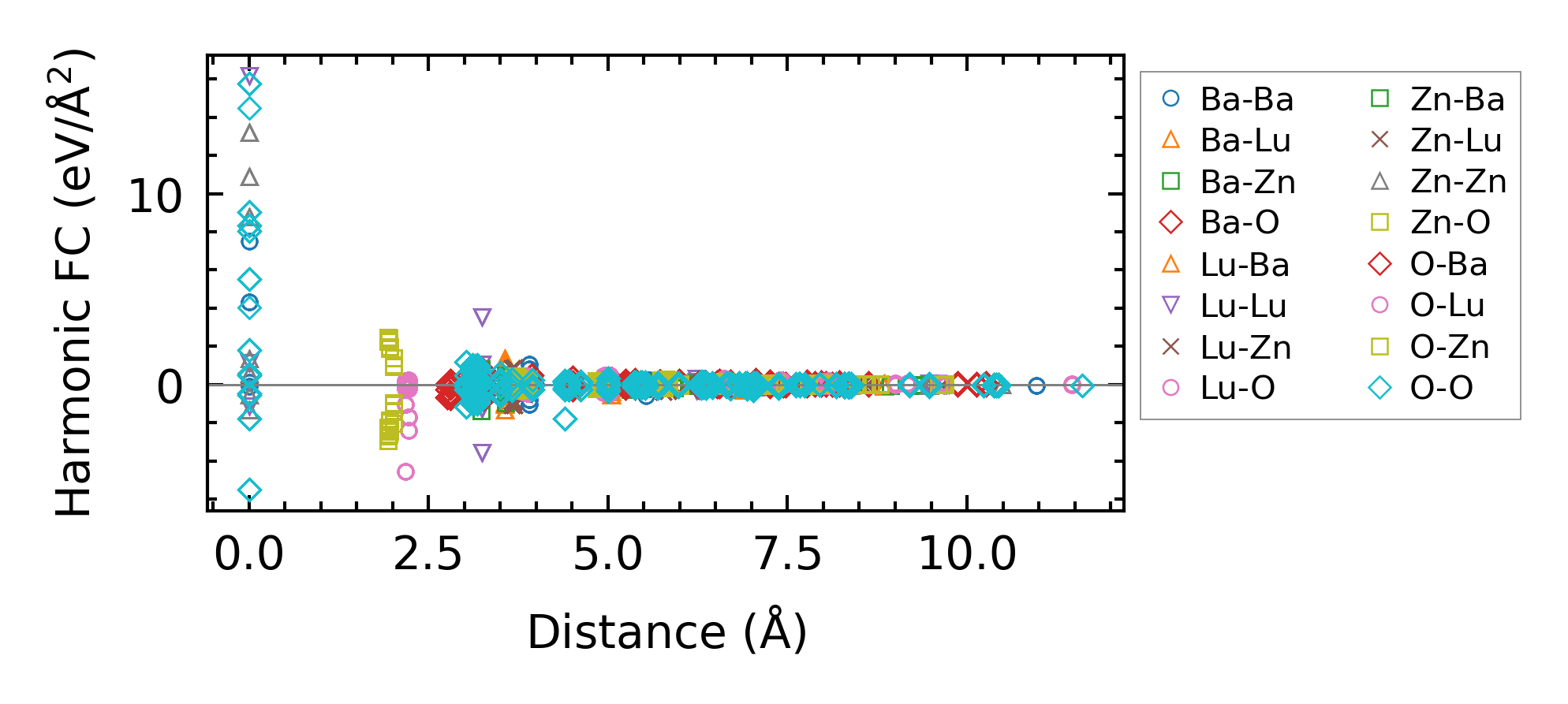

../../_images/fig_fc29015.png — (a) Force constants w.r.t atomic distance

Summary

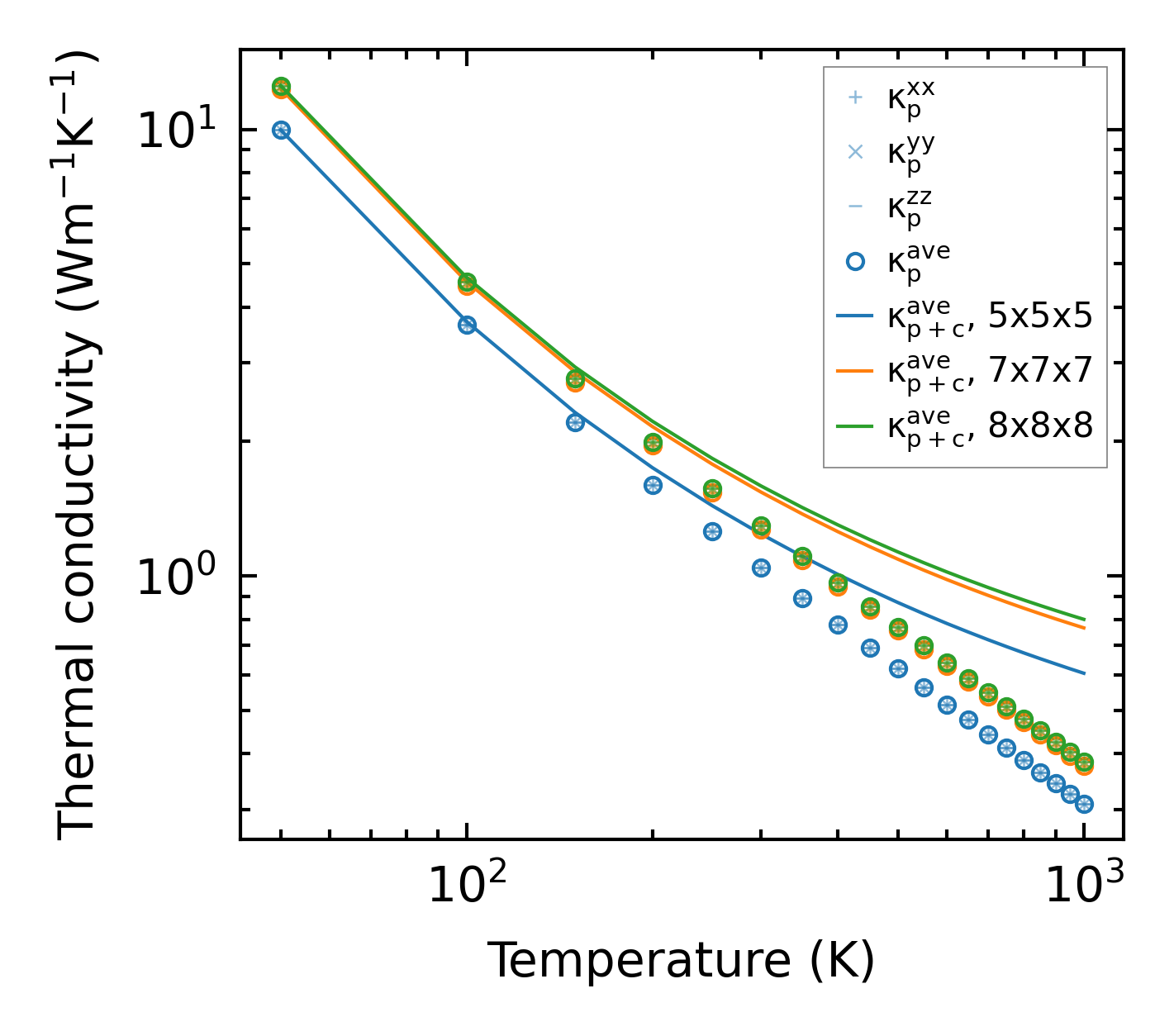

../../_images/fig_kappa6971.png — (a) Temperature-dependent lattice thermal conductivity

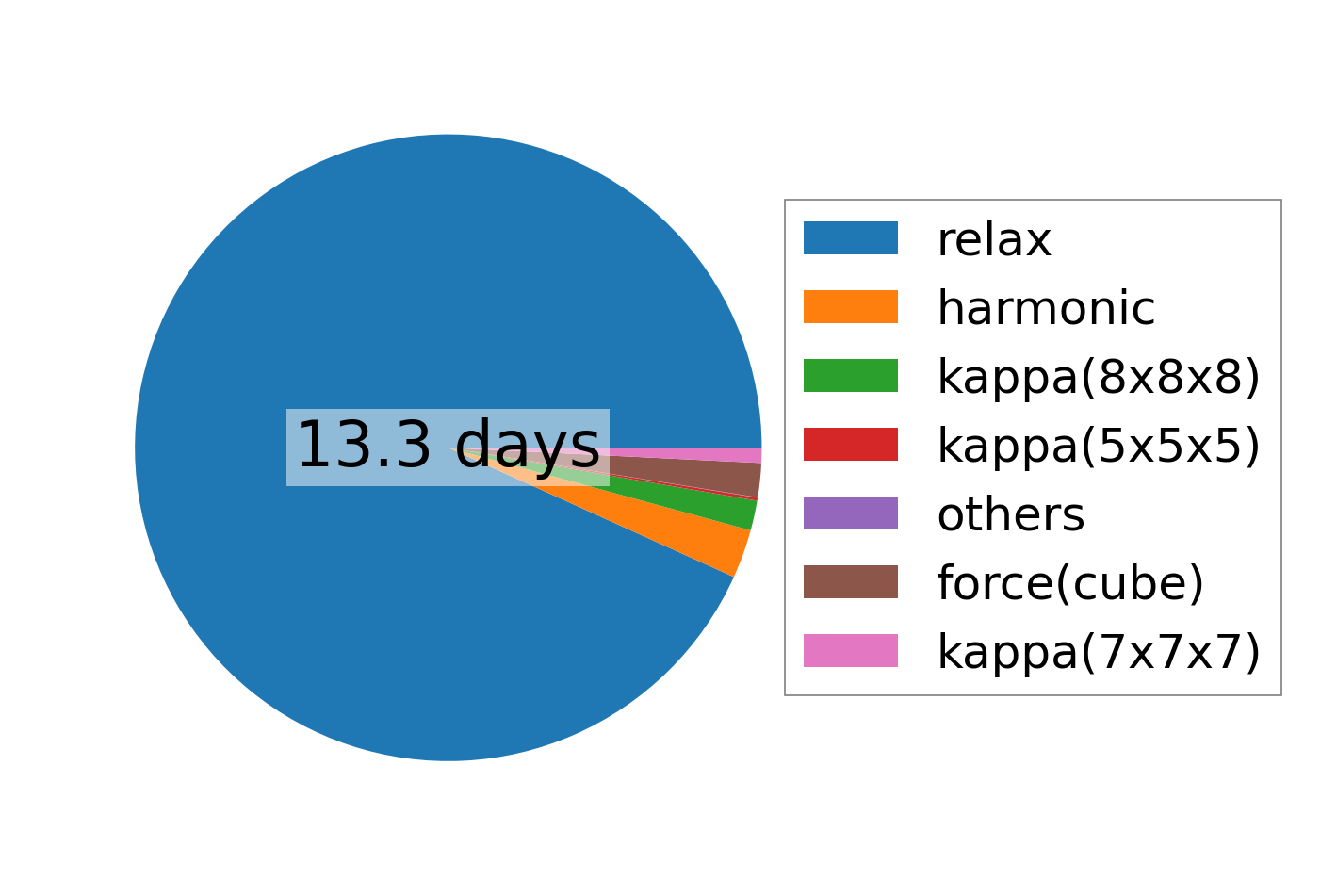

../../_images/fig_times16131.png — (b) Computation time
