mp-554263-2/Ca2BClO3/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-554263-2.tar.gz

Equation of state

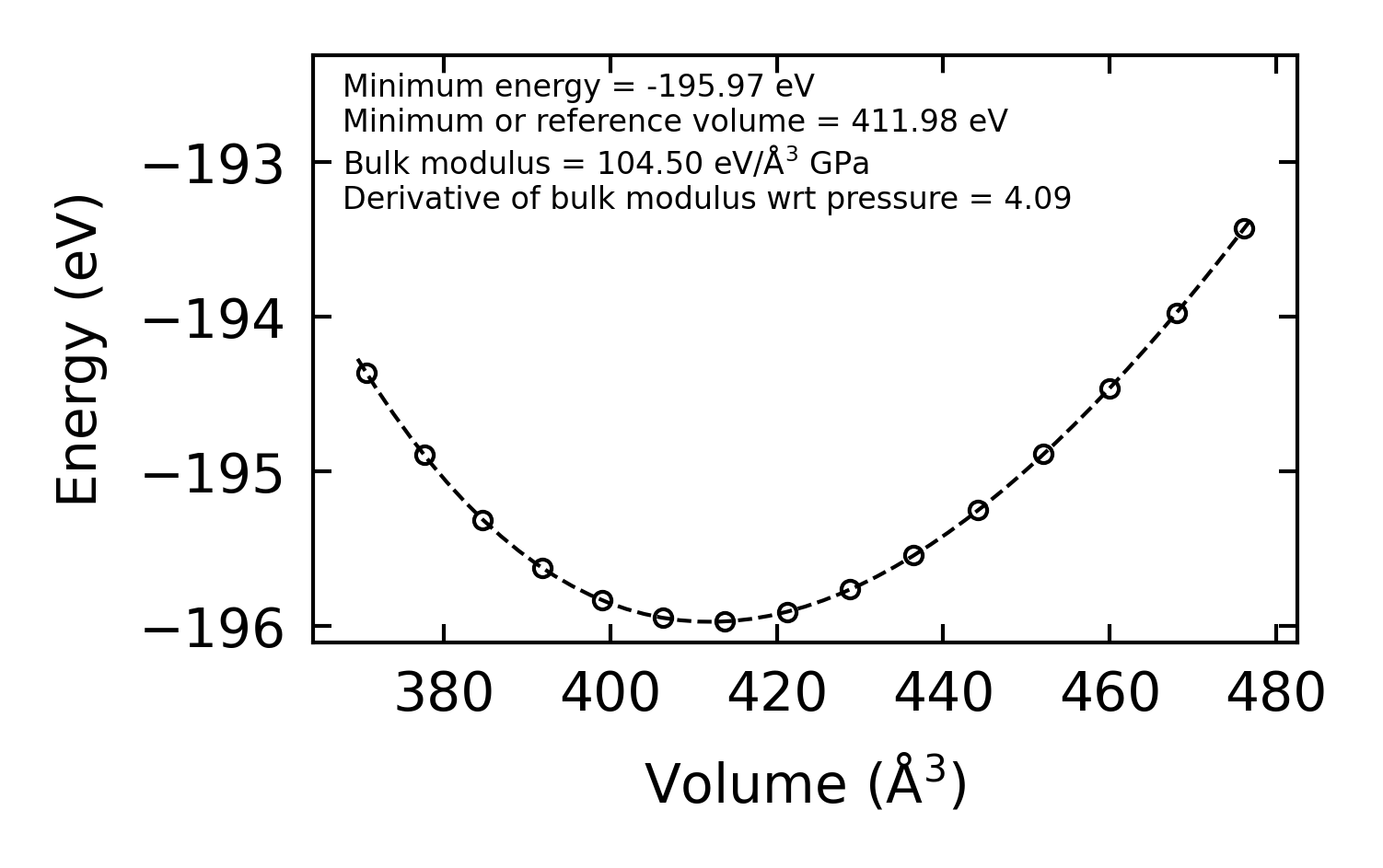

../../_images/fig_bm4518.png — (a) Equation of state

Harmonic properties

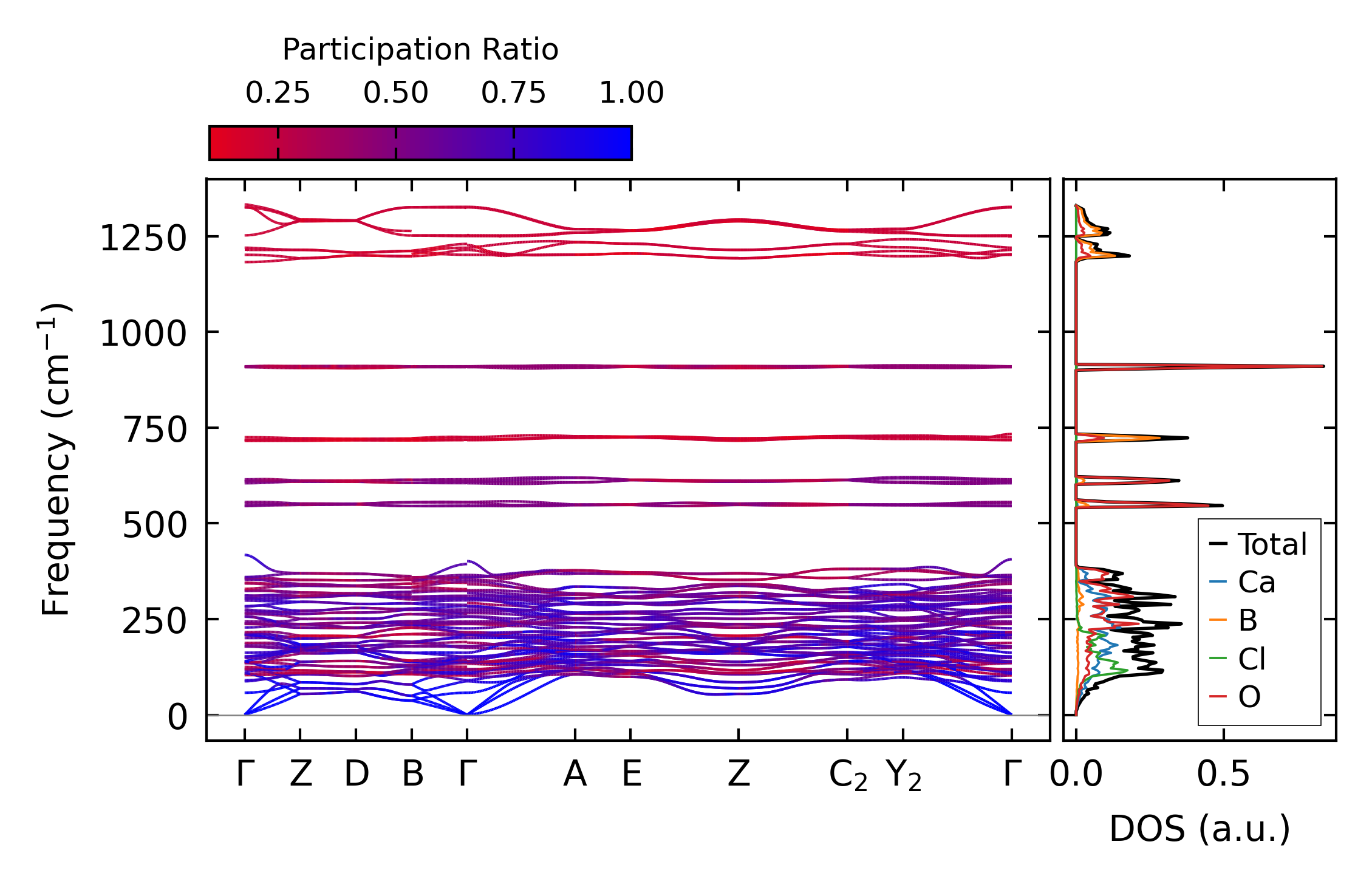

../../_images/fig_bandos_pr8954.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo8954.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all3579.png — (a) Grüneisen parameters

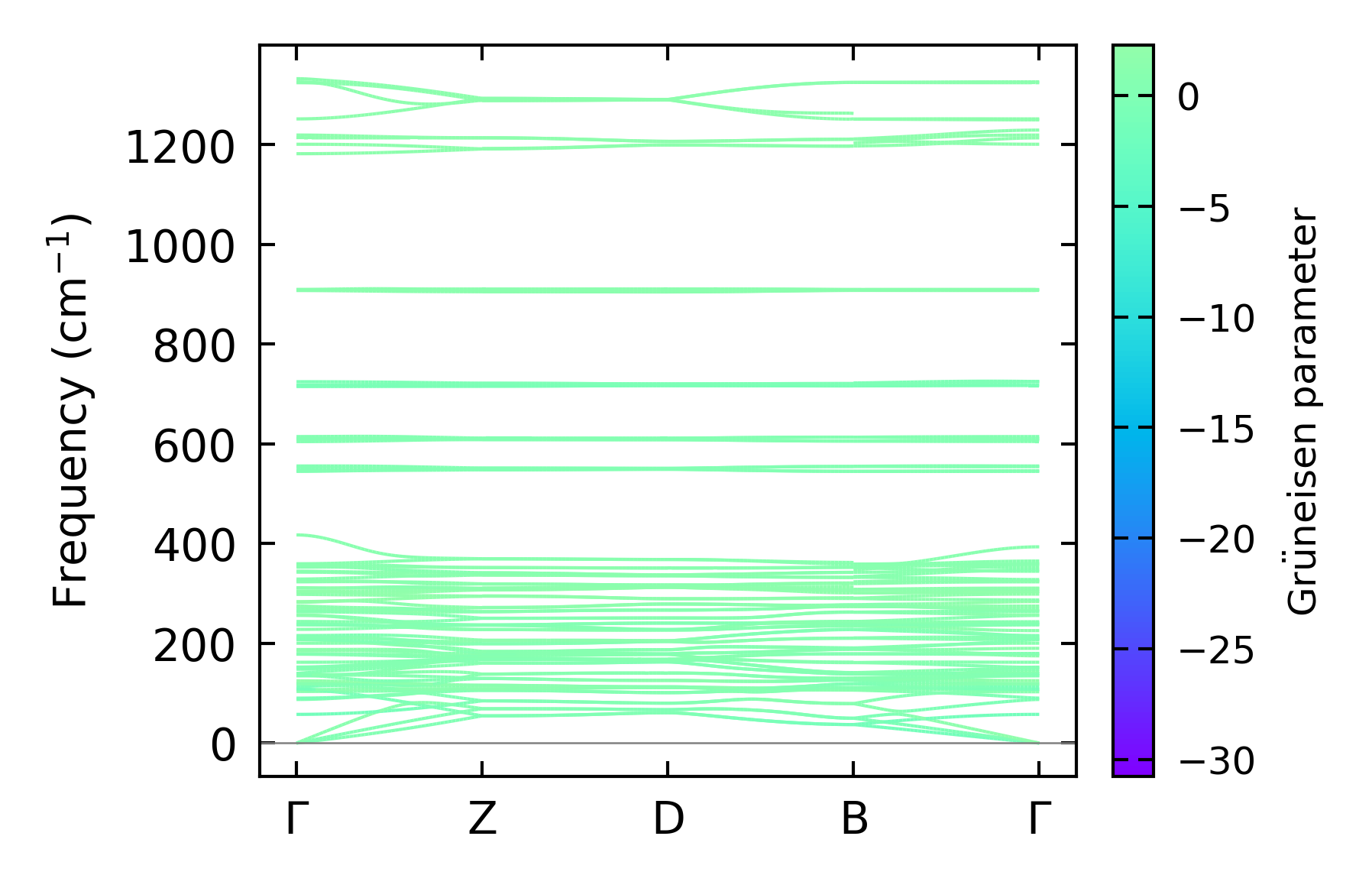

../../_images/fig_gruneisen3579.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 18x8x5, supercell: 3x1x1

../../_images/fig_kappa6761.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3625.png — (b) Peierls lattice thermal conductivity w.r.t grain size

3-phonon (LASSO), supercell 3x2x1 — q-mesh: 18x8x5, supercell: 3x2x1

../../_images/fig_kappa6762.png — (a) Temperature-dependent lattice thermal conductivity

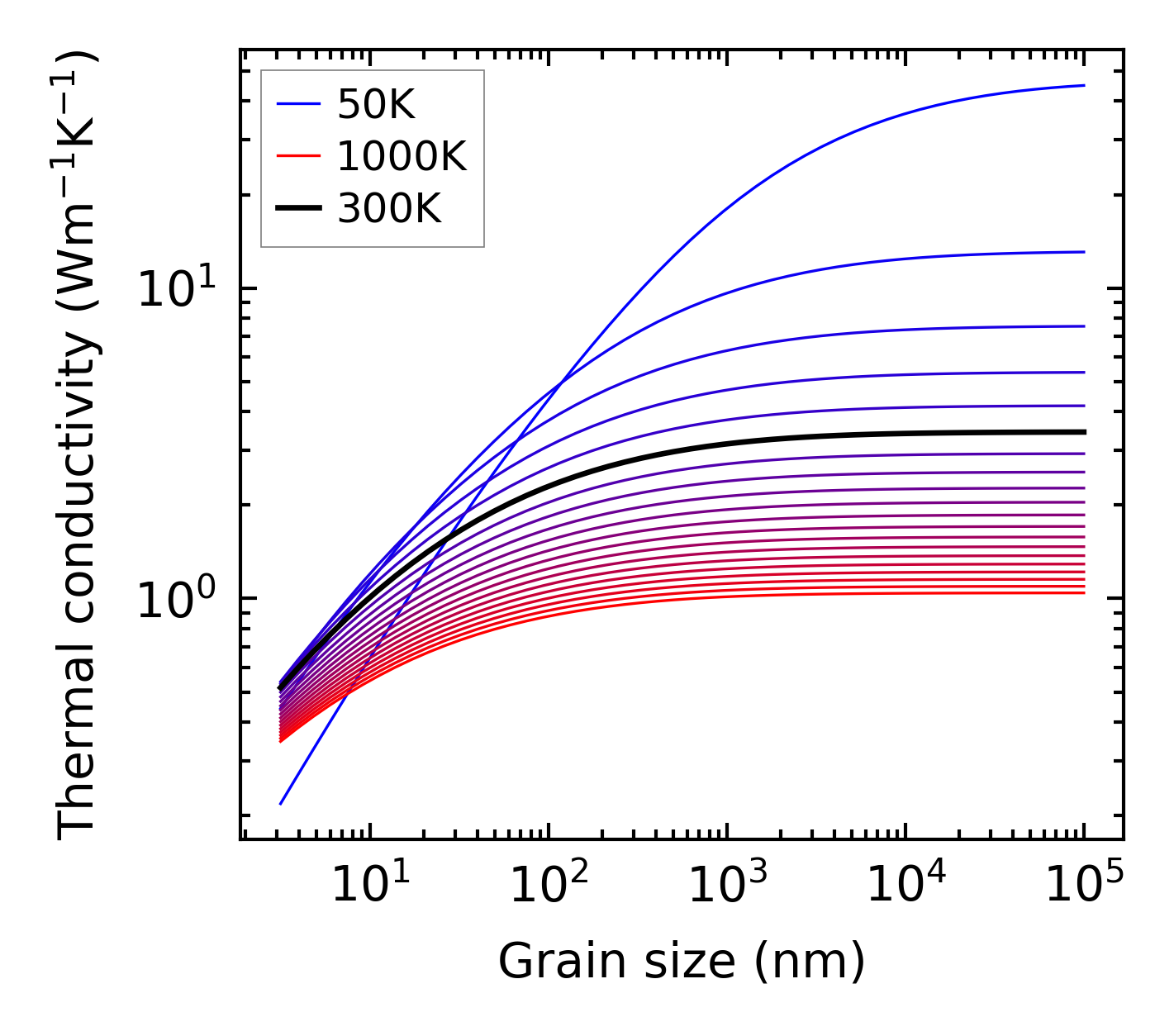

../../_images/fig_kappa_vs_grain_size3626.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

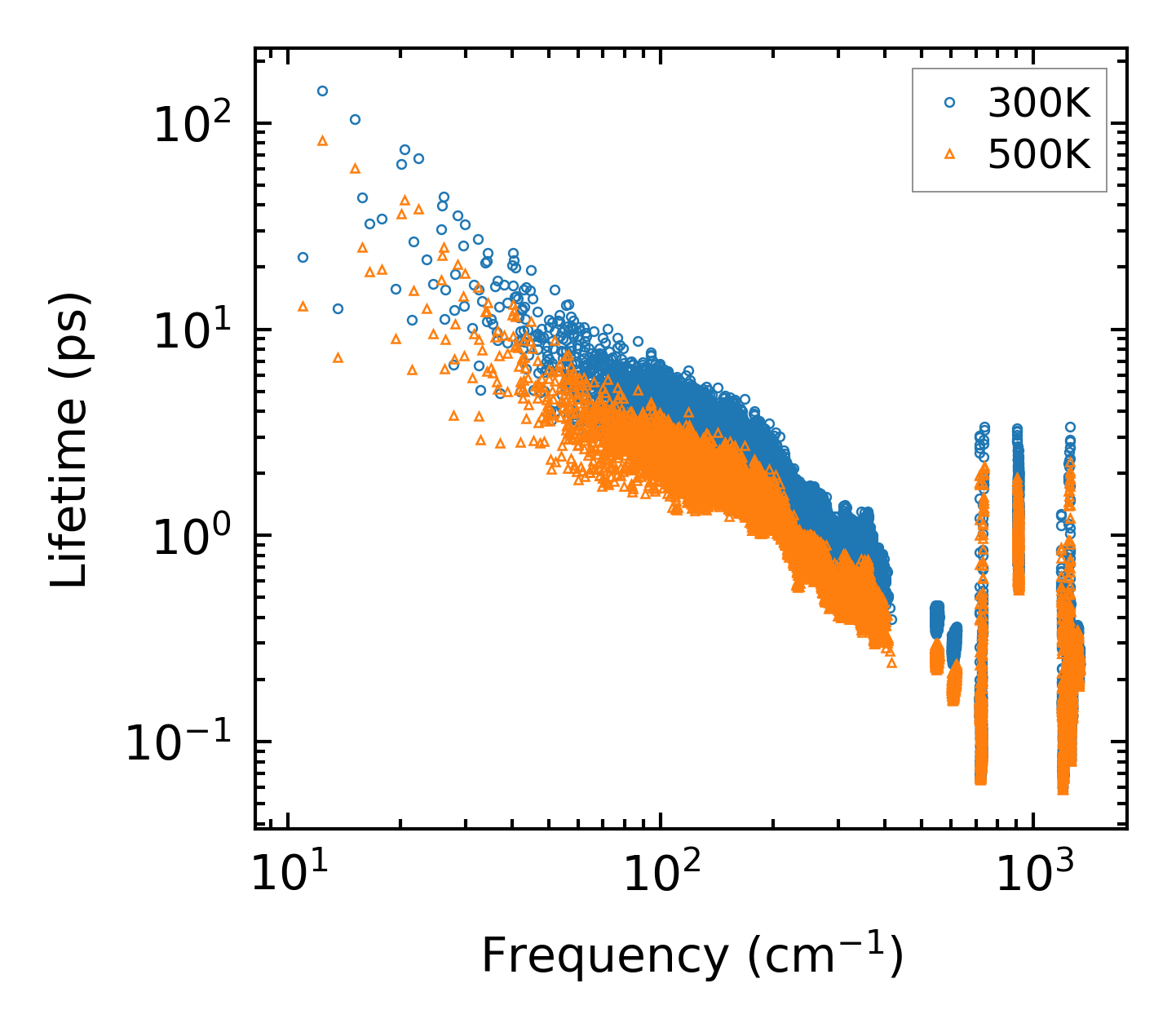

../../_images/fig_lifetime3546.png — (a) Phonon lifetime due to phonon-phonon scattering

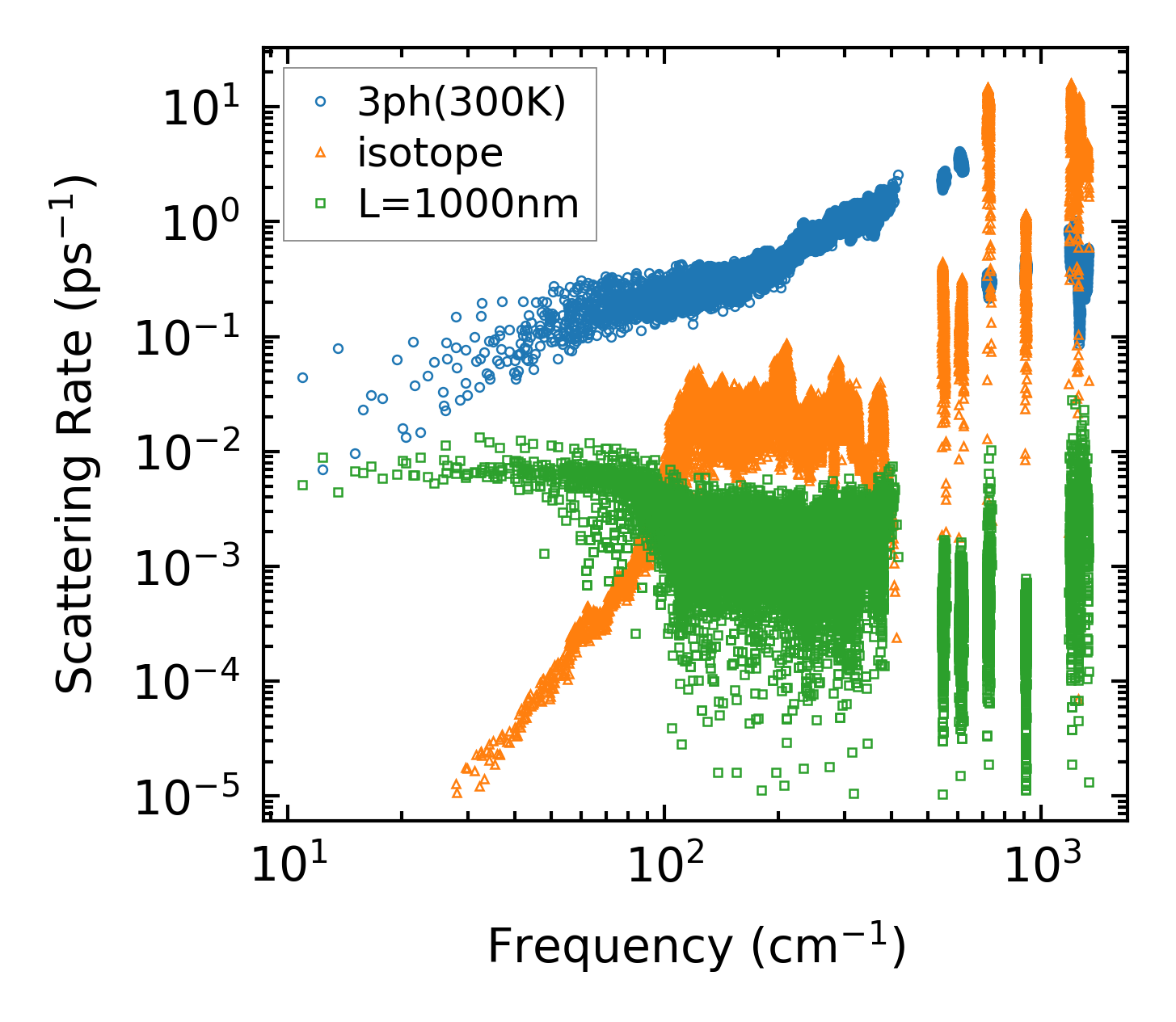

../../_images/fig_scat_rates3545.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

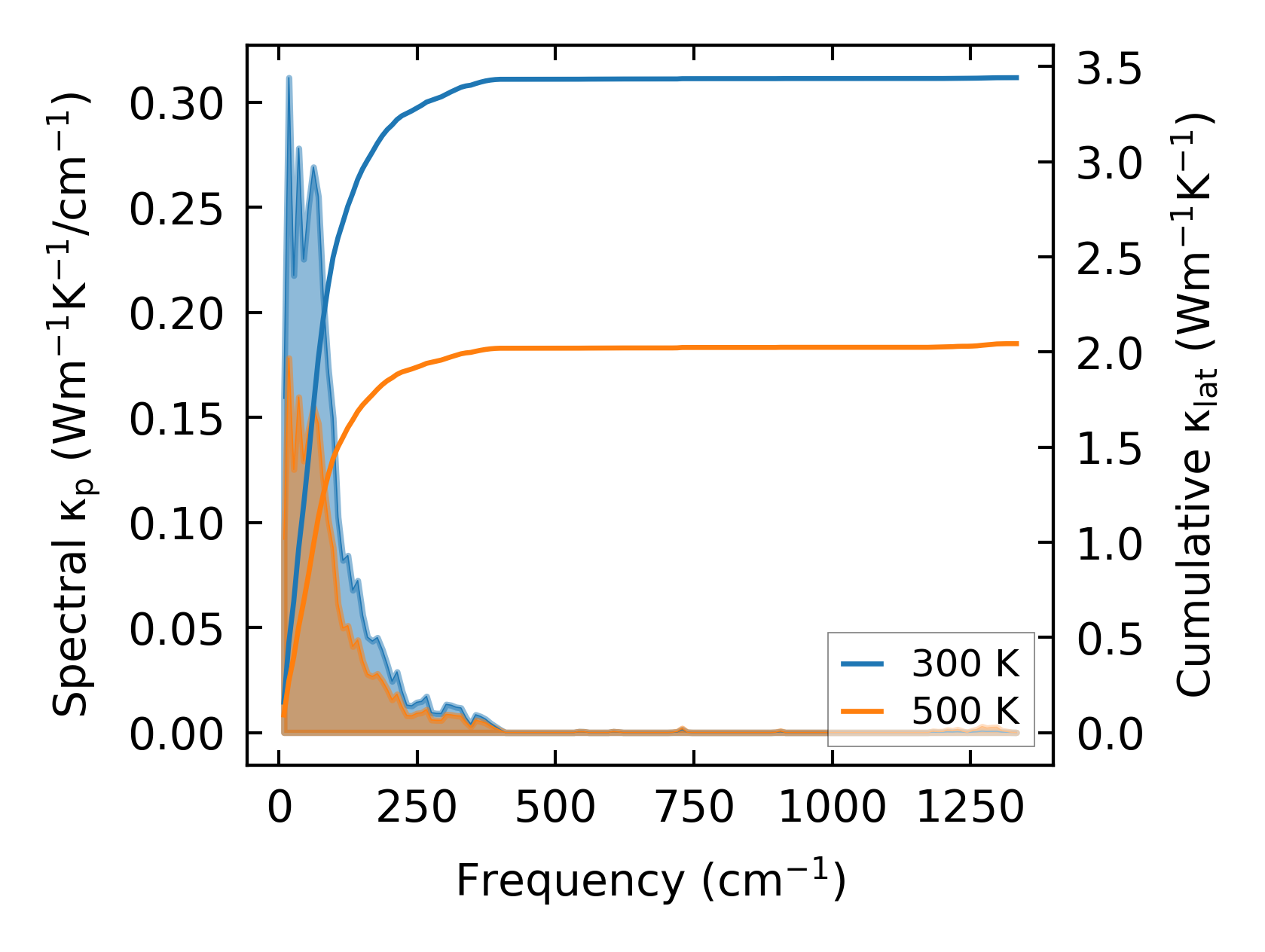

../../_images/fig_cumu_frequency3546.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3545.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc28715.png — (a) Force constants w.r.t atomic distance

Summary

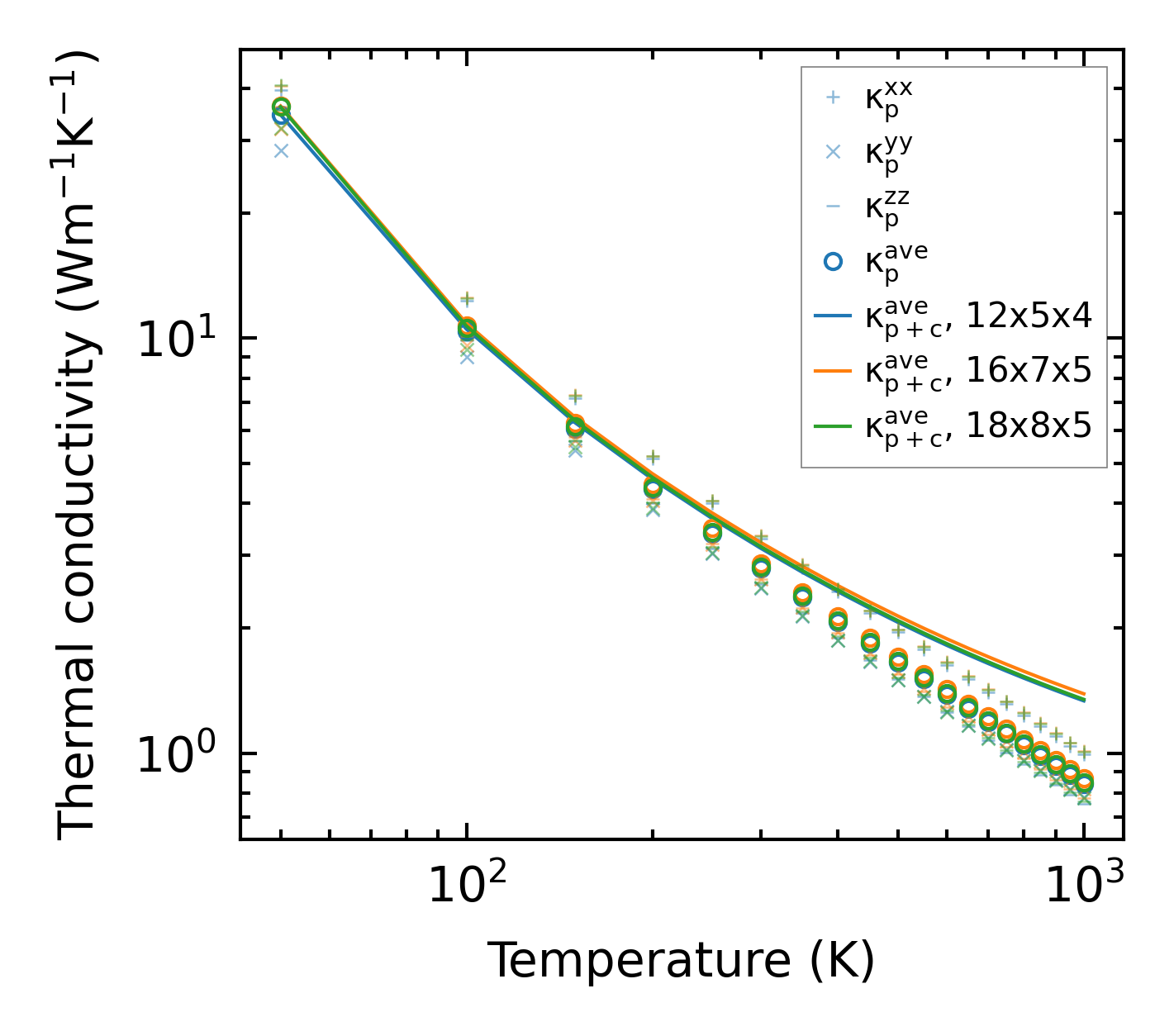

../../_images/fig_kappa6763.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times15695.png — (b) Computation time
