mp-554001/Nd3S3N/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-554001.tar.gz

Harmonic properties

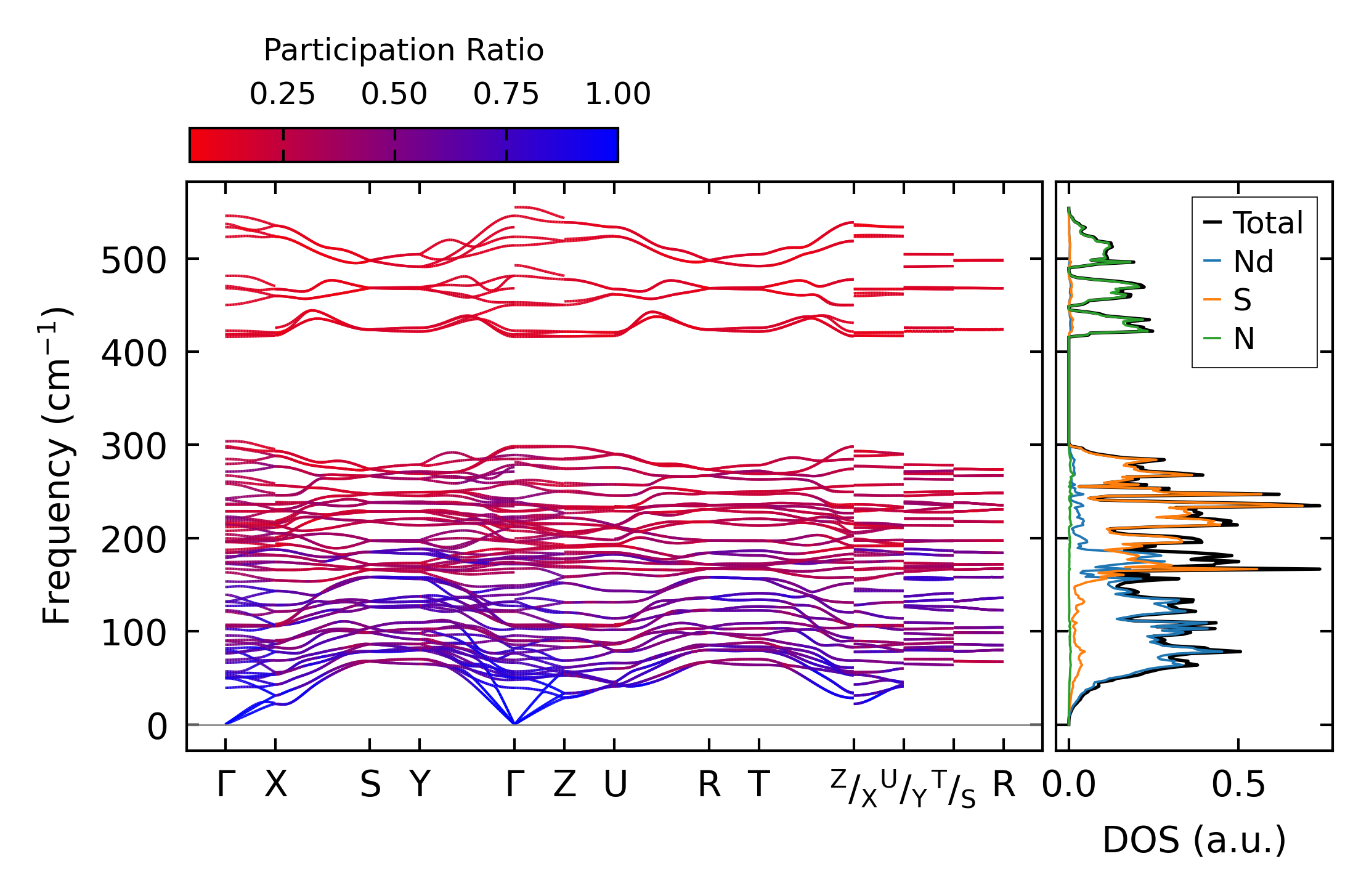

../../_images/fig_bandos_pr9236.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9236.png — (b) Thermodynamic properties

Grüneisen parameters

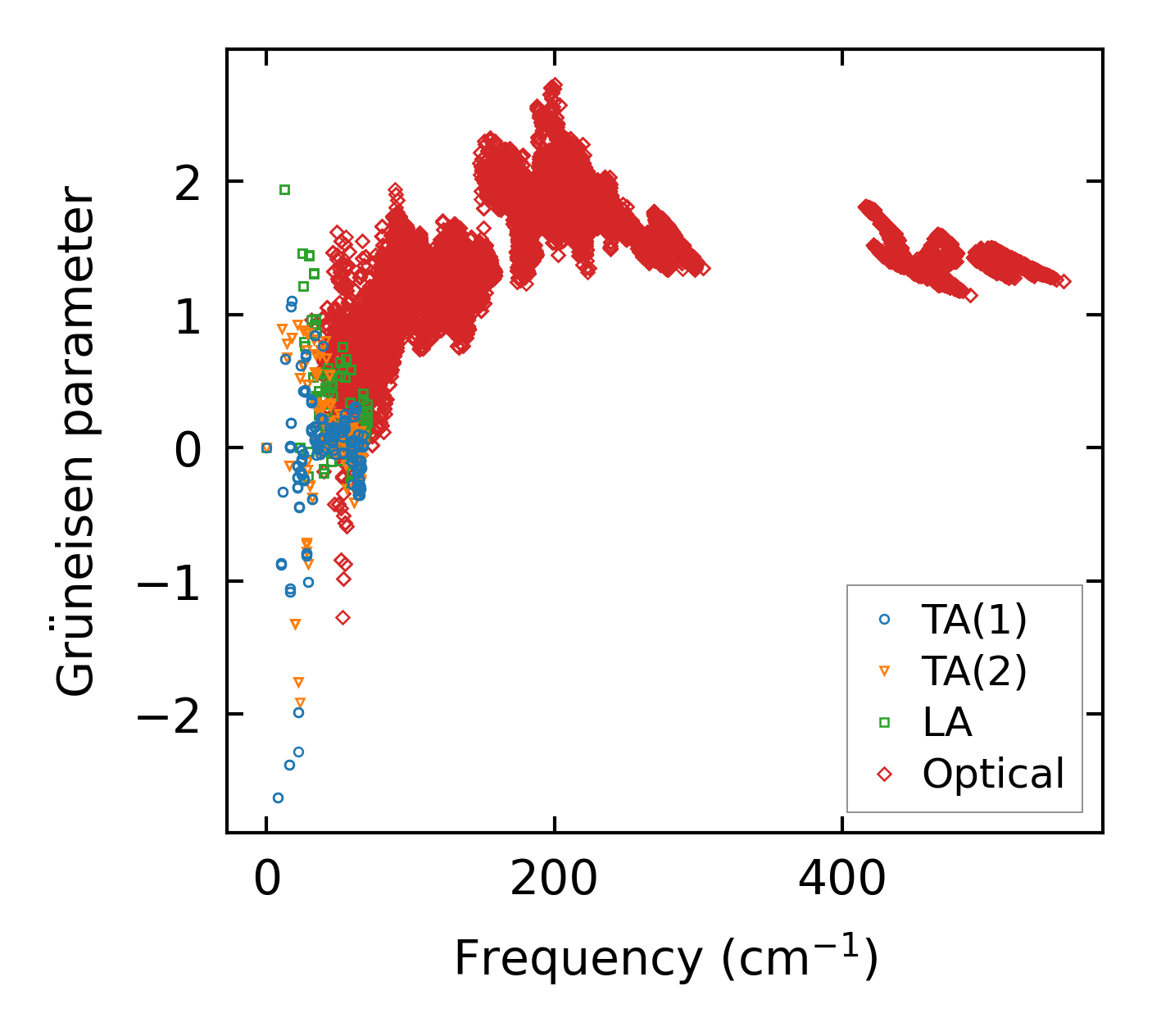

../../_images/fig_gru_all3682.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3682.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x17x5, supercell: 1x4x1

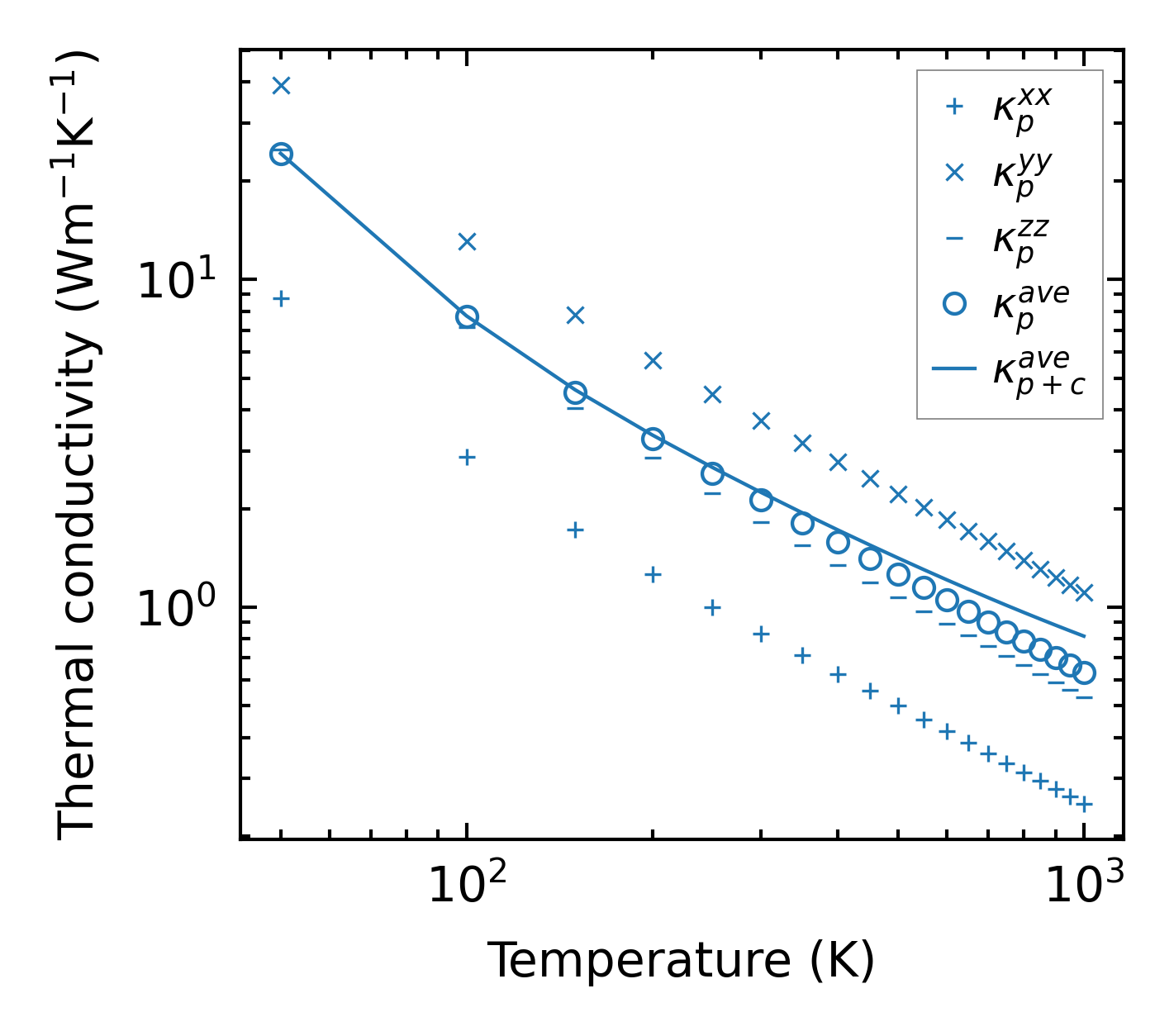

../../_images/fig_kappa6957.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3731.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

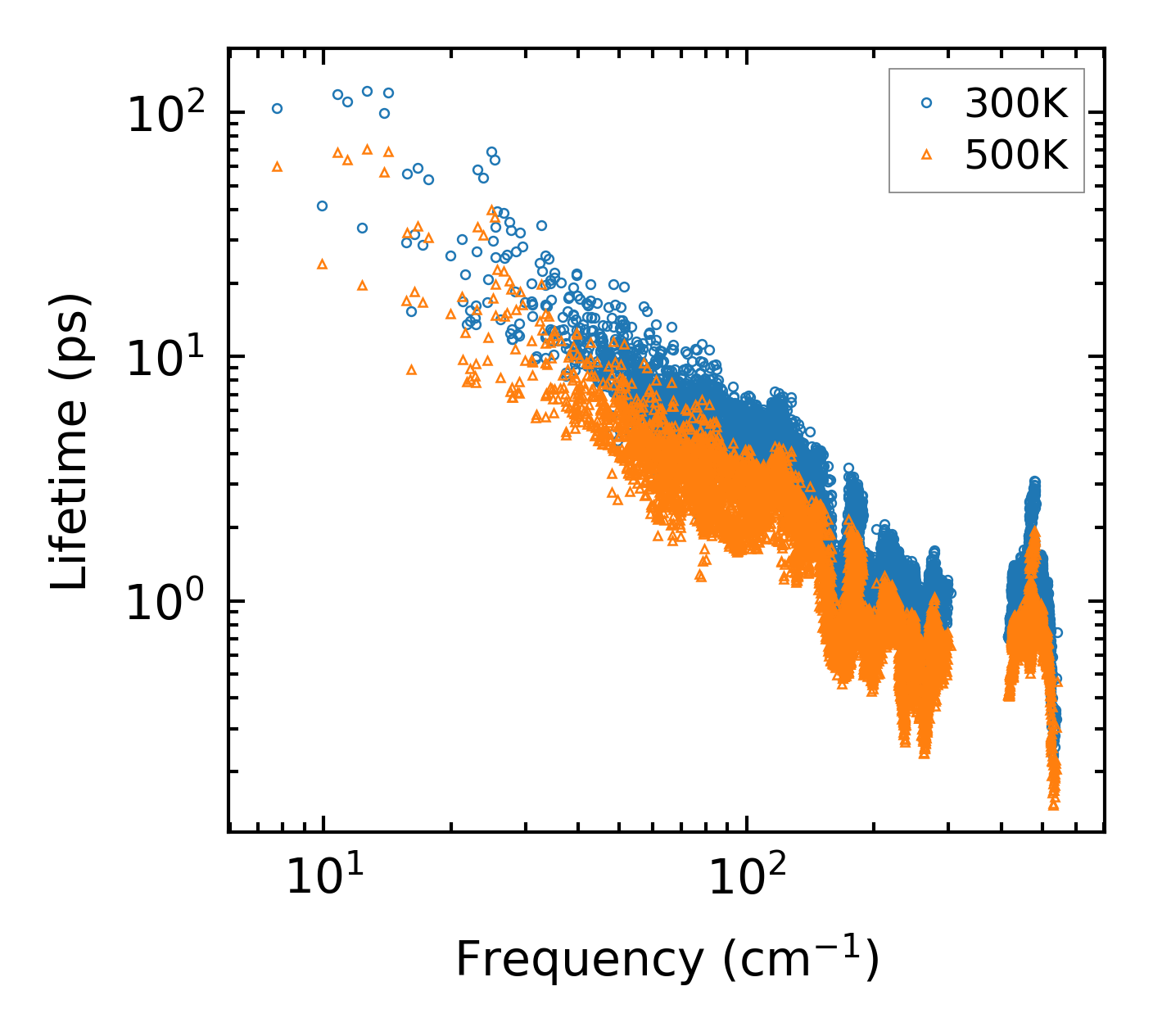

../../_images/fig_lifetime3648.png — (a) Phonon lifetime due to phonon-phonon scattering

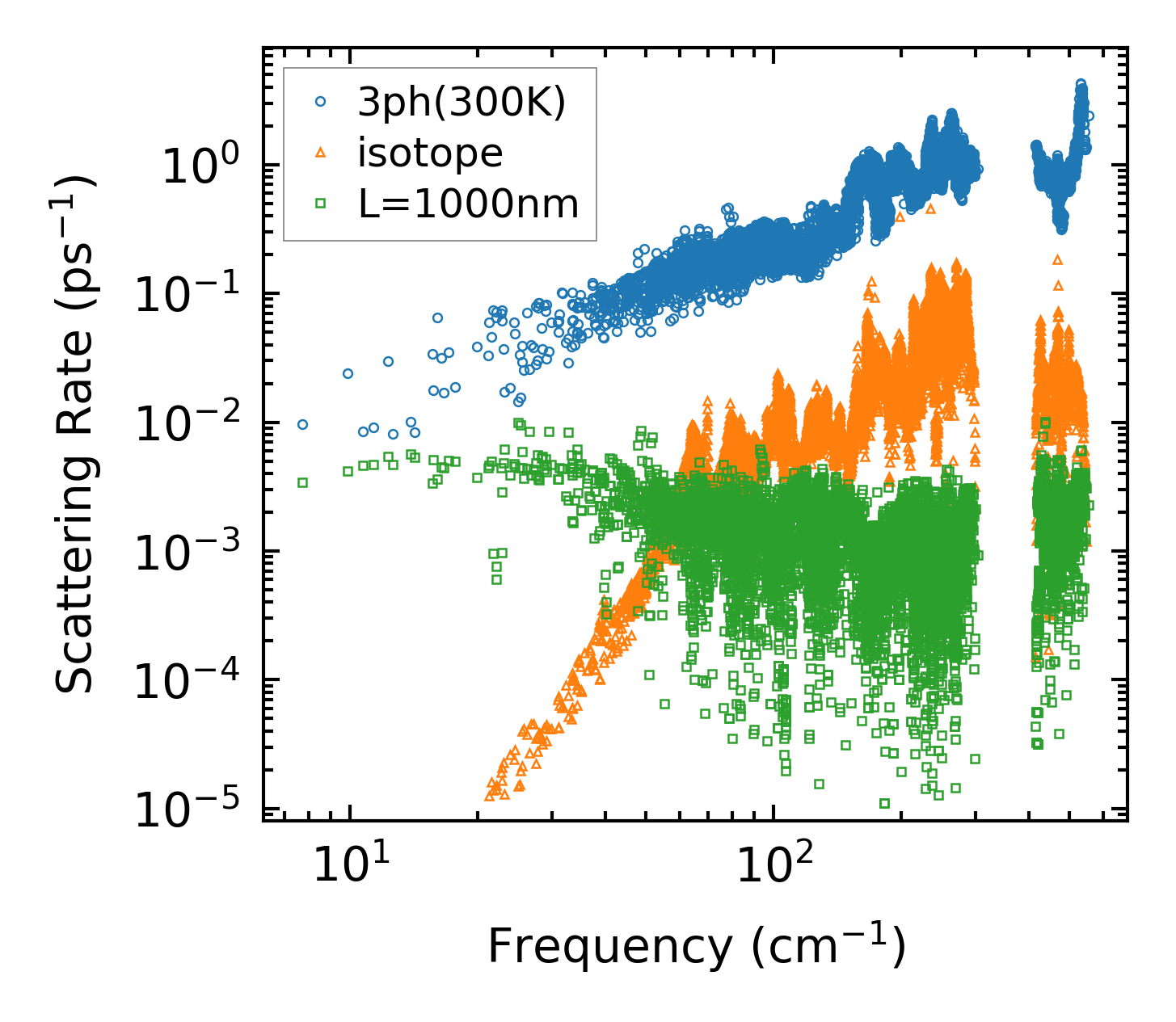

../../_images/fig_scat_rates3647.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

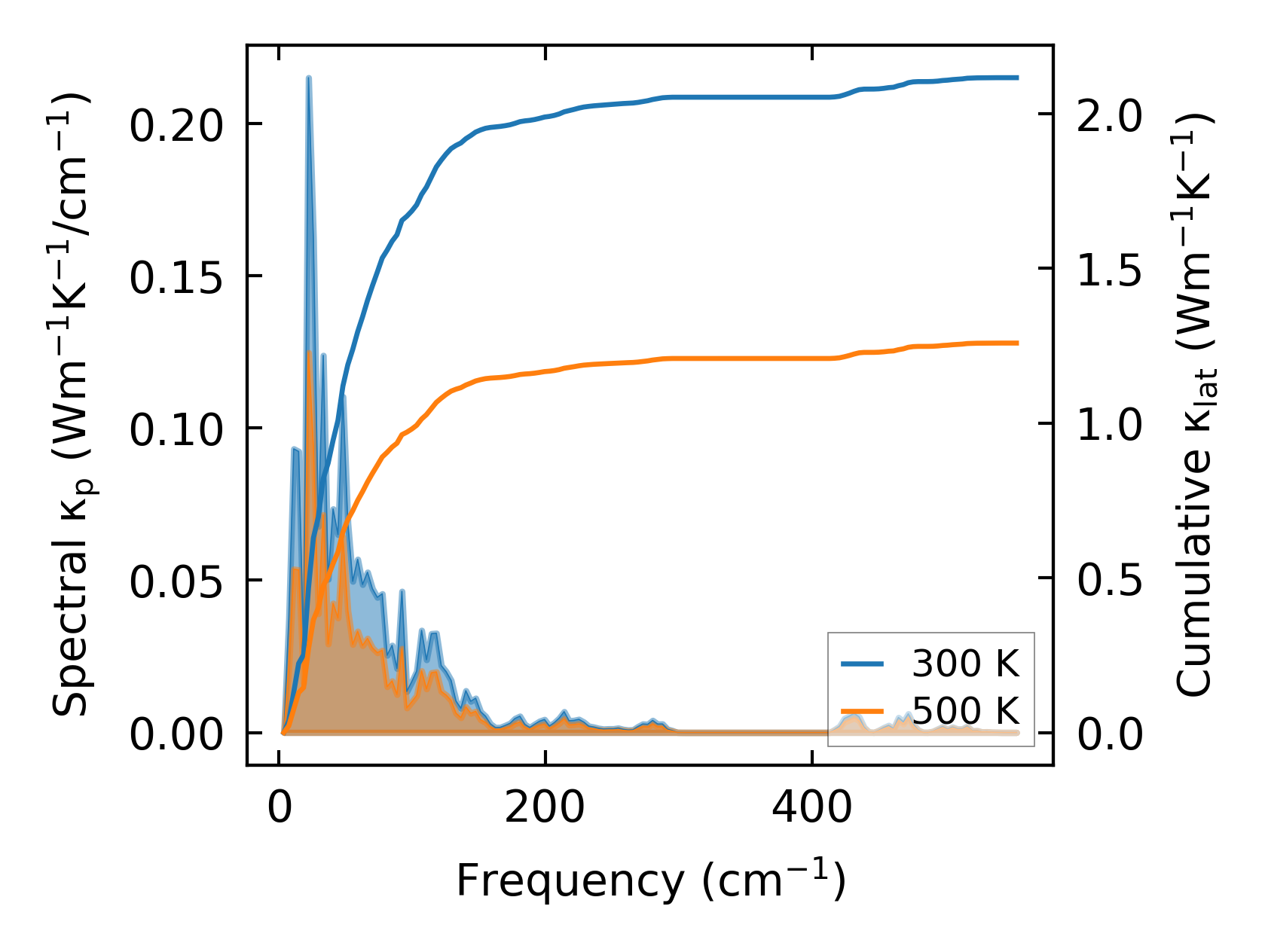

../../_images/fig_cumu_frequency3648.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

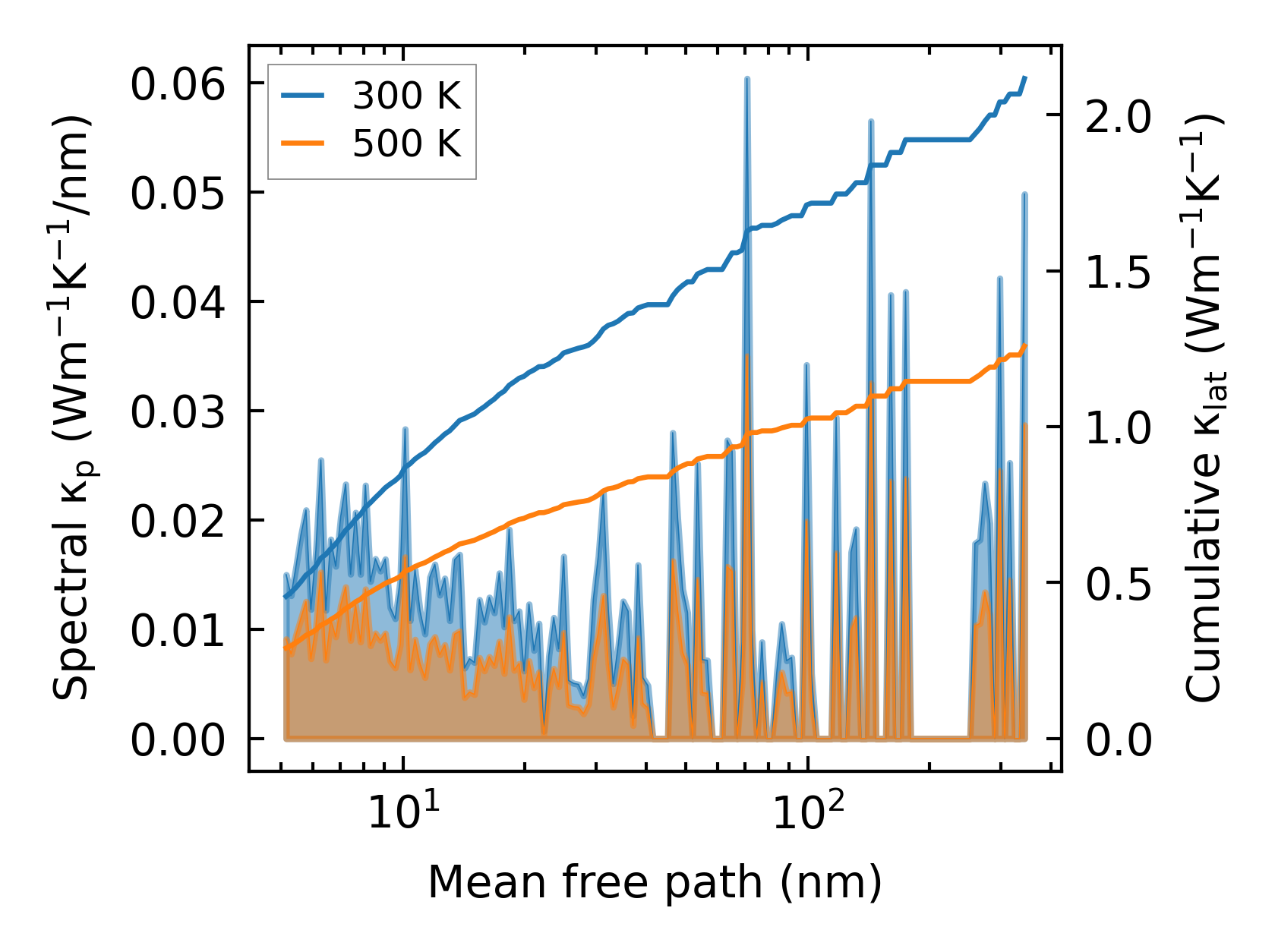

../../_images/fig_cumu_mfp3647.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

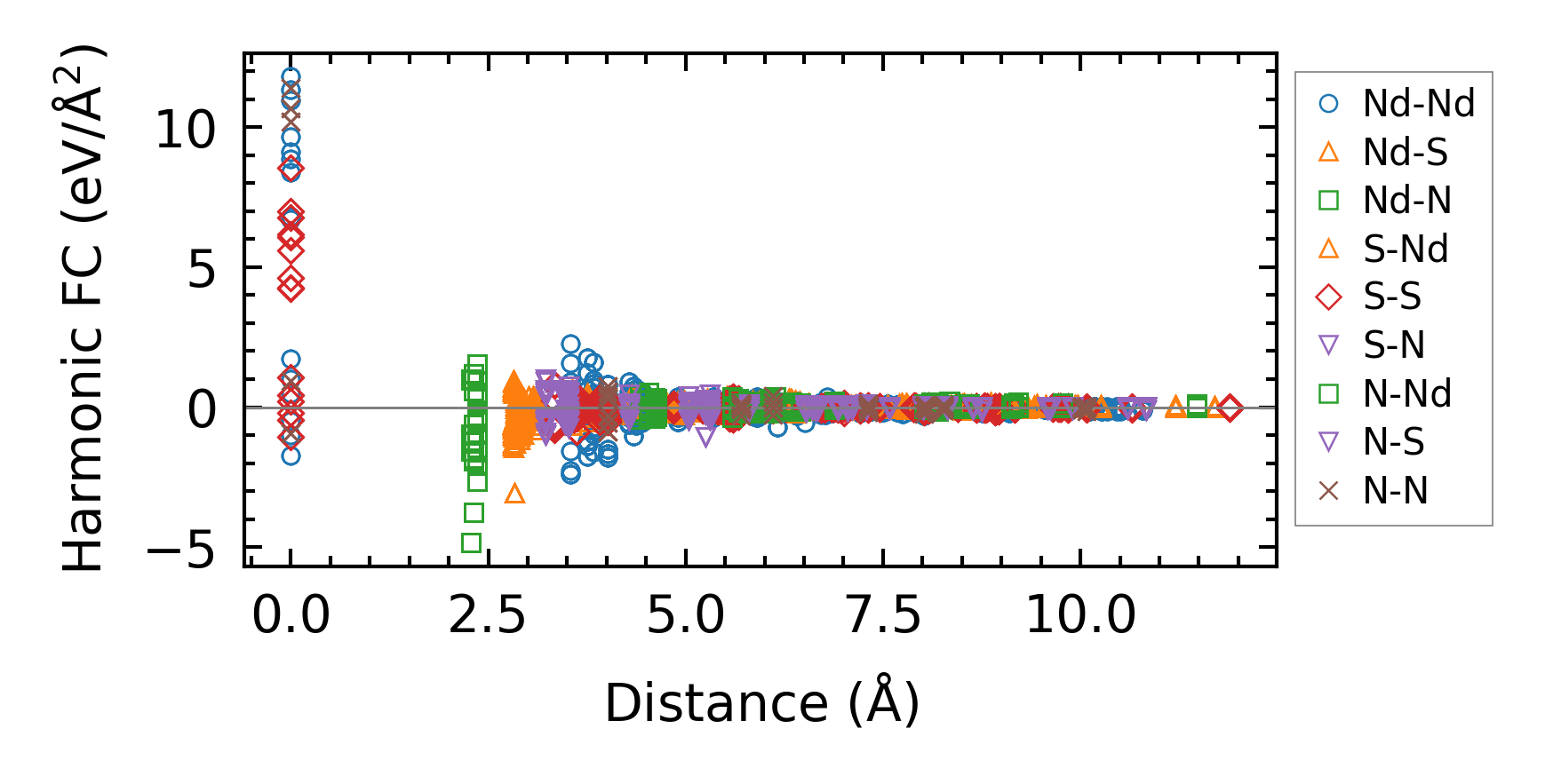

../../_images/fig_fc28998.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa6958.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times16104.png — (b) Computation time
