mp-554826/Pr3Si2ClO8/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-554826.tar.gz

Harmonic properties

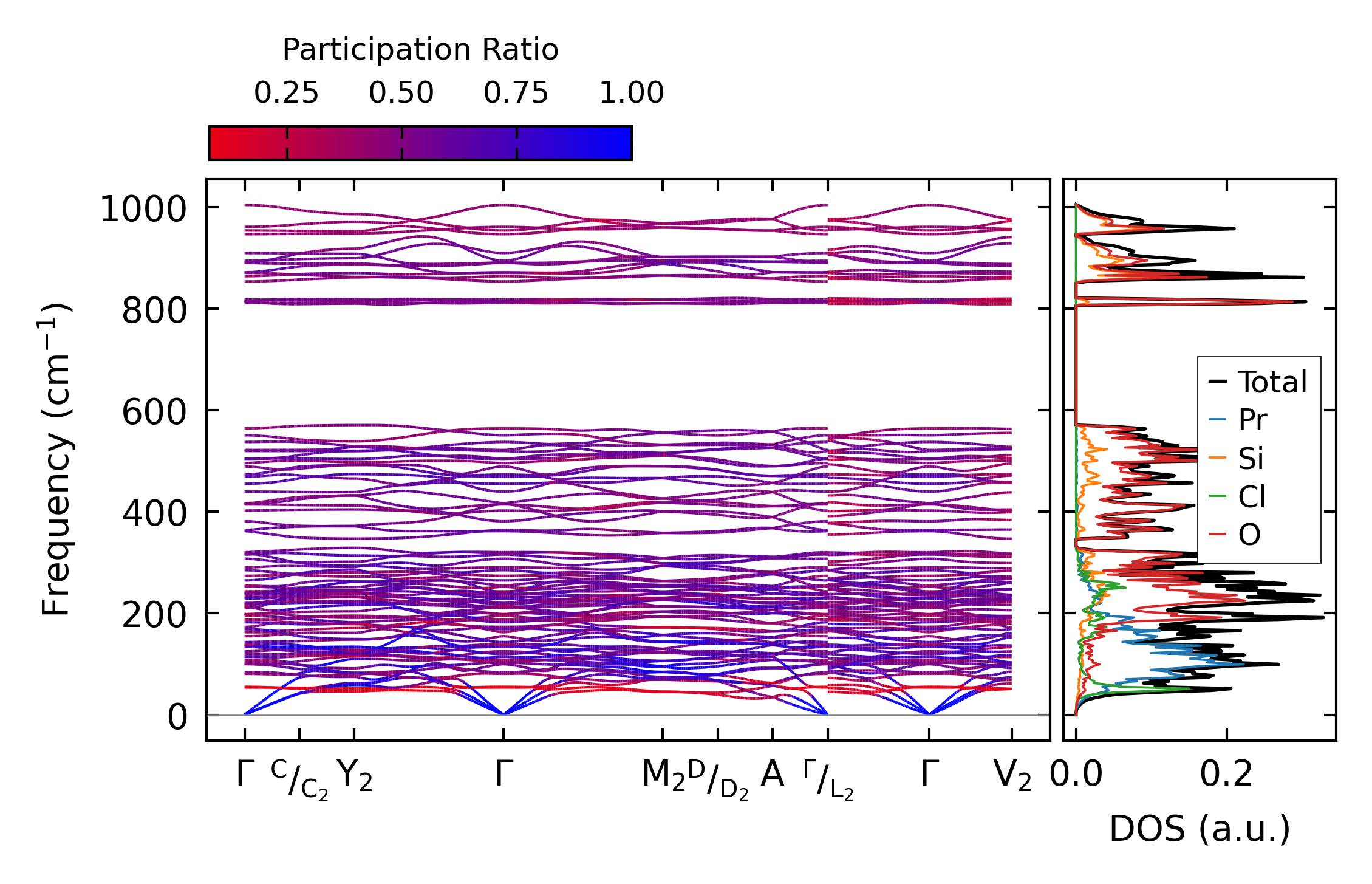

../../_images/fig_bandos_pr8779.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo8779.png — (b) Thermodynamic properties

Grüneisen parameters

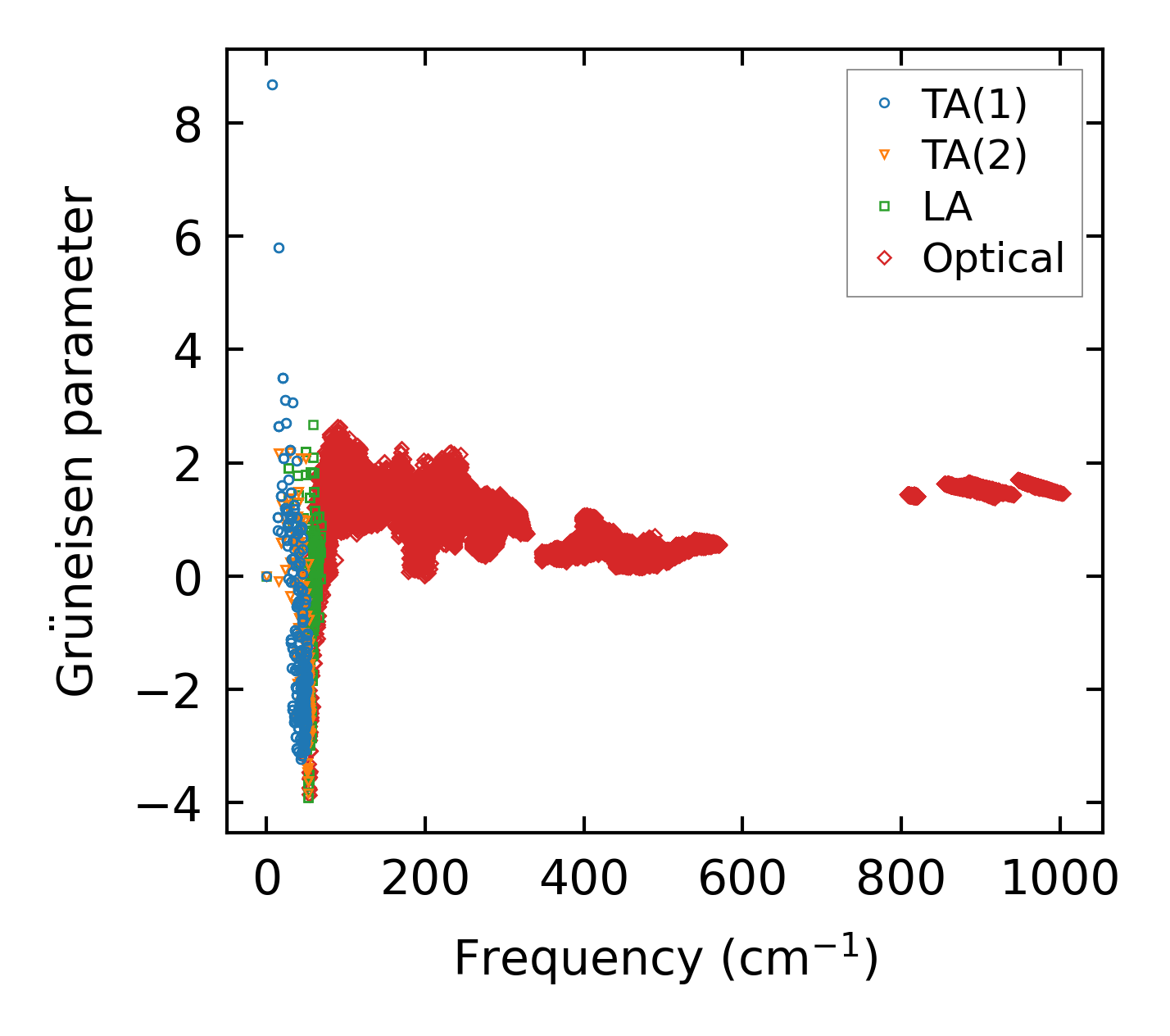

../../_images/fig_gru_all3535.png — (a) Grüneisen parameters

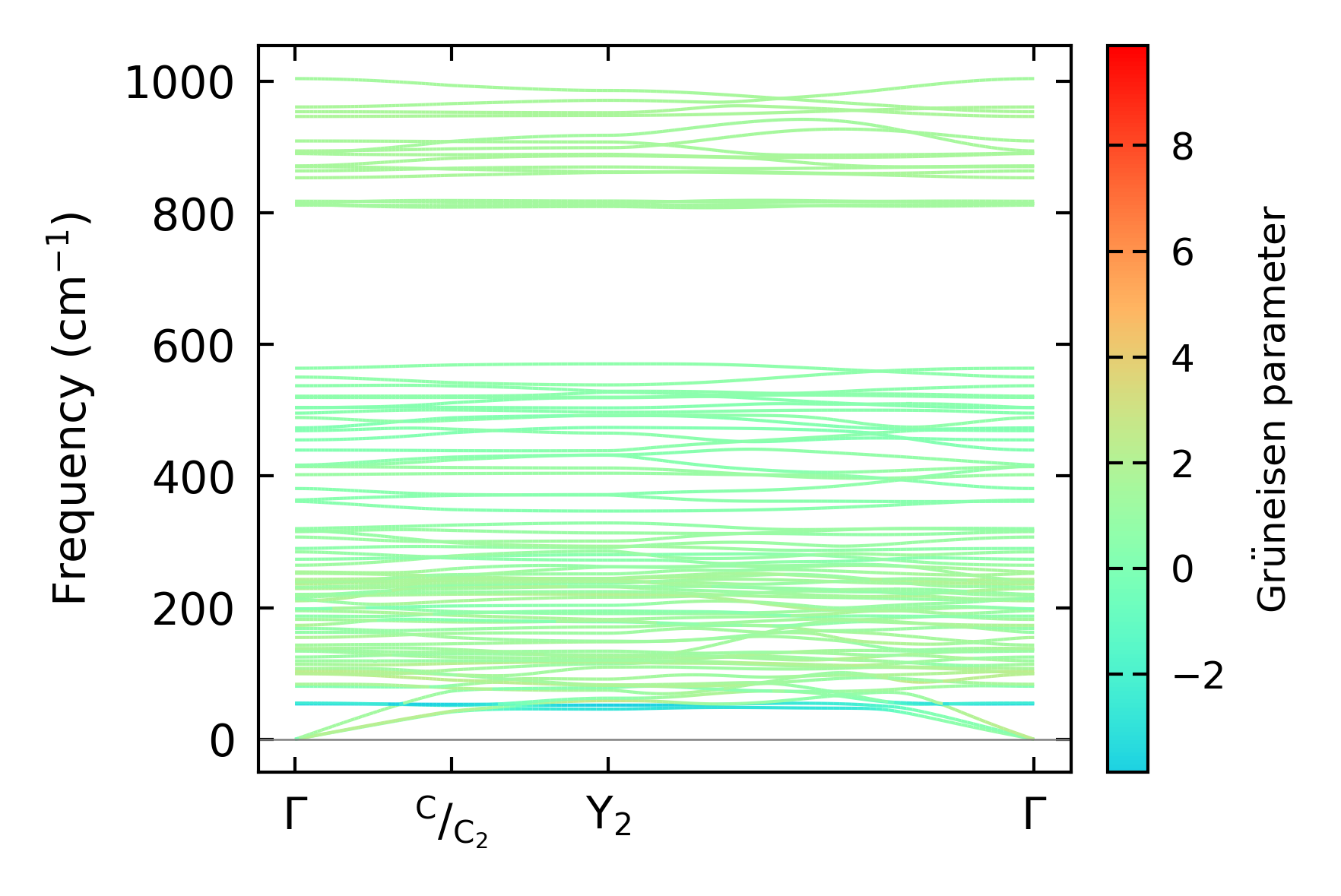

../../_images/fig_gruneisen3535.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x8, supercell: 1x2x1

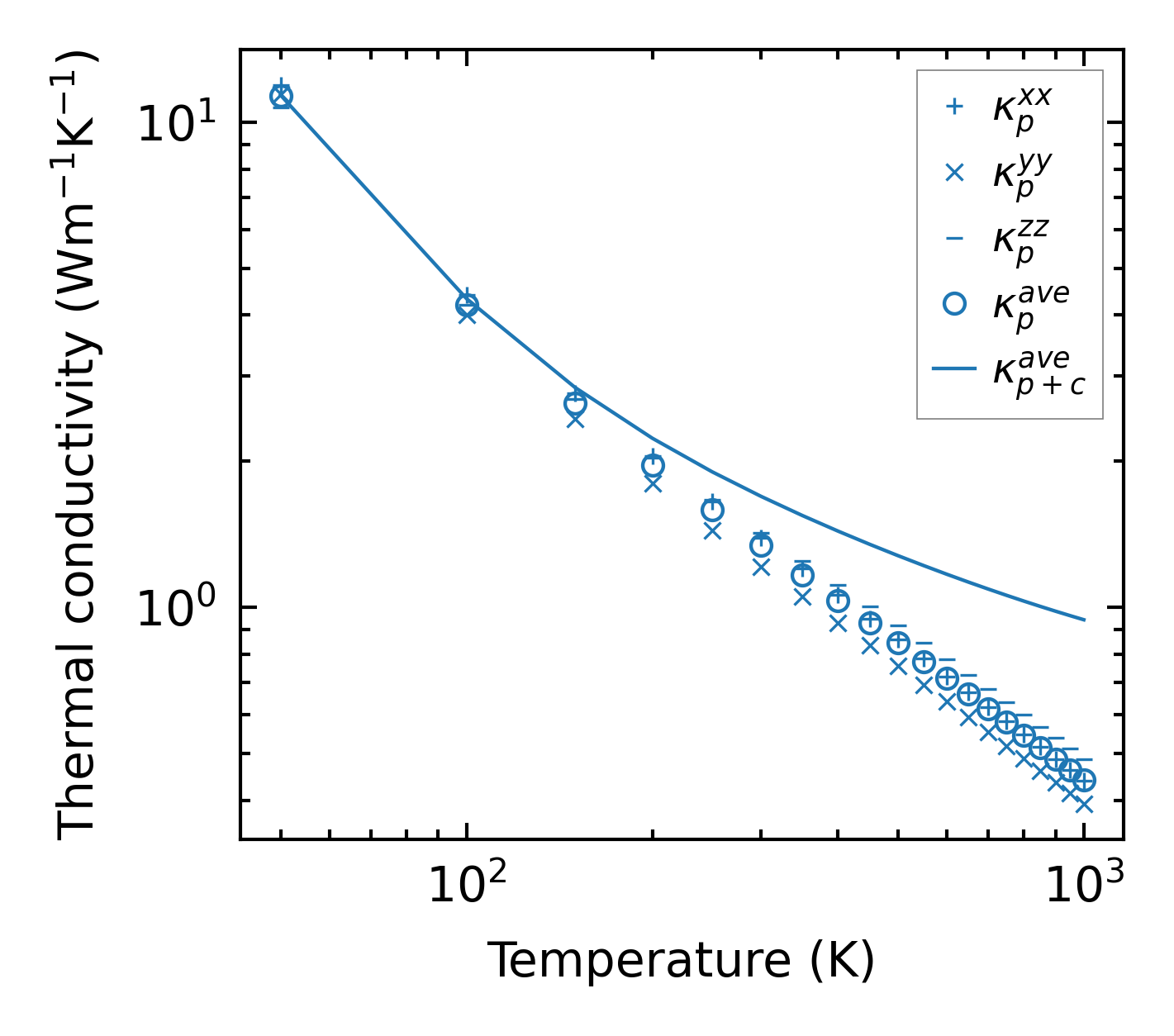

../../_images/fig_kappa6684.png — (a) Temperature-dependent lattice thermal conductivity

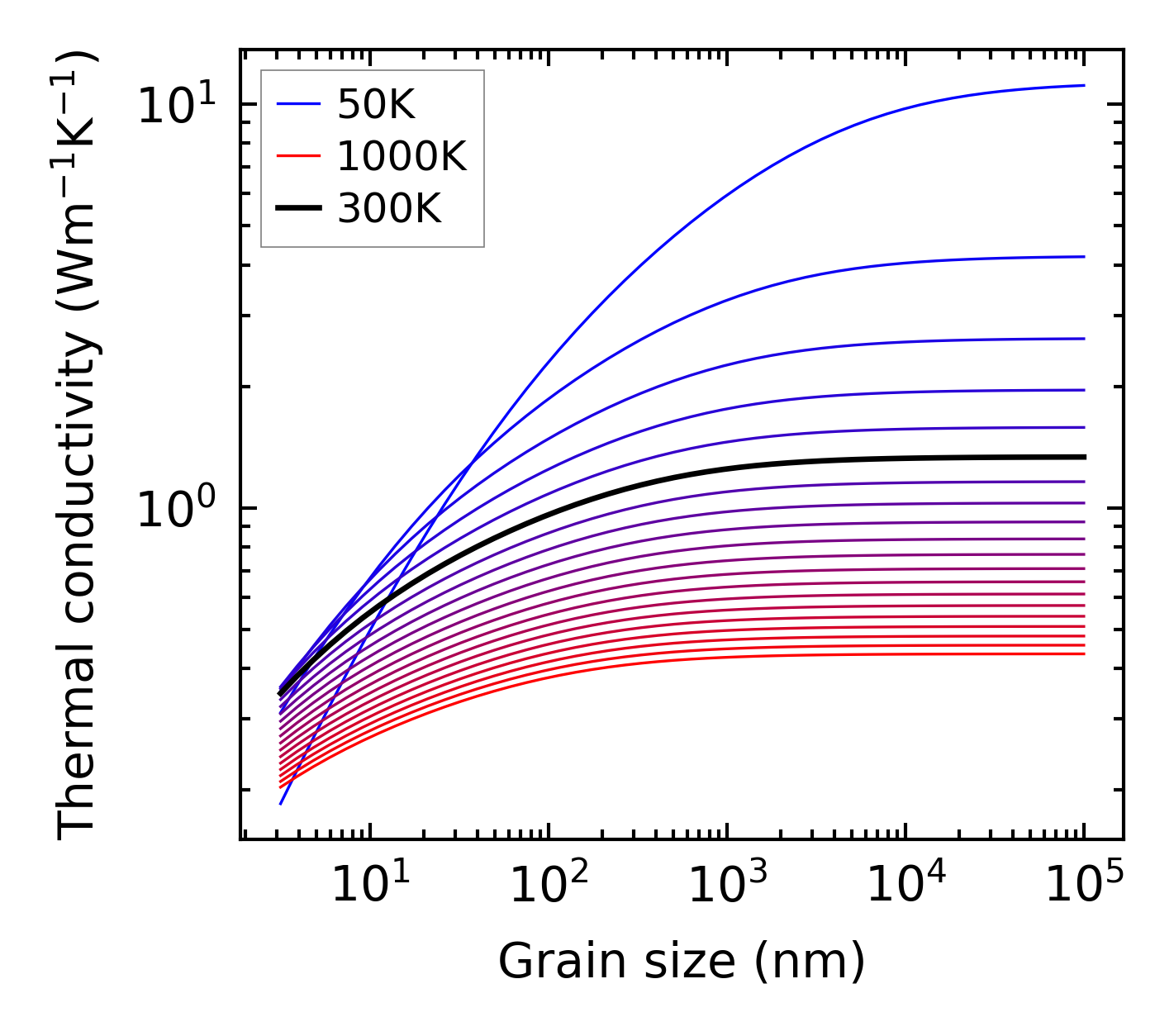

../../_images/fig_kappa_vs_grain_size3579.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

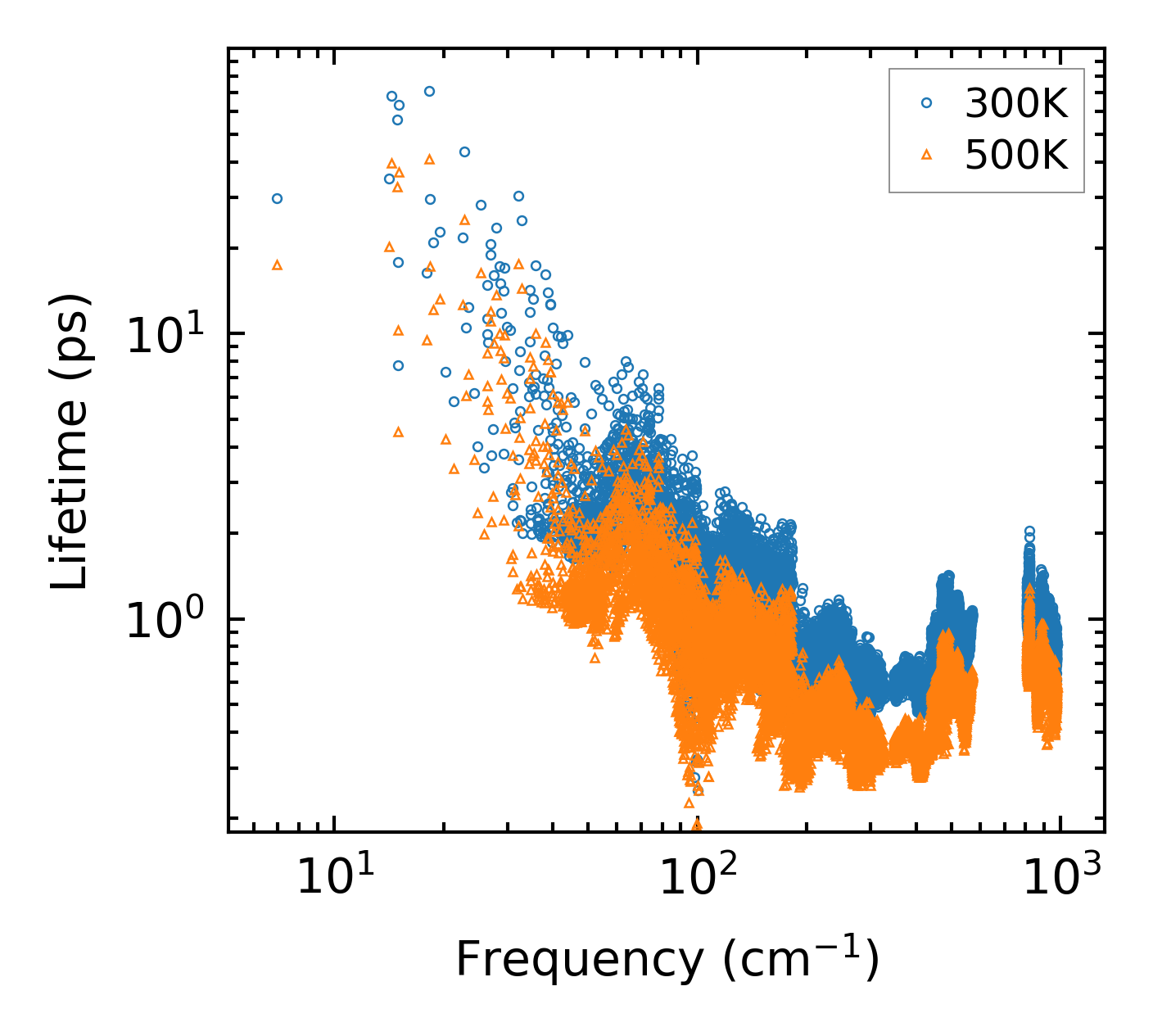

../../_images/fig_lifetime3502.png — (a) Phonon lifetime due to phonon-phonon scattering

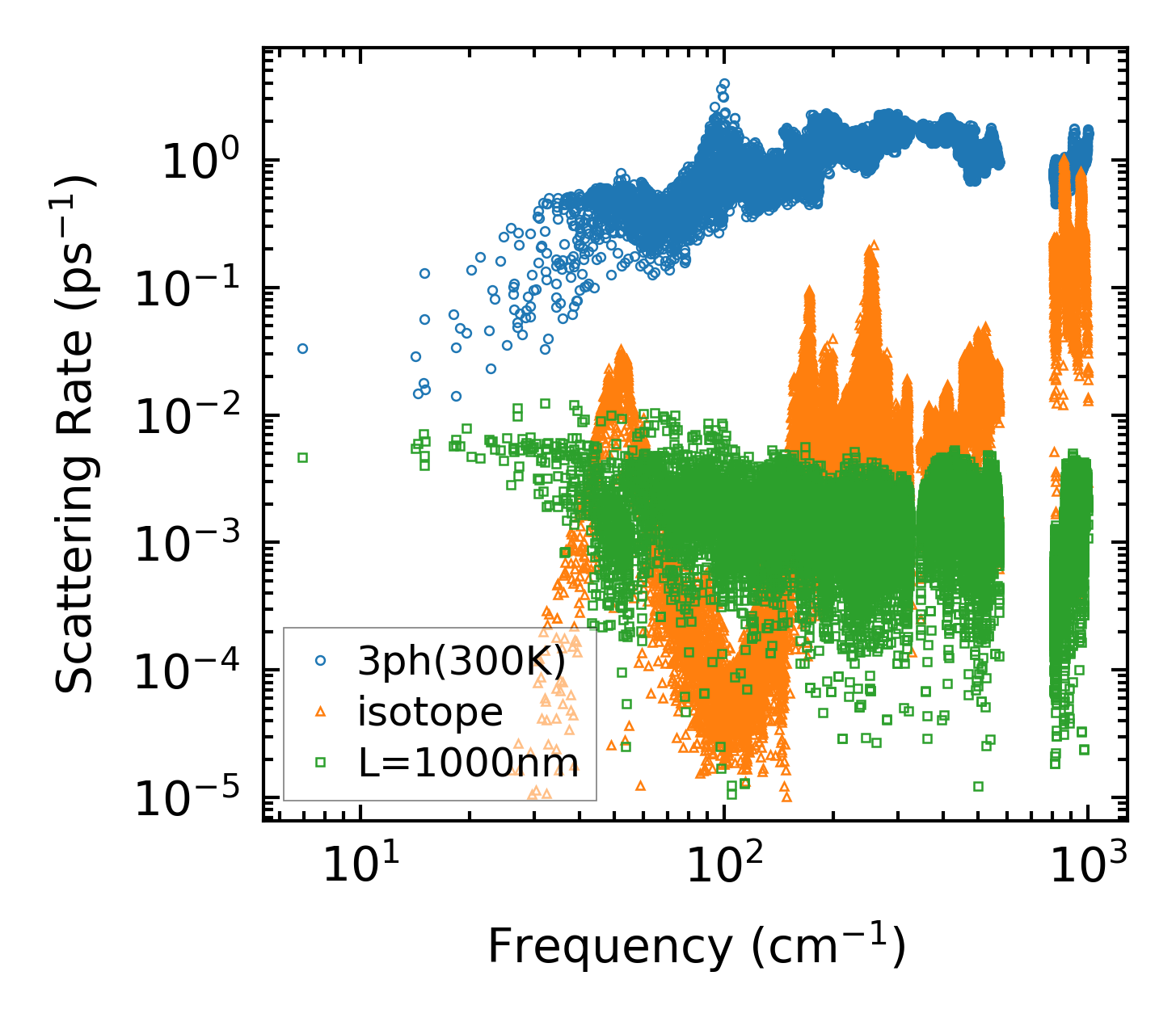

../../_images/fig_scat_rates3501.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

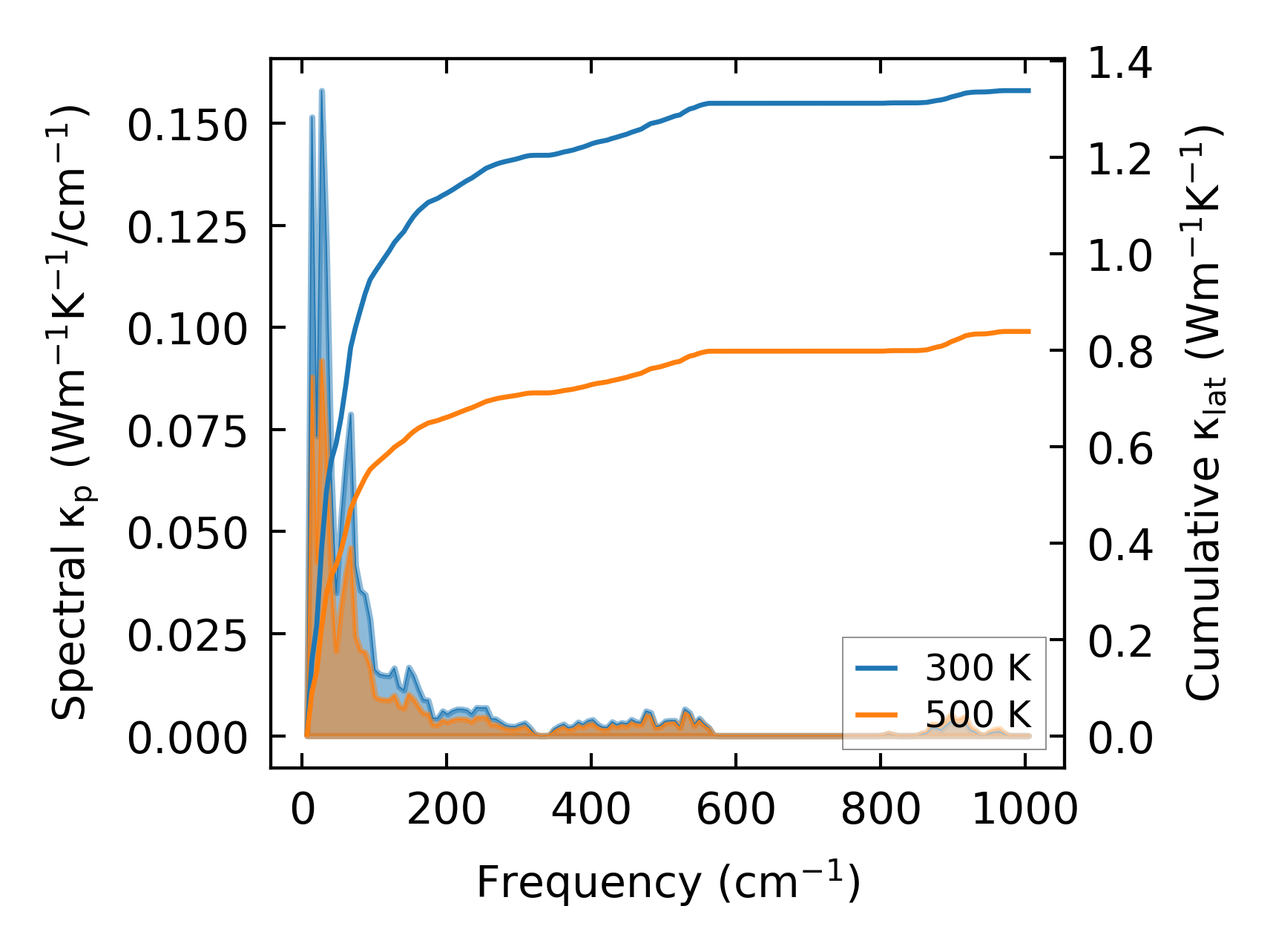

../../_images/fig_cumu_frequency3502.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

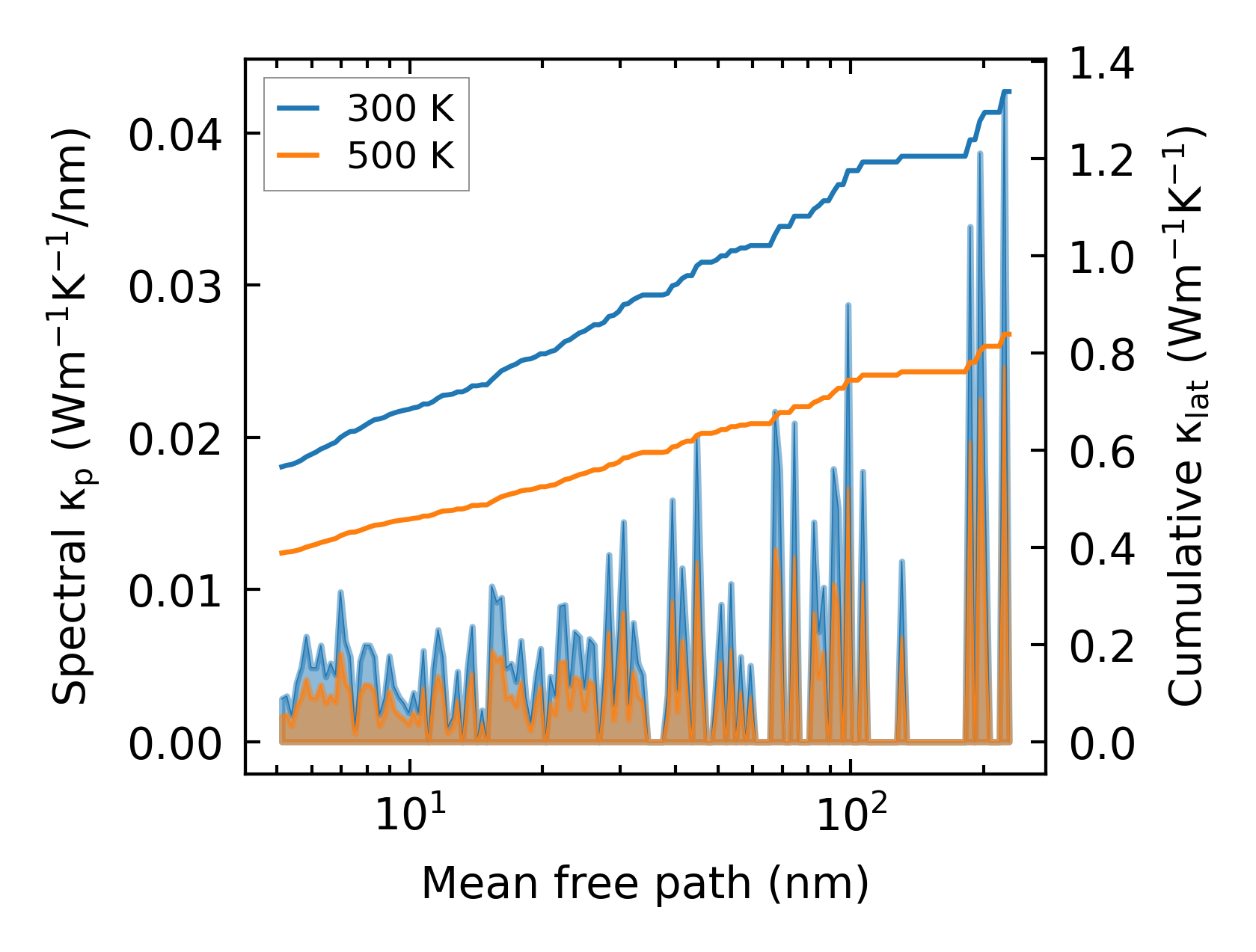

../../_images/fig_cumu_mfp3501.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

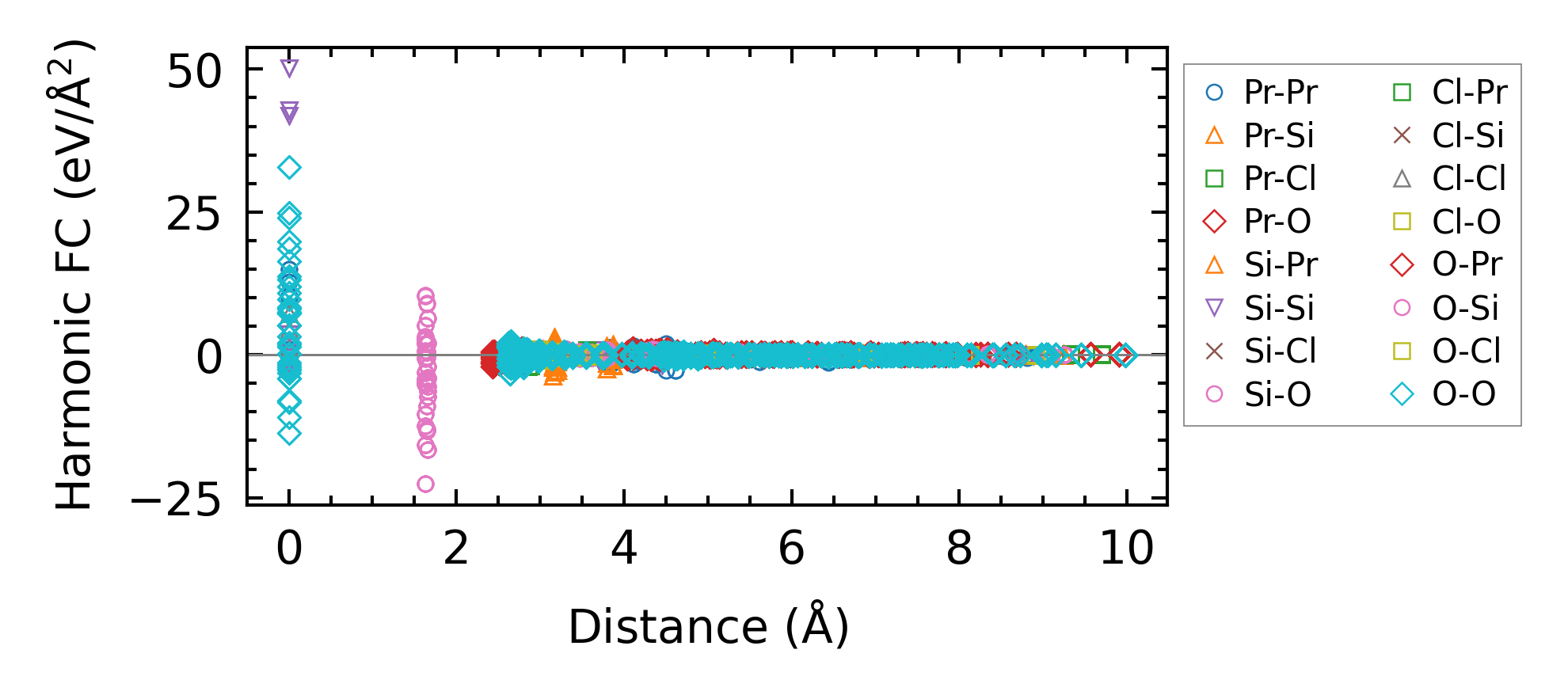

../../_images/fig_fc28540.png — (a) Force constants w.r.t atomic distance

Summary

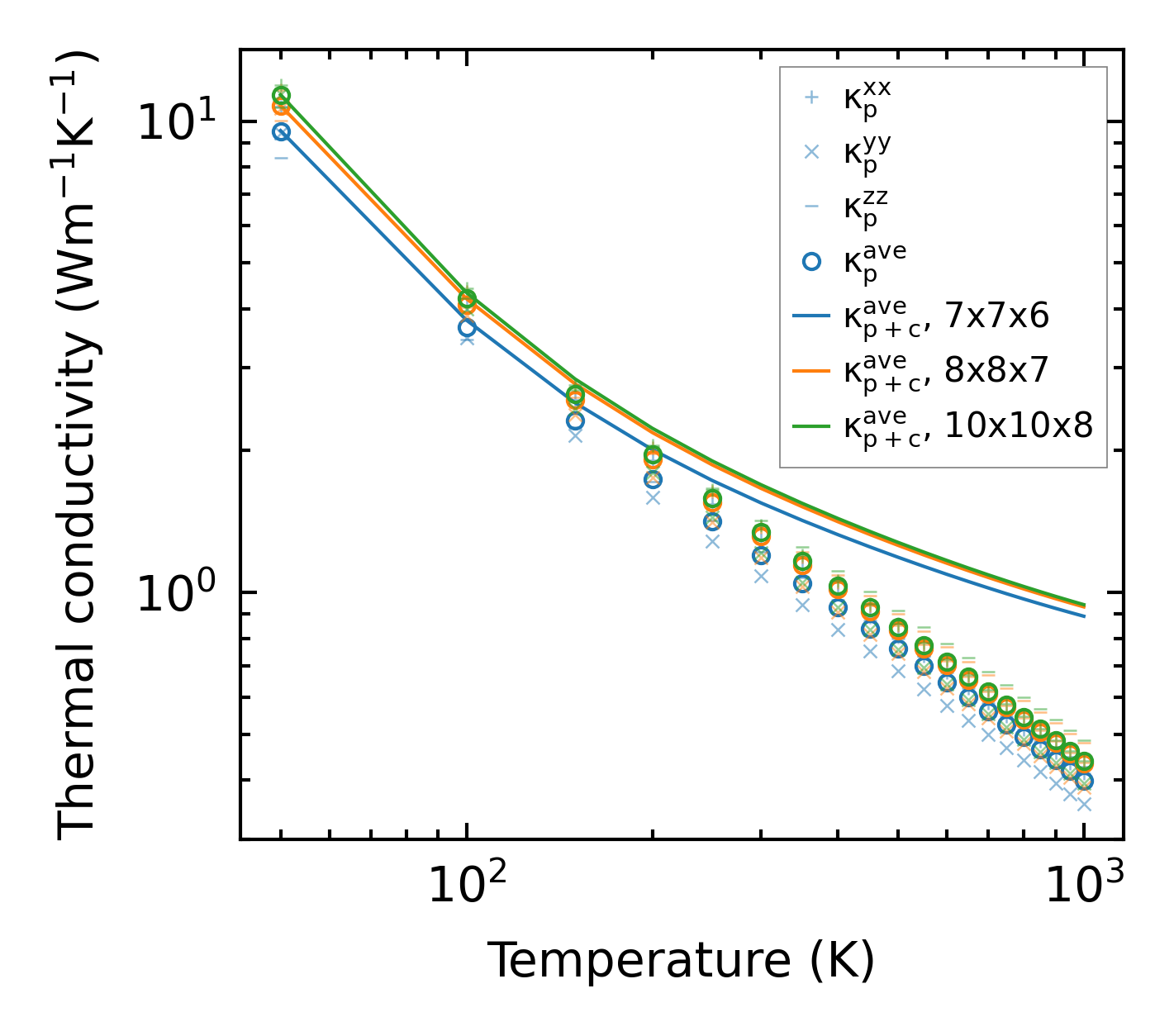

../../_images/fig_kappa6685.png — (a) Temperature-dependent lattice thermal conductivity

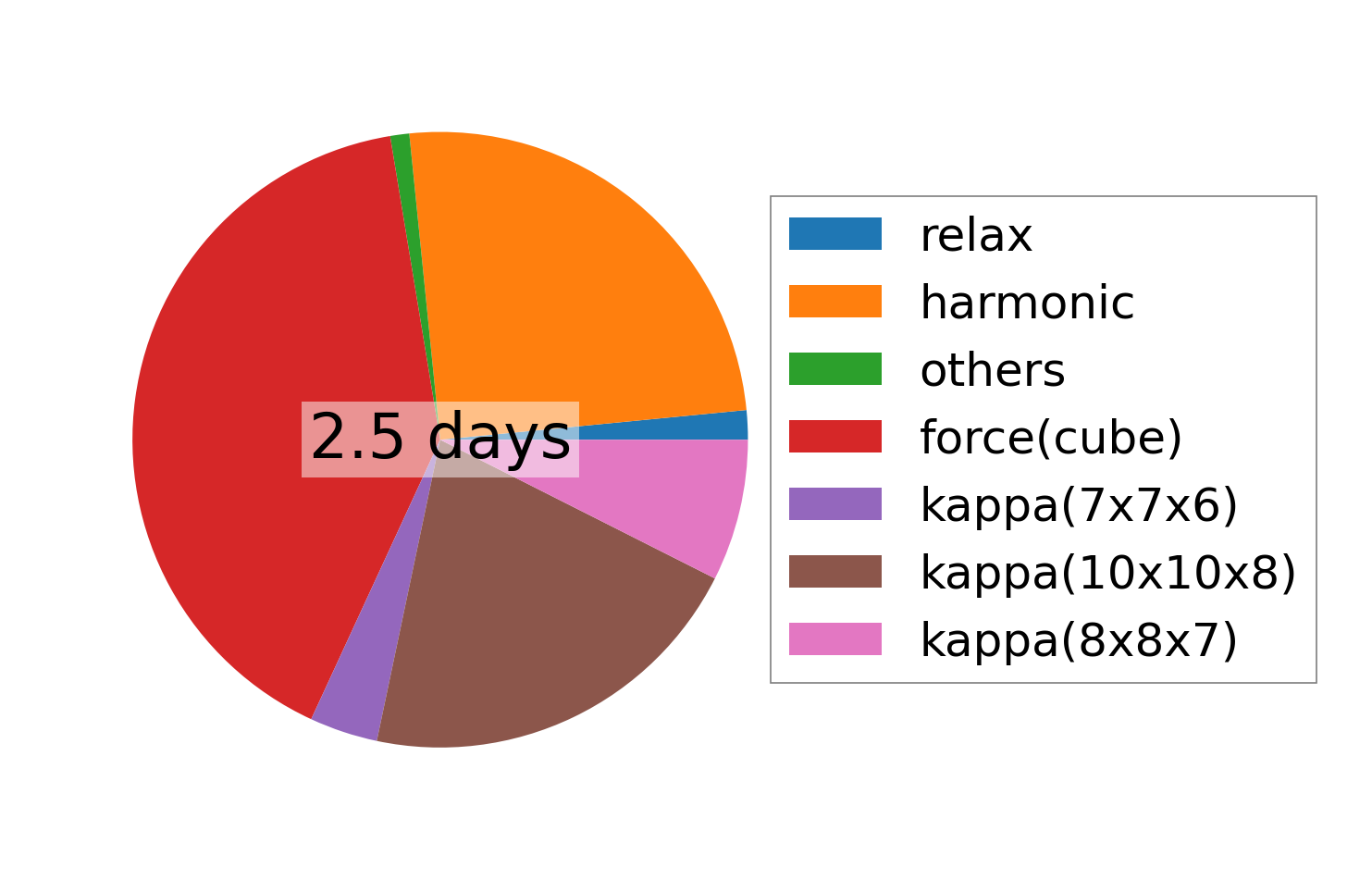

../../_images/fig_times15389.png — (b) Computation time
