mp-554218-2/Ti4P6PbO24/anharm

Space group: R-3 (148)
Link: Materials Project
Download: mp-554218-2.tar.gz

Equation of state

../../_images/fig_bm4510.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr8939.png — (a) Phonon dispersion with participation ratio and DOS

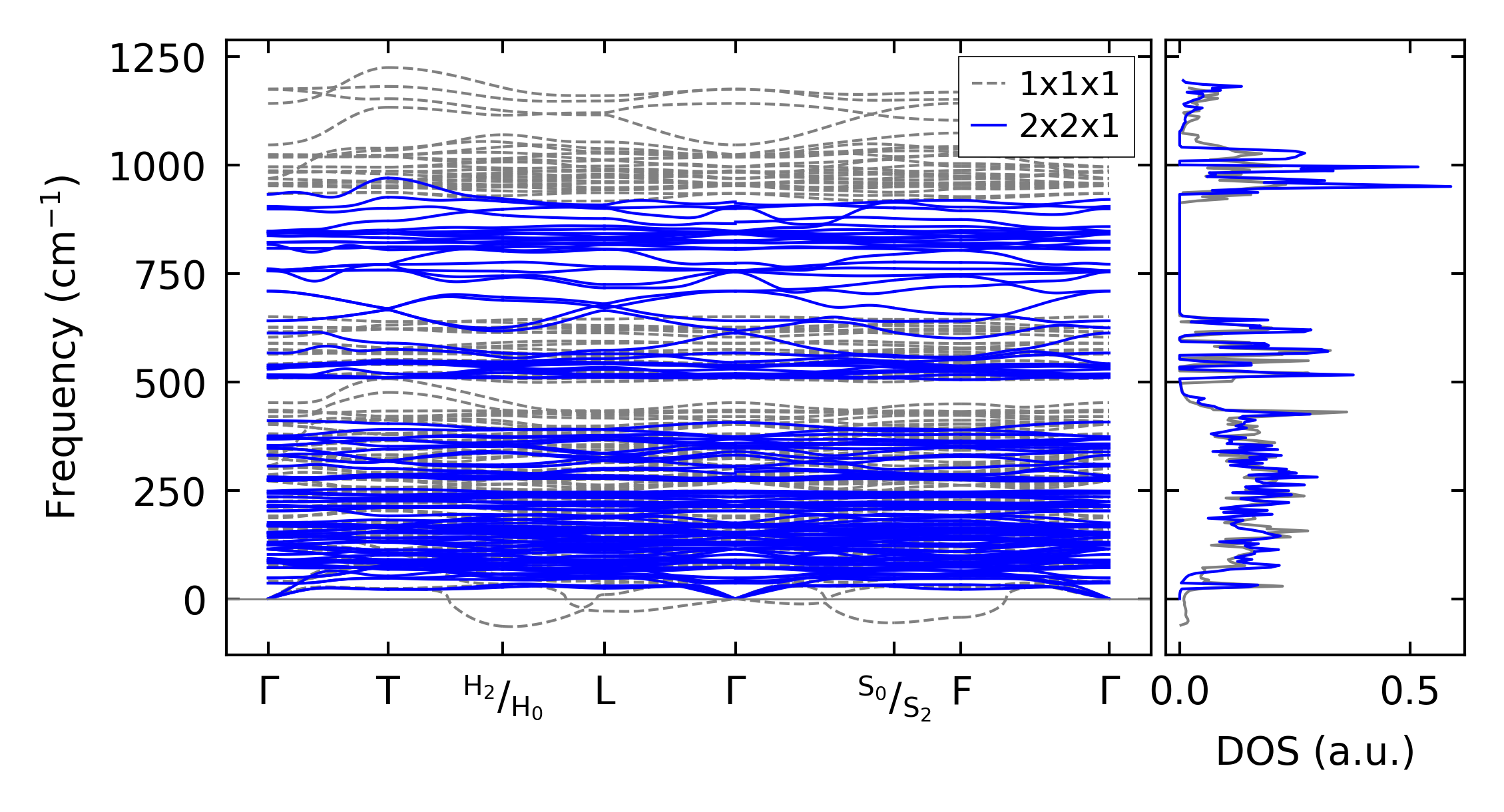

../../_images/fig_bandos12609.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo8939.png — (c) Thermodynamic properties

Grüneisen parameters

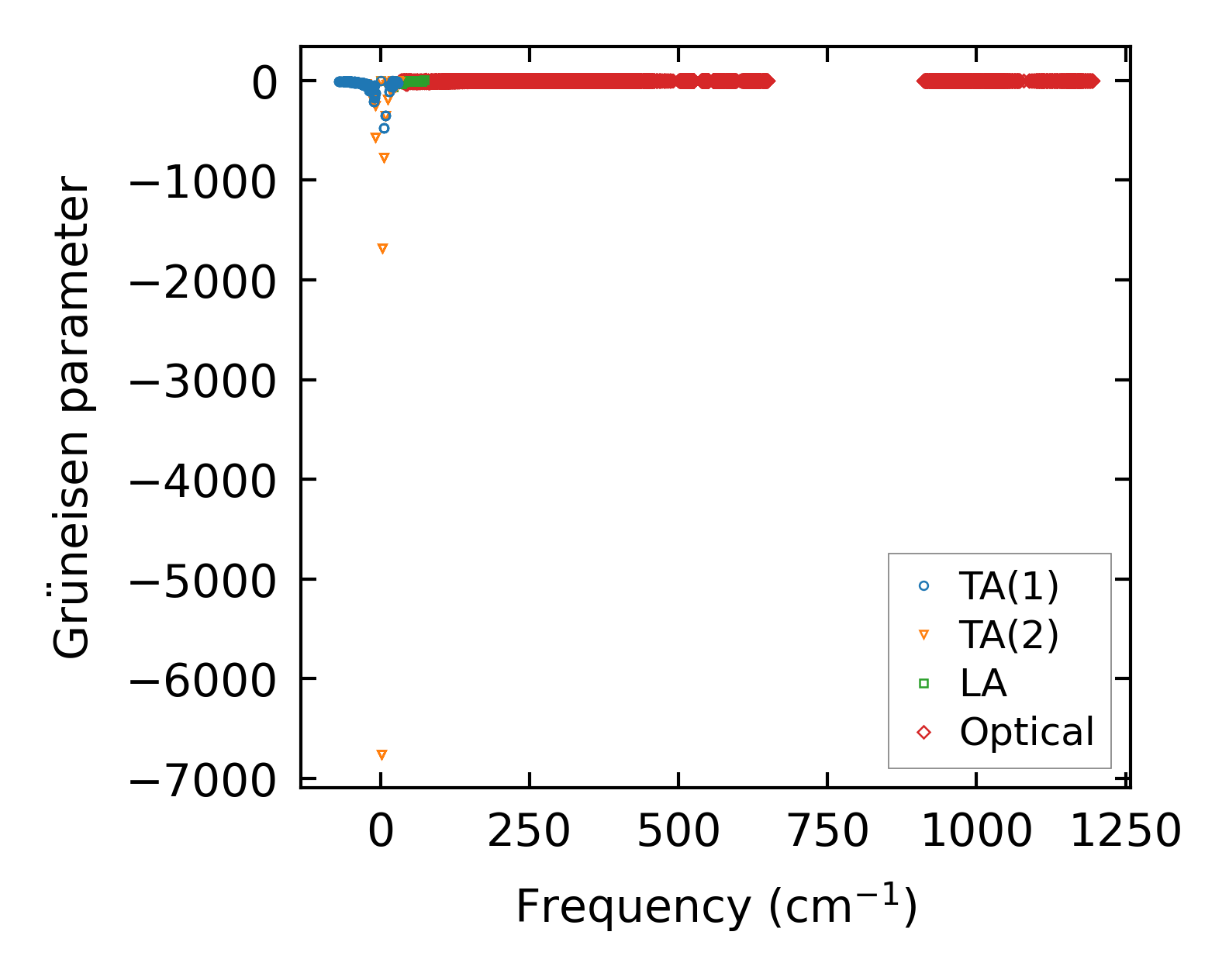

../../_images/fig_gru_all3576.png — (a) Grüneisen parameters

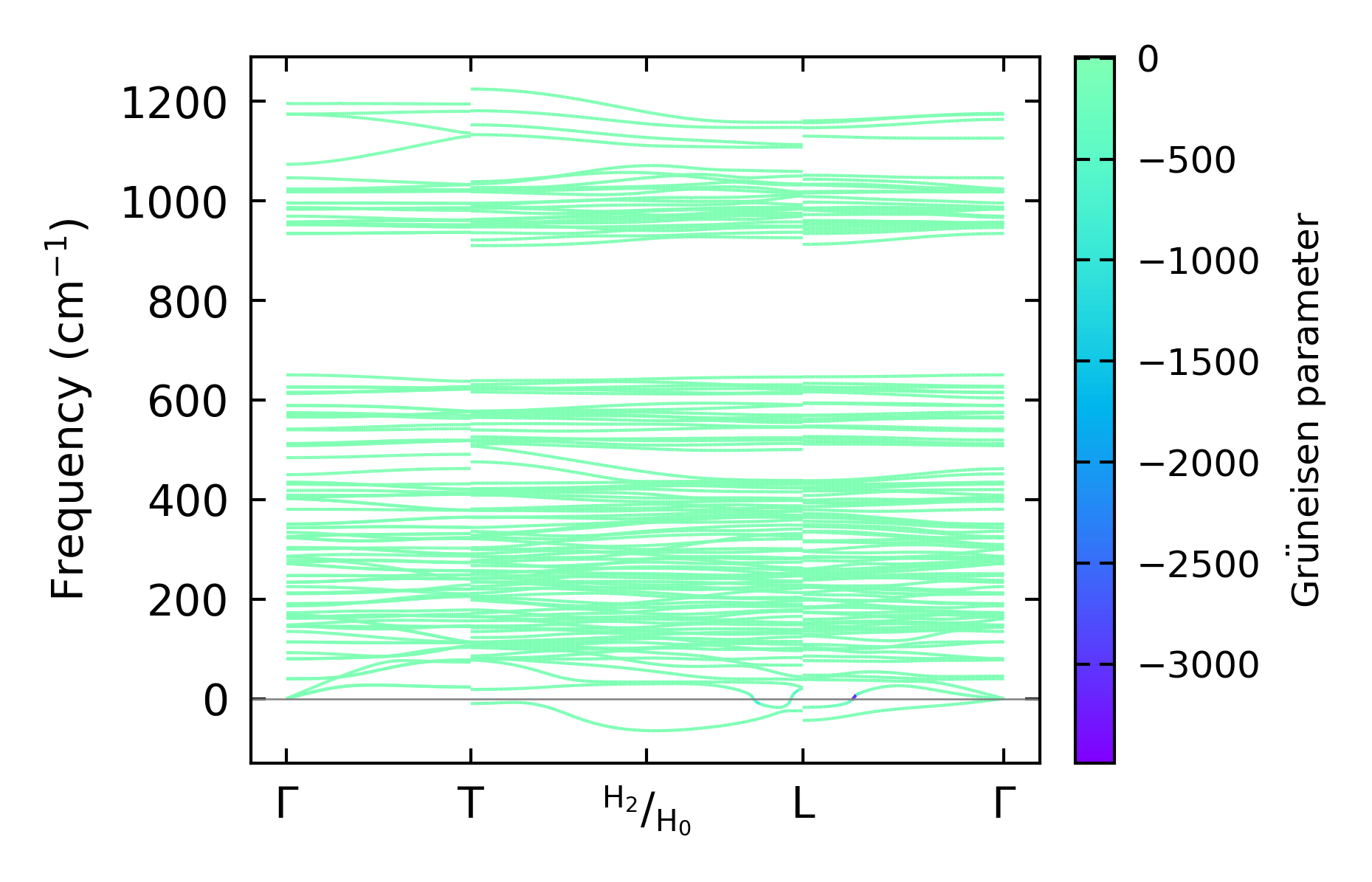

../../_images/fig_gruneisen3576.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x1 — q-mesh: 9x9x9, supercell: 2x2x1

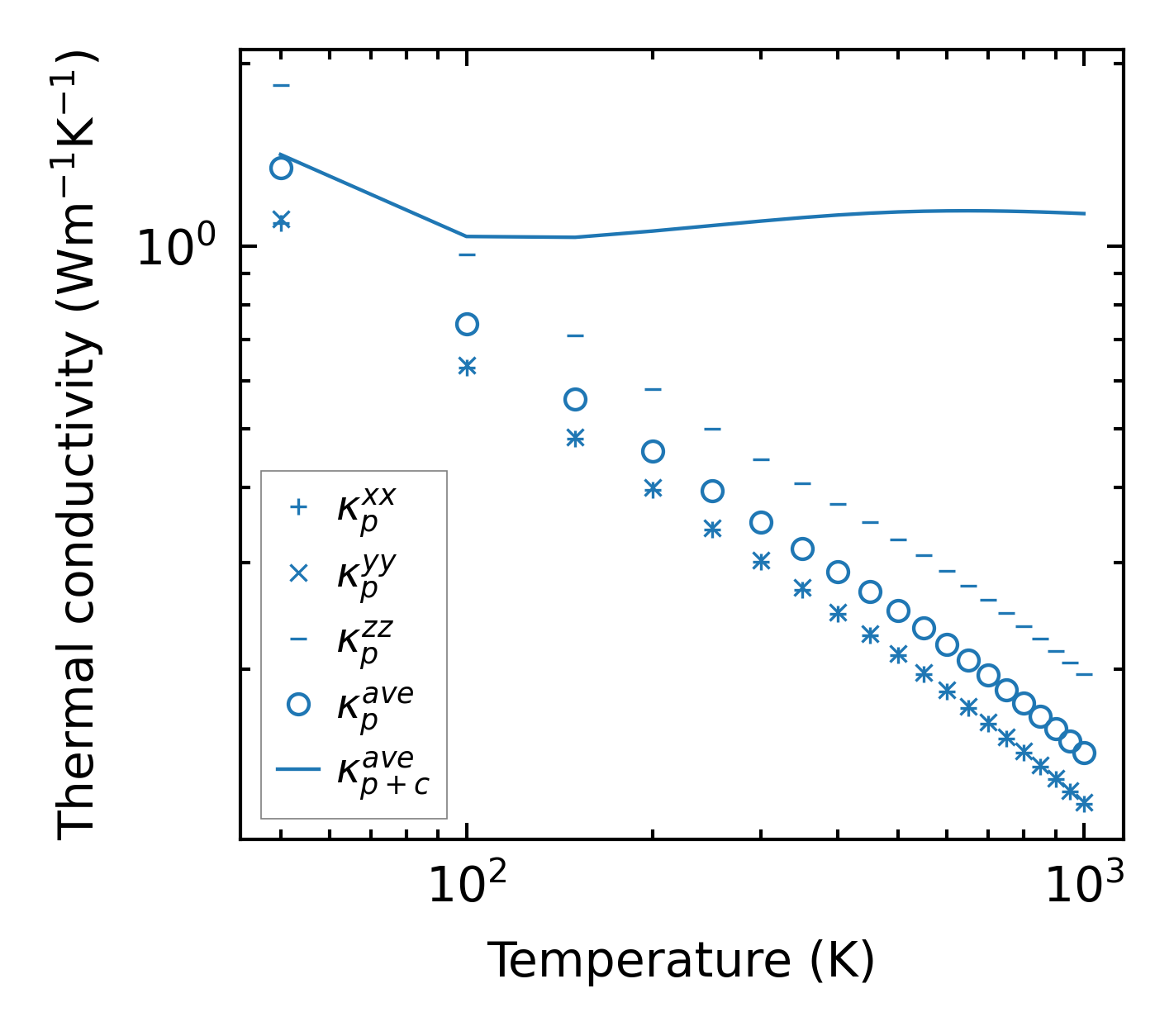

../../_images/fig_kappa6757.png — (a) Temperature-dependent lattice thermal conductivity

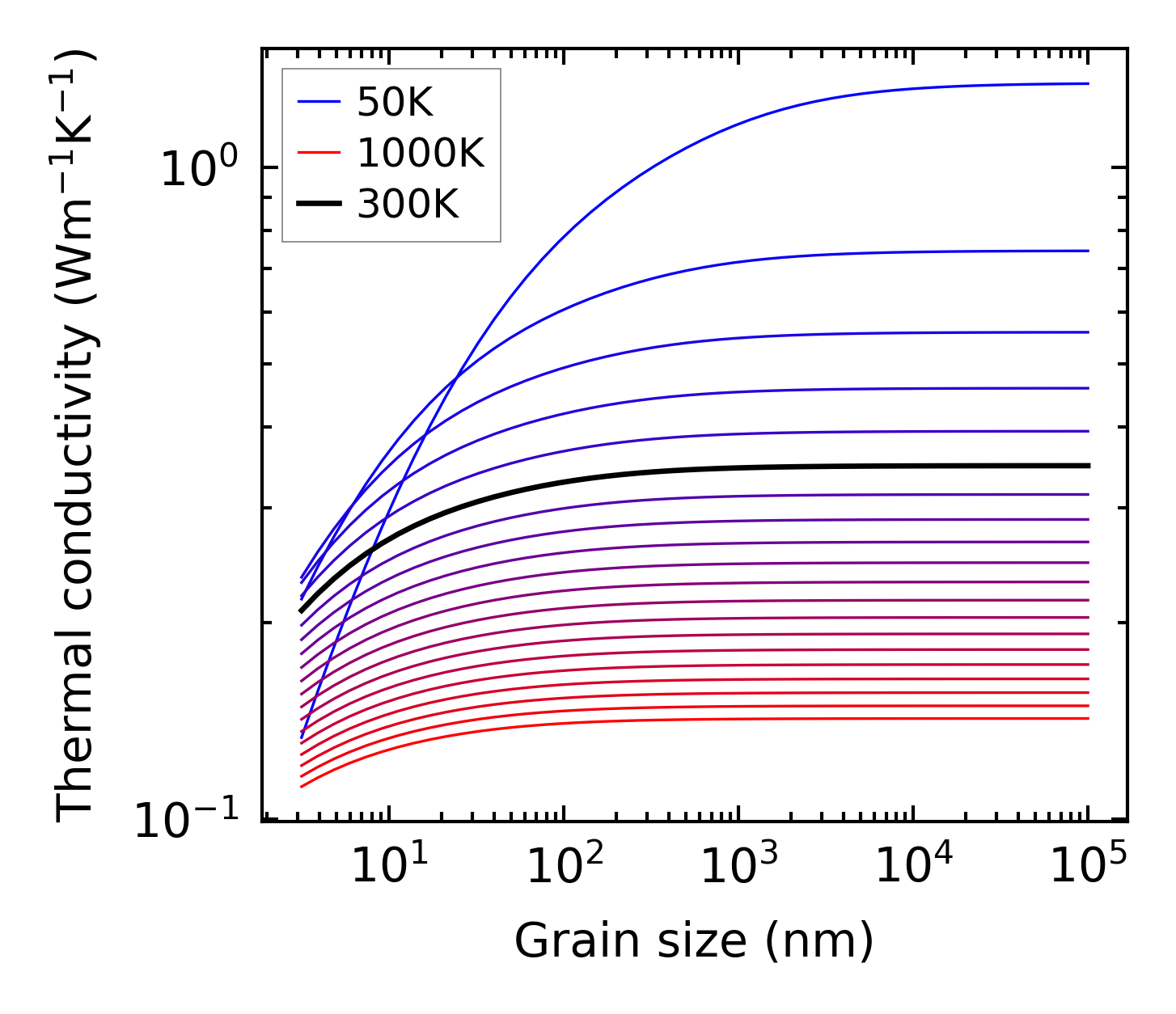

../../_images/fig_kappa_vs_grain_size3622.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3543.png — (a) Phonon lifetime due to phonon-phonon scattering

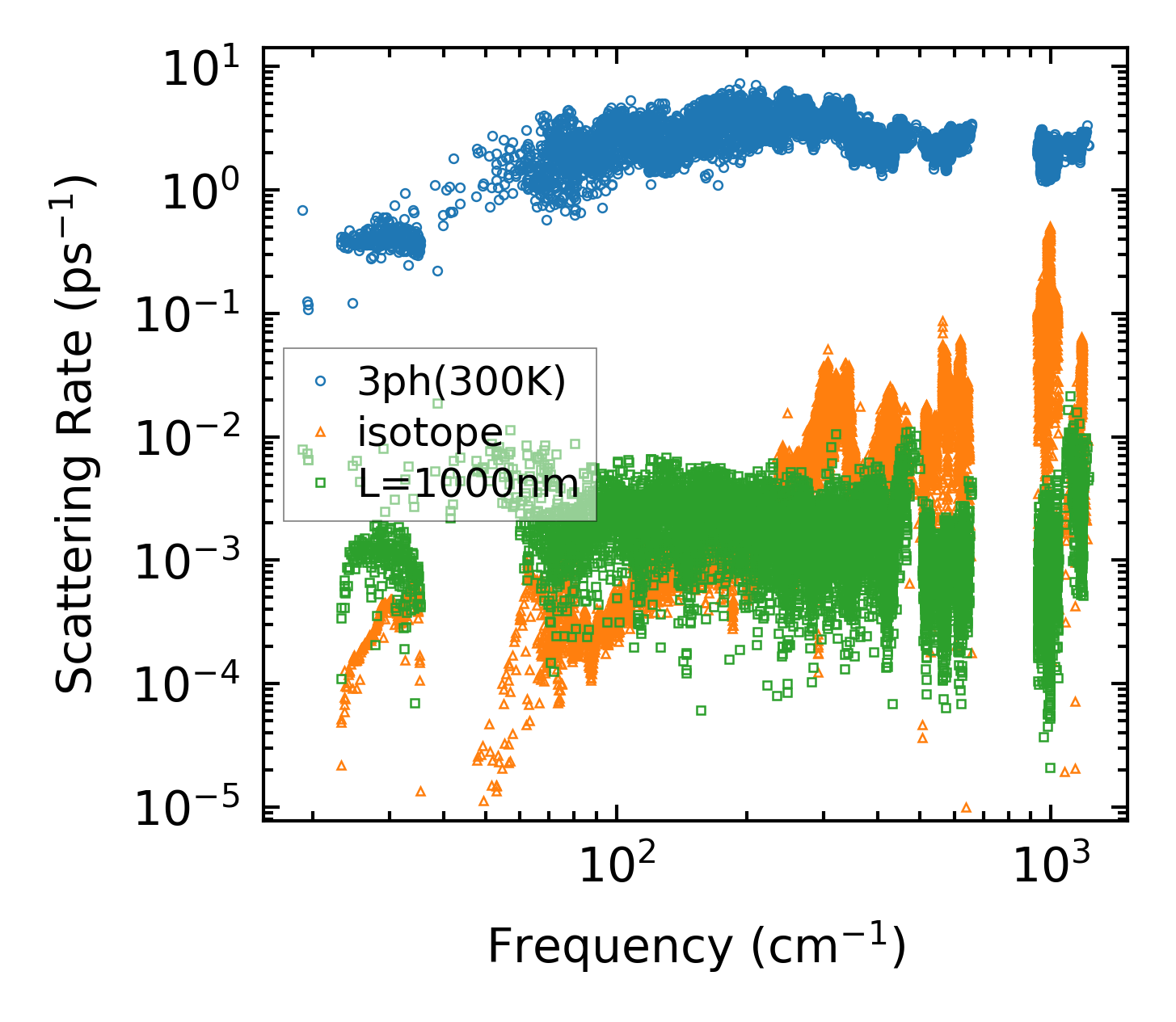

../../_images/fig_scat_rates3542.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

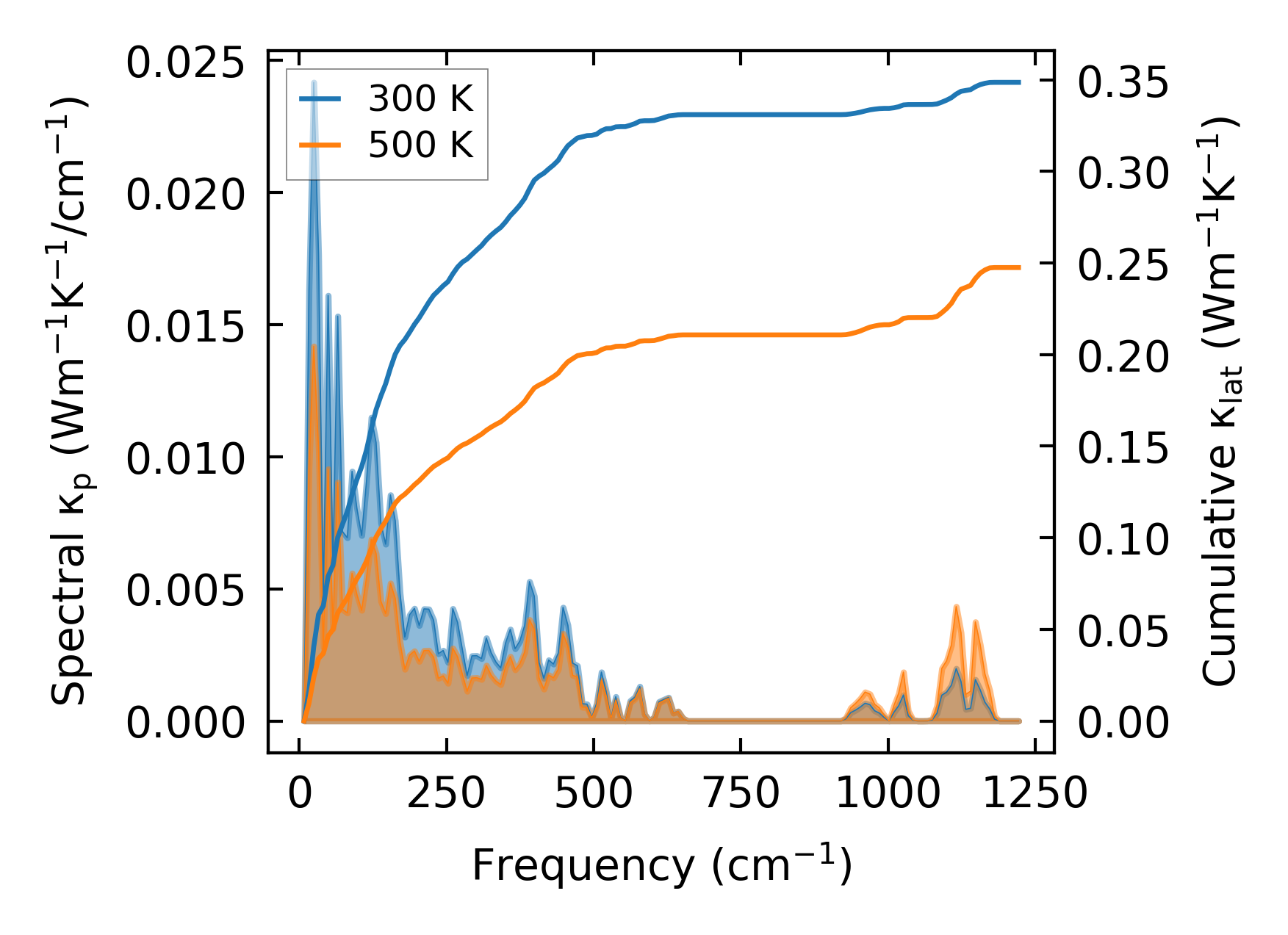

../../_images/fig_cumu_frequency3543.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3542.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc28700.png — (a) Force constants w.r.t atomic distance

Summary

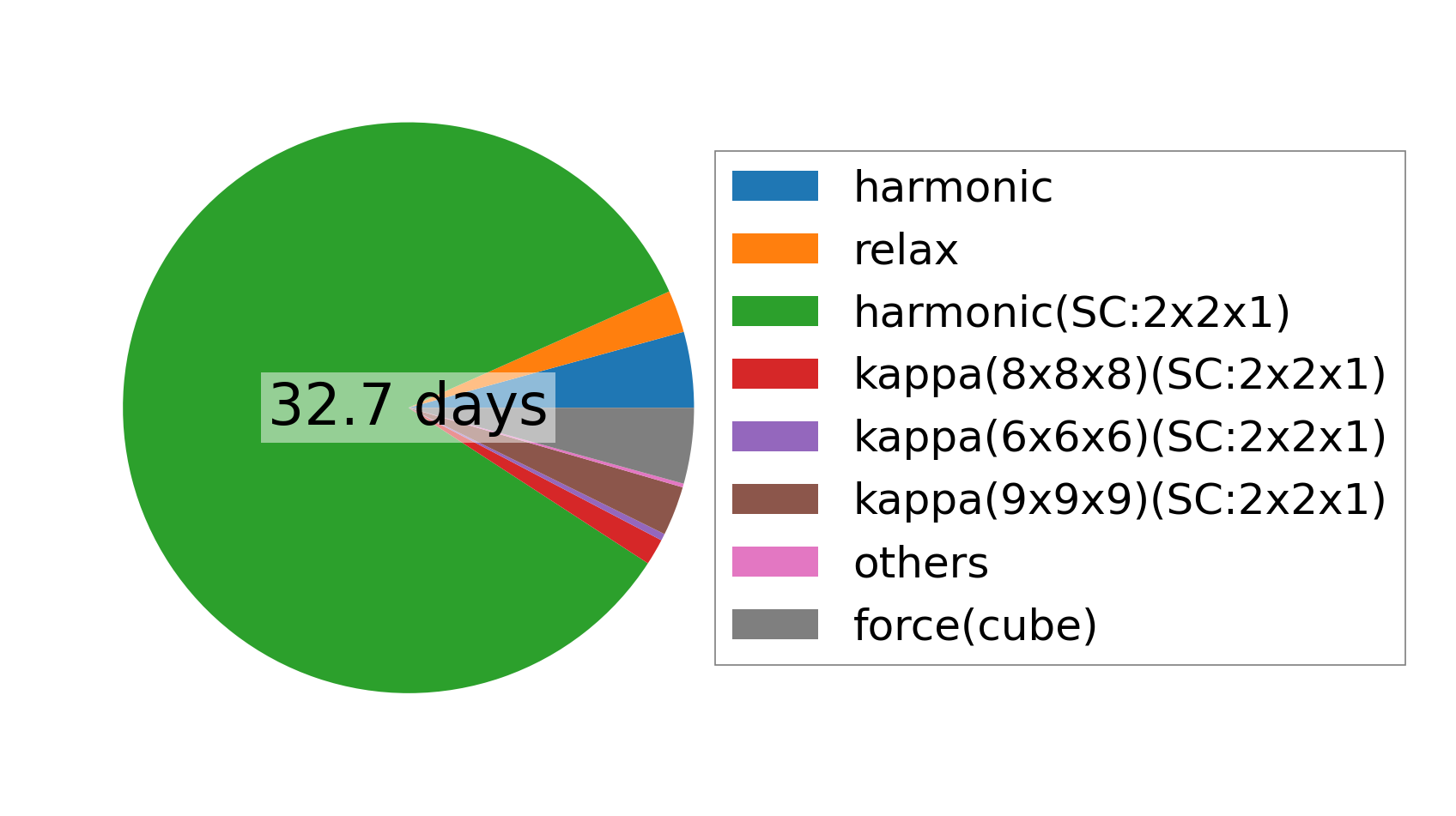

../../_images/fig_times15671.png — (a) Computation time
