mp-554542/Mg3BO3F3/anharm

Space group: P6_3/m (176)
Link: Materials Project
Download: mp-554542.tar.gz

Harmonic properties

../../_images/fig_bandos_pr9017.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9017.png — (b) Thermodynamic properties

Grüneisen parameters

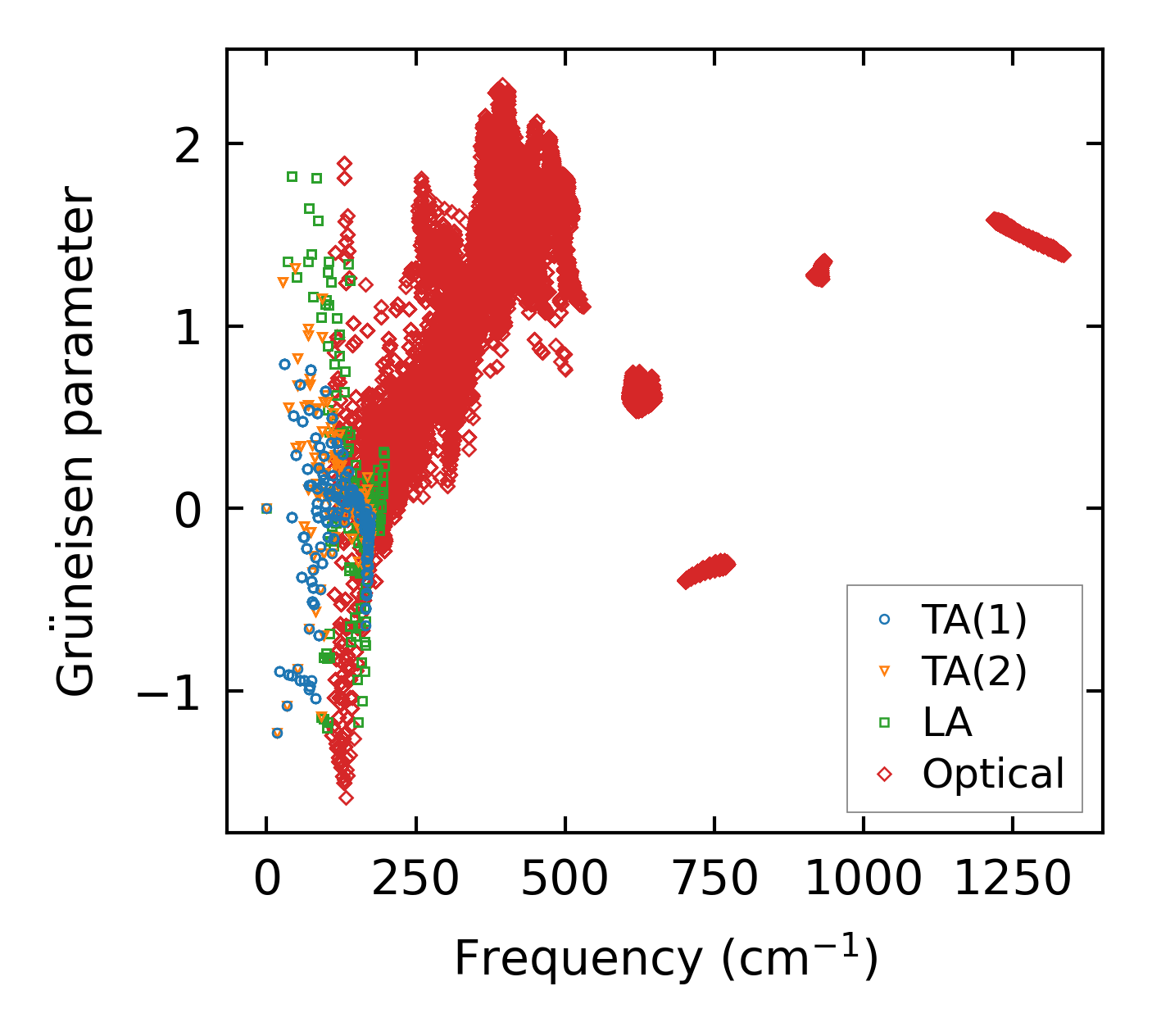

../../_images/fig_gru_all3596.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3596.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x24, supercell: 1x1x3

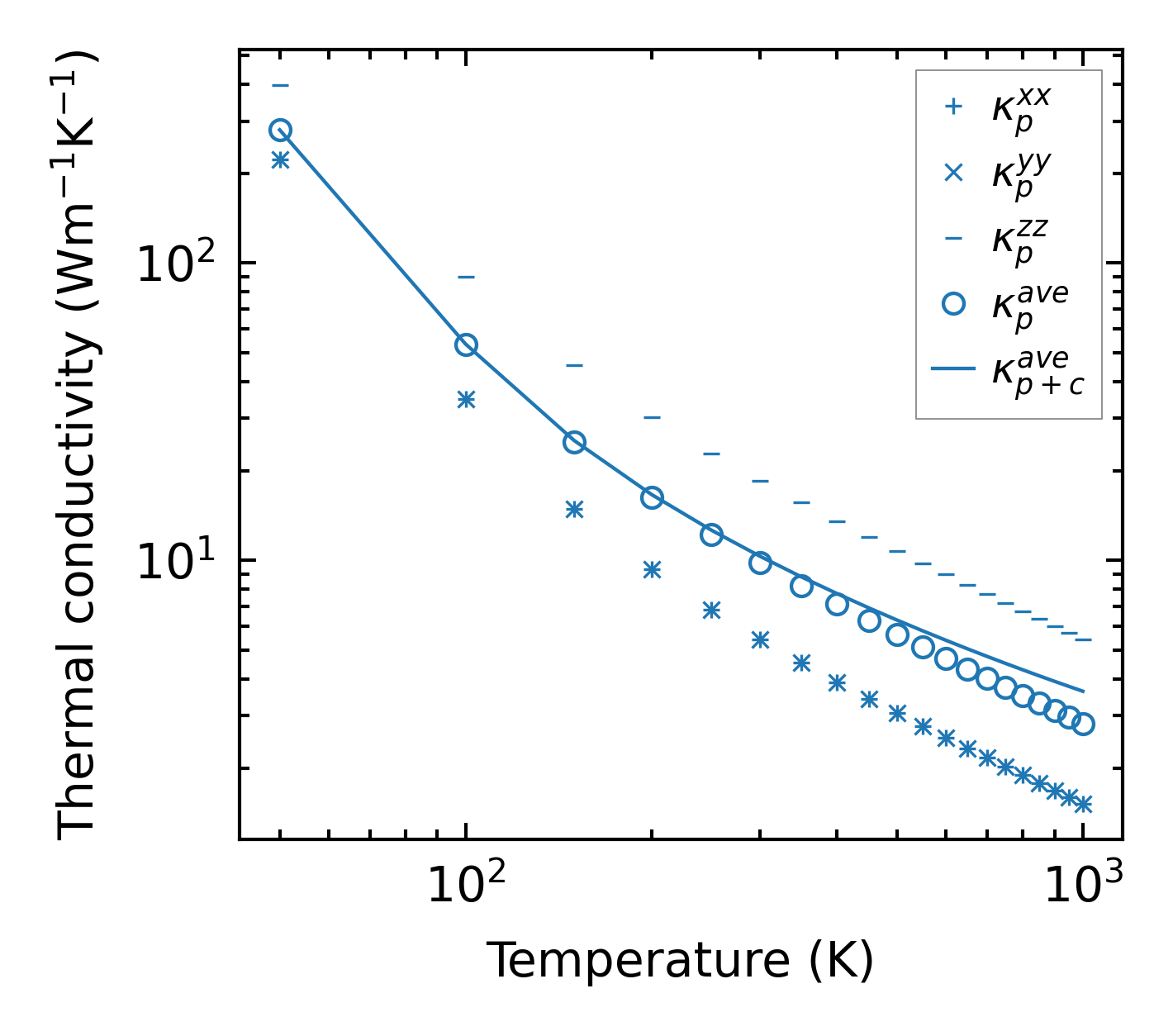

../../_images/fig_kappa6793.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3643.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

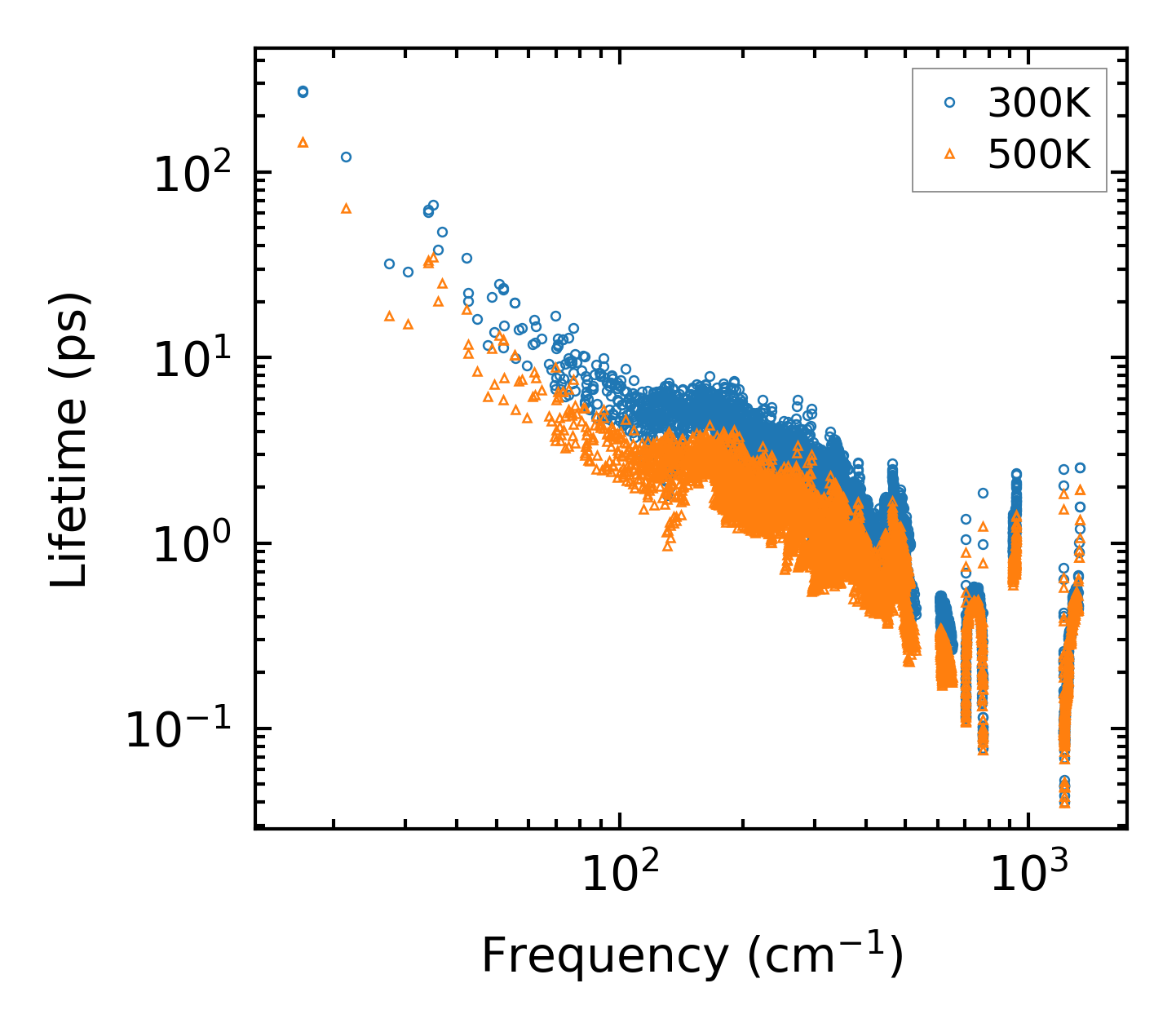

../../_images/fig_lifetime3563.png — (a) Phonon lifetime due to phonon-phonon scattering

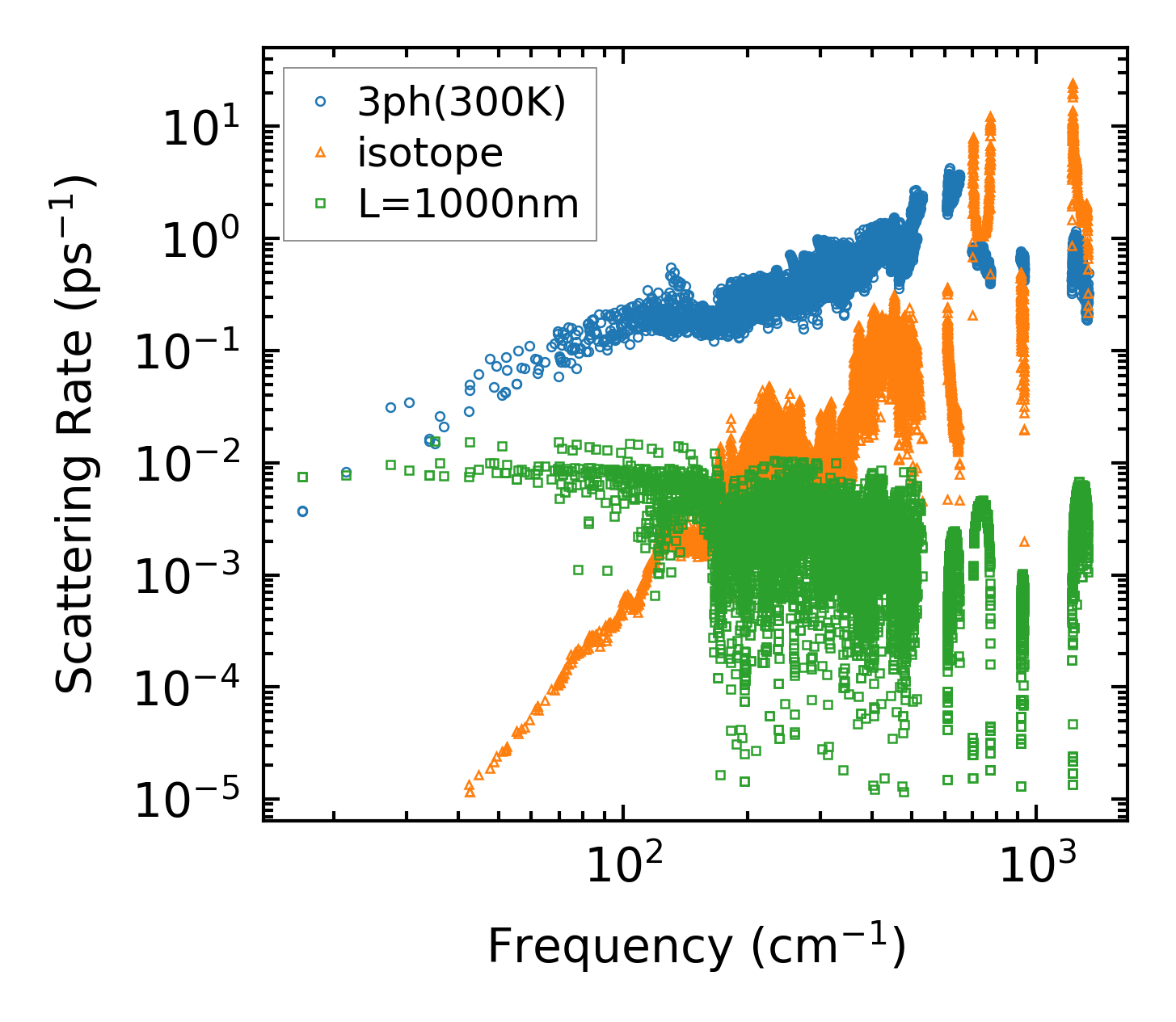

../../_images/fig_scat_rates3562.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

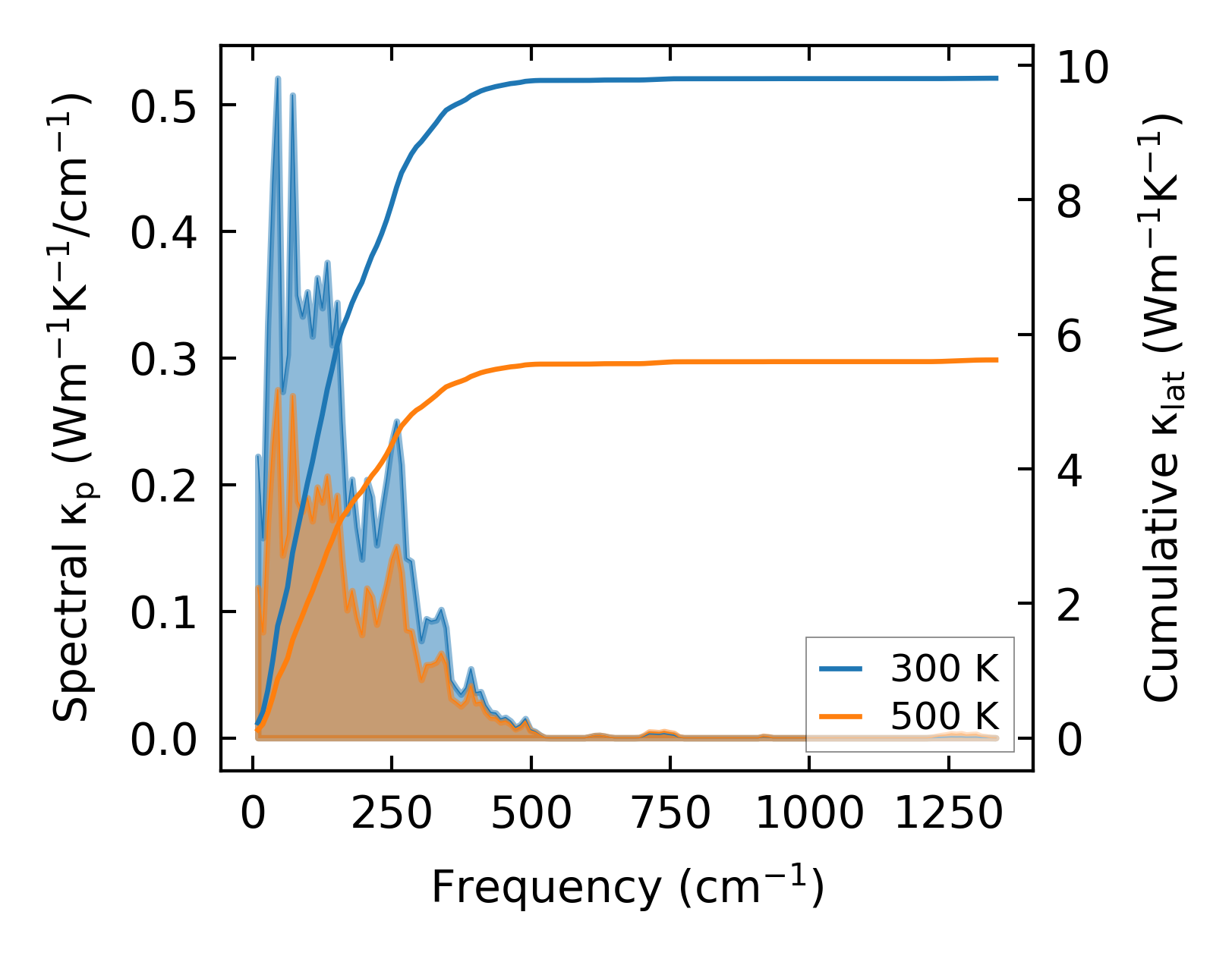

../../_images/fig_cumu_frequency3563.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

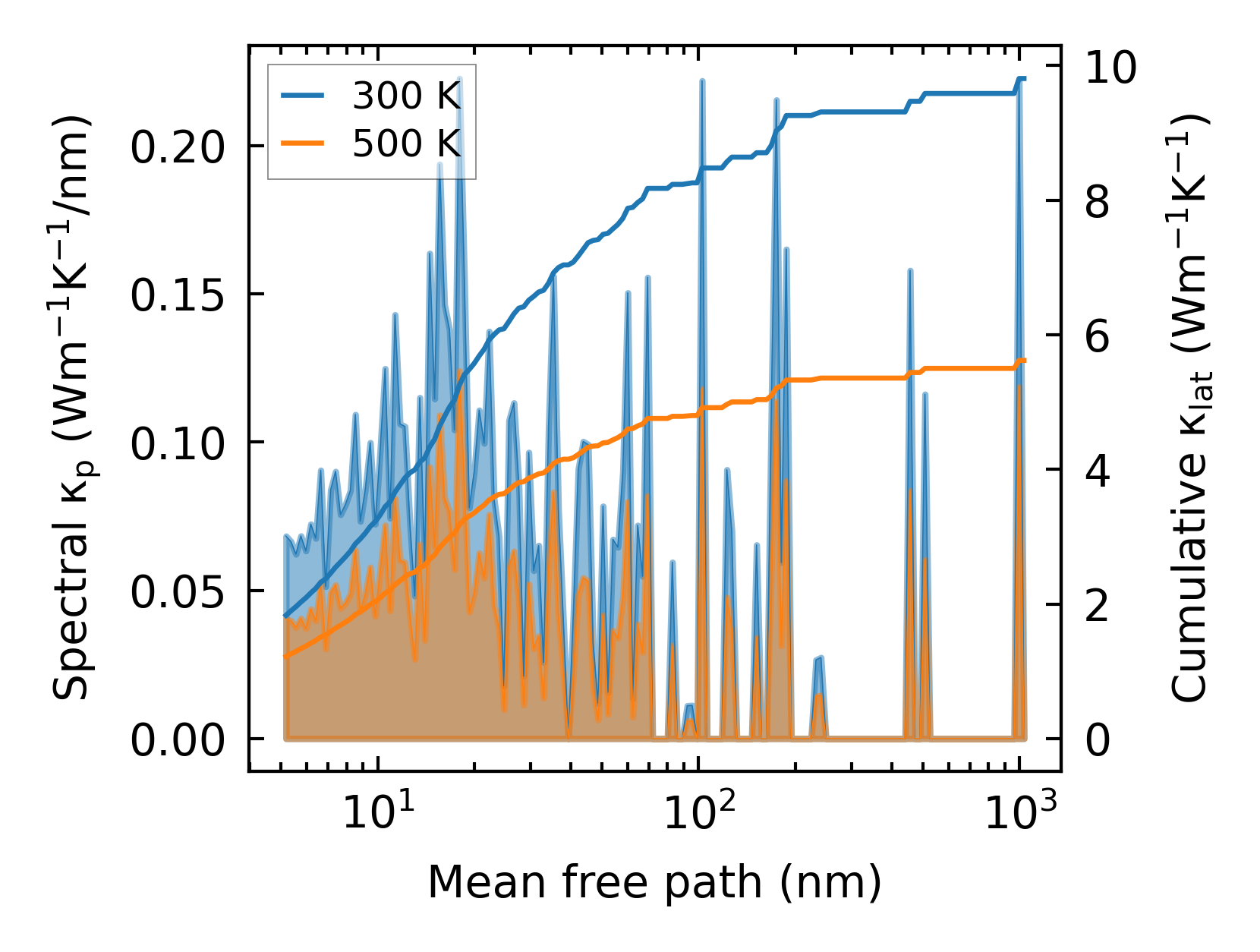

../../_images/fig_cumu_mfp3562.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

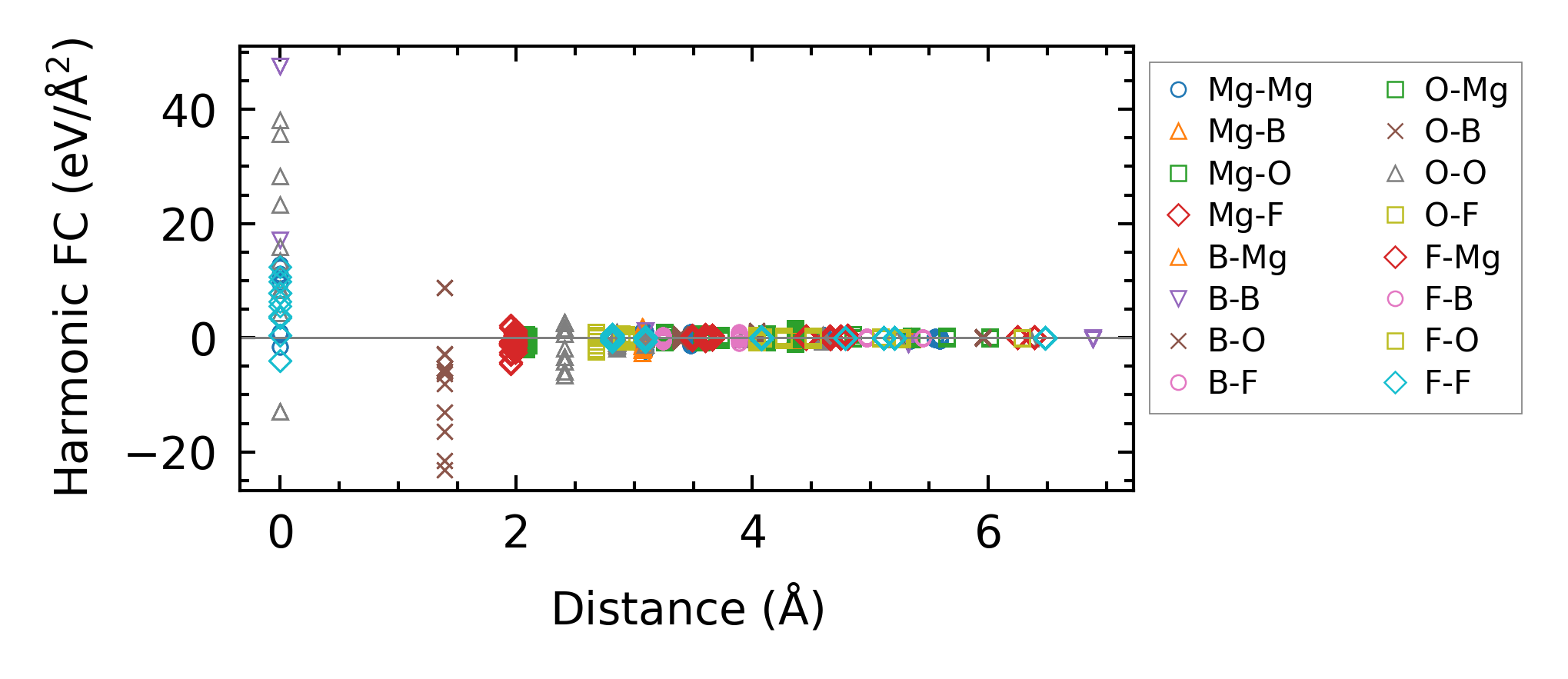

../../_images/fig_fc28779.png — (a) Force constants w.r.t atomic distance

Summary

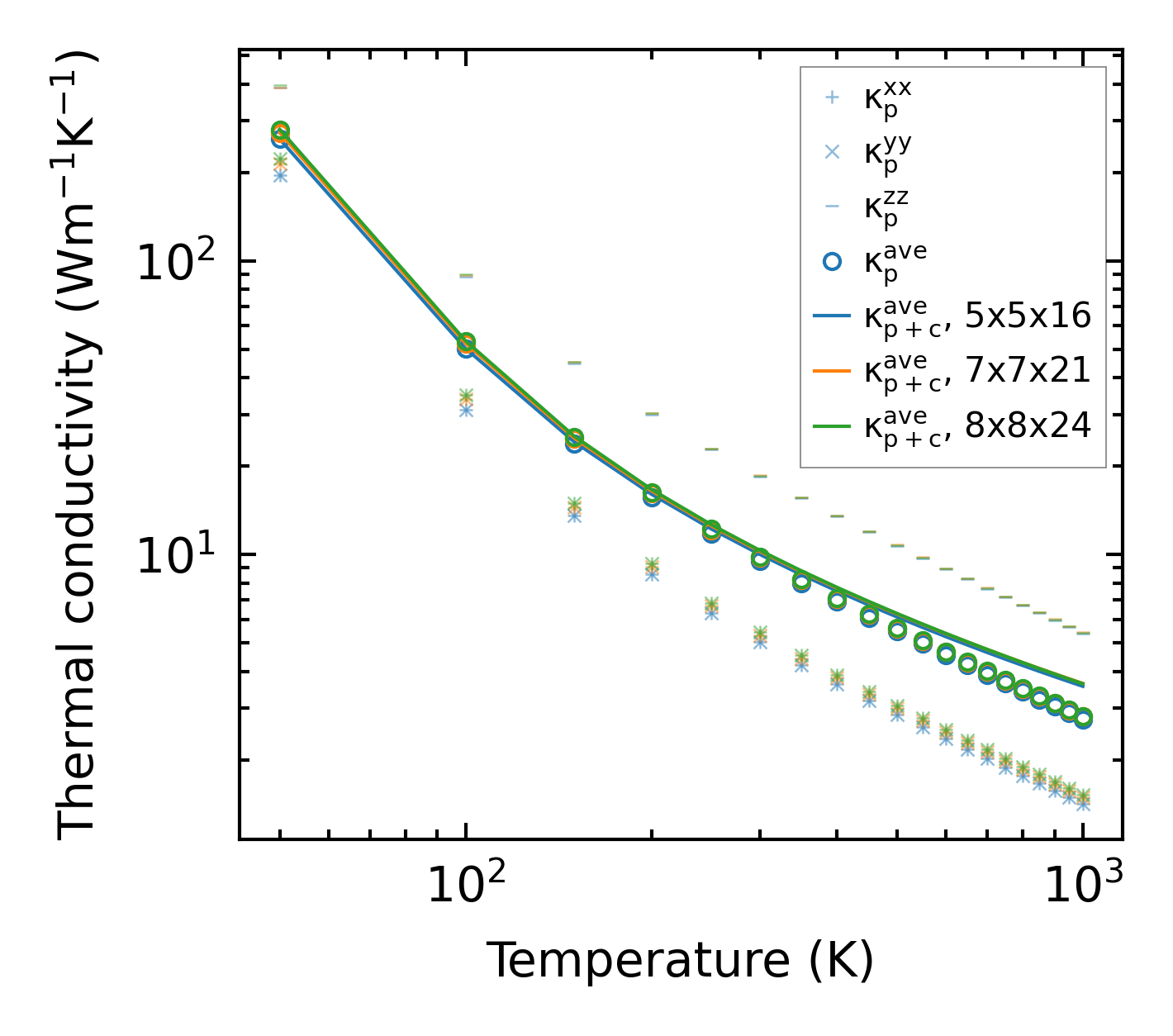

../../_images/fig_kappa6794.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times15796.png — (b) Computation time
