mp-554059/Sr2UZnO6/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-554059.tar.gz

Harmonic properties

../../_images/fig_bandos_pr9250.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9250.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all3687.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3687.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x7, supercell: 2x2x1

../../_images/fig_kappa6964.png — (a) Temperature-dependent lattice thermal conductivity

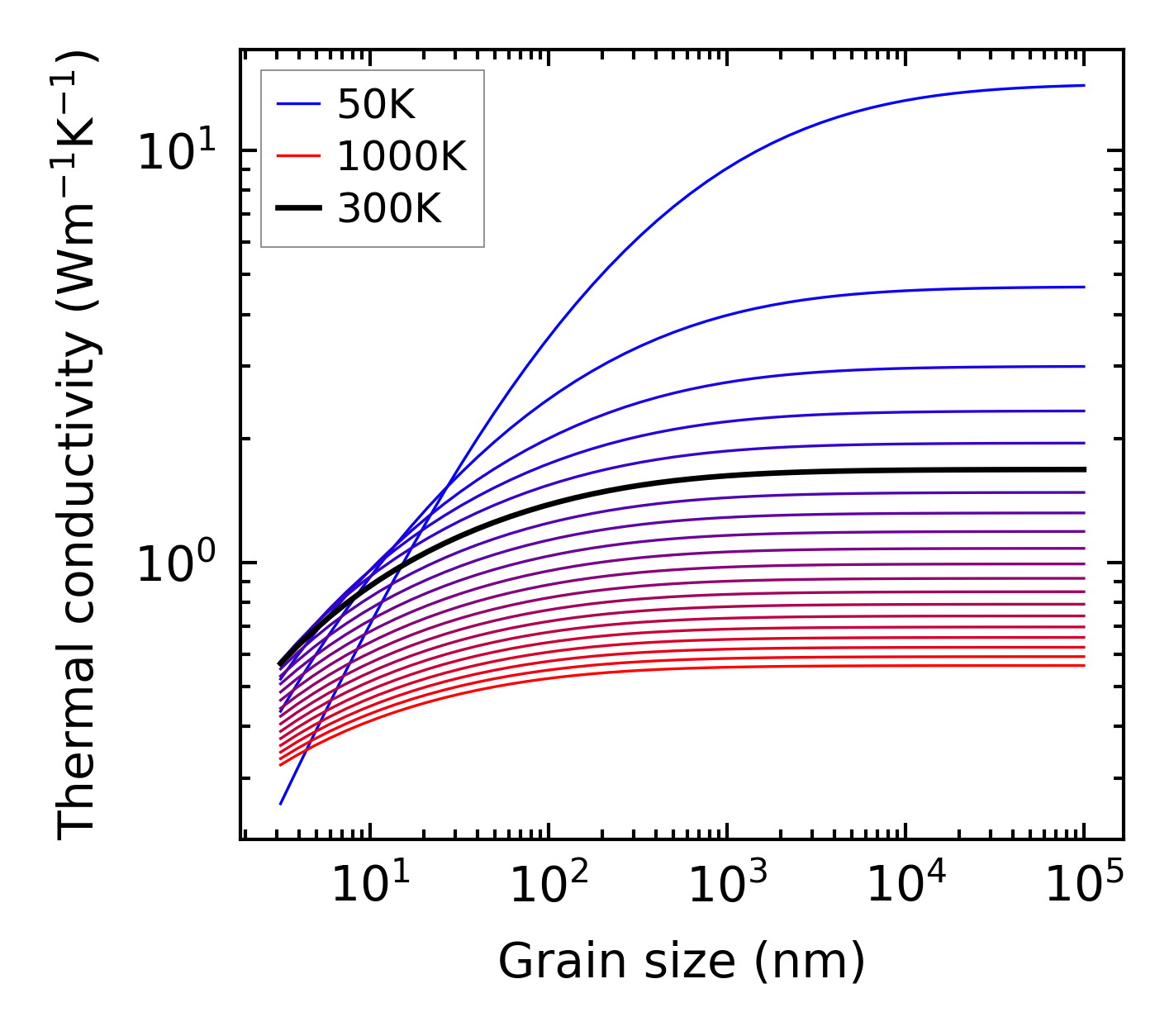

../../_images/fig_kappa_vs_grain_size3736.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

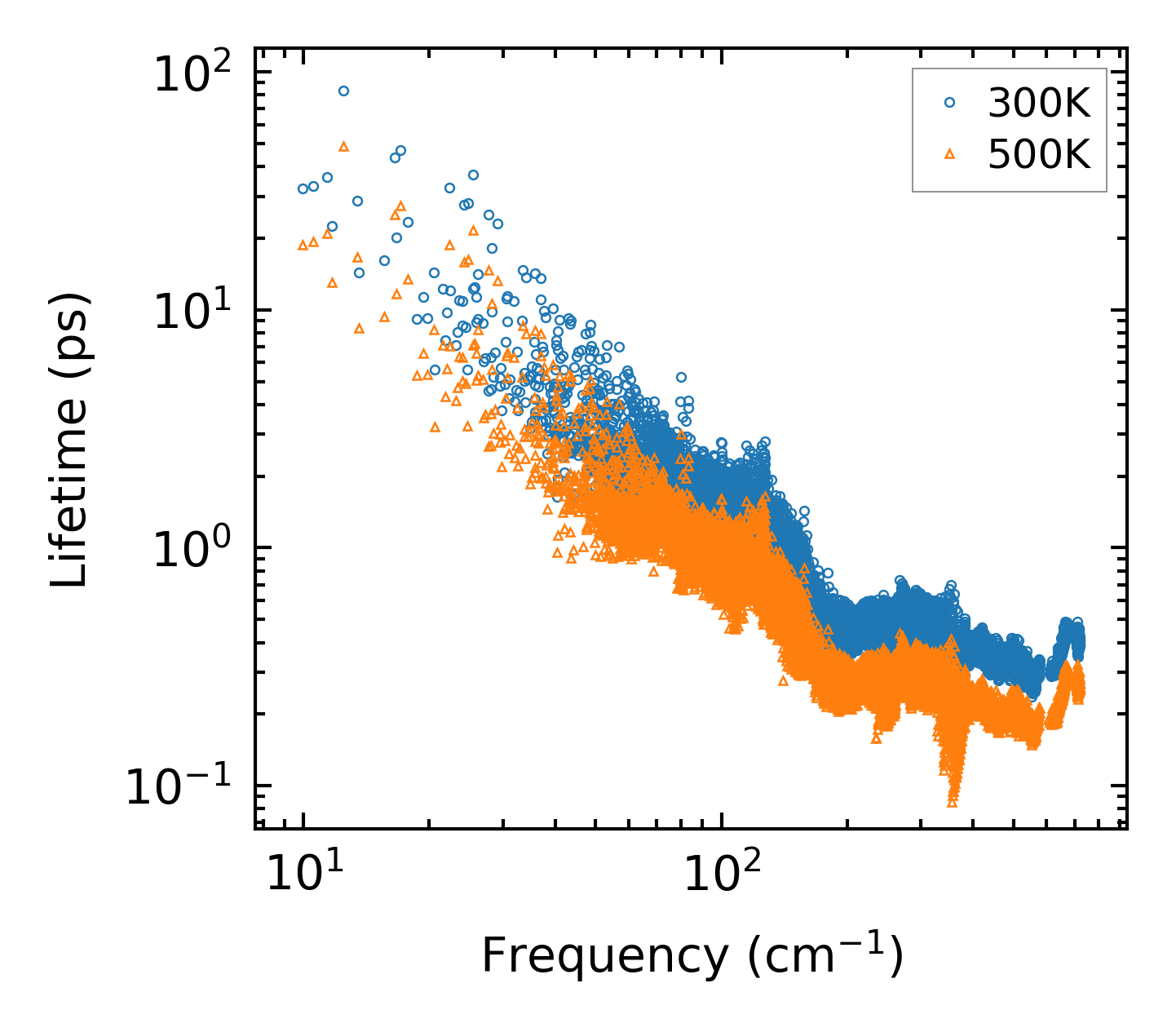

../../_images/fig_lifetime3653.png — (a) Phonon lifetime due to phonon-phonon scattering

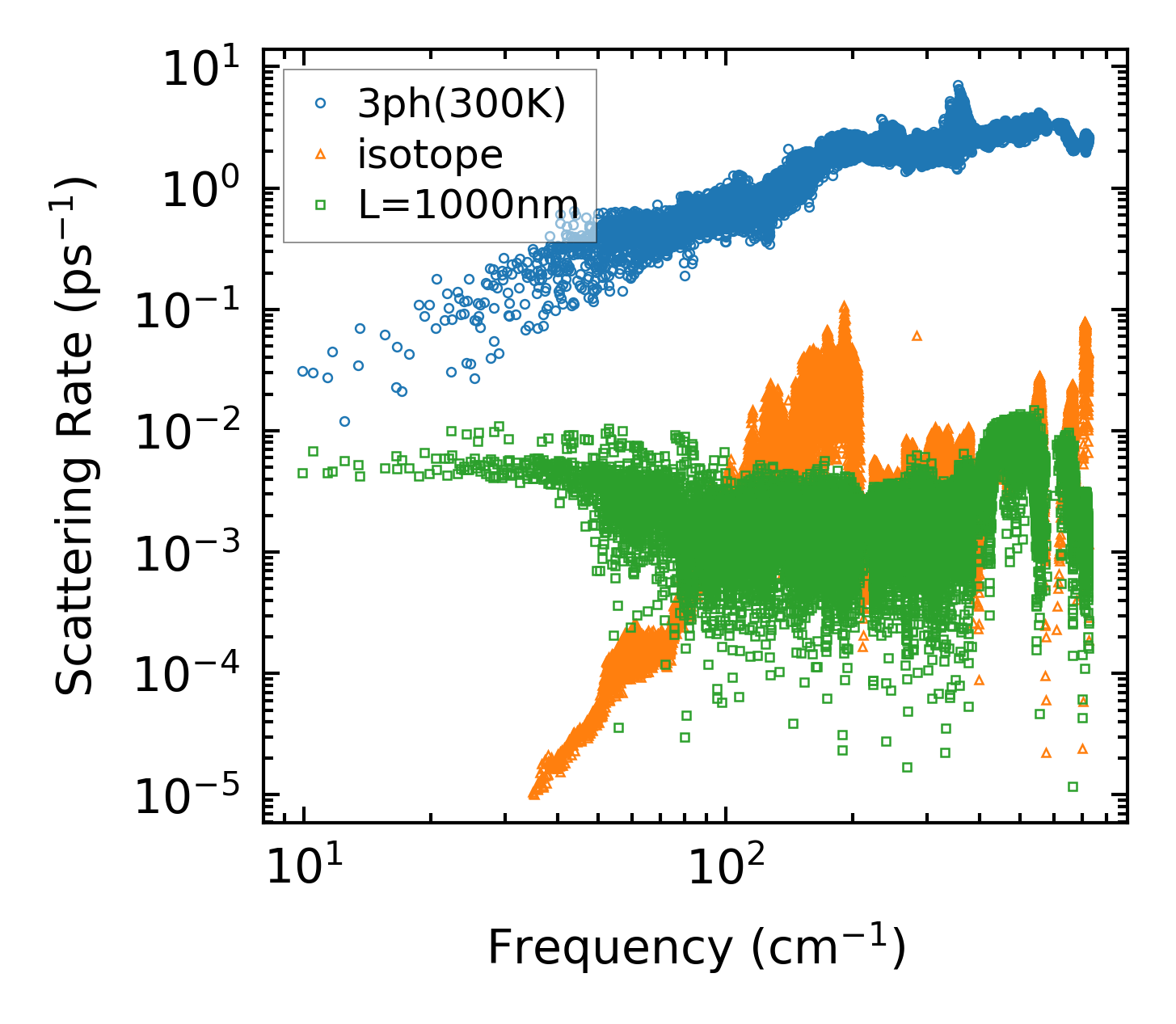

../../_images/fig_scat_rates3652.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

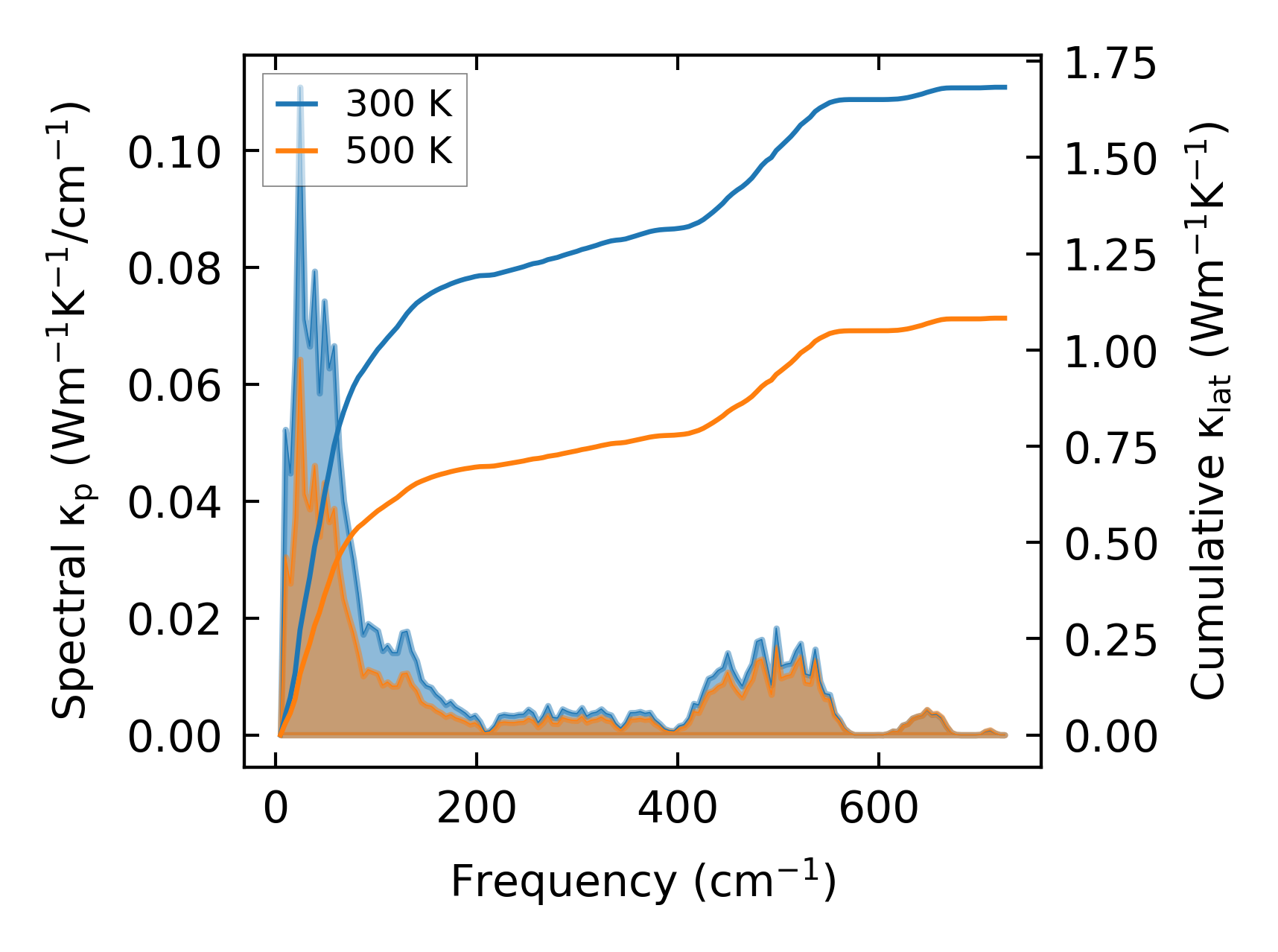

../../_images/fig_cumu_frequency3653.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

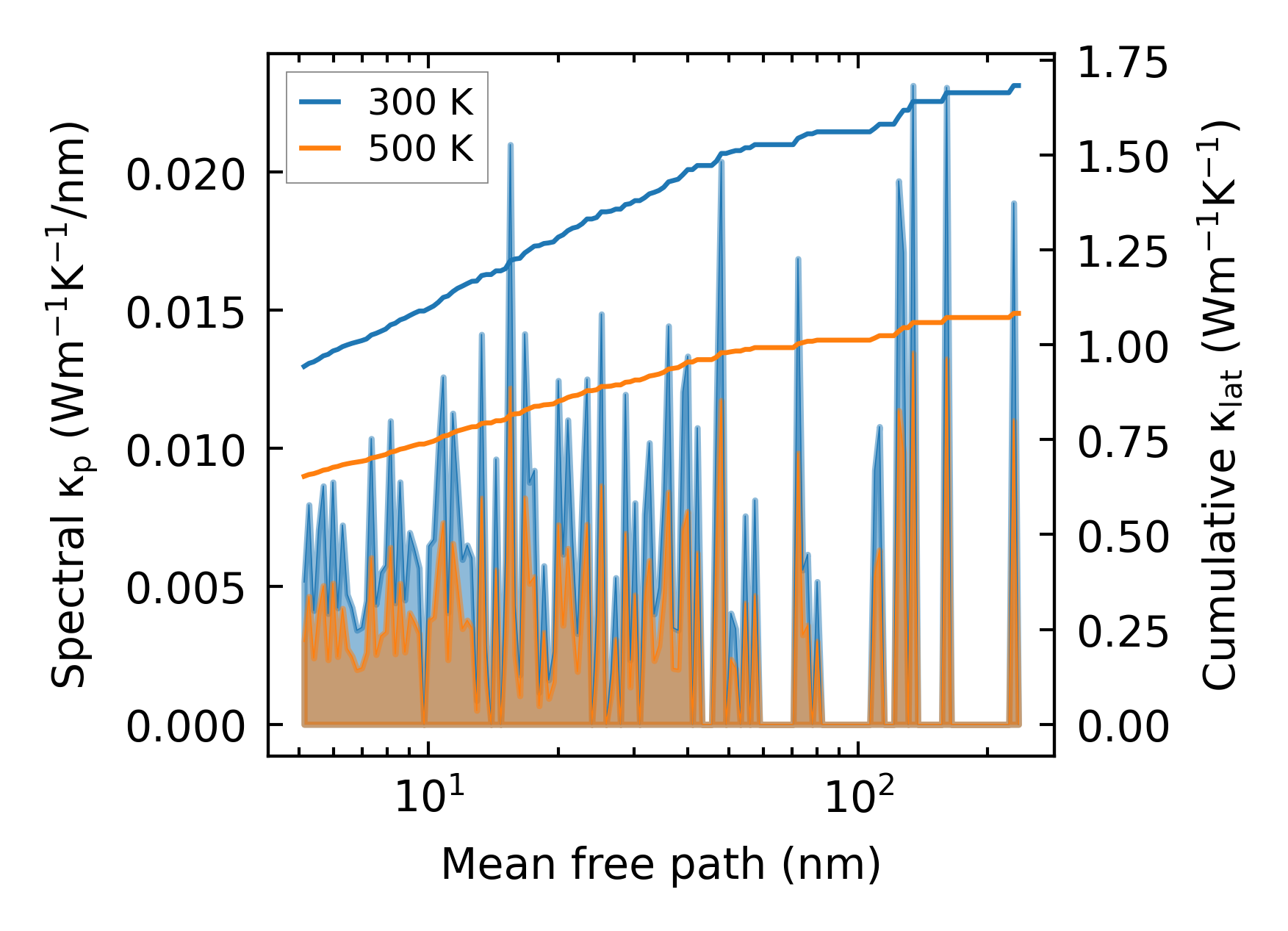

../../_images/fig_cumu_mfp3652.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

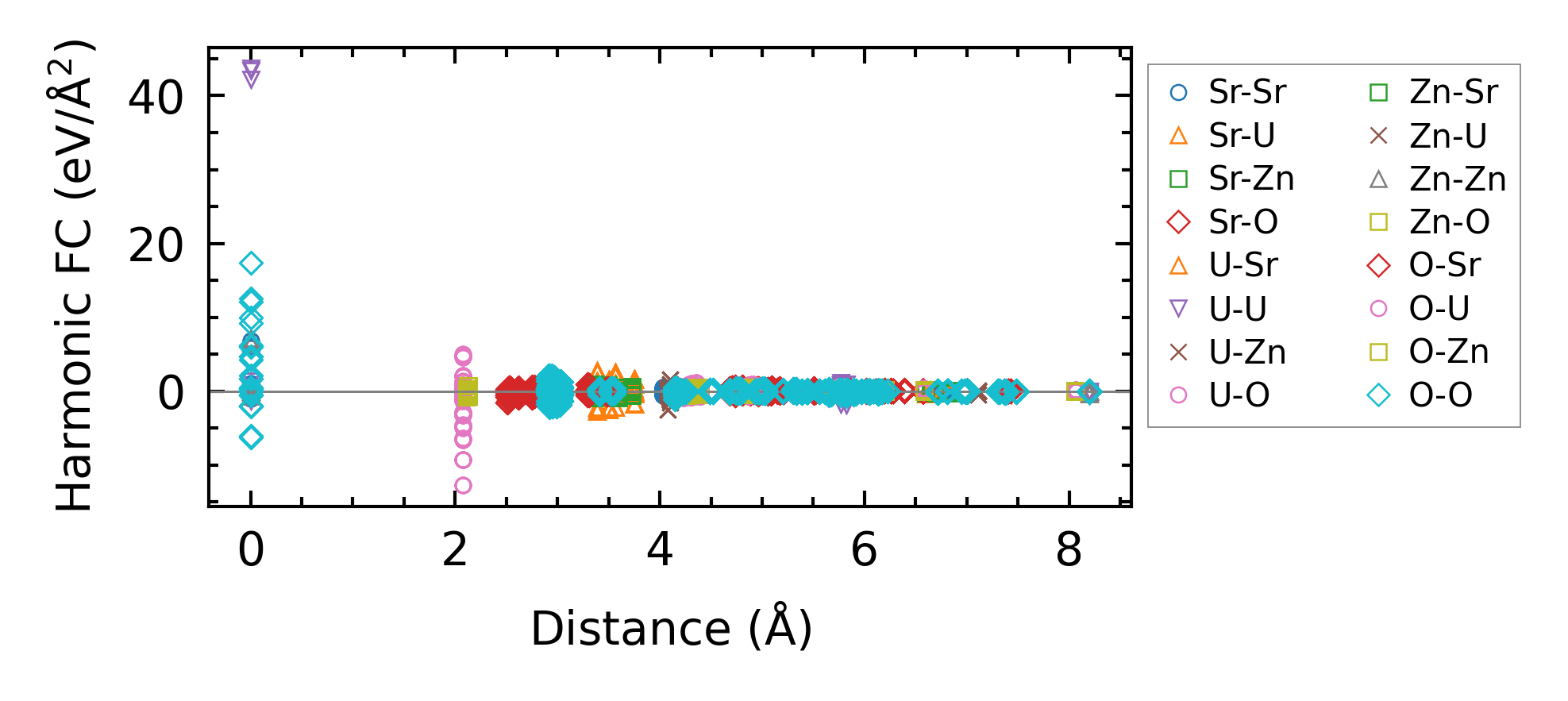

../../_images/fig_fc29012.png — (a) Force constants w.r.t atomic distance

Summary

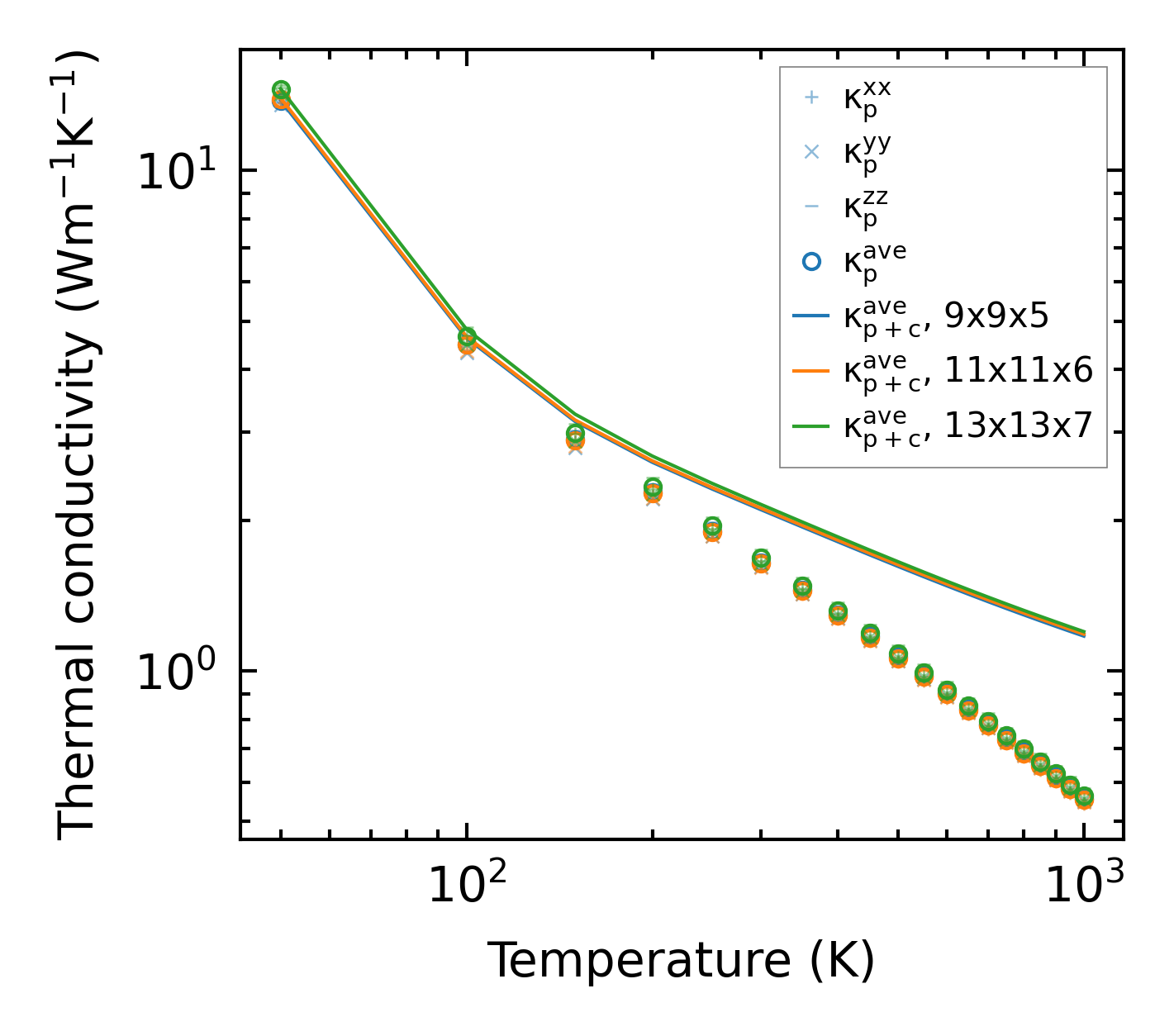

../../_images/fig_kappa6965.png — (a) Temperature-dependent lattice thermal conductivity

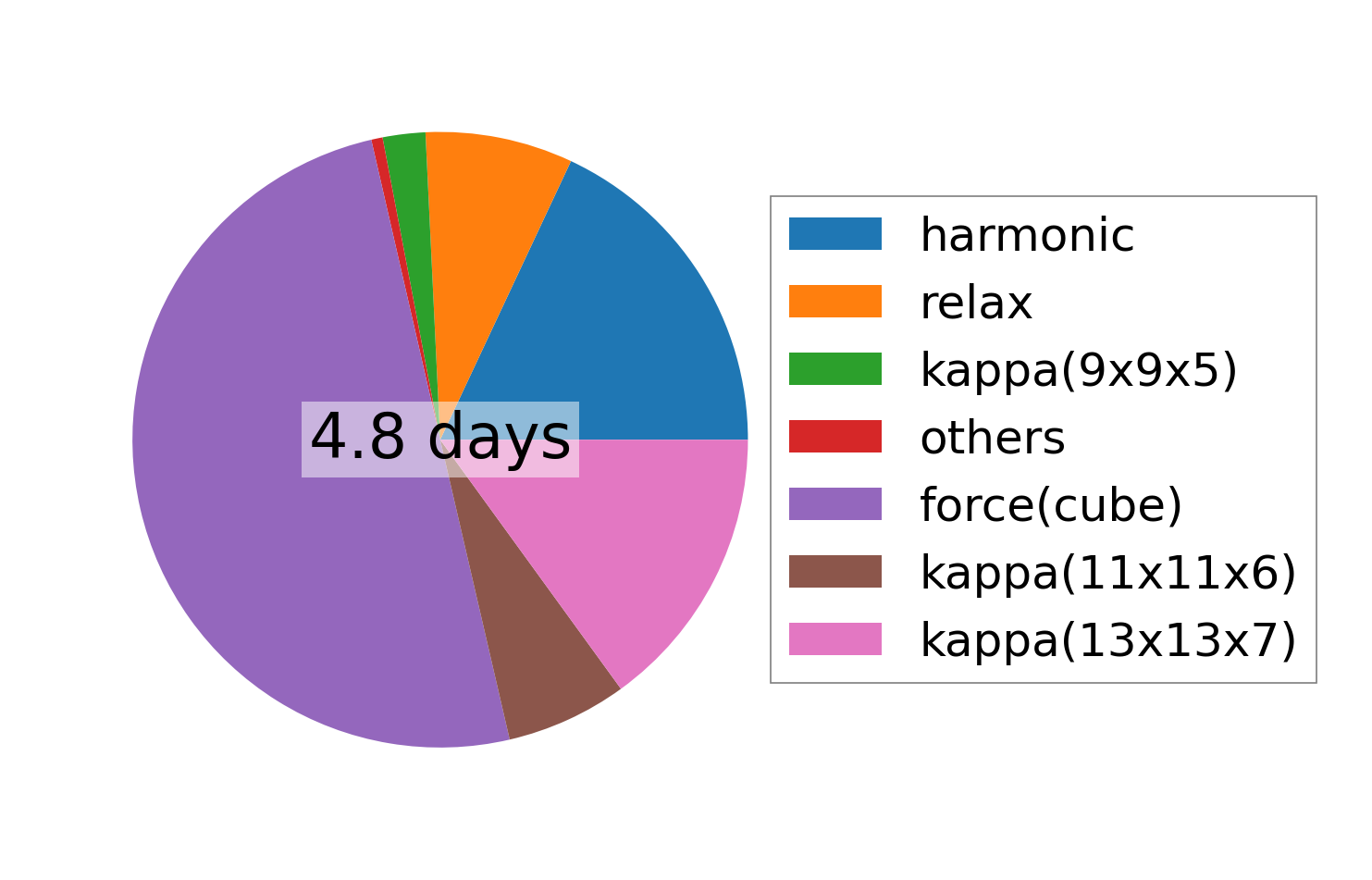

../../_images/fig_times16128.png — (b) Computation time
