mp-554034/KLa2NbO6/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-554034.tar.gz

Equation of state

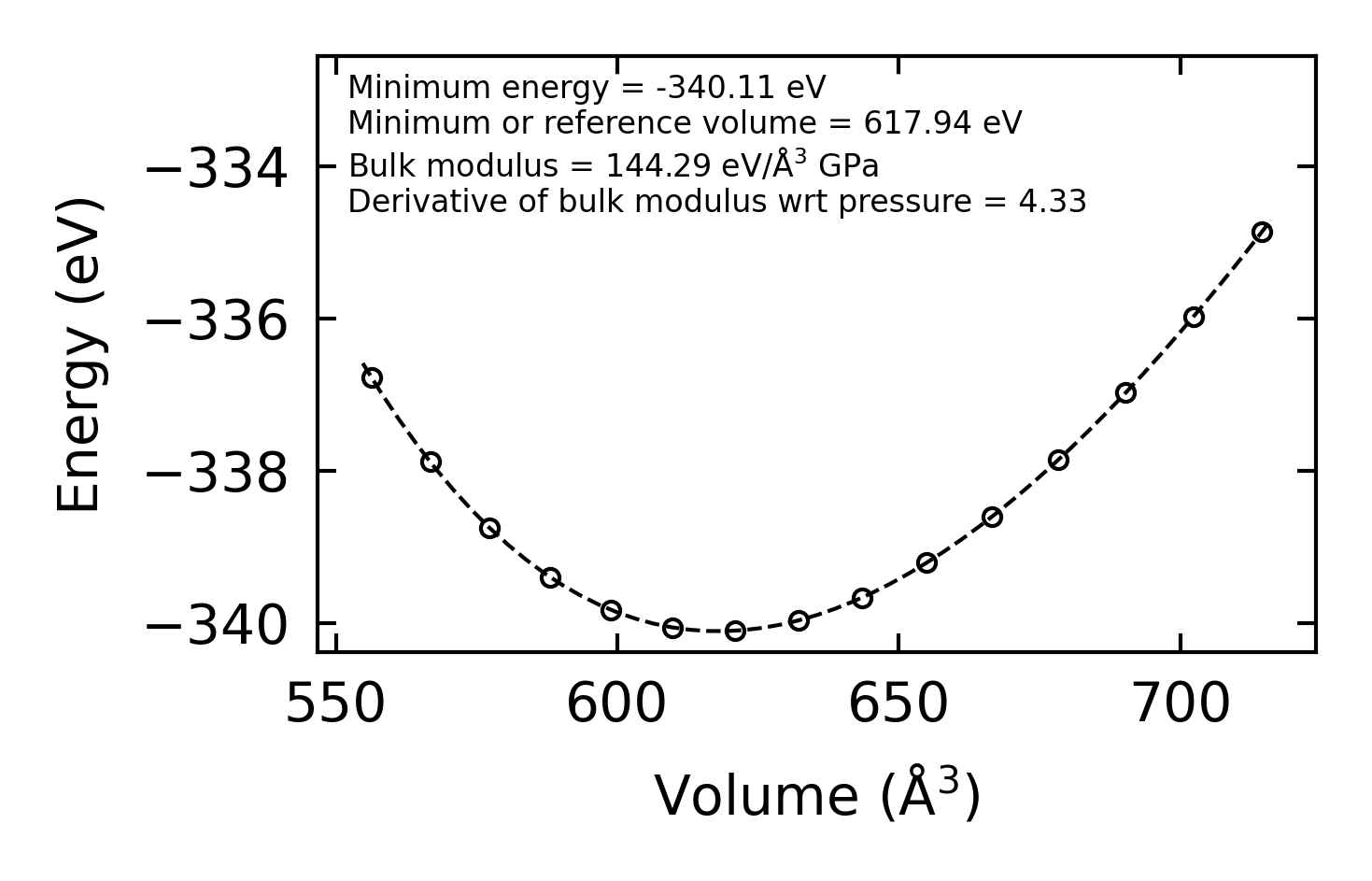

../../_images/fig_bm4646.png — (a) Equation of state

Harmonic properties

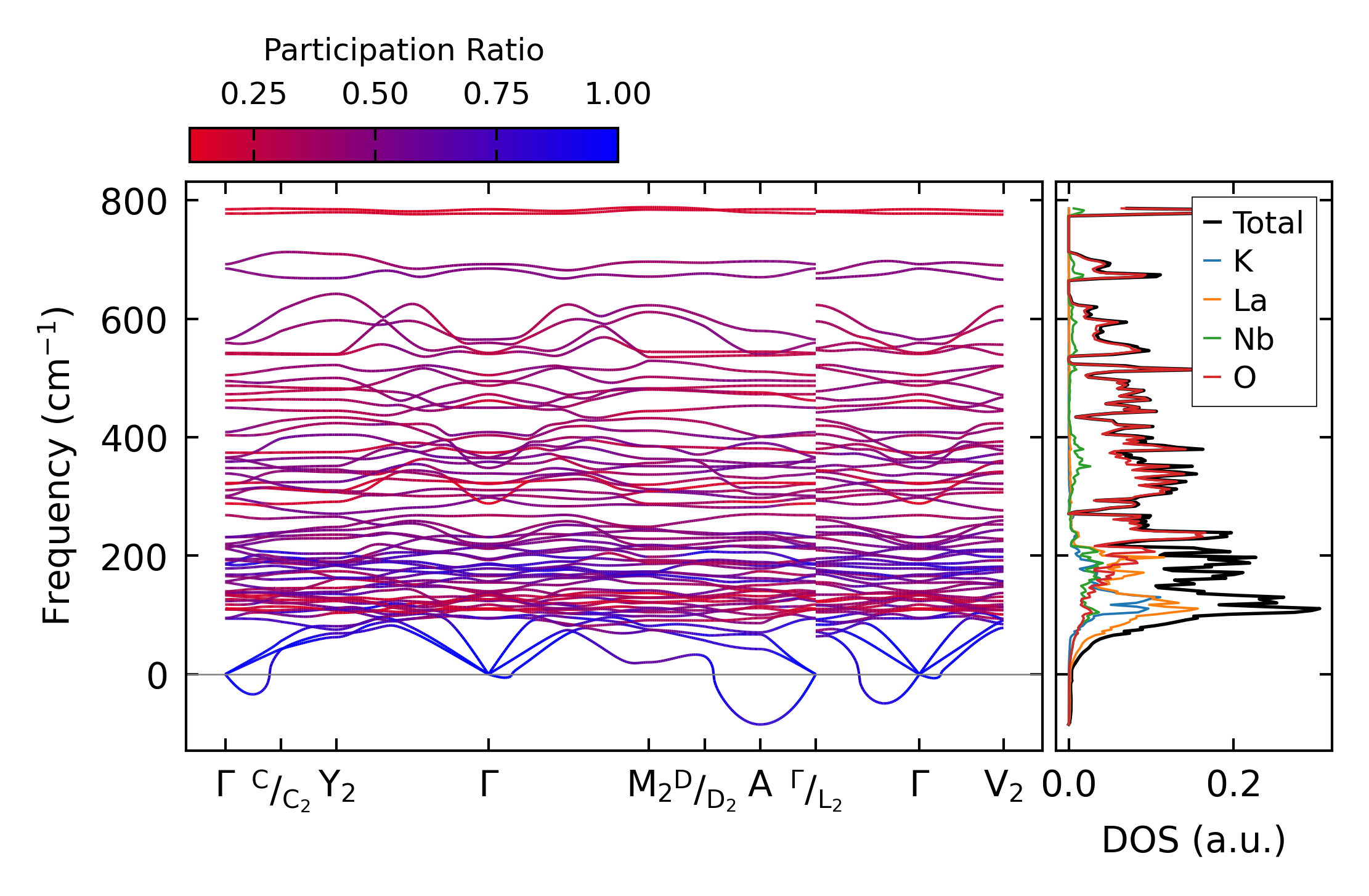

../../_images/fig_bandos_pr9244.png — (a) Phonon dispersion with participation ratio and DOS

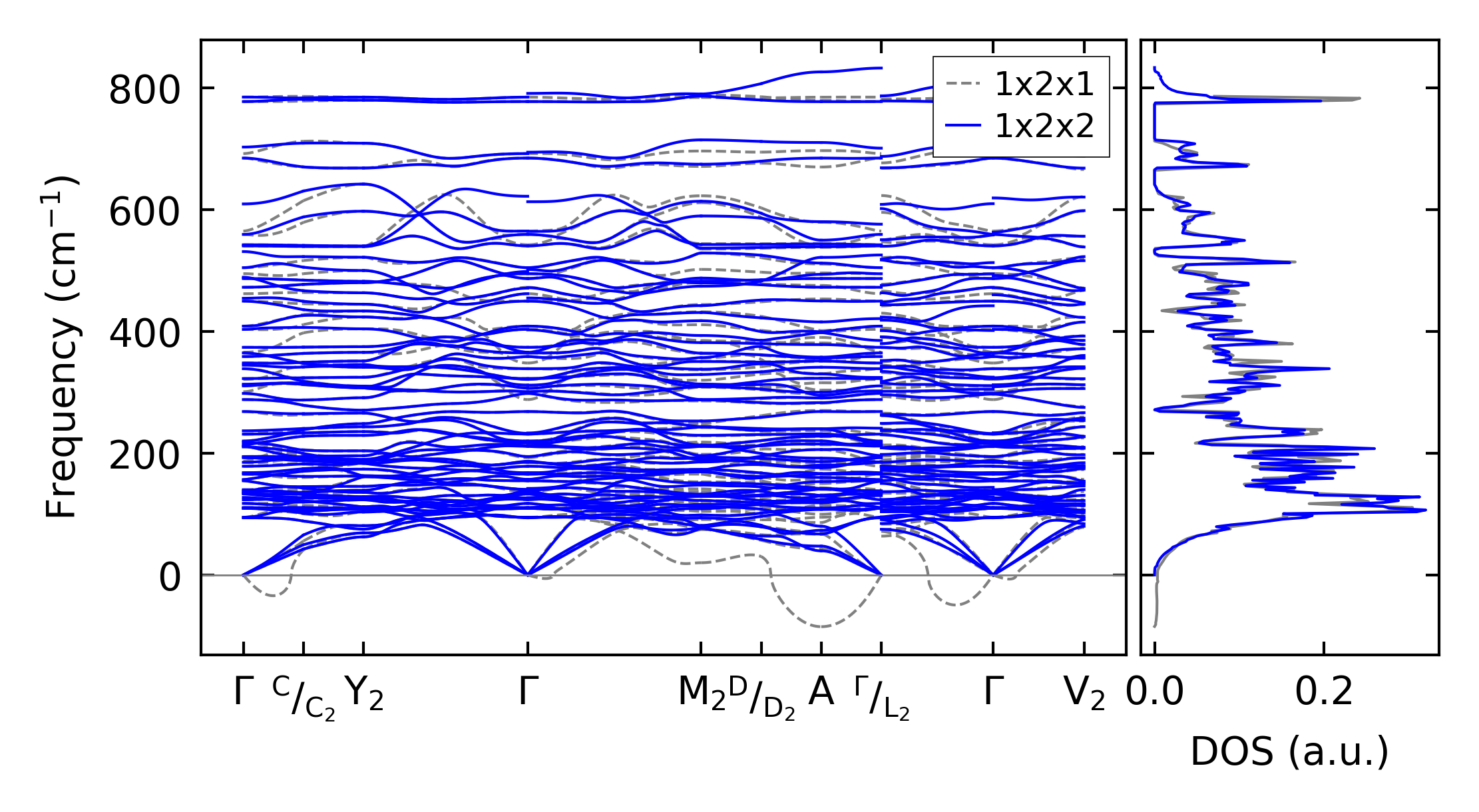

../../_images/fig_bandos12965.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo9244.png — (c) Thermodynamic properties

Grüneisen parameters

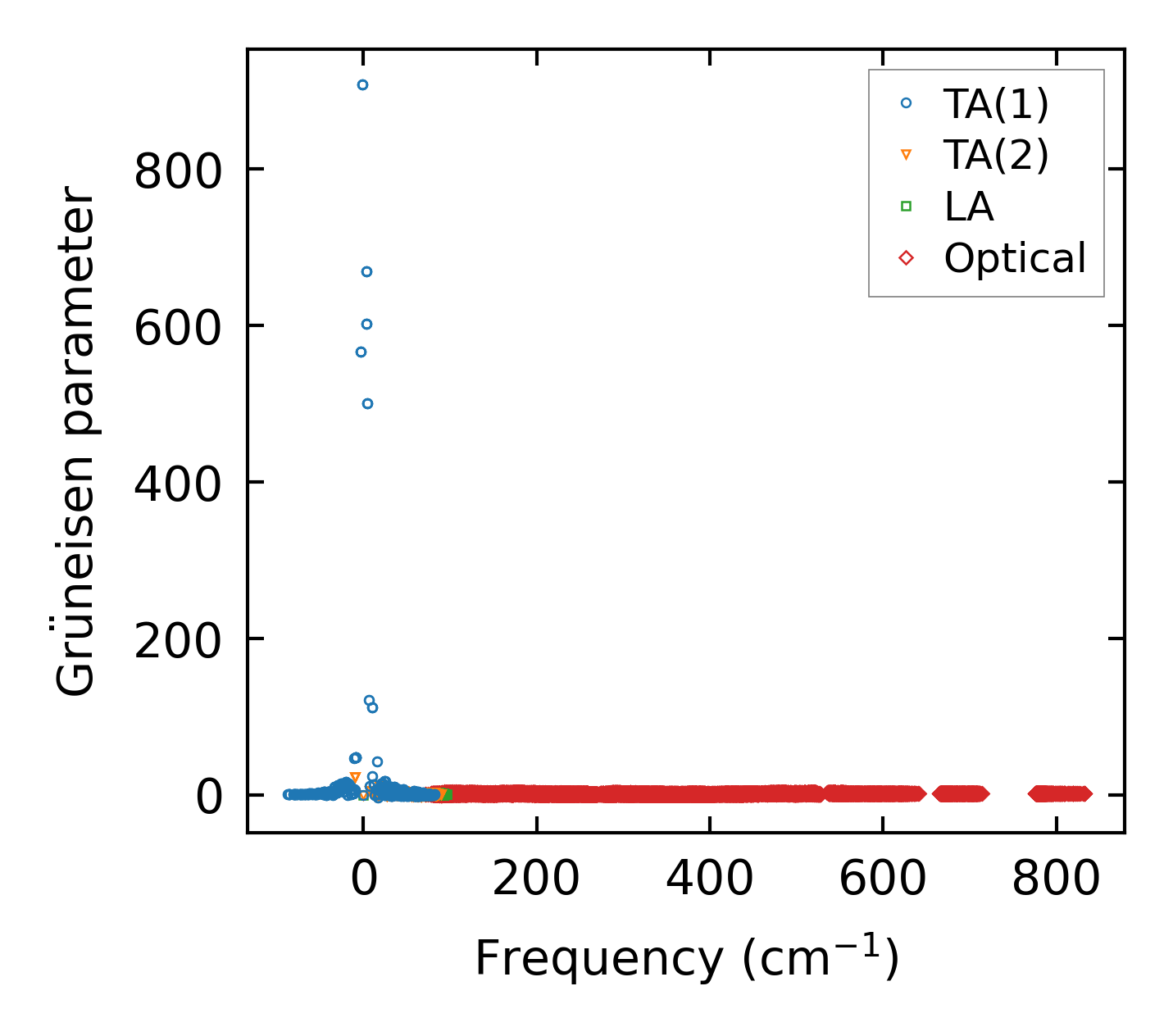

../../_images/fig_gru_all3686.png — (a) Grüneisen parameters

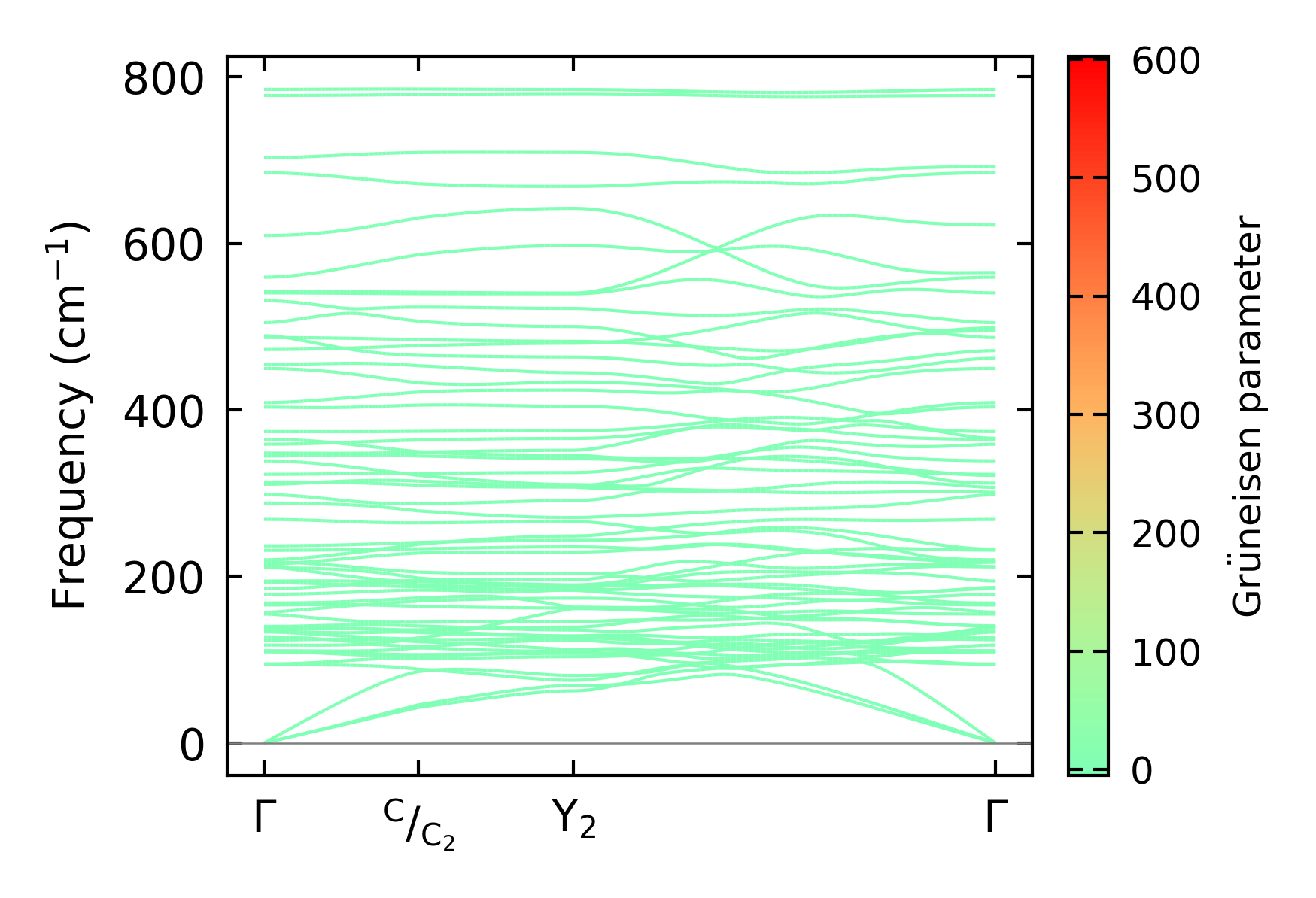

../../_images/fig_gruneisen3686.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 1x2x2 — q-mesh: 11x11x9, supercell: 1x2x2

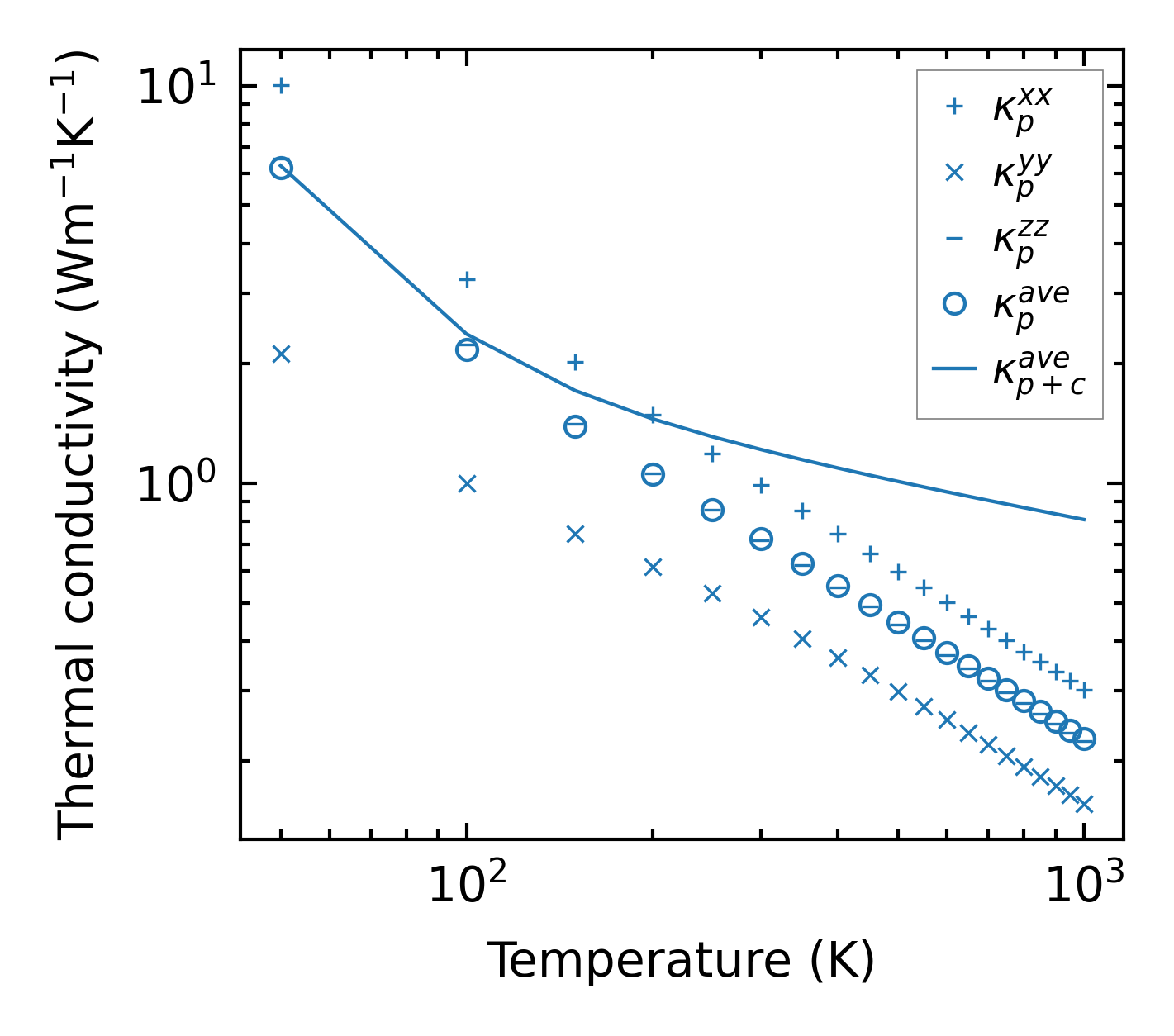

../../_images/fig_kappa6963.png — (a) Temperature-dependent lattice thermal conductivity

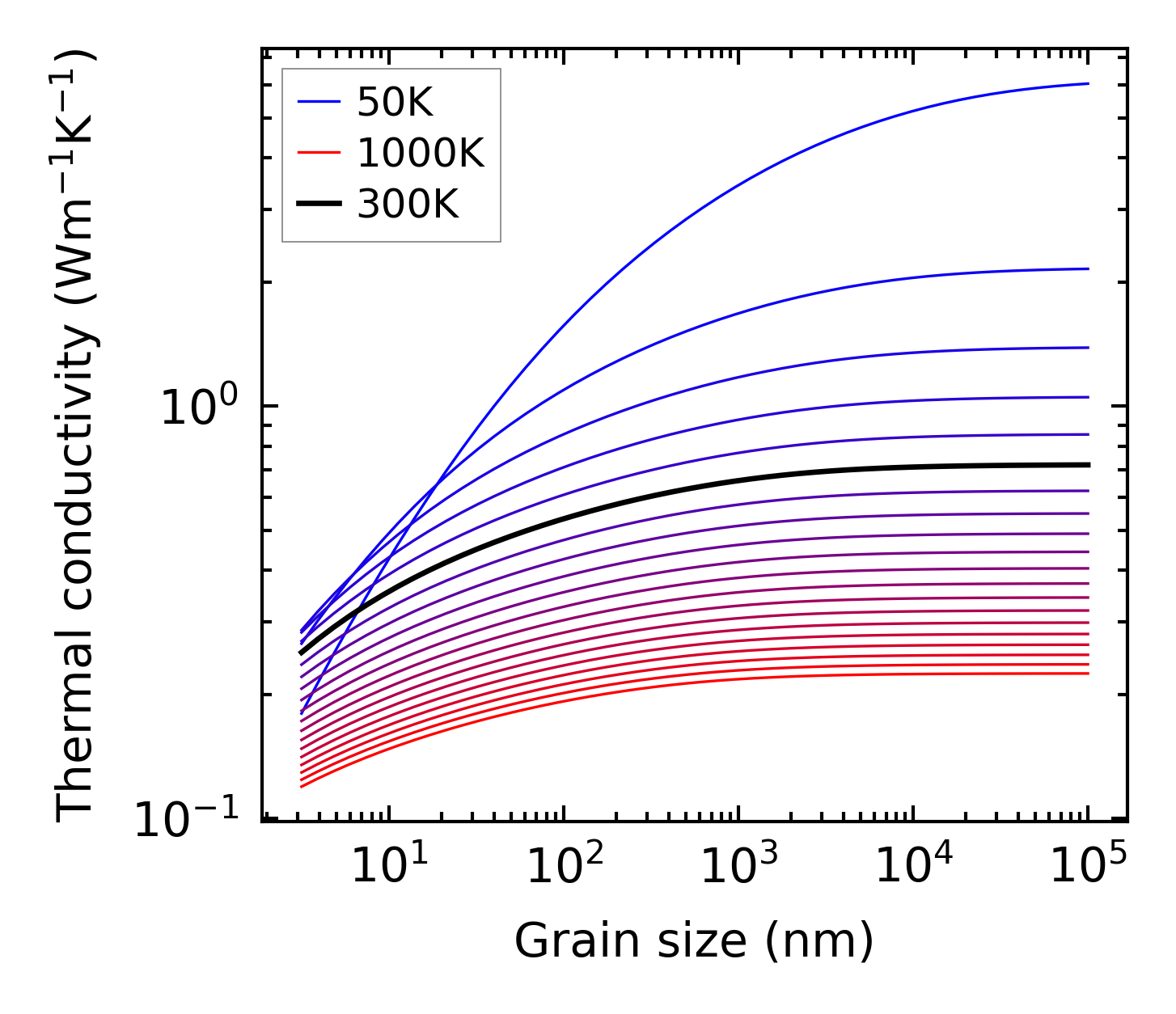

../../_images/fig_kappa_vs_grain_size3735.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

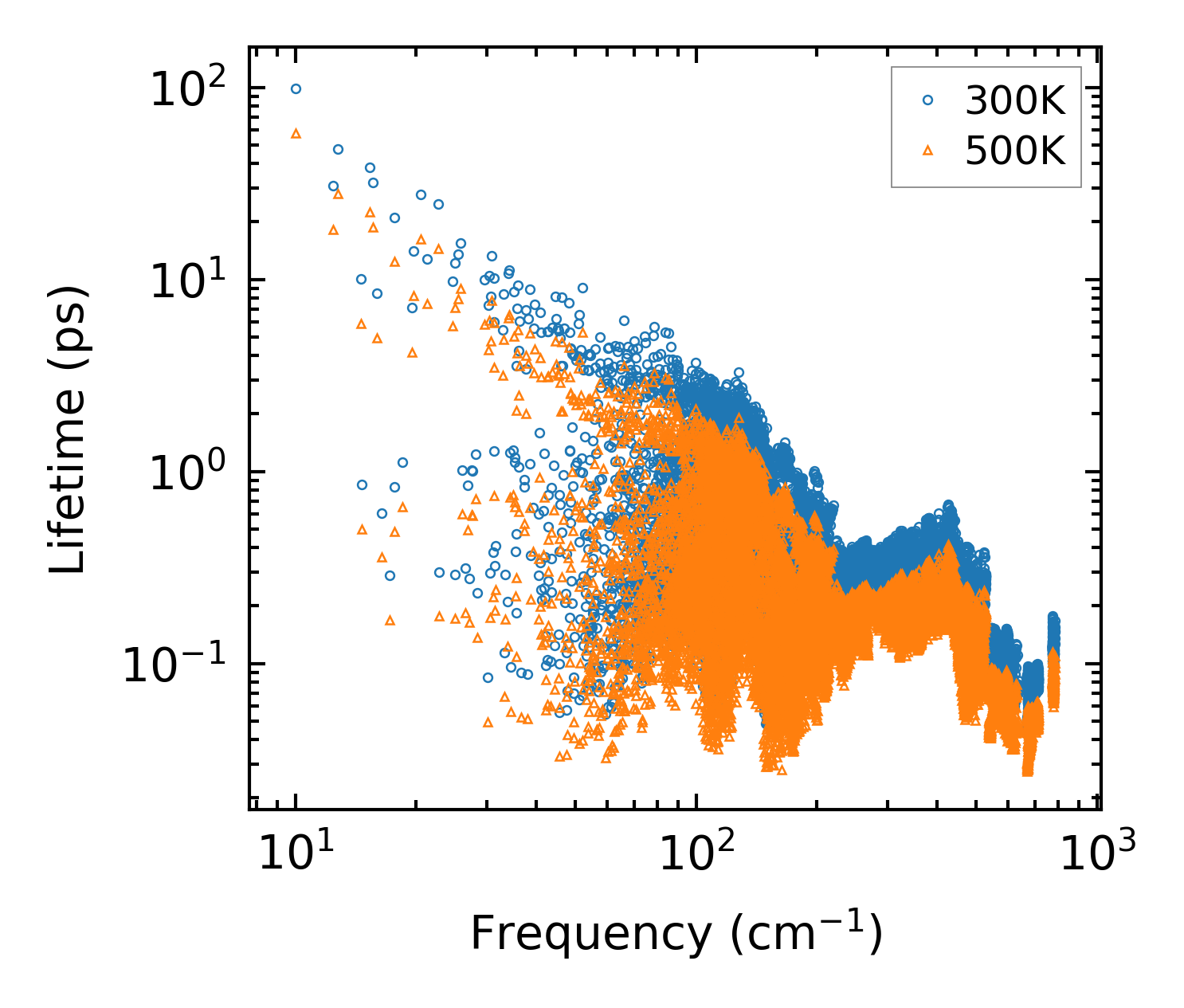

../../_images/fig_lifetime3652.png — (a) Phonon lifetime due to phonon-phonon scattering

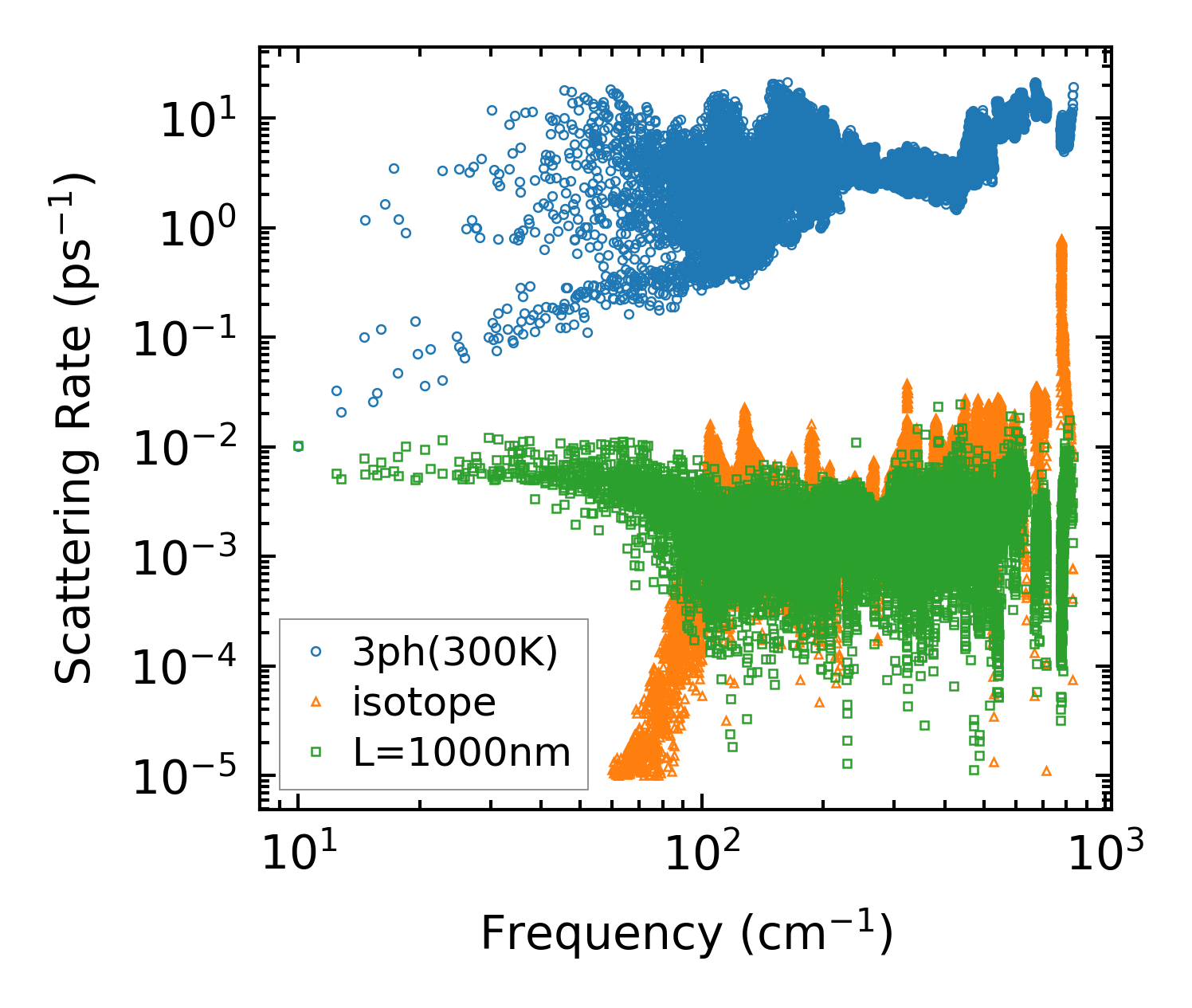

../../_images/fig_scat_rates3651.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

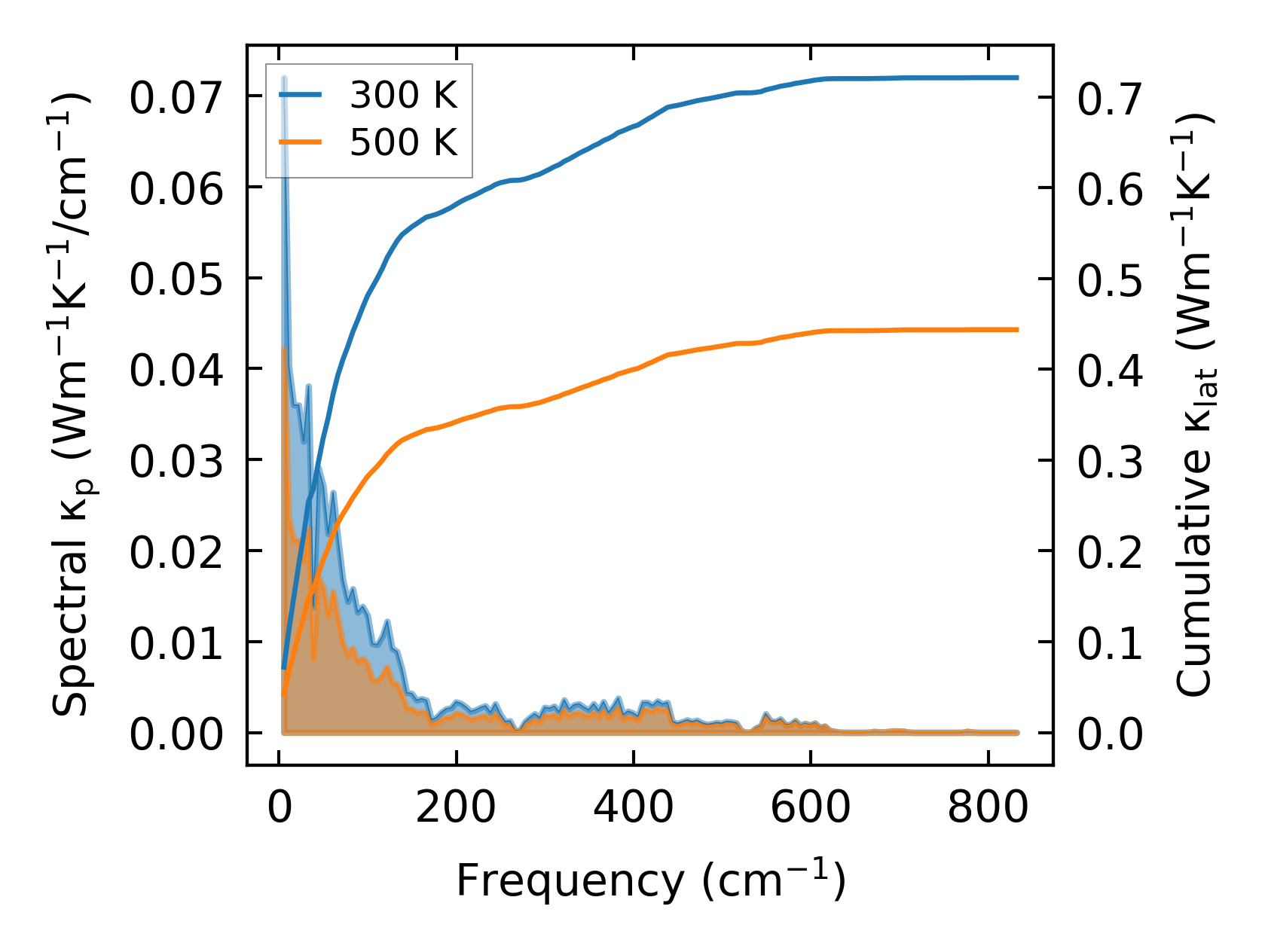

../../_images/fig_cumu_frequency3652.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

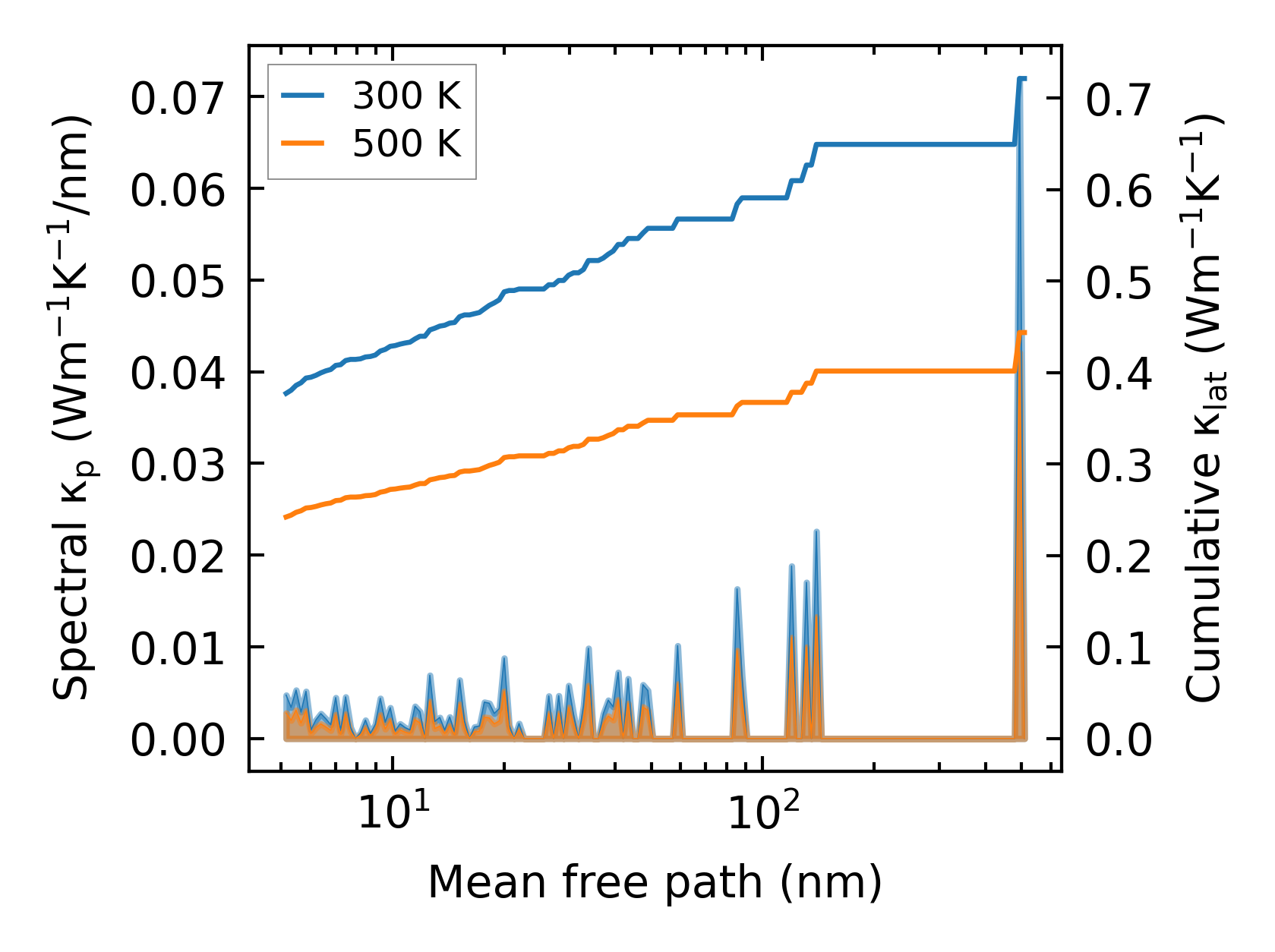

../../_images/fig_cumu_mfp3651.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

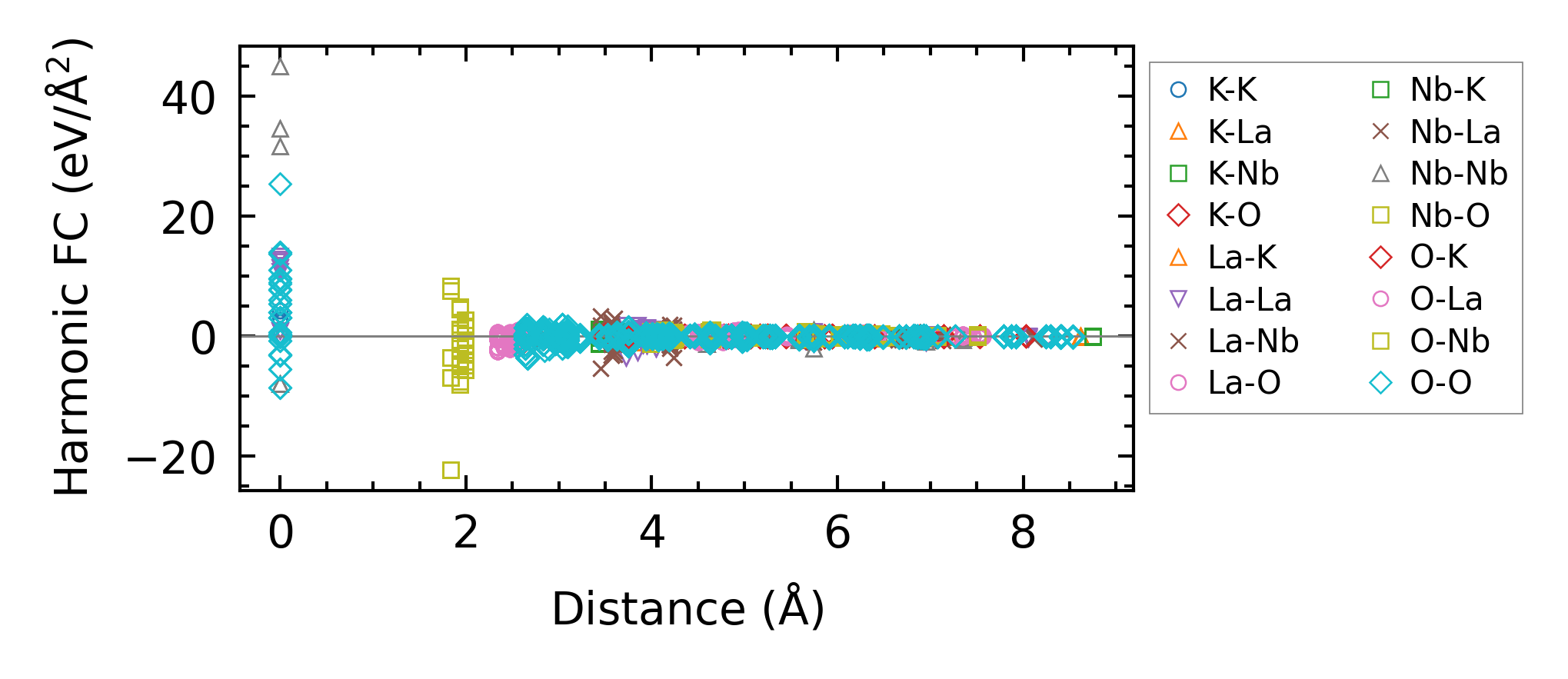

../../_images/fig_fc29006.png — (a) Force constants w.r.t atomic distance

Summary

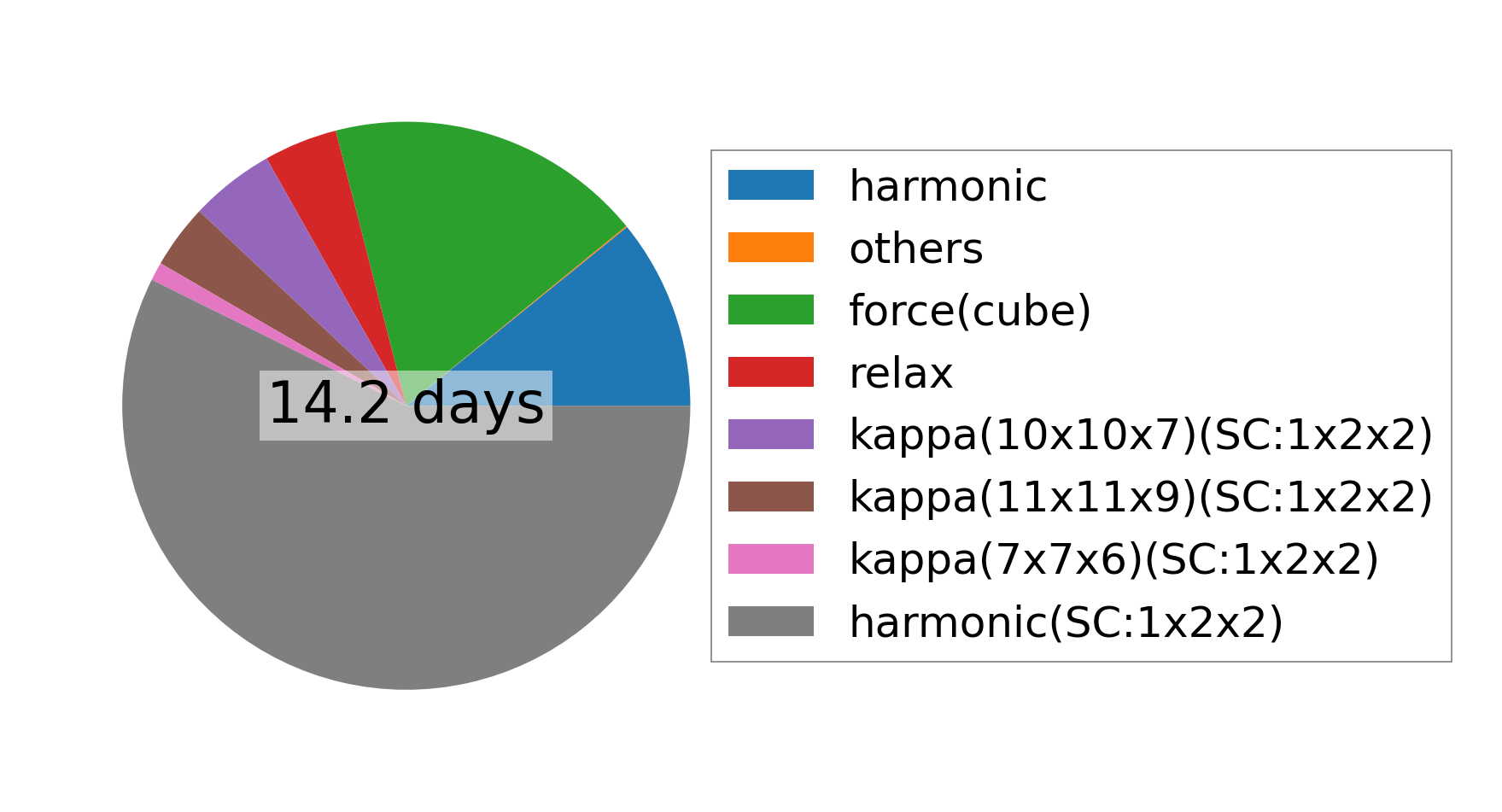

../../_images/fig_times16119.png — (a) Computation time
