mp-754942/SrSm2O4/anharm

Space group: Fd-3m (227)
Link: Materials Project
Download: mp-754942.tar.gz

Harmonic properties

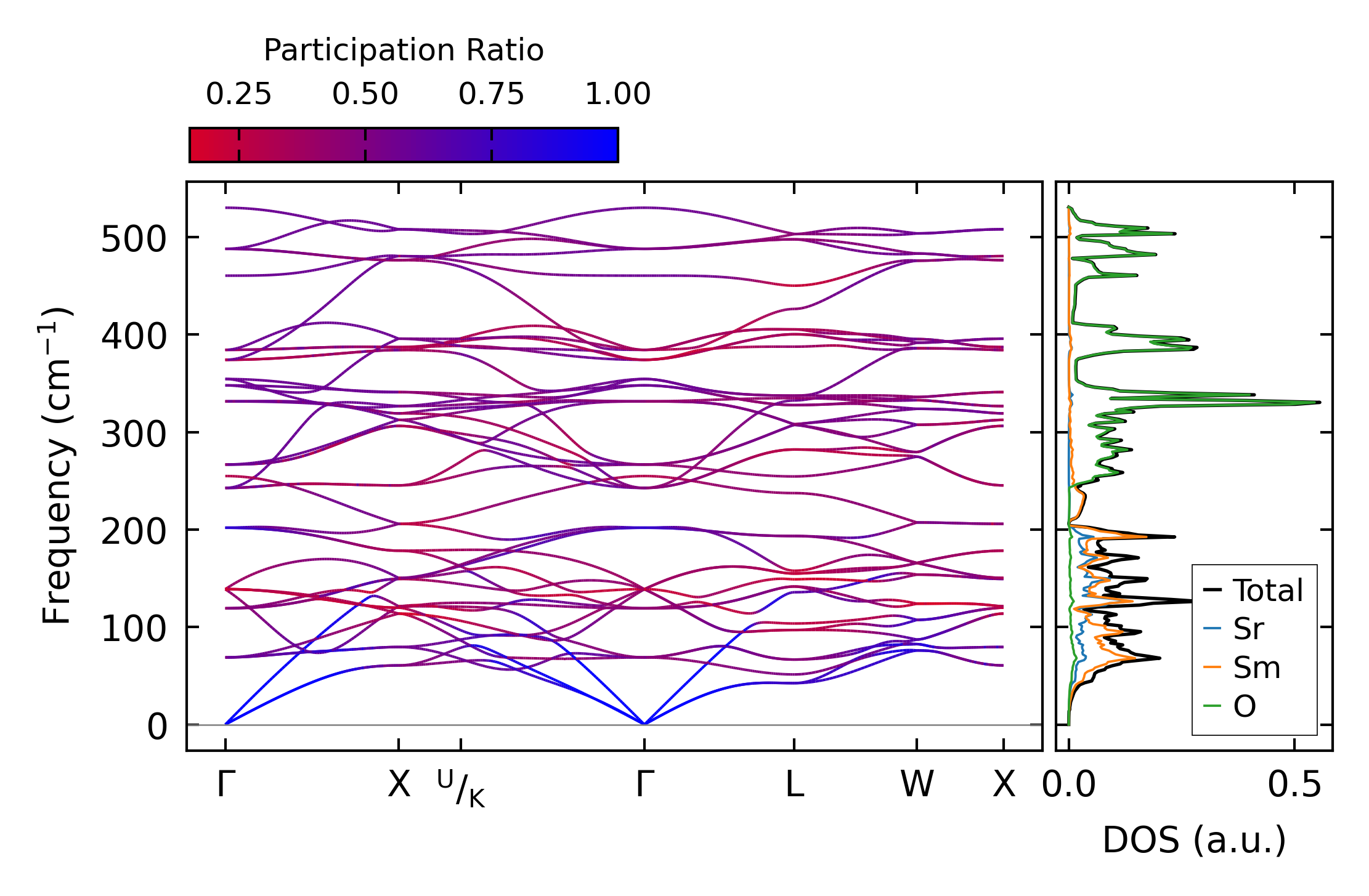

../../_images/fig_bandos_pr3622.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3622.png — (b) Thermodynamic properties

Grüneisen parameters

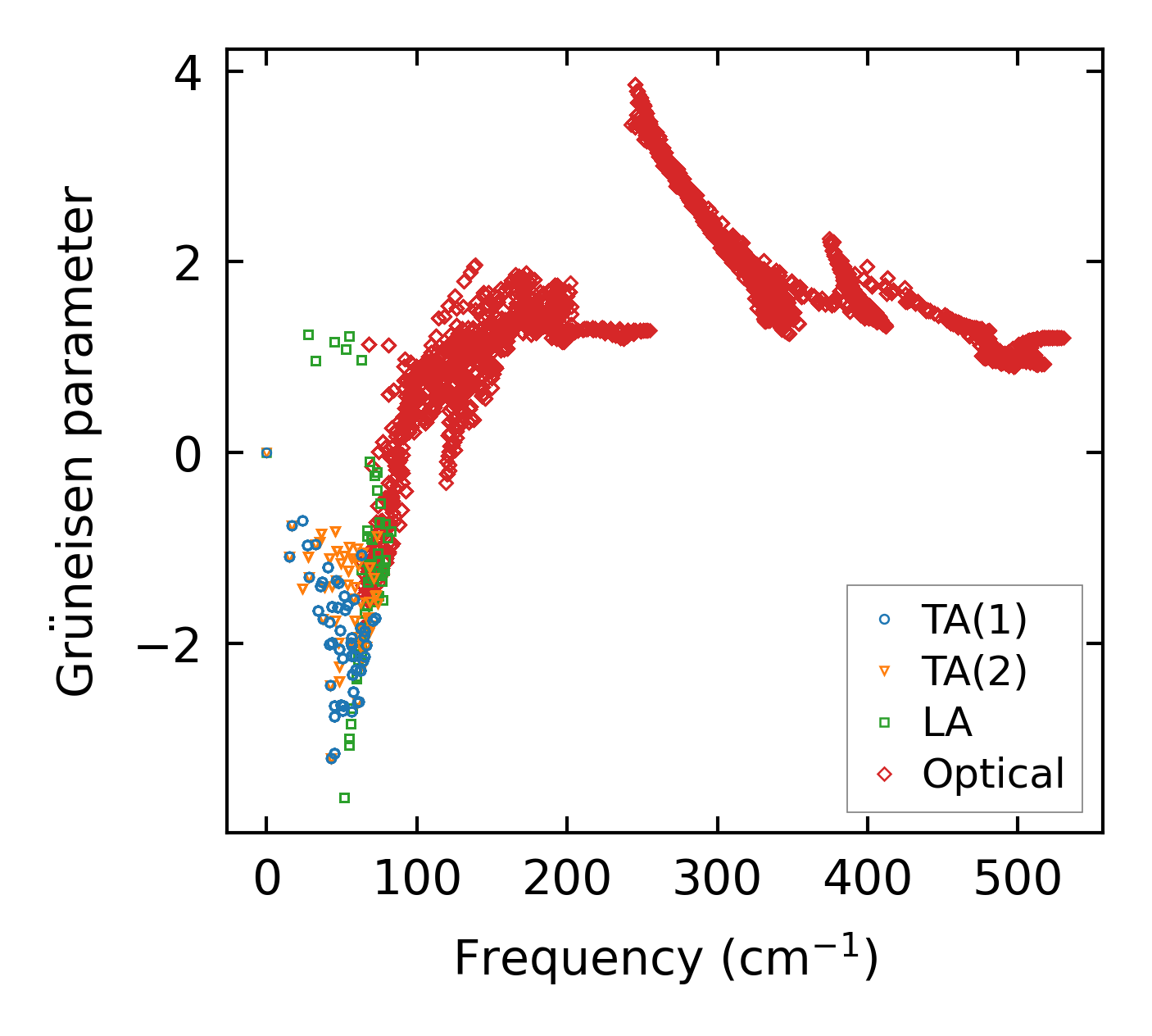

../../_images/fig_gru_all1625.png — (a) Grüneisen parameters

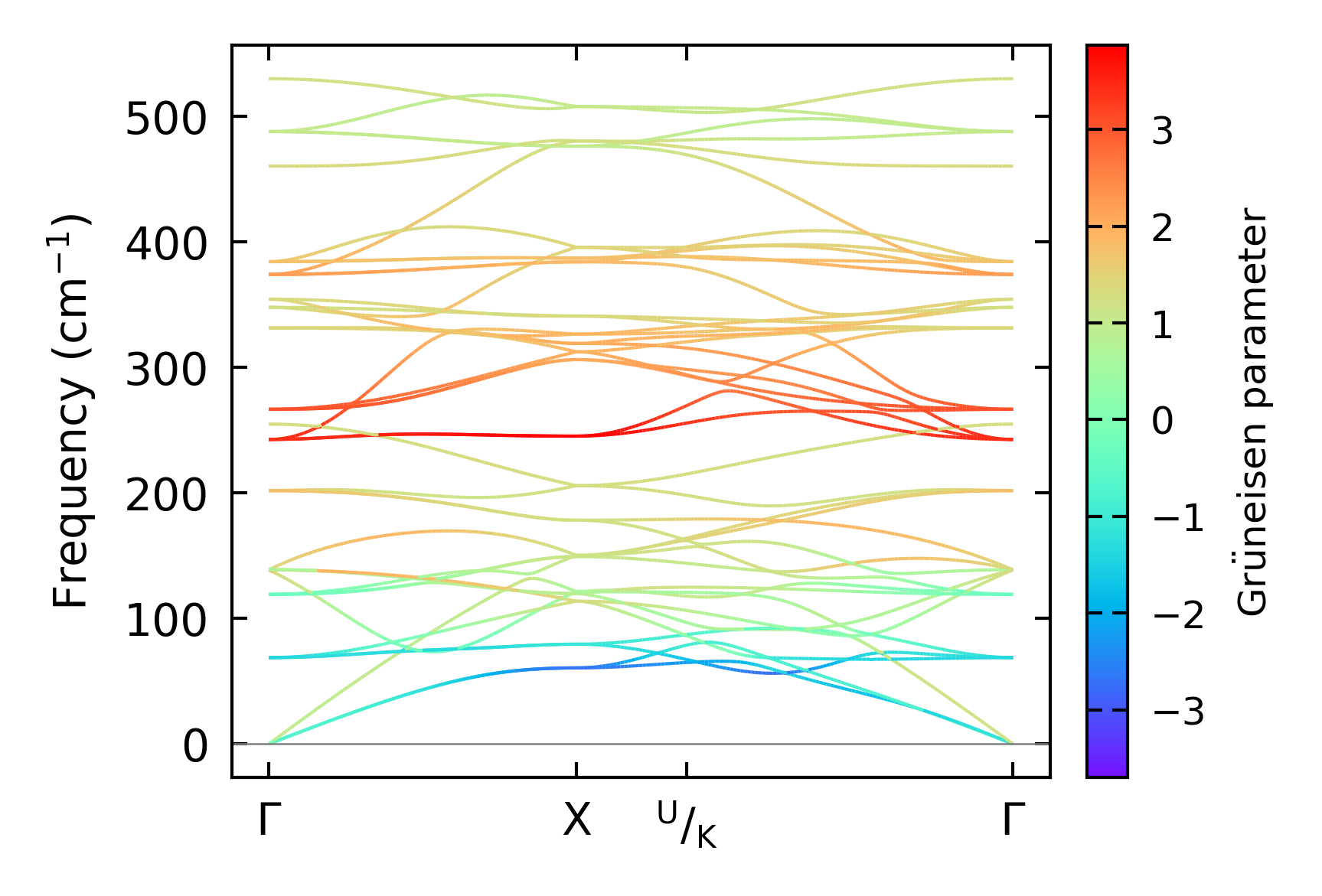

../../_images/fig_gruneisen1625.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x11, supercell: 1x1x1

../../_images/fig_kappa3125.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1646.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

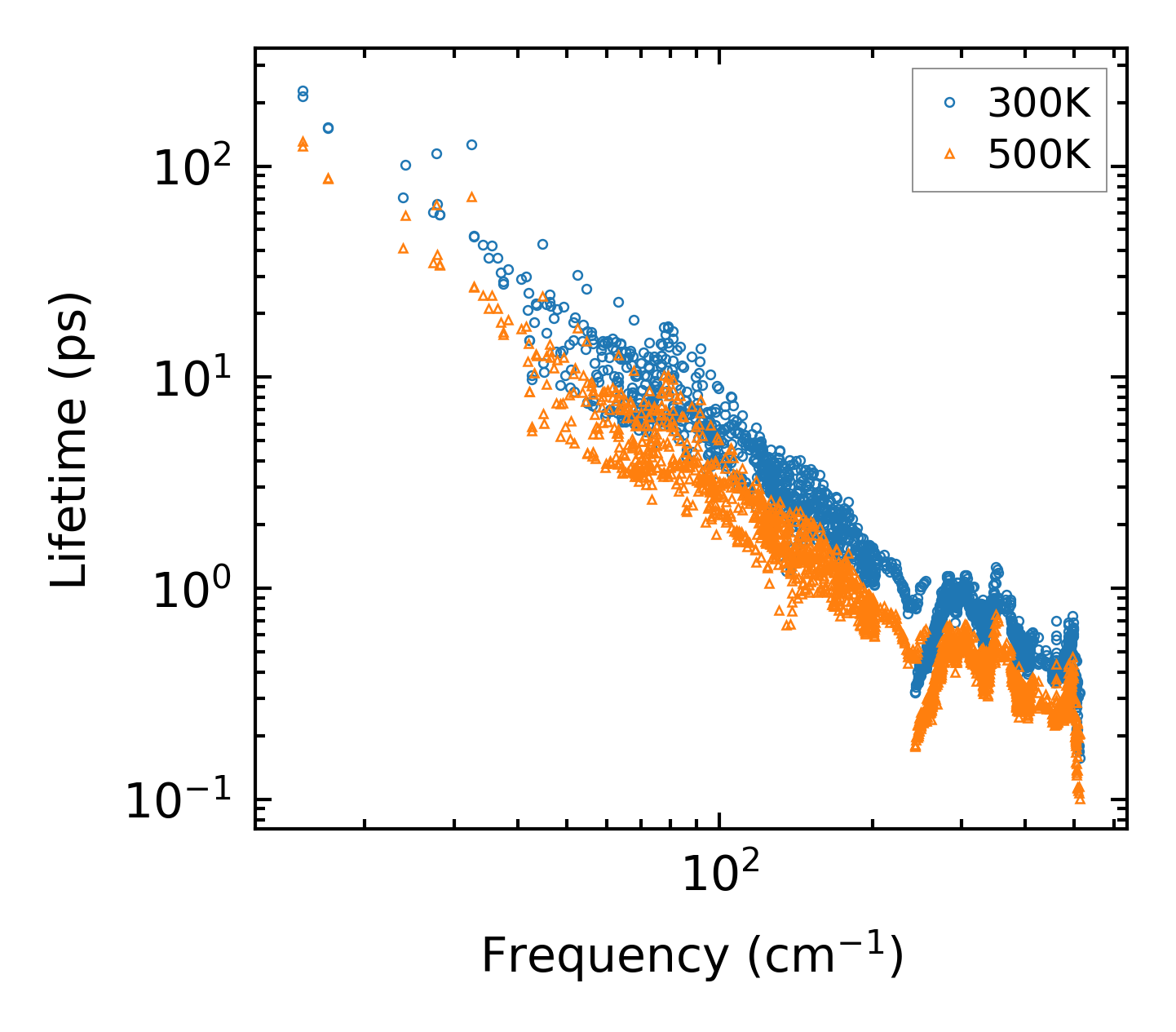

../../_images/fig_lifetime1615.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1614.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

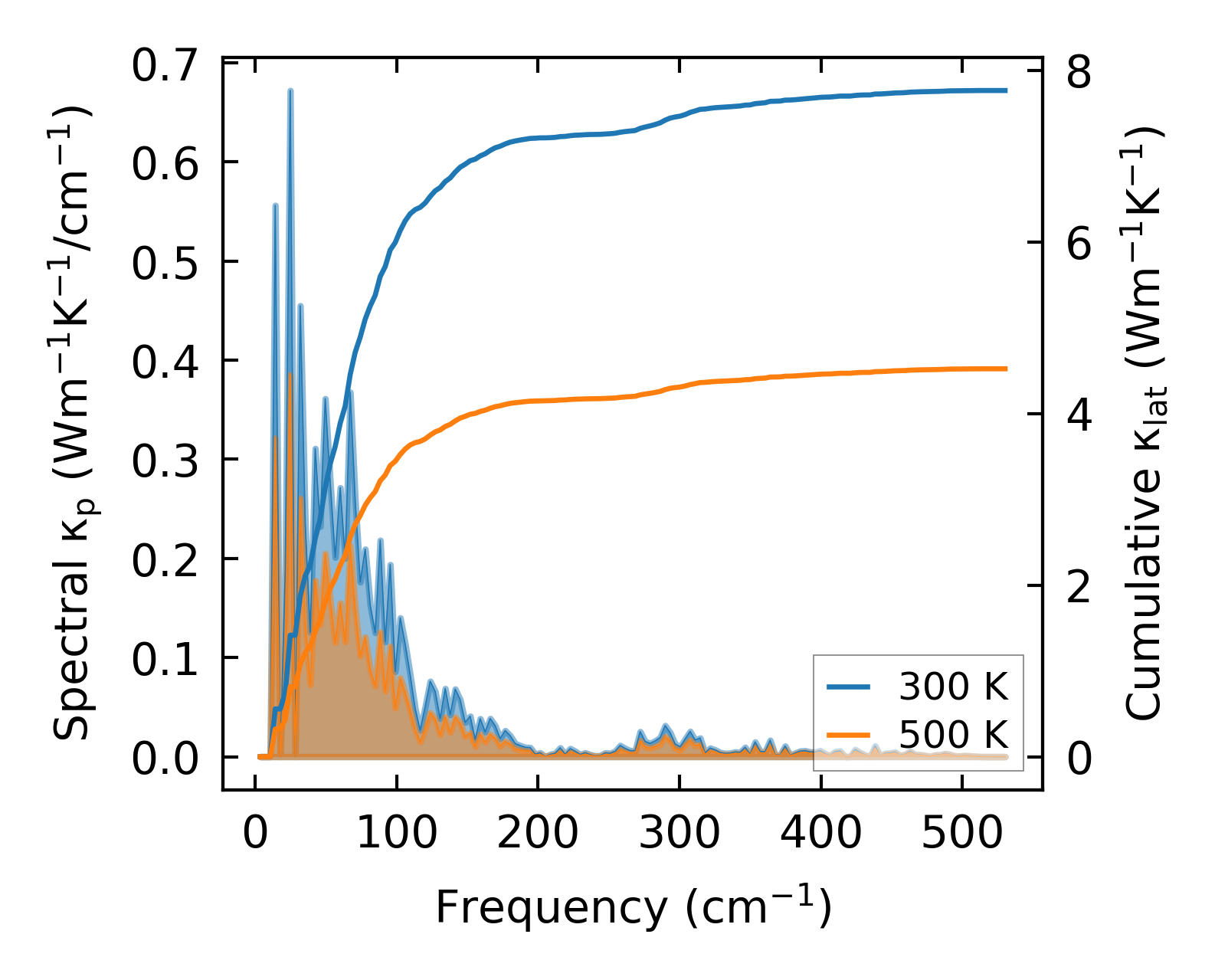

../../_images/fig_cumu_frequency1615.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

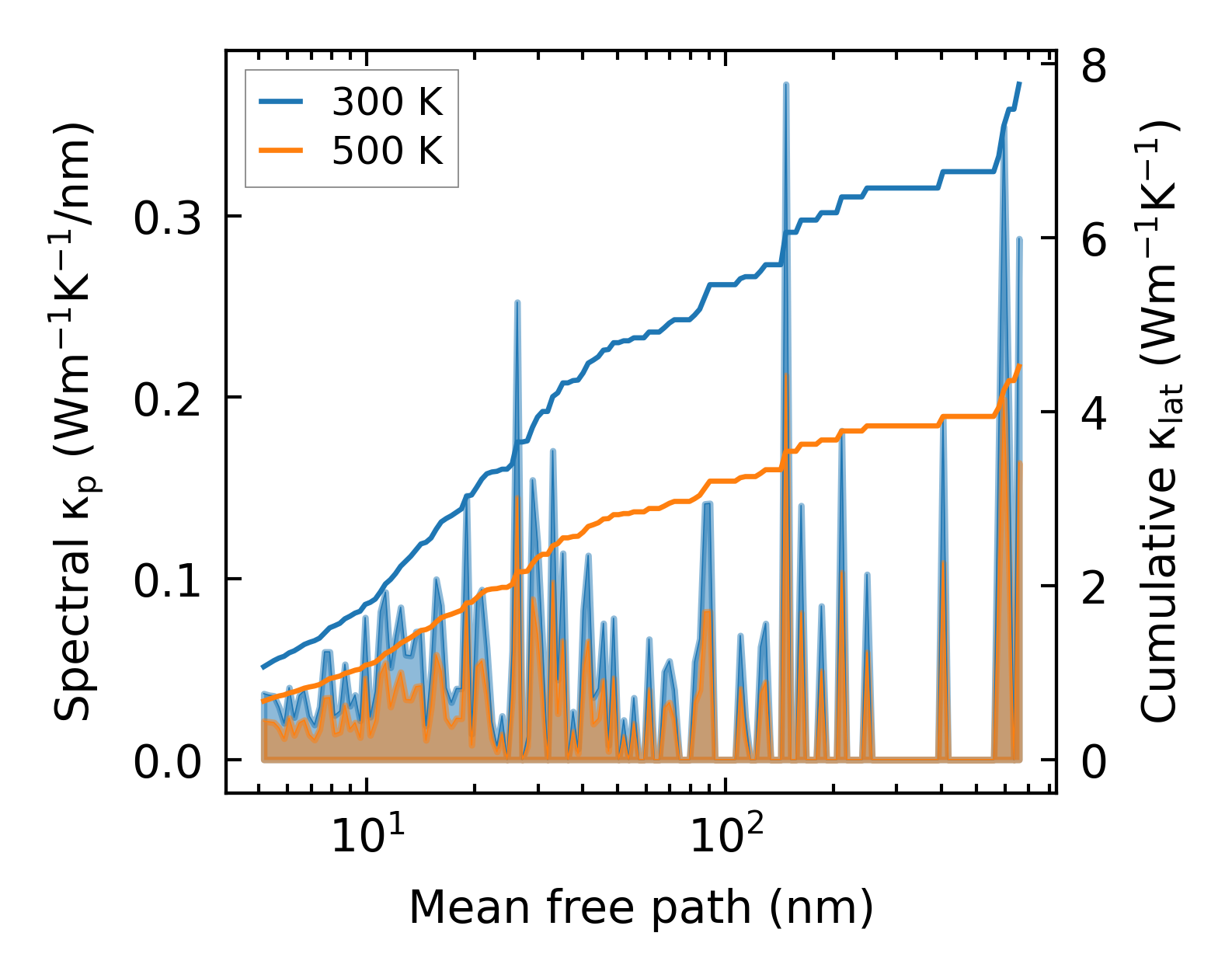

../../_images/fig_cumu_mfp1615.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

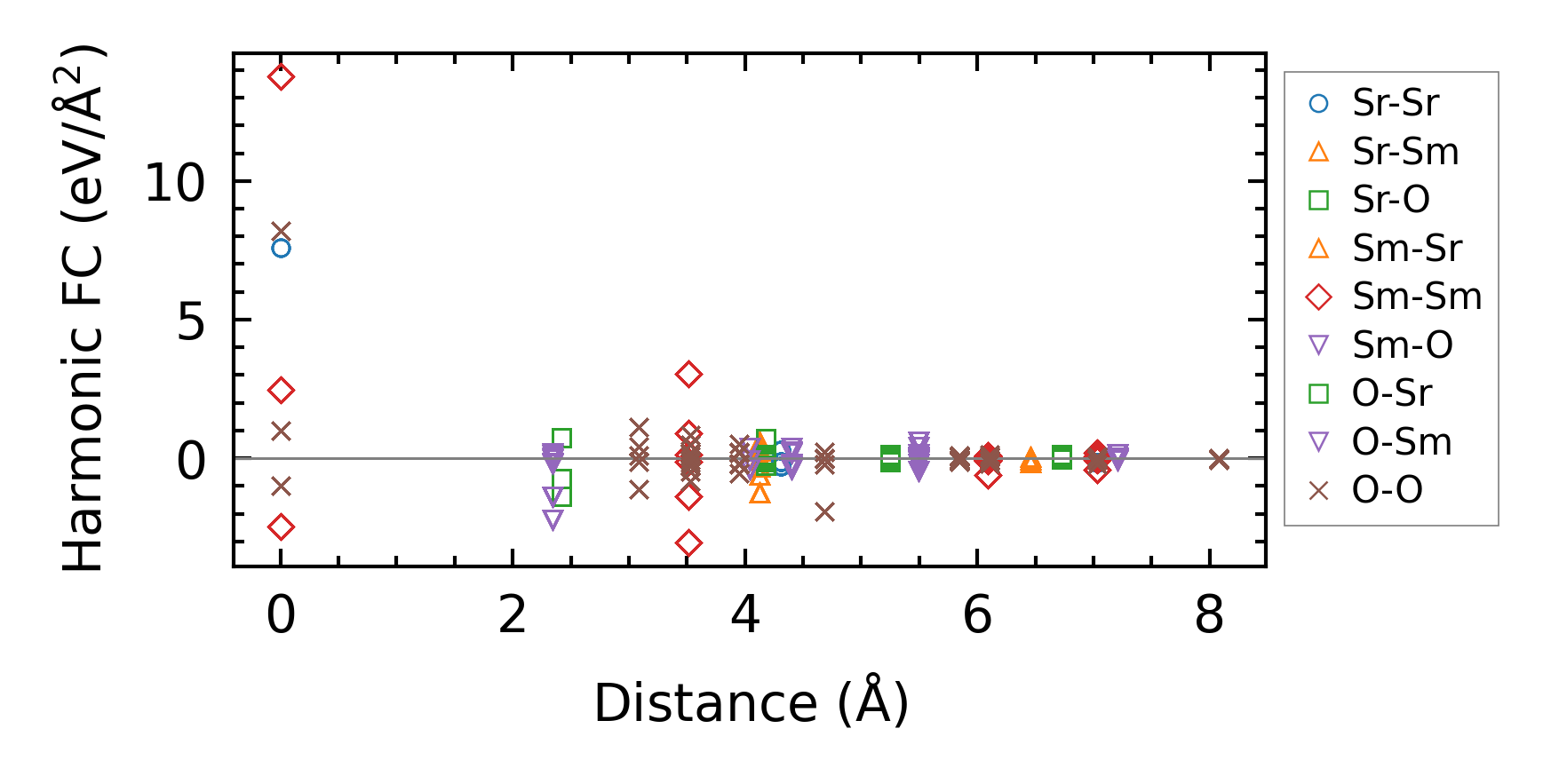

../../_images/fig_fc23440.png — (a) Force constants w.r.t atomic distance

Summary

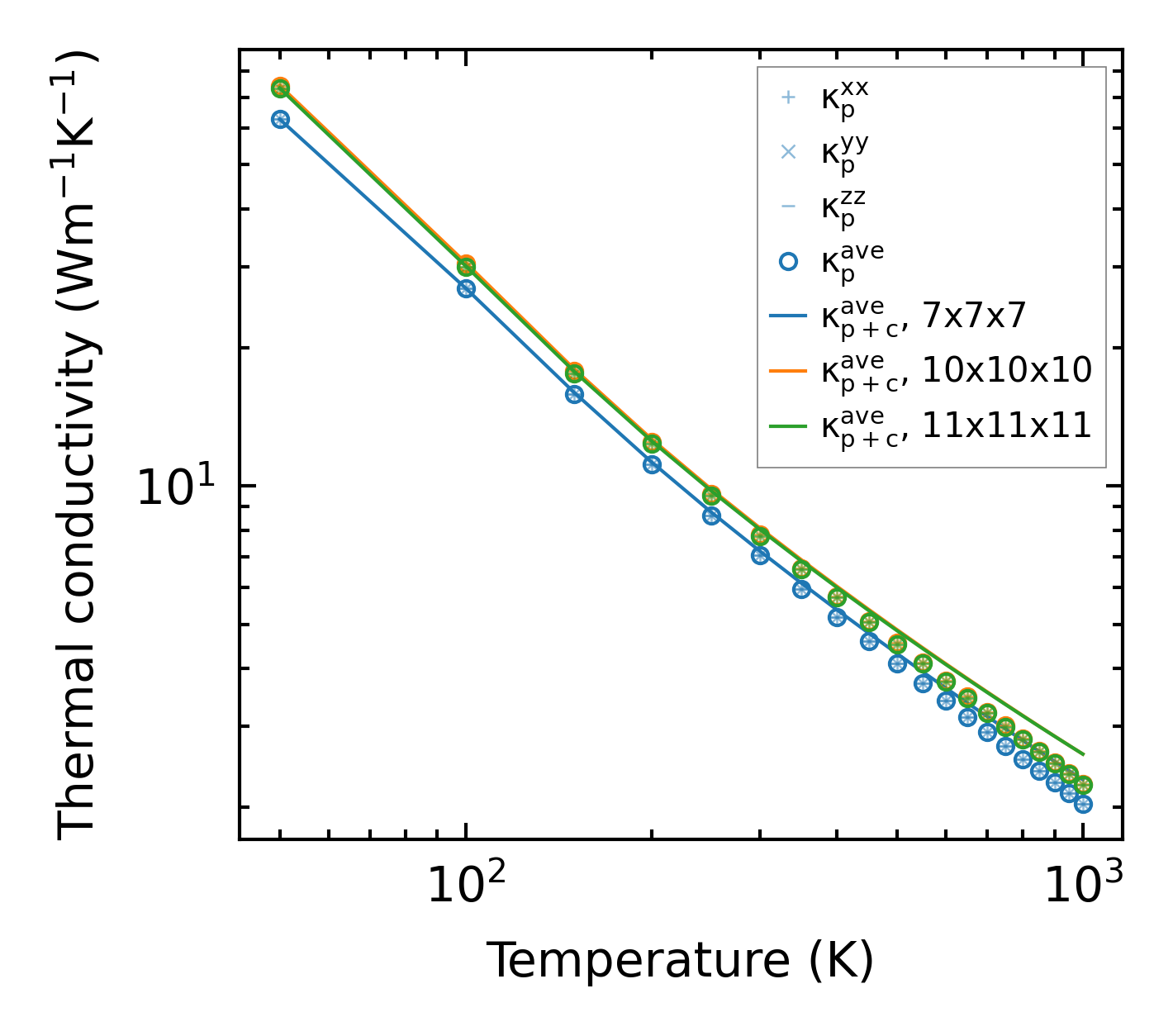

../../_images/fig_kappa3126.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times6304.png — (b) Computation time
