mp-754113/TmClO/anharm

Space group: Pmmn (59)
Link: Materials Project
Download: mp-754113.tar.gz

Equation of state

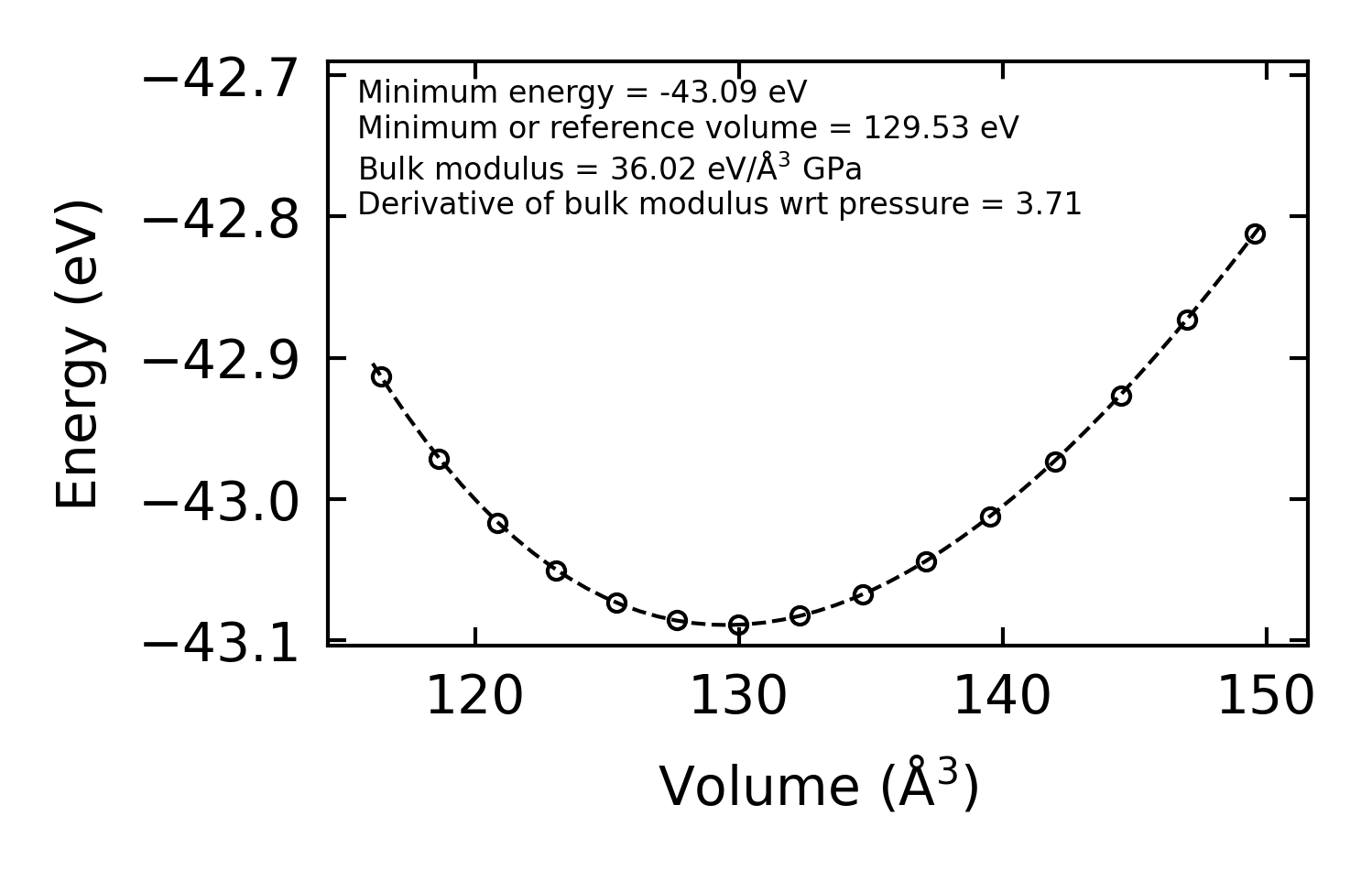

../../_images/fig_bm1849.png — (a) Equation of state

Harmonic properties

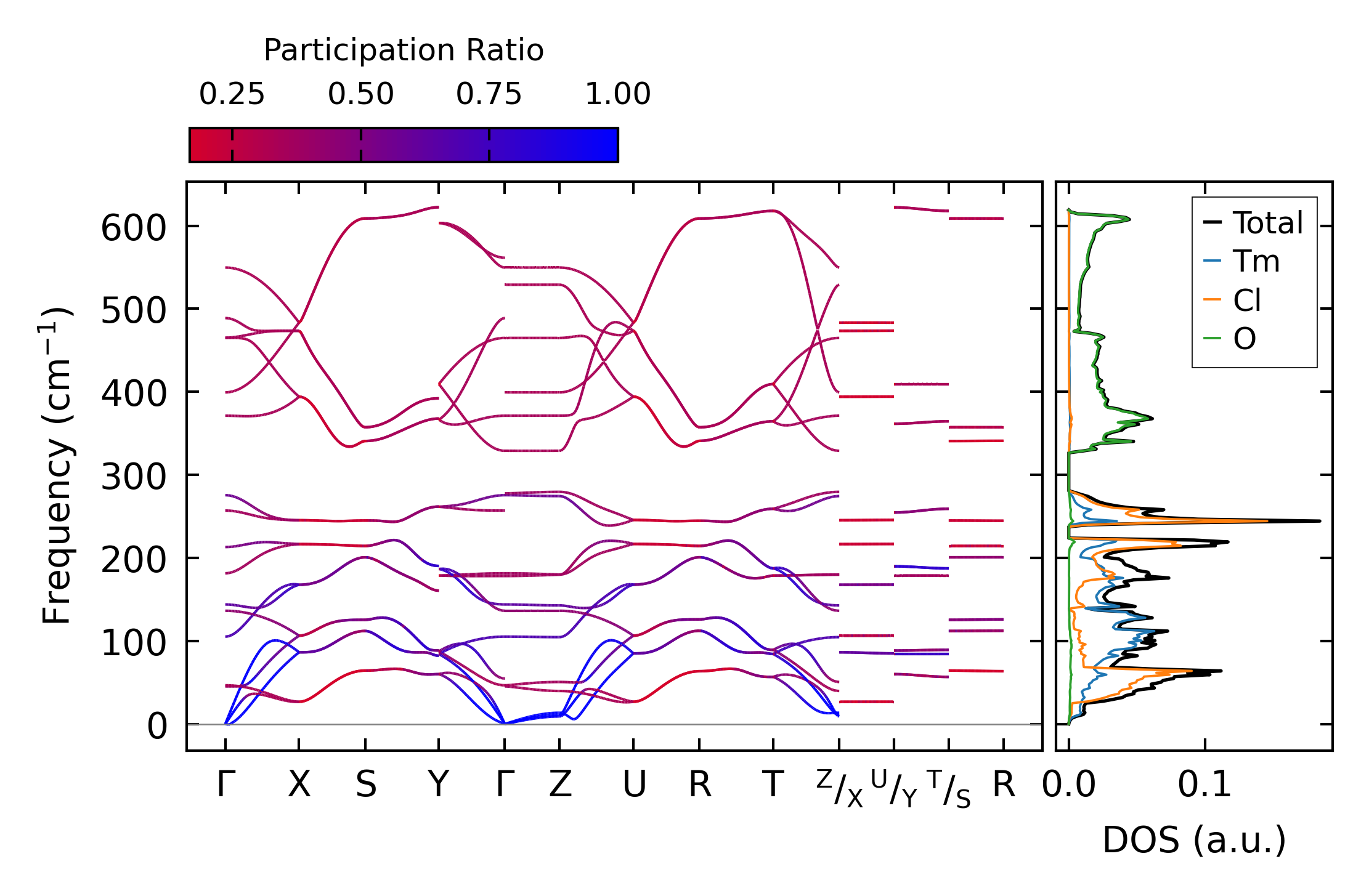

../../_images/fig_bandos_pr3795.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos5045.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo3795.png — (c) Thermodynamic properties

Grüneisen parameters

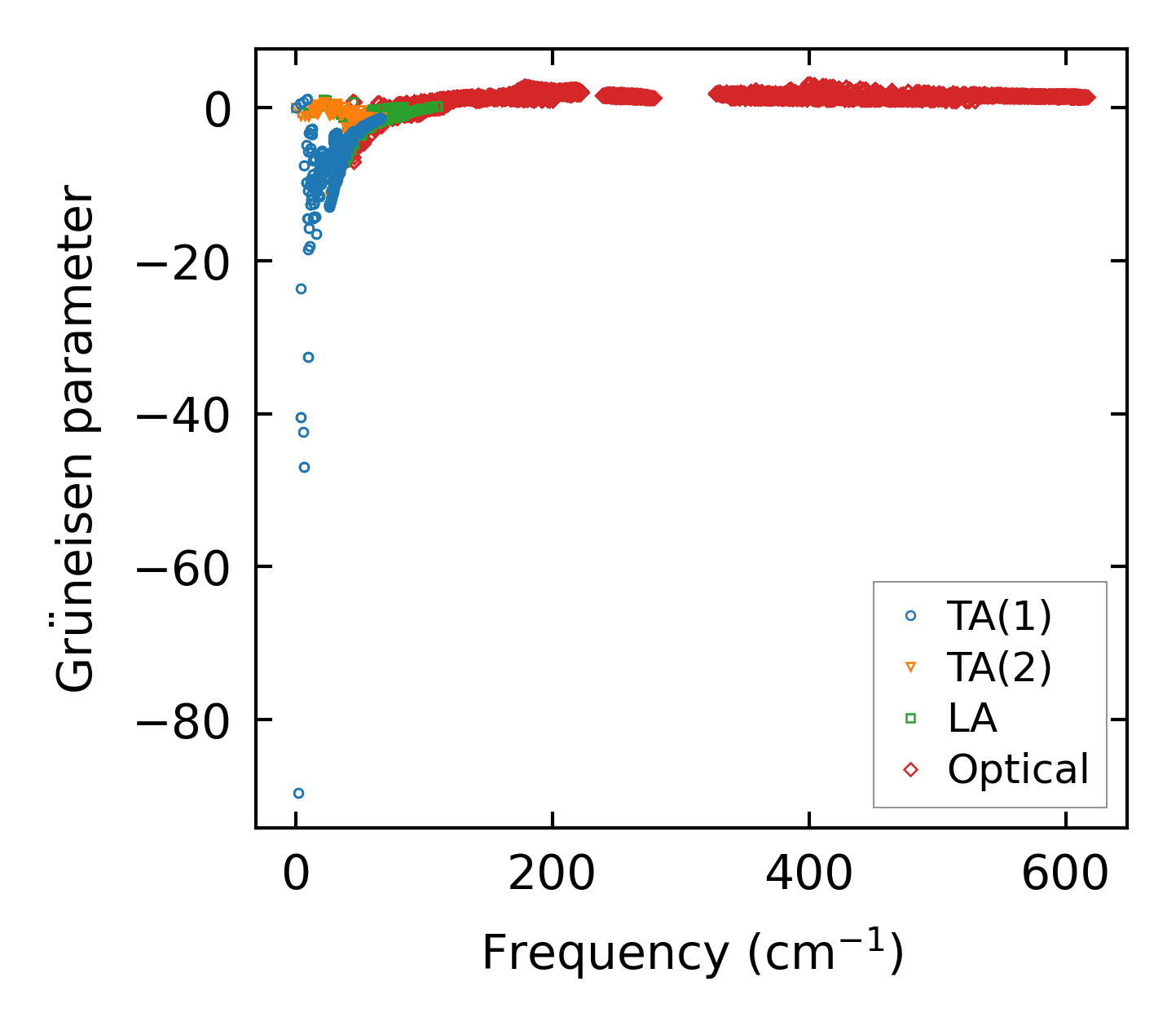

../../_images/fig_gru_all1710.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1710.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 4x4x2 — q-mesh: 19x17x8, supercell: 4x4x2

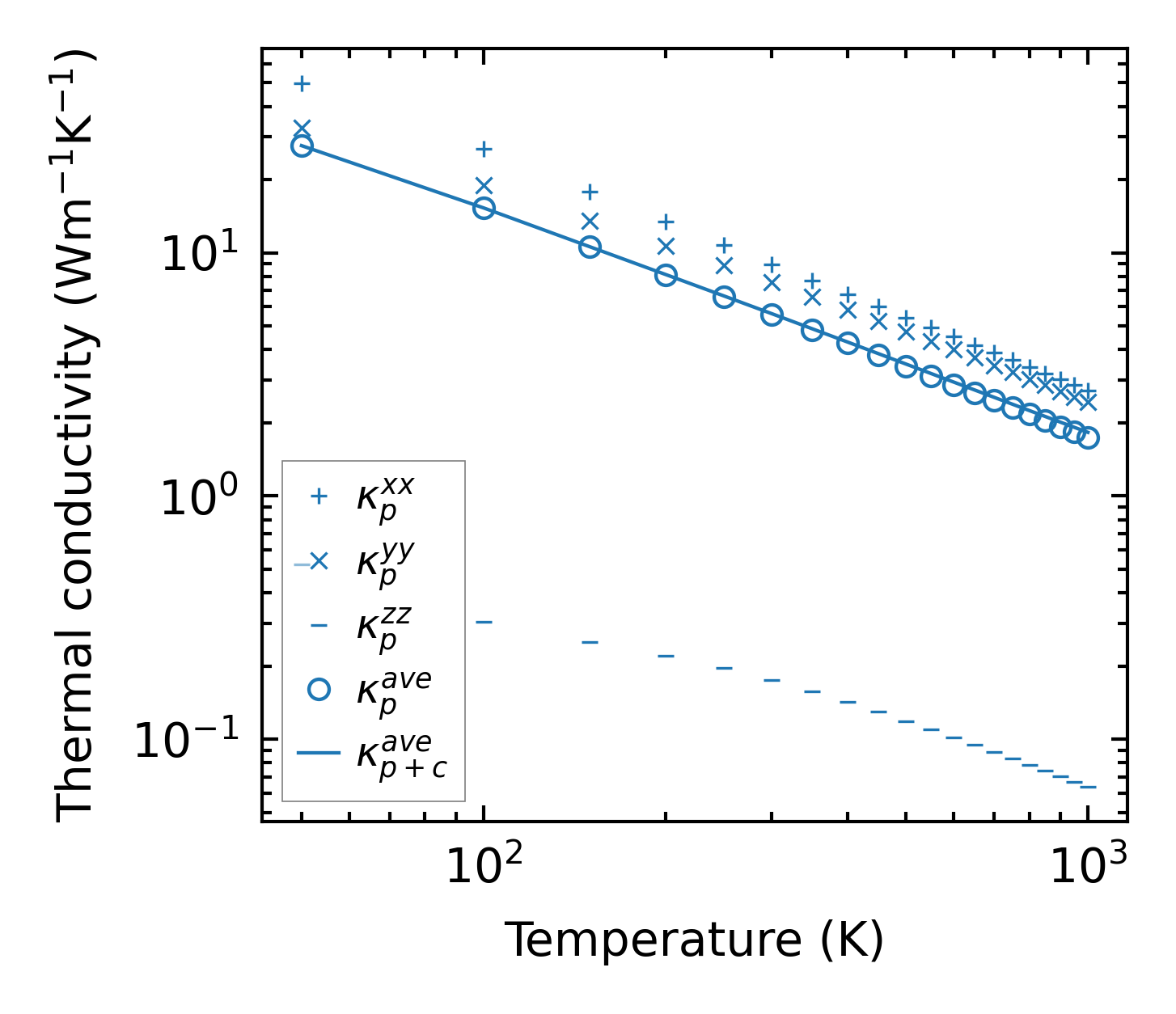

../../_images/fig_kappa3286.png — (a) Temperature-dependent lattice thermal conductivity

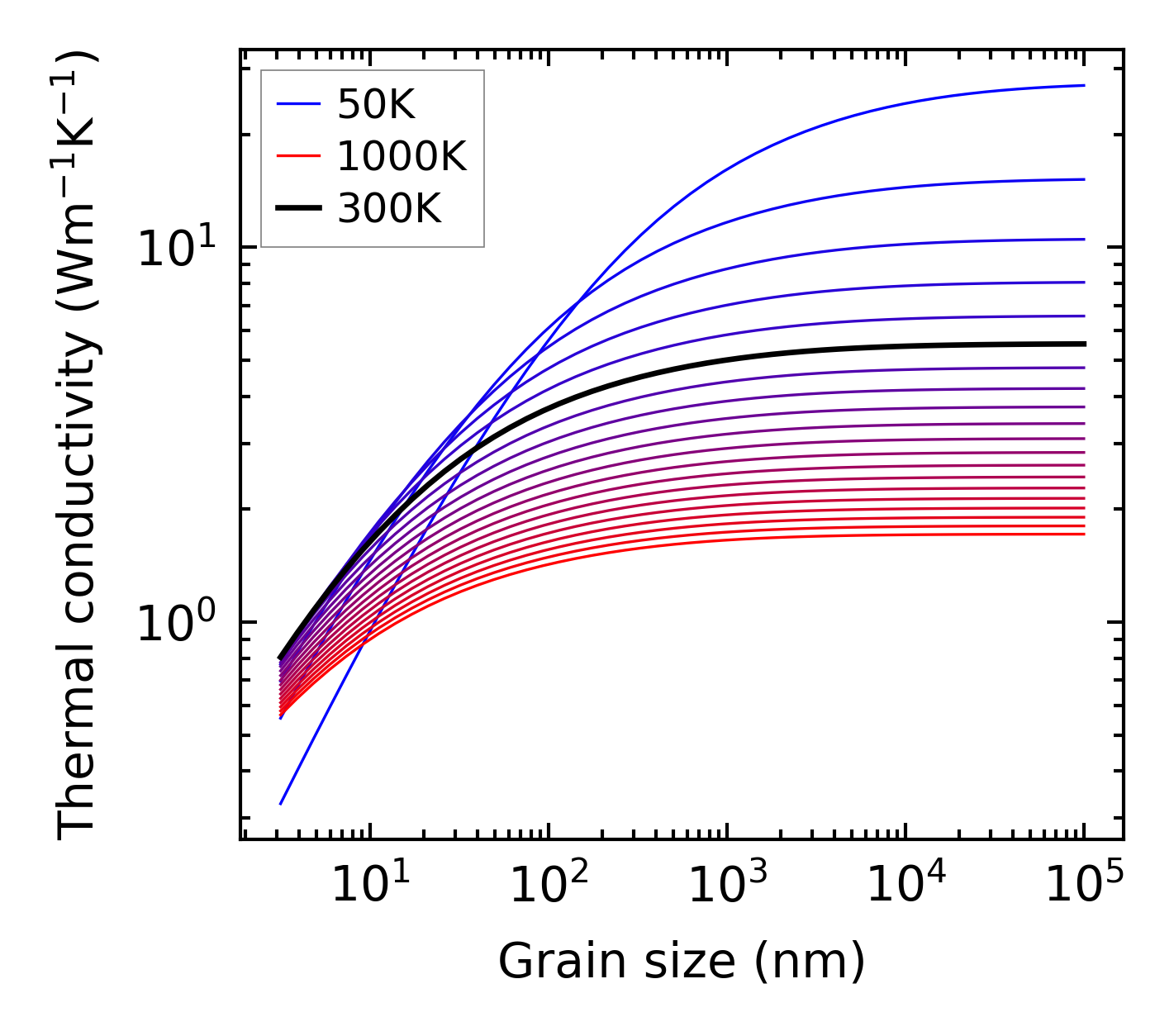

../../_images/fig_kappa_vs_grain_size1734.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime1700.png — (a) Phonon lifetime due to phonon-phonon scattering

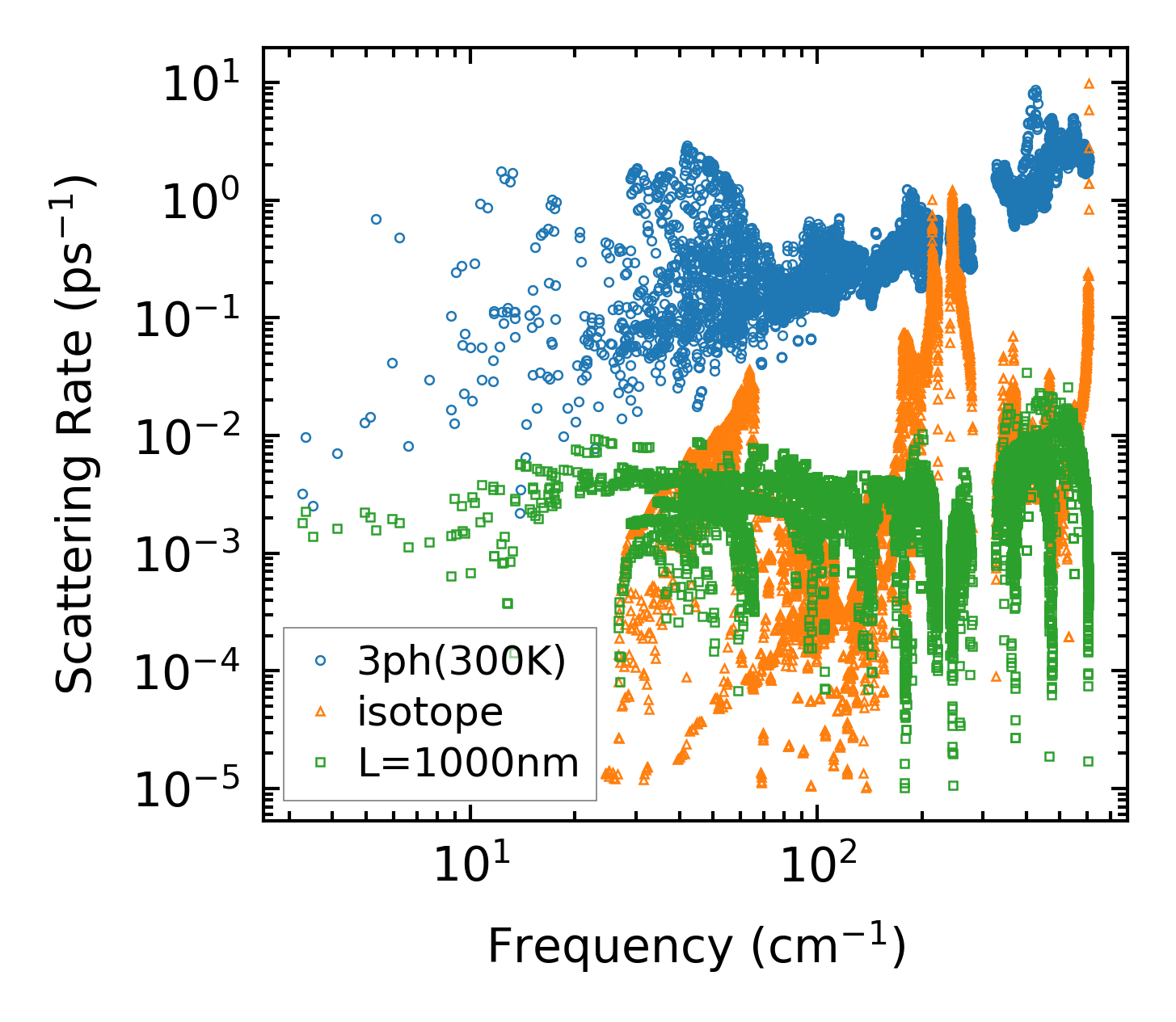

../../_images/fig_scat_rates1699.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1700.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1700.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

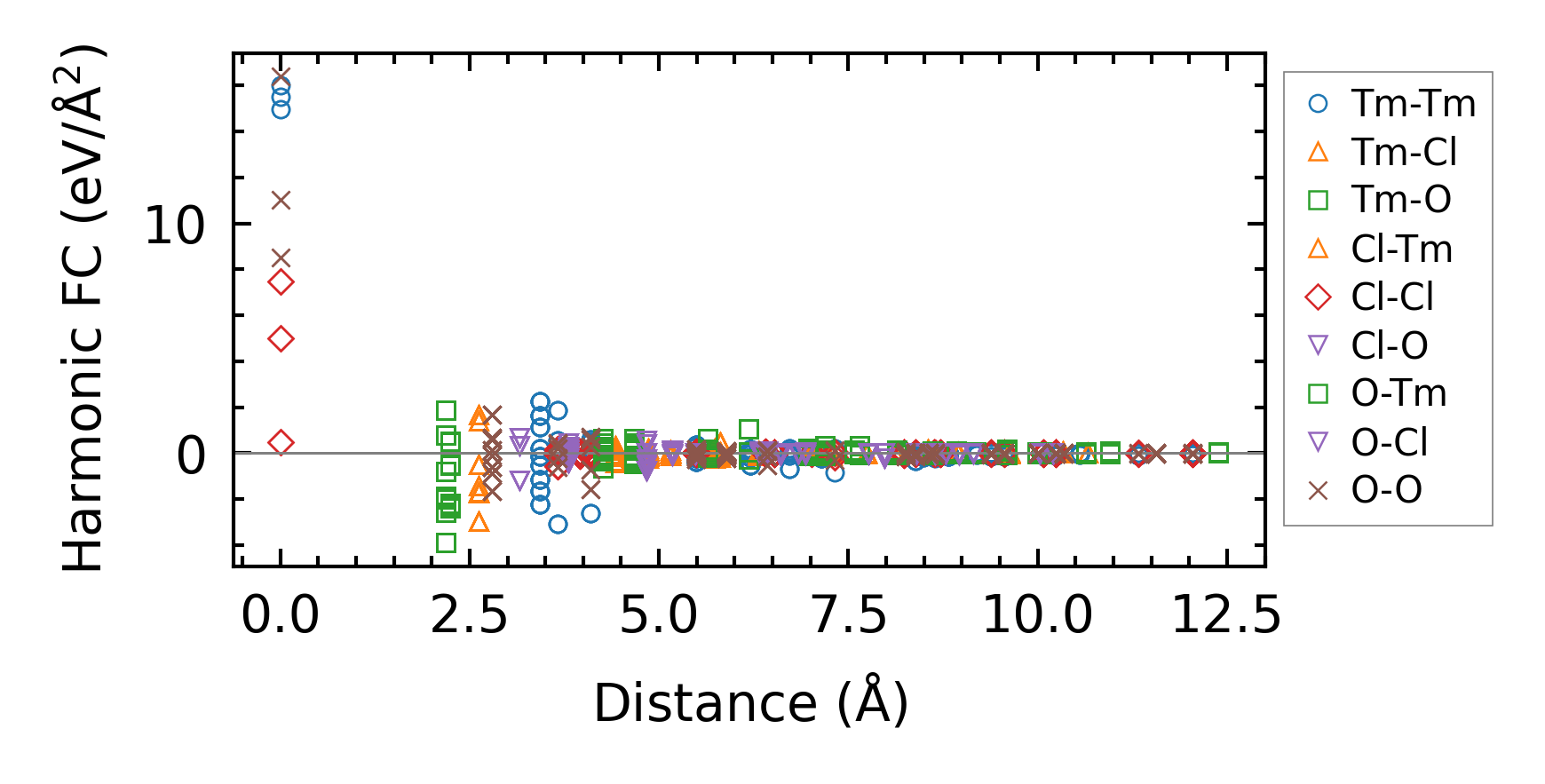

../../_images/fig_fc23610.png — (a) Force constants w.r.t atomic distance

Summary

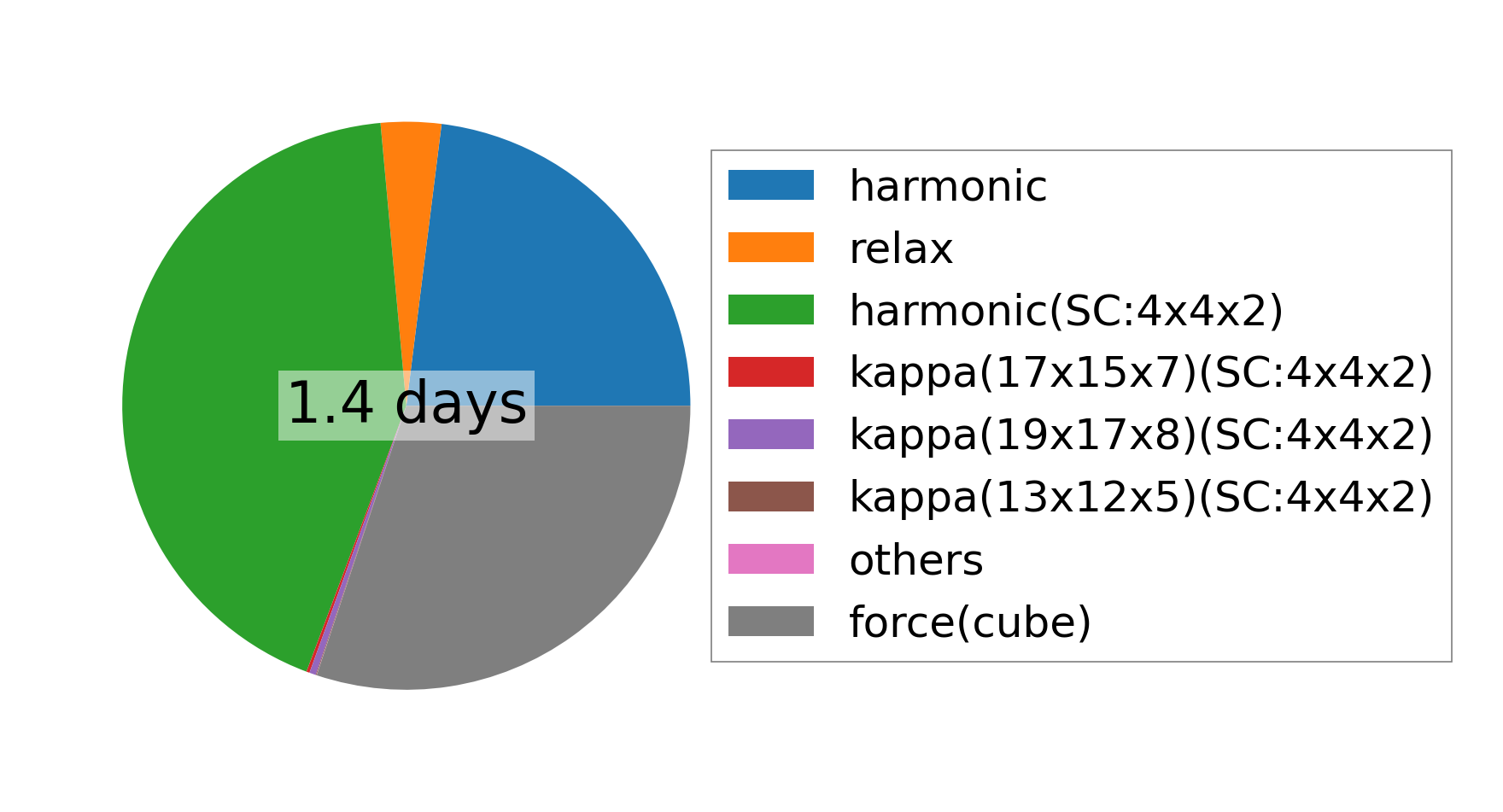

../../_images/fig_times6570.png — (a) Computation time
