mp-754326/NaAgO2/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-754326.tar.gz

Harmonic properties

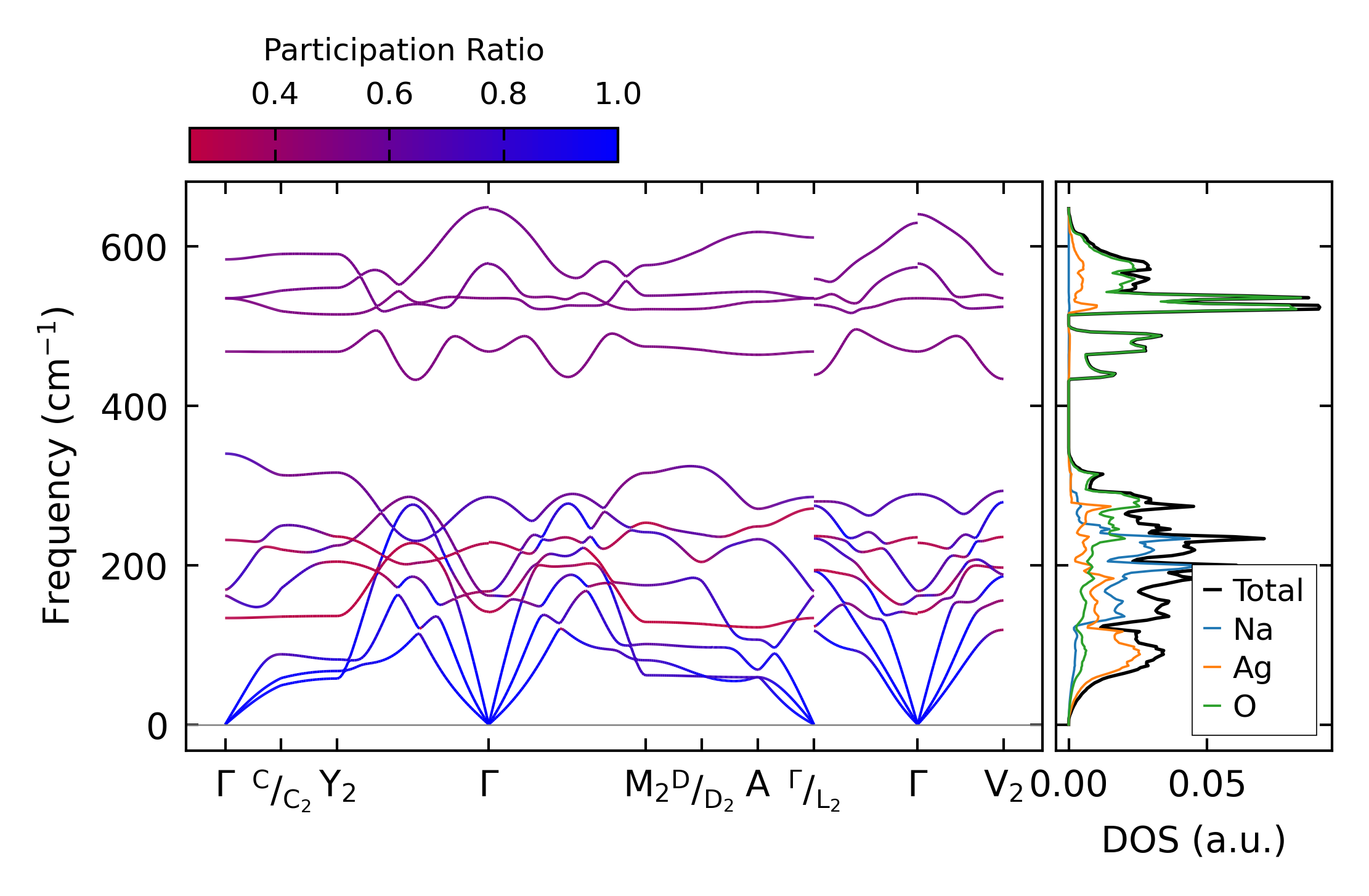

../../_images/fig_bandos_pr3842.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3842.png — (b) Thermodynamic properties

Grüneisen parameters

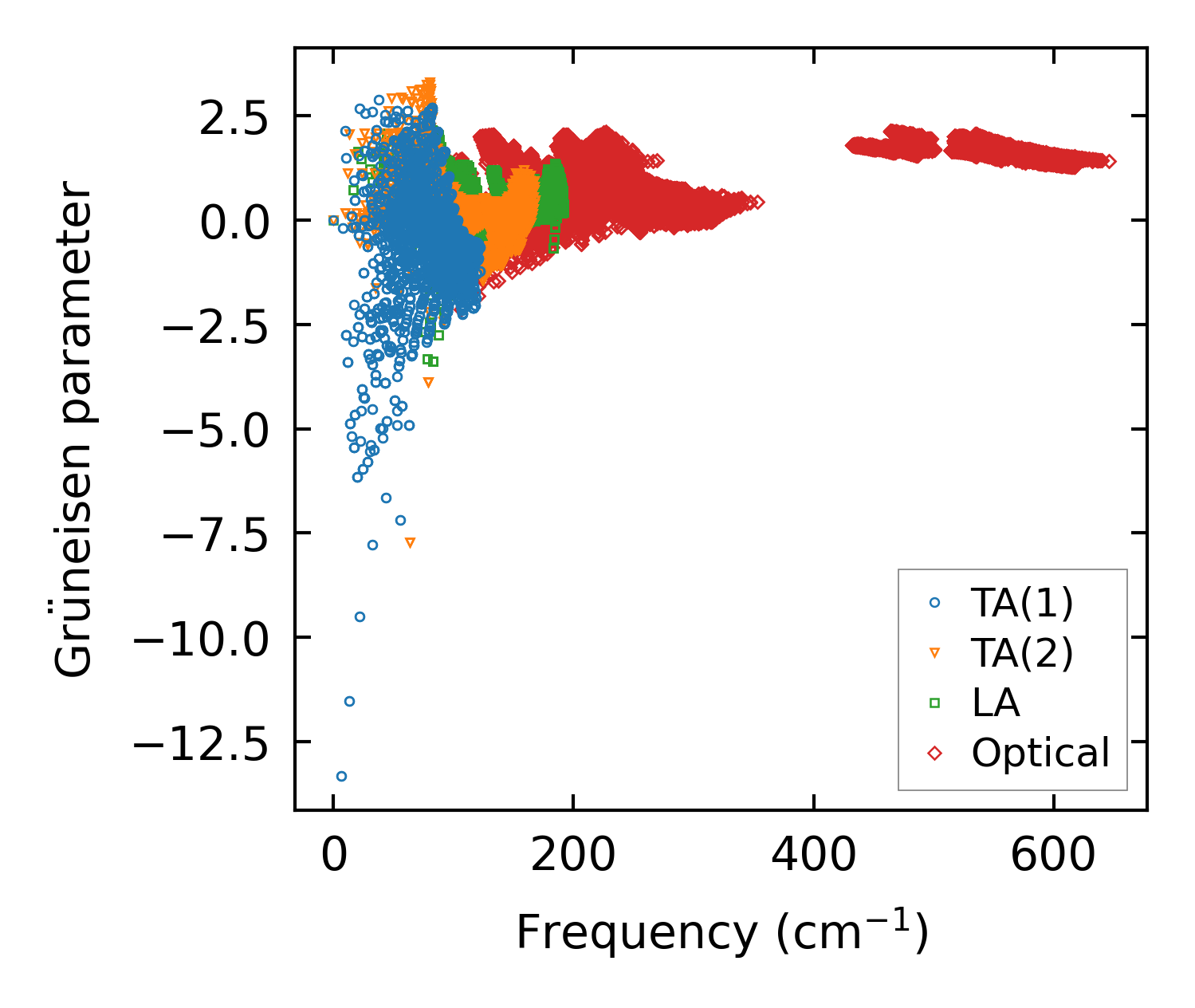

../../_images/fig_gru_all1734.png — (a) Grüneisen parameters

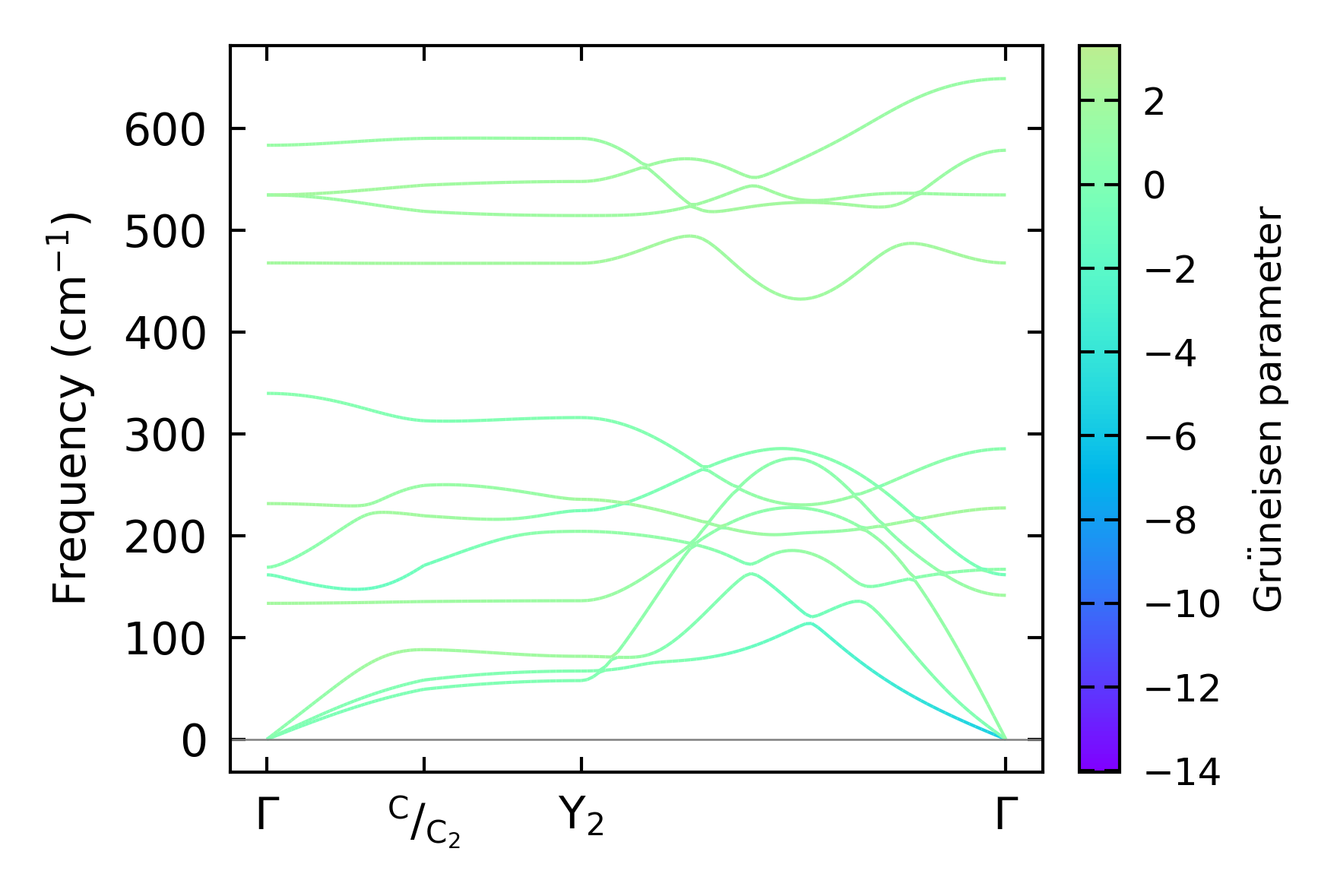

../../_images/fig_gruneisen1734.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 23x23x13, supercell: 2x4x2

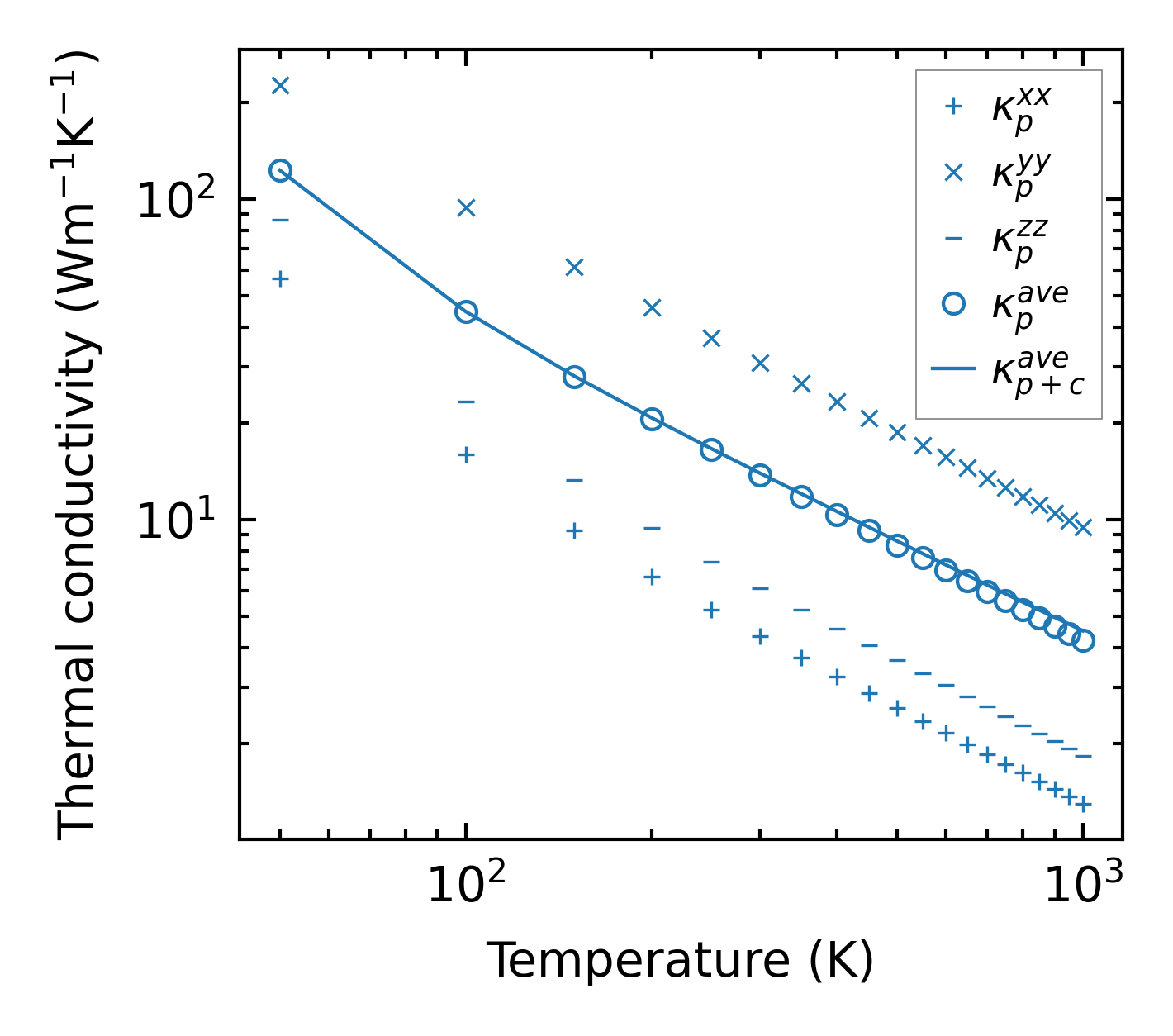

../../_images/fig_kappa3336.png — (a) Temperature-dependent lattice thermal conductivity

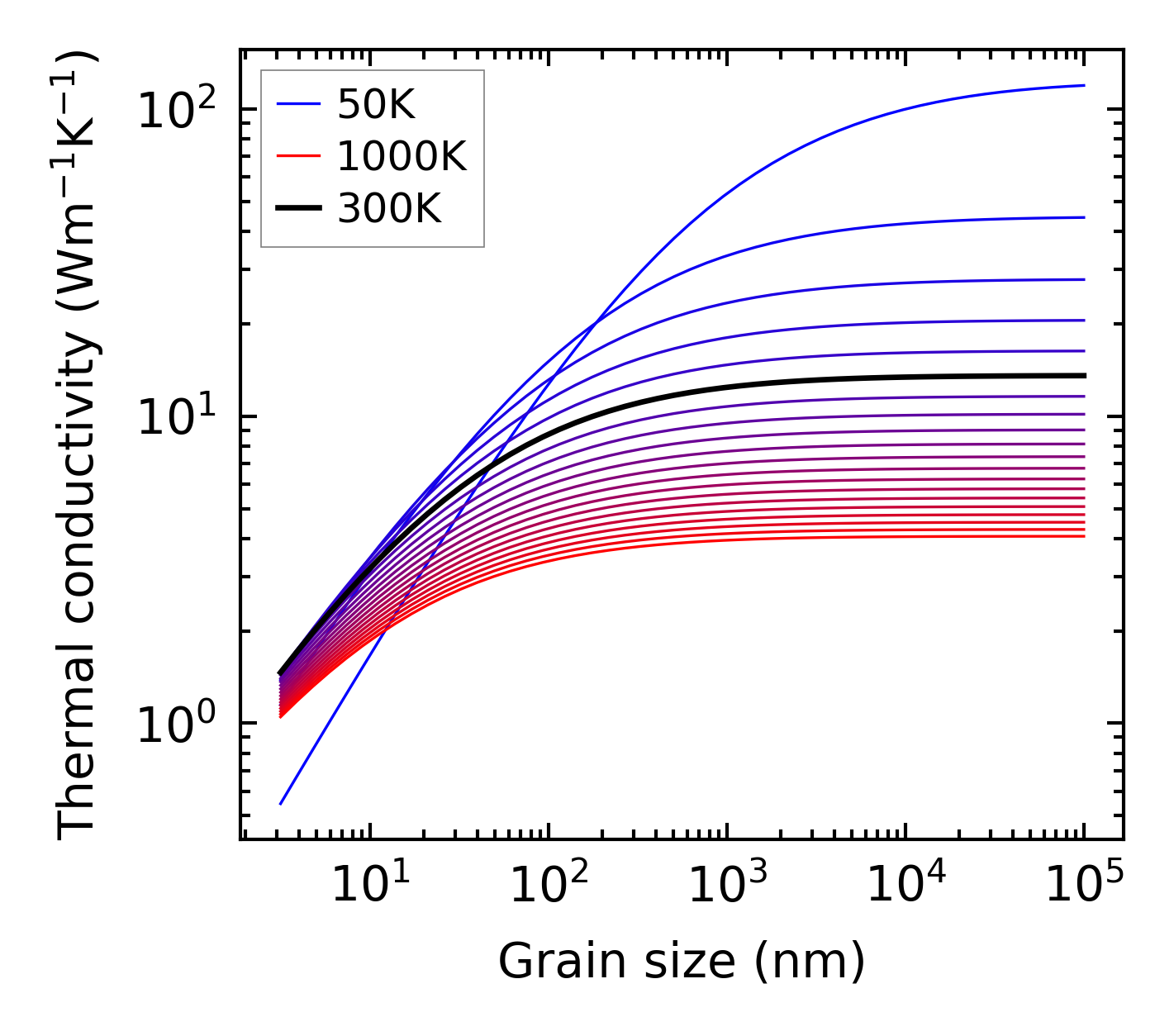

../../_images/fig_kappa_vs_grain_size1761.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

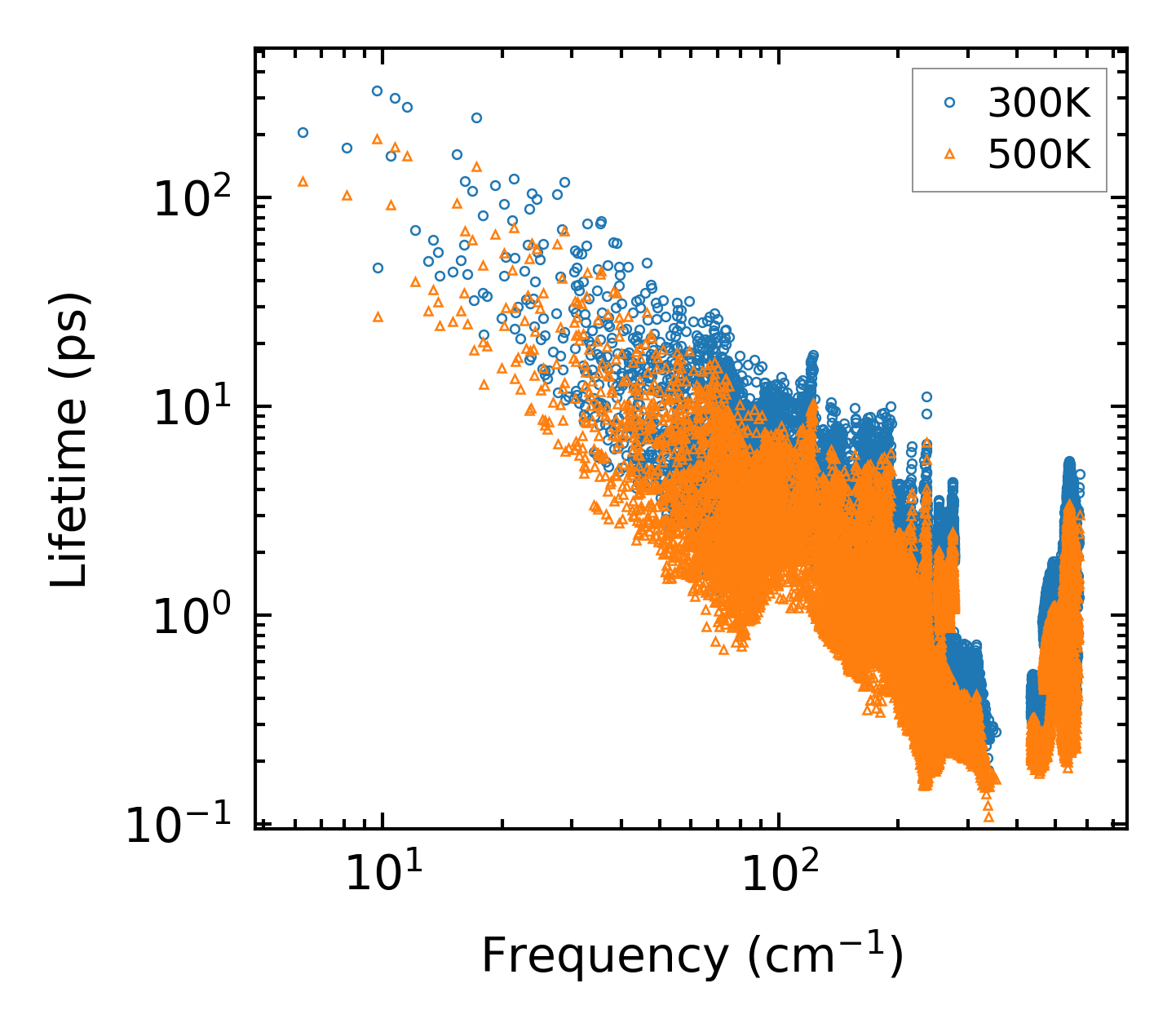

../../_images/fig_lifetime1724.png — (a) Phonon lifetime due to phonon-phonon scattering

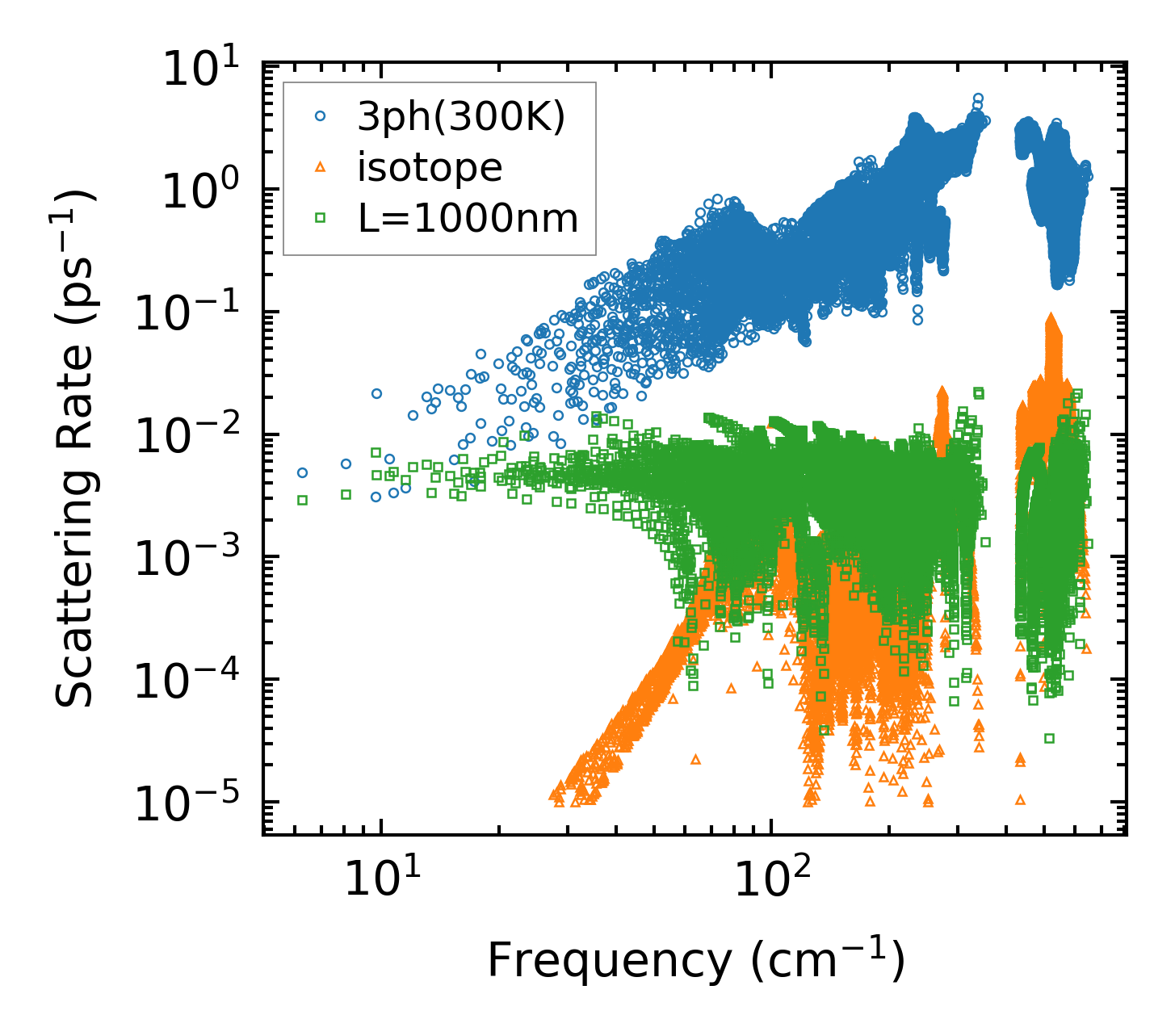

../../_images/fig_scat_rates1723.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

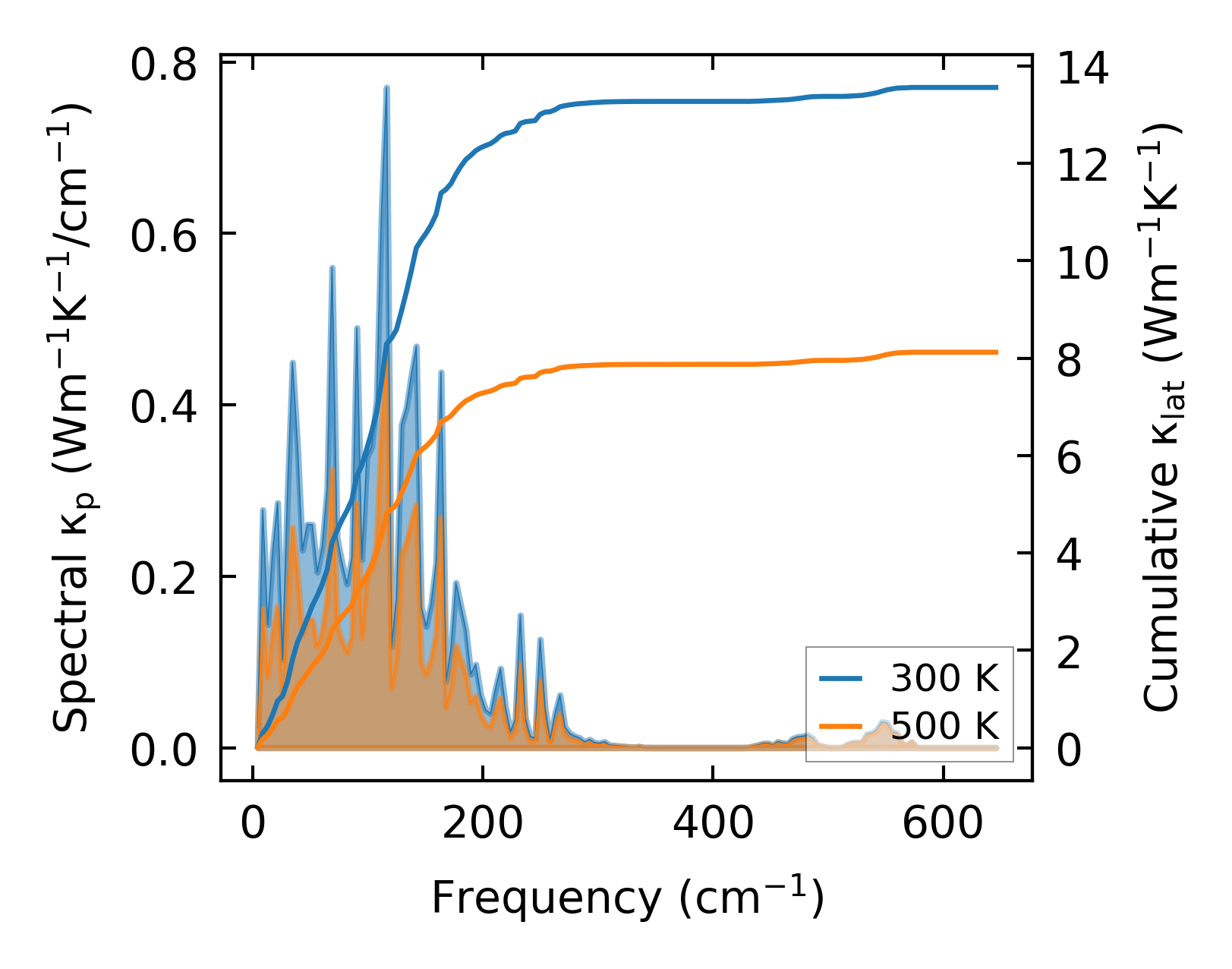

../../_images/fig_cumu_frequency1724.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1724.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc23656.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa3337.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times6642.png — (b) Computation time
