mp-754496-2/Li5SbS/anharm

Space group: Pmmn (59)
Link: Materials Project
Download: mp-754496-2.tar.gz

Harmonic properties

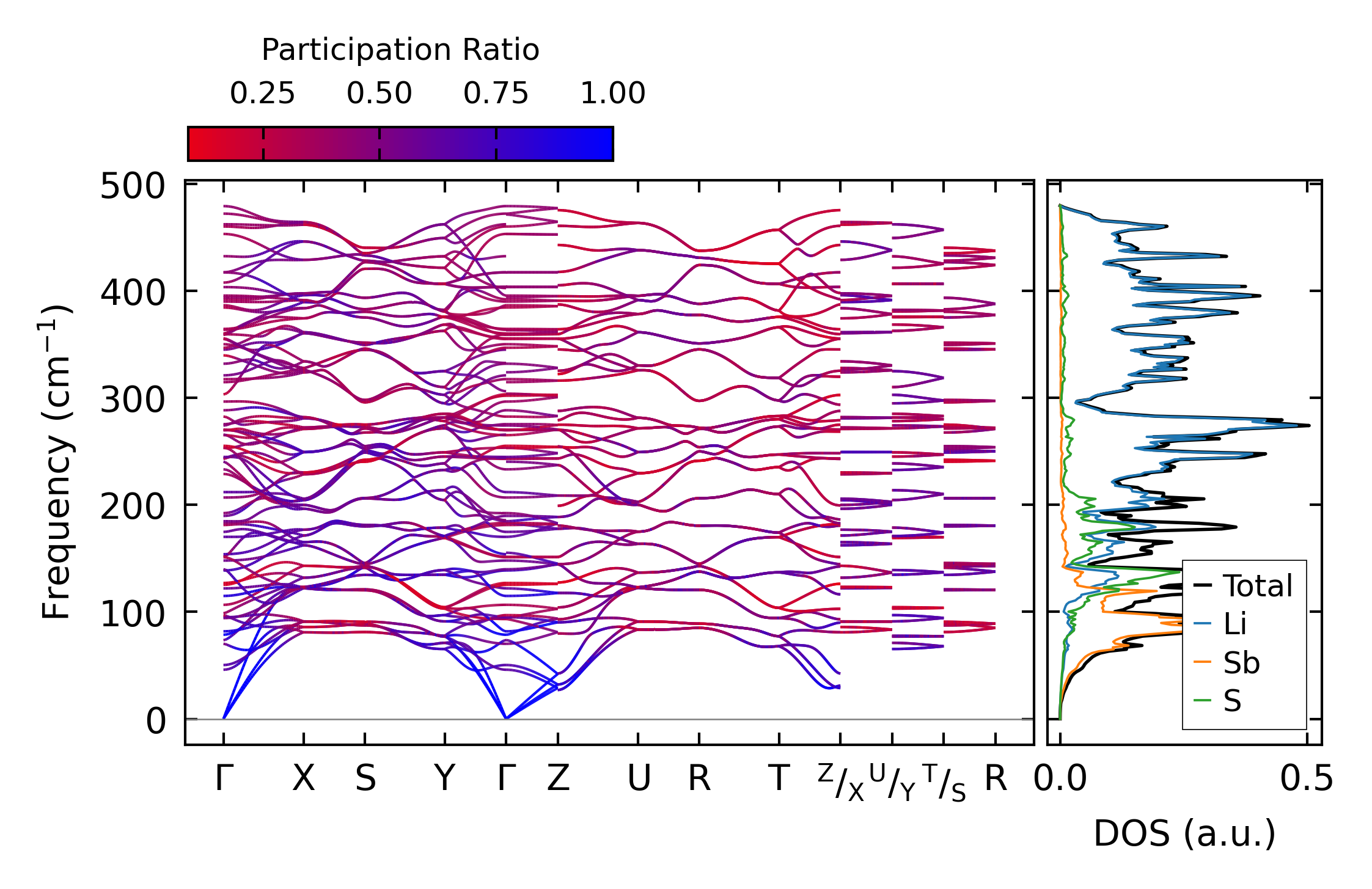

../../_images/fig_bandos_pr3544.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3544.png — (b) Thermodynamic properties

Grüneisen parameters

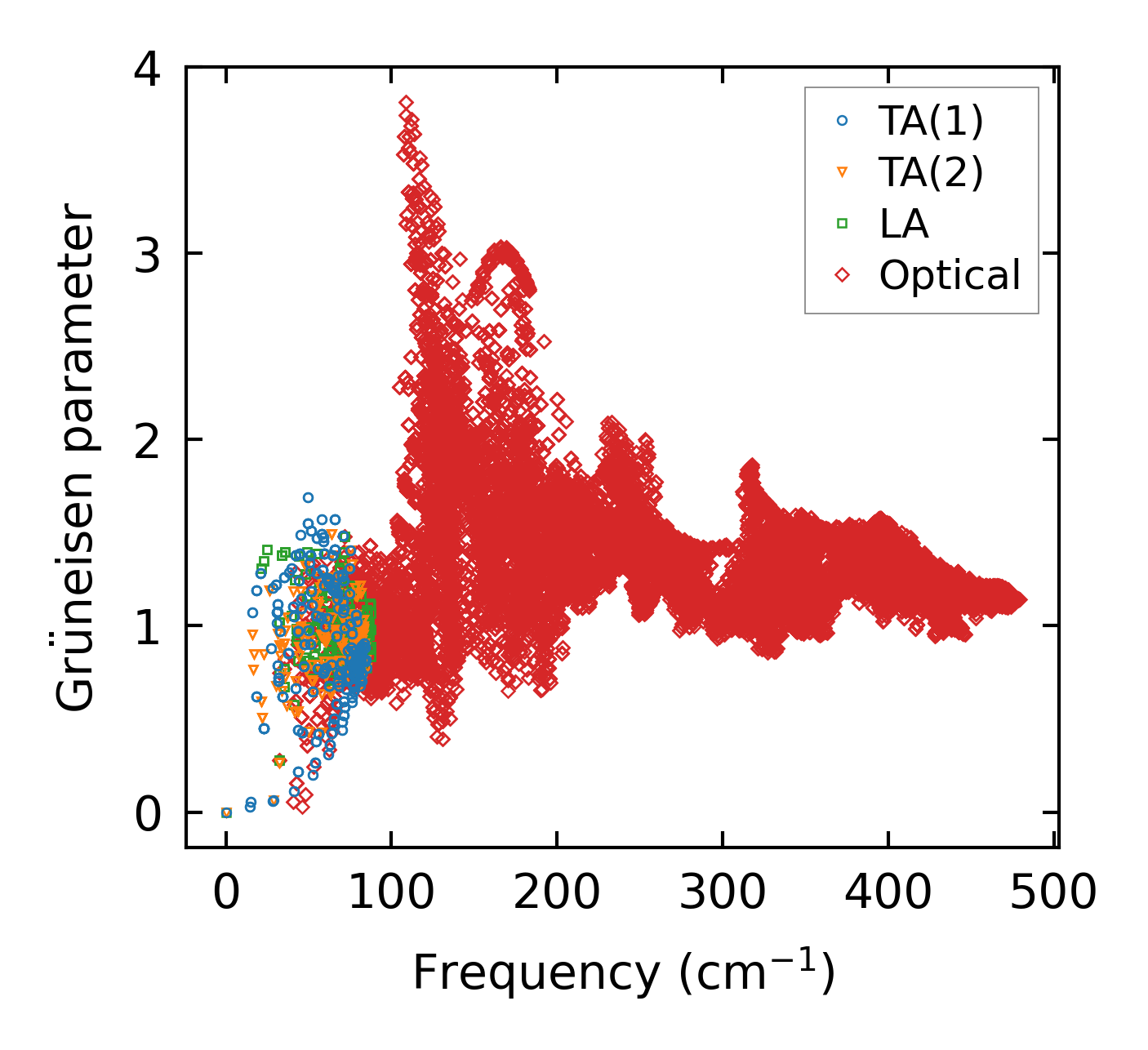

../../_images/fig_gru_all1594.png — (a) Grüneisen parameters

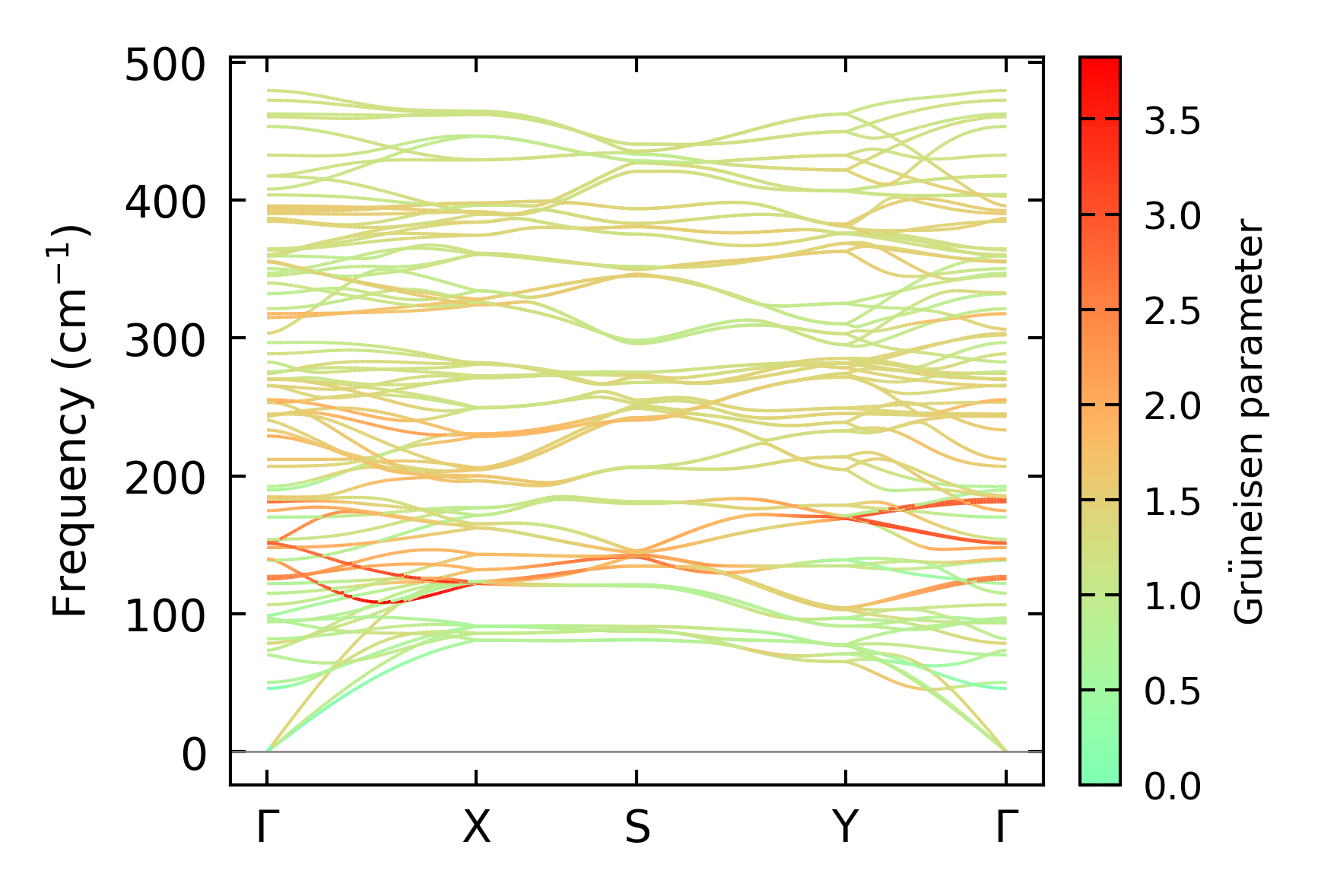

../../_images/fig_gruneisen1594.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 16x12x4, supercell: 2x2x1

../../_images/fig_kappa3064.png — (a) Temperature-dependent lattice thermal conductivity

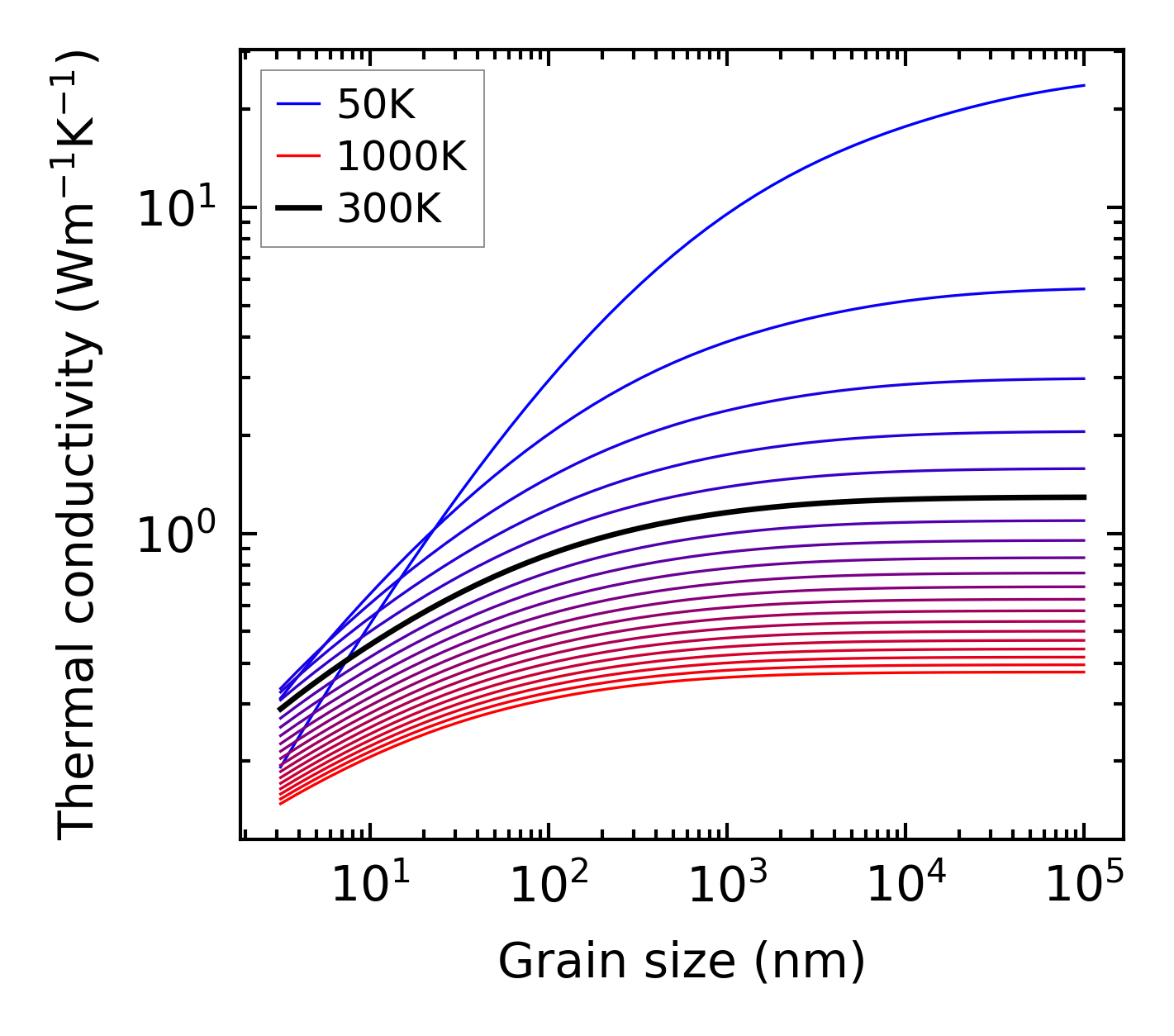

../../_images/fig_kappa_vs_grain_size1615.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

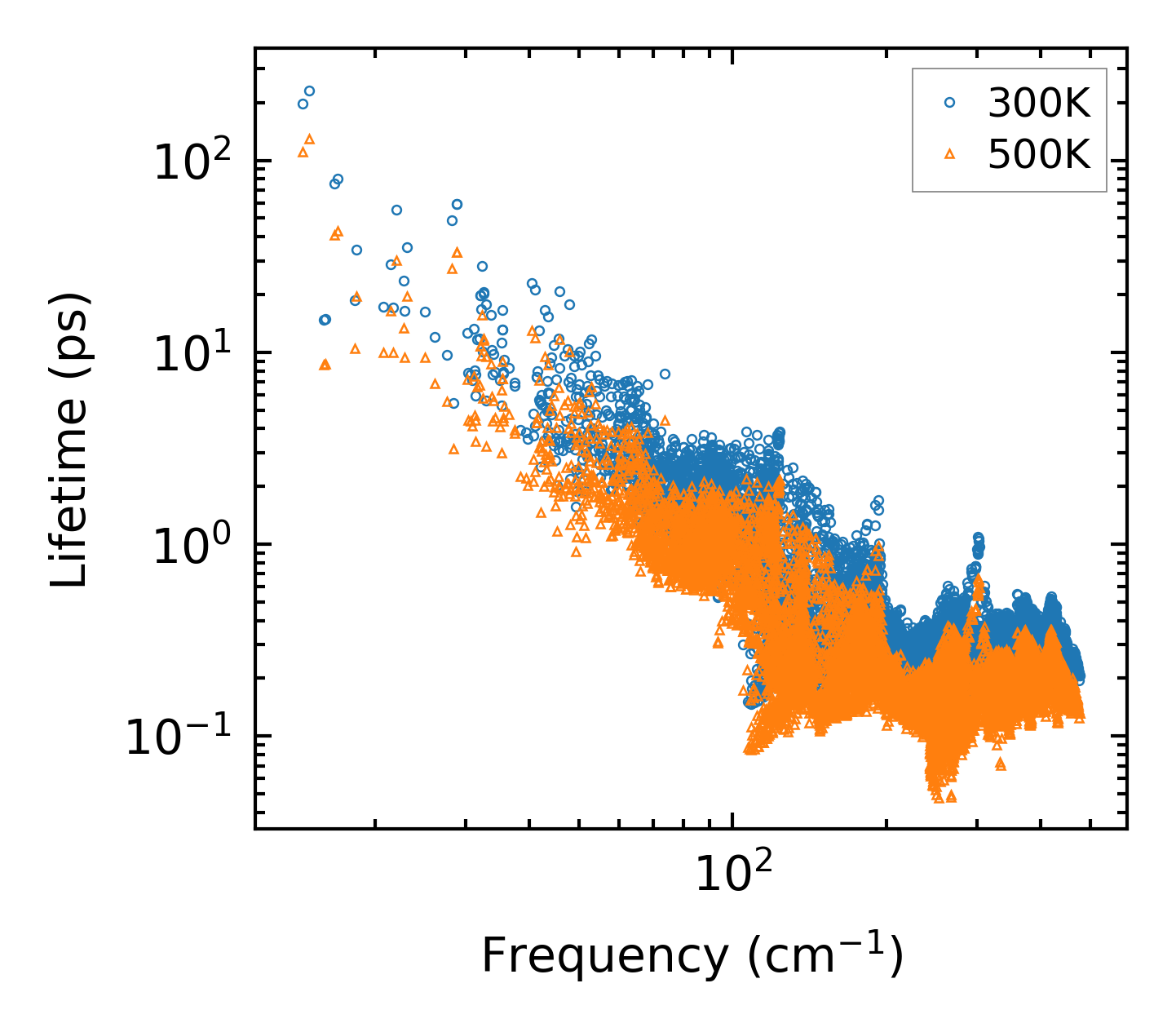

../../_images/fig_lifetime1584.png — (a) Phonon lifetime due to phonon-phonon scattering

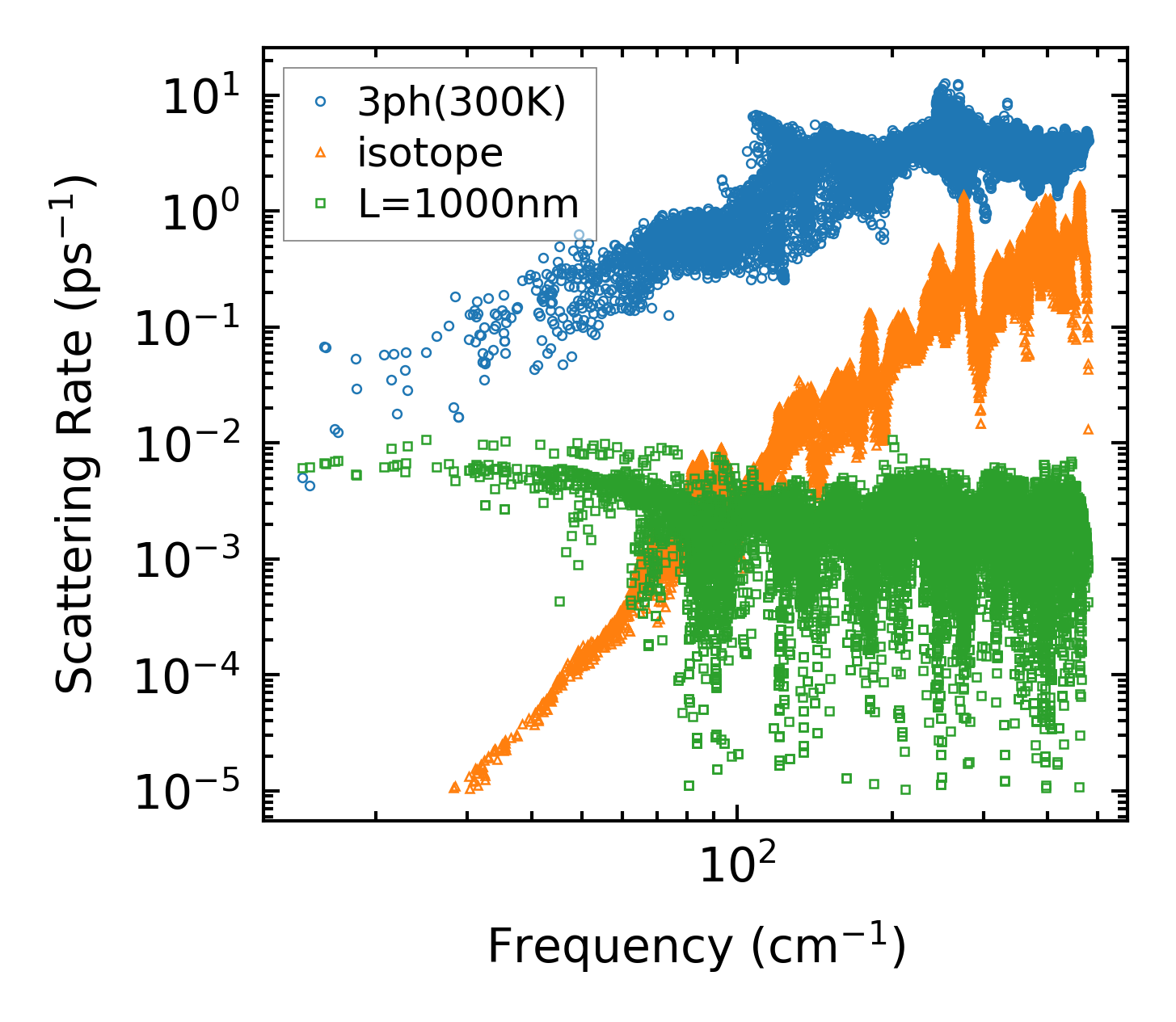

../../_images/fig_scat_rates1583.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1584.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1584.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

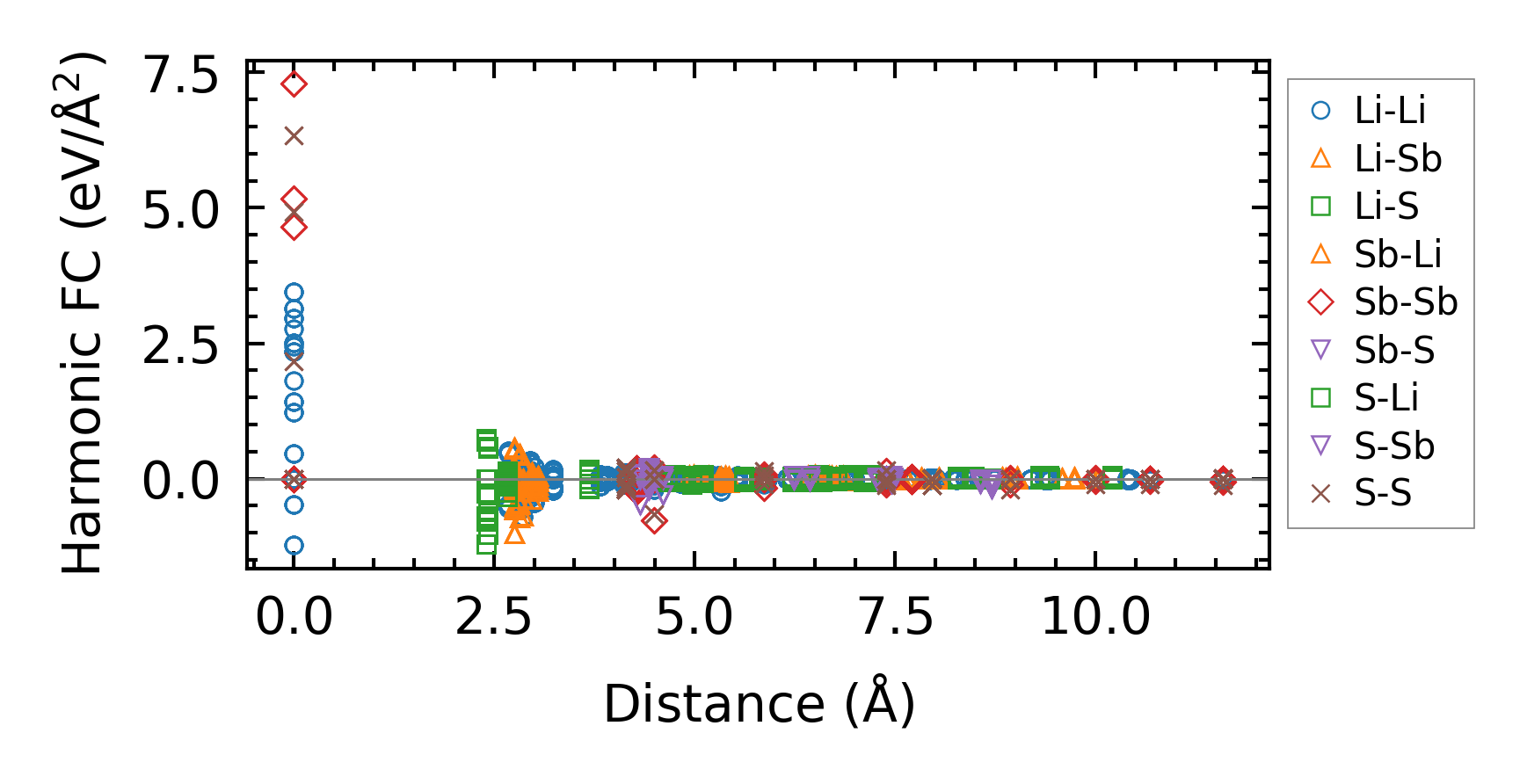

../../_images/fig_fc23362.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa3065.png — (a) Temperature-dependent lattice thermal conductivity

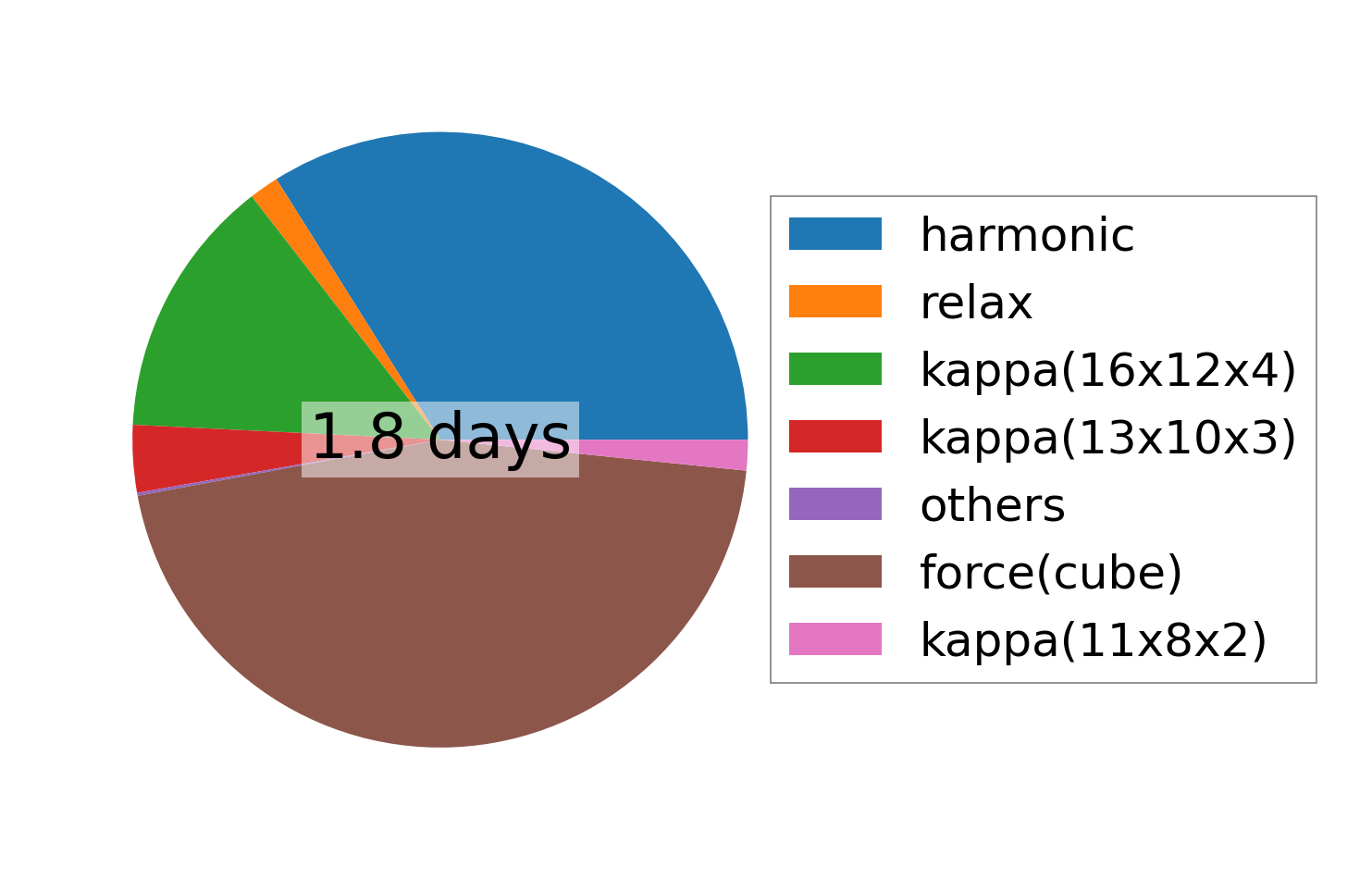

../../_images/fig_times6168.png — (b) Computation time
