mp-754794-3/La2S2O/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-754794-3.tar.gz

Harmonic properties

../../_images/fig_bandos_pr3593.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3593.png — (b) Thermodynamic properties

Grüneisen parameters

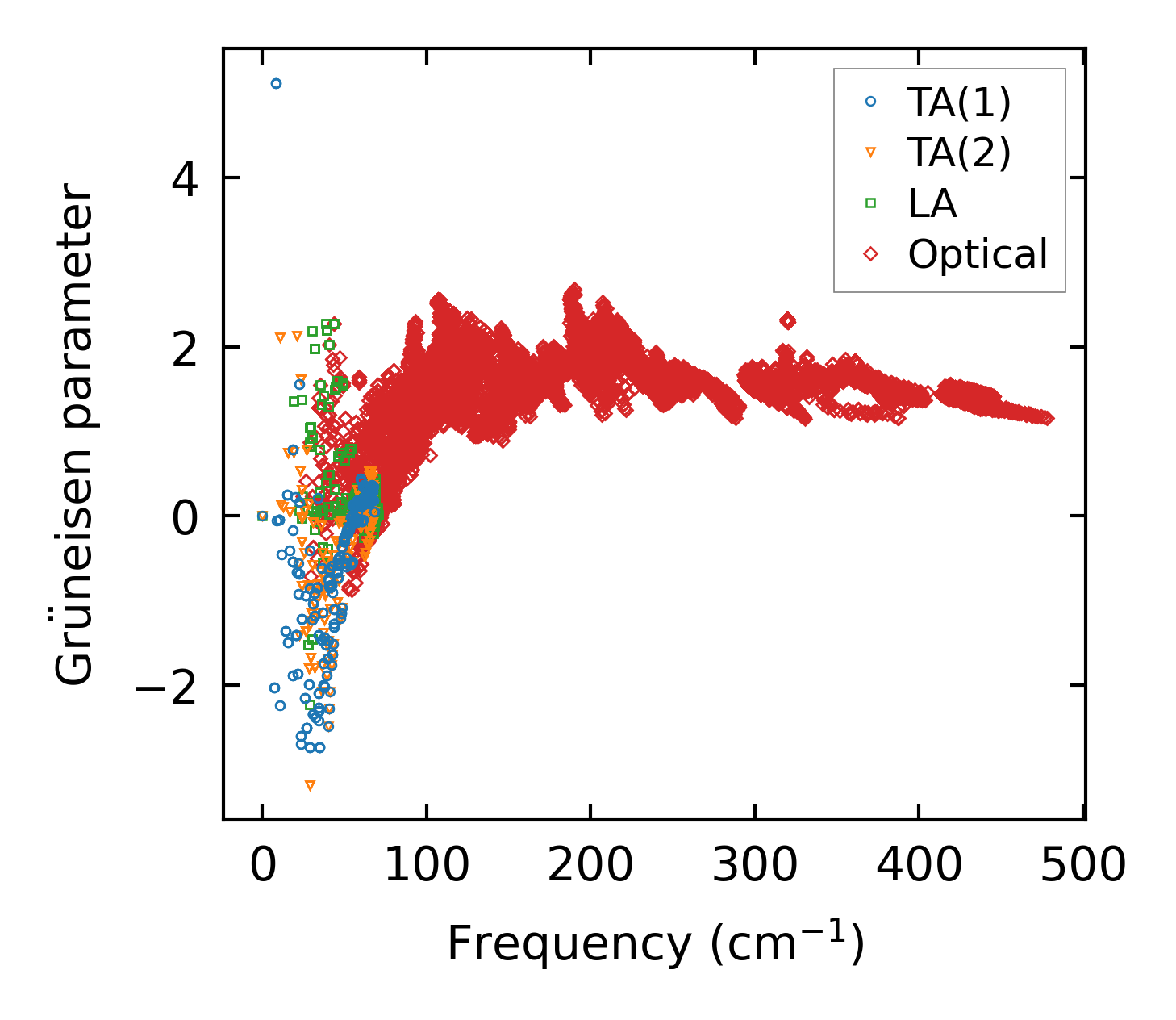

../../_images/fig_gru_all1614.png — (a) Grüneisen parameters

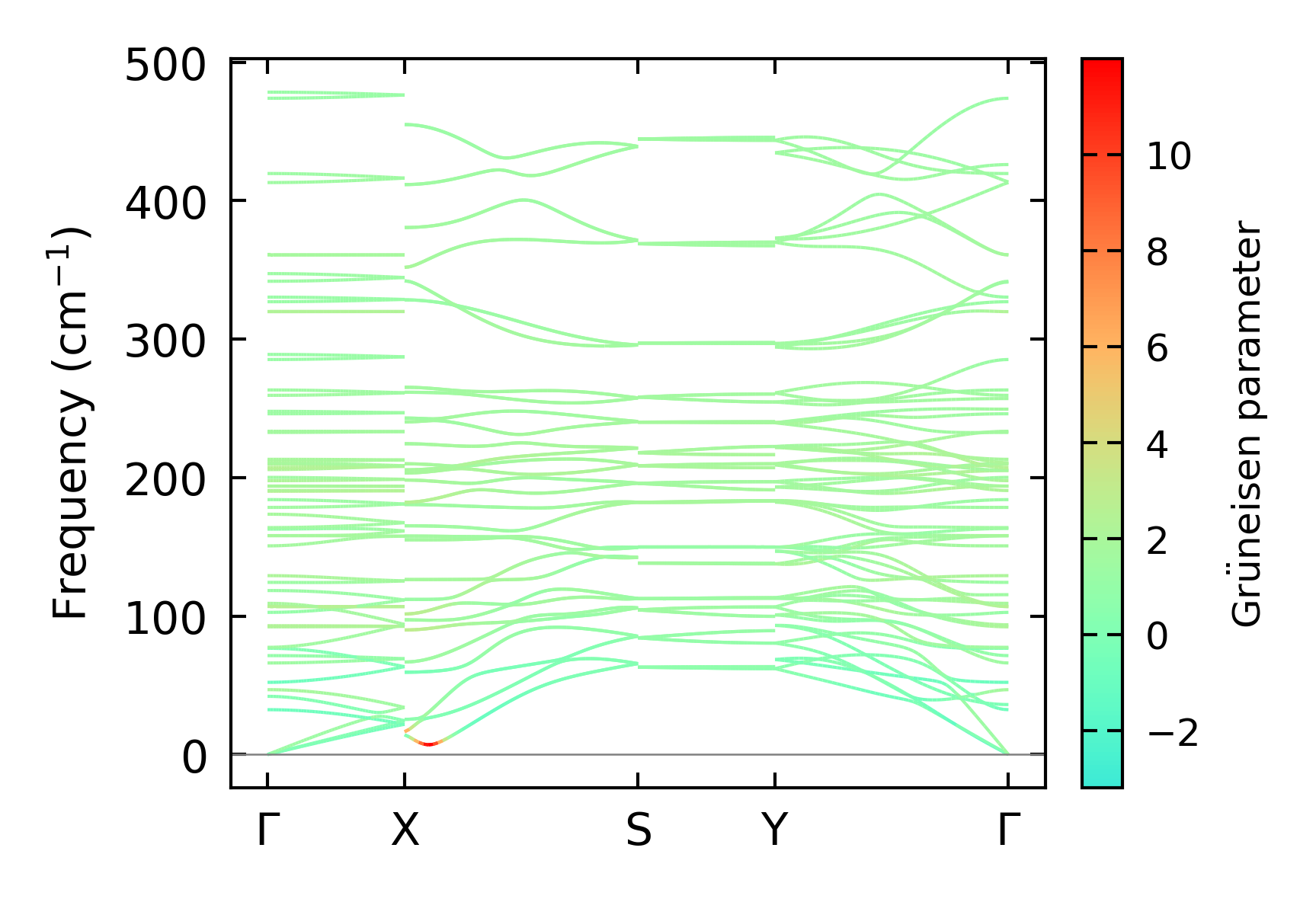

../../_images/fig_gruneisen1614.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 4x17x10, supercell: 1x3x2

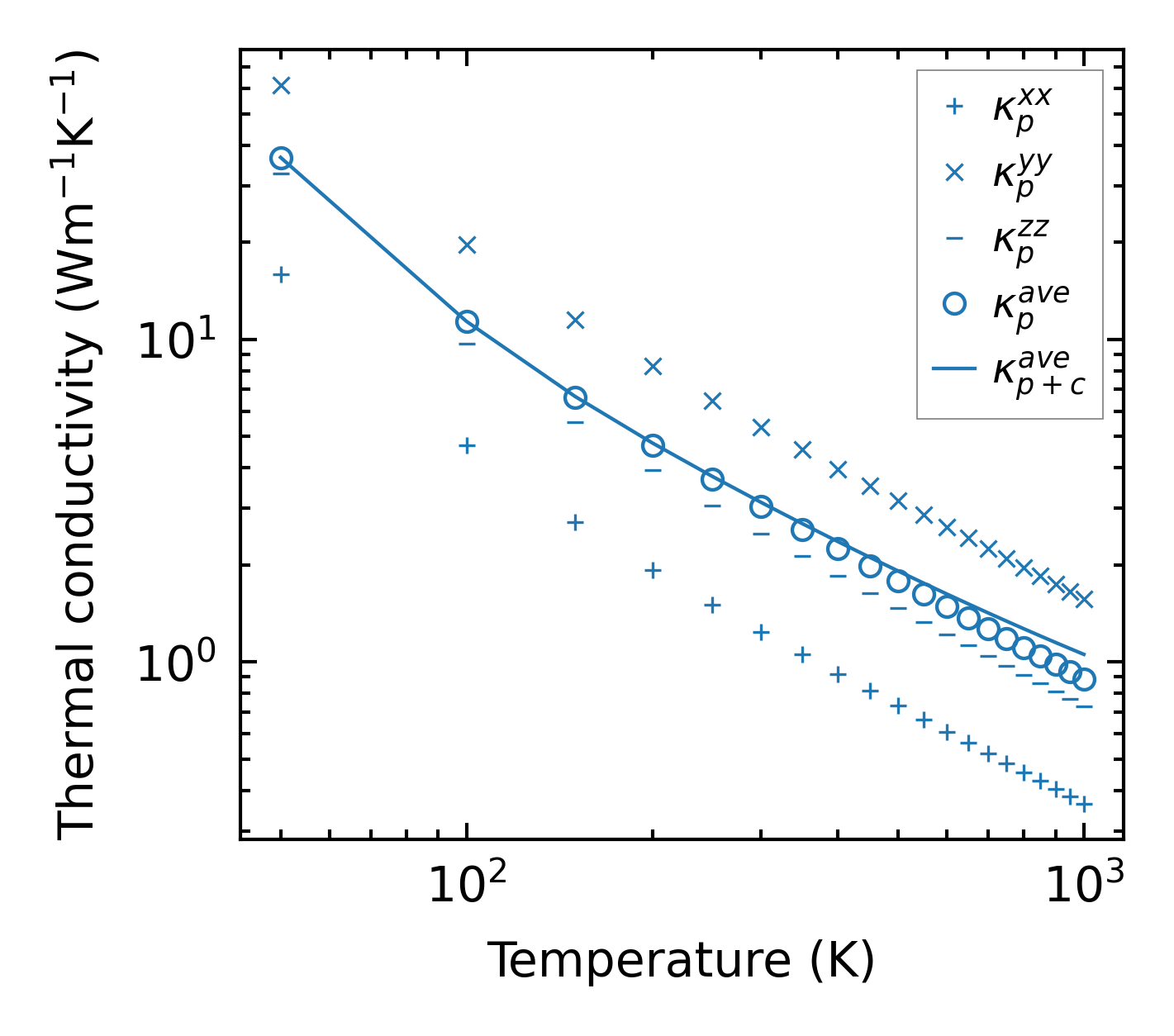

../../_images/fig_kappa3103.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1635.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

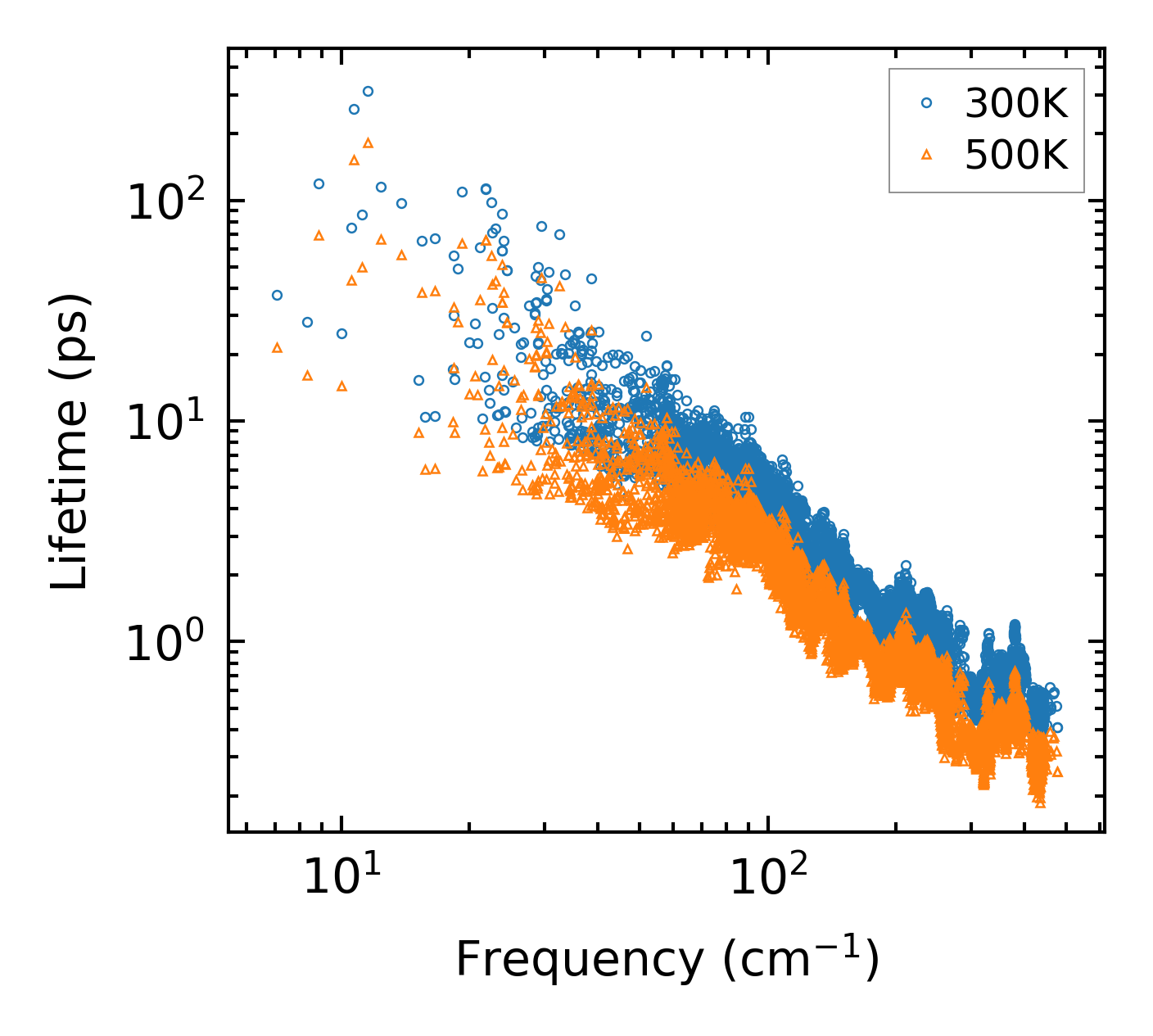

../../_images/fig_lifetime1604.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1603.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

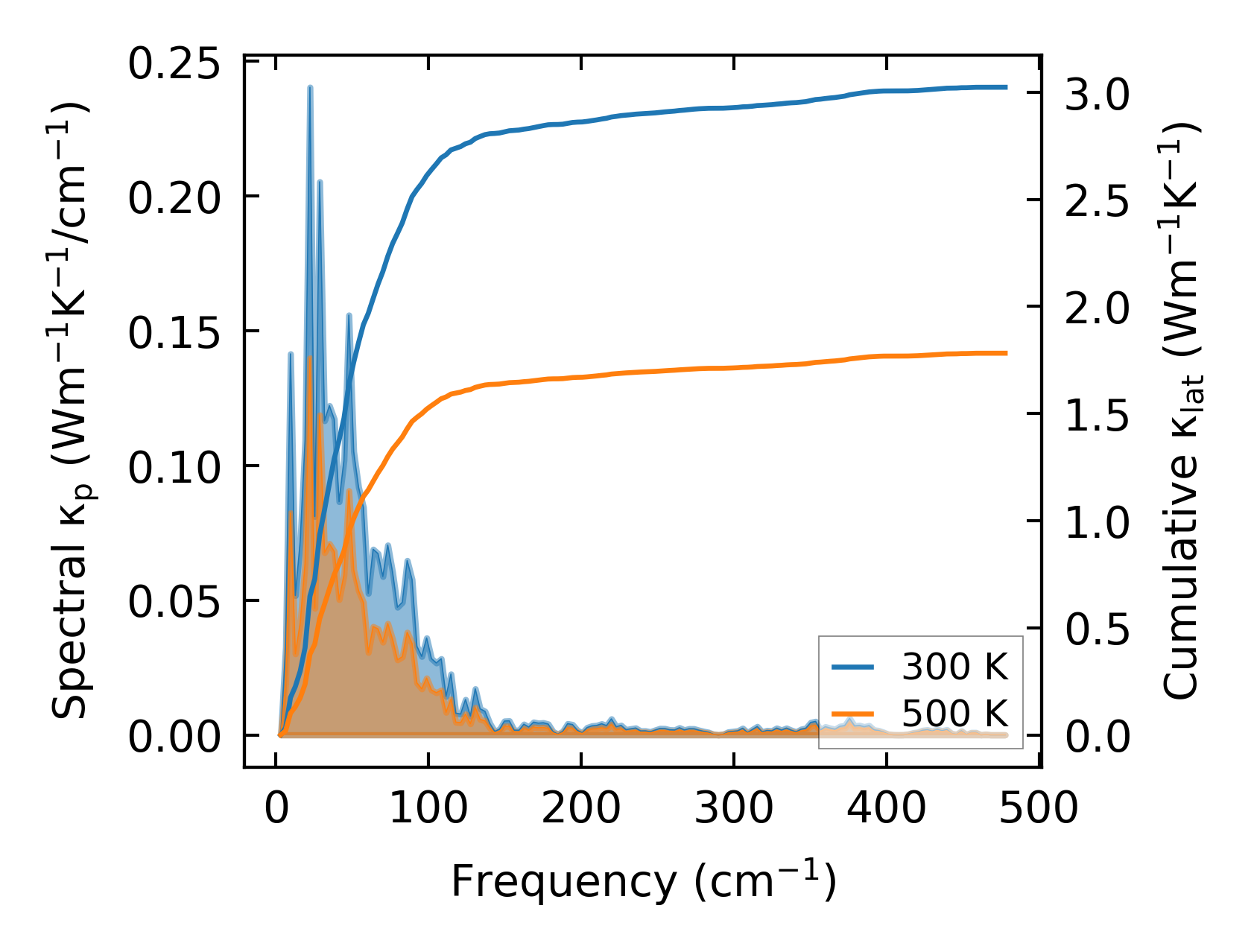

../../_images/fig_cumu_frequency1604.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

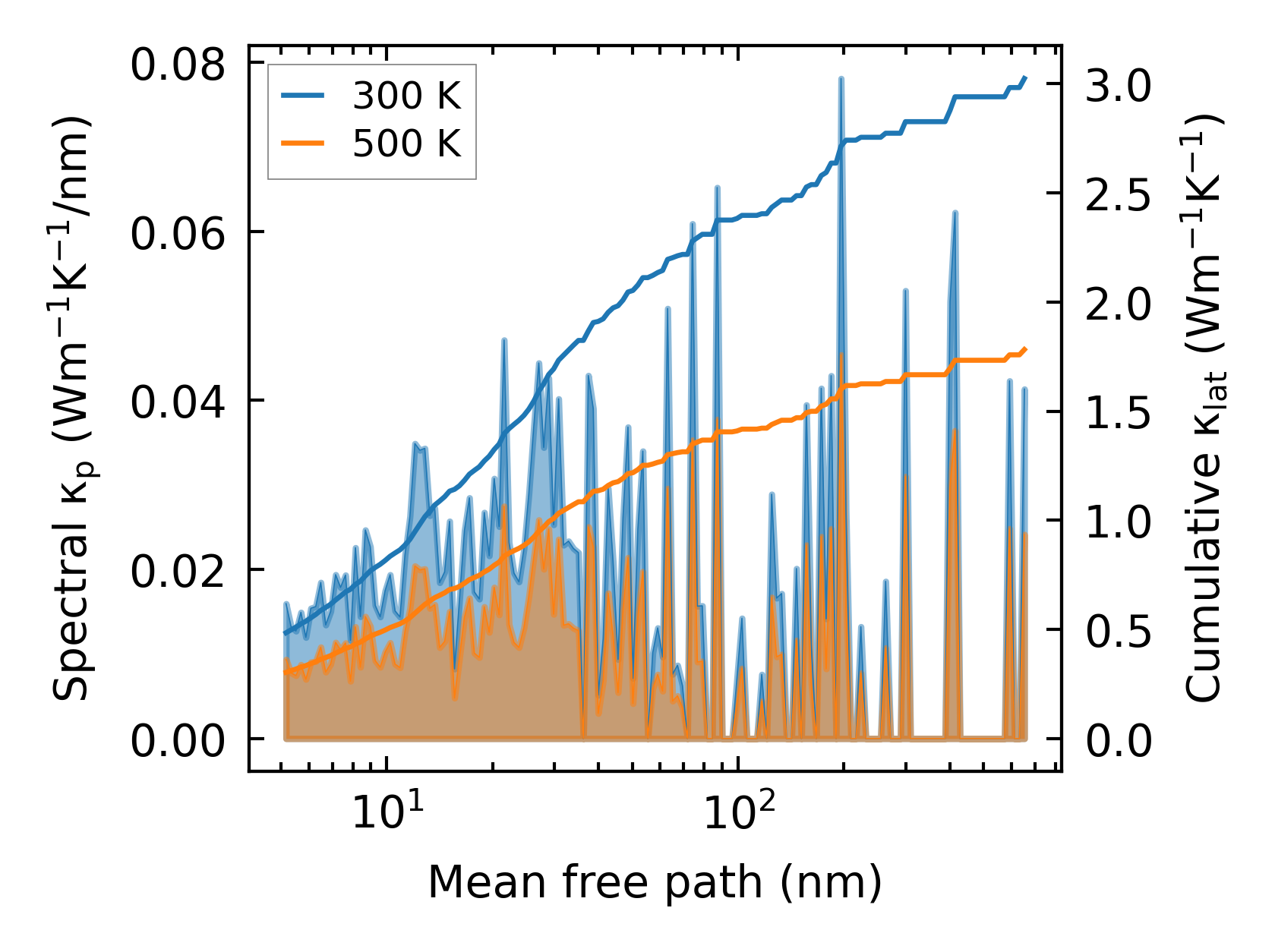

../../_images/fig_cumu_mfp1604.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

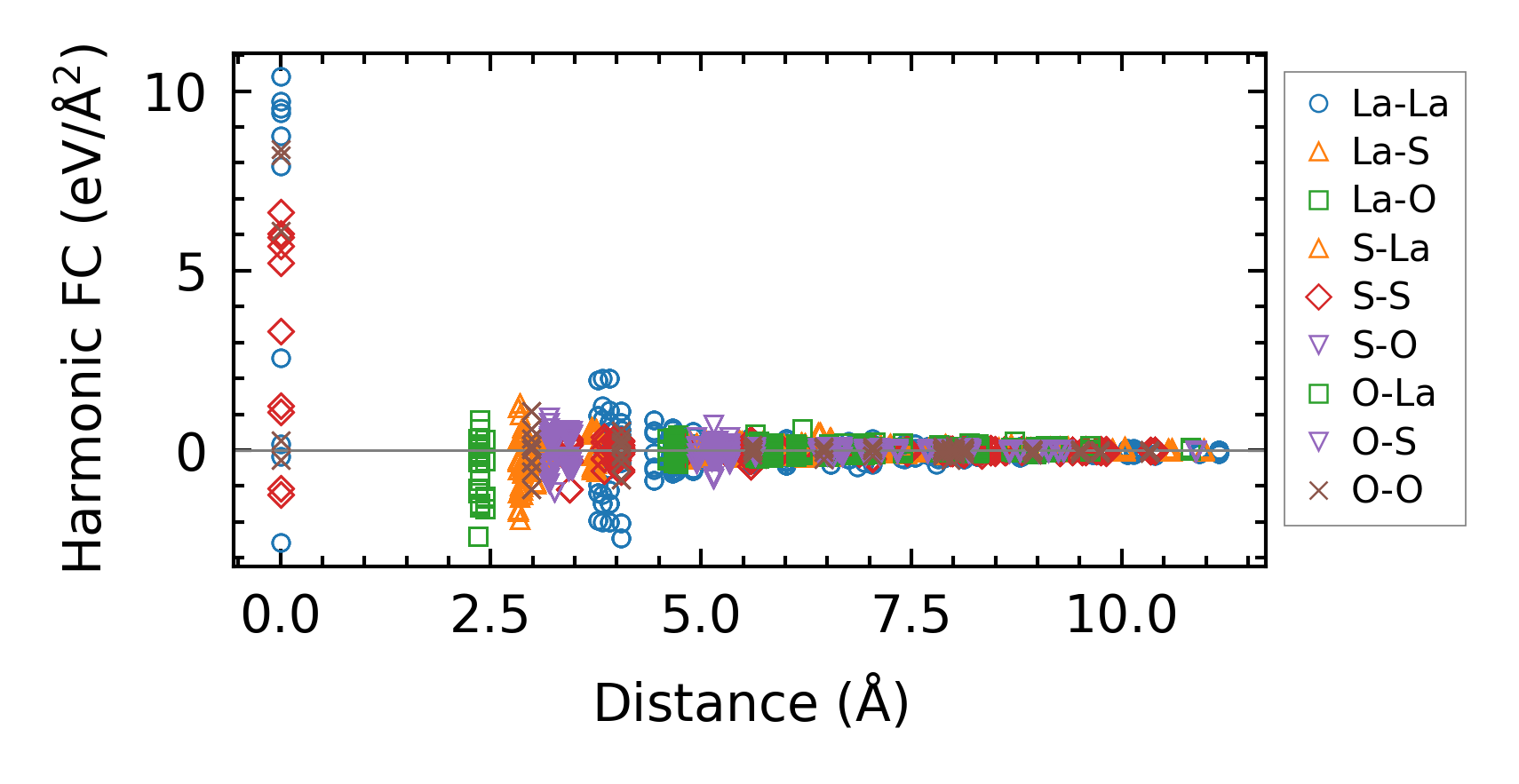

../../_images/fig_fc23411.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa3104.png — (a) Temperature-dependent lattice thermal conductivity

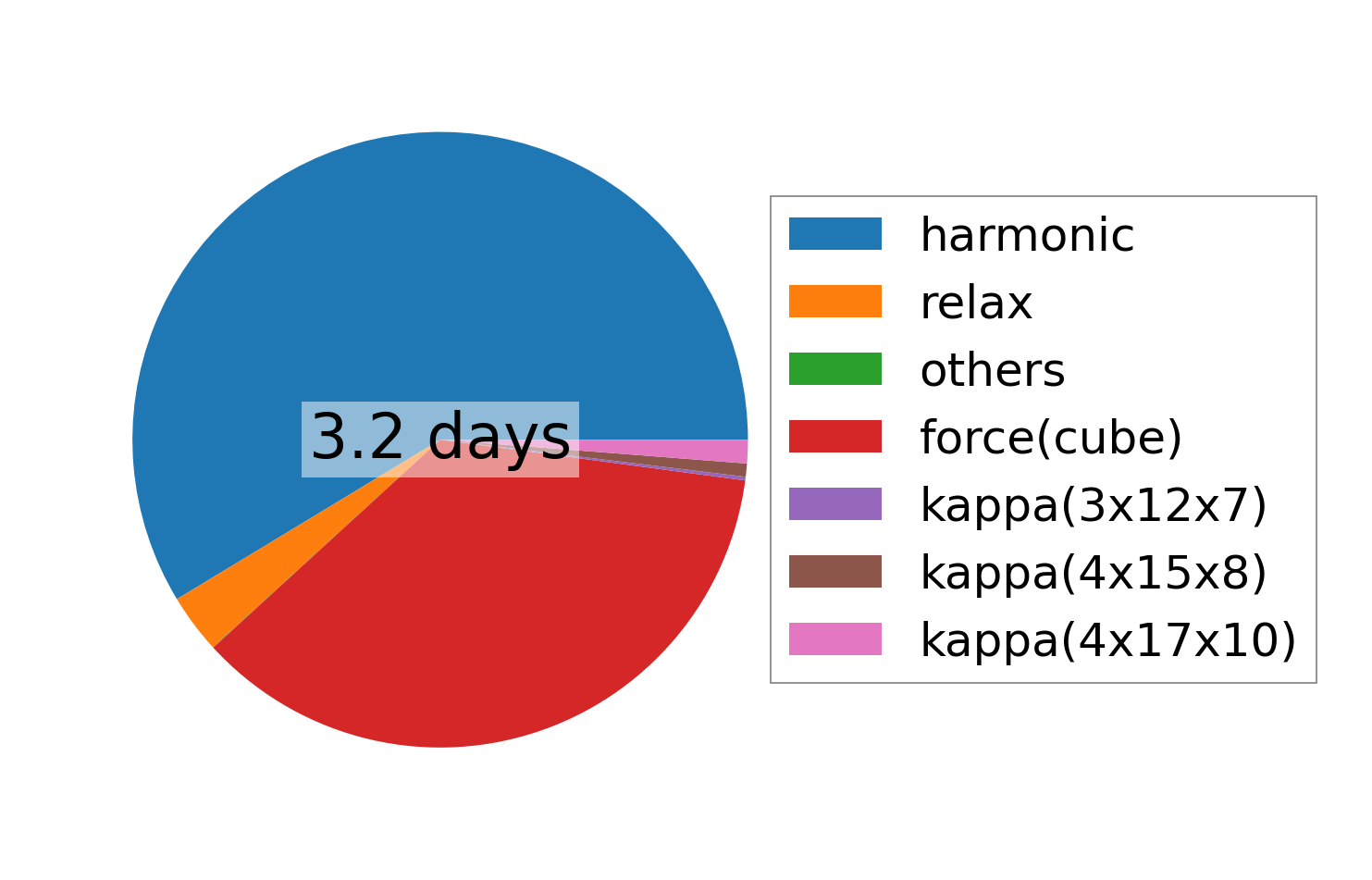

../../_images/fig_times6261.png — (b) Computation time
