mp-754047/Rb3SbO3/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-754047.tar.gz

Harmonic properties

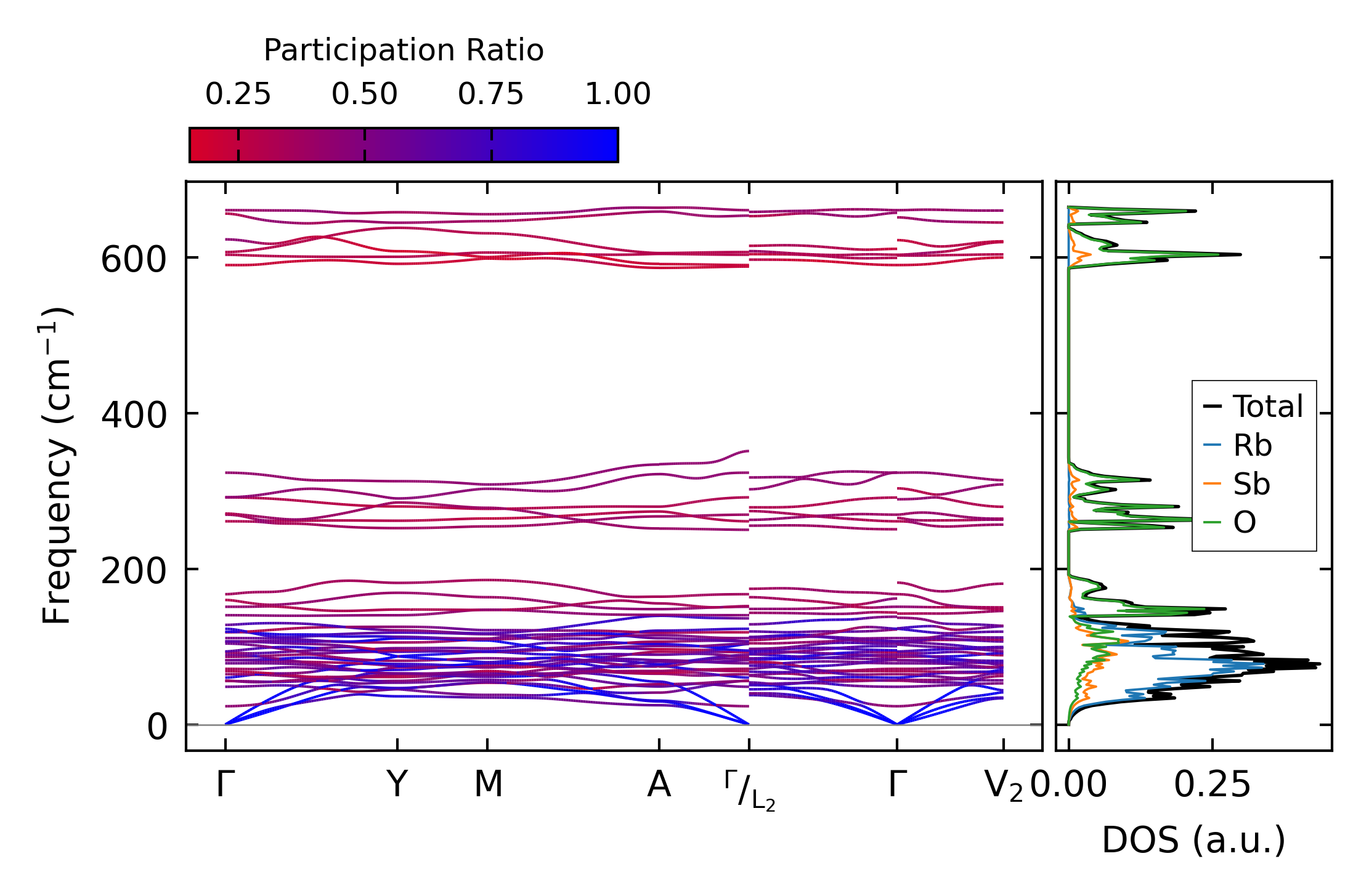

../../_images/fig_bandos_pr3785.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3785.png — (b) Thermodynamic properties

Grüneisen parameters

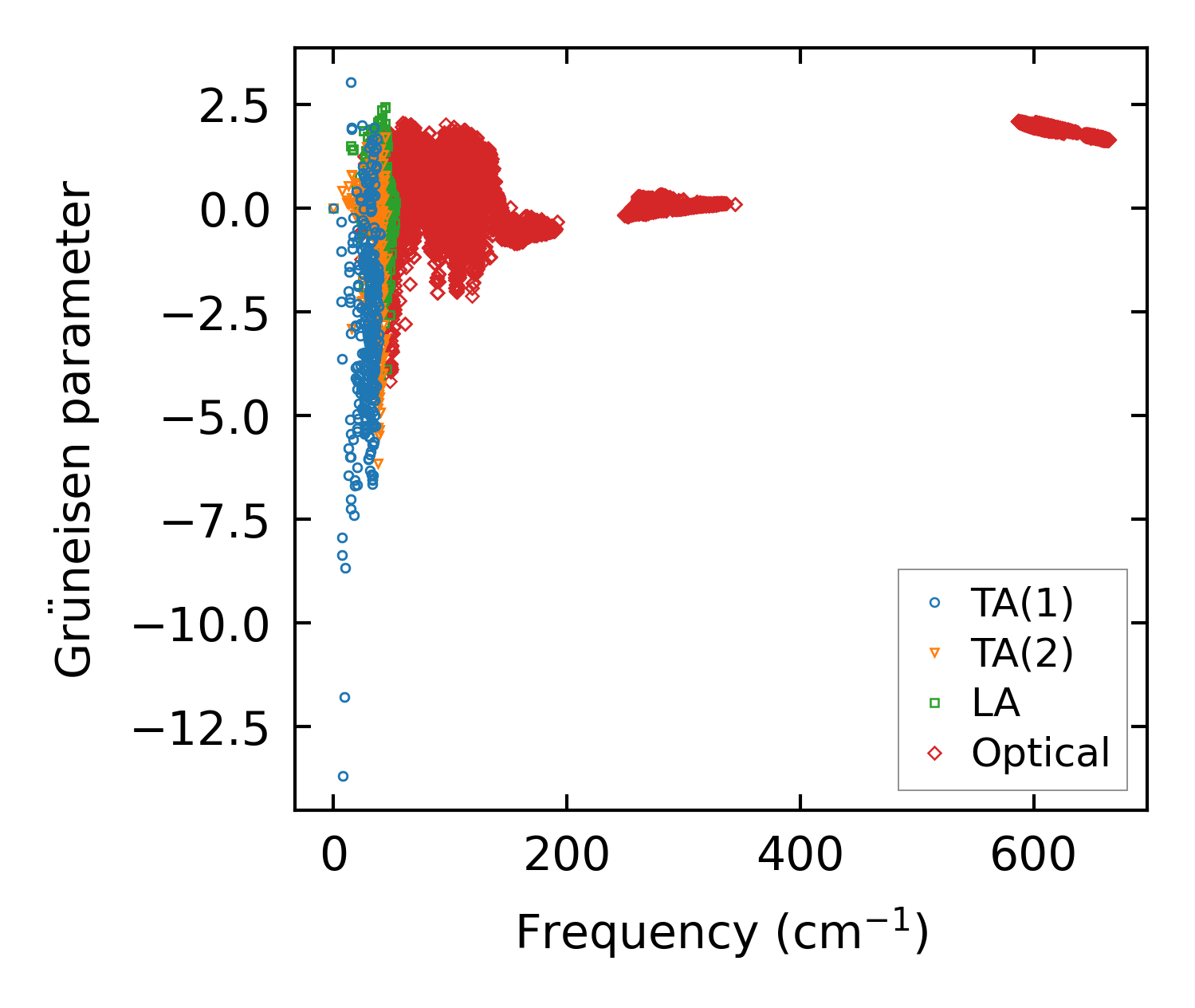

../../_images/fig_gru_all1704.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1704.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x9, supercell: 2x1x2

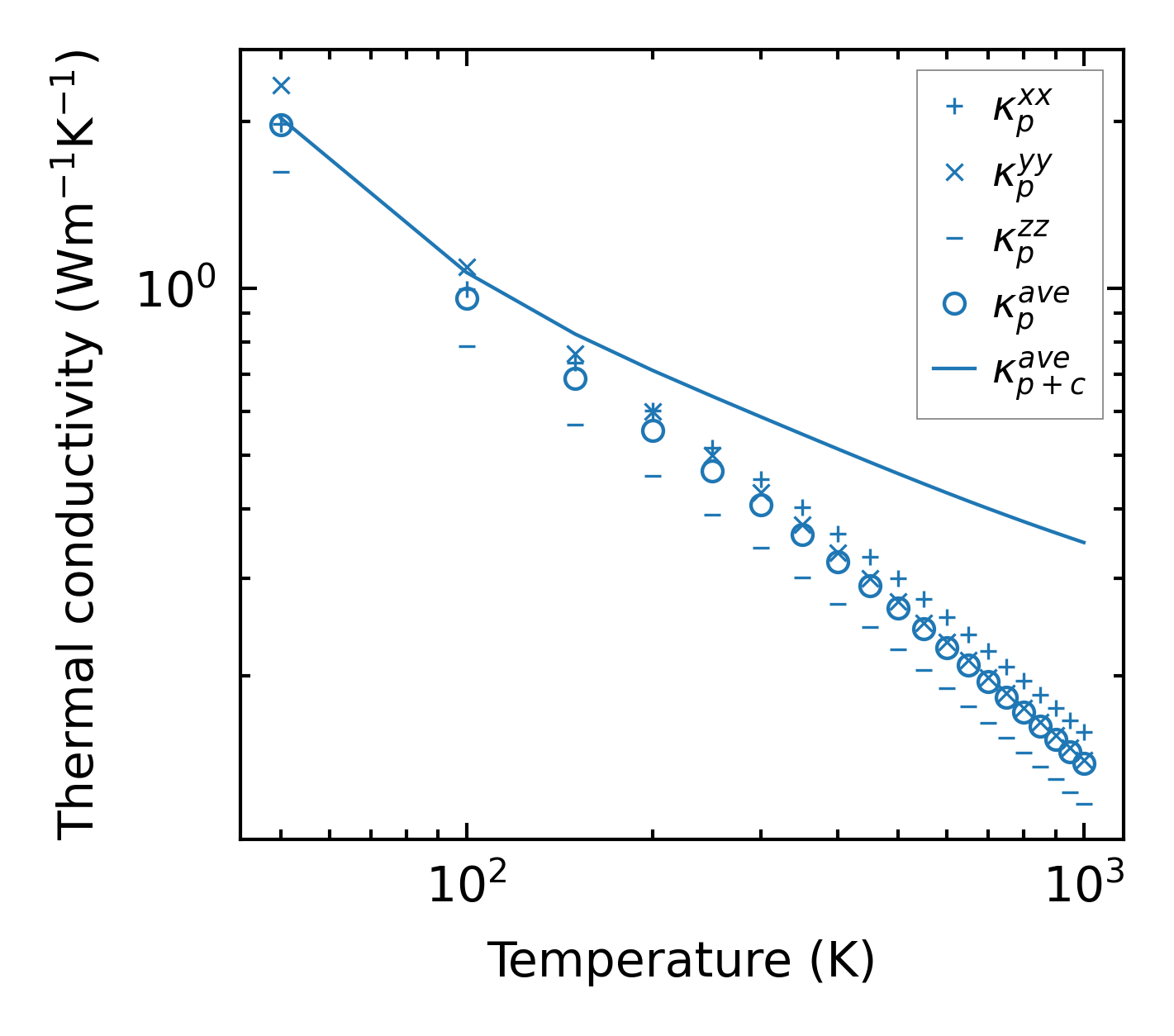

../../_images/fig_kappa3275.png — (a) Temperature-dependent lattice thermal conductivity

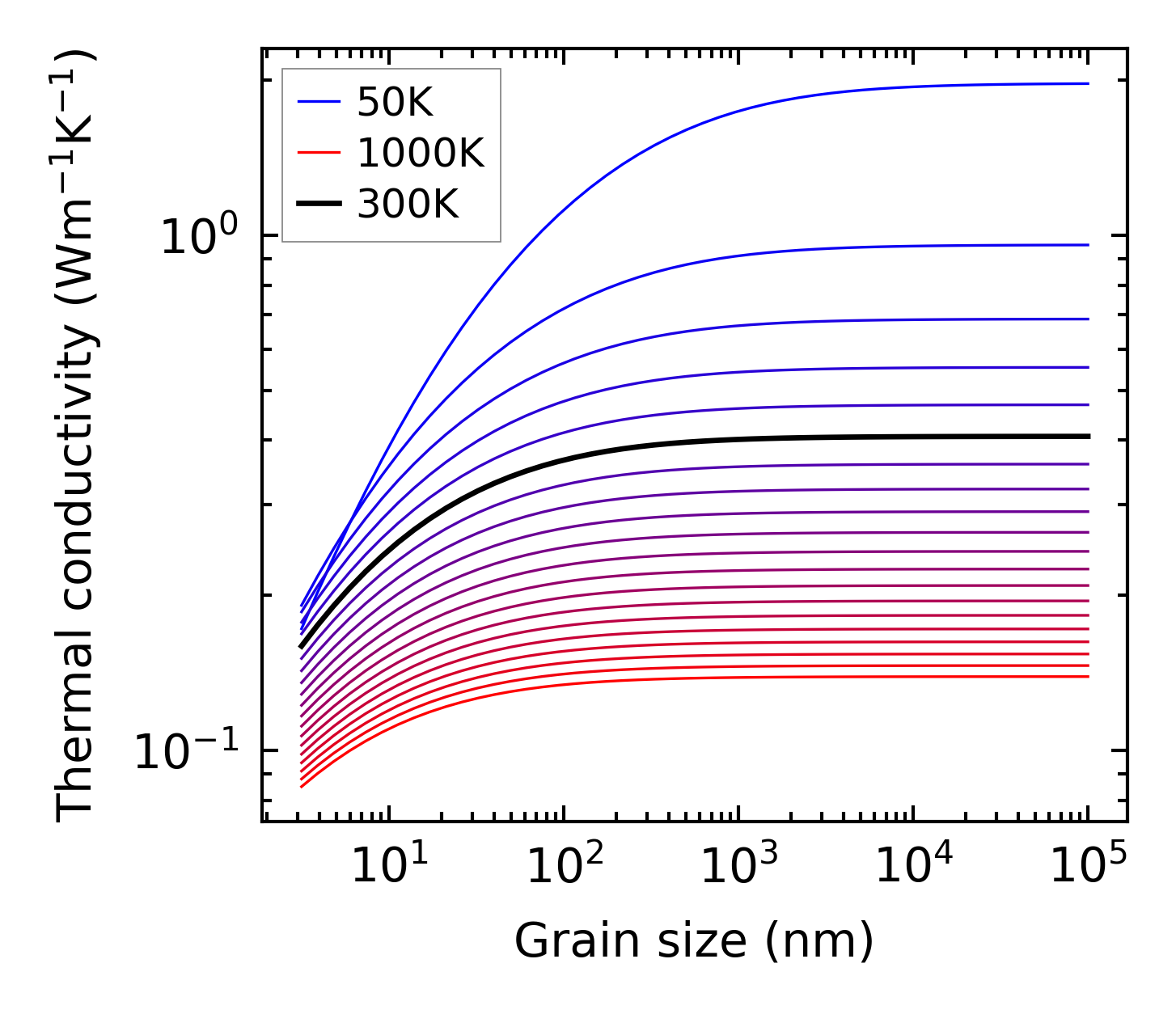

../../_images/fig_kappa_vs_grain_size1728.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime1694.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1693.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

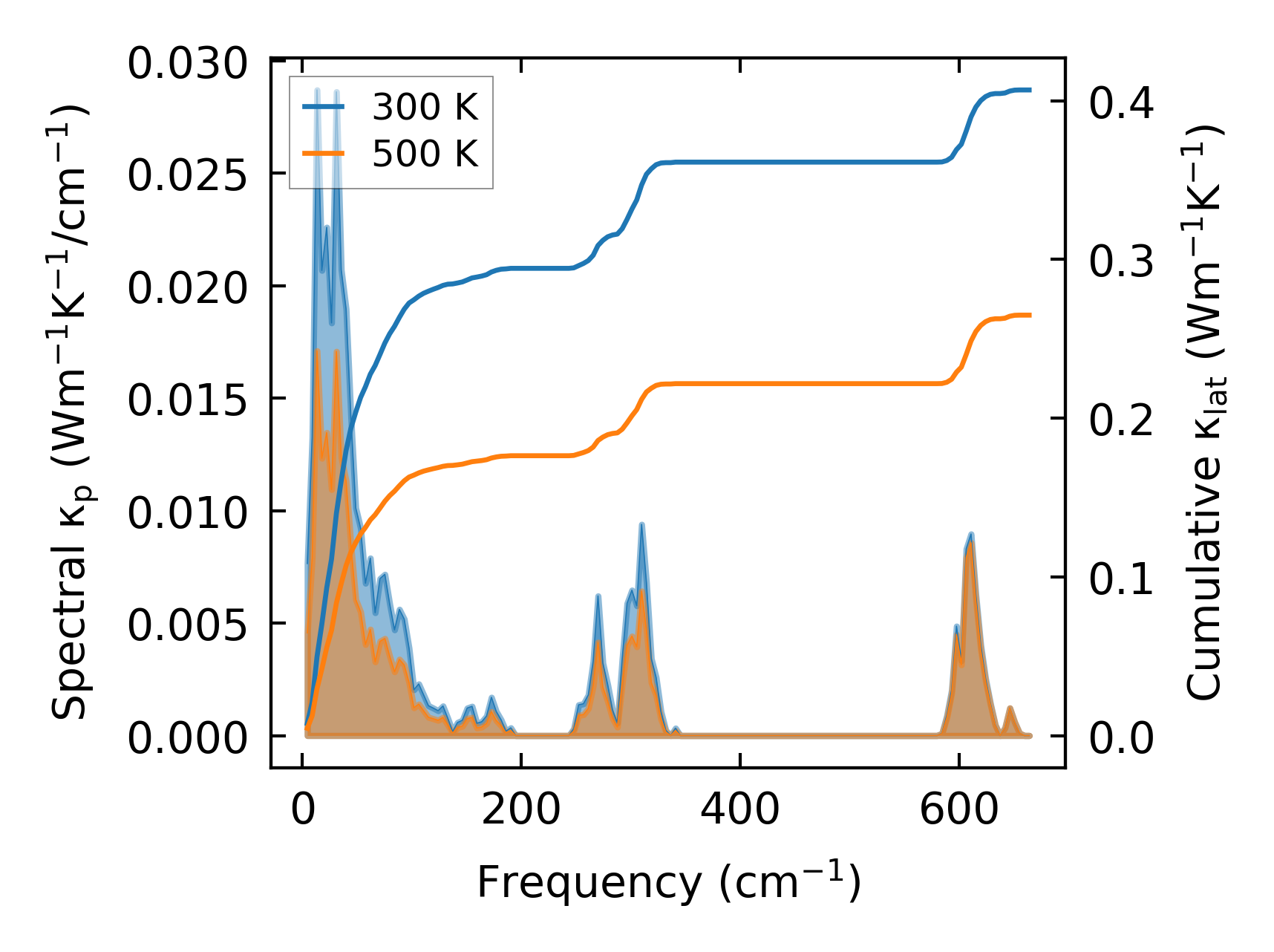

../../_images/fig_cumu_frequency1694.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

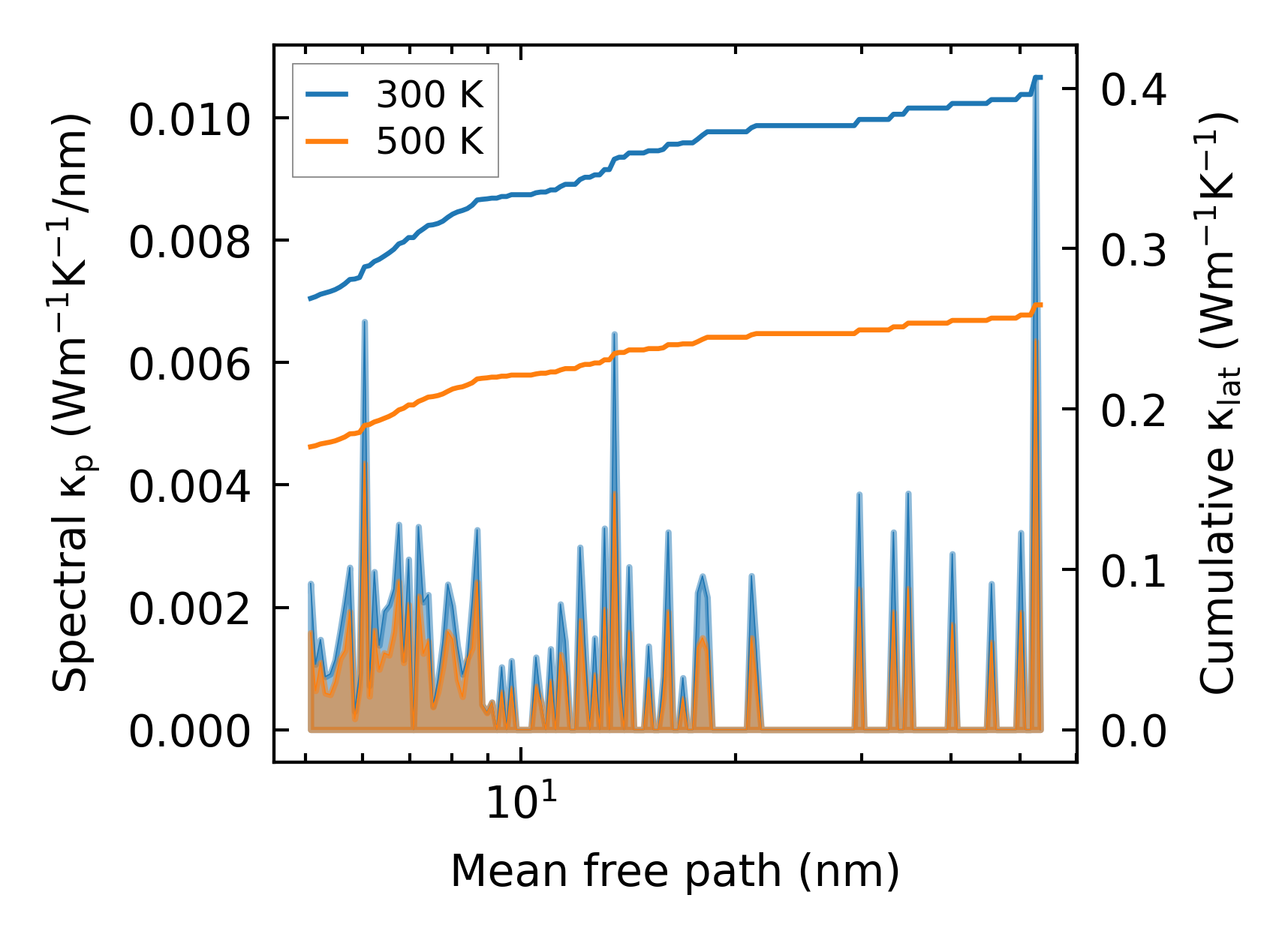

../../_images/fig_cumu_mfp1694.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

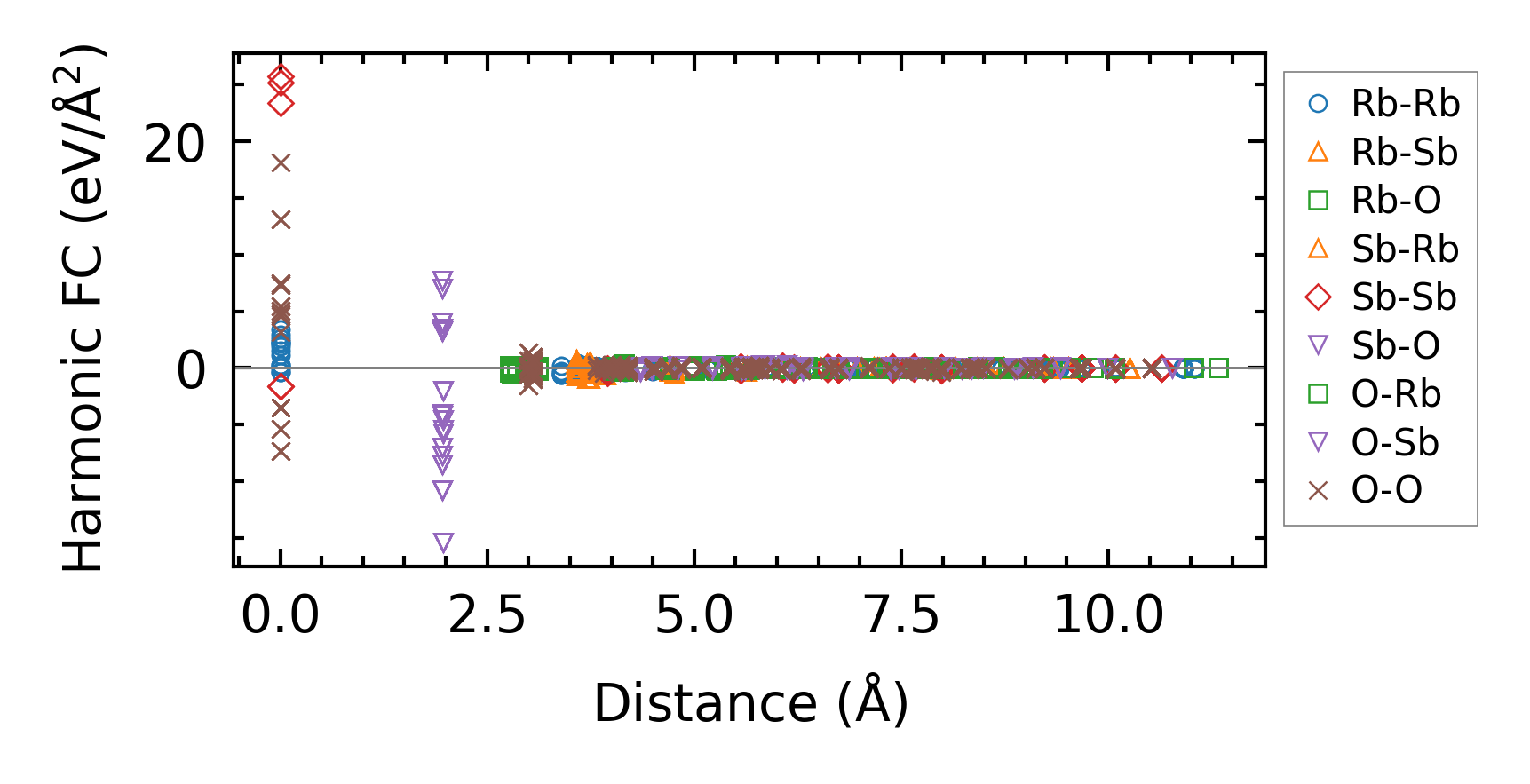

../../_images/fig_fc23600.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa3276.png — (a) Temperature-dependent lattice thermal conductivity

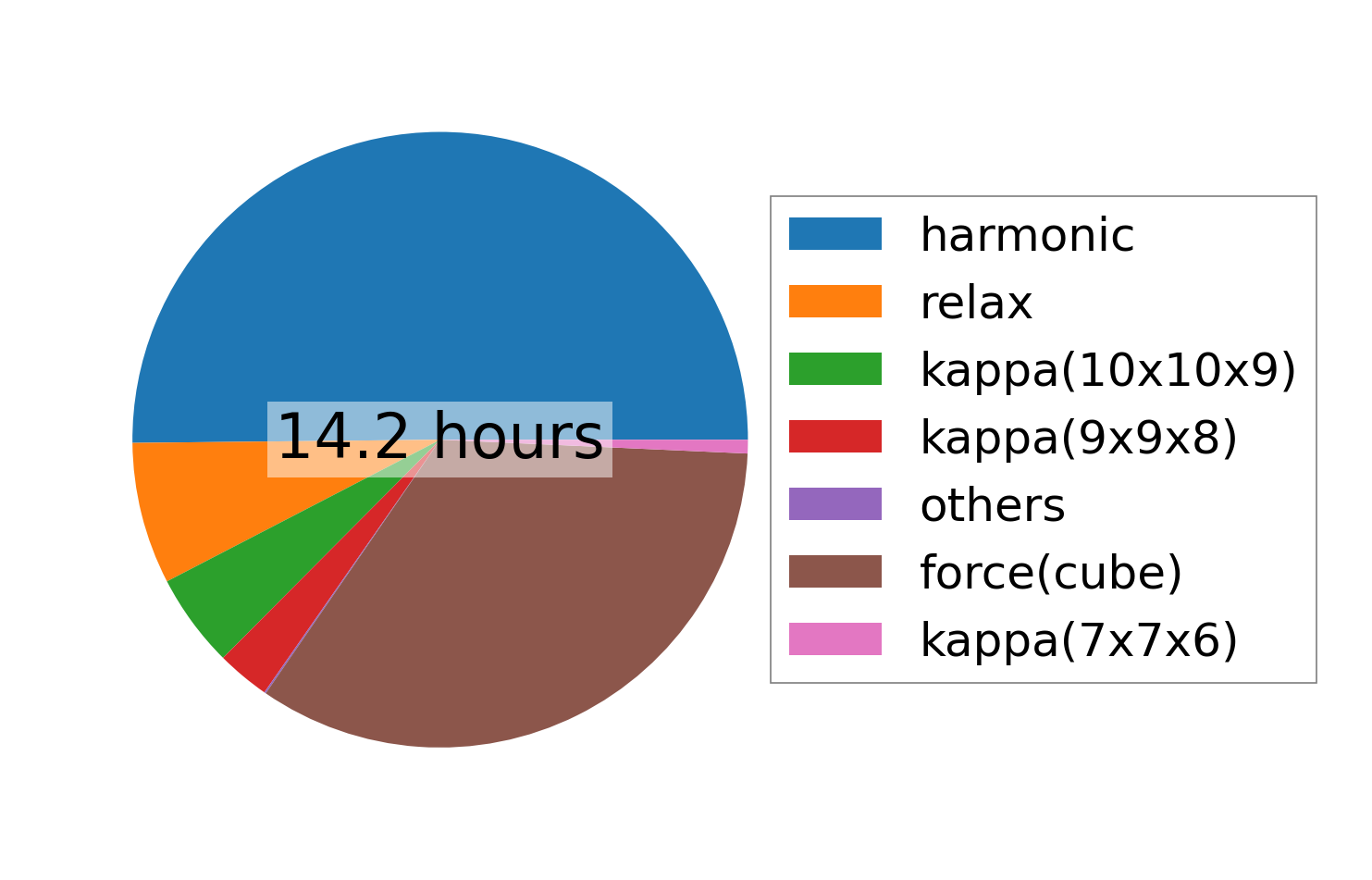

../../_images/fig_times6556.png — (b) Computation time
