mp-754352/Na3CuO2/anharm

Space group: Ibam (72)
Link: Materials Project
Download: mp-754352.tar.gz

Harmonic properties

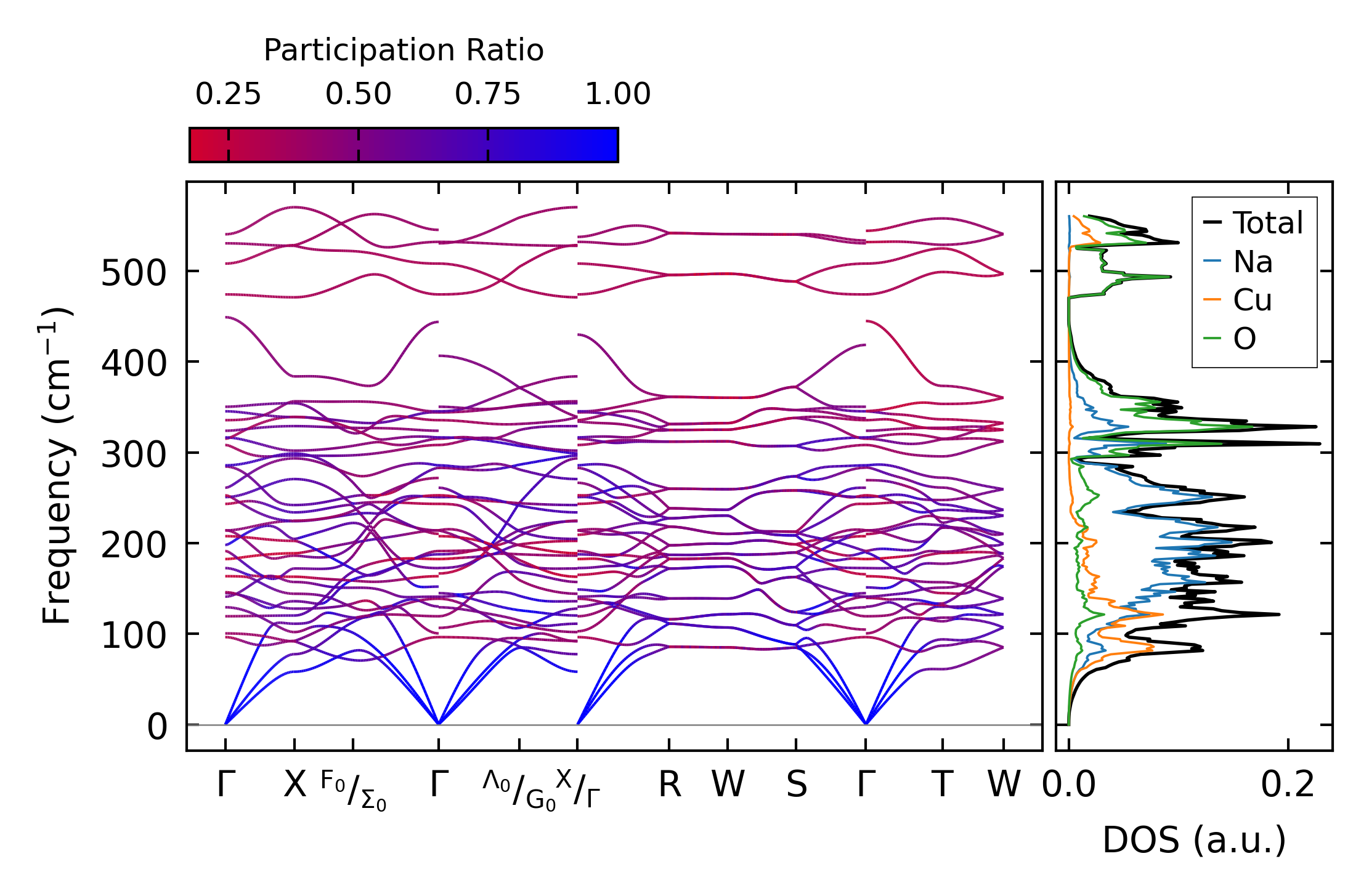

../../_images/fig_bandos_pr3846.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3846.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1737.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1737.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 2x1x2

../../_images/fig_kappa3342.png — (a) Temperature-dependent lattice thermal conductivity

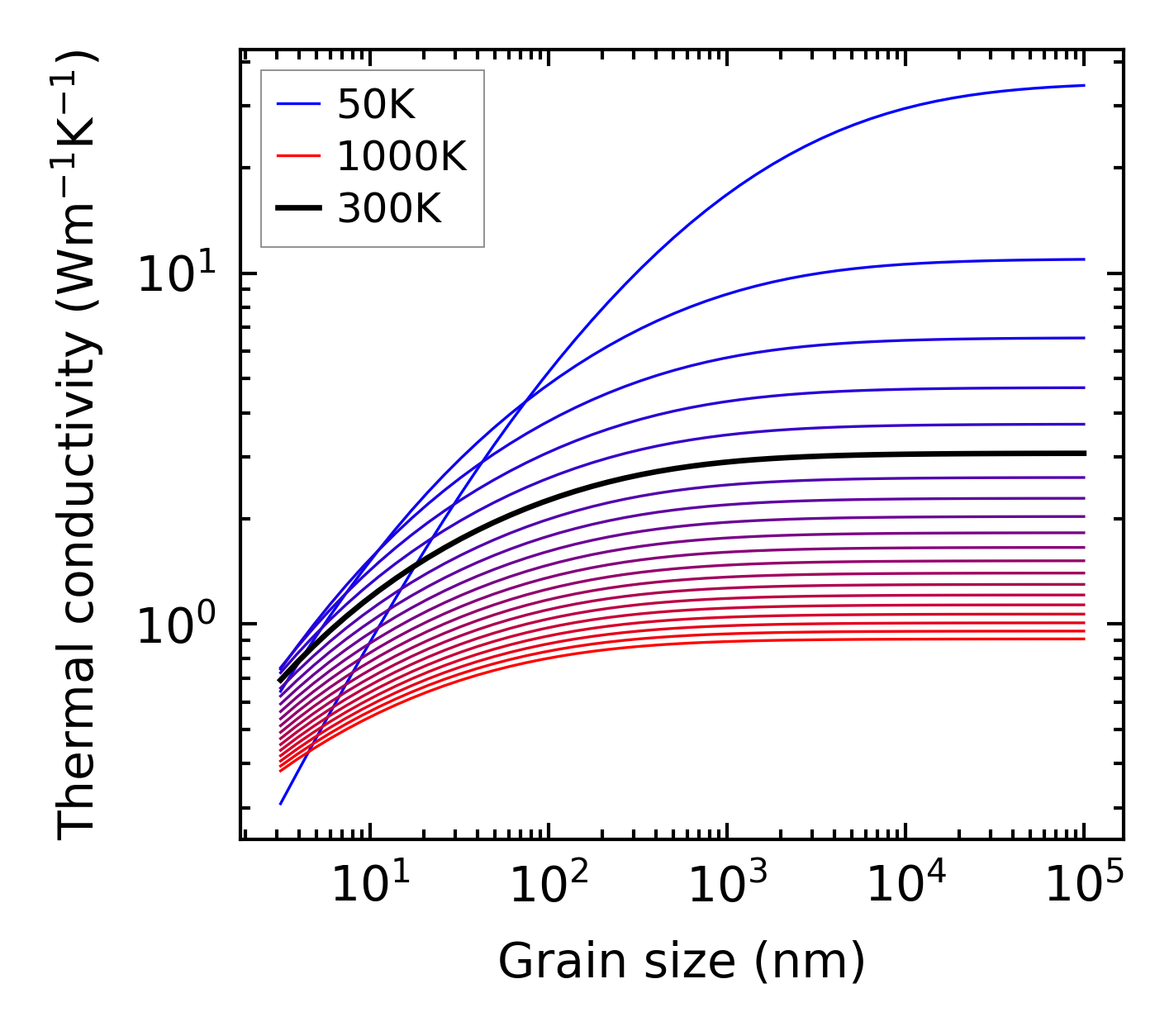

../../_images/fig_kappa_vs_grain_size1764.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

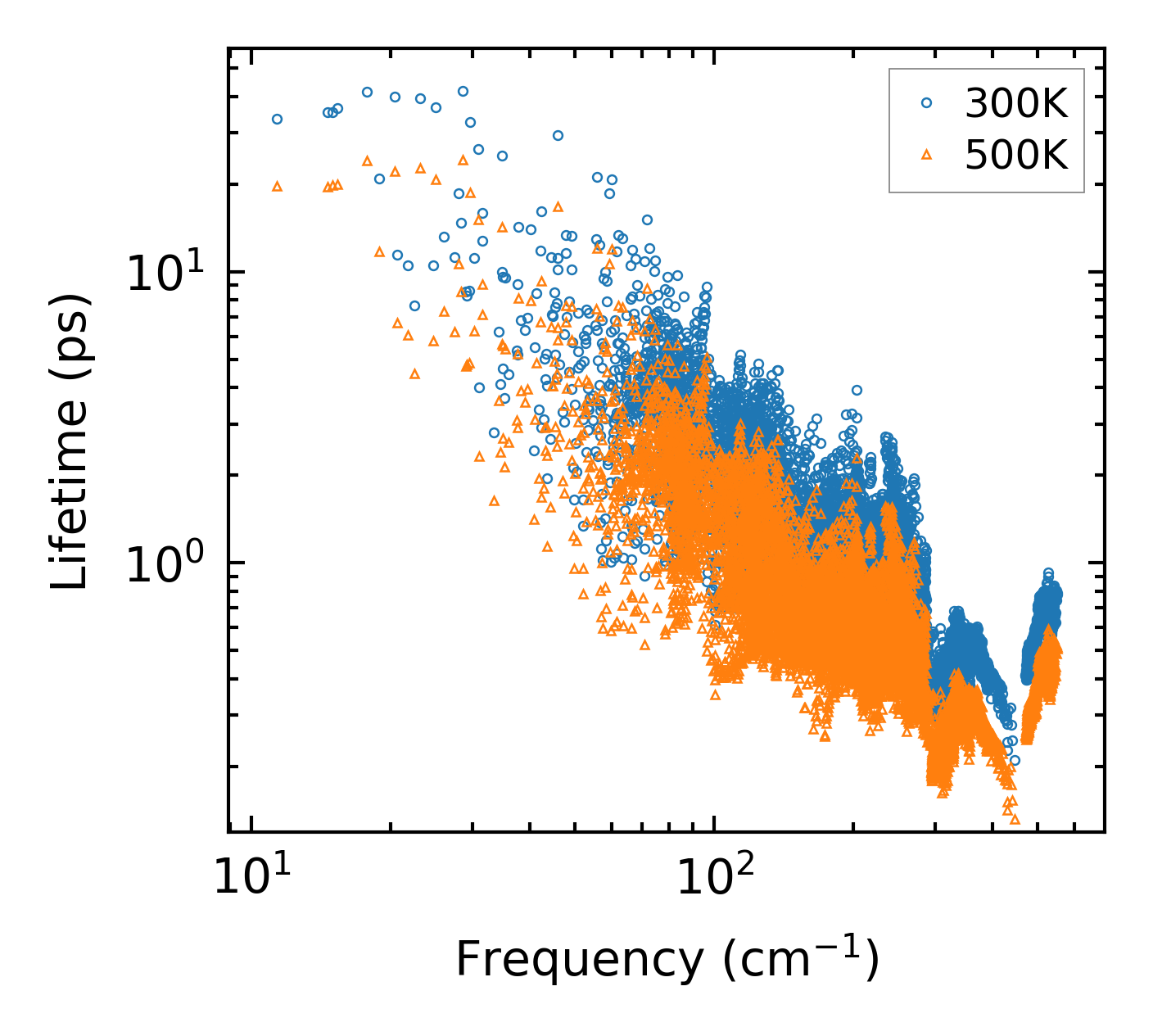

../../_images/fig_lifetime1727.png — (a) Phonon lifetime due to phonon-phonon scattering

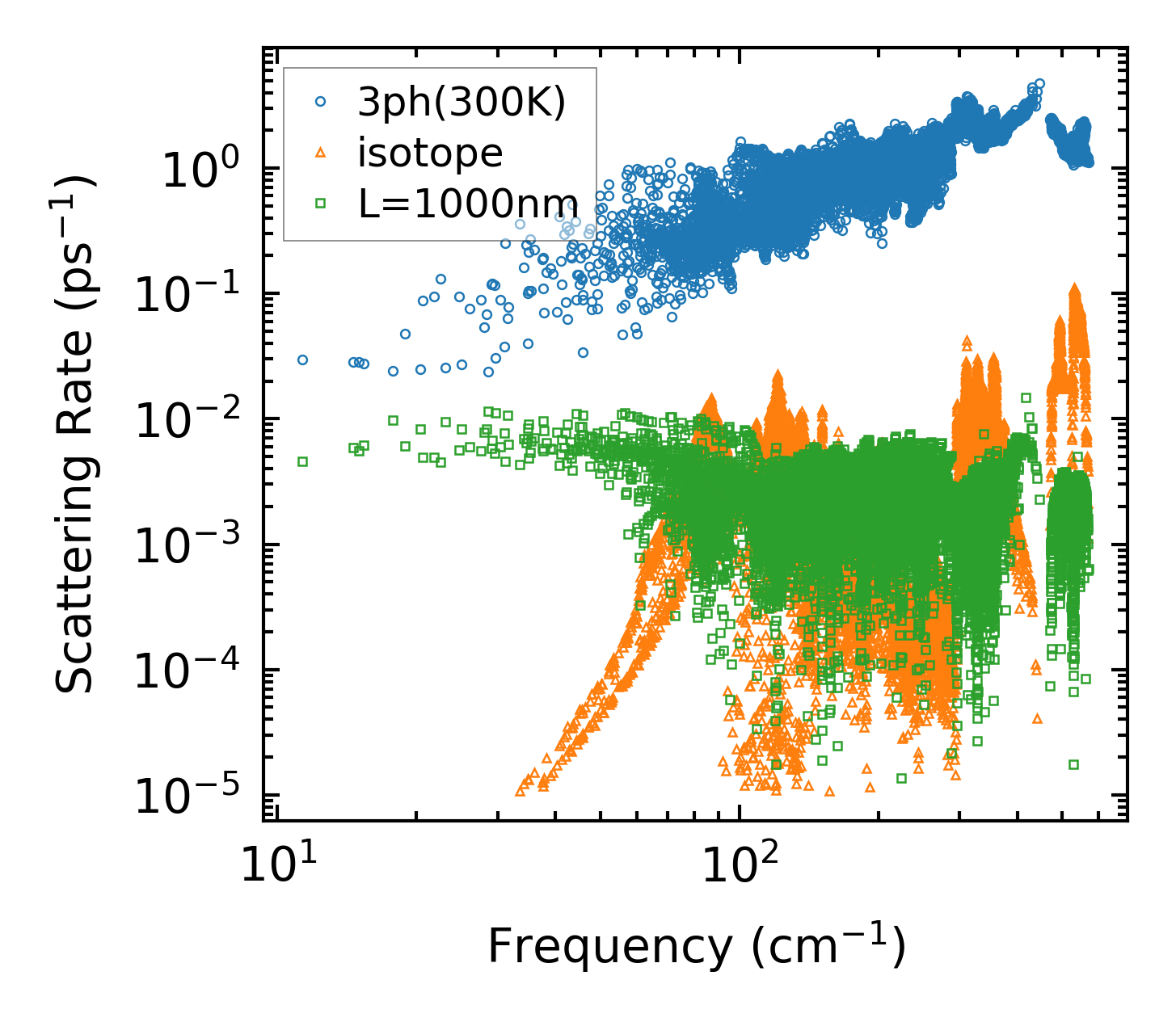

../../_images/fig_scat_rates1726.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

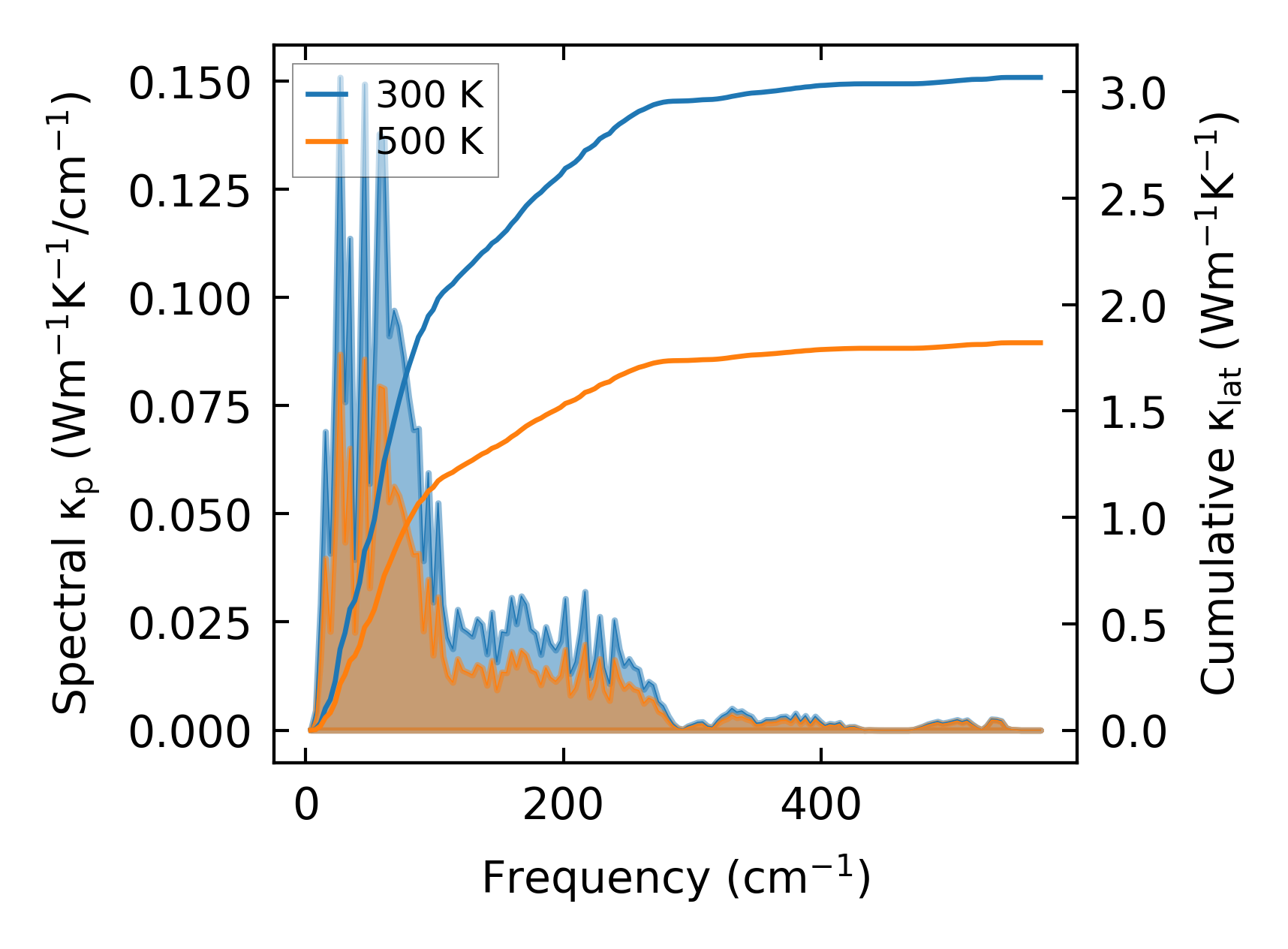

../../_images/fig_cumu_frequency1727.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

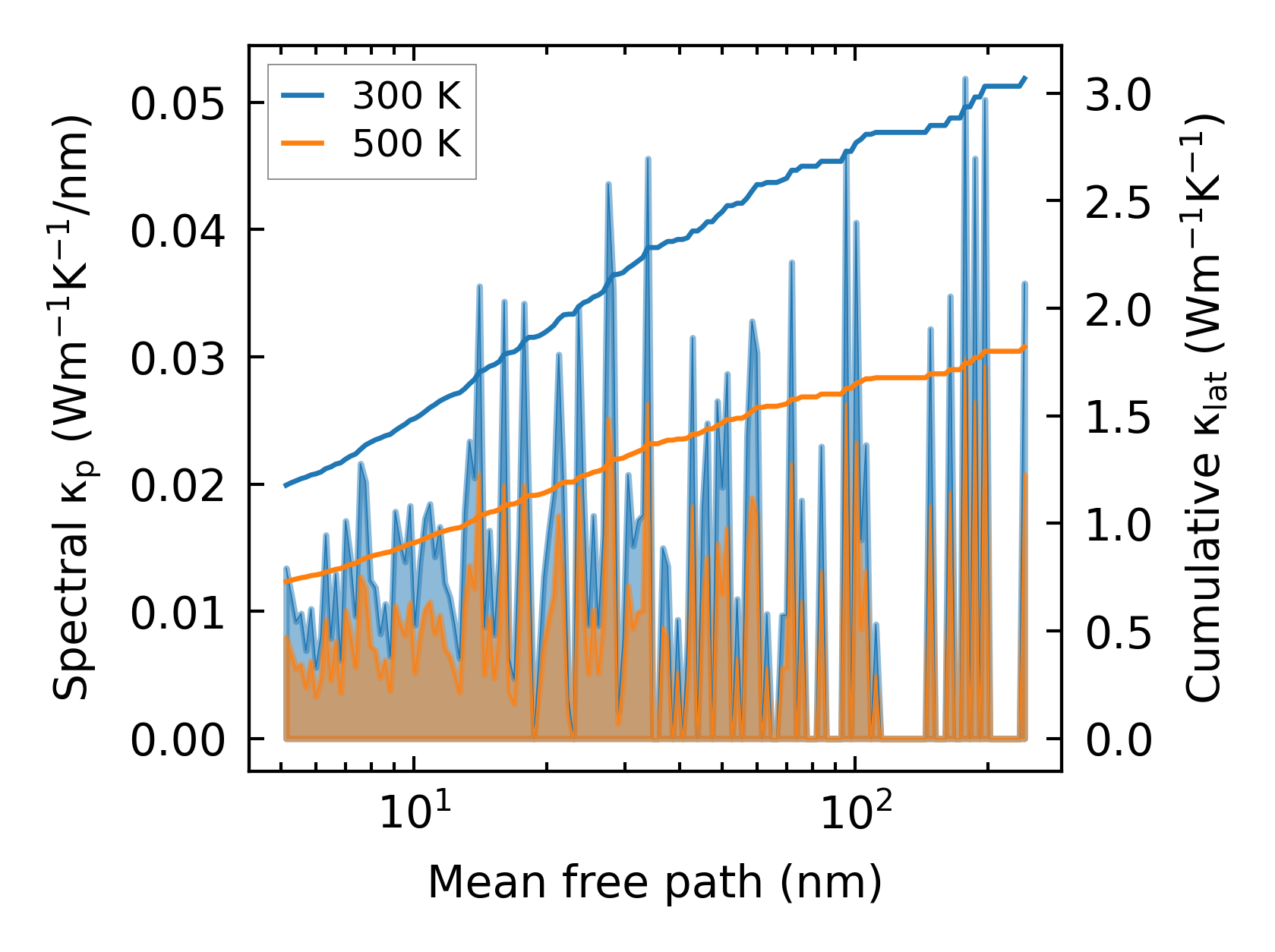

../../_images/fig_cumu_mfp1727.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

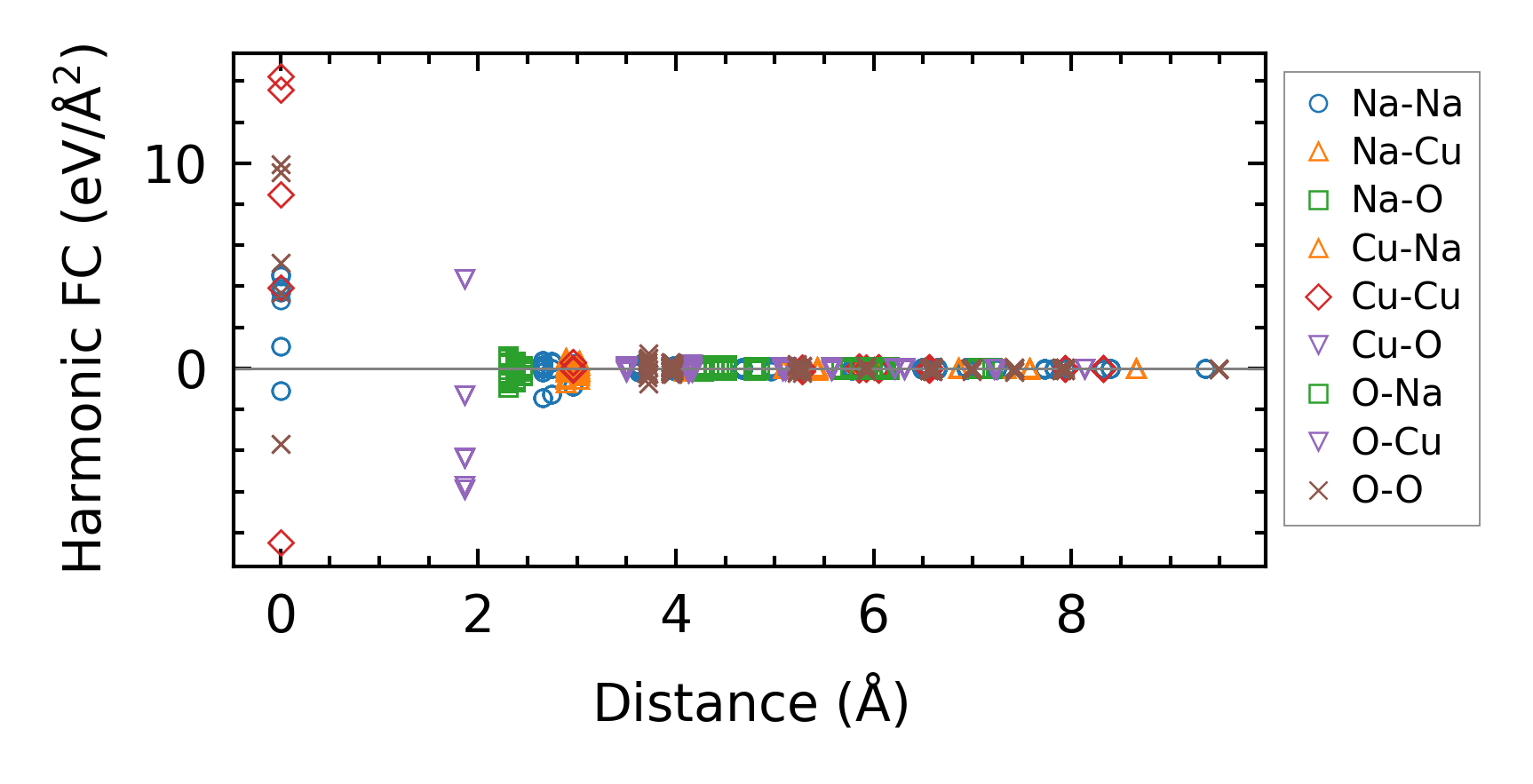

../../_images/fig_fc23660.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa3343.png — (a) Temperature-dependent lattice thermal conductivity

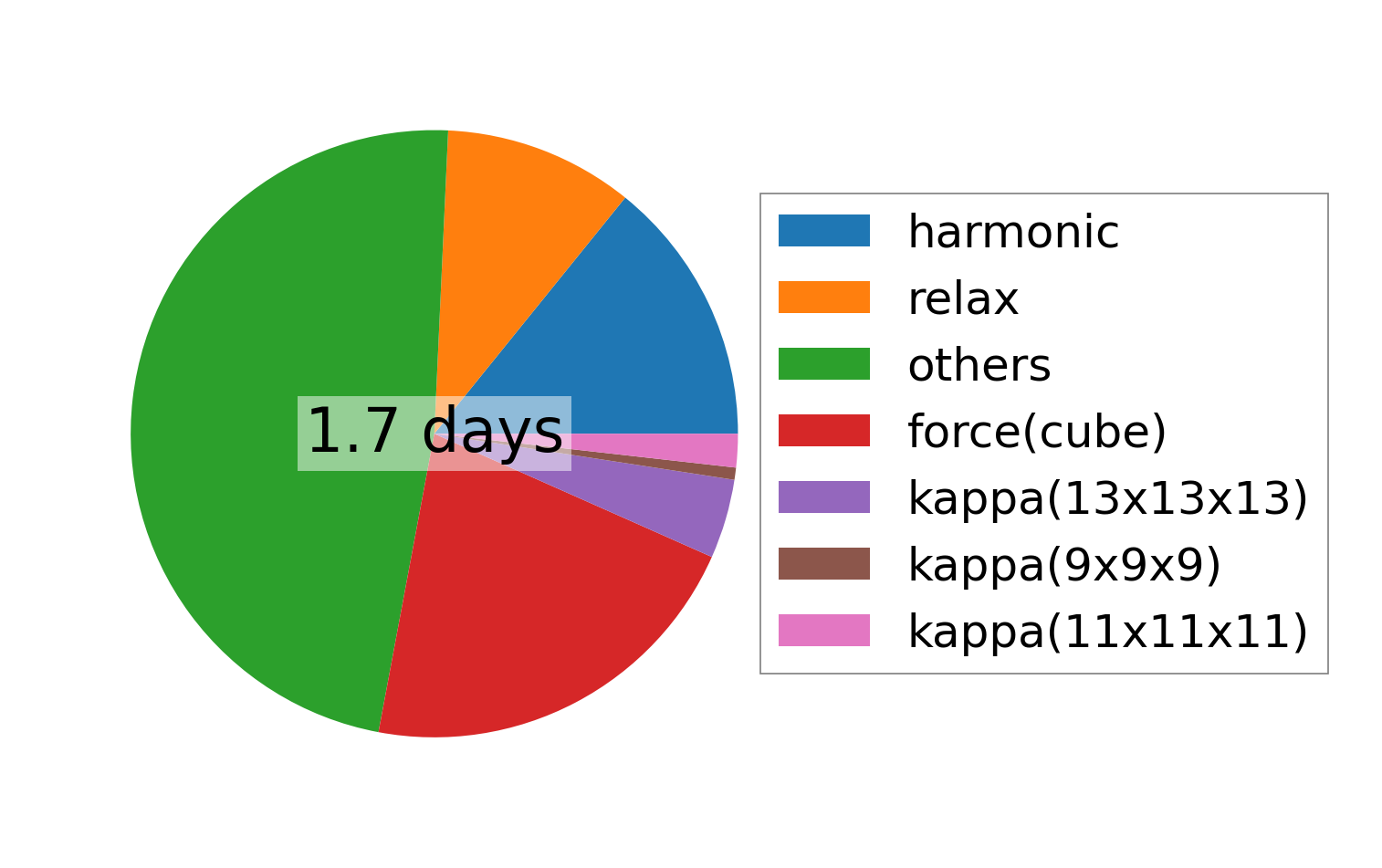

../../_images/fig_times6649.png — (b) Computation time
