mp-754454/CdAg2O4/anharm

Space group: I4_1/amd (141)
Link: Materials Project
Download: mp-754454.tar.gz

Harmonic properties

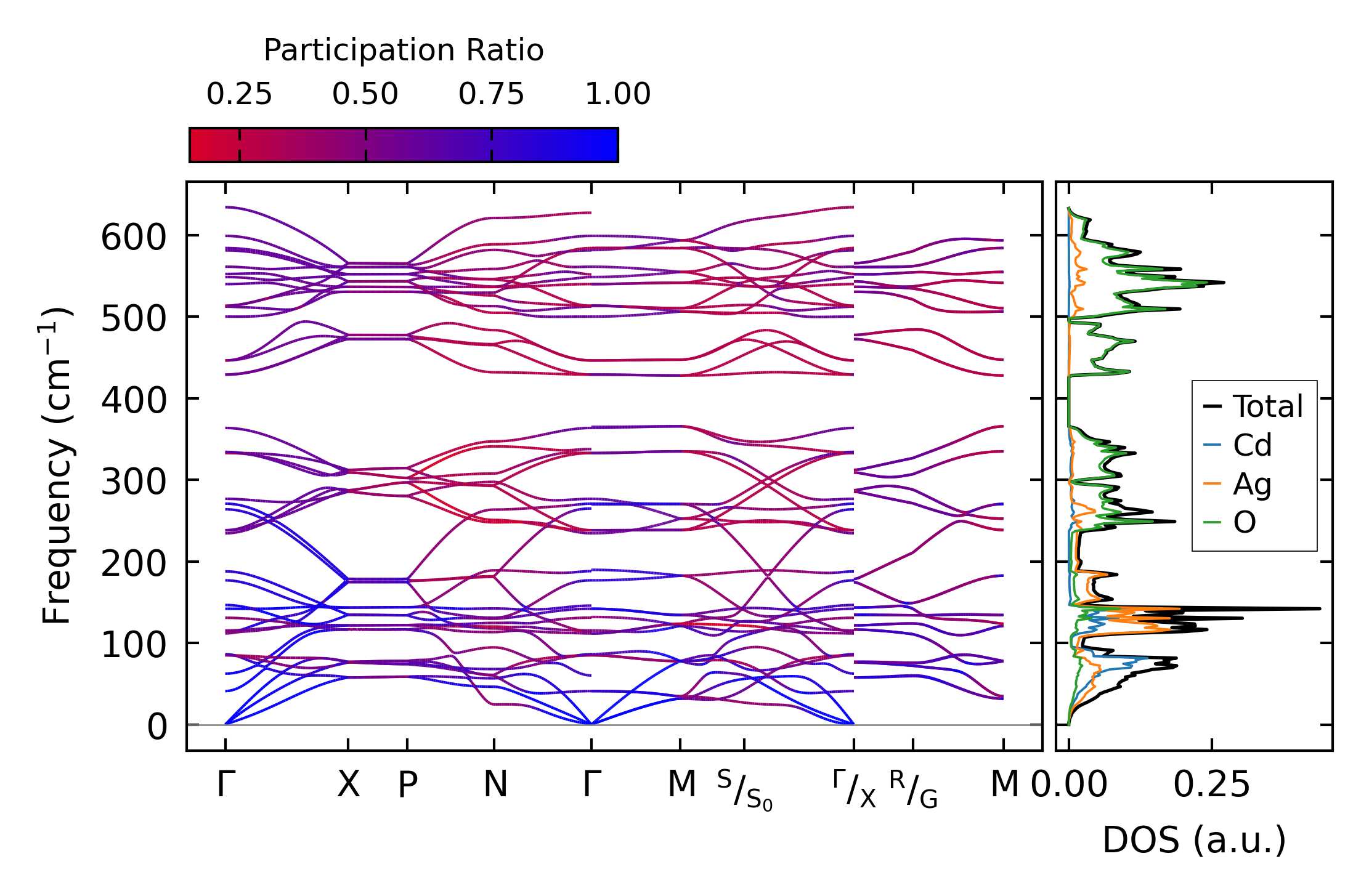

../../_images/fig_bandos_pr3869.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3869.png — (b) Thermodynamic properties

Grüneisen parameters

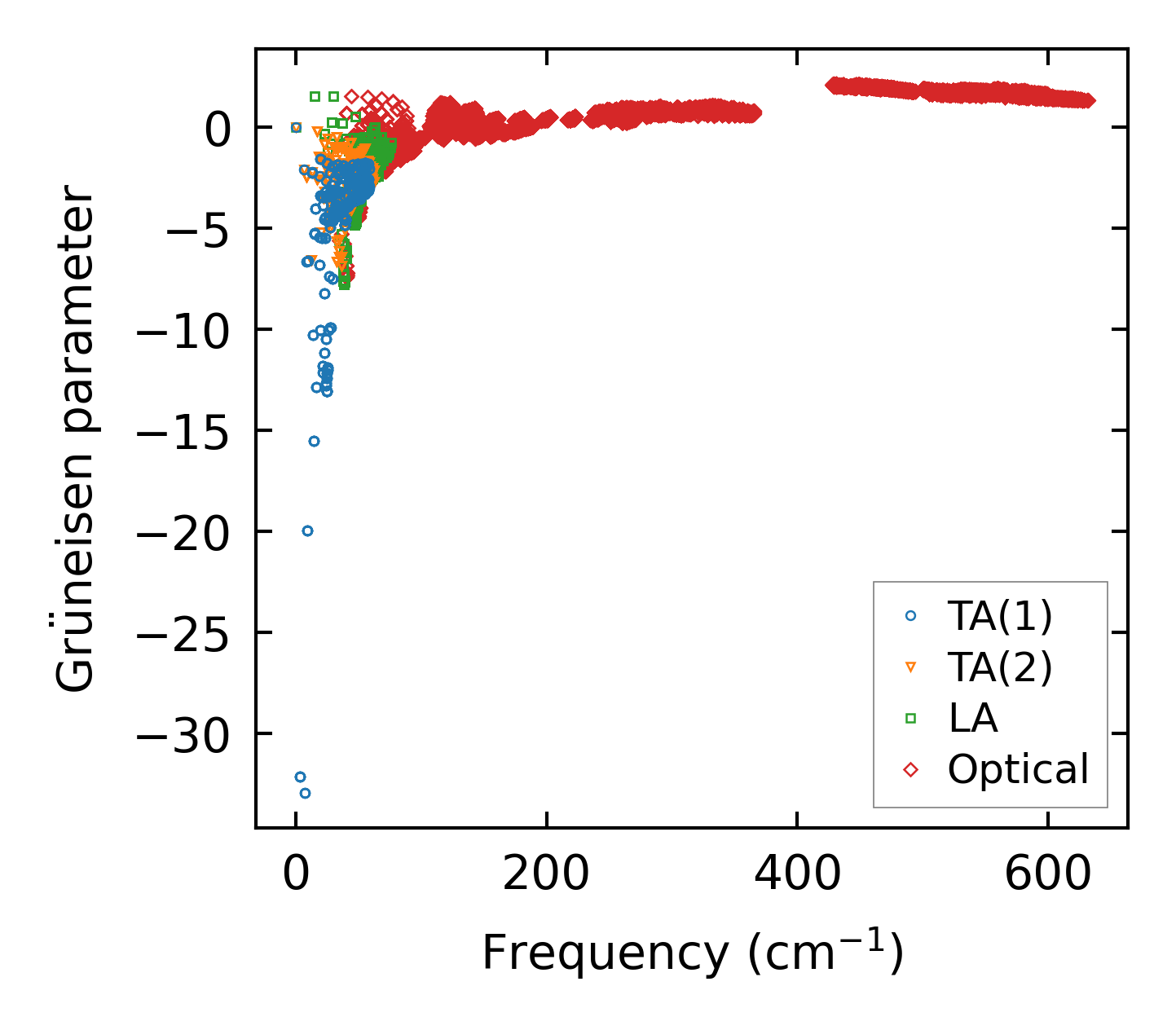

../../_images/fig_gru_all1750.png — (a) Grüneisen parameters

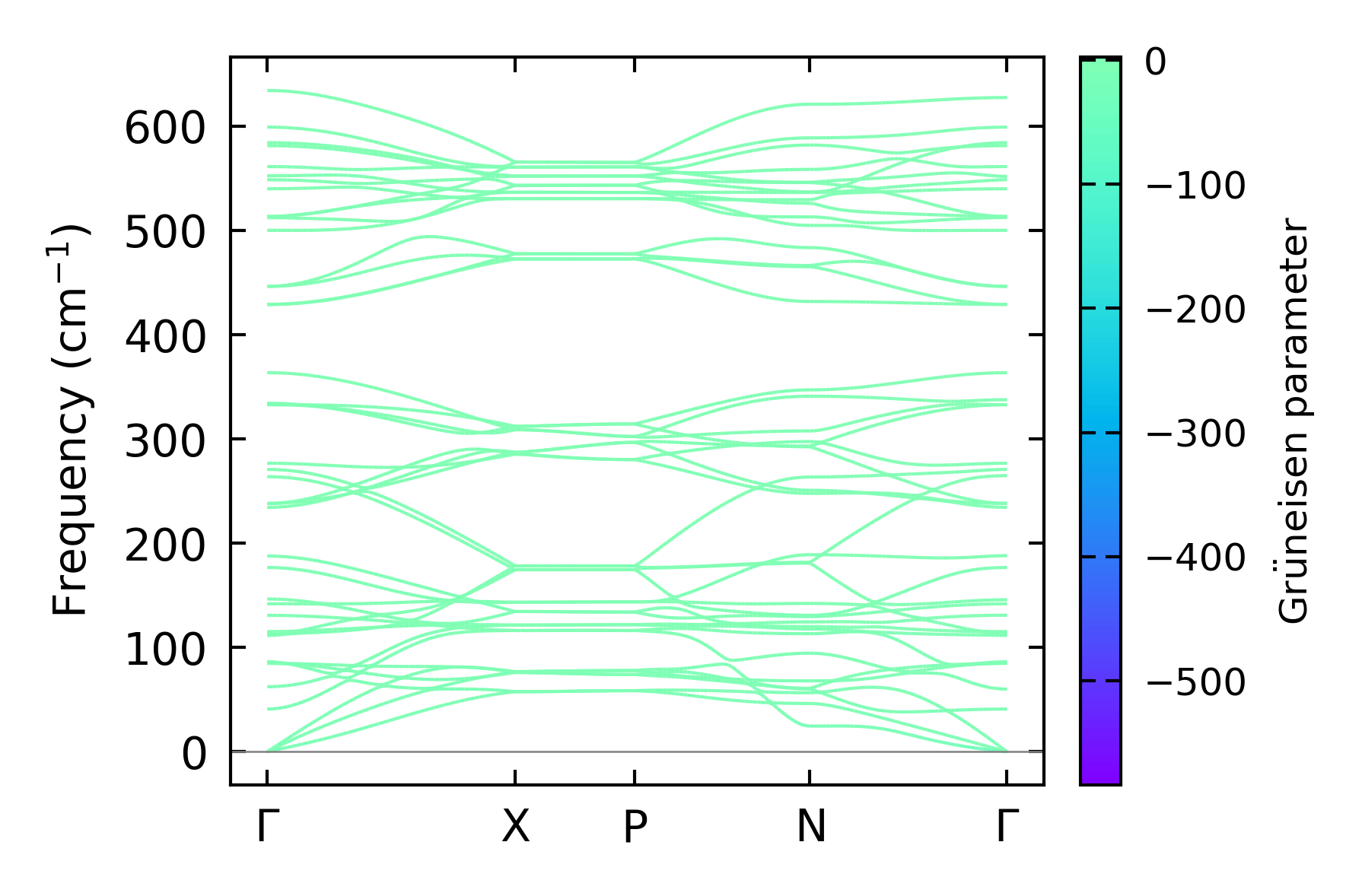

../../_images/fig_gruneisen1750.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x12, supercell: 2x2x1

../../_images/fig_kappa3367.png — (a) Temperature-dependent lattice thermal conductivity

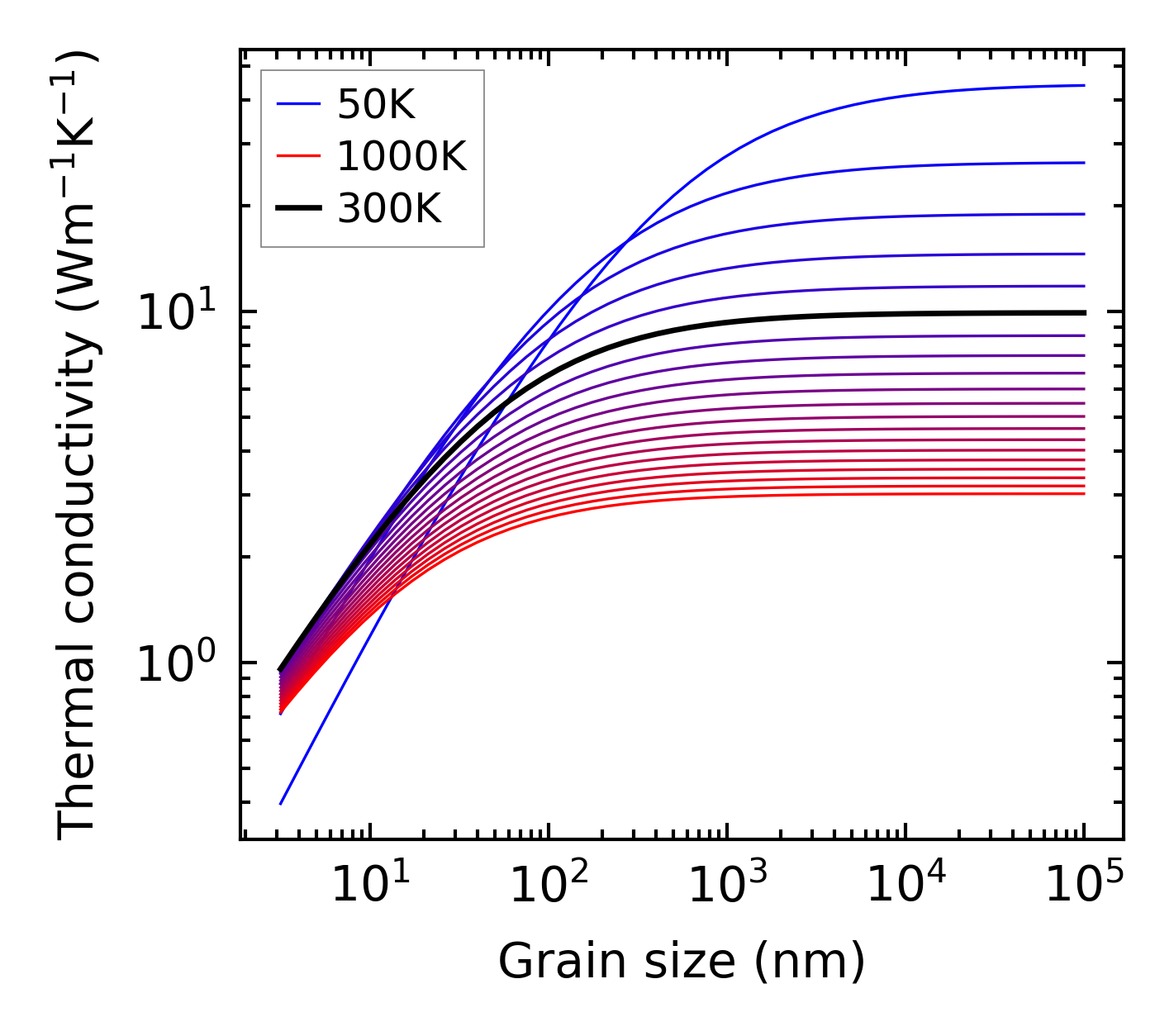

../../_images/fig_kappa_vs_grain_size1777.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime1740.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1739.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

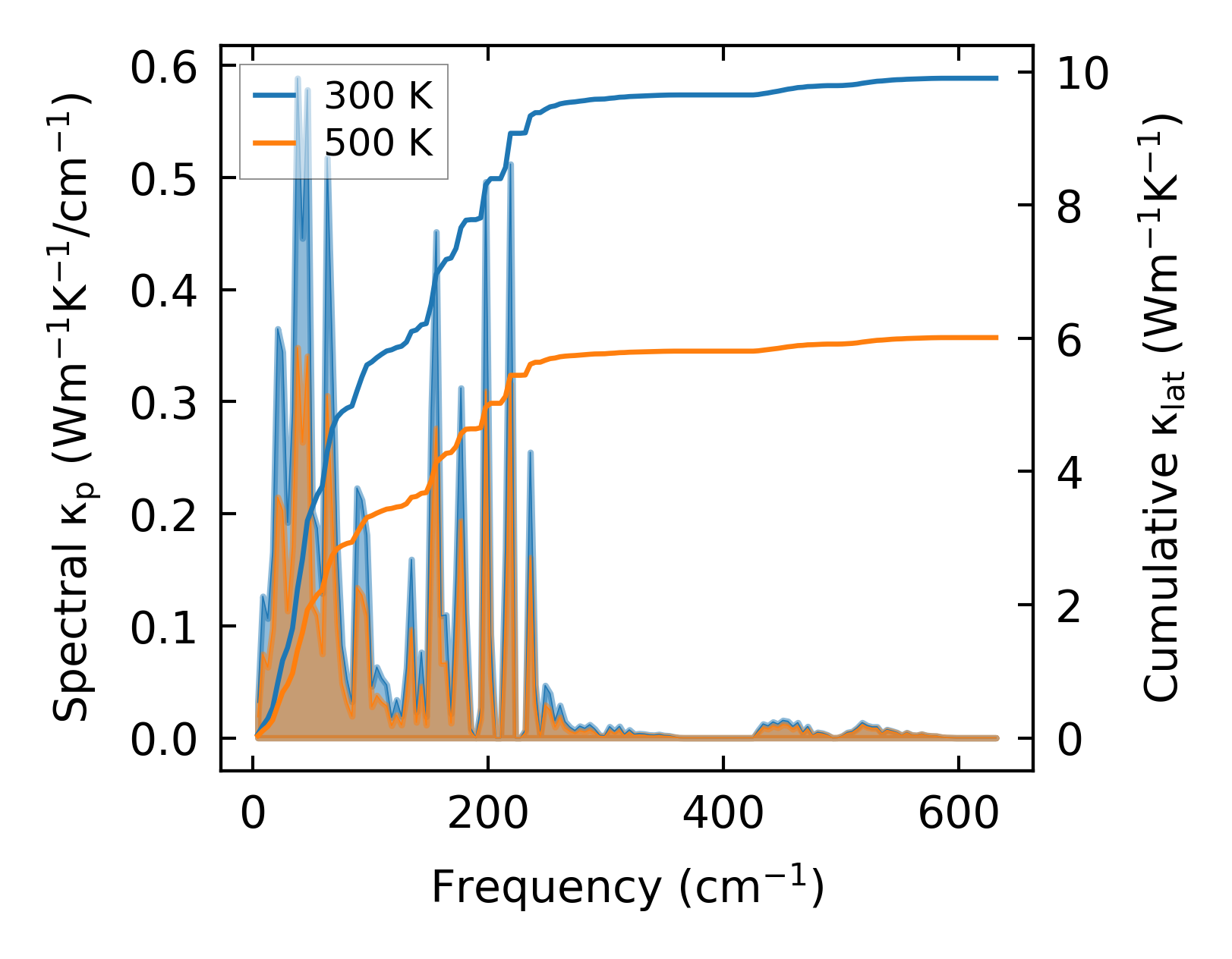

../../_images/fig_cumu_frequency1740.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

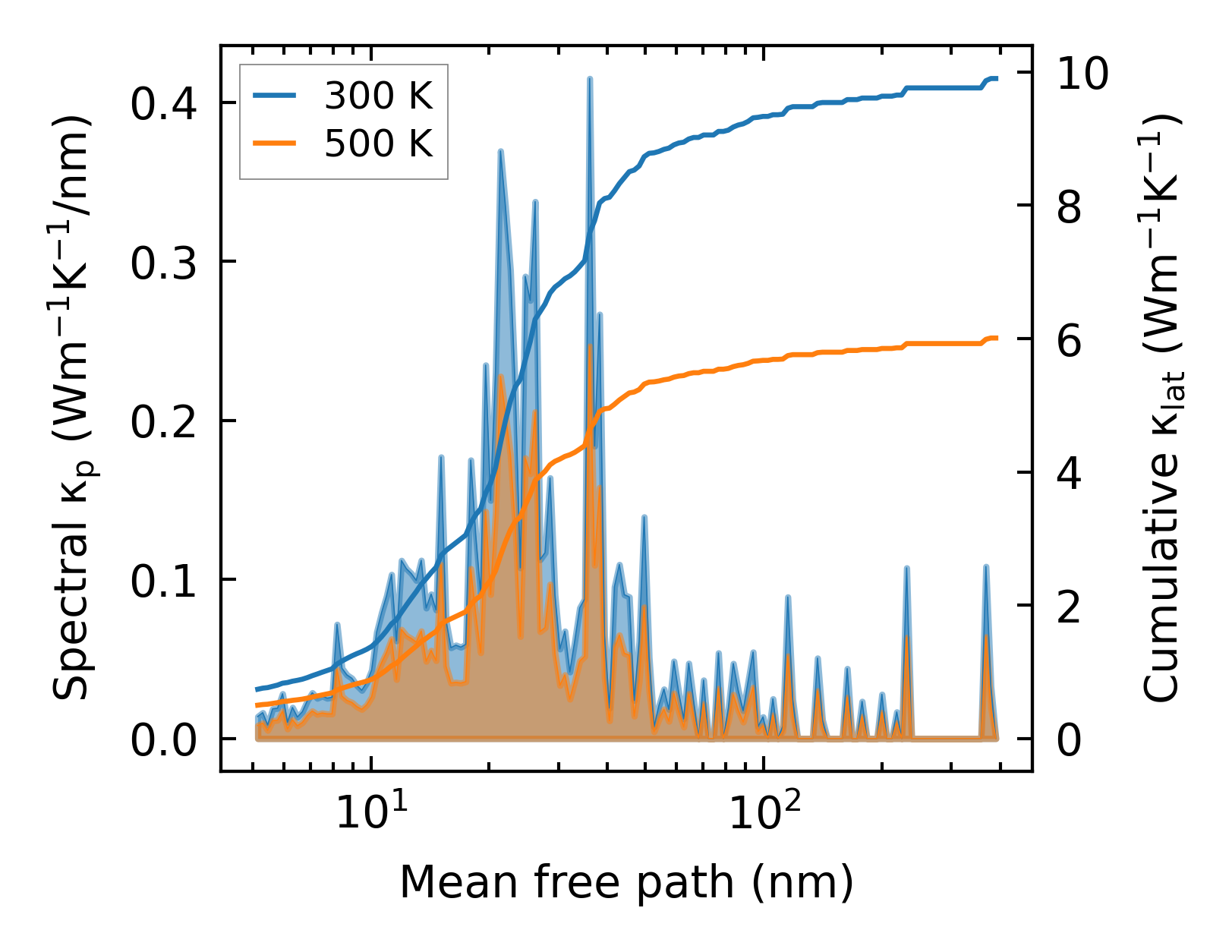

../../_images/fig_cumu_mfp1740.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

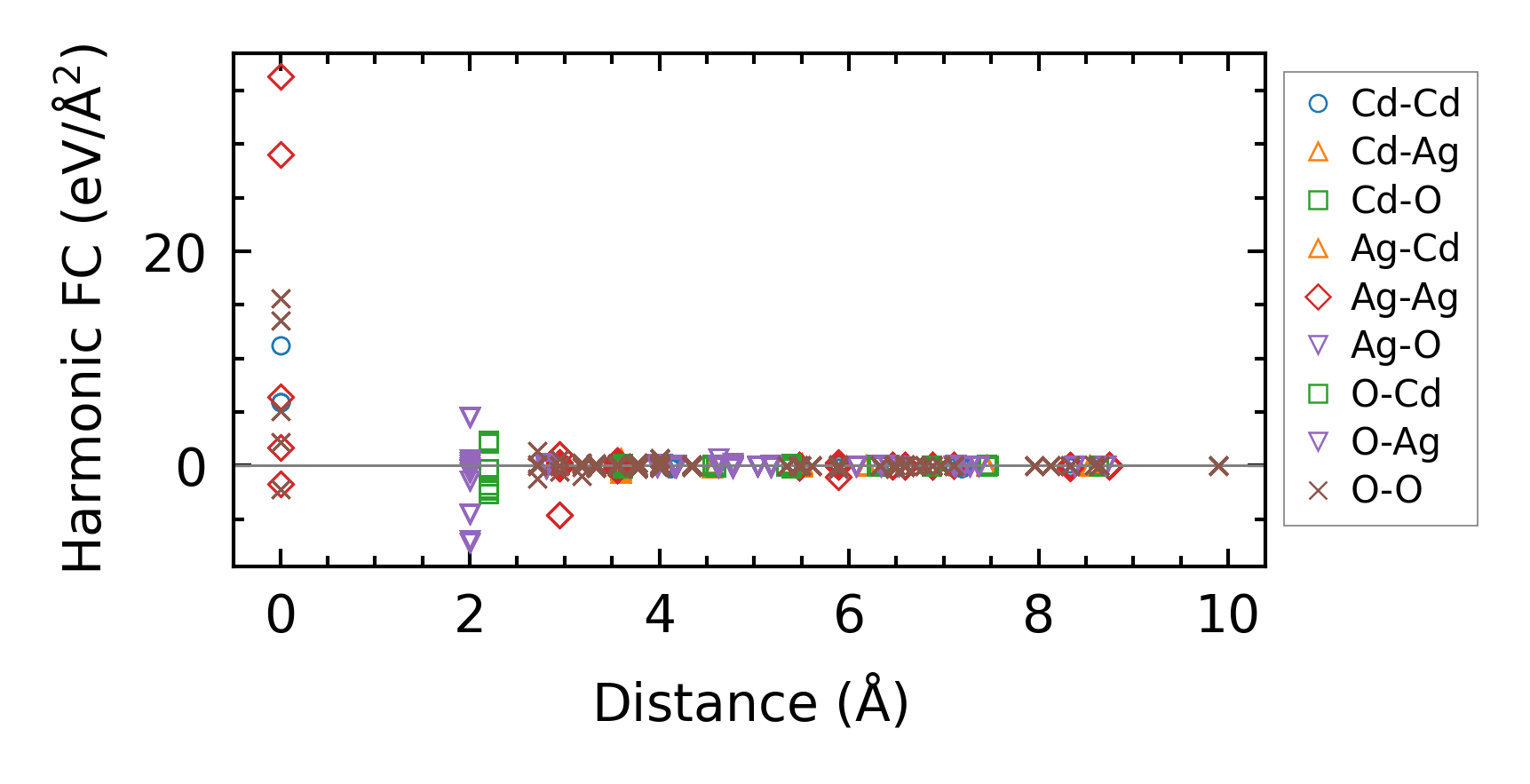

../../_images/fig_fc23682.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa3368.png — (a) Temperature-dependent lattice thermal conductivity

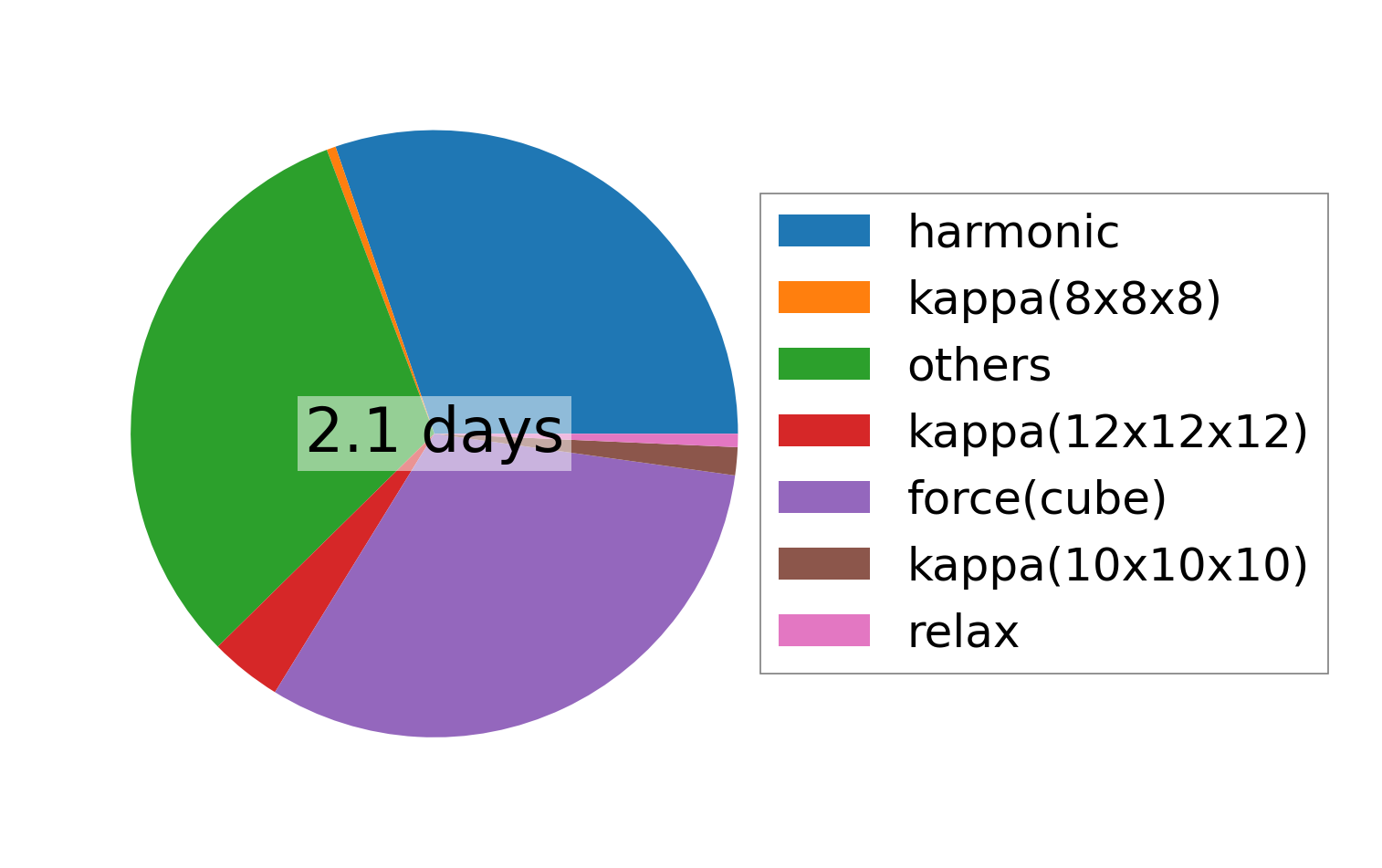

../../_images/fig_times6683.png — (b) Computation time
