mp-754897-3/BaTl2O4/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-754897-3.tar.gz

Harmonic properties

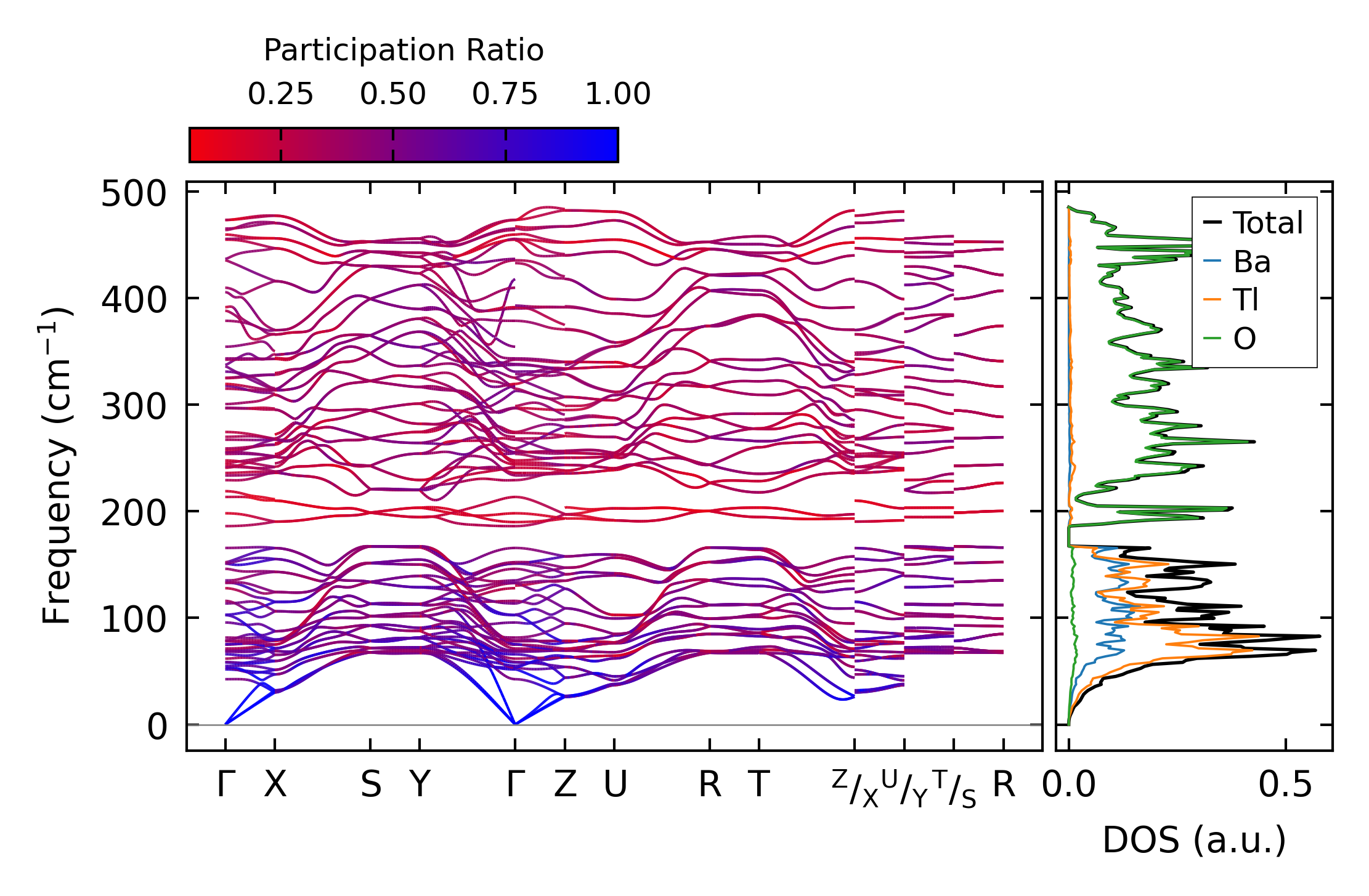

../../_images/fig_bandos_pr3614.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3614.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1624.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1624.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x20x5, supercell: 1x3x1

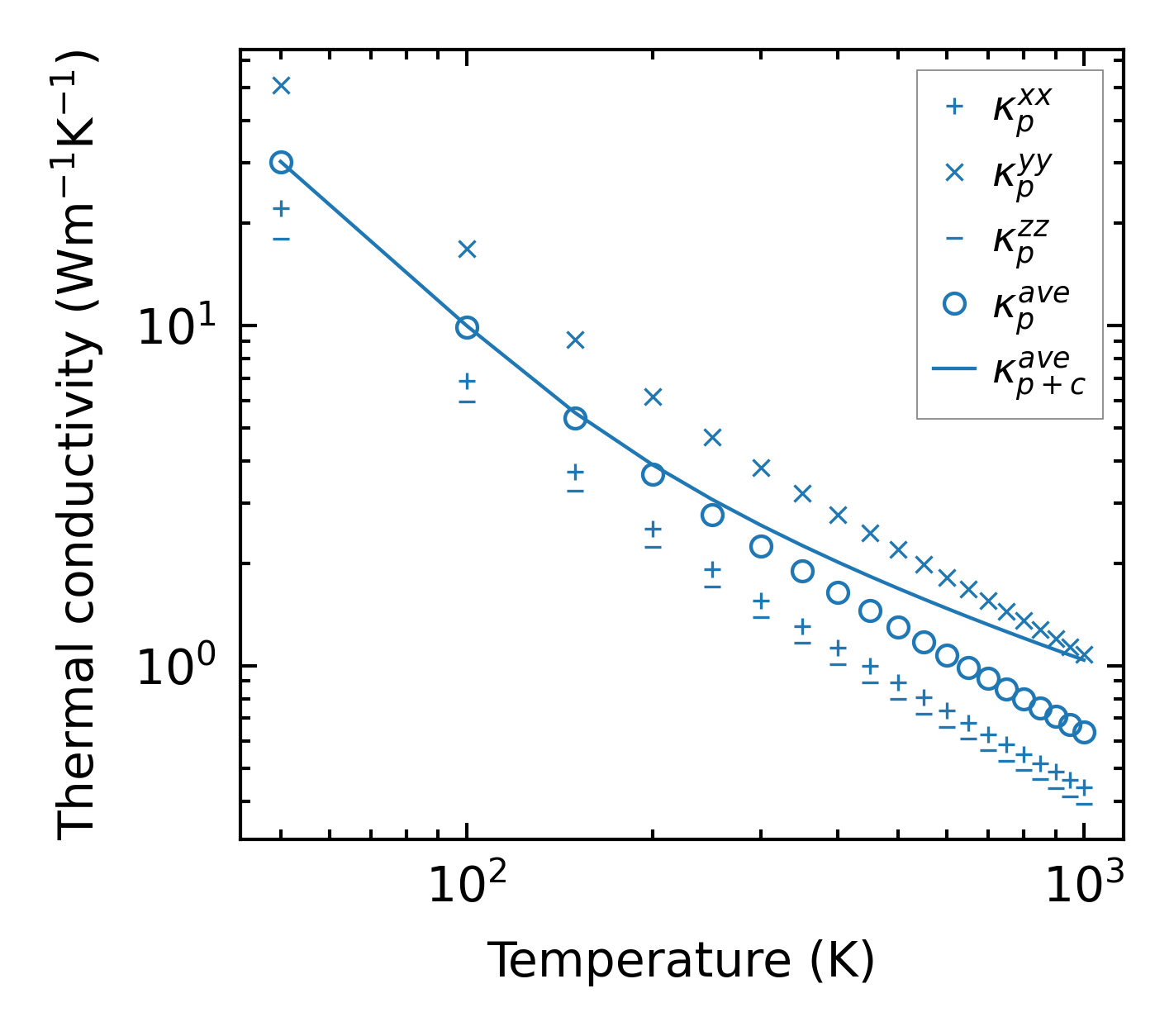

../../_images/fig_kappa3123.png — (a) Temperature-dependent lattice thermal conductivity

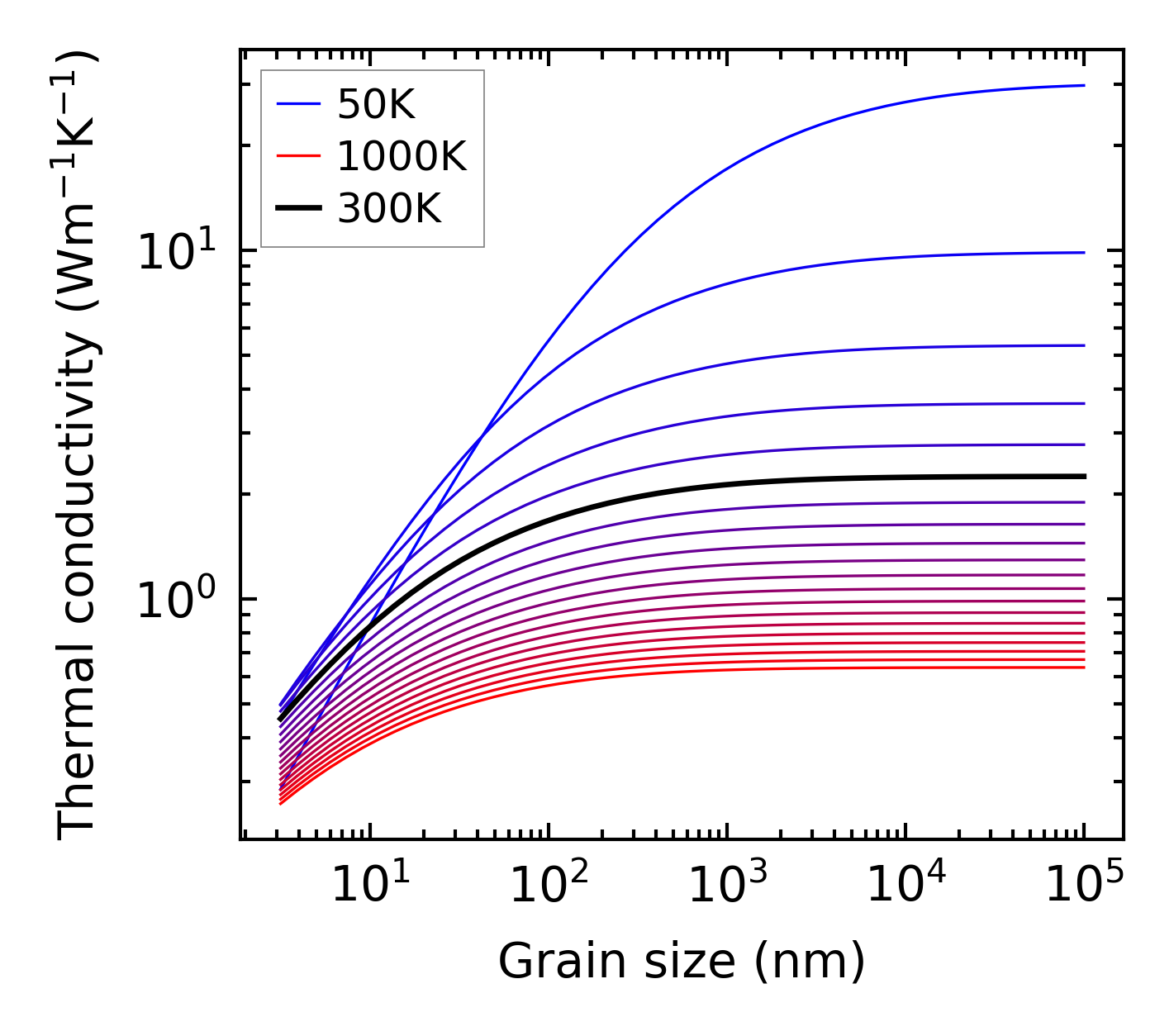

../../_images/fig_kappa_vs_grain_size1645.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

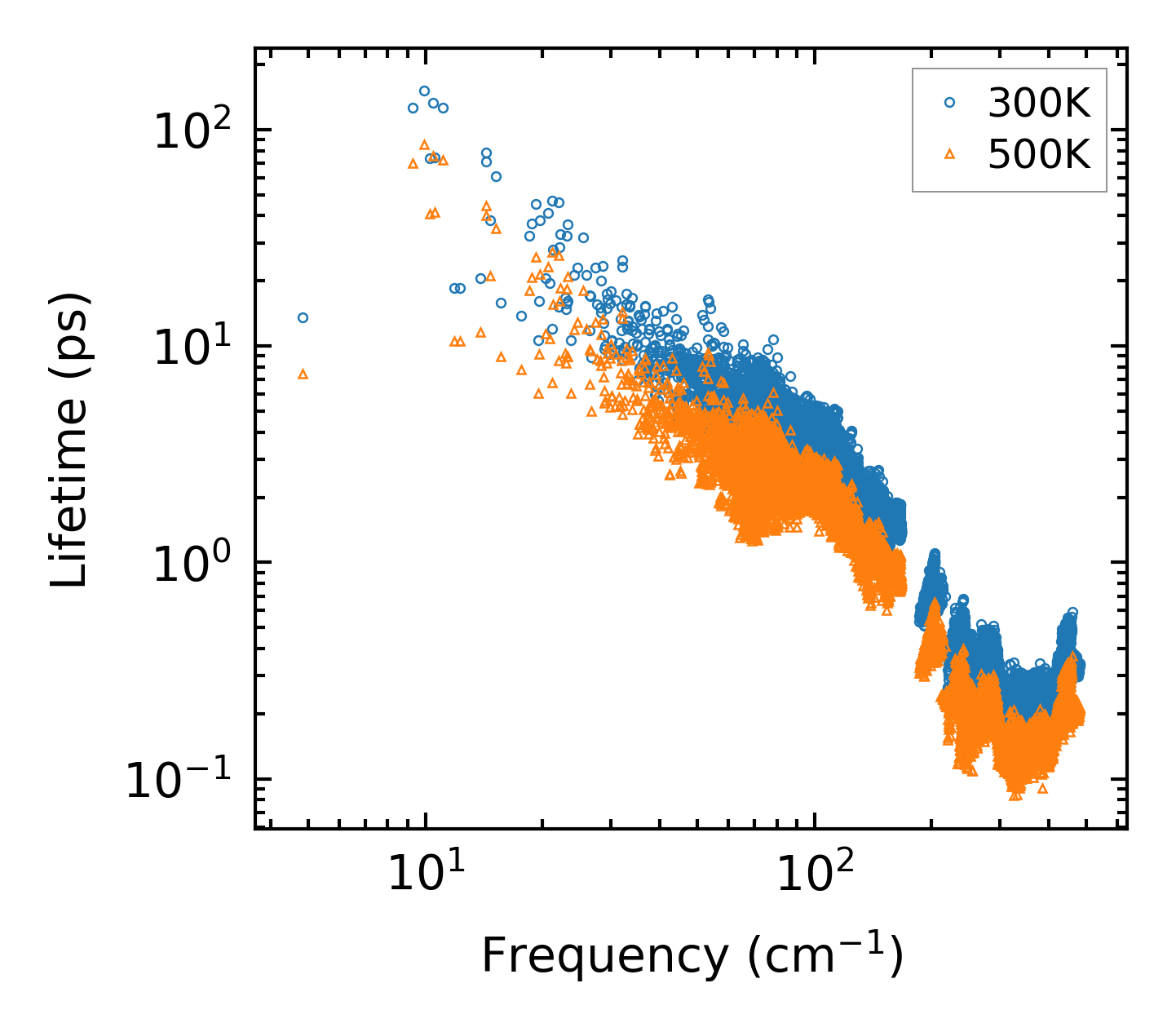

../../_images/fig_lifetime1614.png — (a) Phonon lifetime due to phonon-phonon scattering

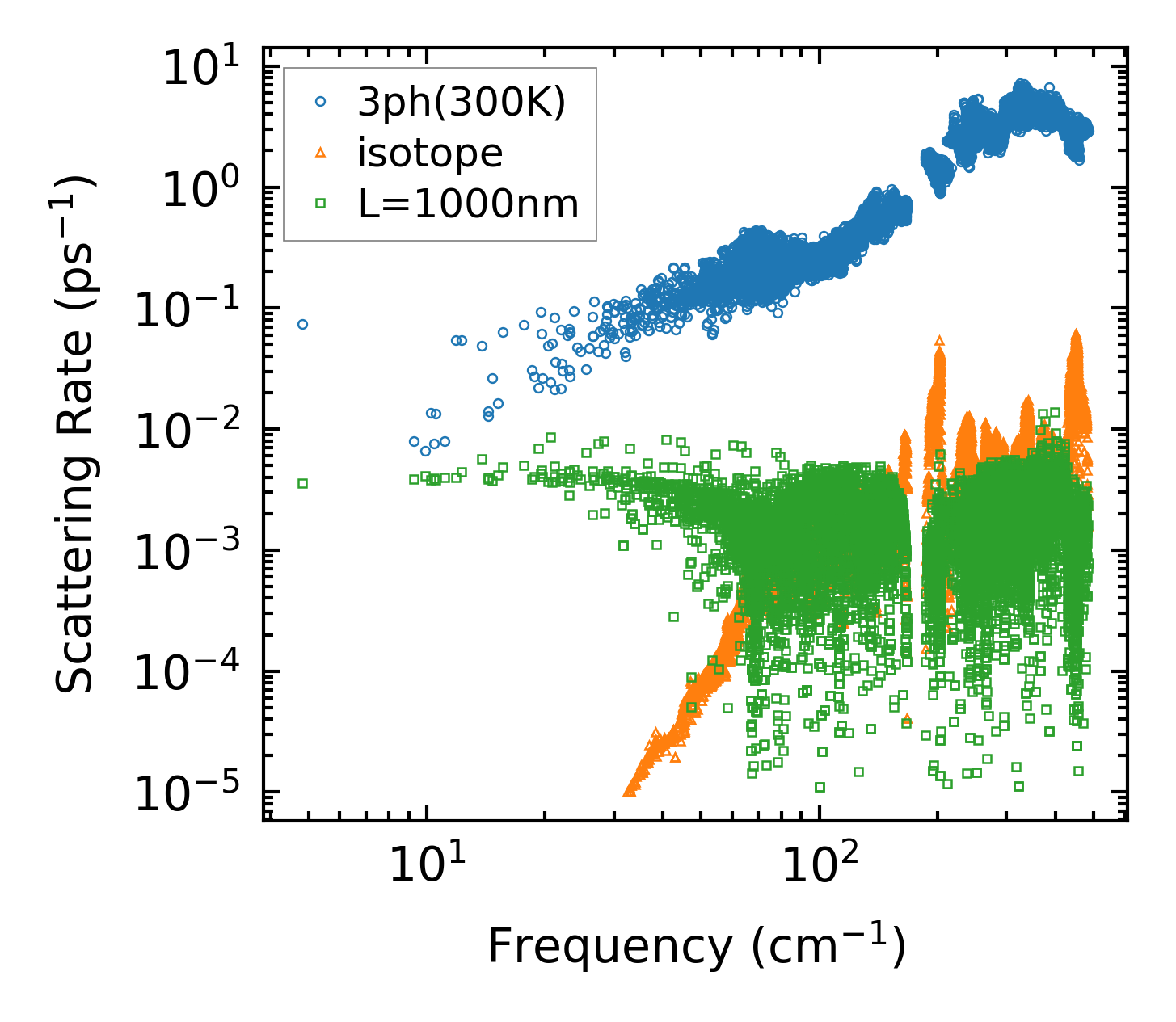

../../_images/fig_scat_rates1613.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

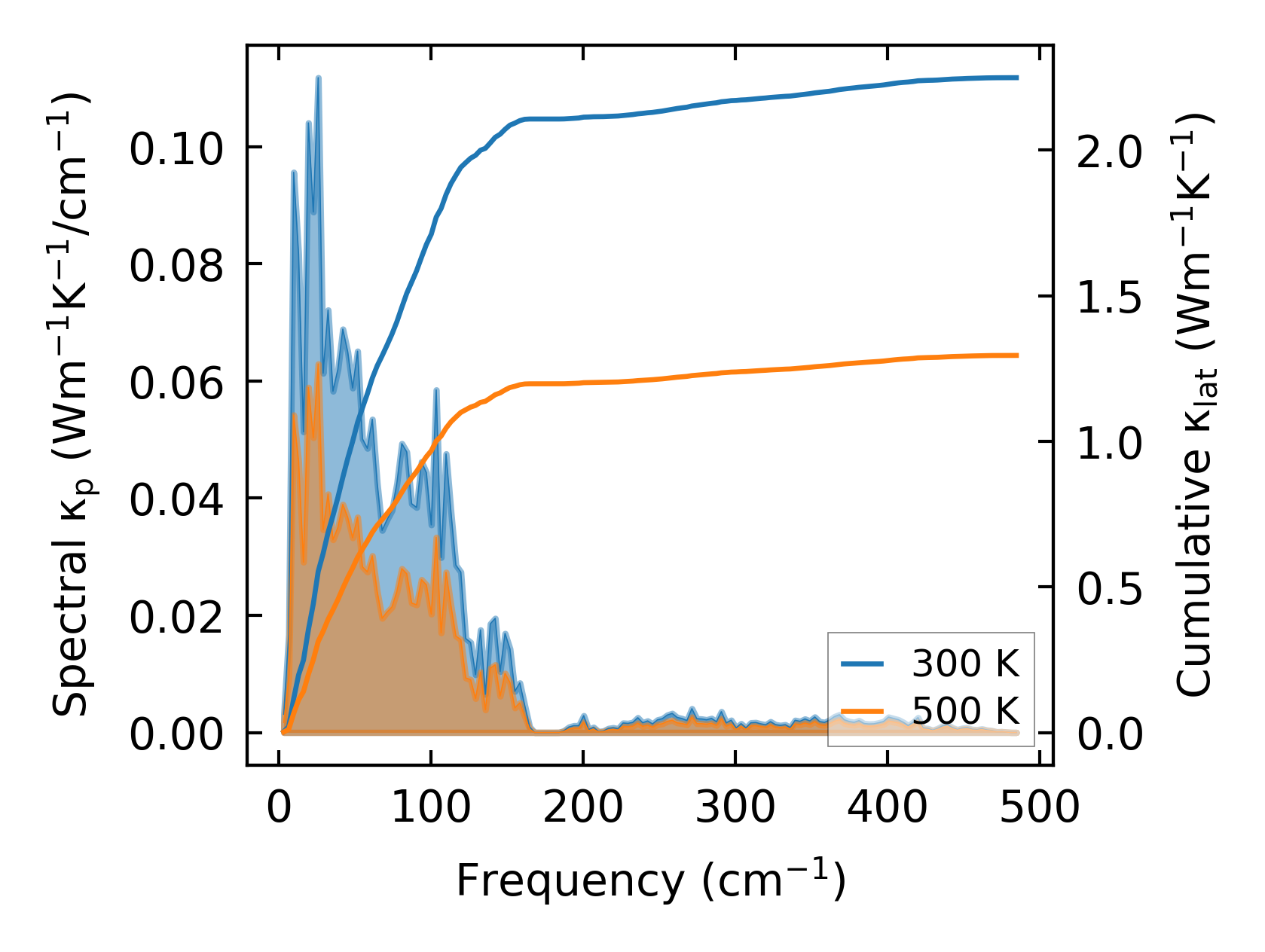

../../_images/fig_cumu_frequency1614.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

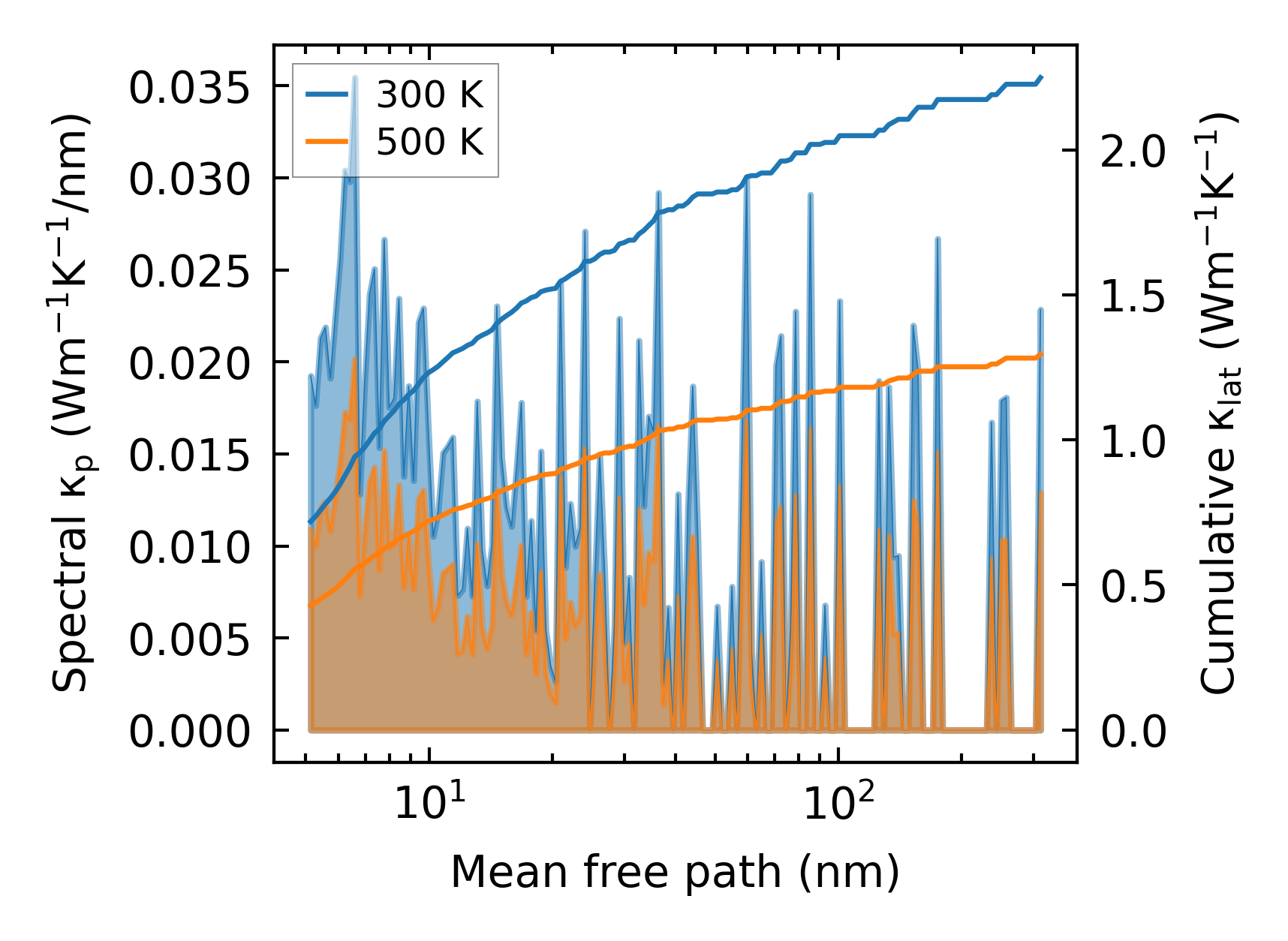

../../_images/fig_cumu_mfp1614.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc23432.png — (a) Force constants w.r.t atomic distance

Summary

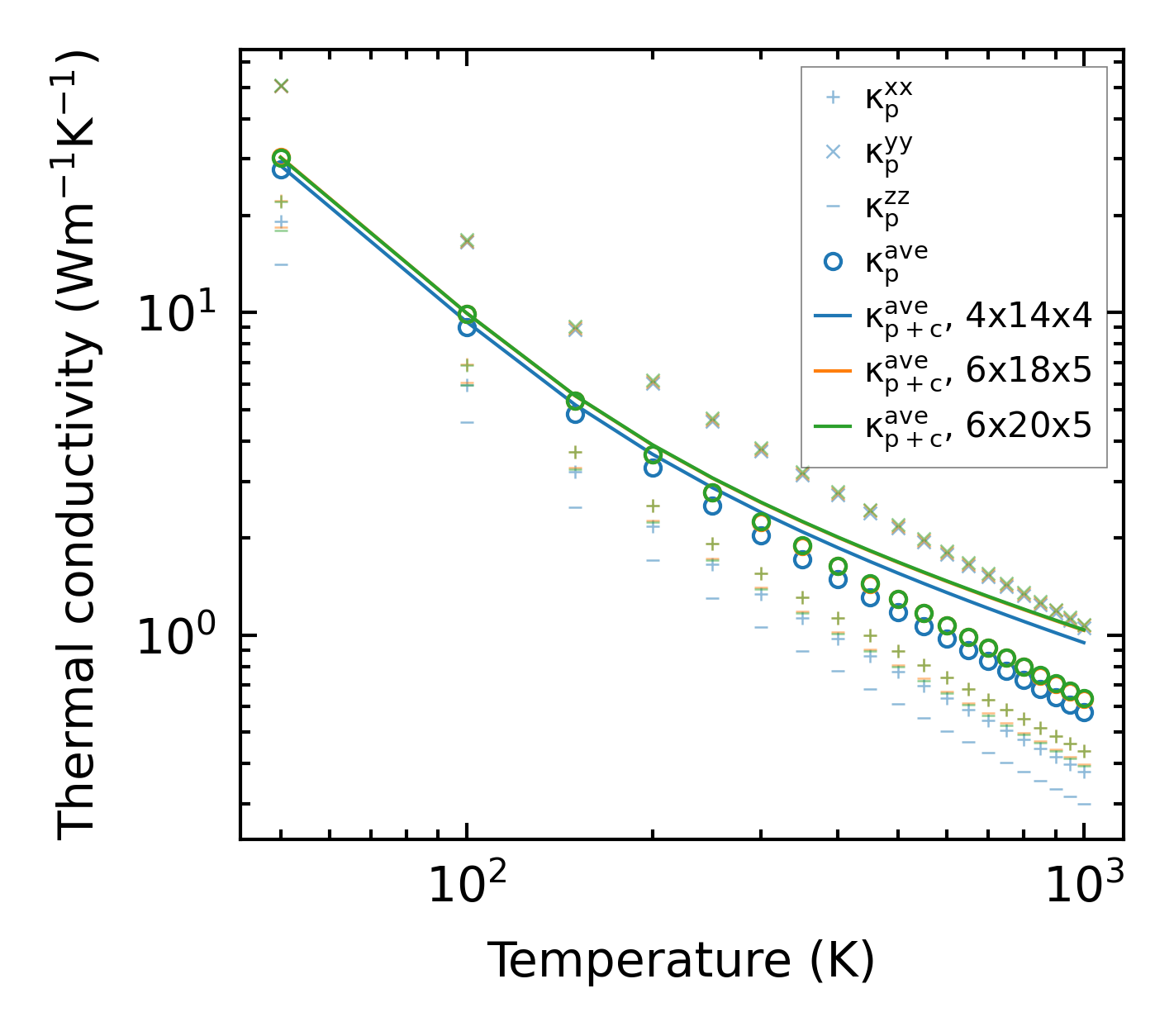

../../_images/fig_kappa3124.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times6293.png — (b) Computation time
