mp-571662-2/KLaP2Se6/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-571662-2.tar.gz

Equation of state

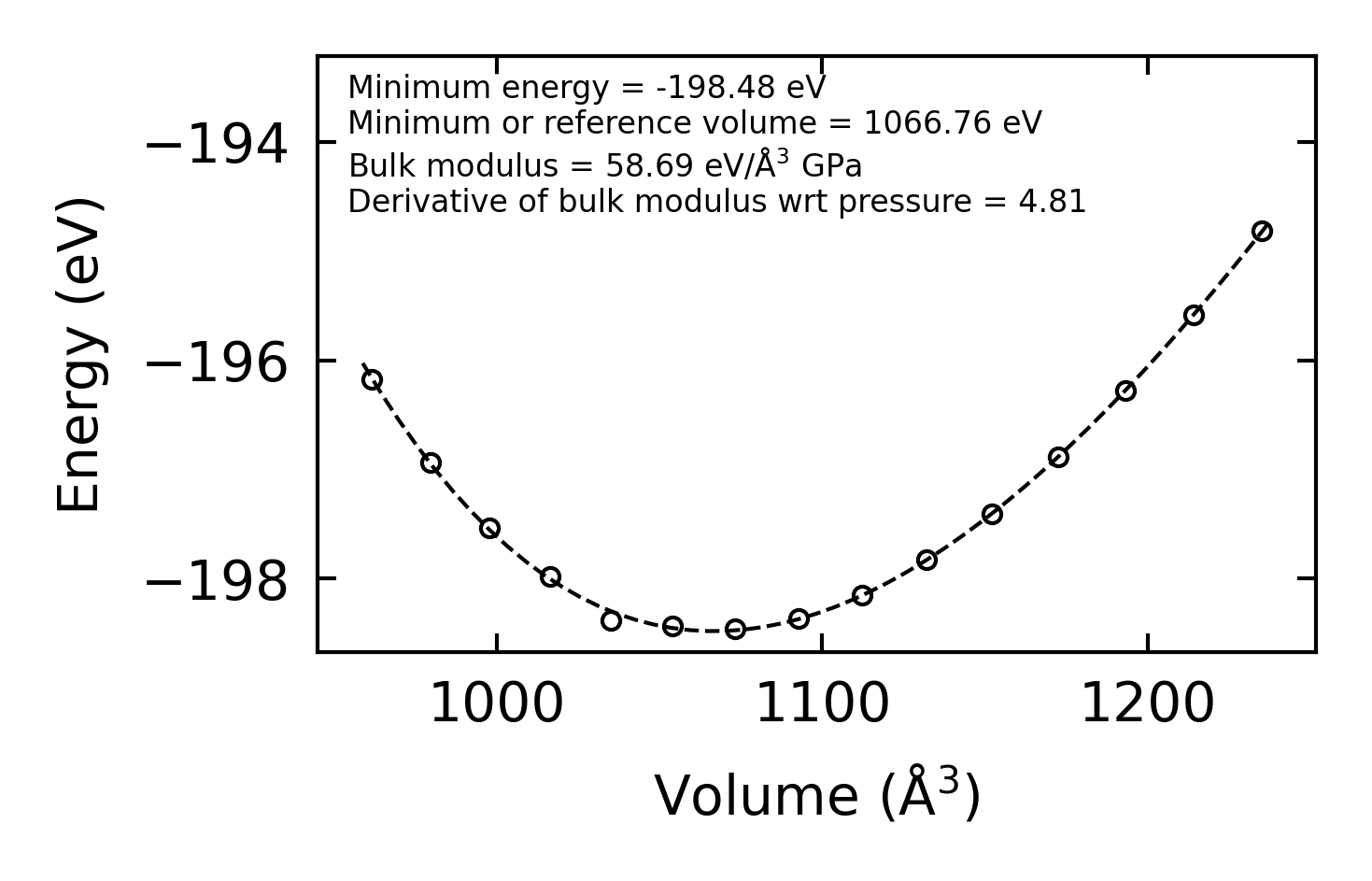

../../_images/fig_bm3582.png — (a) Equation of state

Harmonic properties

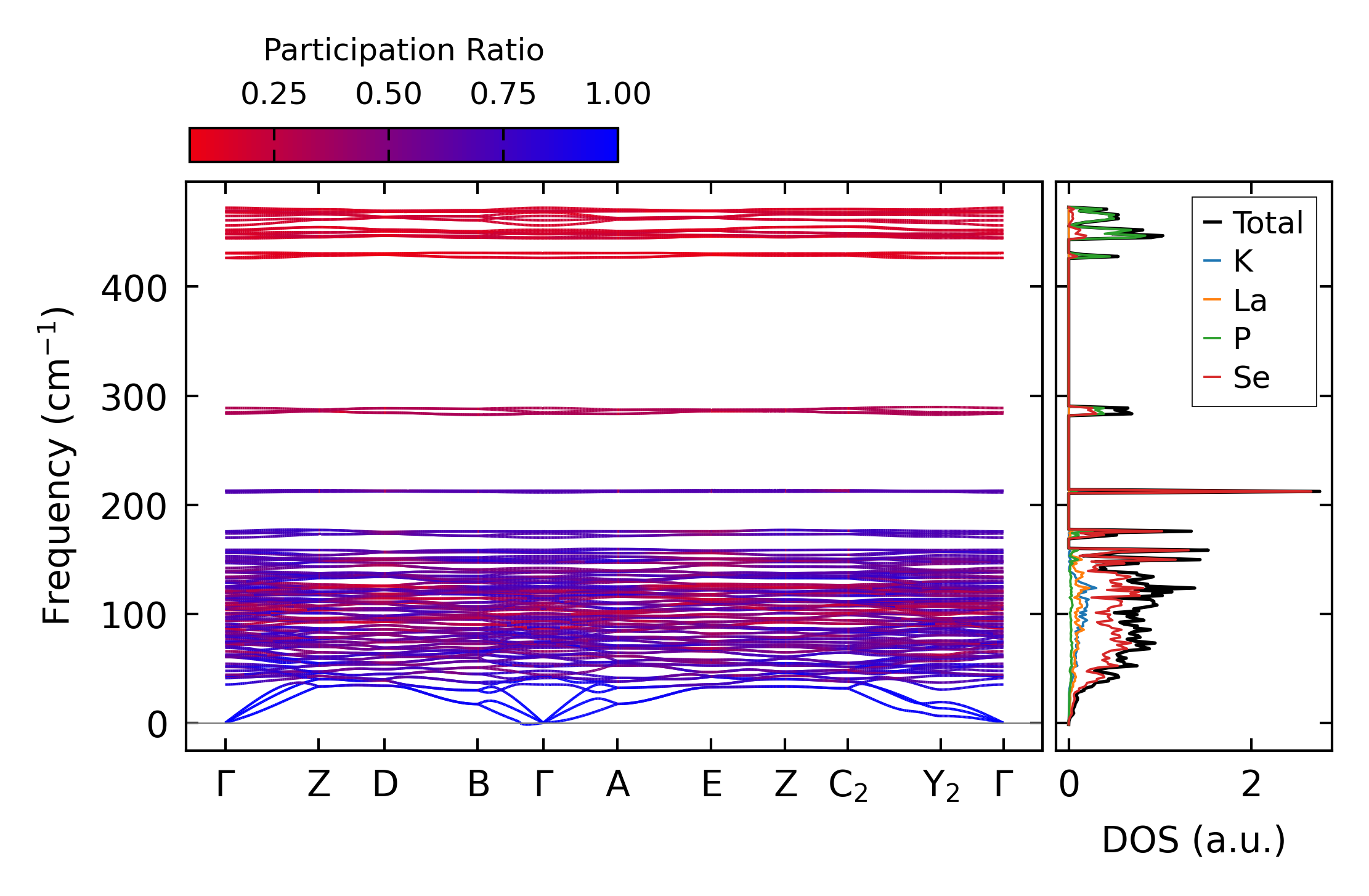

../../_images/fig_bandos_pr6686.png — (a) Phonon dispersion with participation ratio and DOS

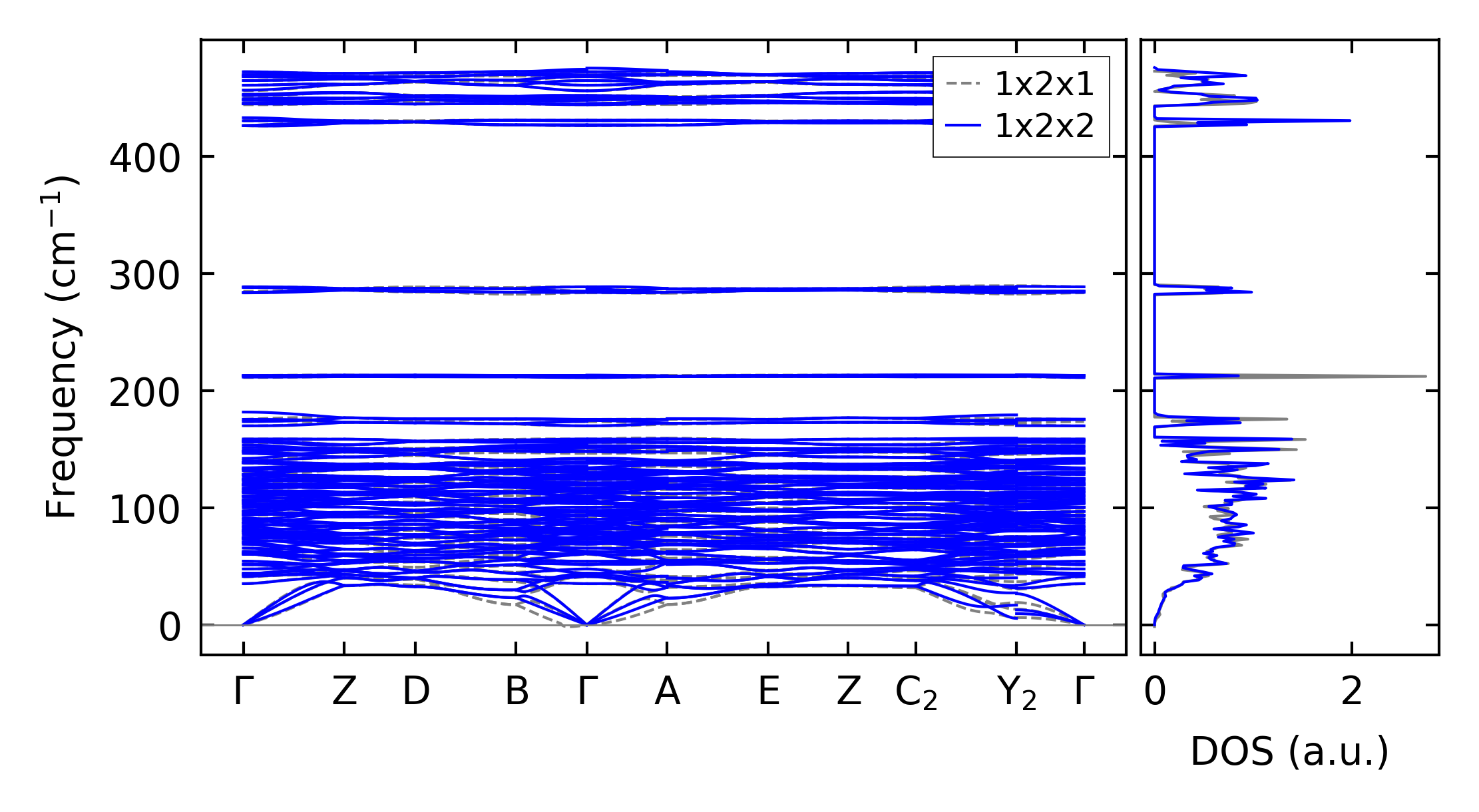

../../_images/fig_bandos9604.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo6686.png — (c) Thermodynamic properties

Grüneisen parameters

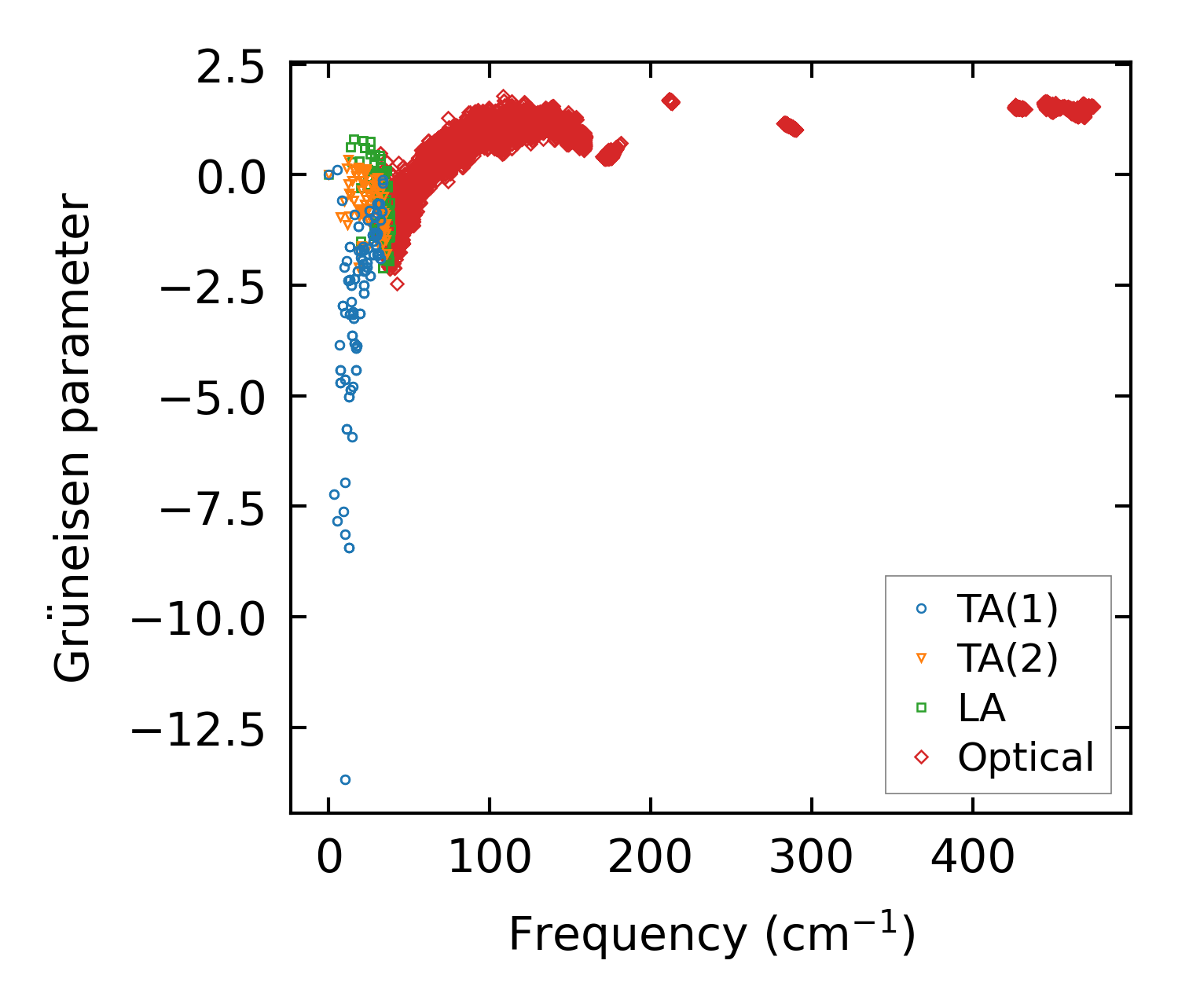

../../_images/fig_gru_all2729.png — (a) Grüneisen parameters

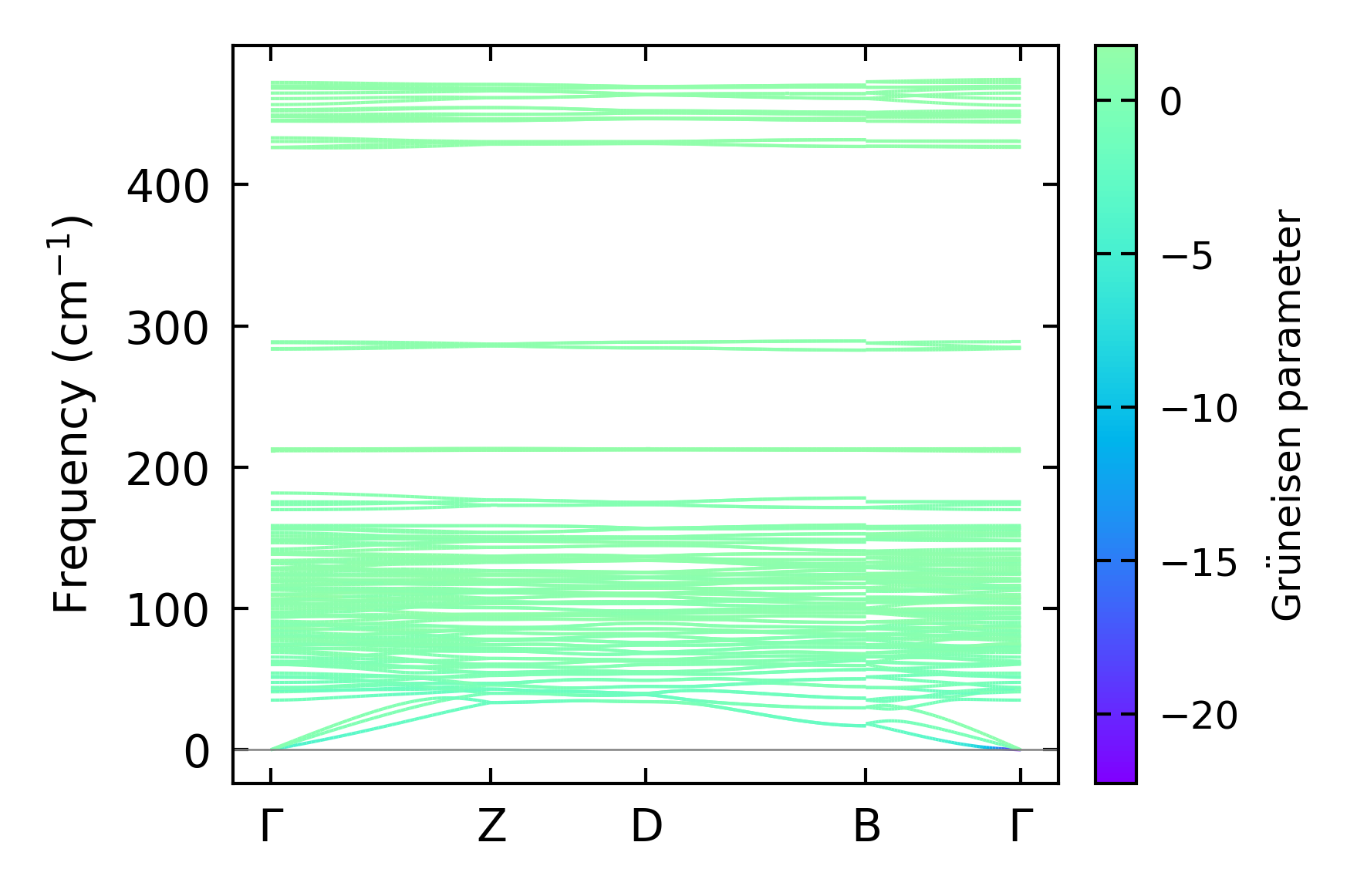

../../_images/fig_gruneisen2729.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 1x2x2 — q-mesh: 5x9x6, supercell: 1x2x2

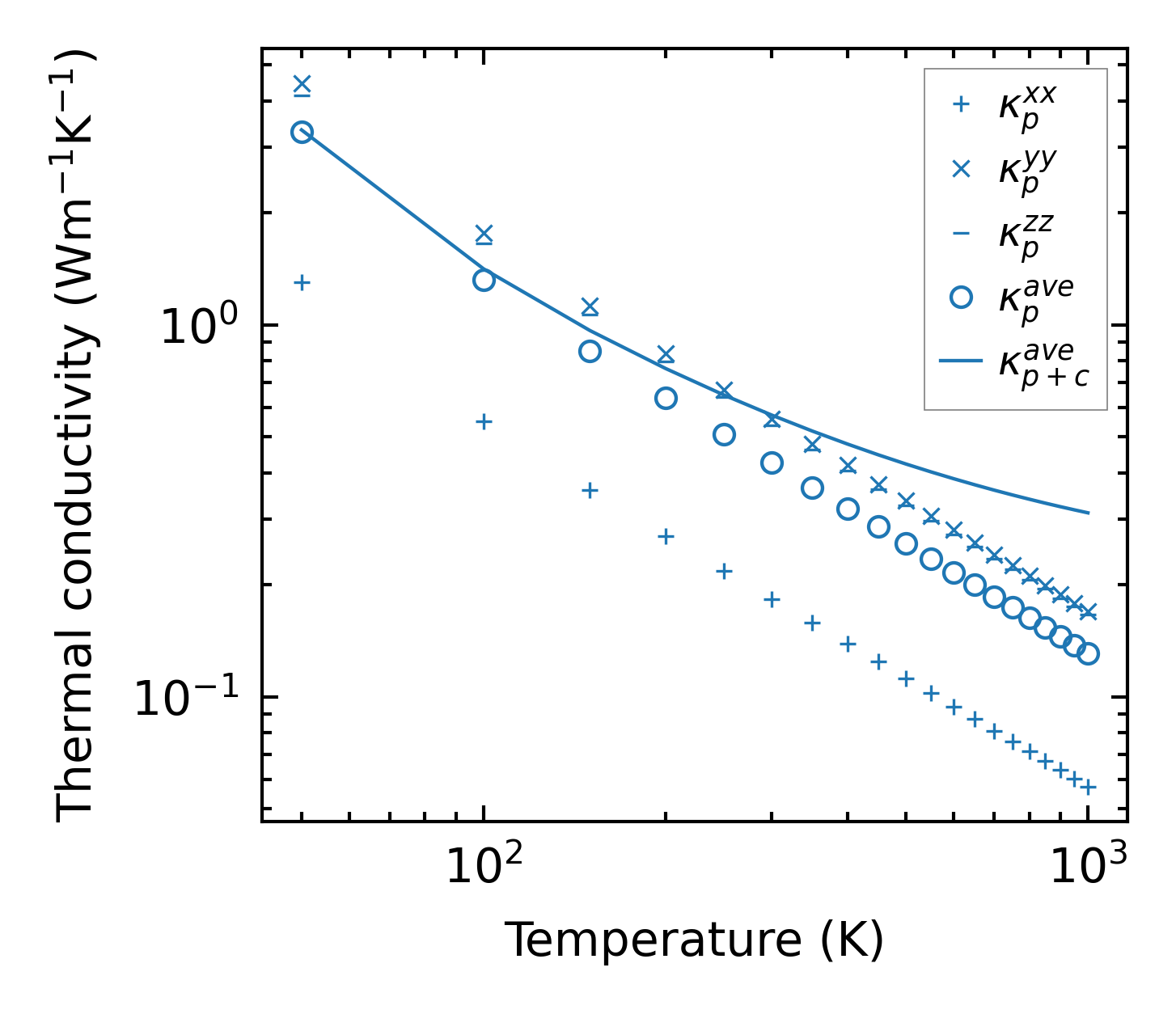

../../_images/fig_kappa5188.png — (a) Temperature-dependent lattice thermal conductivity

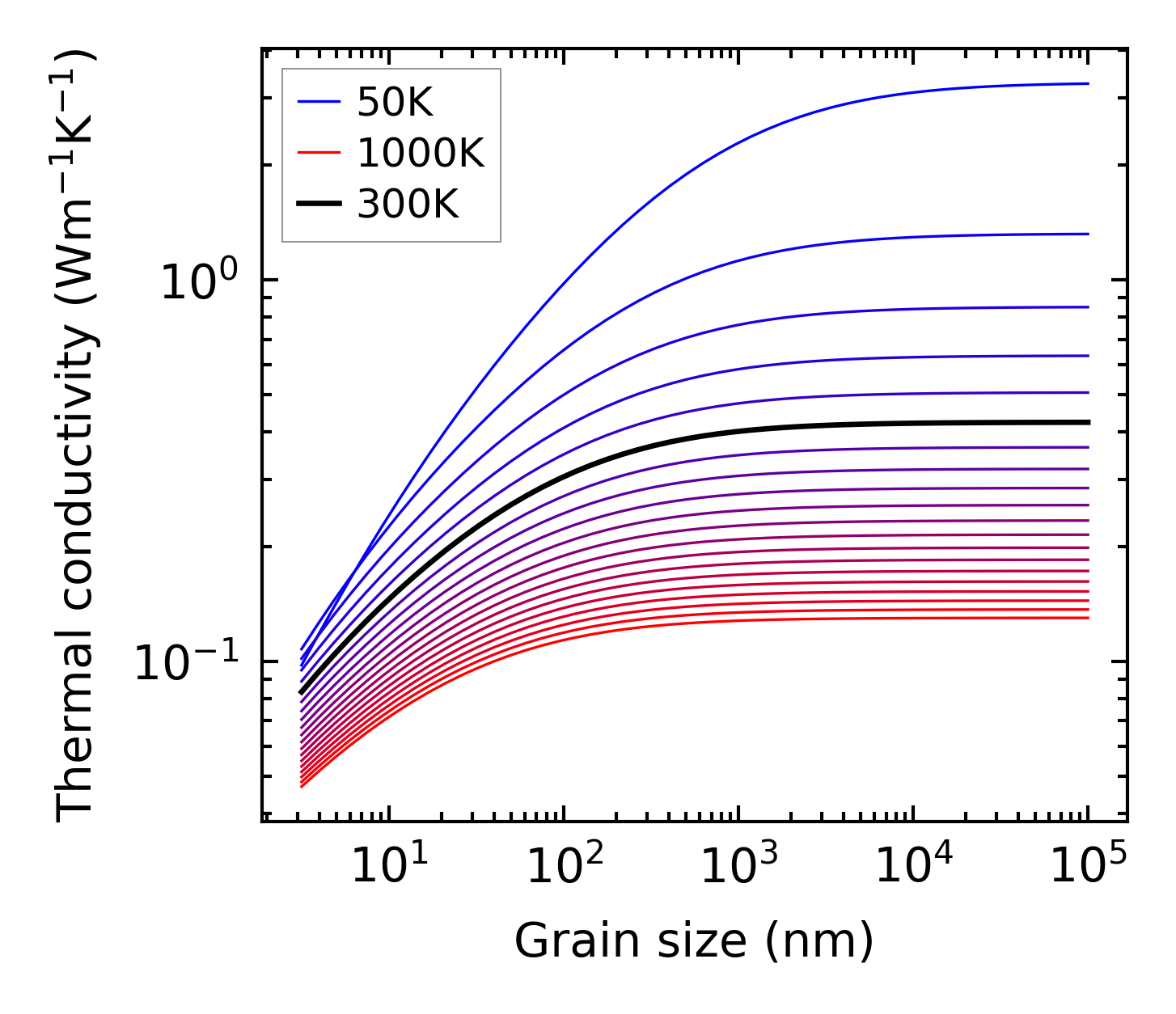

../../_images/fig_kappa_vs_grain_size2770.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

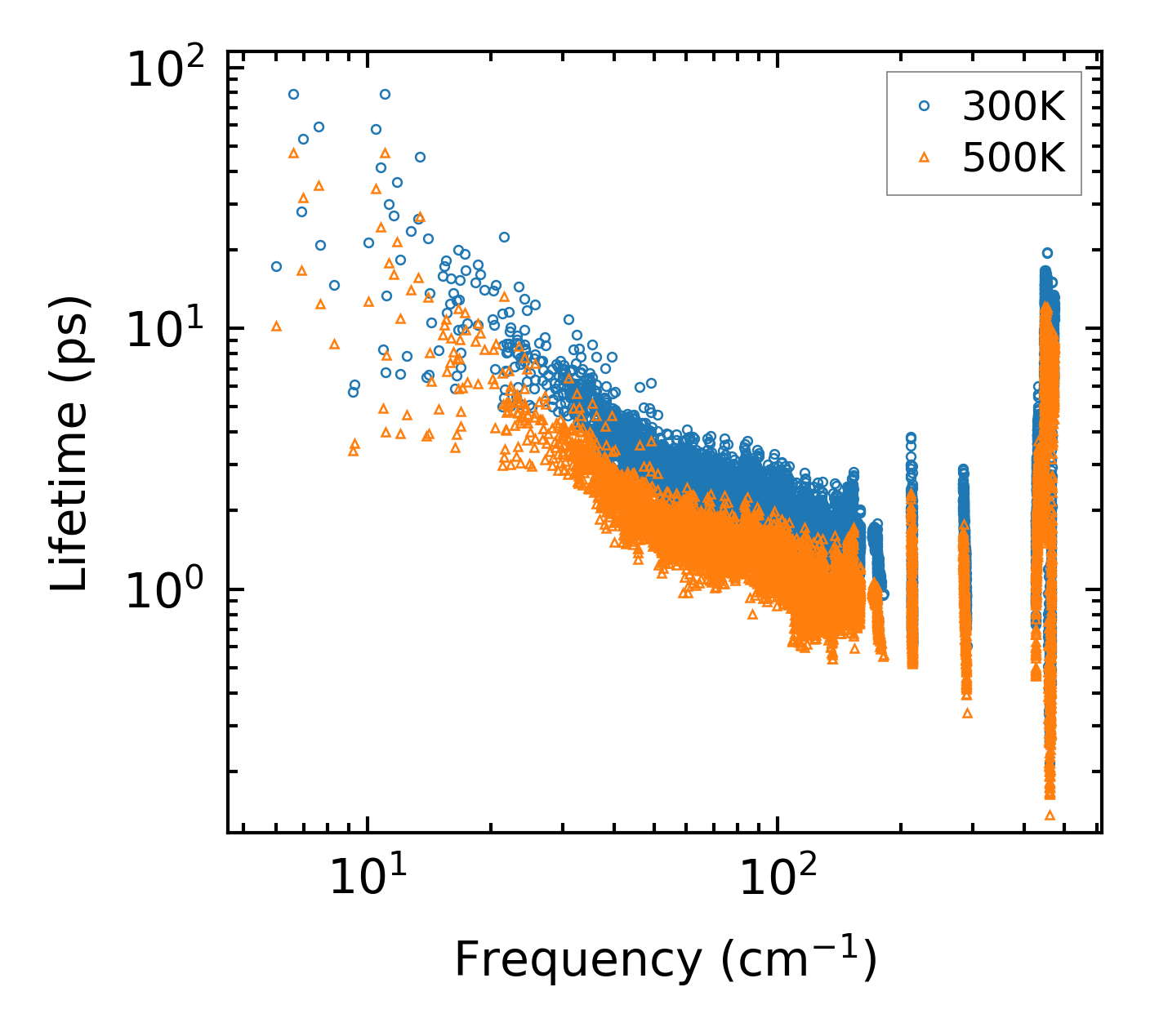

../../_images/fig_lifetime2705.png — (a) Phonon lifetime due to phonon-phonon scattering

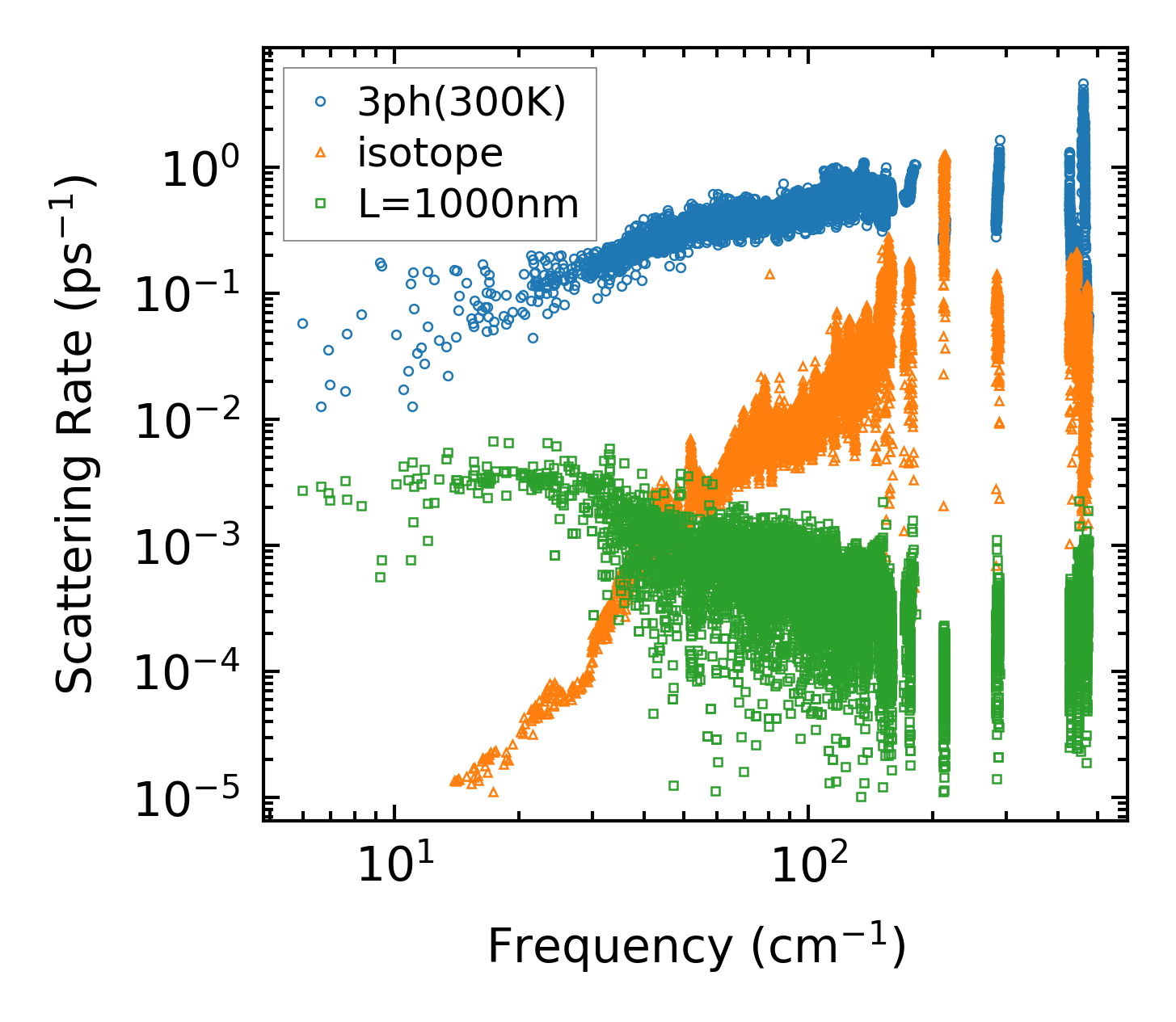

../../_images/fig_scat_rates2704.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

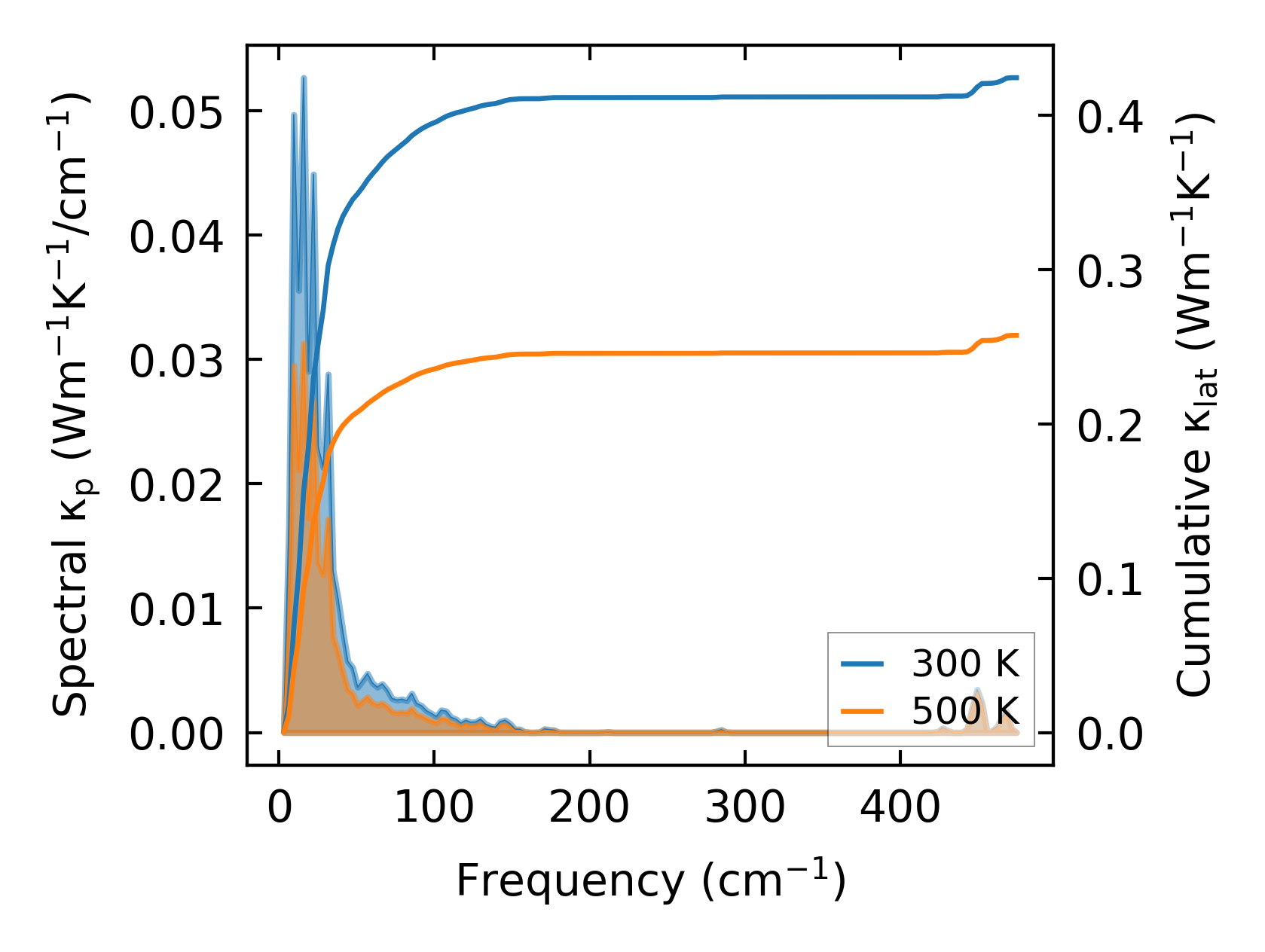

../../_images/fig_cumu_frequency2705.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

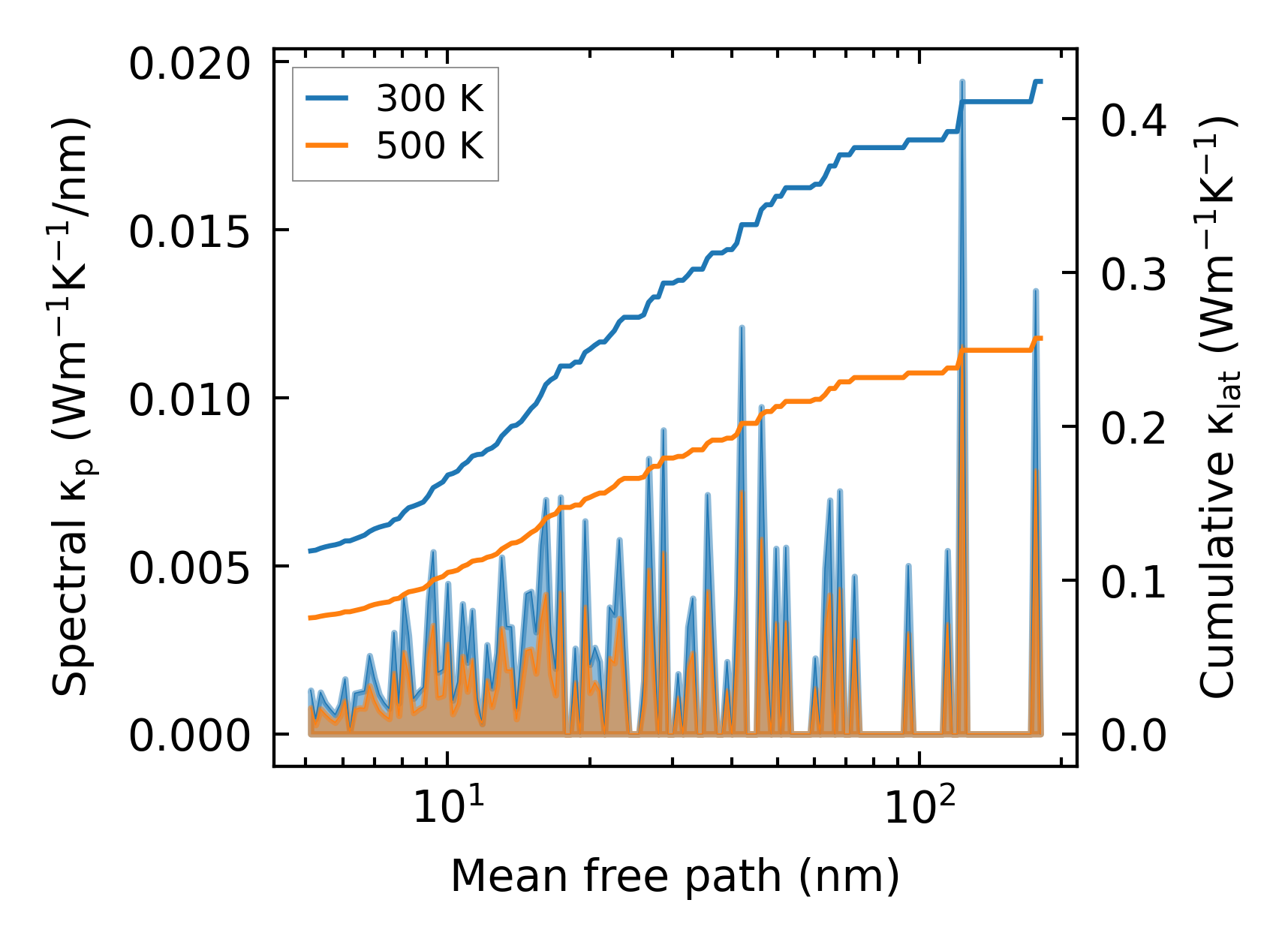

../../_images/fig_cumu_mfp2704.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

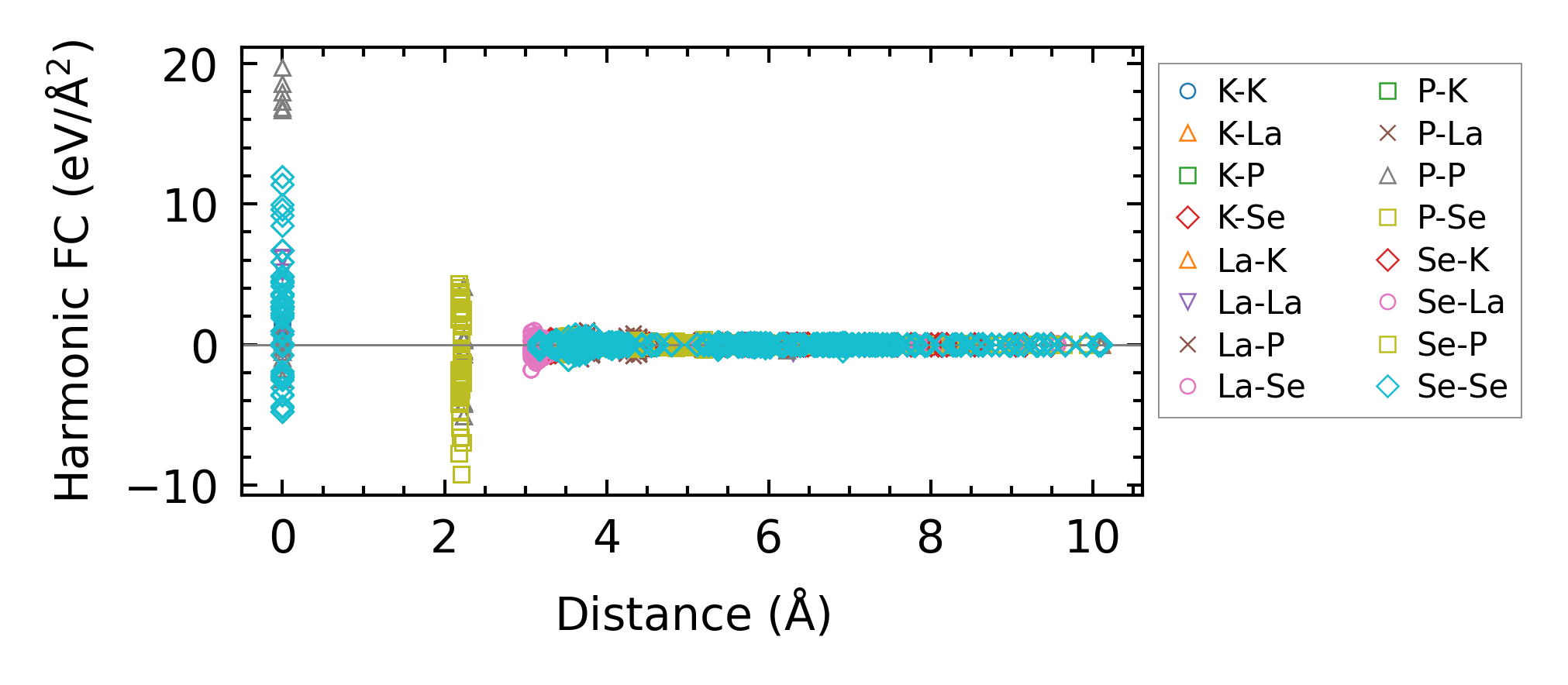

../../_images/fig_fc26476.png — (a) Force constants w.r.t atomic distance

Summary

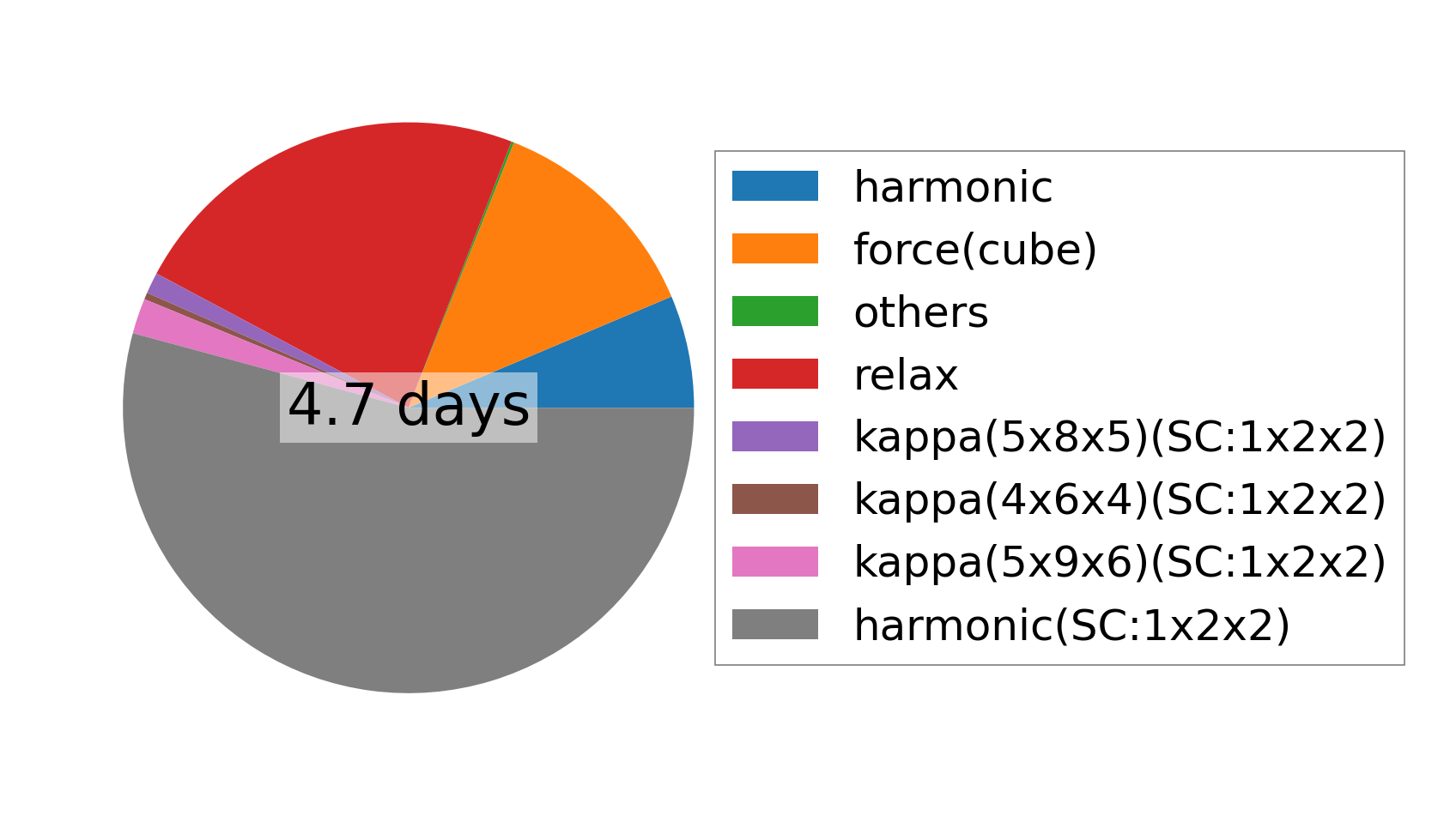

../../_images/fig_times11994.png — (a) Computation time
