mp-571306/Ca2Zn2CuP3/anharm

Space group: P6_3/mmc (194)
Link: Materials Project
Download: mp-571306.tar.gz

Harmonic properties

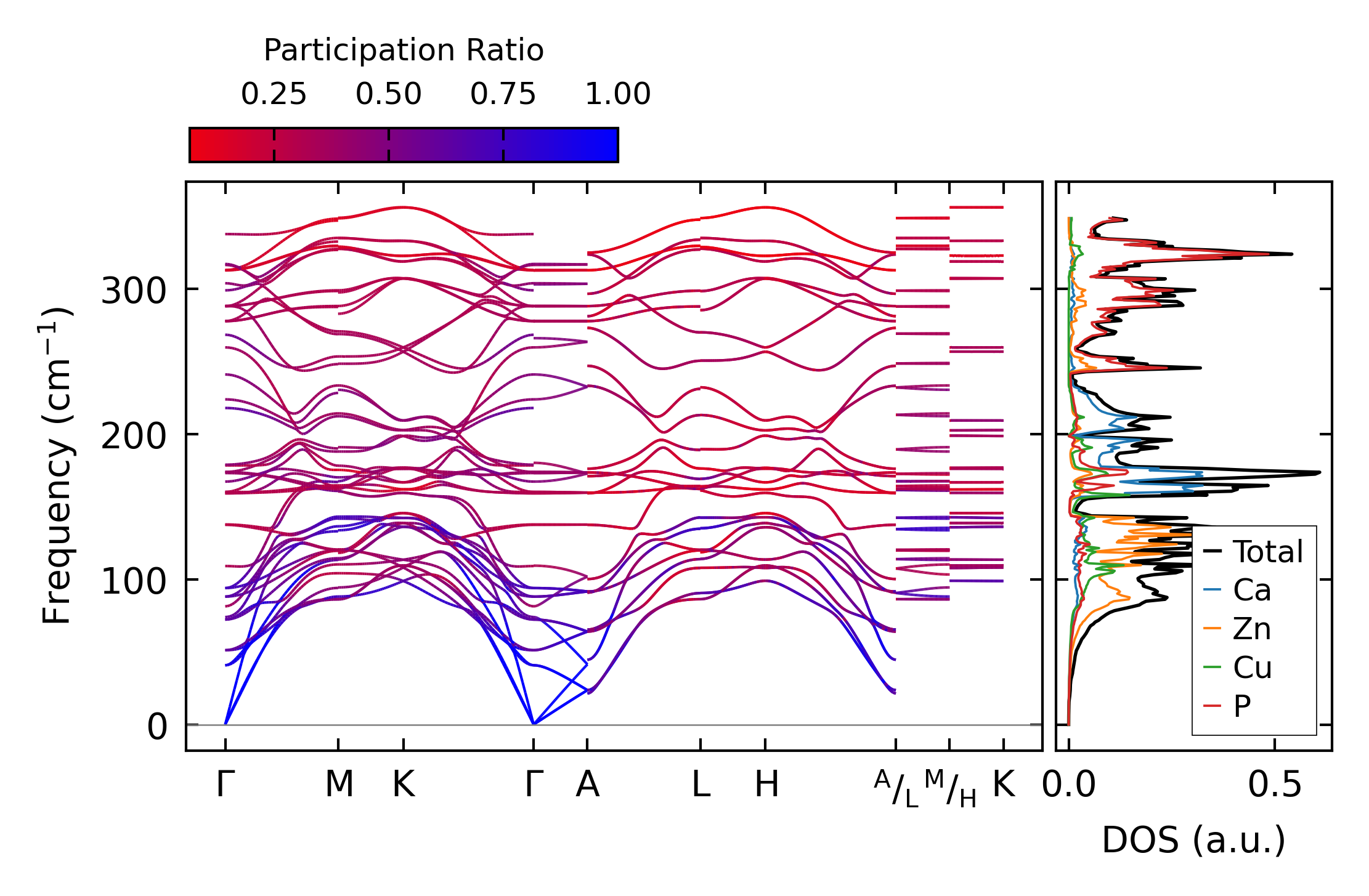

../../_images/fig_bandos_pr6926.png — (a) Phonon dispersion with participation ratio and DOS

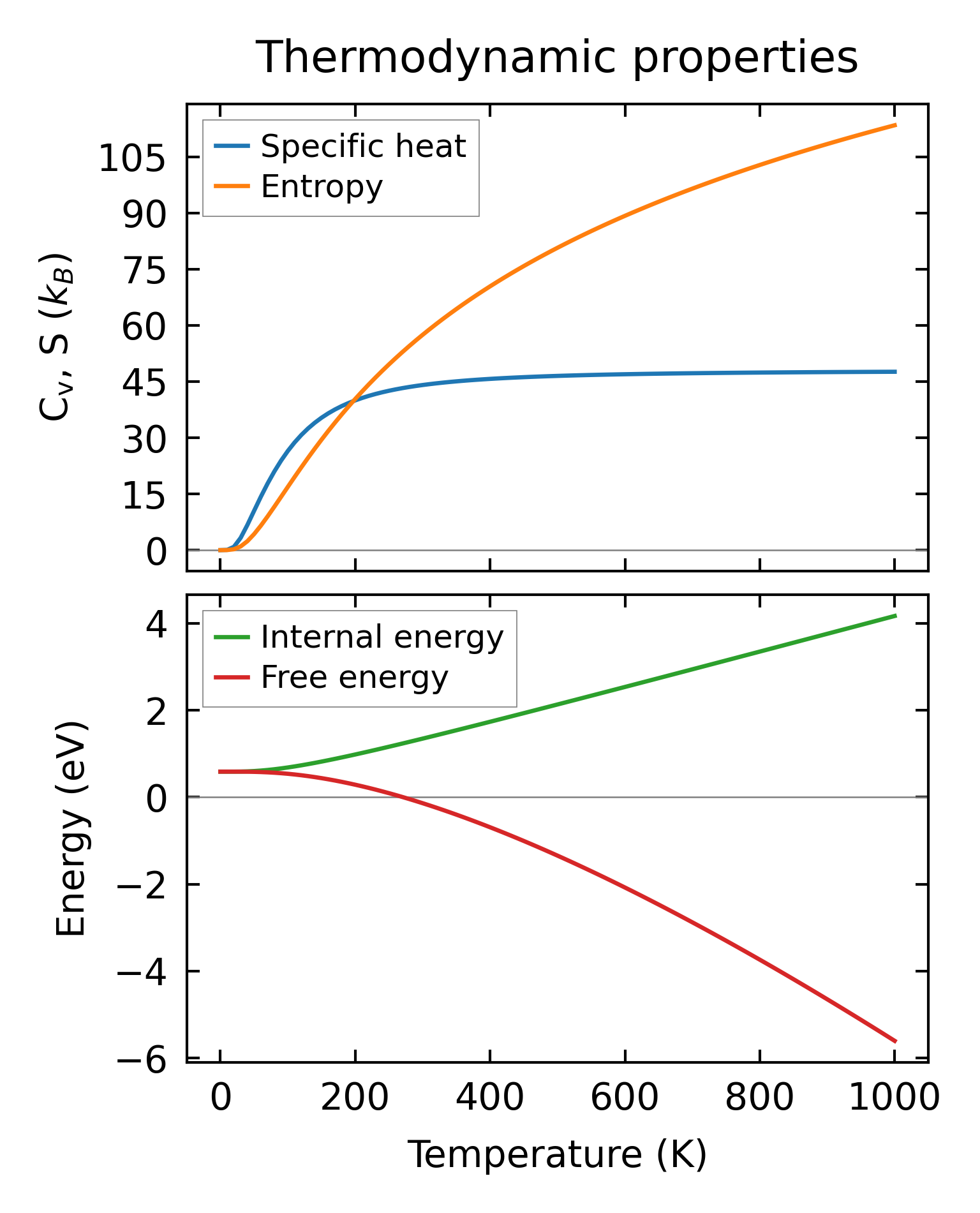

../../_images/fig_thermo6926.png — (b) Thermodynamic properties

Grüneisen parameters

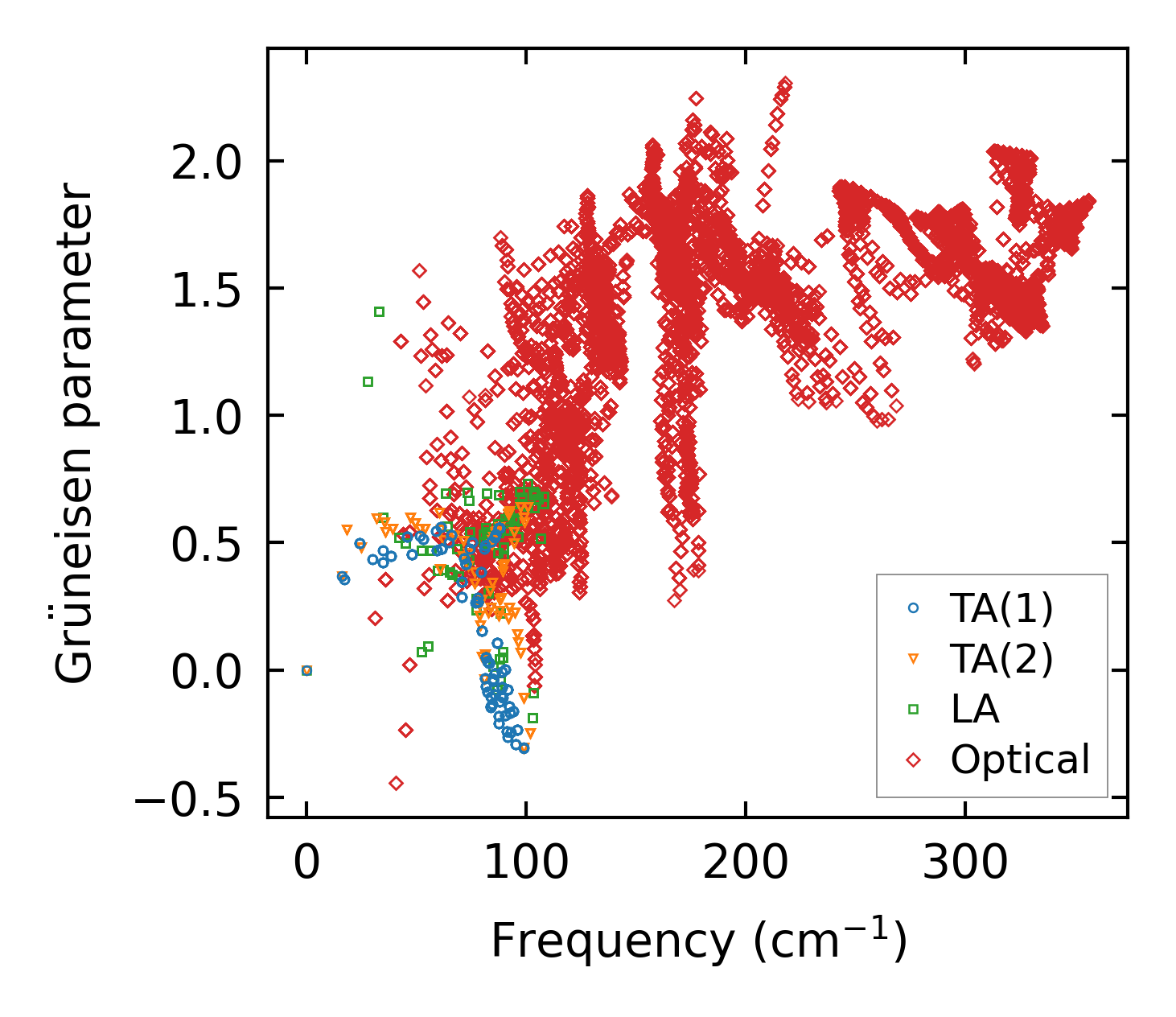

../../_images/fig_gru_all2869.png — (a) Grüneisen parameters

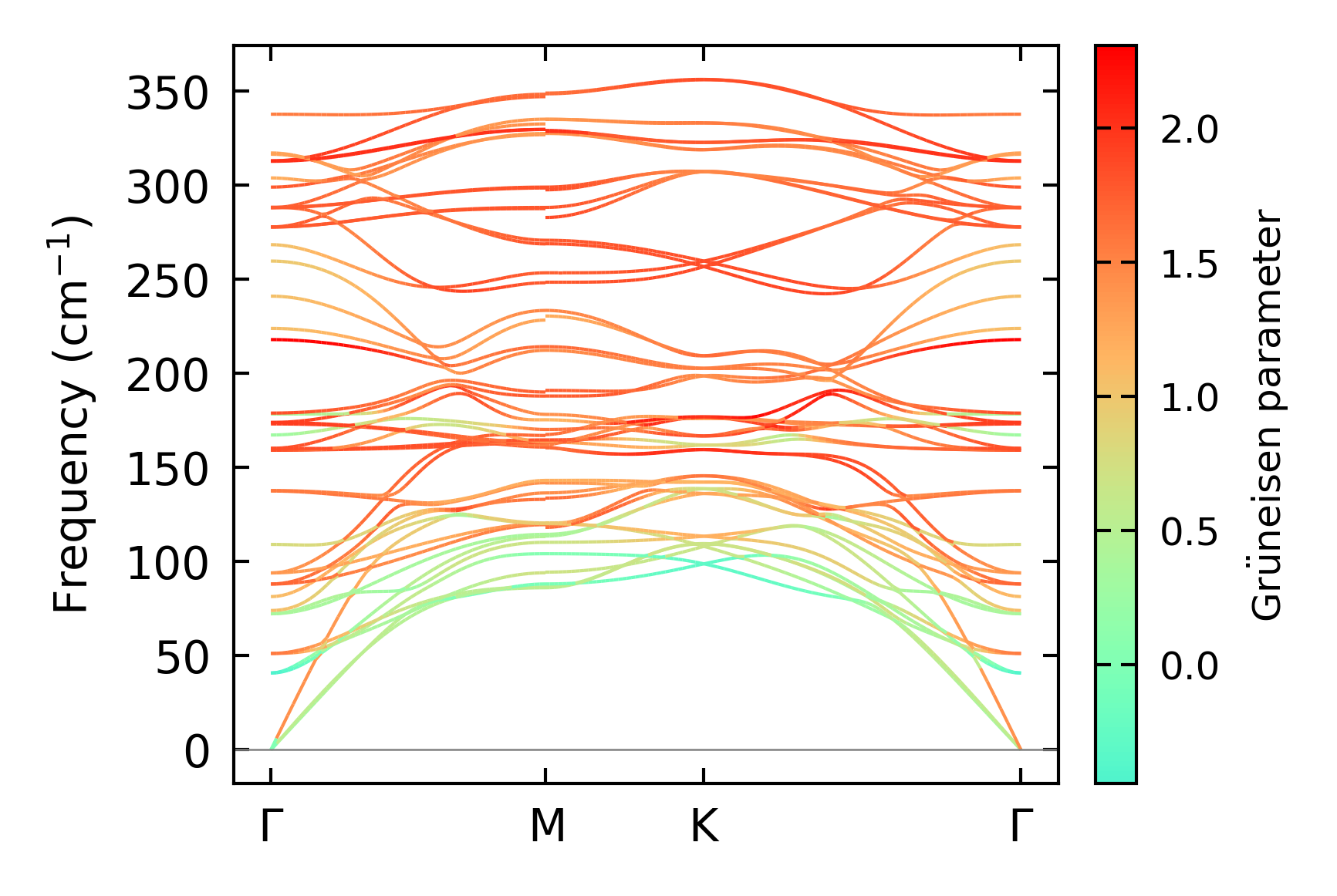

../../_images/fig_gruneisen2869.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 18x18x3, supercell: 3x3x1

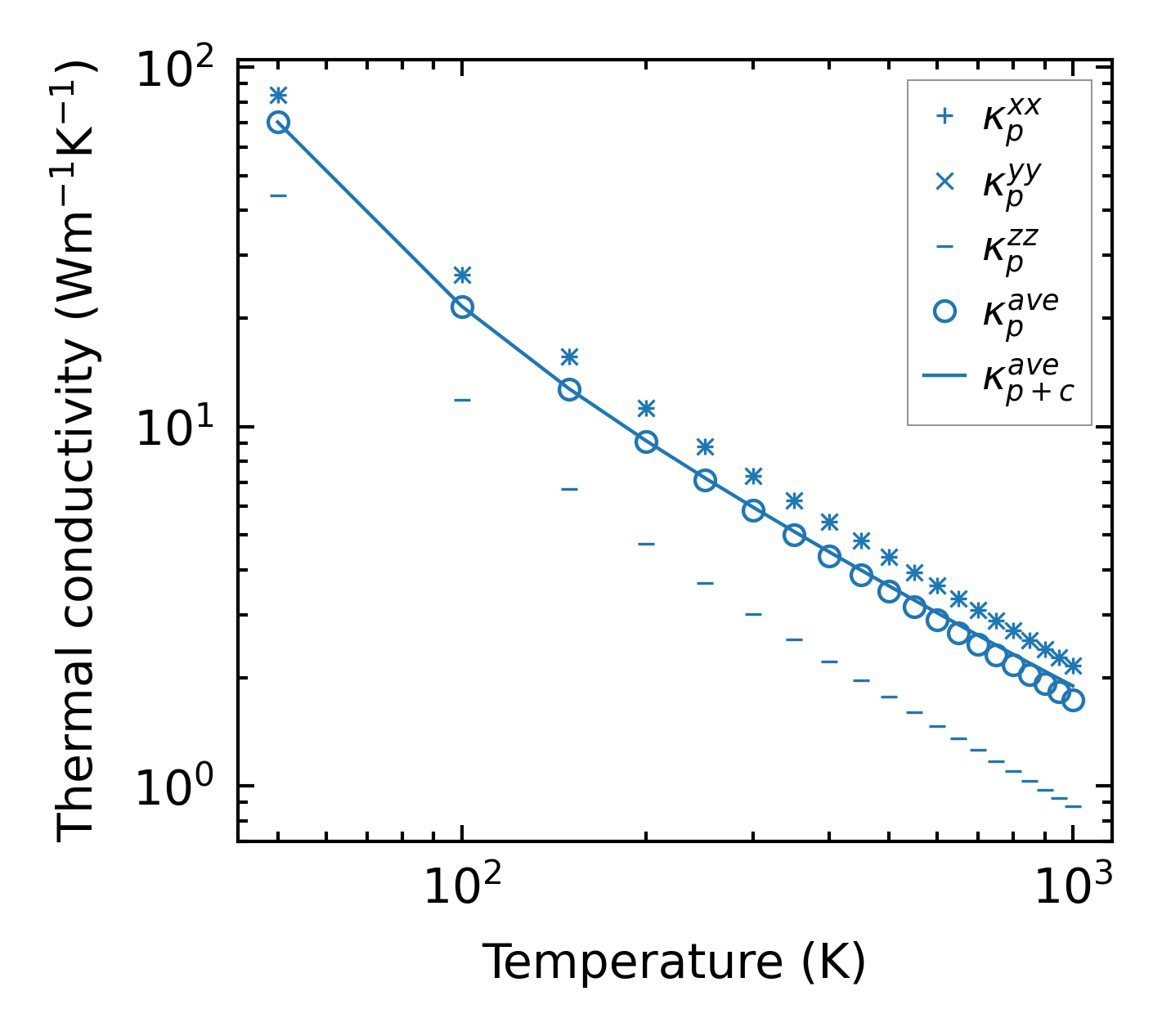

../../_images/fig_kappa5446.png — (a) Temperature-dependent lattice thermal conductivity

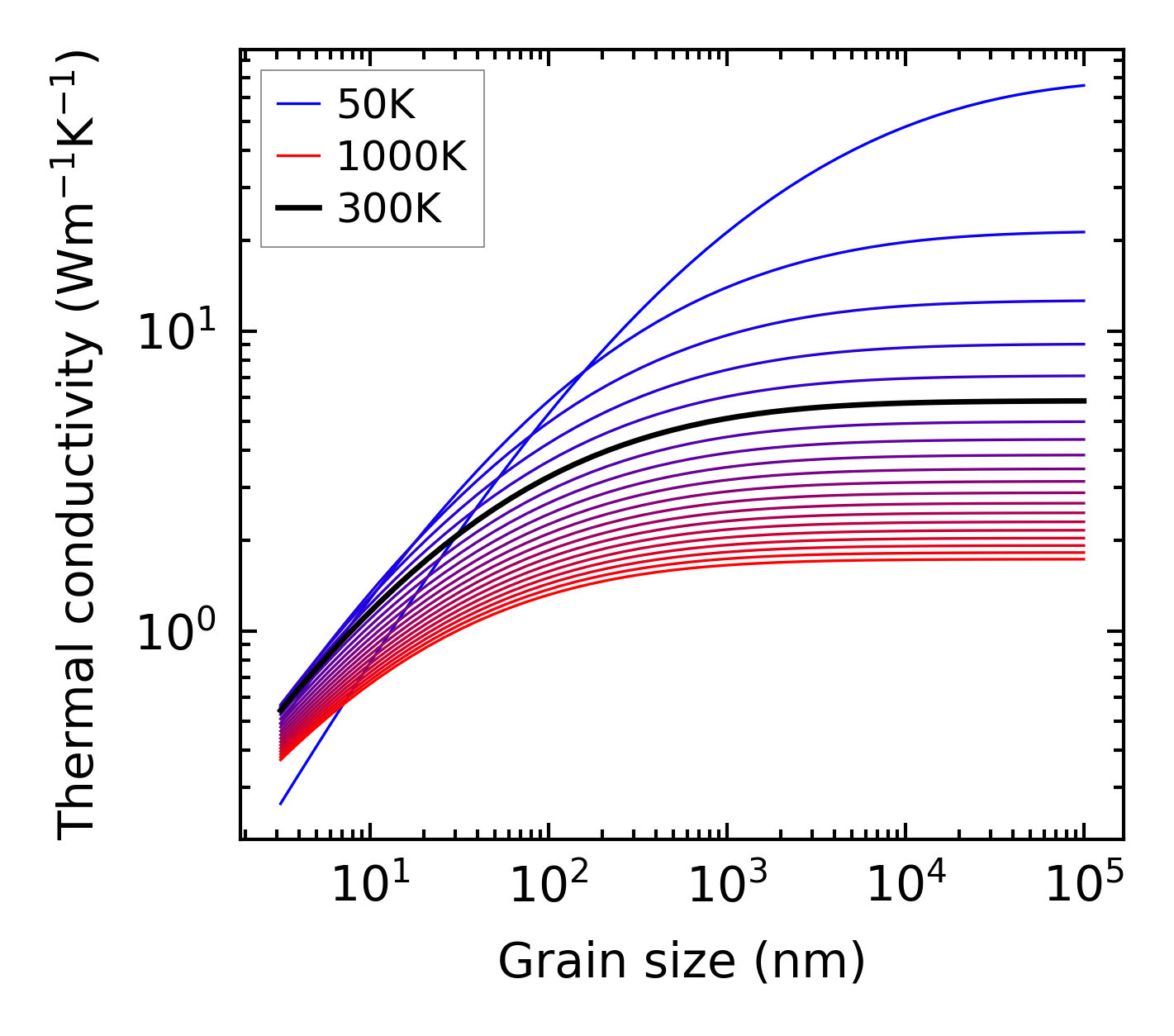

../../_images/fig_kappa_vs_grain_size2911.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

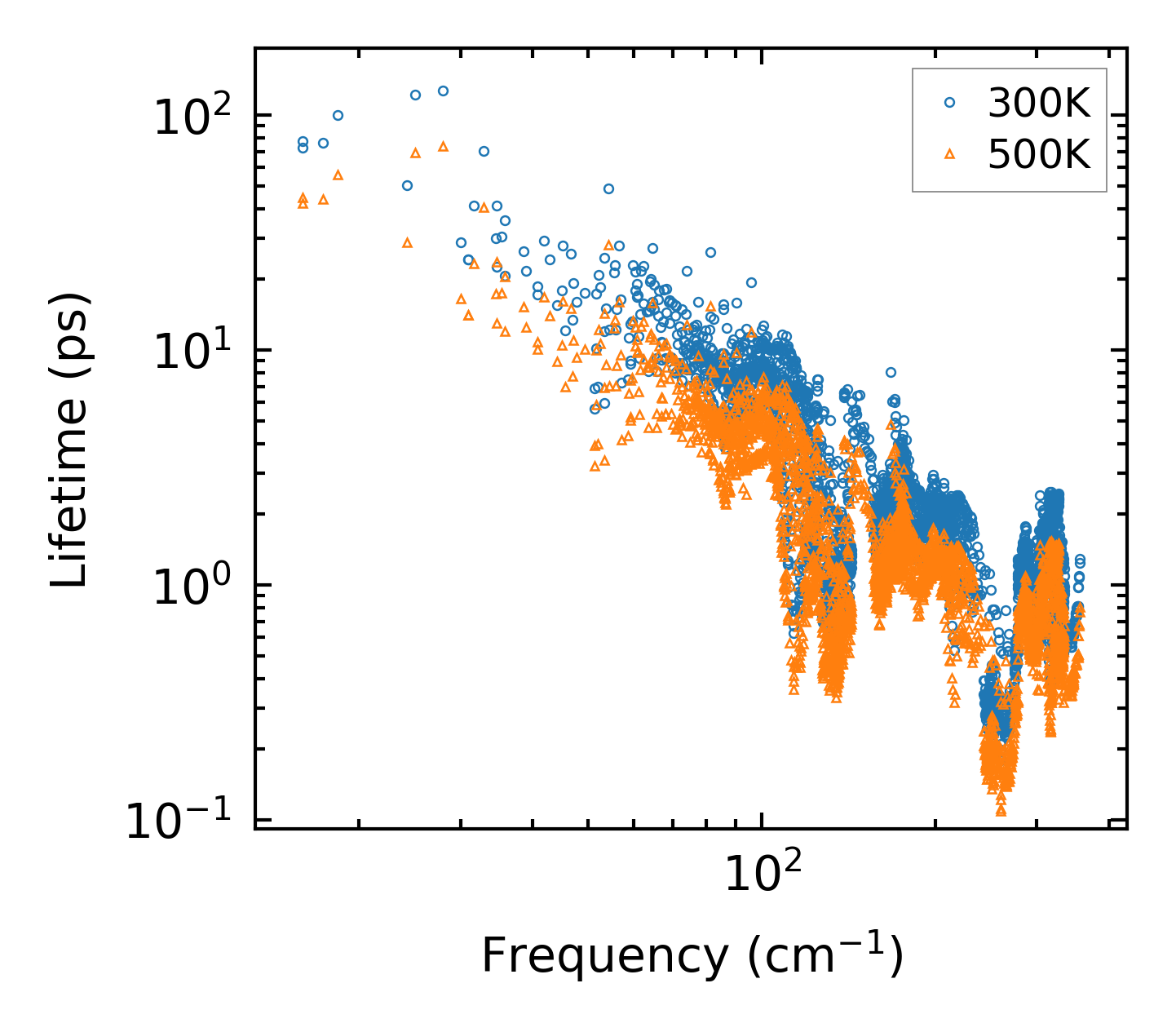

../../_images/fig_lifetime2845.png — (a) Phonon lifetime due to phonon-phonon scattering

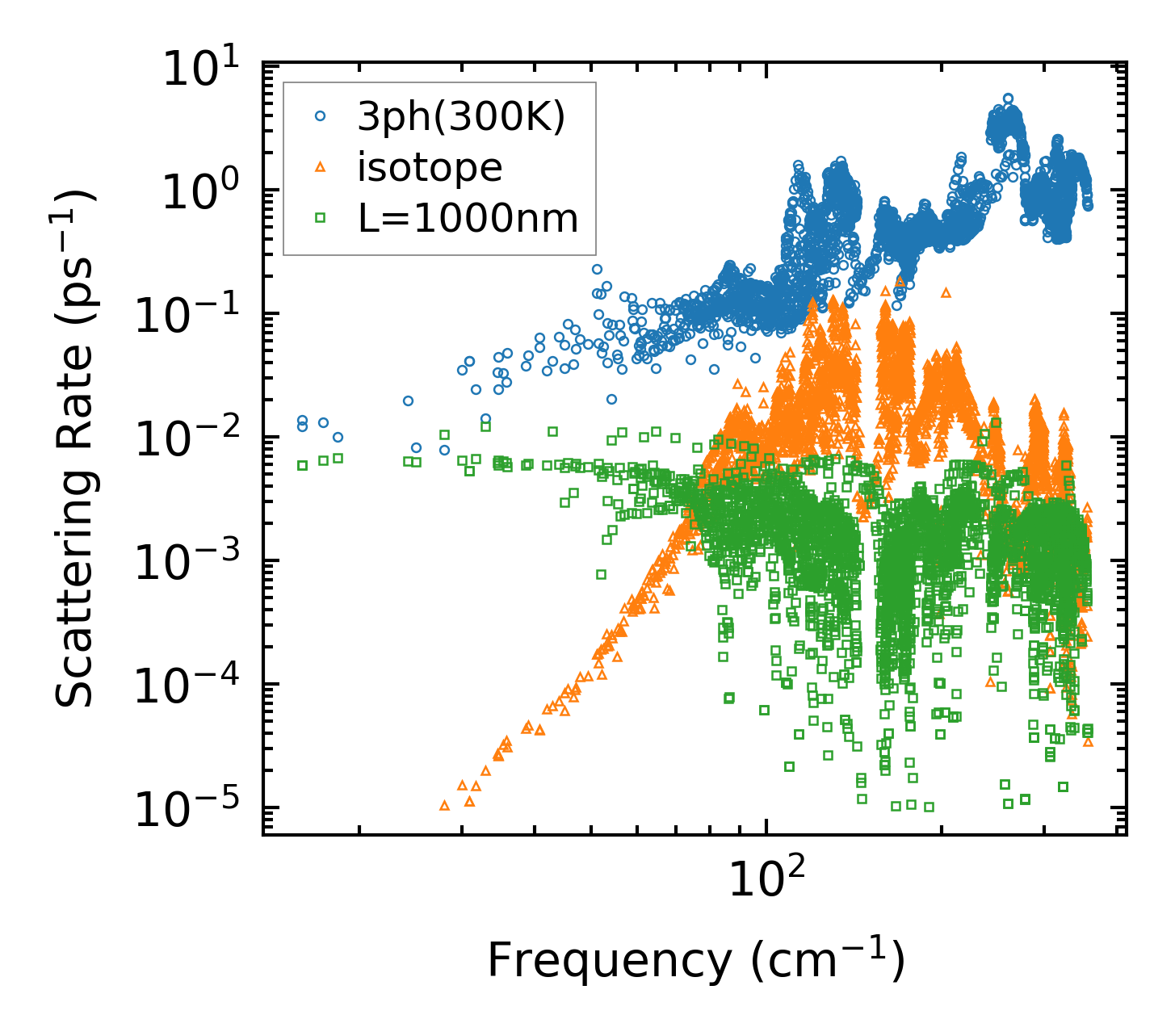

../../_images/fig_scat_rates2844.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

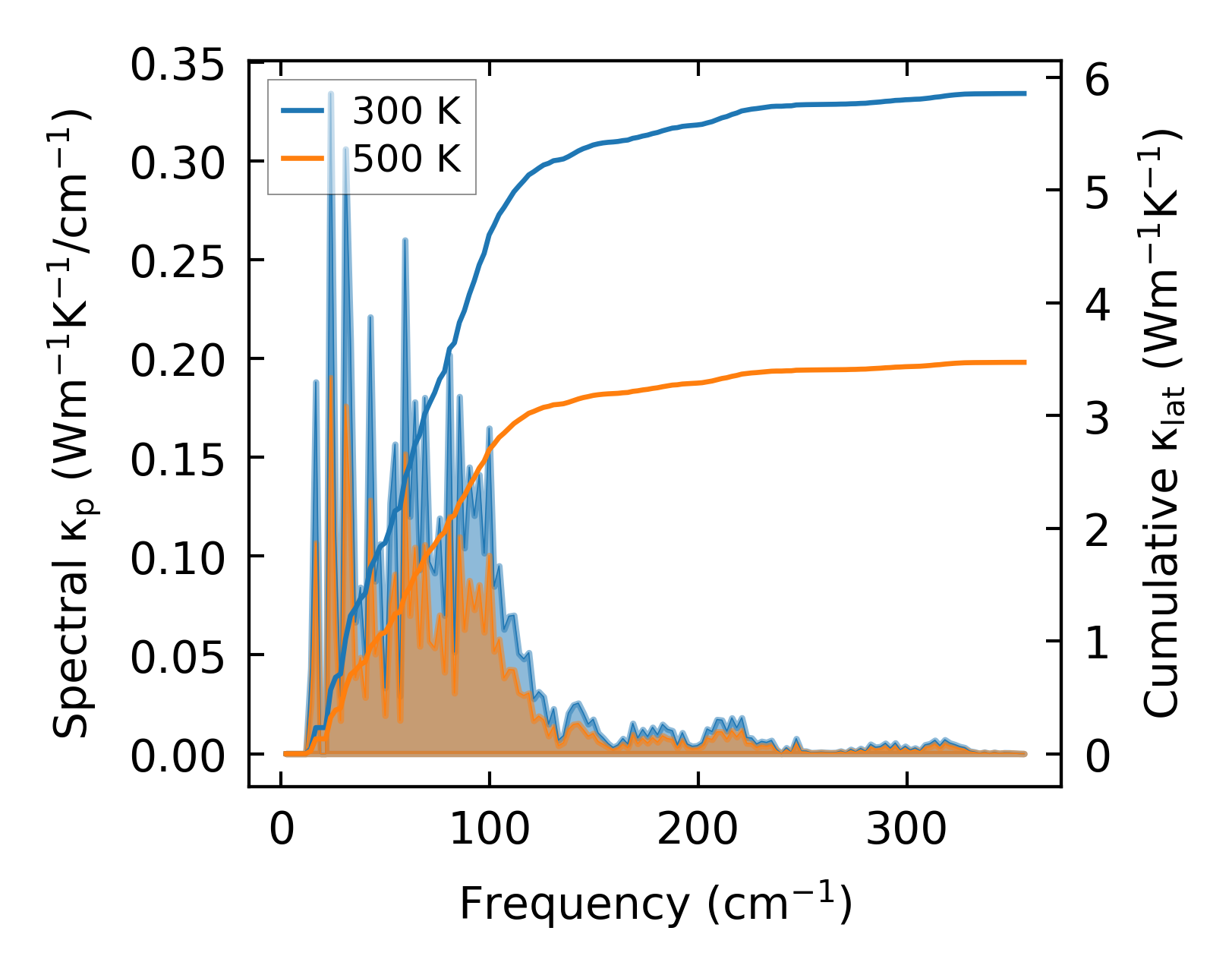

../../_images/fig_cumu_frequency2845.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

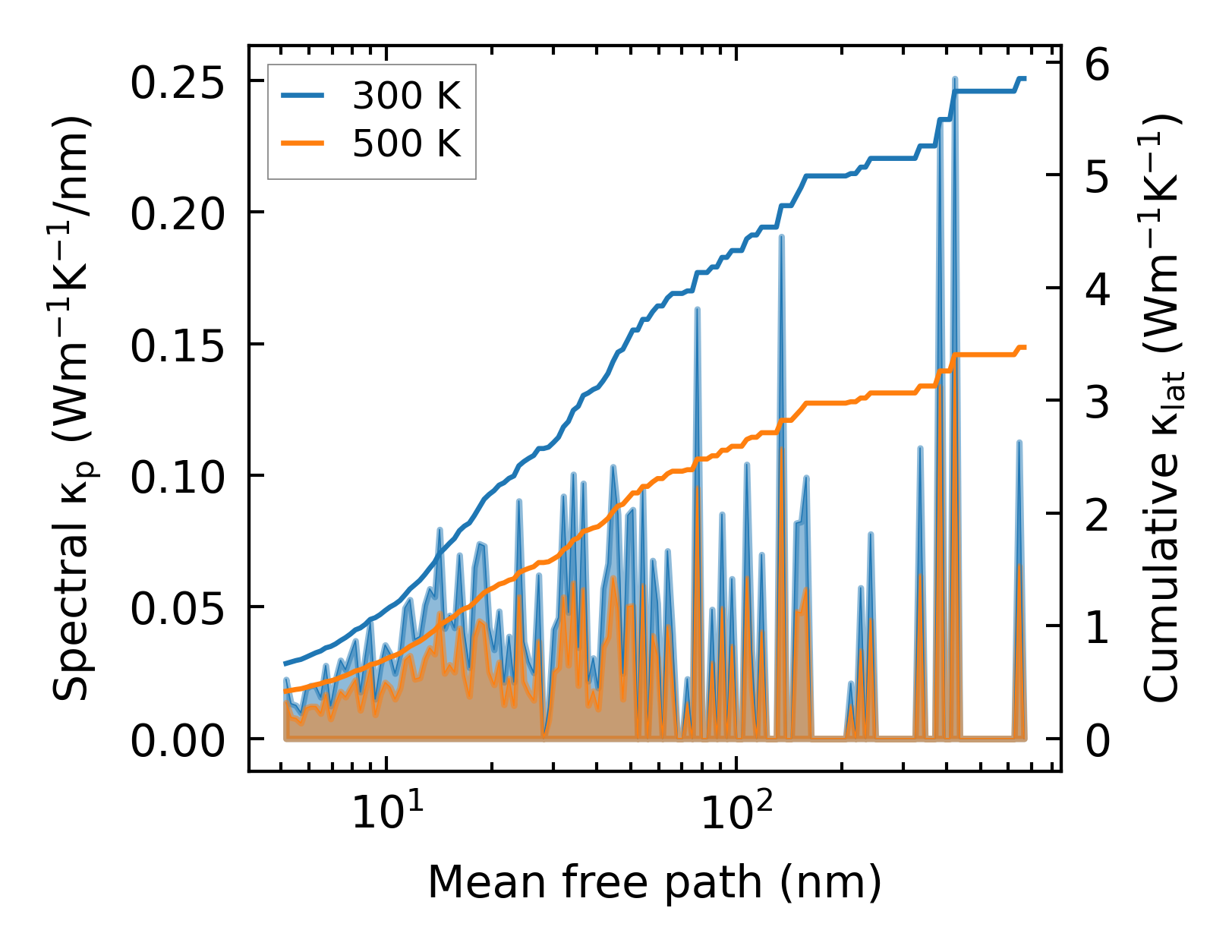

../../_images/fig_cumu_mfp2844.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

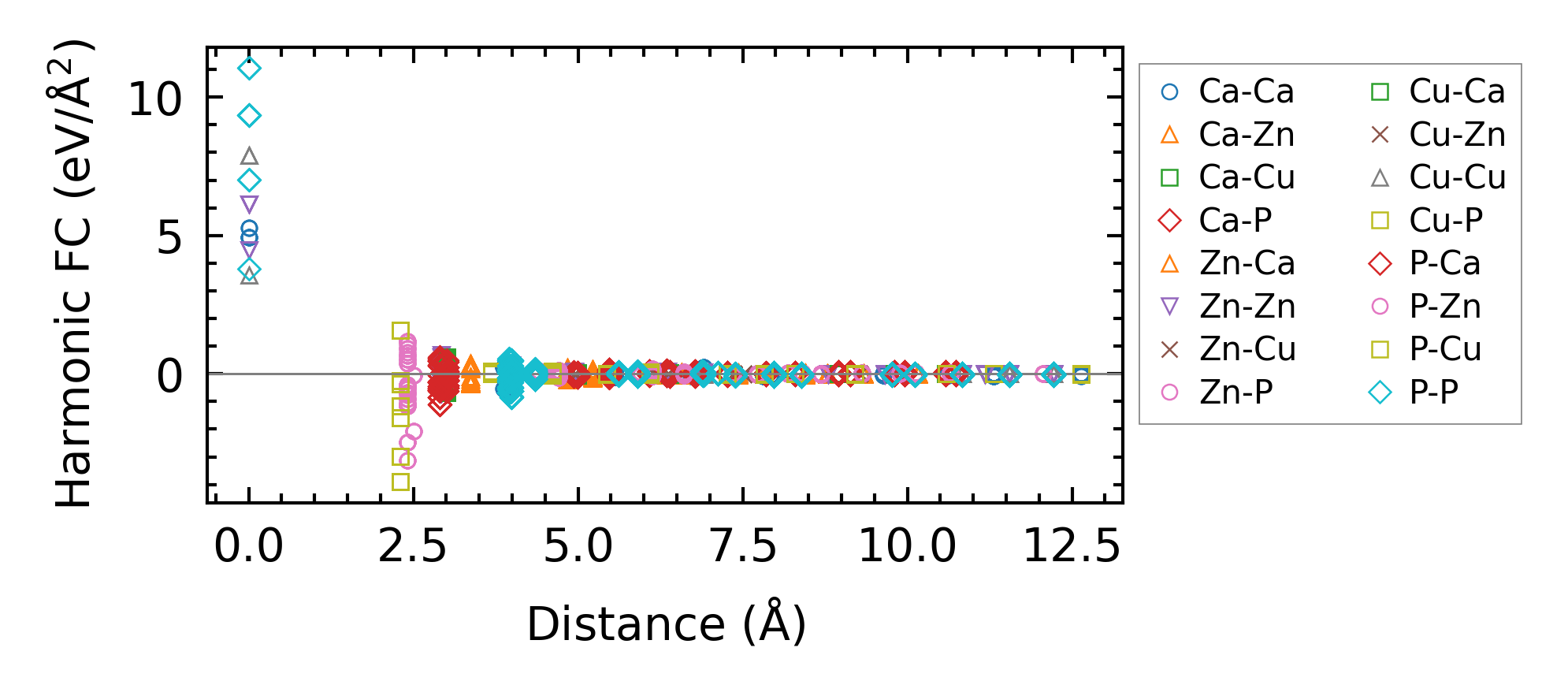

../../_images/fig_fc26705.png — (a) Force constants w.r.t atomic distance

Summary

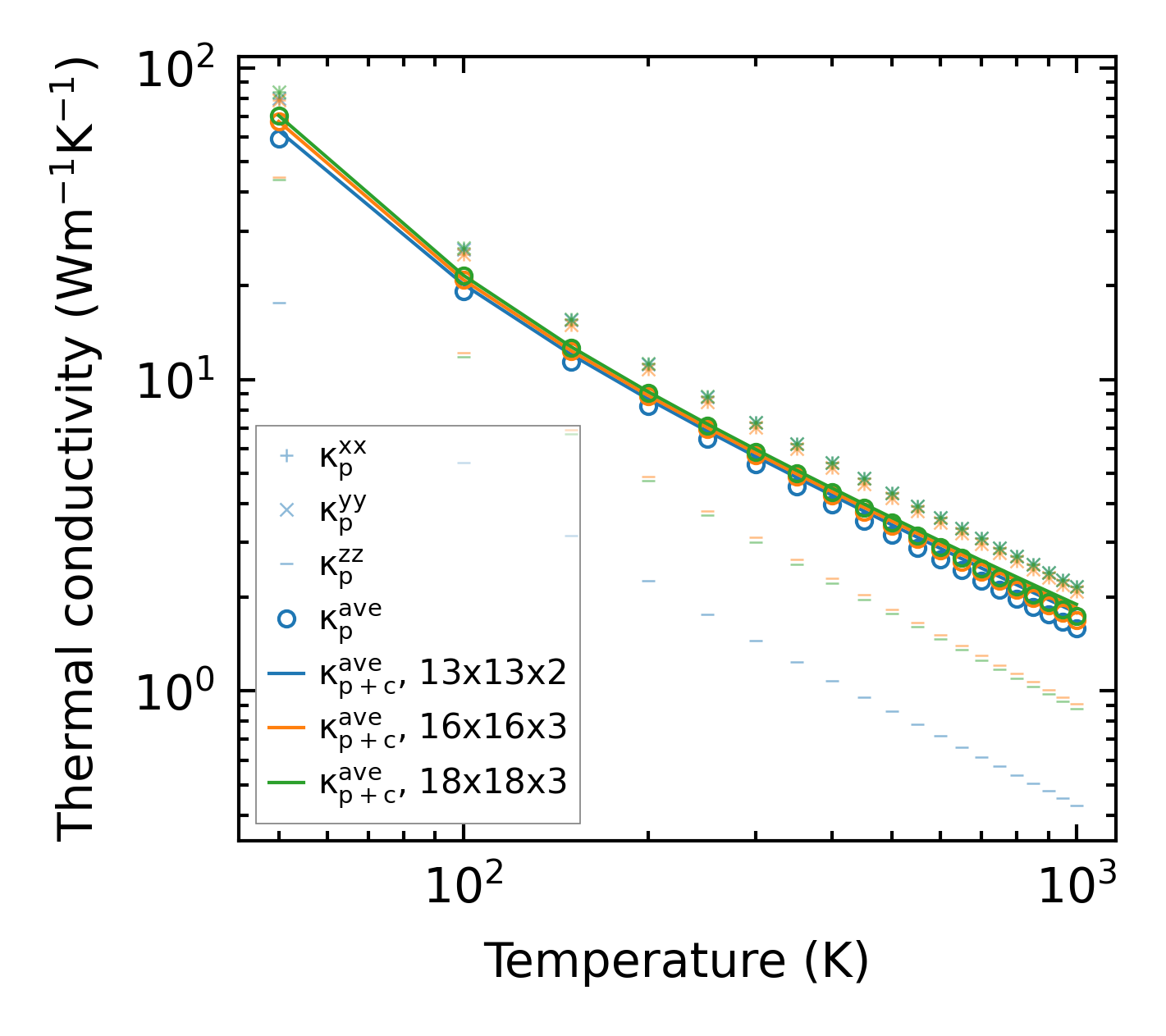

../../_images/fig_kappa5447.png — (a) Temperature-dependent lattice thermal conductivity

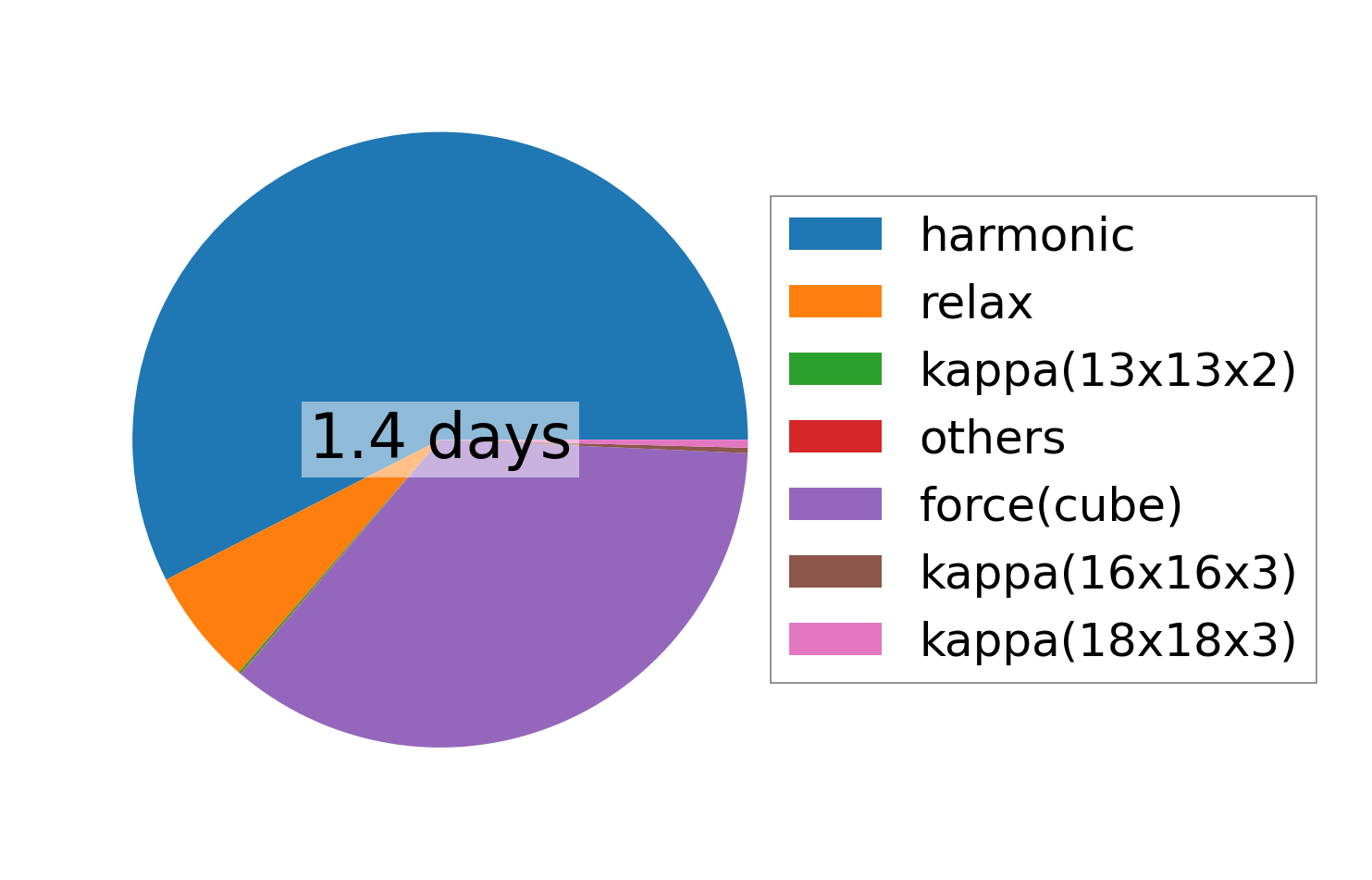

../../_images/fig_times12424.png — (b) Computation time
