mp-571637/K2Cd2Te3/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-571637.tar.gz

Harmonic properties

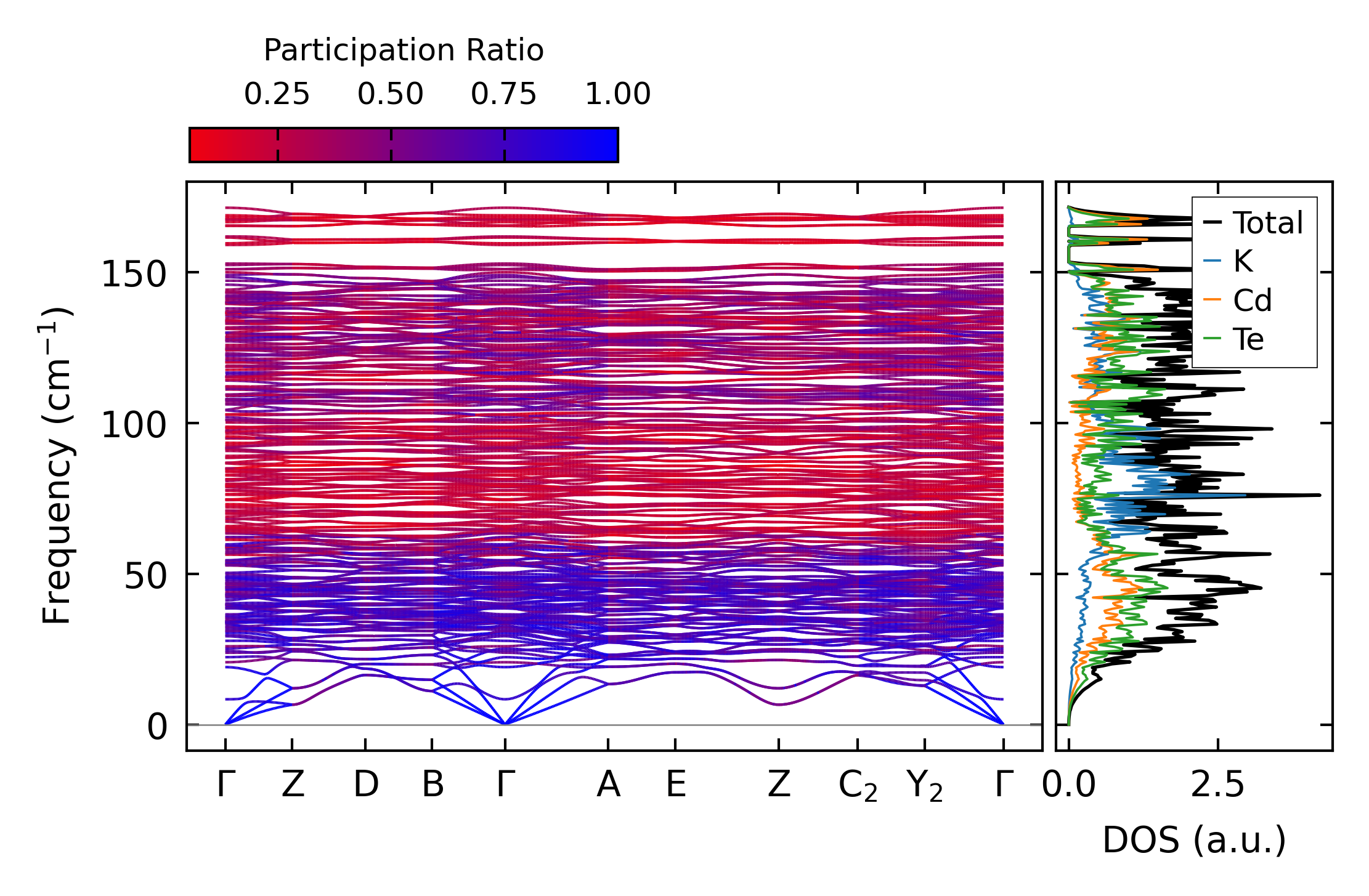

../../_images/fig_bandos_pr6683.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6683.png — (b) Thermodynamic properties

Grüneisen parameters

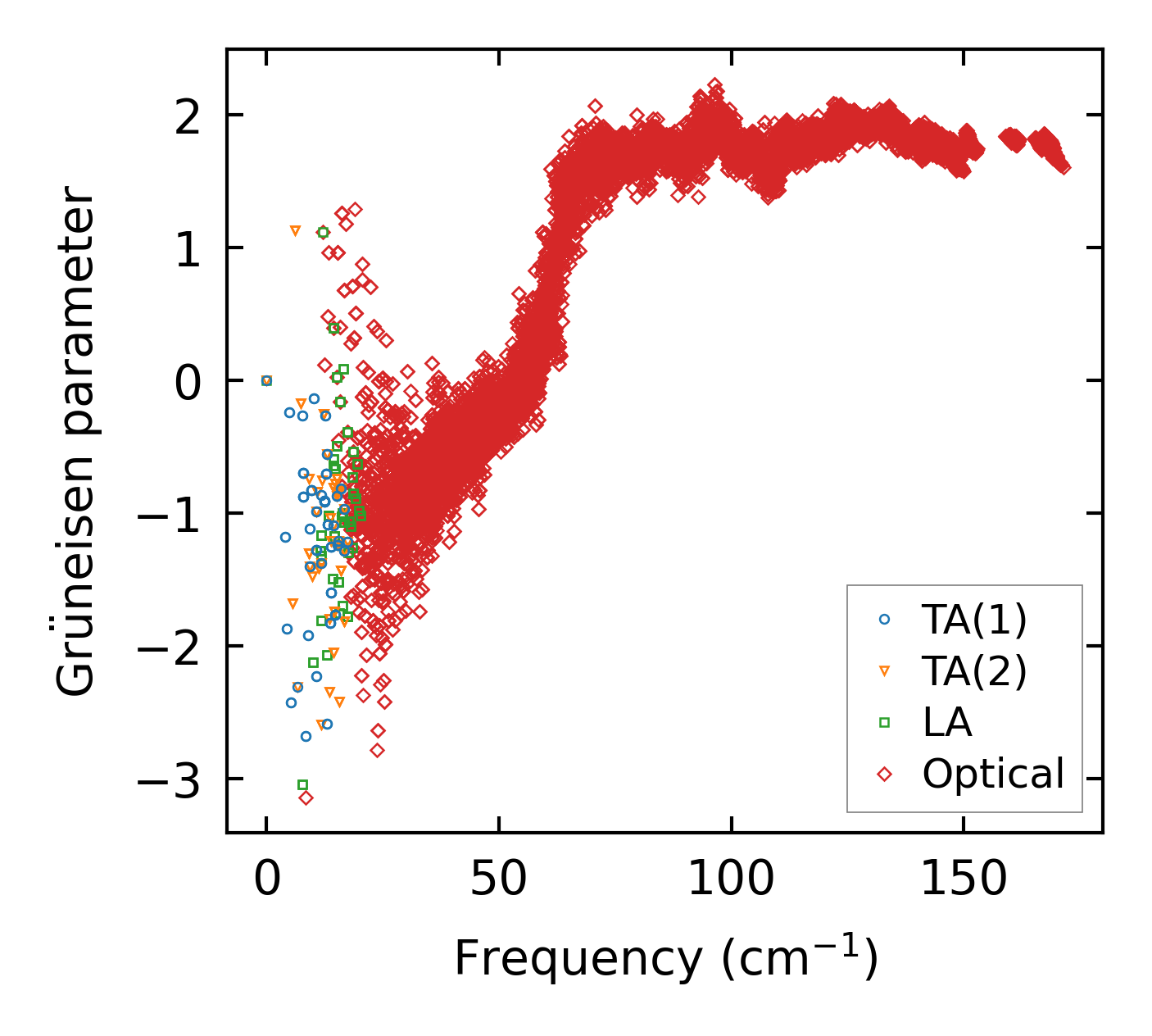

../../_images/fig_gru_all2726.png — (a) Grüneisen parameters

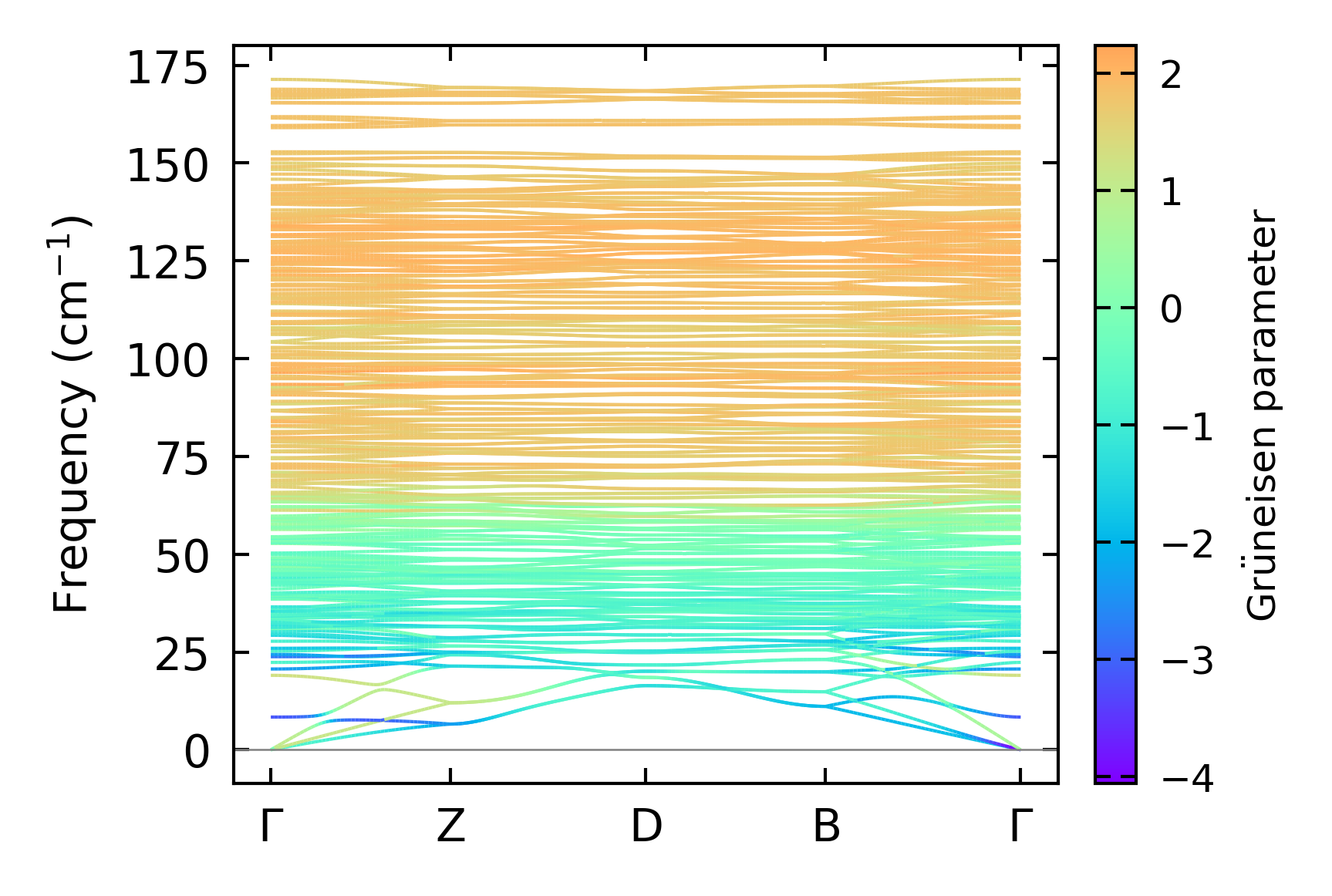

../../_images/fig_gruneisen2726.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 5x4x5, supercell: 1x1x1

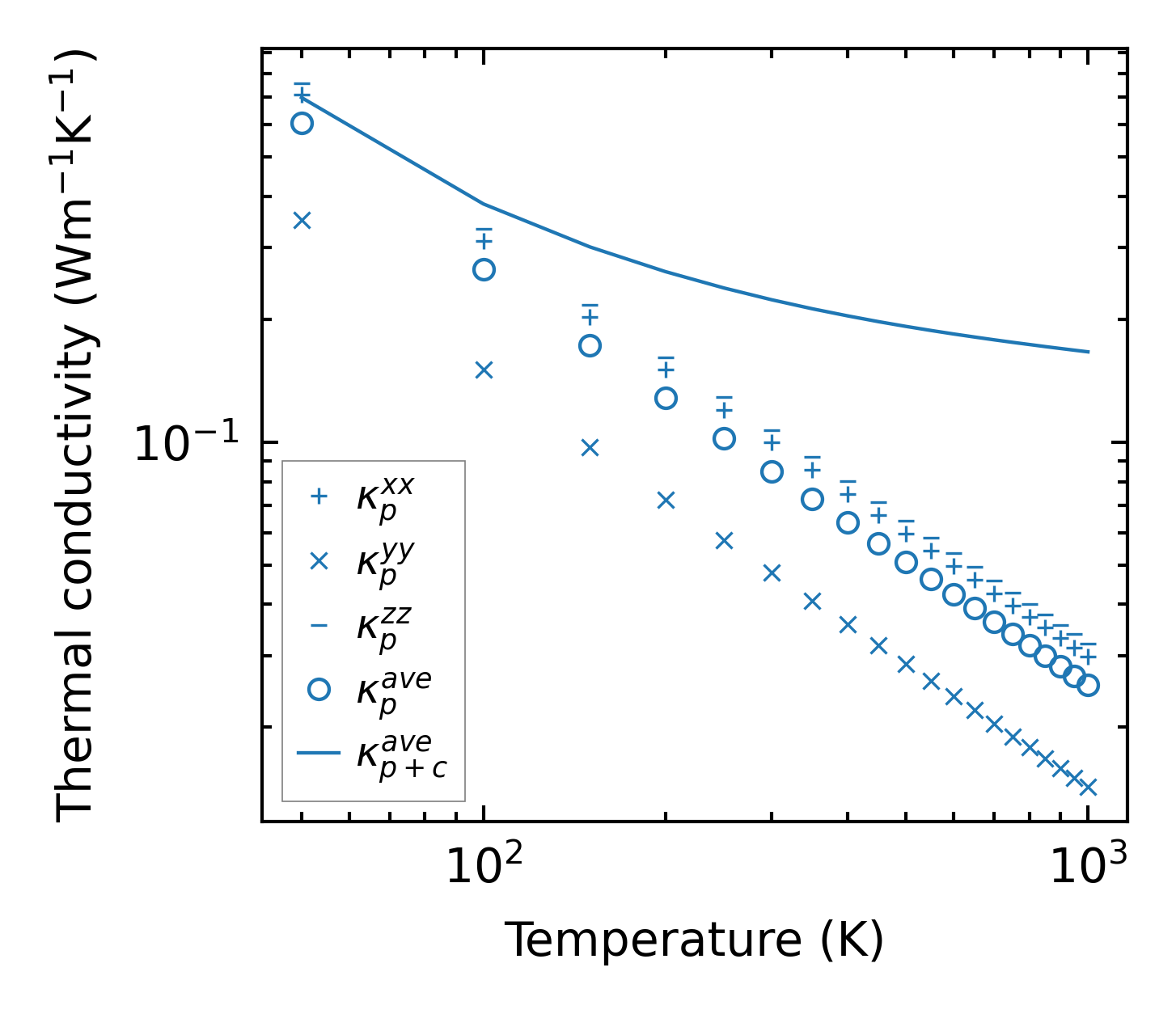

../../_images/fig_kappa5182.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2767.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2702.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2701.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

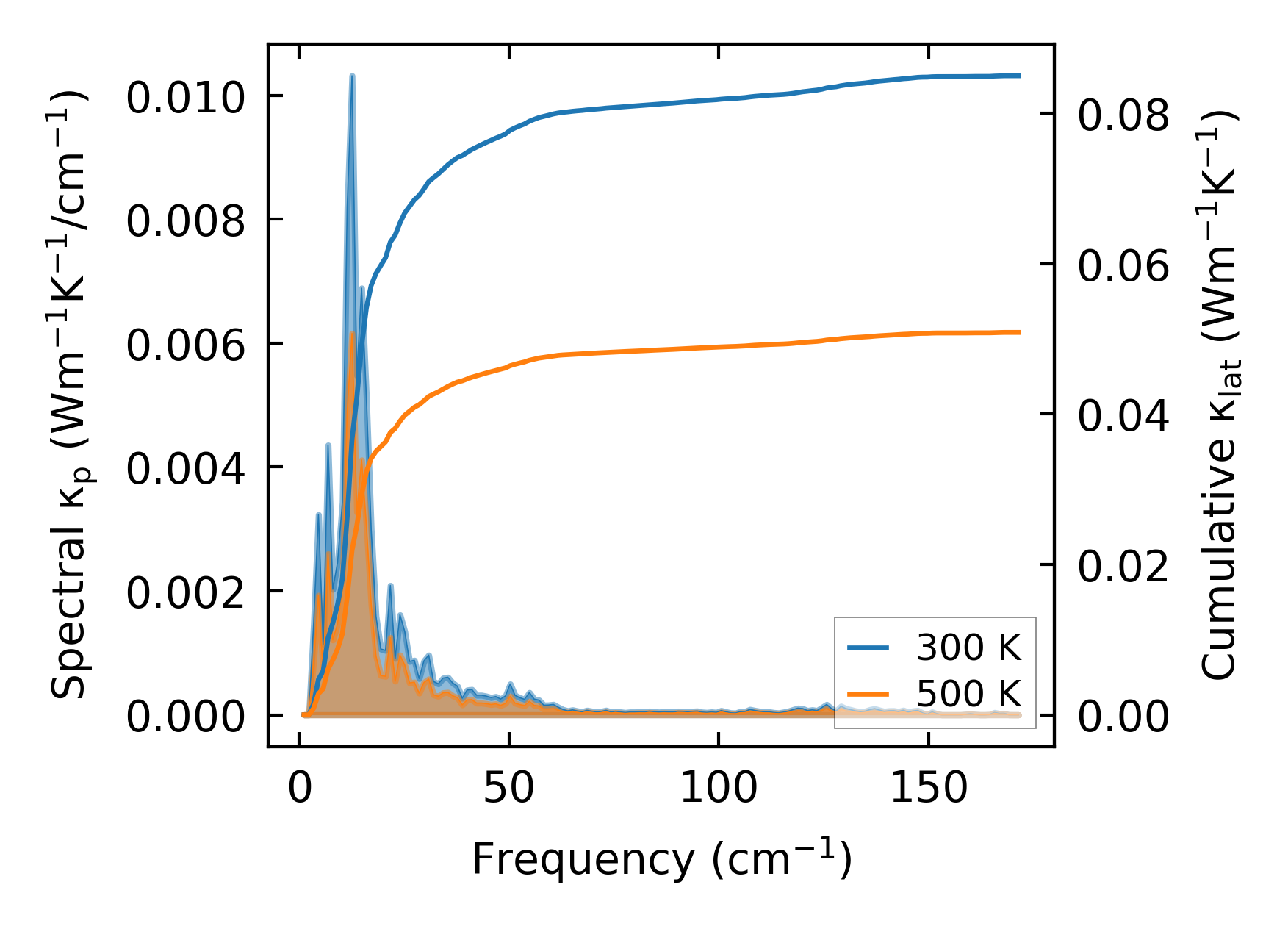

../../_images/fig_cumu_frequency2702.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2701.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

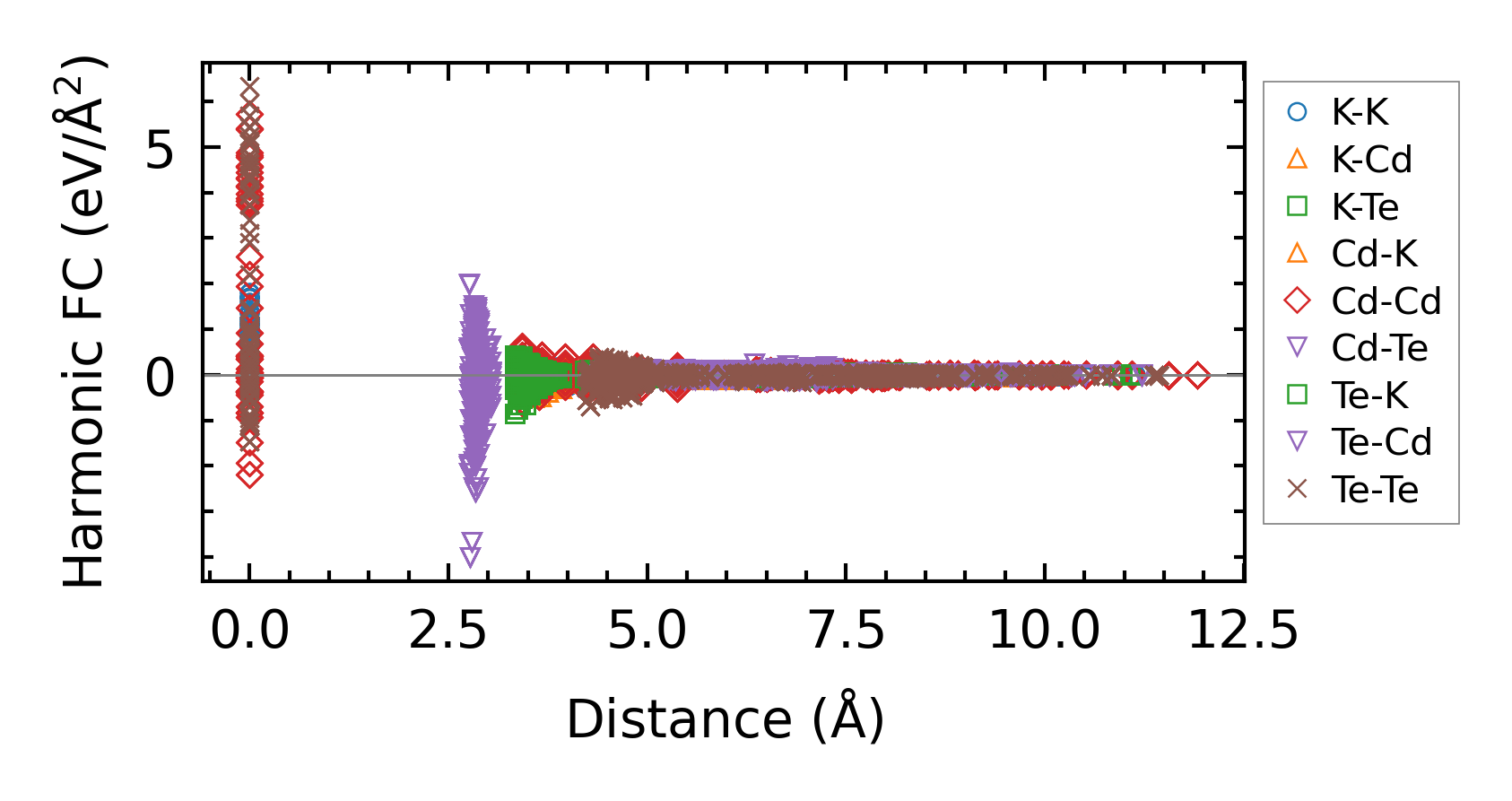

../../_images/fig_fc26473.png — (a) Force constants w.r.t atomic distance

Summary

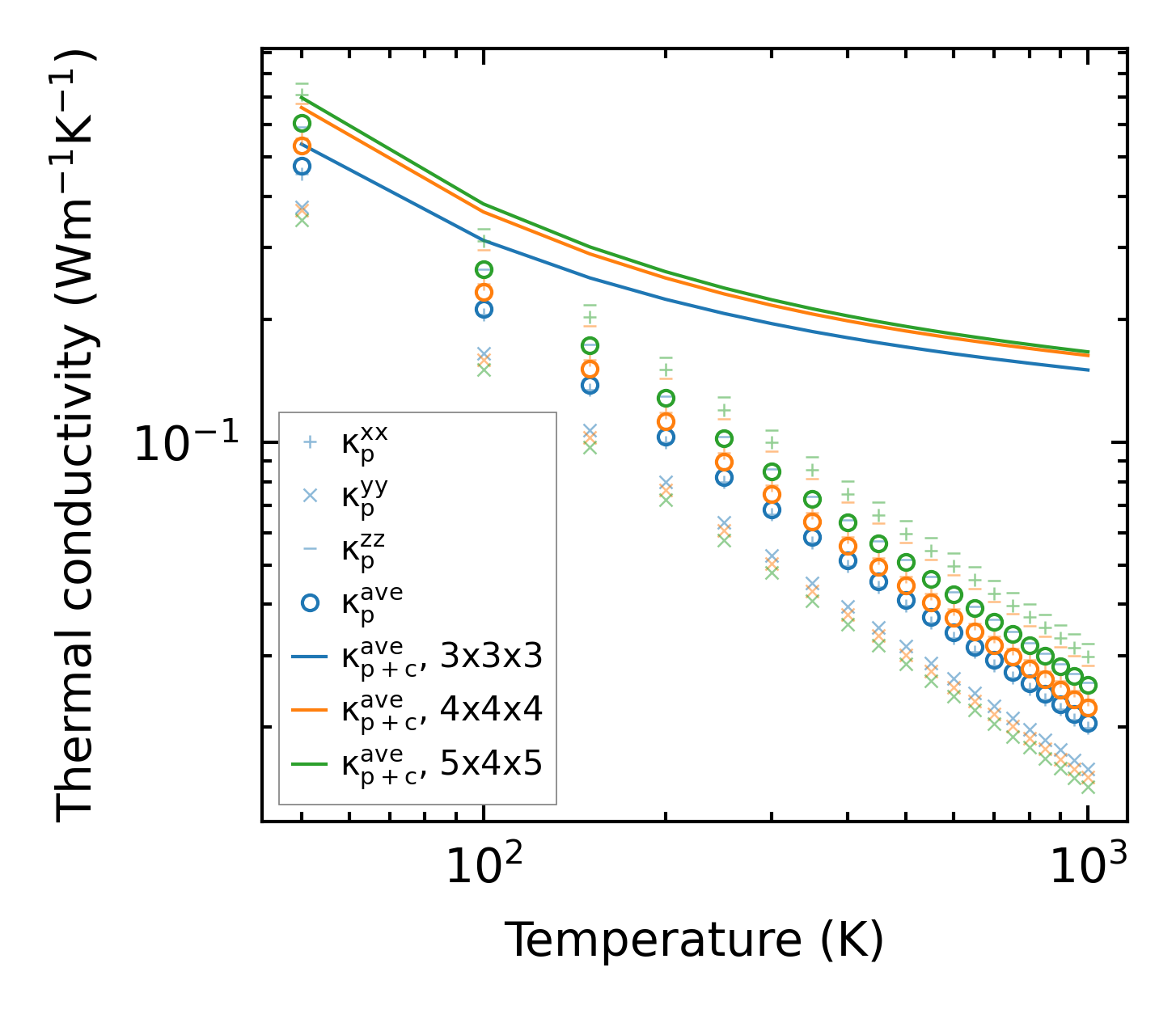

../../_images/fig_kappa5183.png — (a) Temperature-dependent lattice thermal conductivity

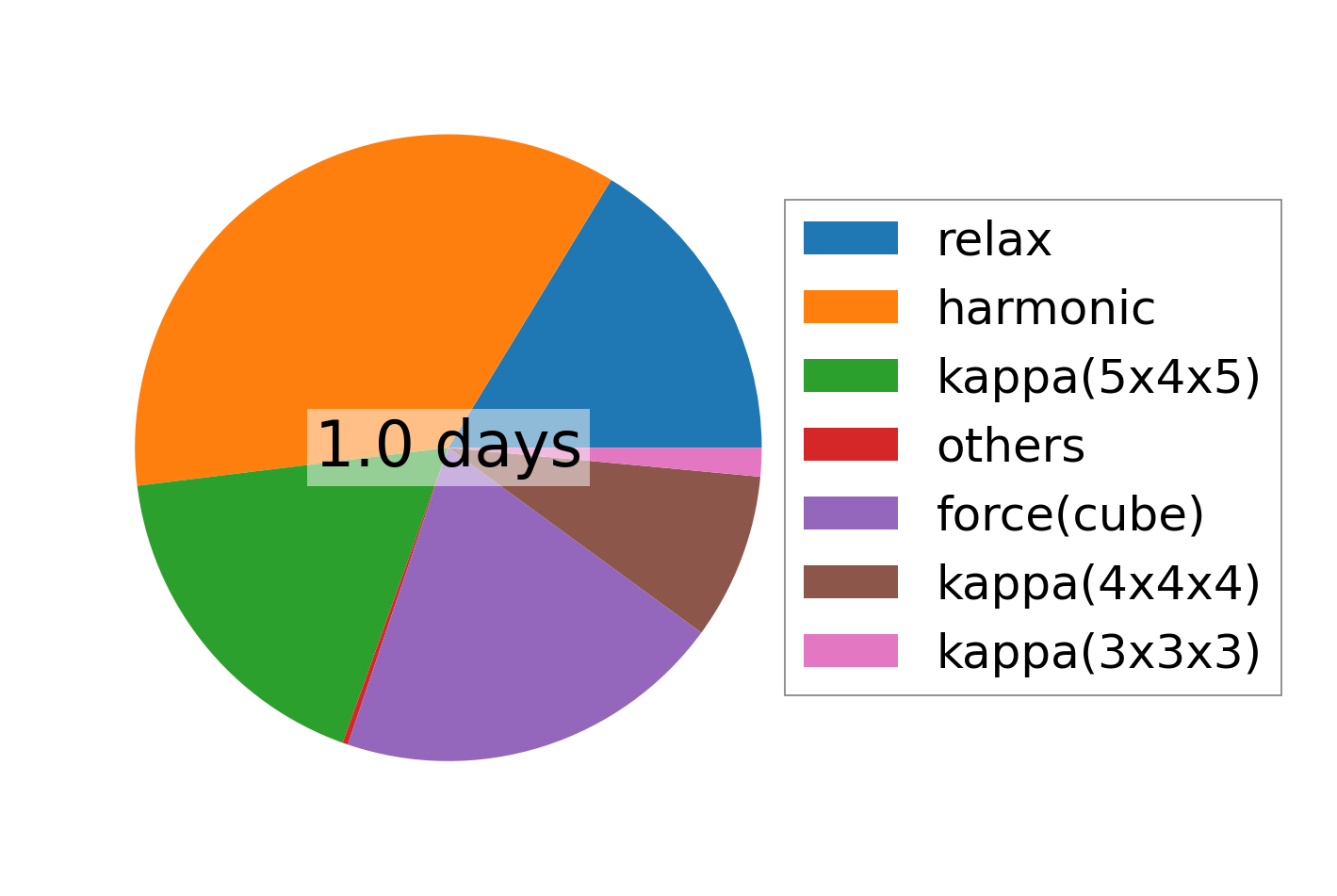

../../_images/fig_times11989.png — (b) Computation time
