mp-571433/NaBC4N4/anharm

Space group: Fd-3m (227)
Link: Materials Project
Download: mp-571433.tar.gz

Harmonic properties

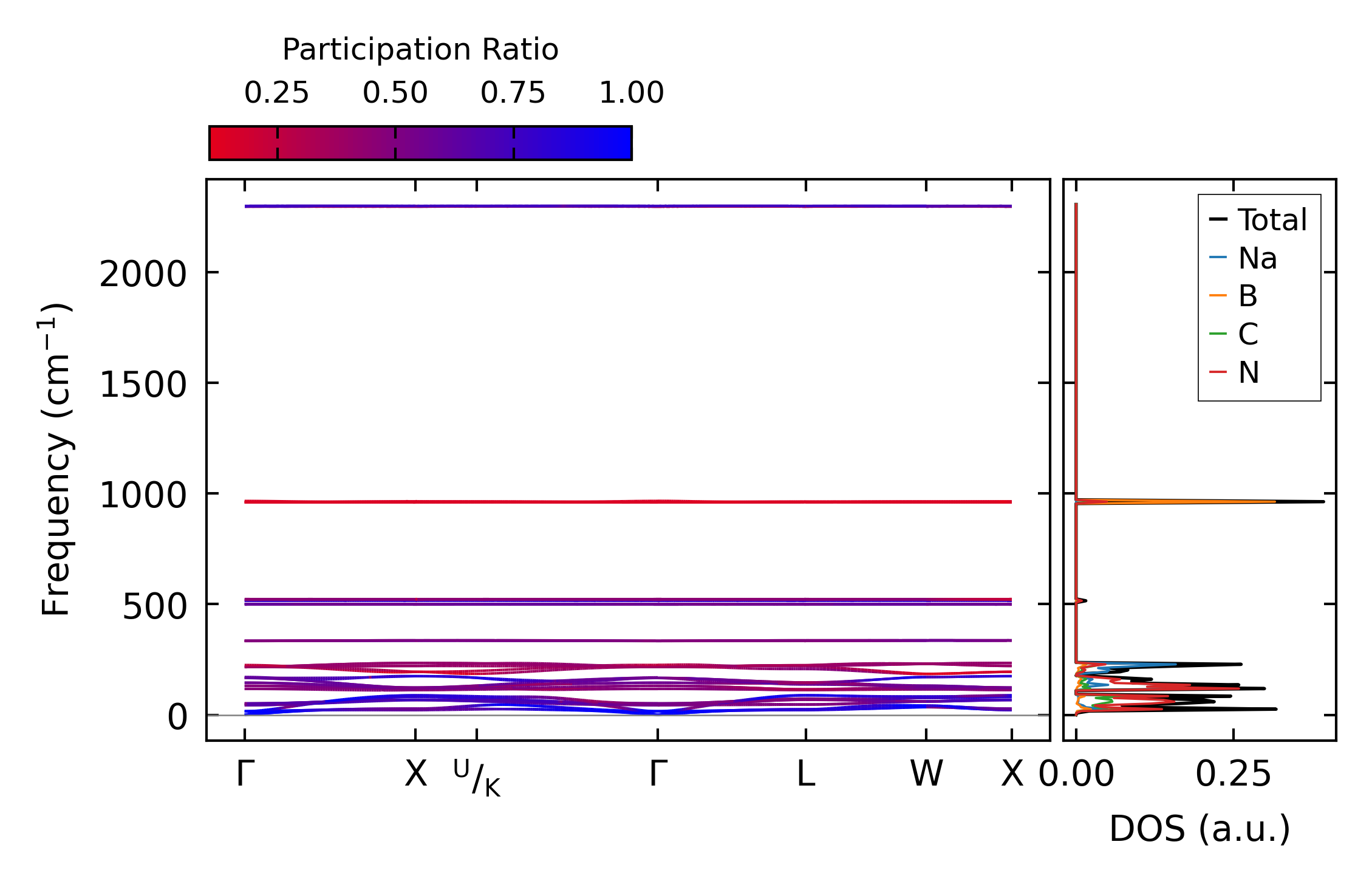

../../_images/fig_bandos_pr6655.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6655.png — (b) Thermodynamic properties

Grüneisen parameters

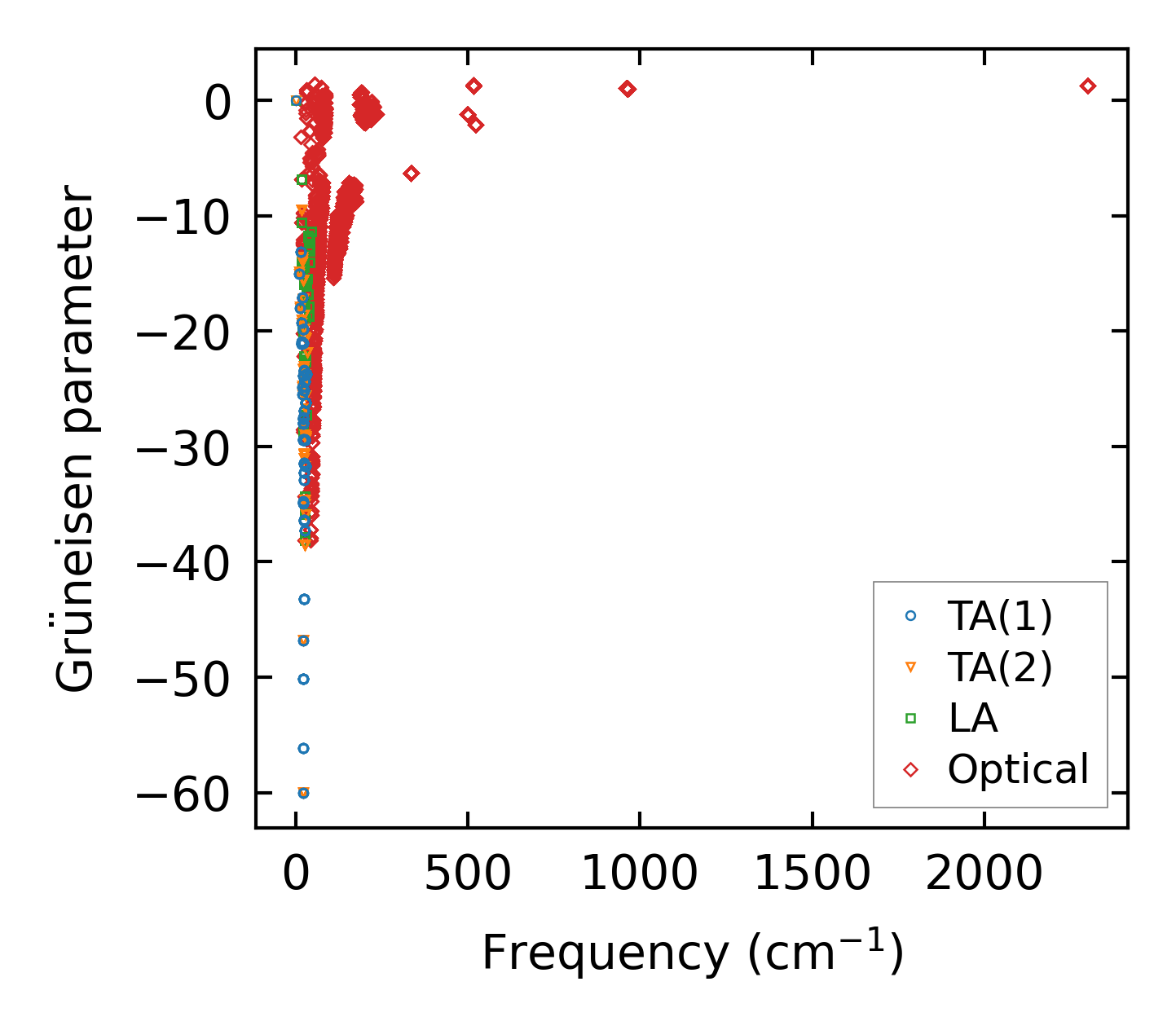

../../_images/fig_gru_all2712.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2712.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x9, supercell: 1x1x1

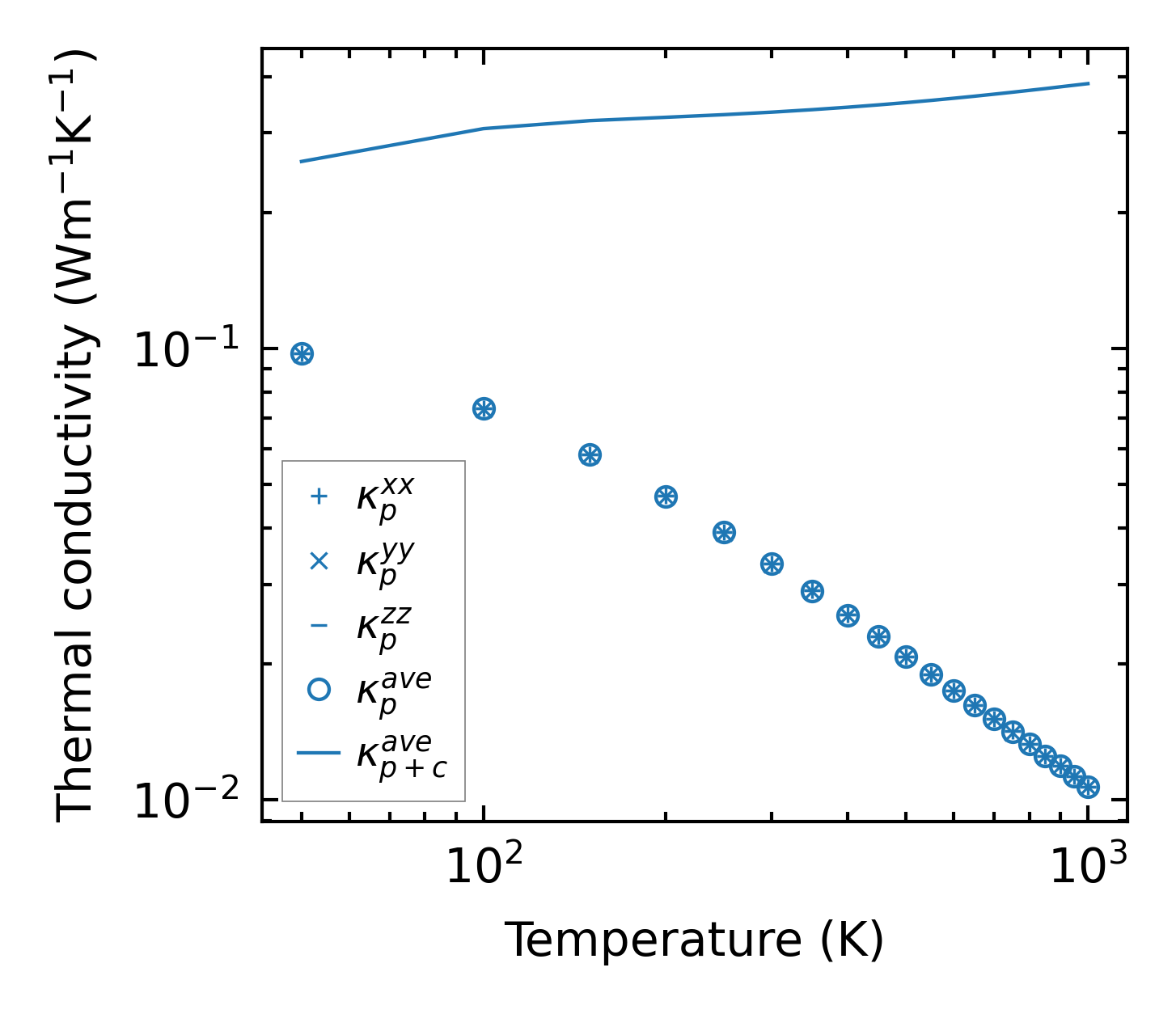

../../_images/fig_kappa5155.png — (a) Temperature-dependent lattice thermal conductivity

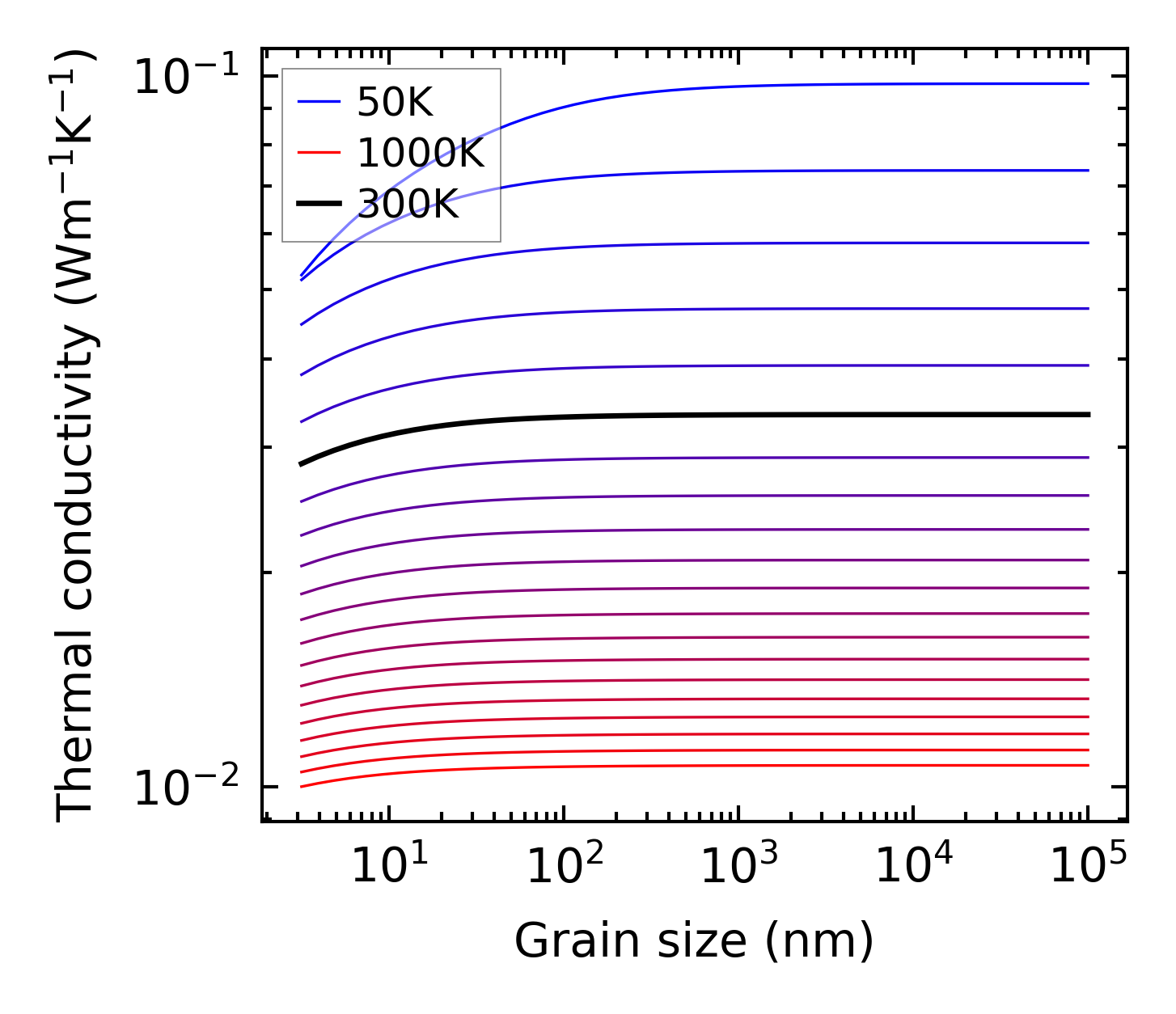

../../_images/fig_kappa_vs_grain_size2751.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2688.png — (a) Phonon lifetime due to phonon-phonon scattering

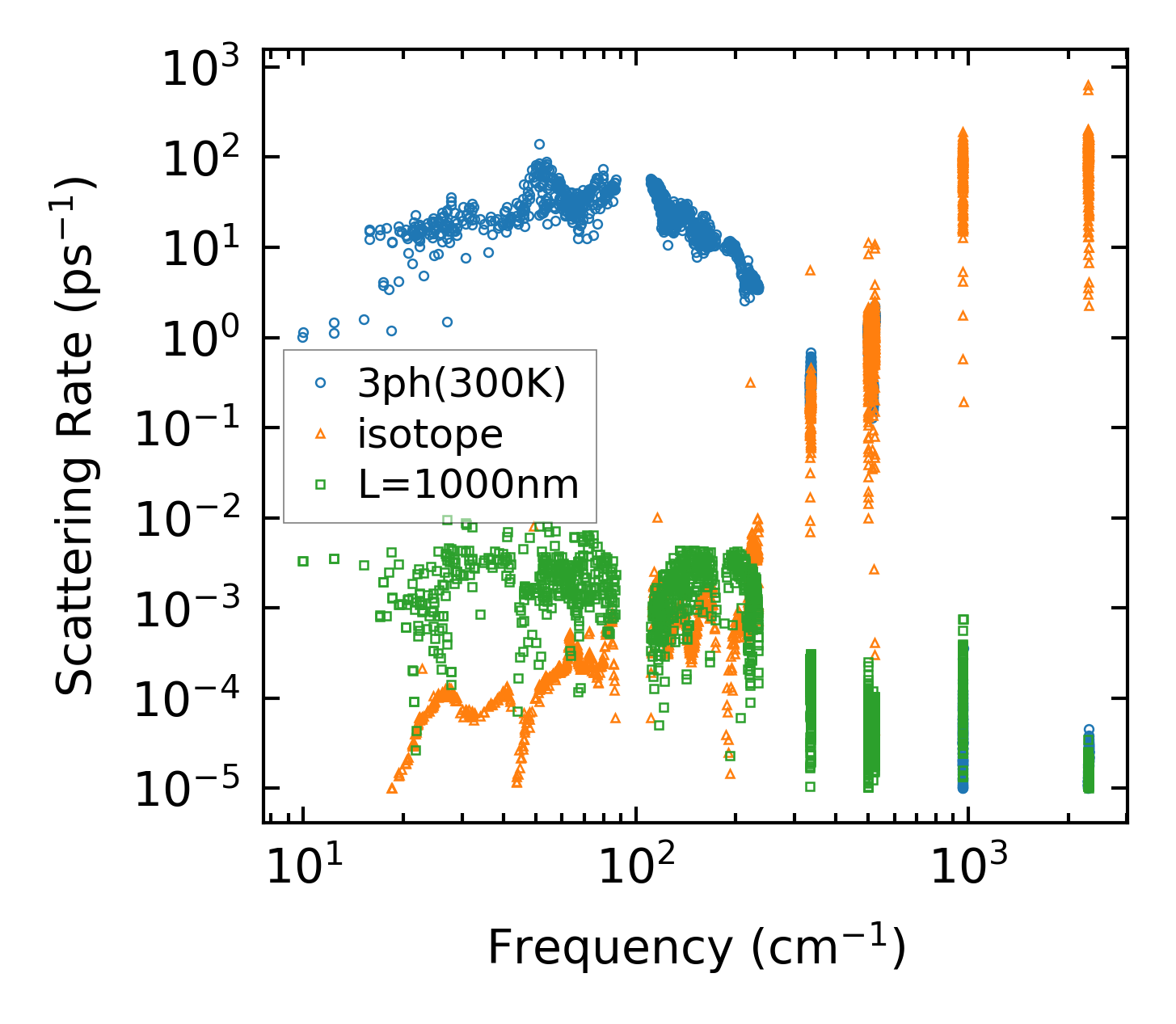

../../_images/fig_scat_rates2687.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2688.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

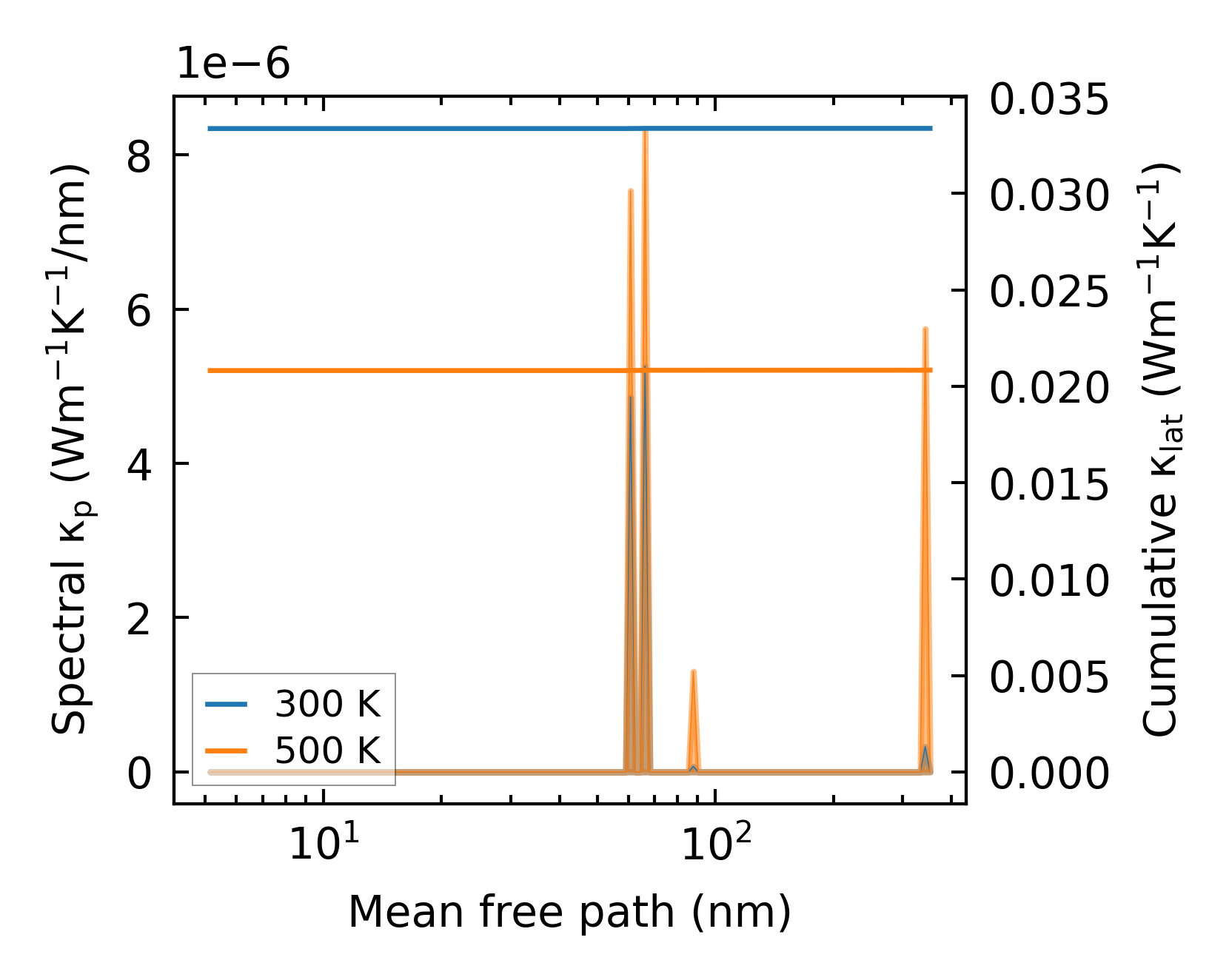

../../_images/fig_cumu_mfp2687.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc26445.png — (a) Force constants w.r.t atomic distance

Summary

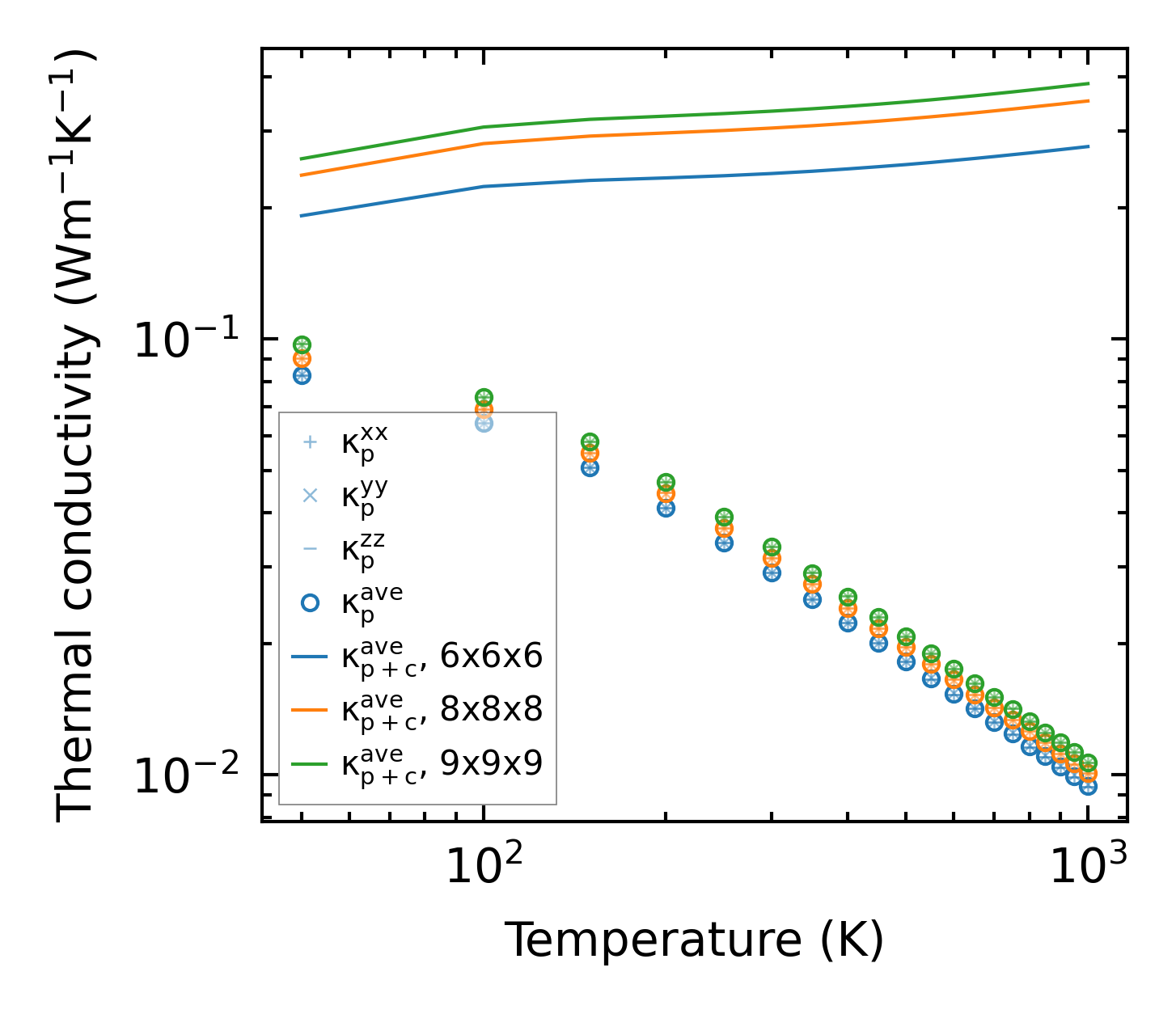

../../_images/fig_kappa5156.png — (a) Temperature-dependent lattice thermal conductivity

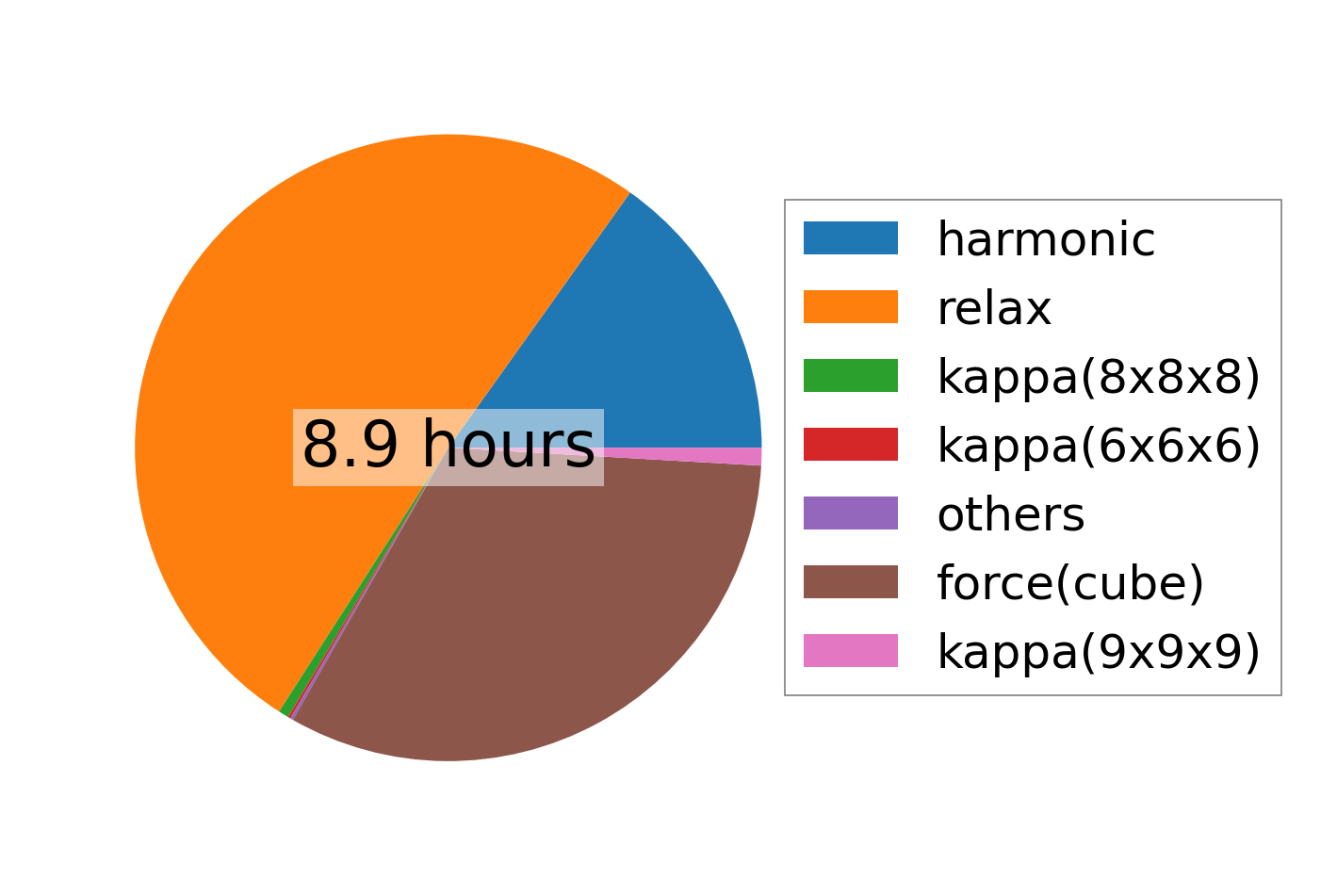

../../_images/fig_times11924.png — (b) Computation time
