mp-571623/Al2BiSe4/anharm

Space group: P4/nnc (126)
Link: Materials Project
Download: mp-571623.tar.gz

Harmonic properties

../../_images/fig_bandos_pr6681.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6681.png — (b) Thermodynamic properties

Grüneisen parameters

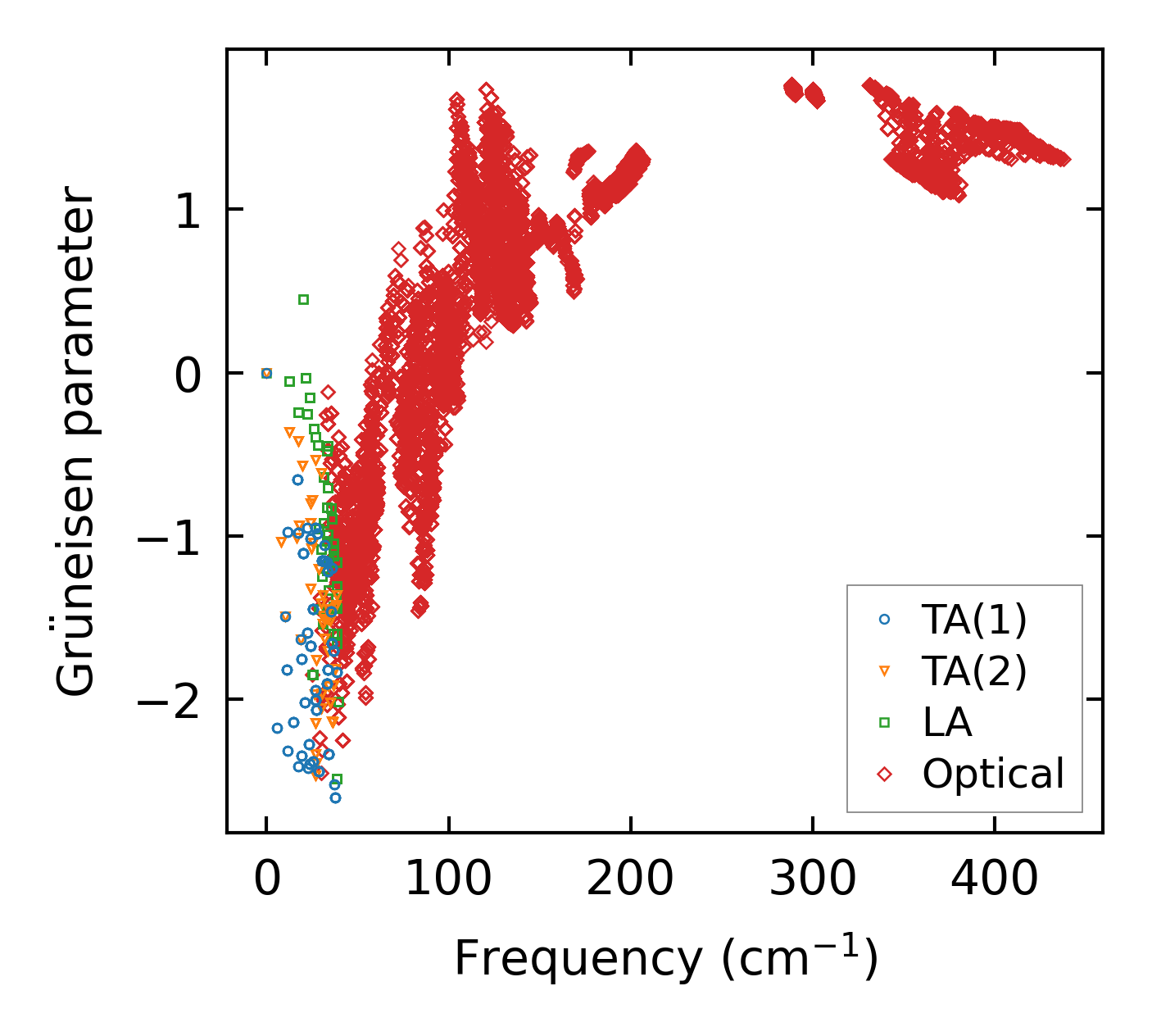

../../_images/fig_gru_all2724.png — (a) Grüneisen parameters

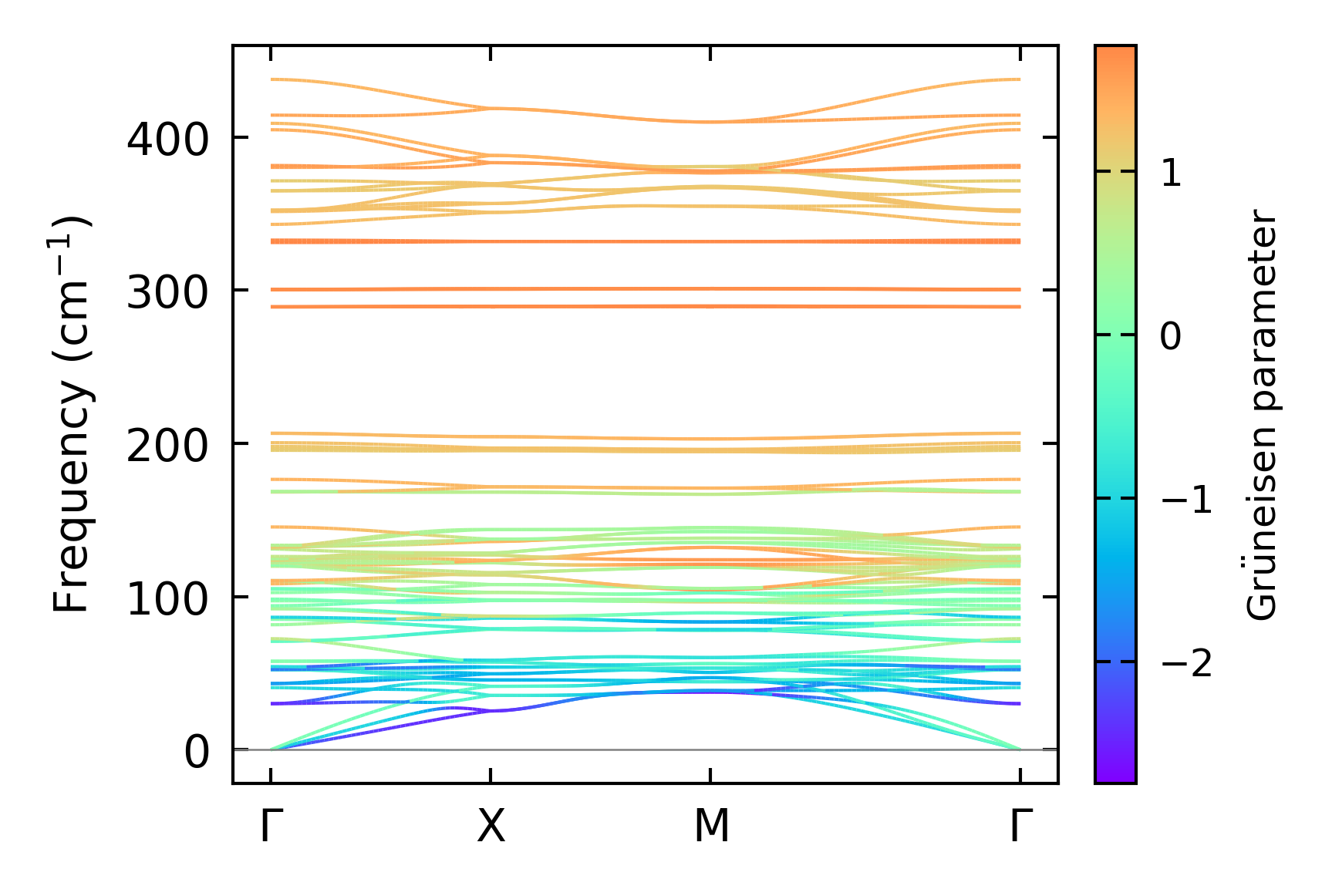

../../_images/fig_gruneisen2724.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x5, supercell: 2x2x1

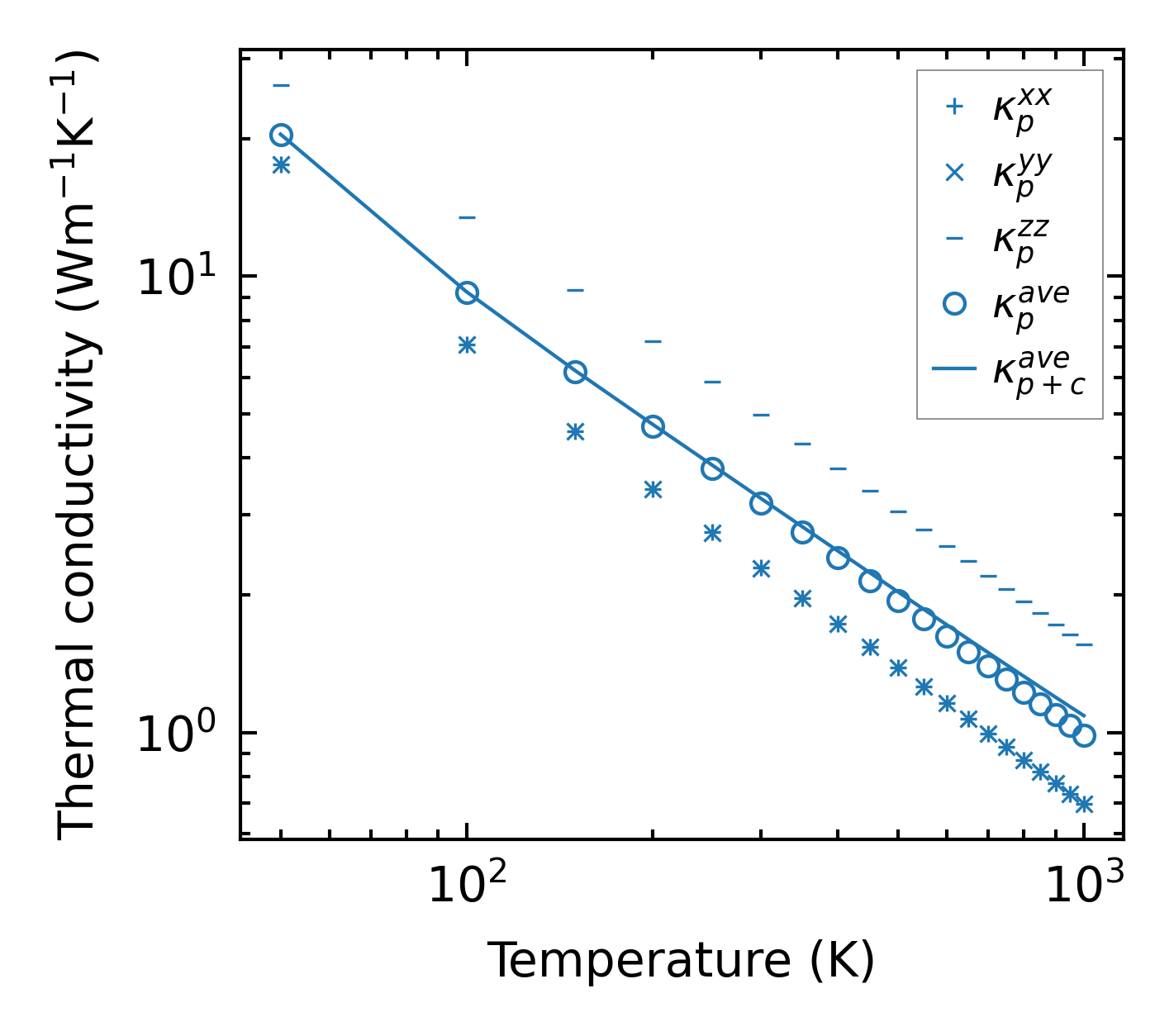

../../_images/fig_kappa5179.png — (a) Temperature-dependent lattice thermal conductivity

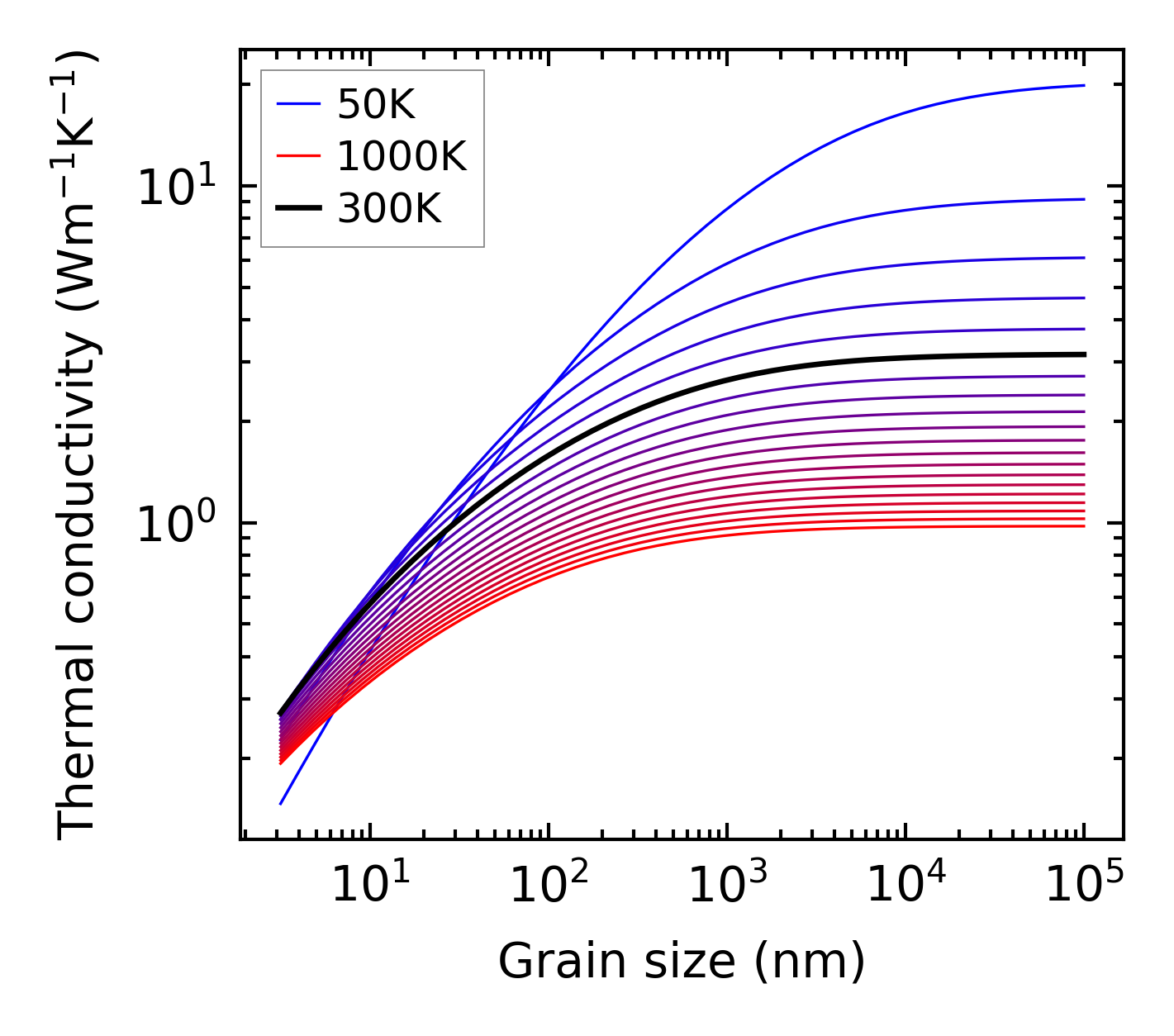

../../_images/fig_kappa_vs_grain_size2765.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

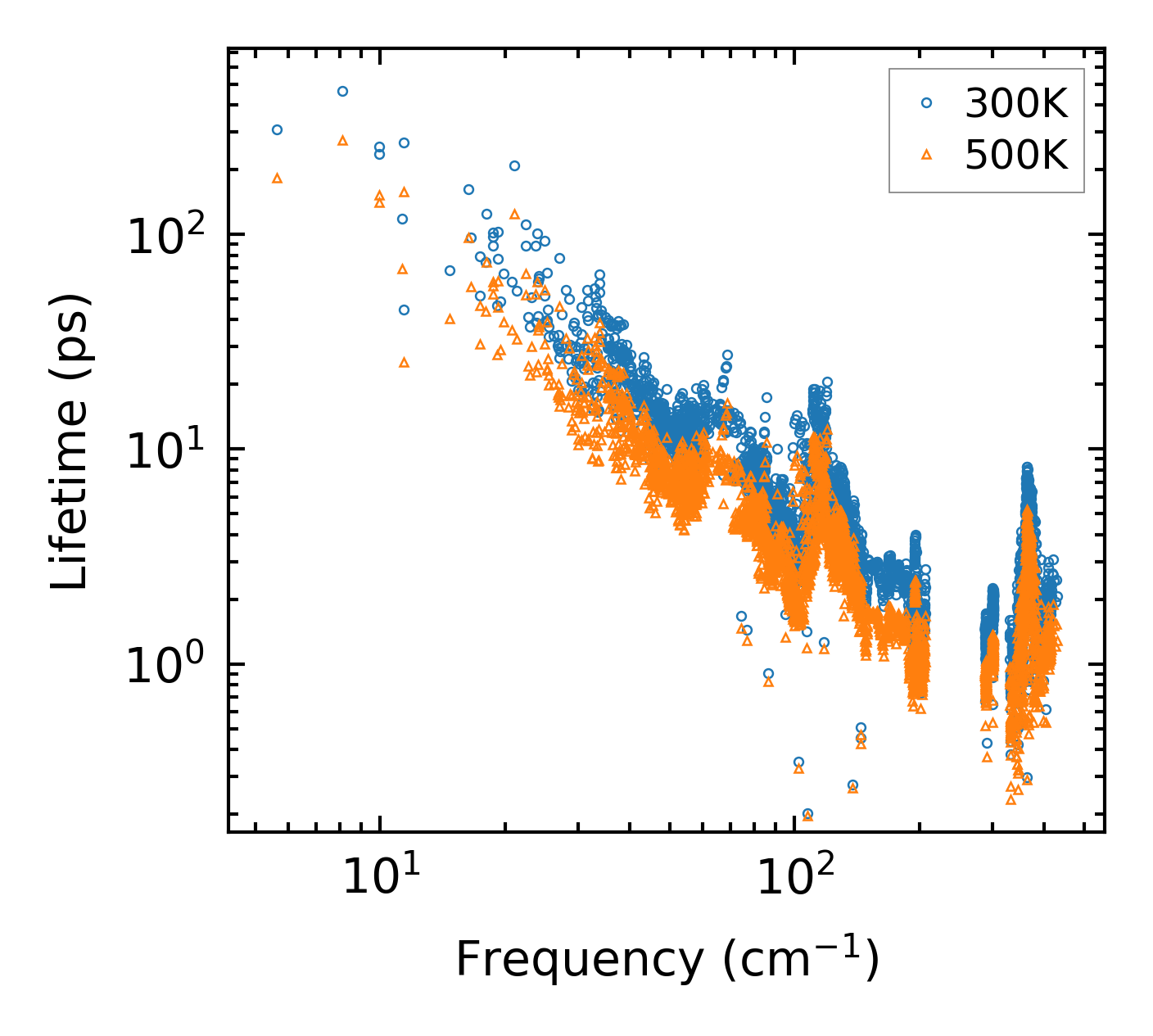

../../_images/fig_lifetime2700.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2699.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

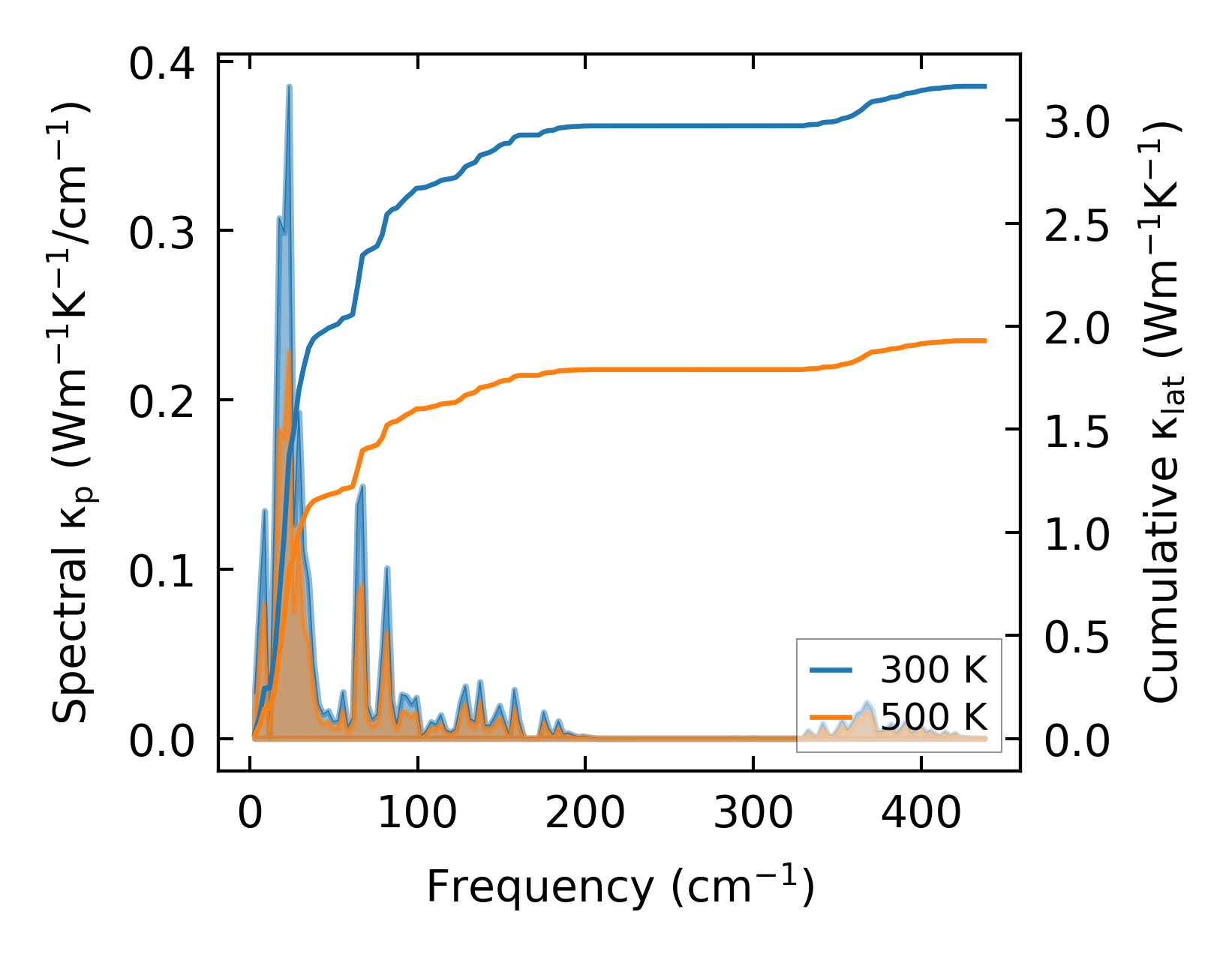

../../_images/fig_cumu_frequency2700.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

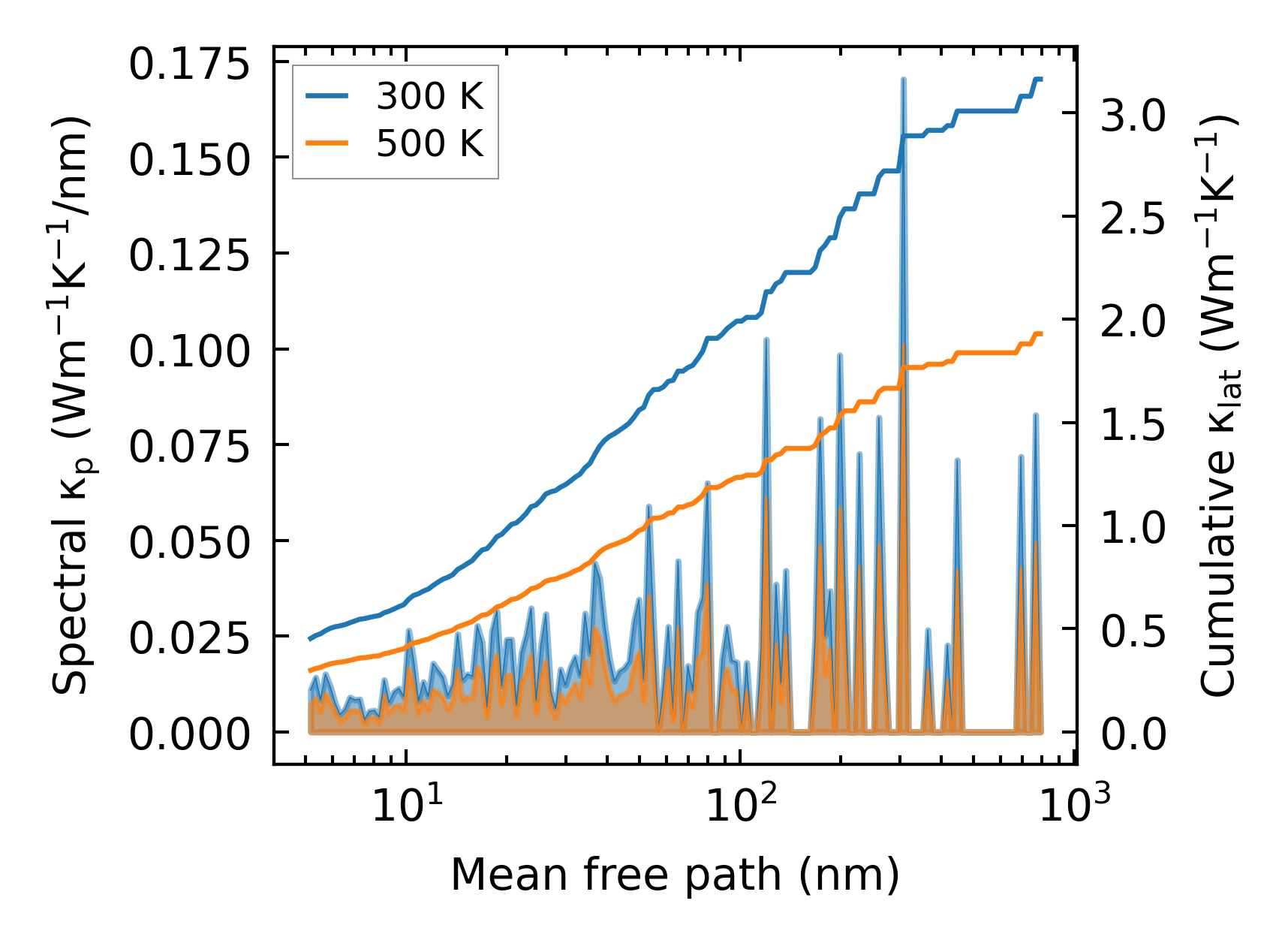

../../_images/fig_cumu_mfp2699.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc26471.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa5180.png — (a) Temperature-dependent lattice thermal conductivity

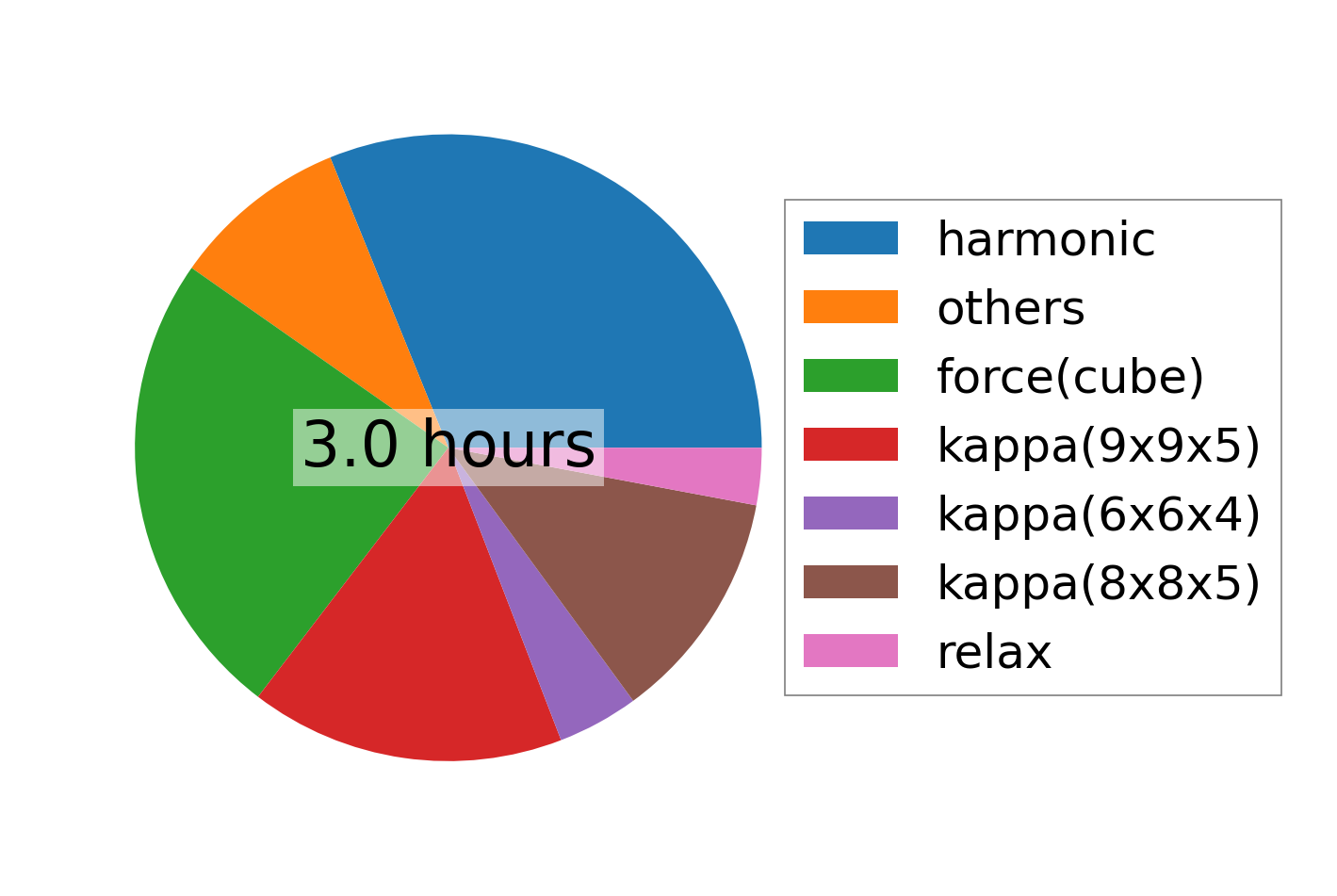

../../_images/fig_times11985.png — (b) Computation time
