mp-571162/Ca3Ga2N4/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-571162.tar.gz

Harmonic properties

../../_images/fig_bandos_pr6906.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6906.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2854.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2854.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x13, supercell: 1x2x2

../../_images/fig_kappa5415.png — (a) Temperature-dependent lattice thermal conductivity

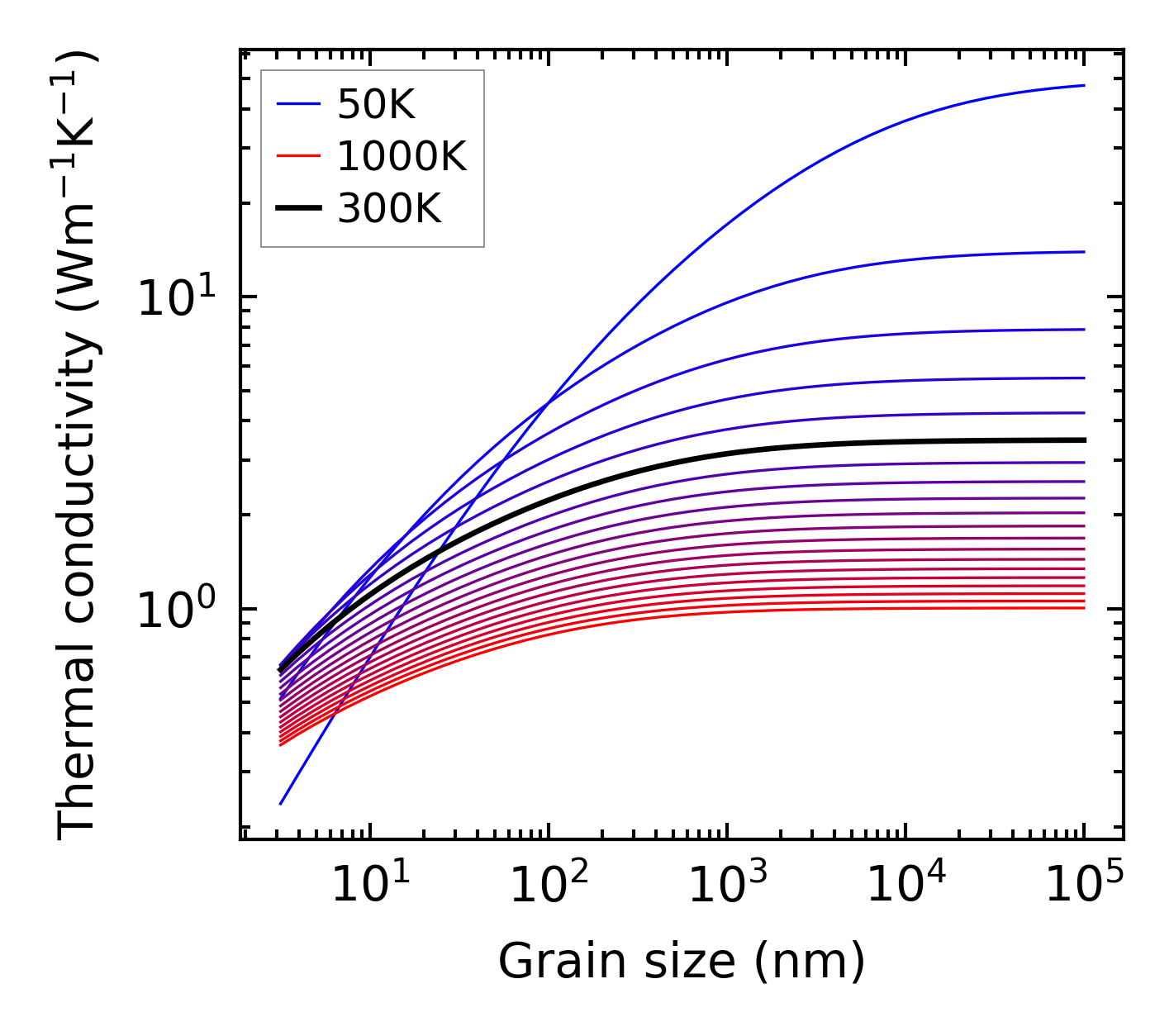

../../_images/fig_kappa_vs_grain_size2895.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

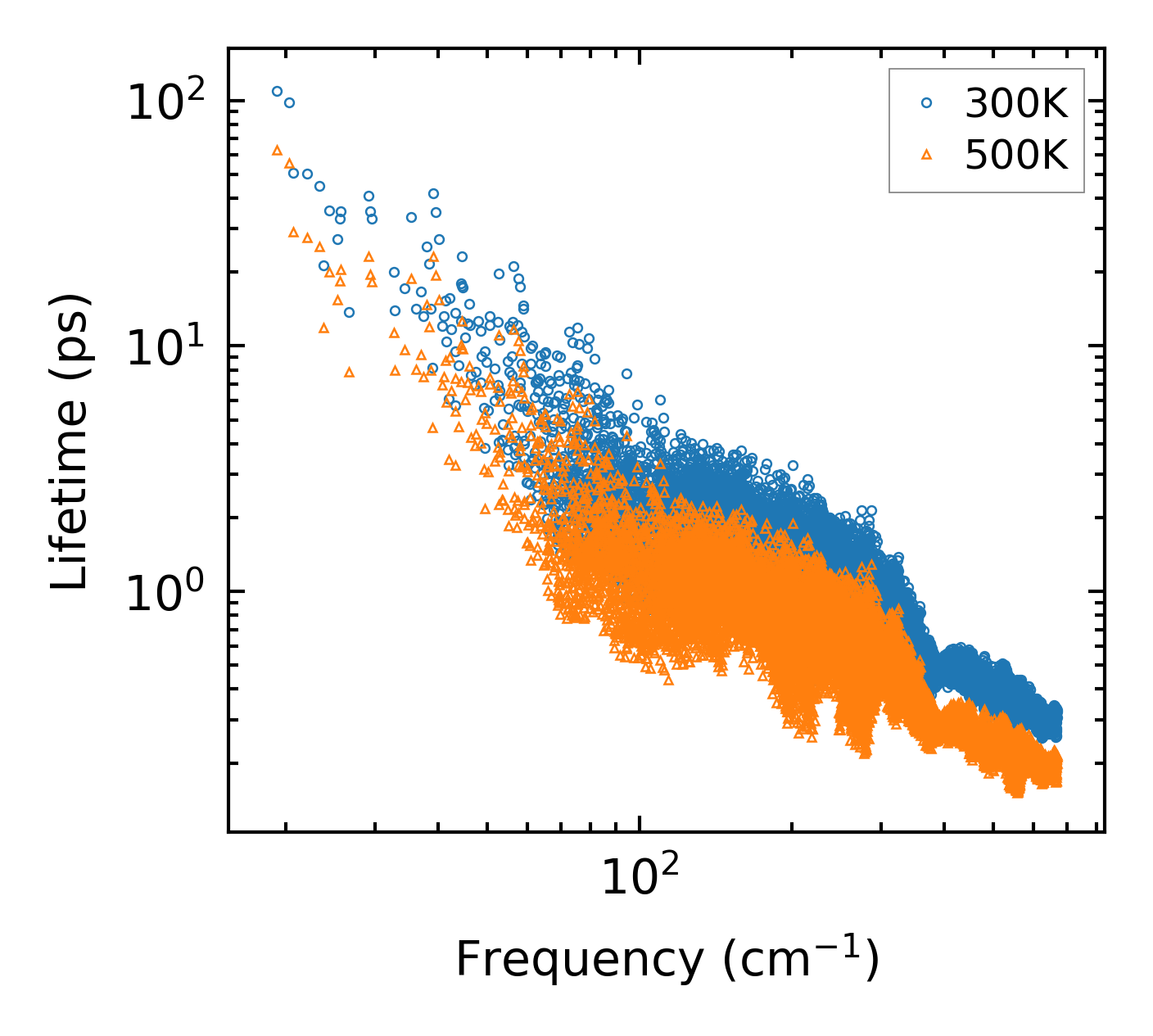

../../_images/fig_lifetime2830.png — (a) Phonon lifetime due to phonon-phonon scattering

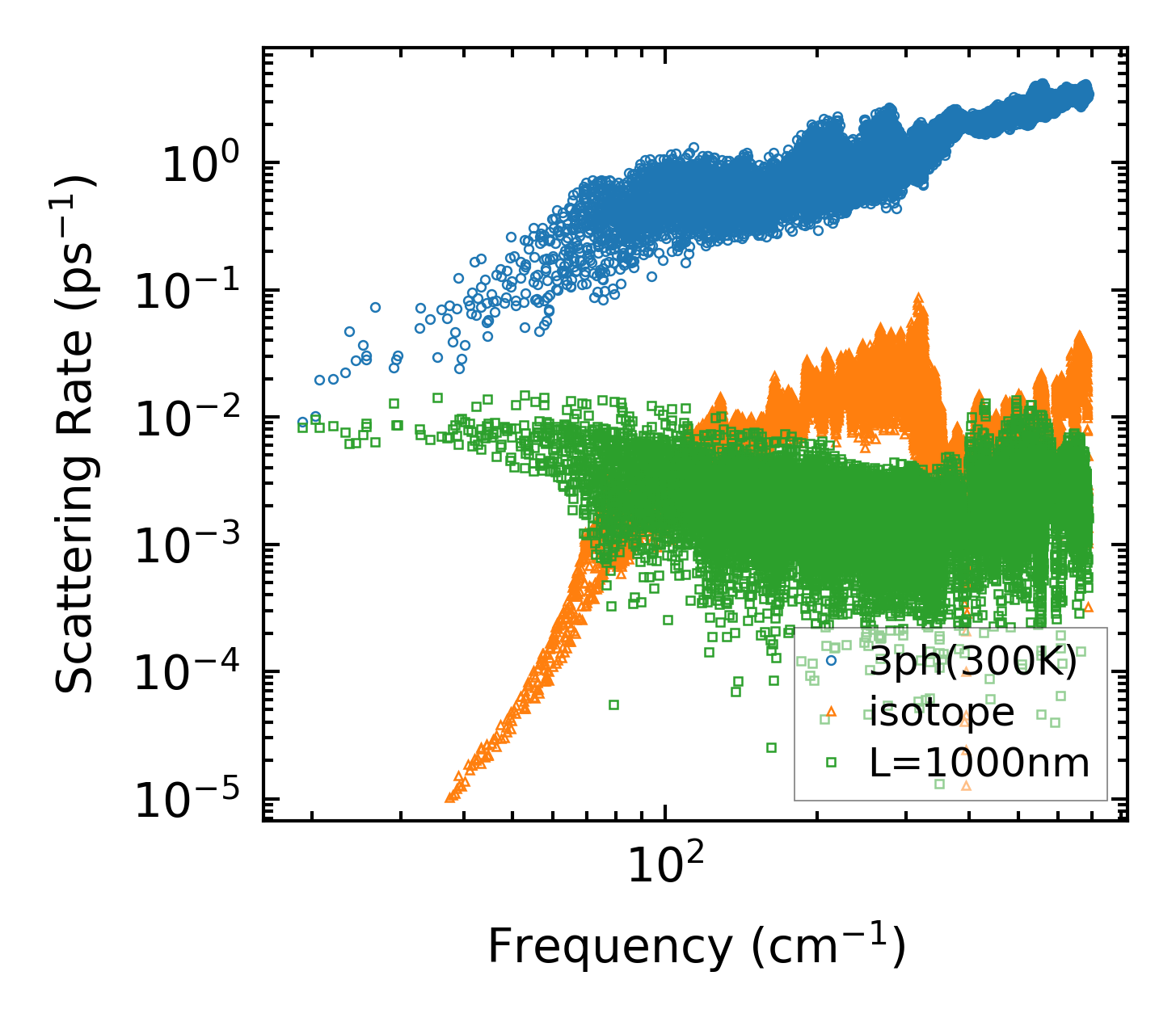

../../_images/fig_scat_rates2829.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

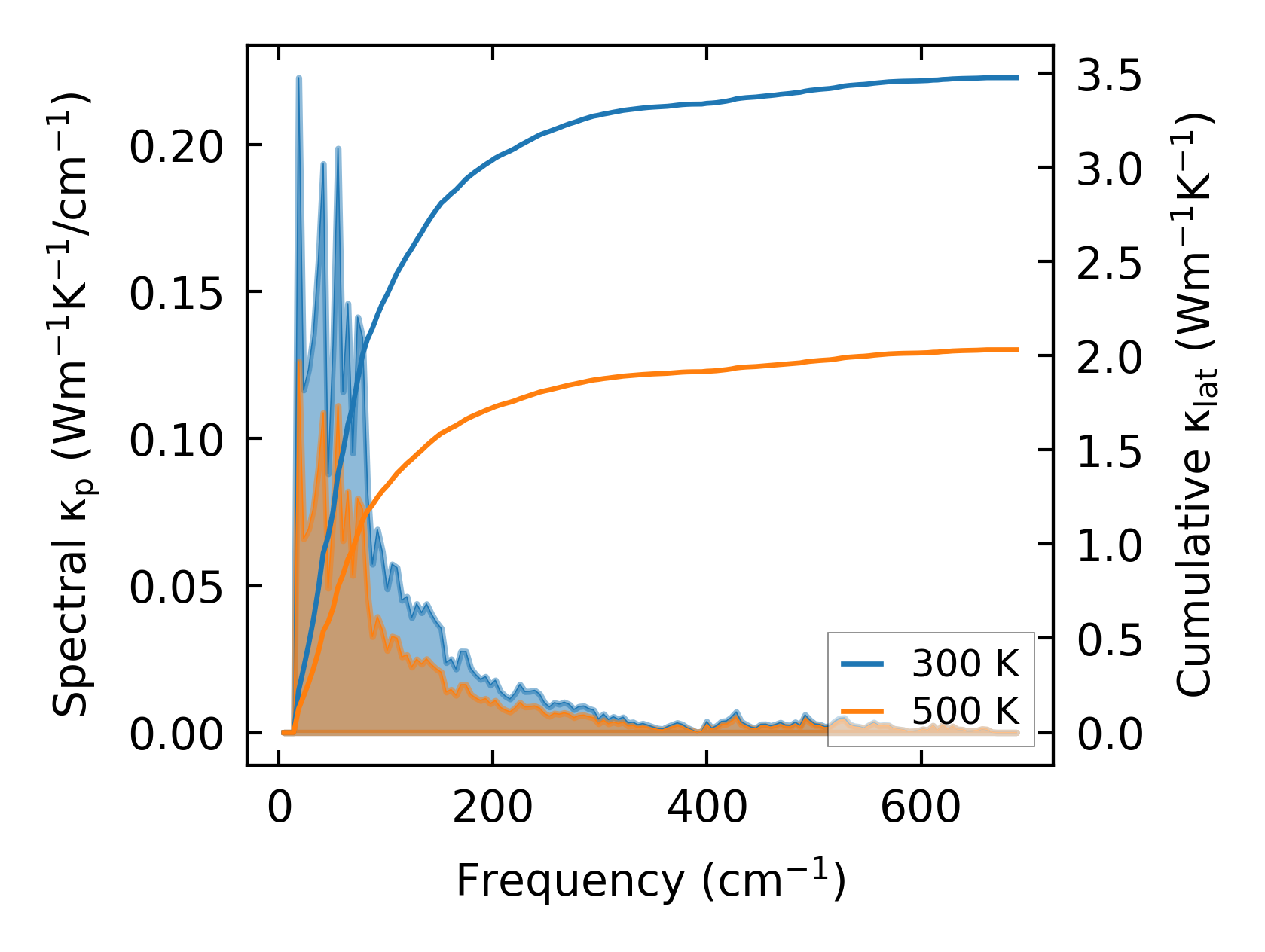

../../_images/fig_cumu_frequency2830.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

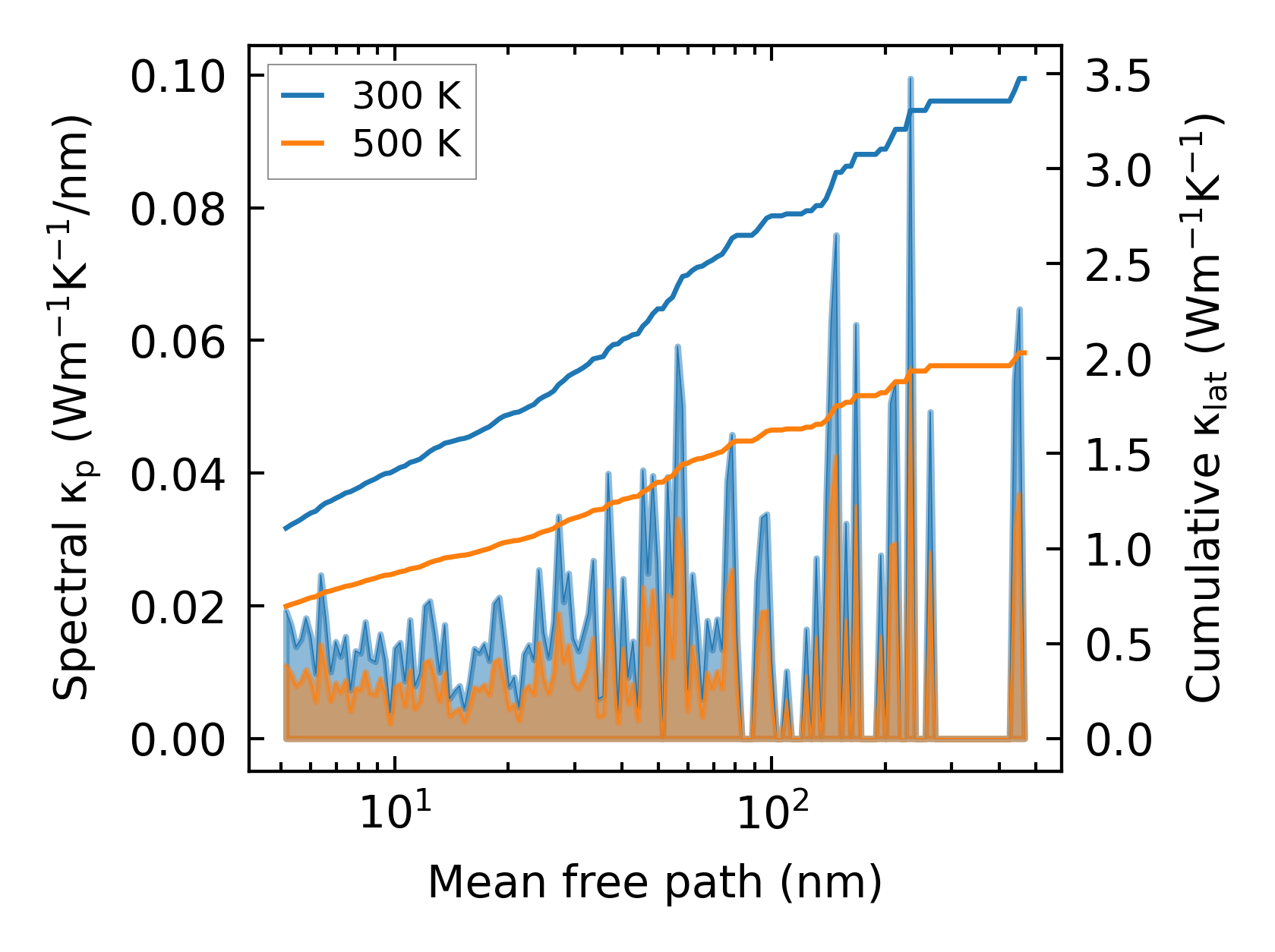

../../_images/fig_cumu_mfp2829.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

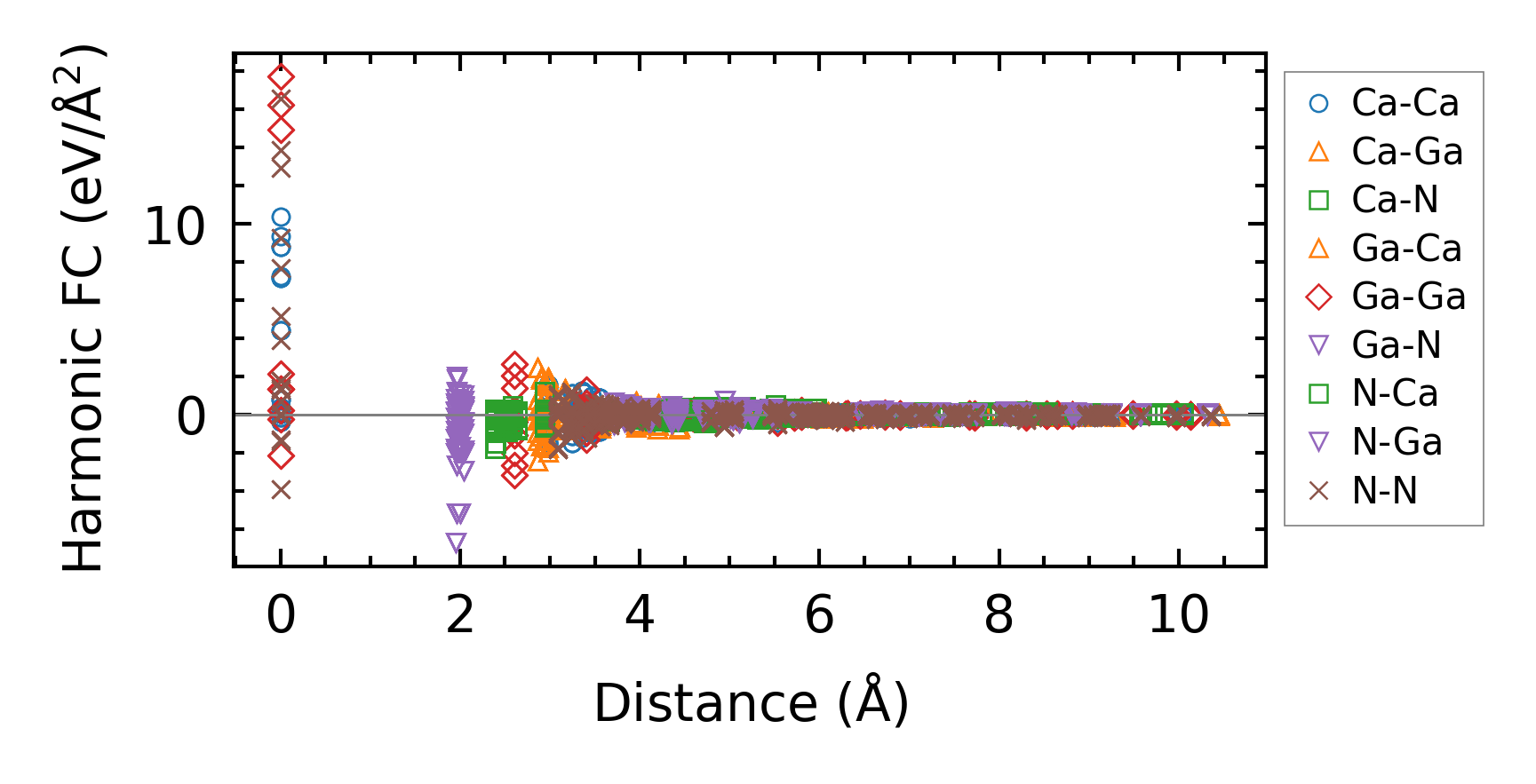

../../_images/fig_fc26686.png — (a) Force constants w.r.t atomic distance

Summary

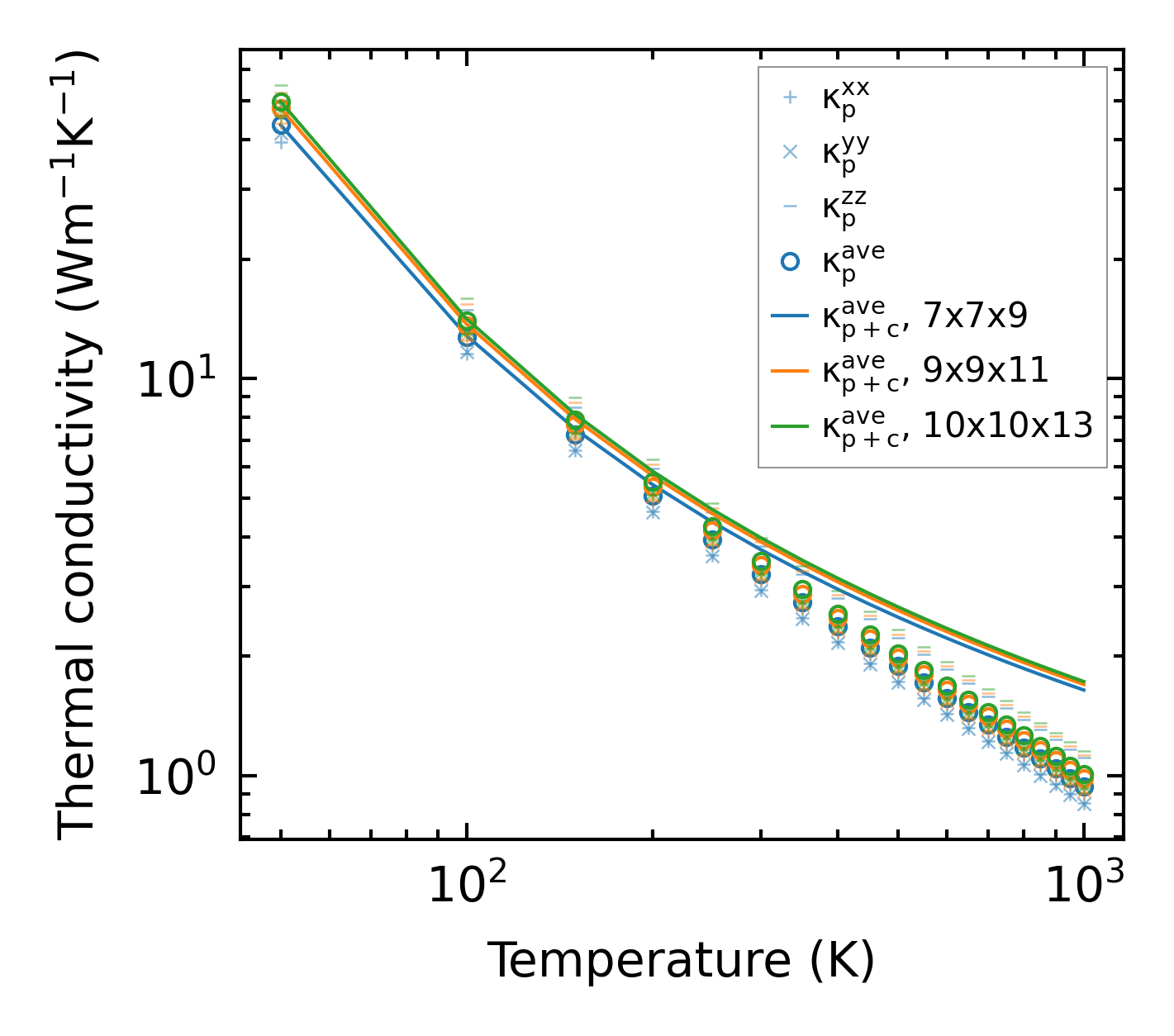

../../_images/fig_kappa5416.png — (a) Temperature-dependent lattice thermal conductivity

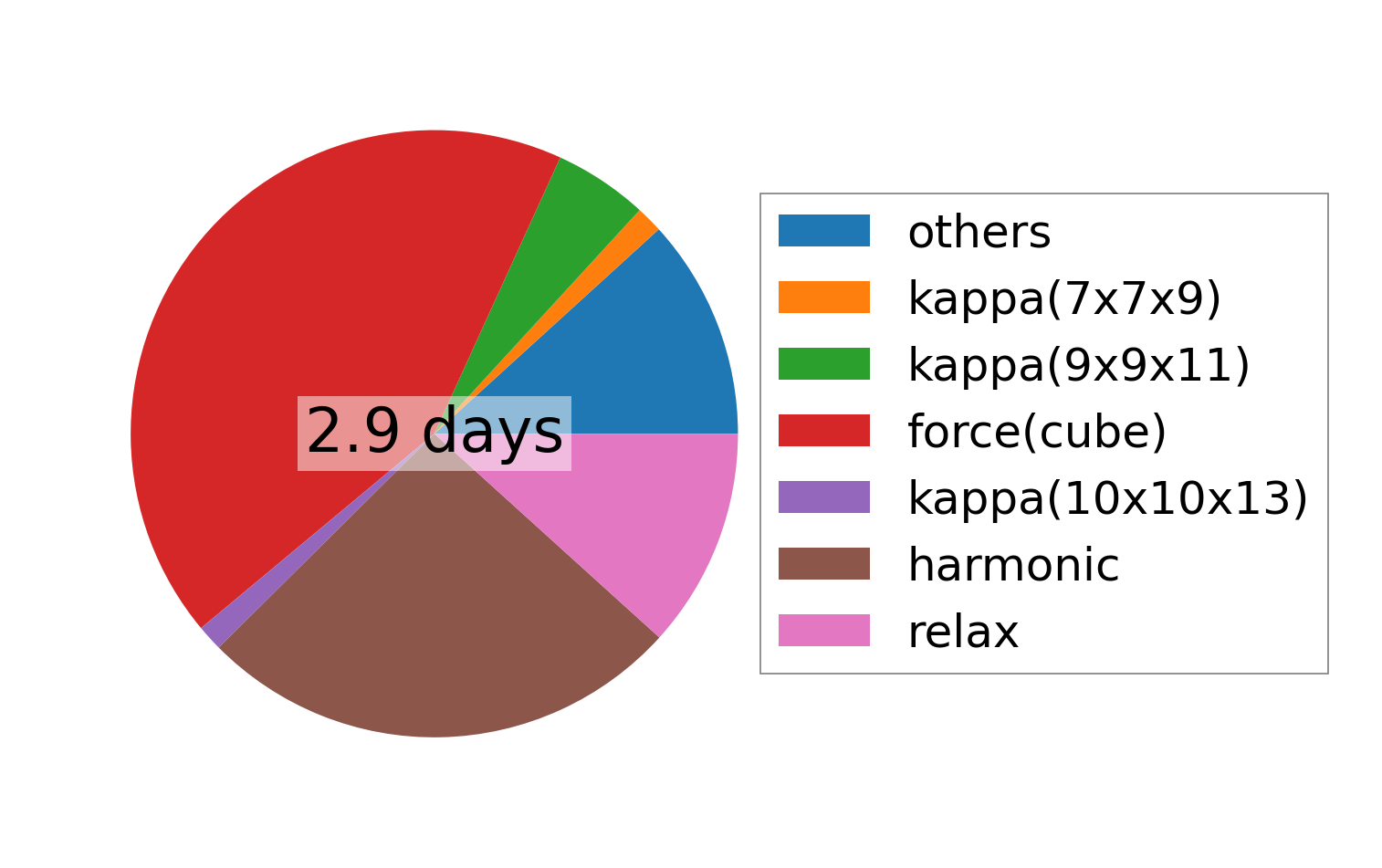

../../_images/fig_times12387.png — (b) Computation time
