mp-571164-2/Rb3AgSn3Se8/anharm

Space group: P4/nbm (125)
Link: Materials Project
Download: mp-571164-2.tar.gz

Equation of state

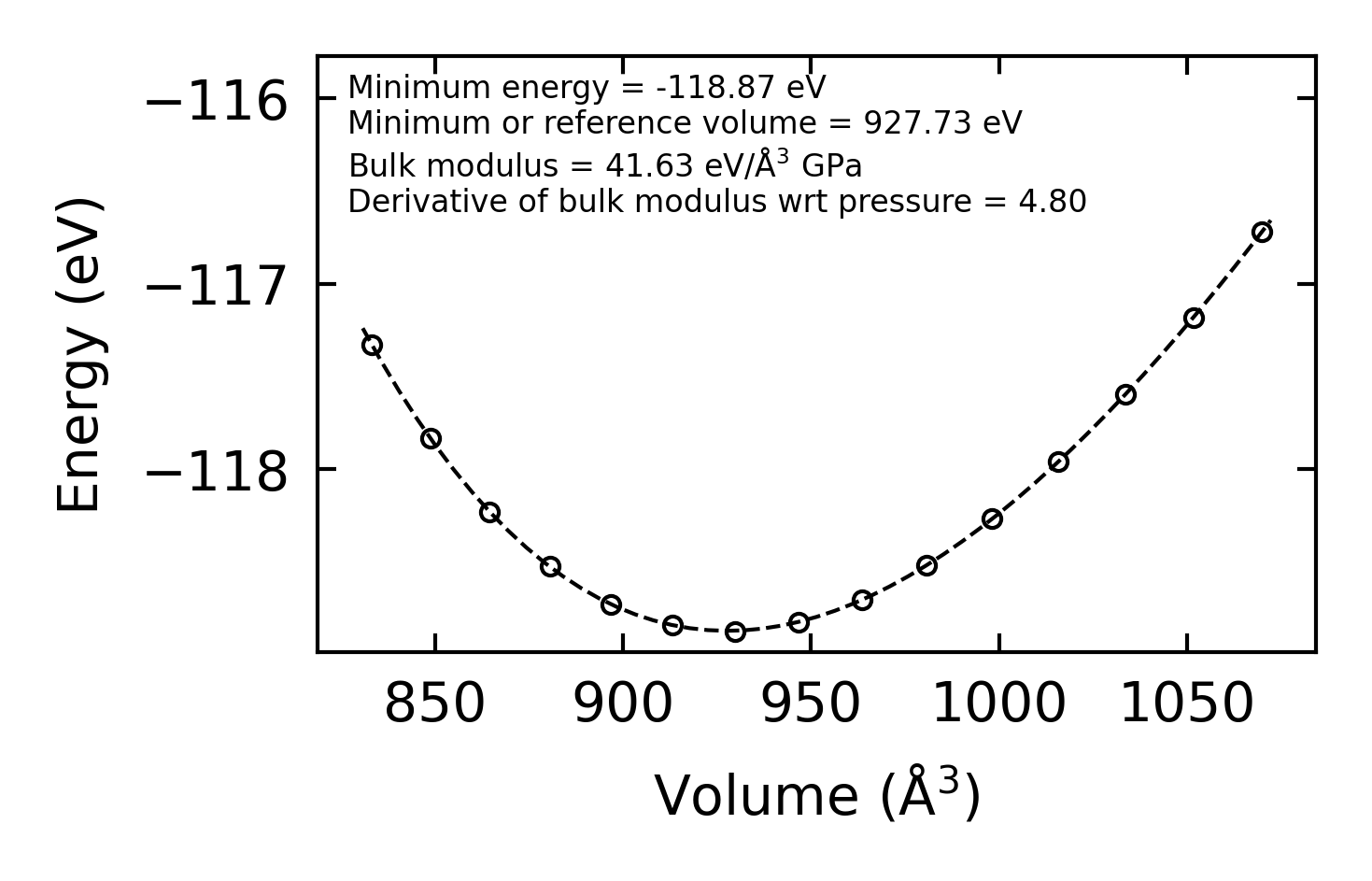

../../_images/fig_bm3696.png — (a) Equation of state

Harmonic properties

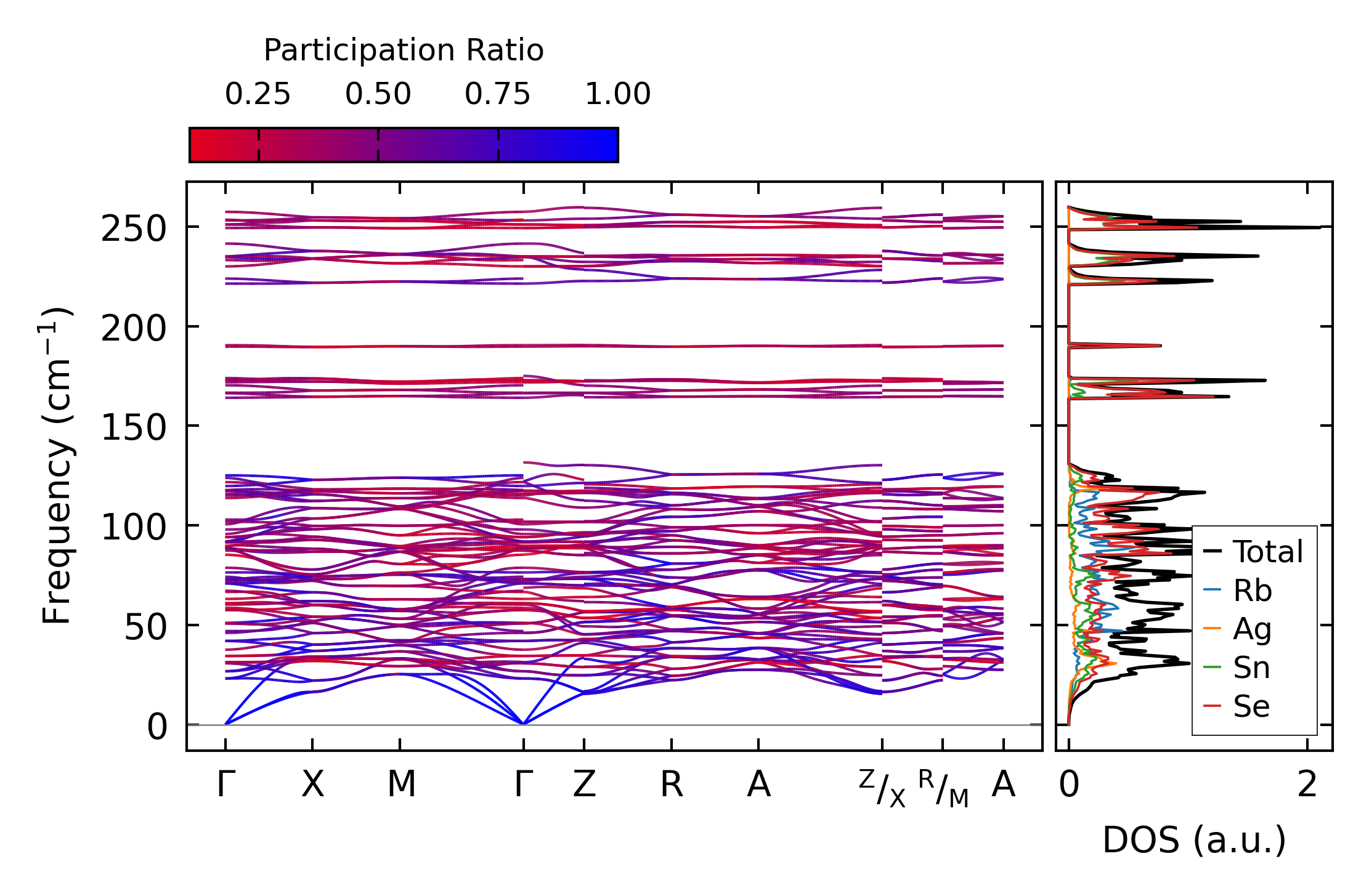

../../_images/fig_bandos_pr6907.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6907.png — (b) Thermodynamic properties

Grüneisen parameters

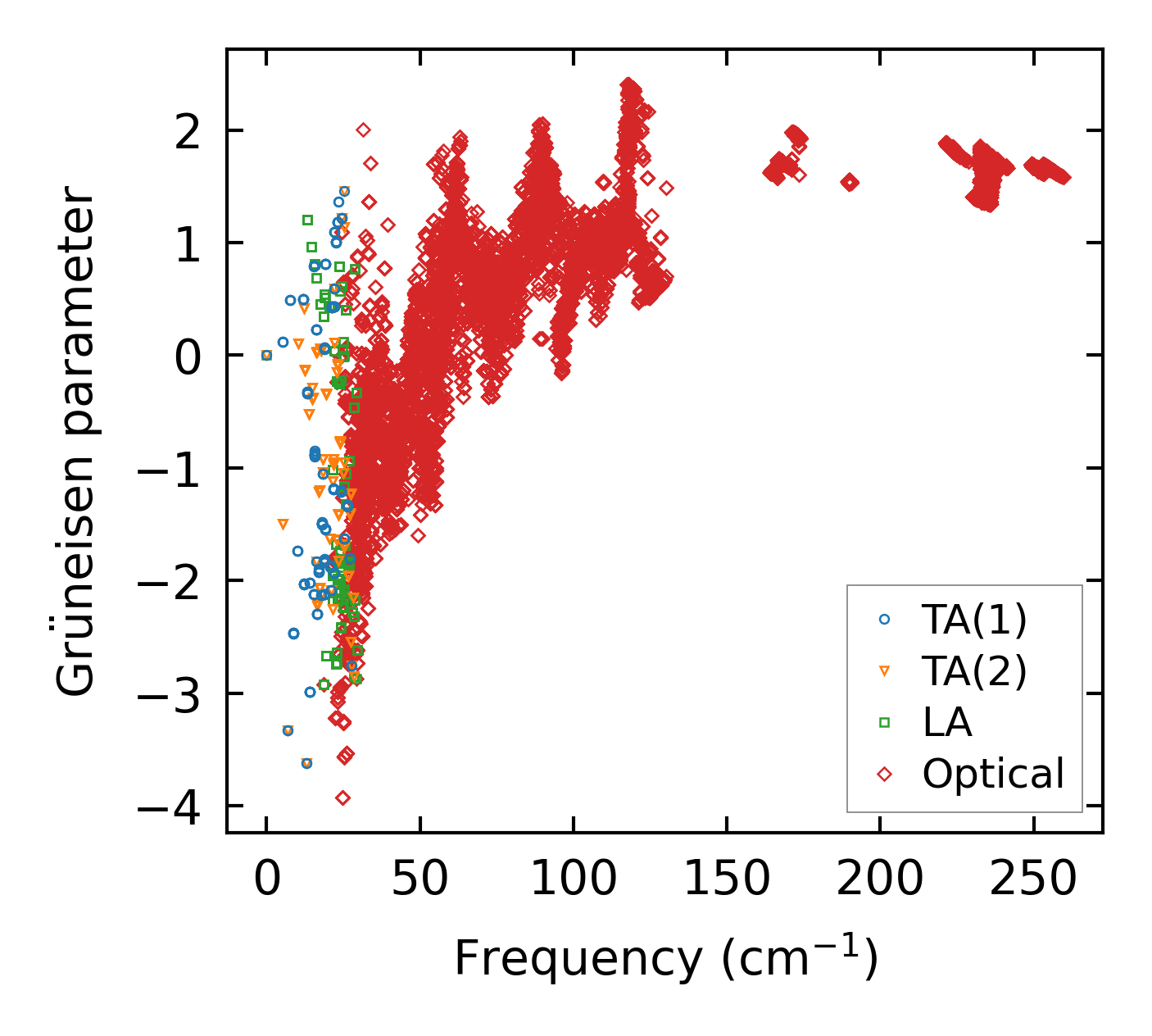

../../_images/fig_gru_all2855.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2855.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x5, supercell: 2x2x1

../../_images/fig_kappa5417.png — (a) Temperature-dependent lattice thermal conductivity

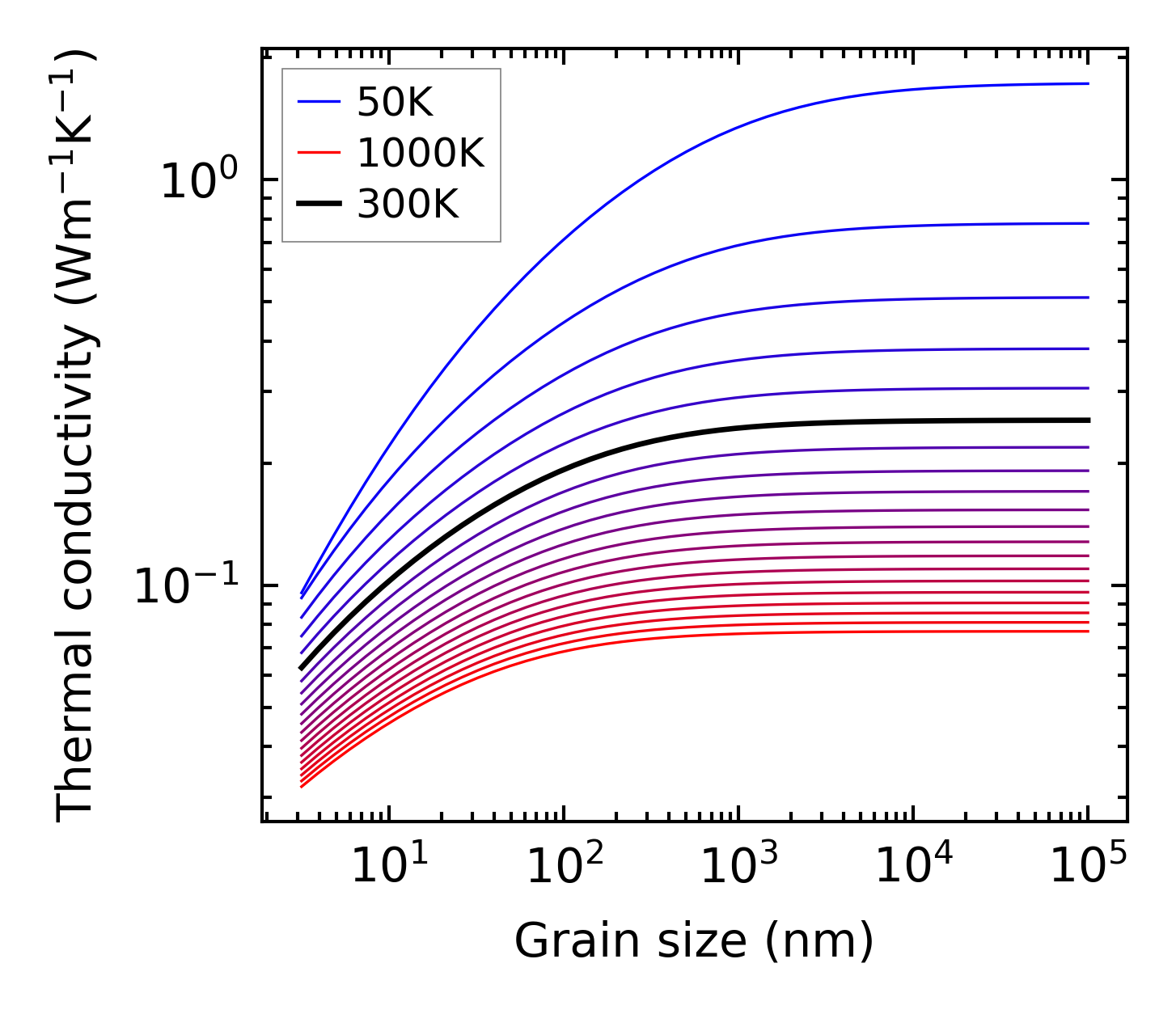

../../_images/fig_kappa_vs_grain_size2896.png — (b) Peierls lattice thermal conductivity w.r.t grain size

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 8x8x5, supercell: 2x2x2

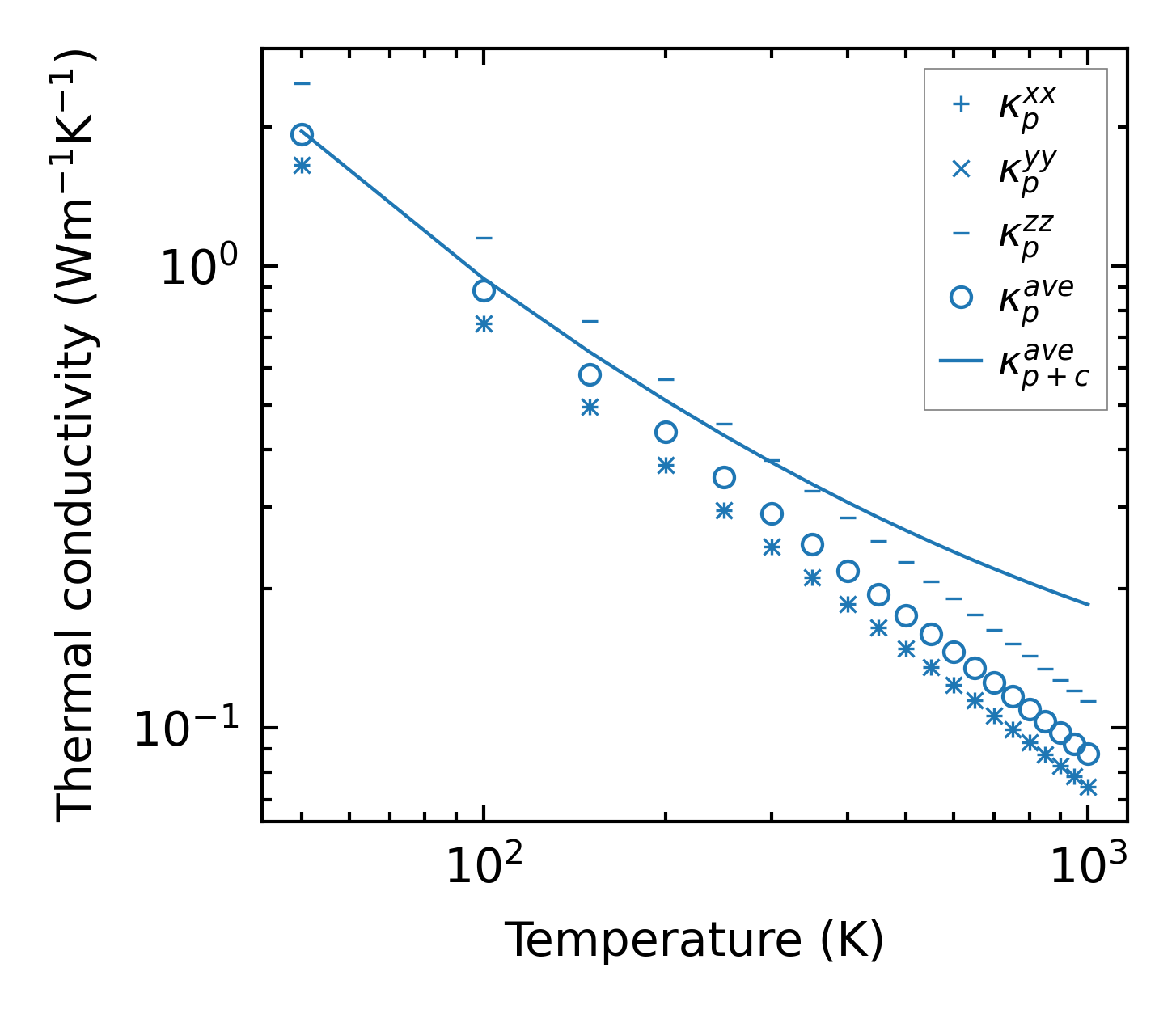

../../_images/fig_kappa5418.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2897.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

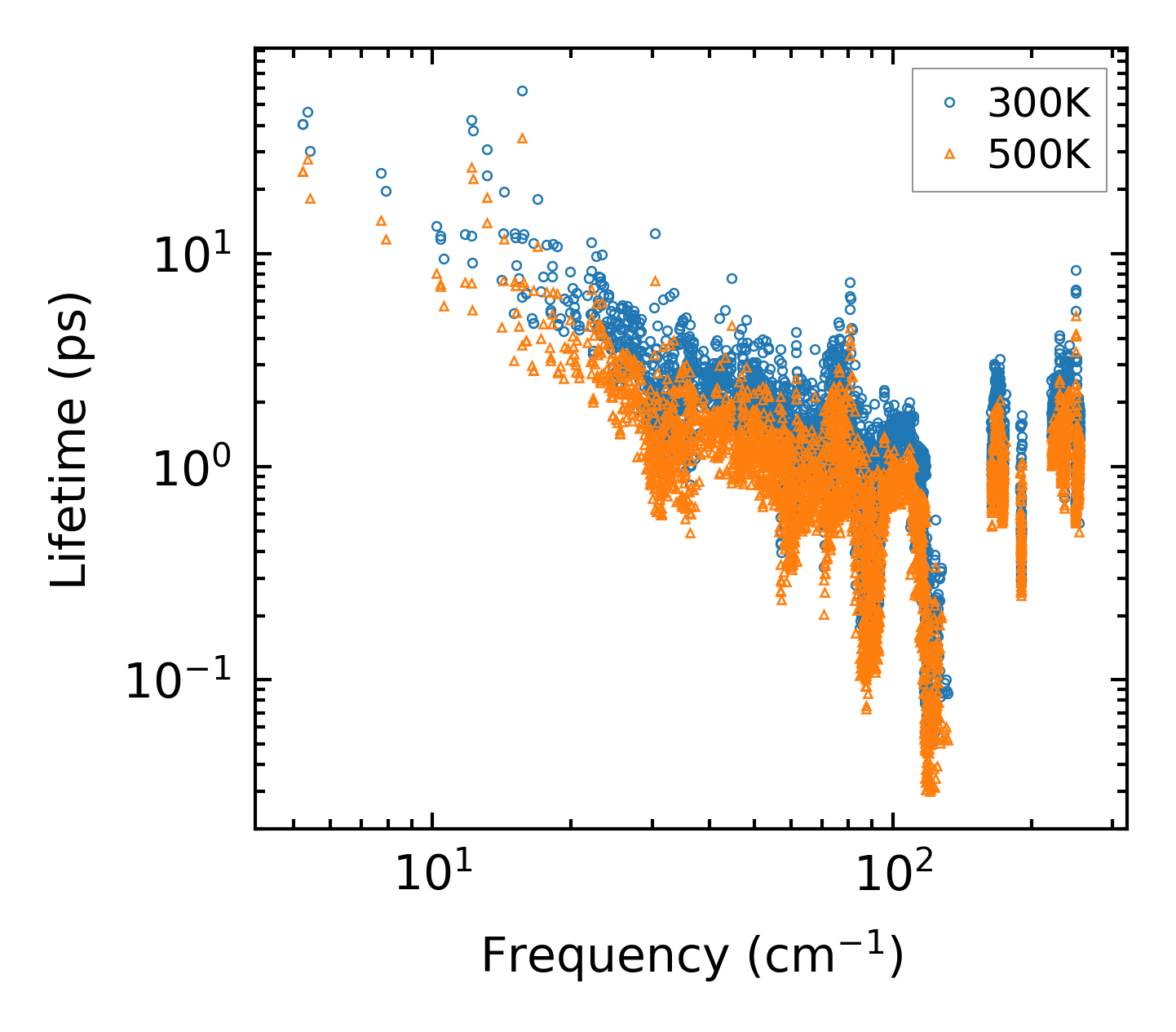

../../_images/fig_lifetime2831.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2830.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2831.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2830.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc26687.png — (a) Force constants w.r.t atomic distance

Summary

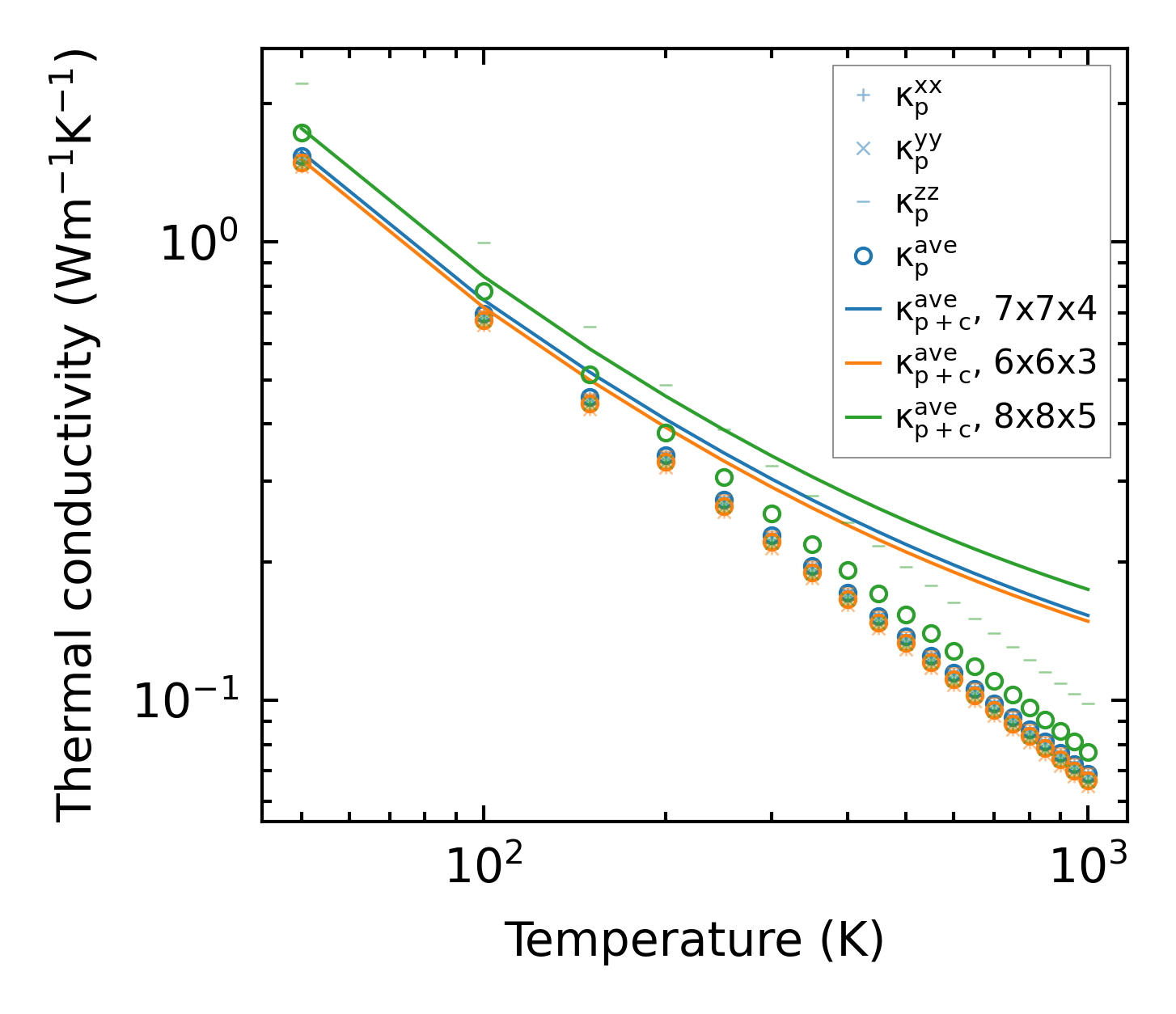

../../_images/fig_kappa5419.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times12389.png — (b) Computation time
