mp-567885/C3N4/harm

Harmonic properties

../../_images/fig_bandos_pr7219.png

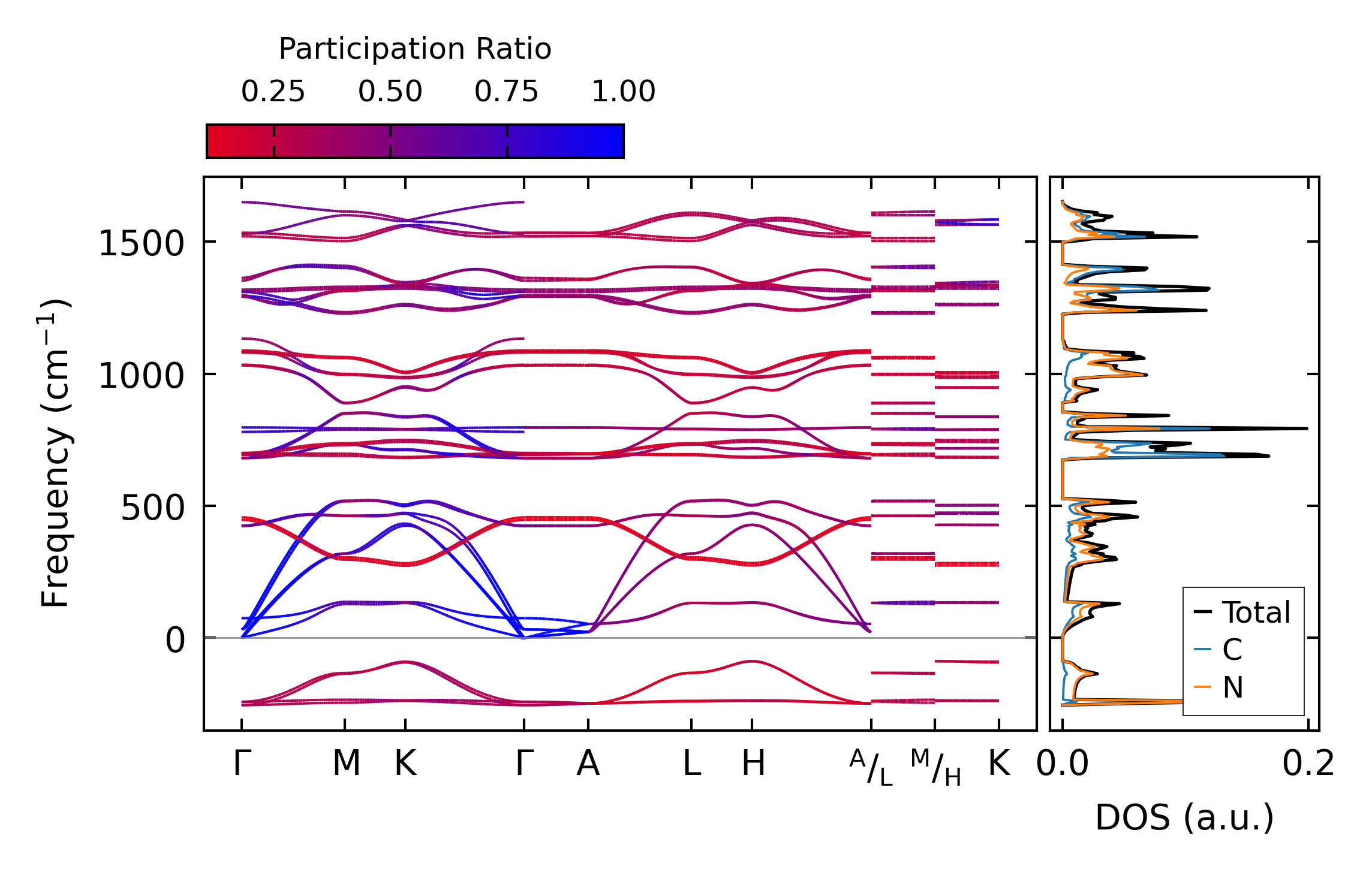

(a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos10203.png

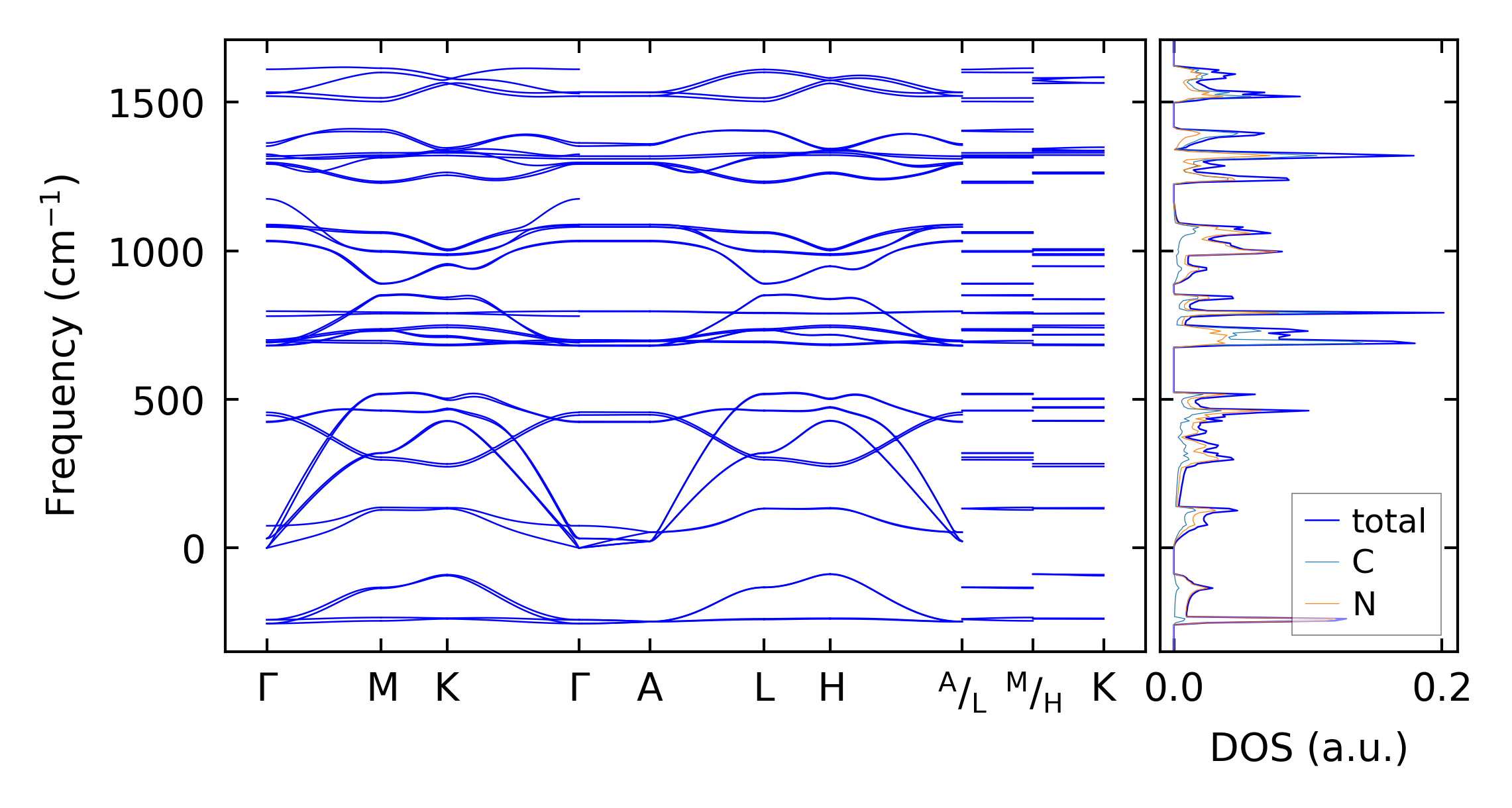

(b) Phonon dispersion and DOS

../../_images/fig_thermo7219.png

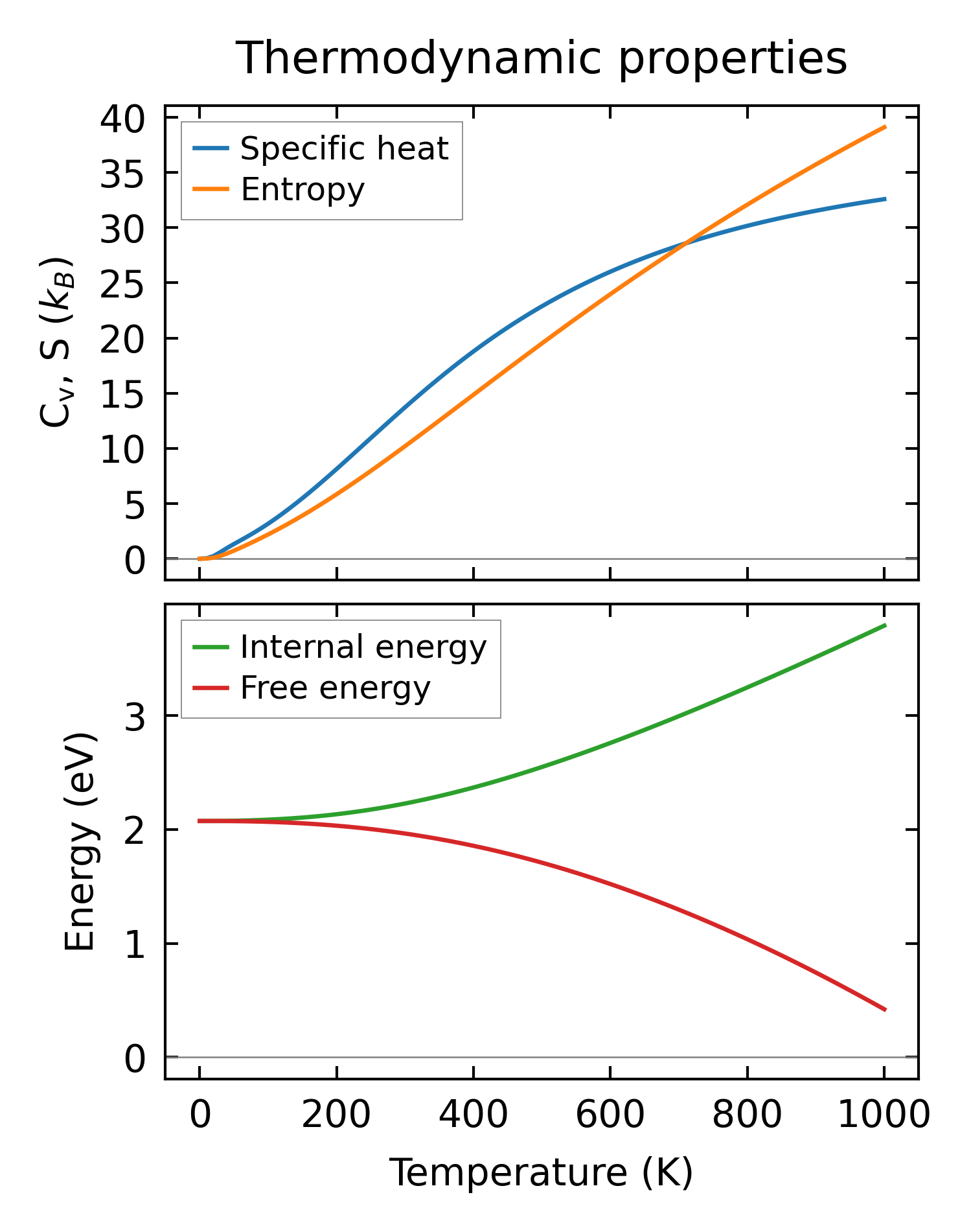

(c) Thermodynamic properties

Force constants

../../_images/fig_fc26986.png

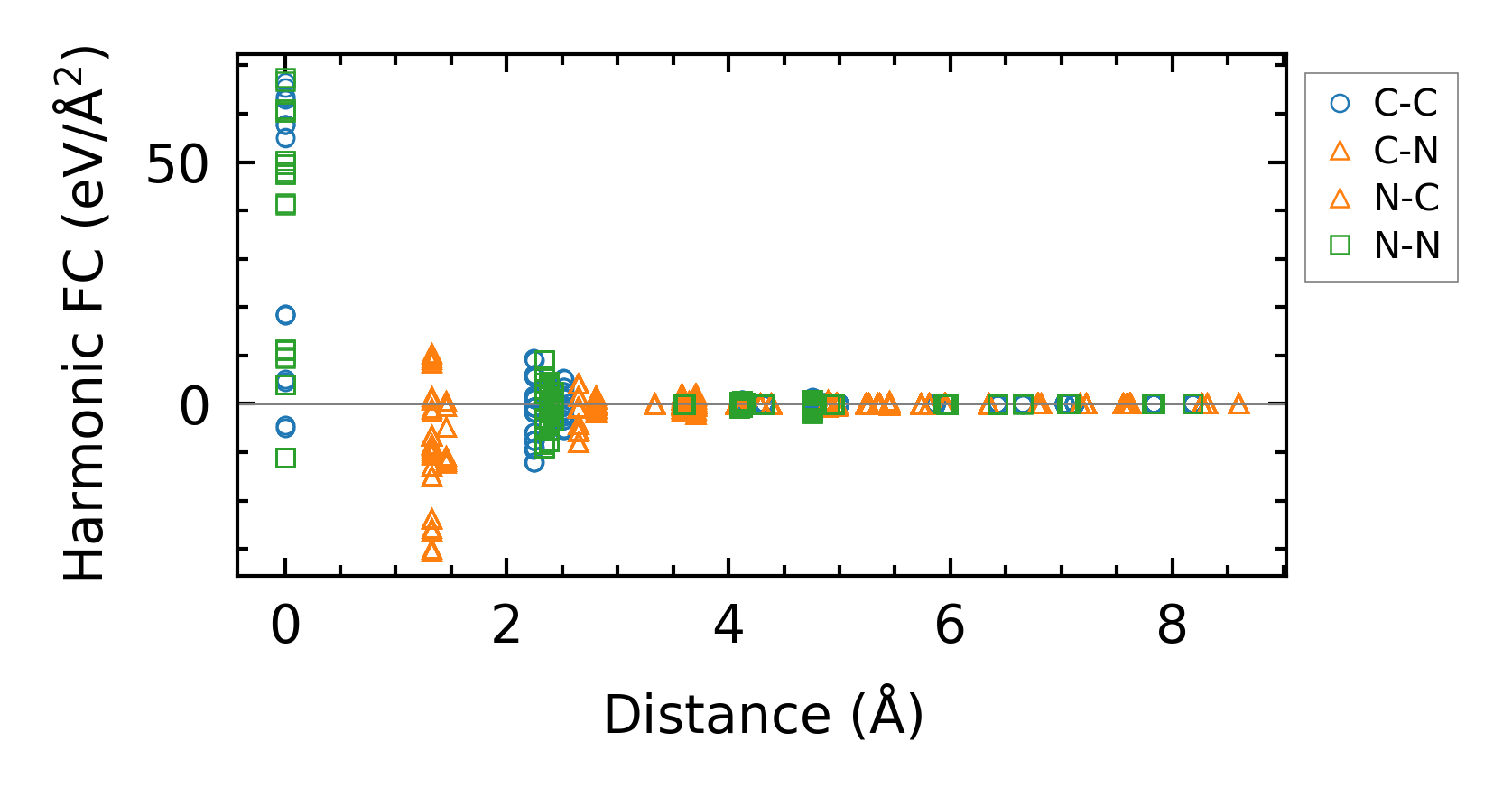

(a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times12838.png

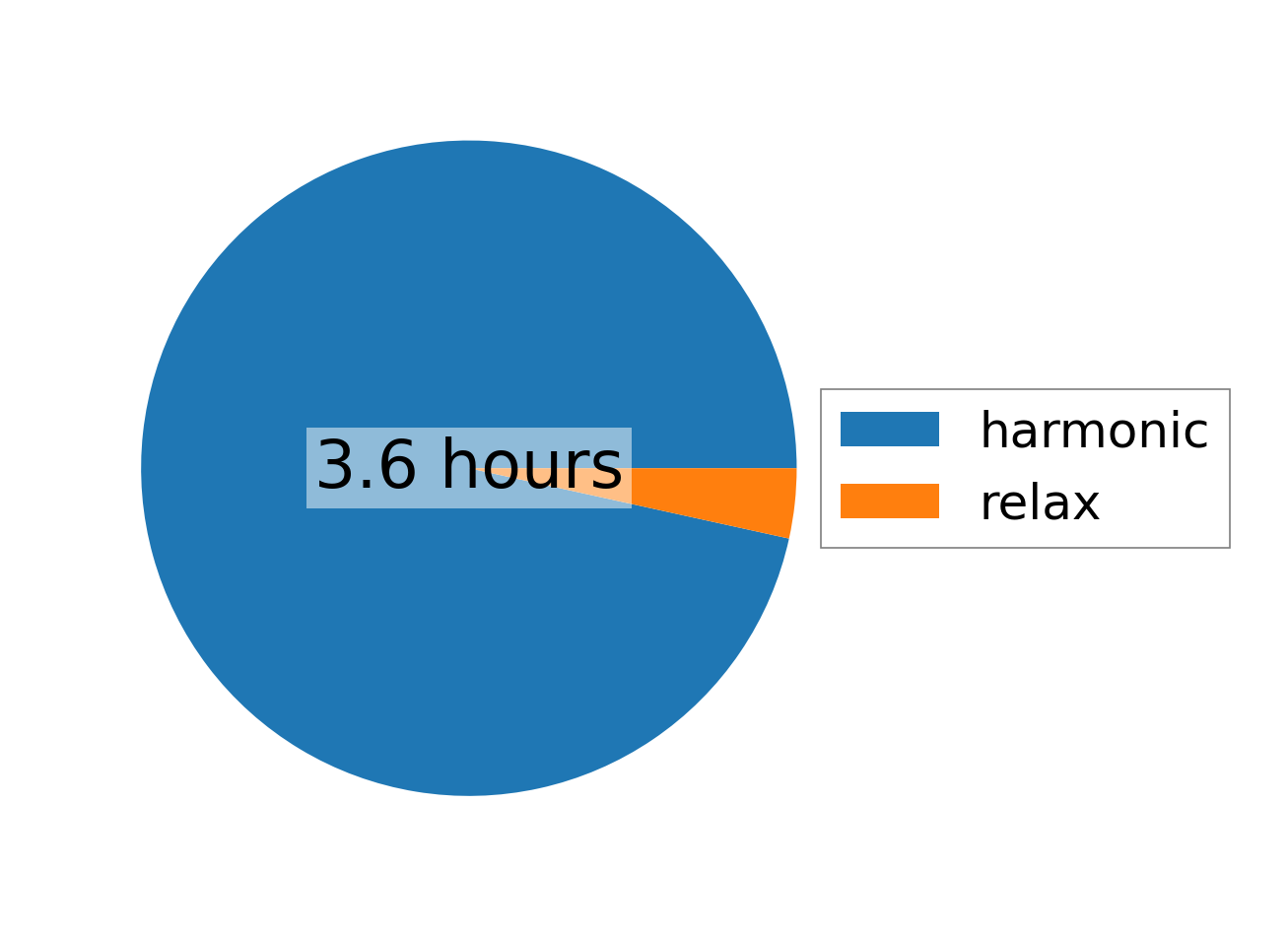

(a) Computation time
