mp-567644/RbCu2Br3/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-567644.tar.gz

Harmonic properties

../../_images/fig_bandos_pr7185.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7185.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all3012.png — (a) Grüneisen parameters

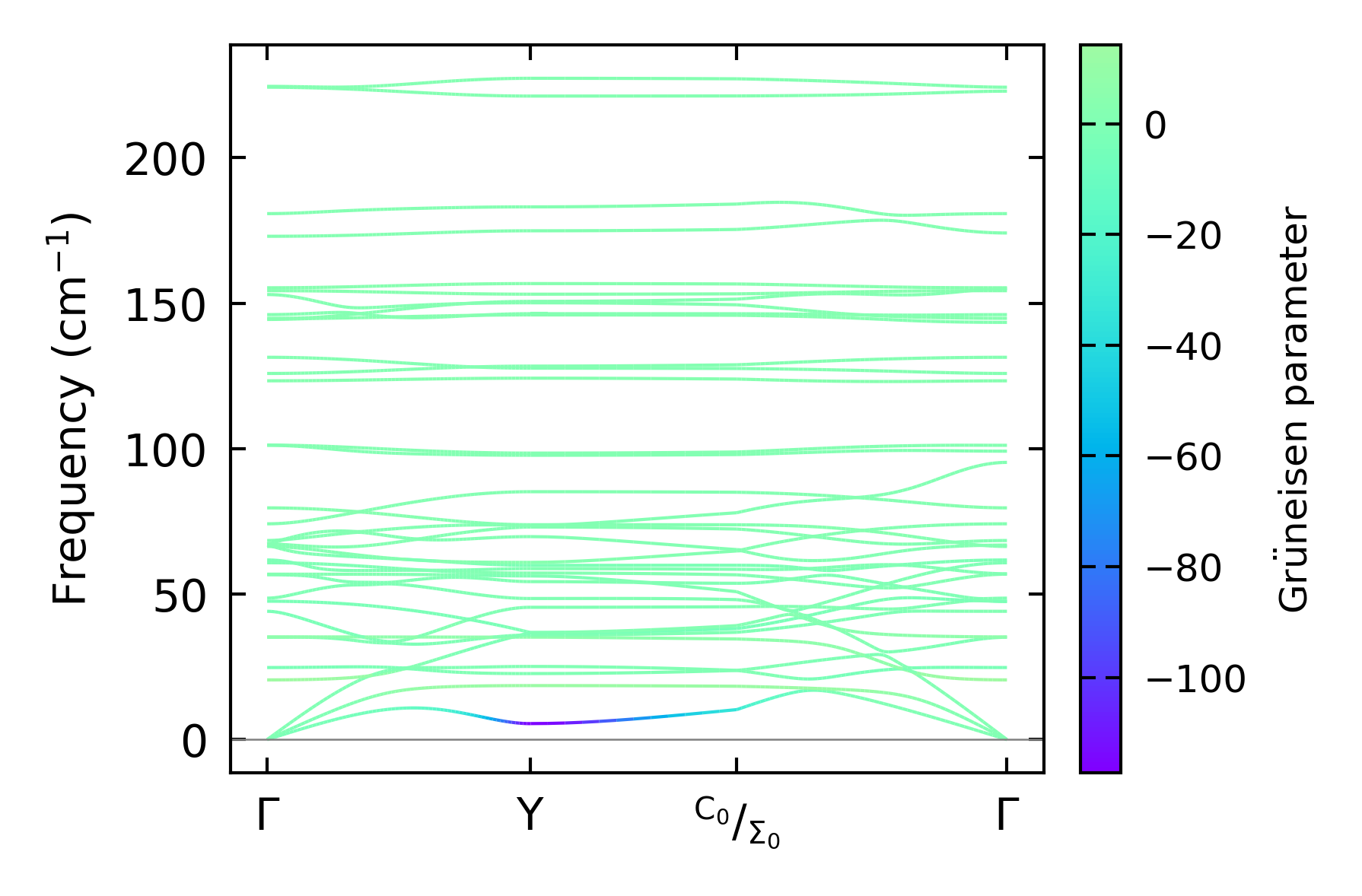

../../_images/fig_gruneisen3012.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x14, supercell: 2x1x3

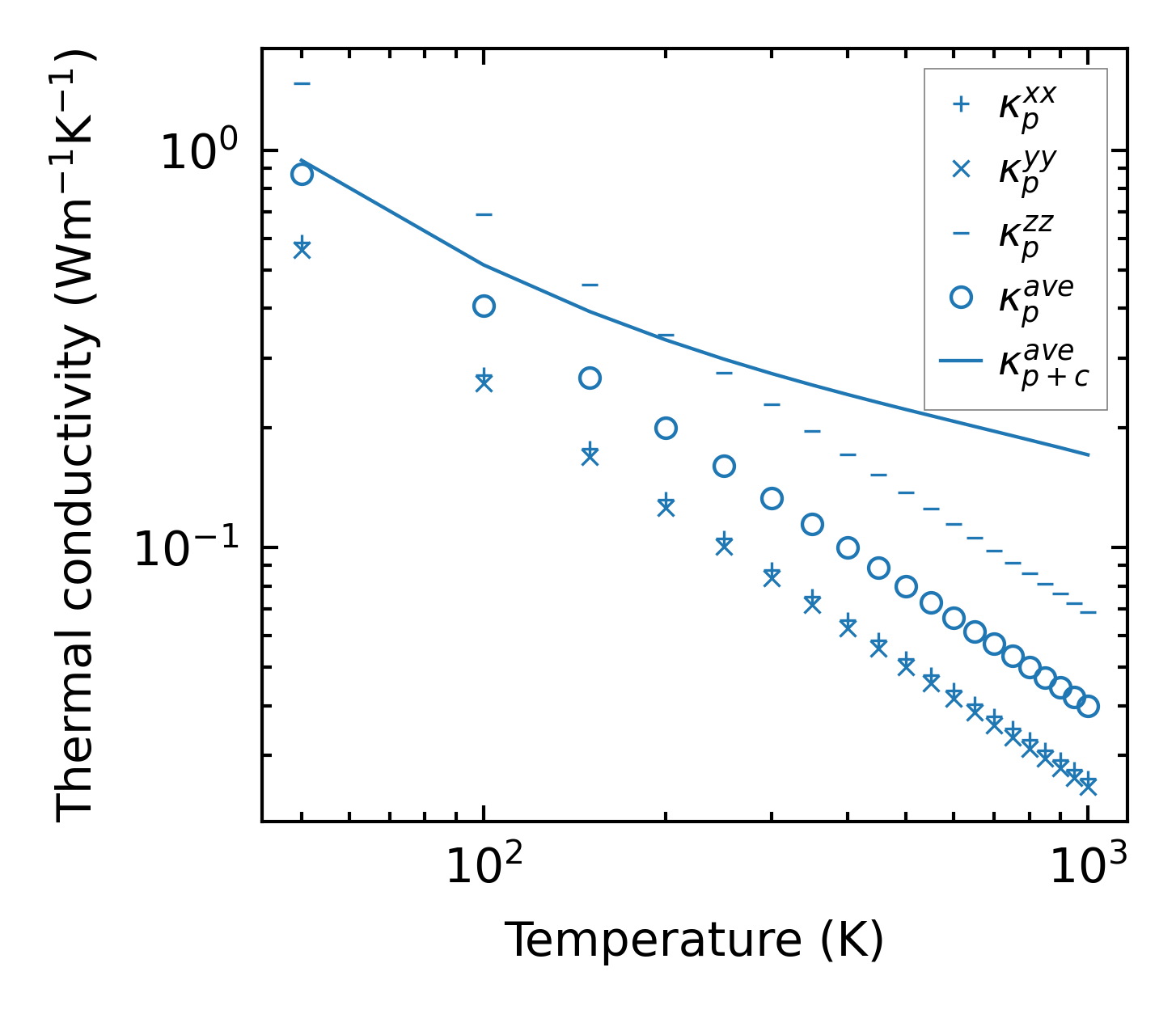

../../_images/fig_kappa5708.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3055.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2987.png — (a) Phonon lifetime due to phonon-phonon scattering

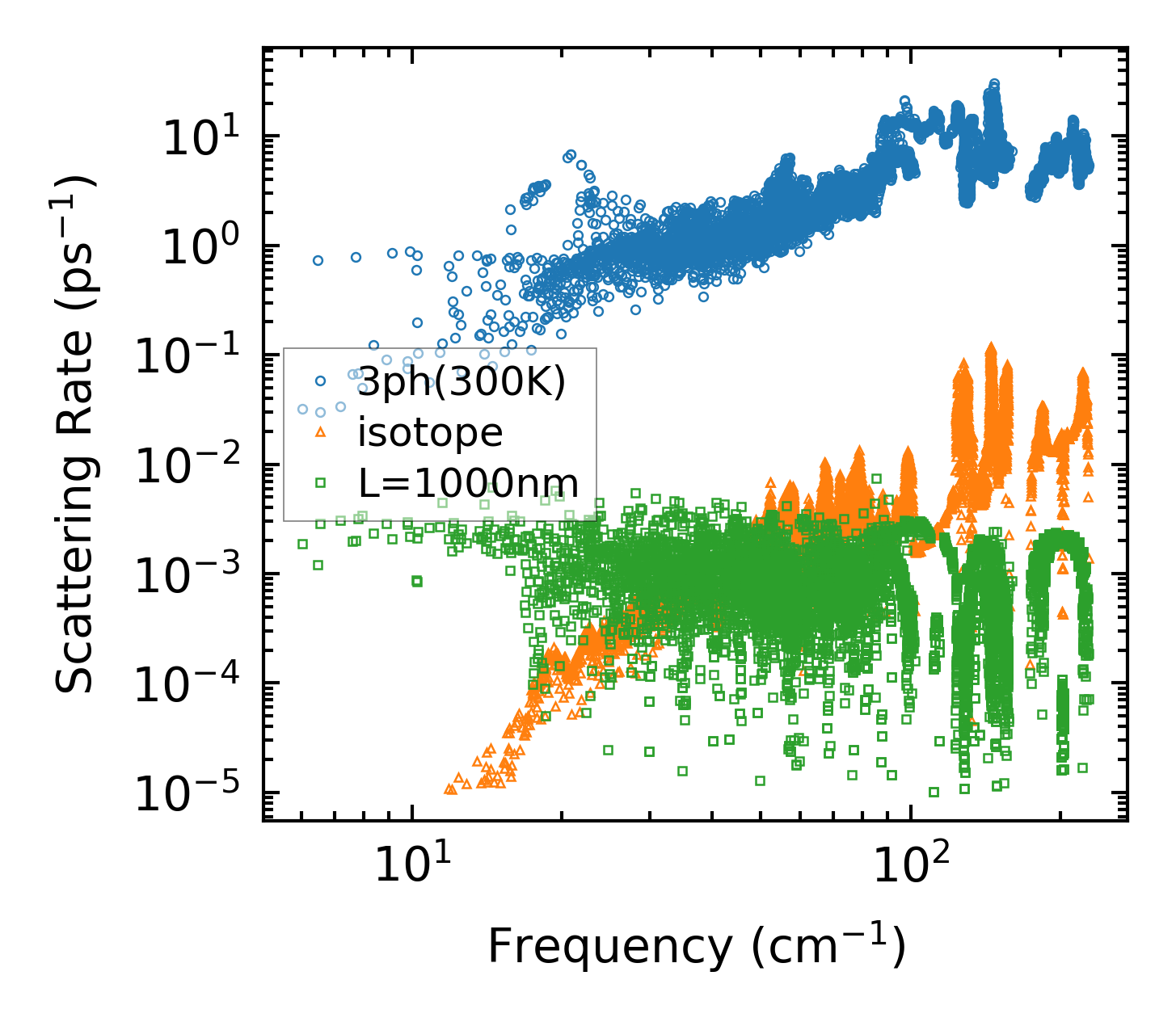

../../_images/fig_scat_rates2986.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

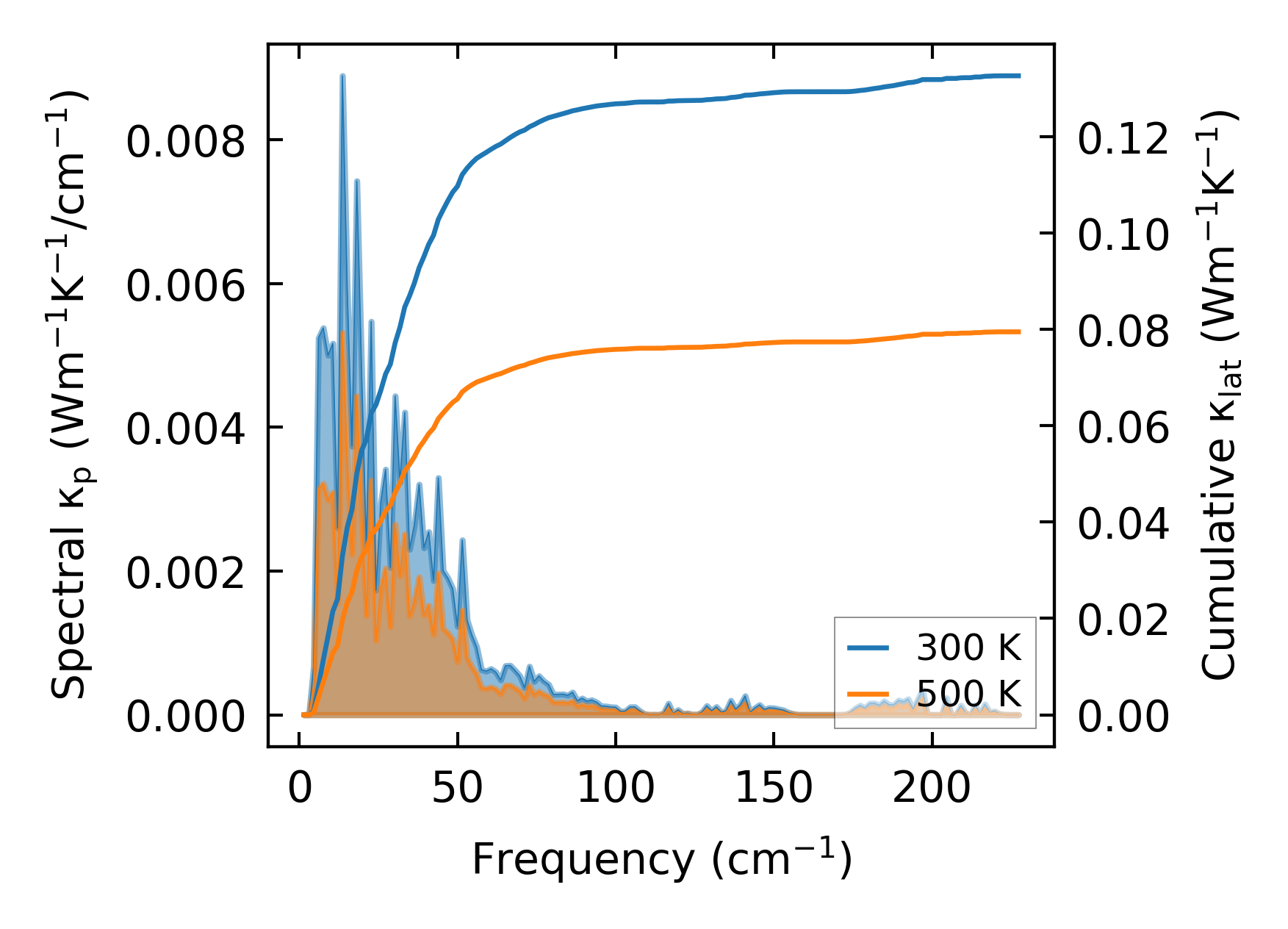

../../_images/fig_cumu_frequency2987.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

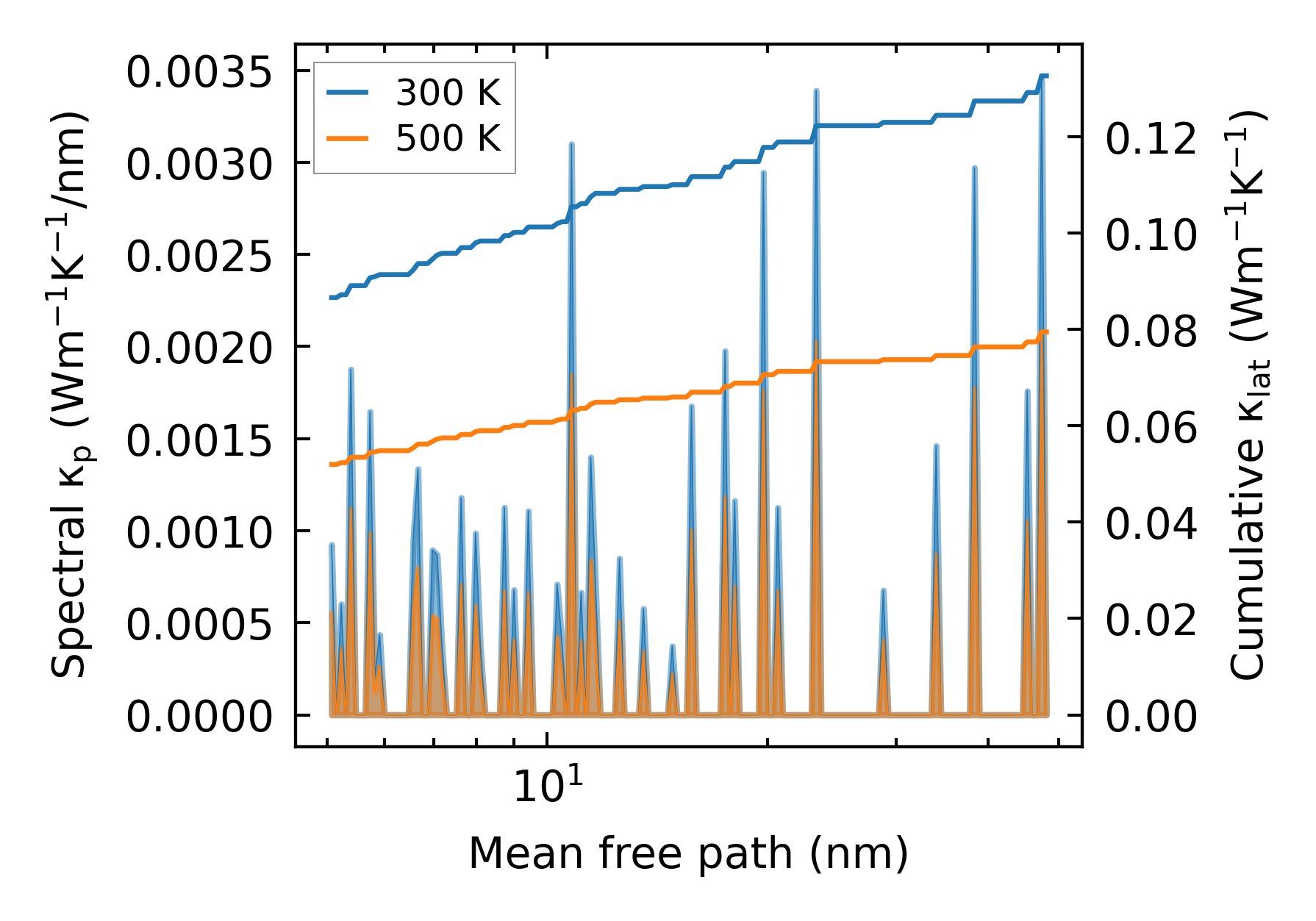

../../_images/fig_cumu_mfp2986.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

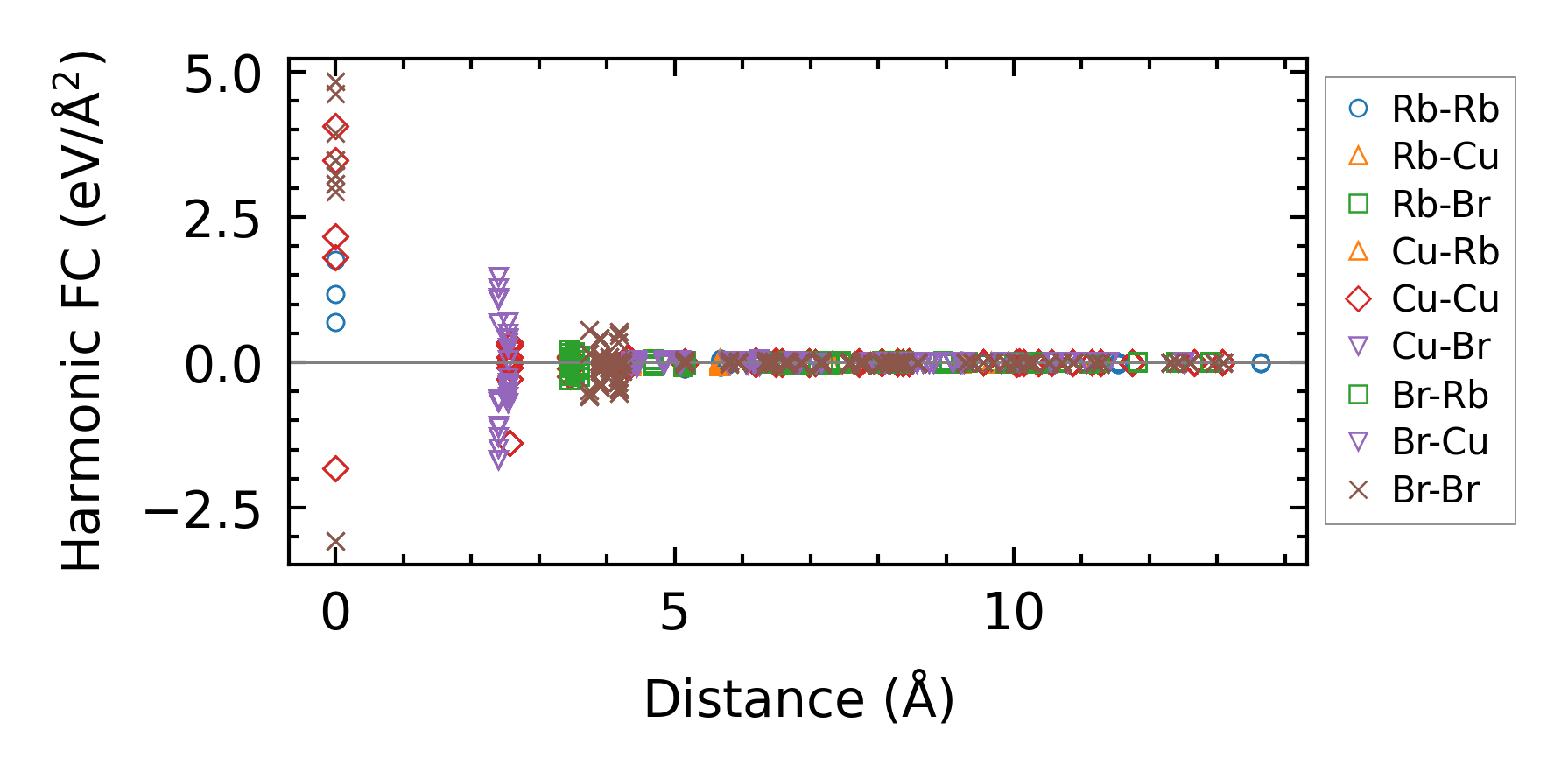

../../_images/fig_fc26954.png — (a) Force constants w.r.t atomic distance

Summary

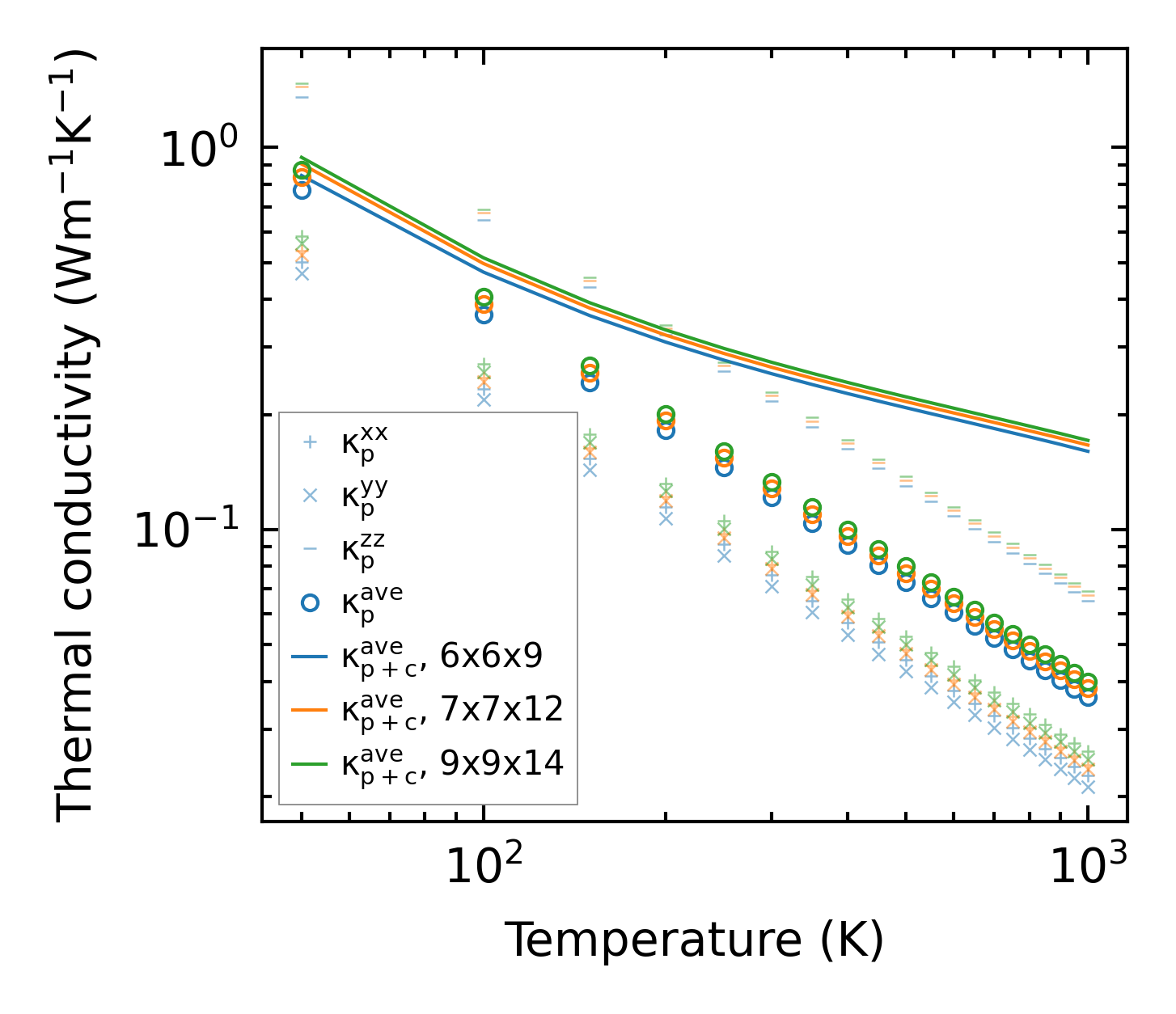

../../_images/fig_kappa5709.png — (a) Temperature-dependent lattice thermal conductivity

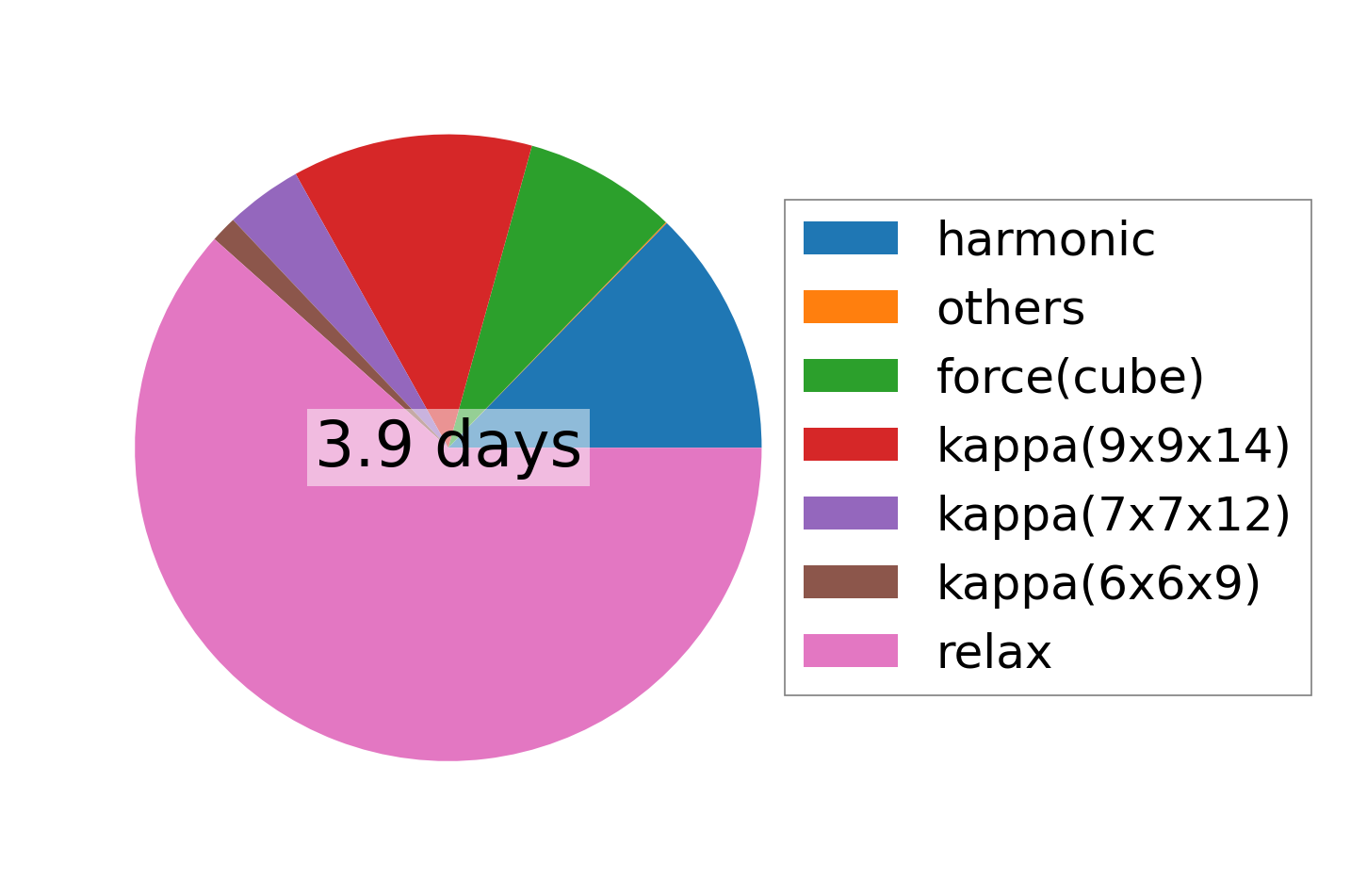

../../_images/fig_times12796.png — (b) Computation time
