mp-567763/PrC6N9/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-567763.tar.gz

Harmonic properties

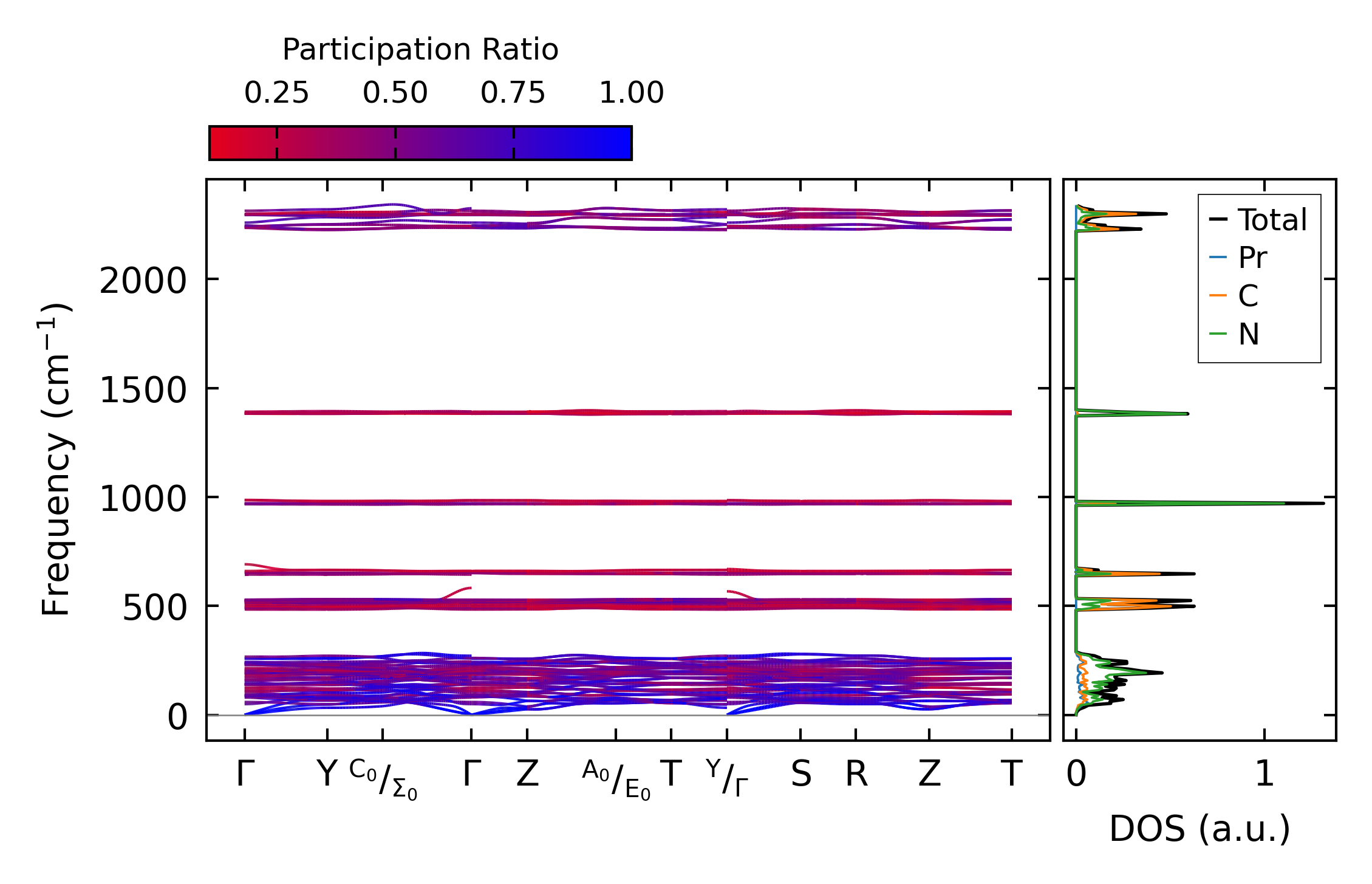

../../_images/fig_bandos_pr7203.png — (a) Phonon dispersion with participation ratio and DOS

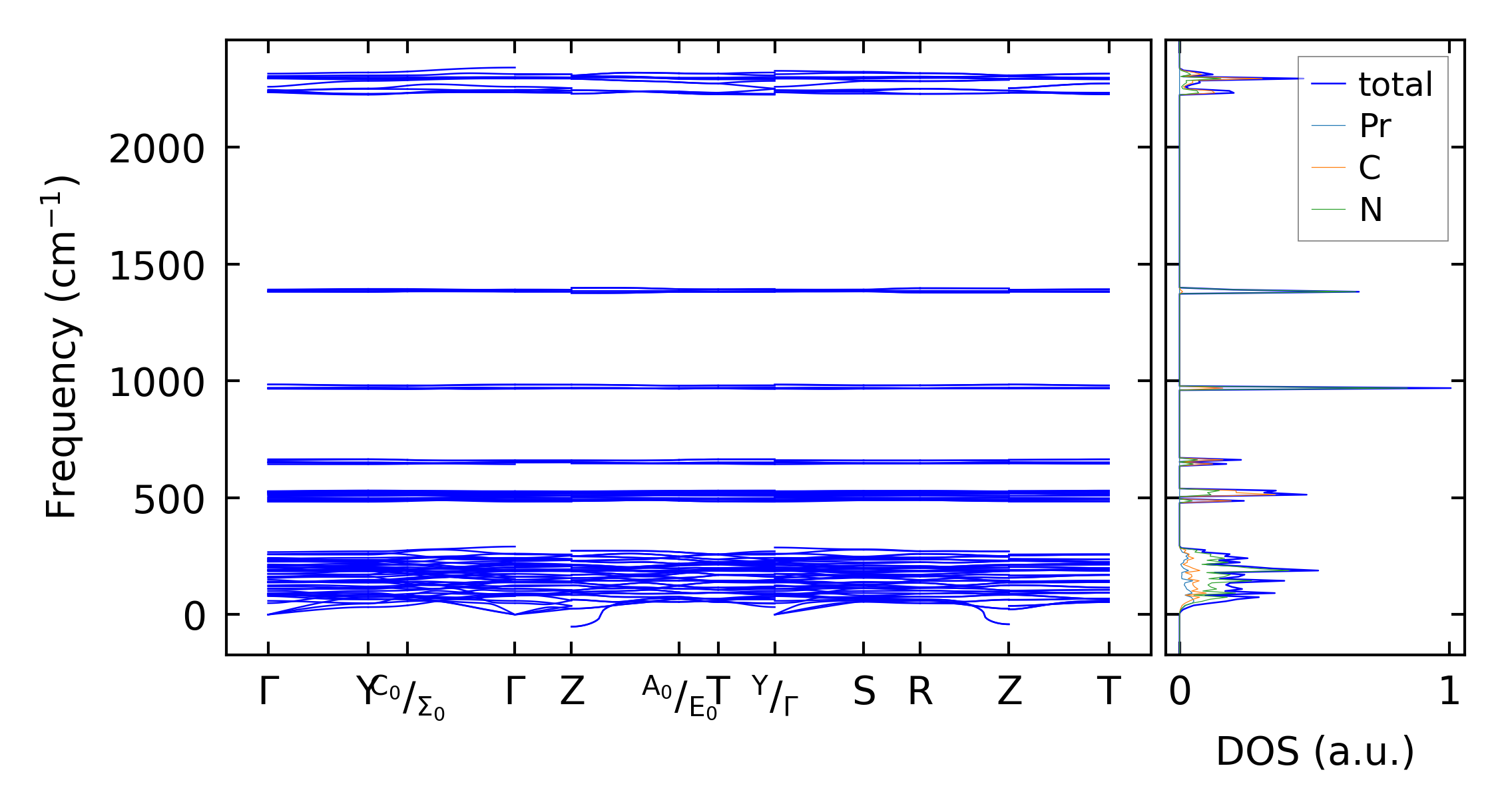

../../_images/fig_bandos10188.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo7203.png — (c) Thermodynamic properties

Grüneisen parameters

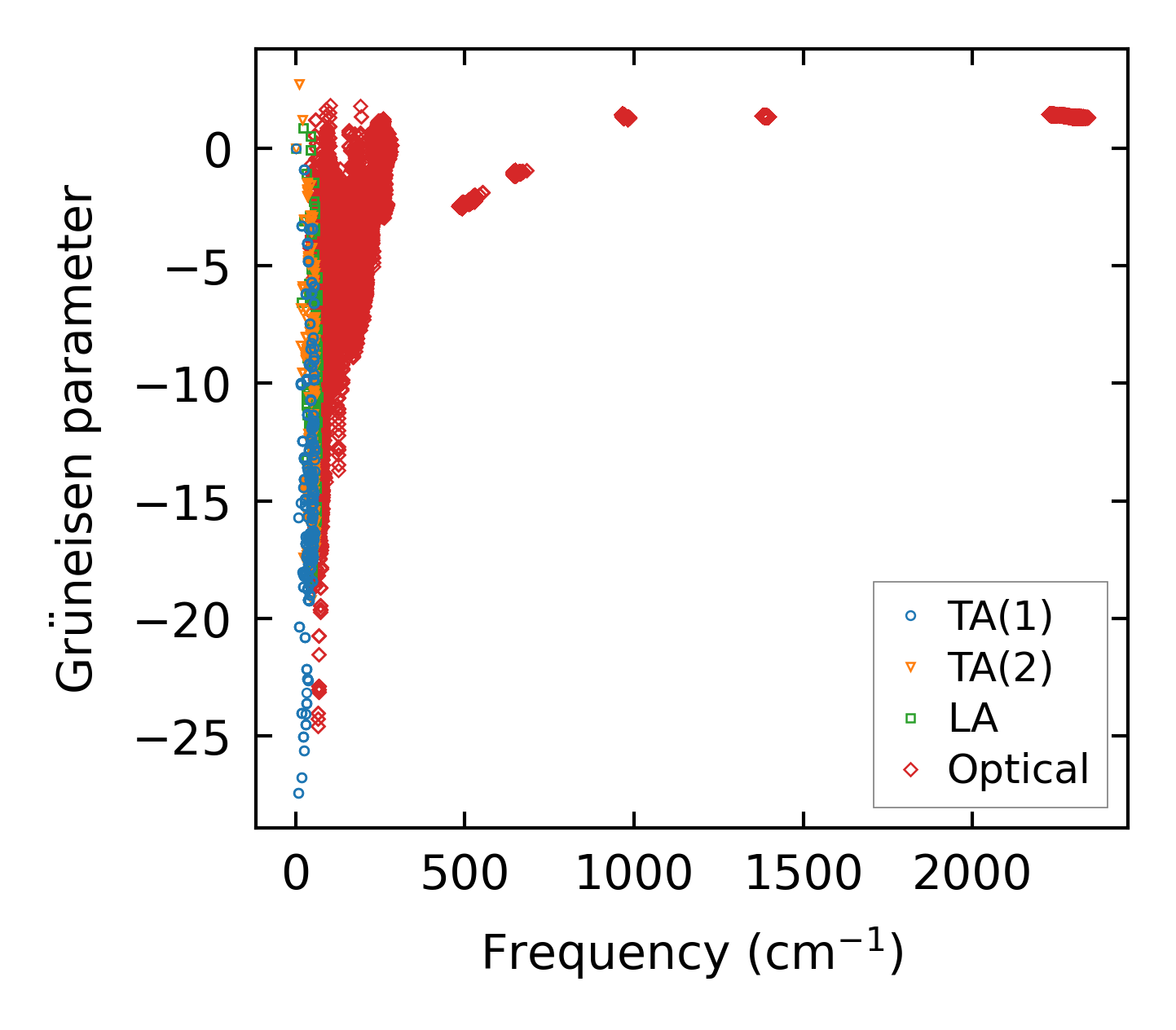

../../_images/fig_gru_all3025.png — (a) Grüneisen parameters

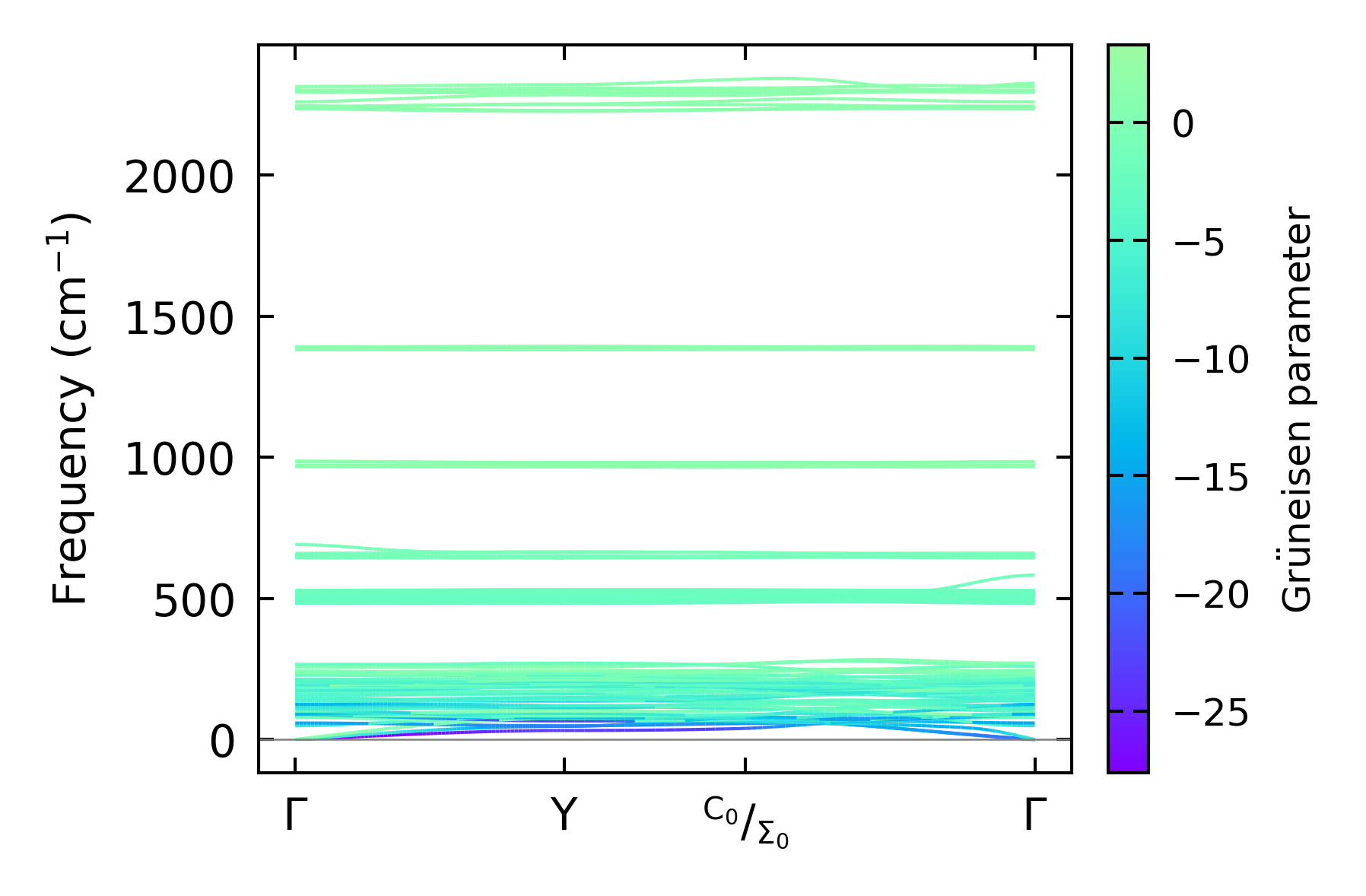

../../_images/fig_gruneisen3025.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x7, supercell: 2x1x1

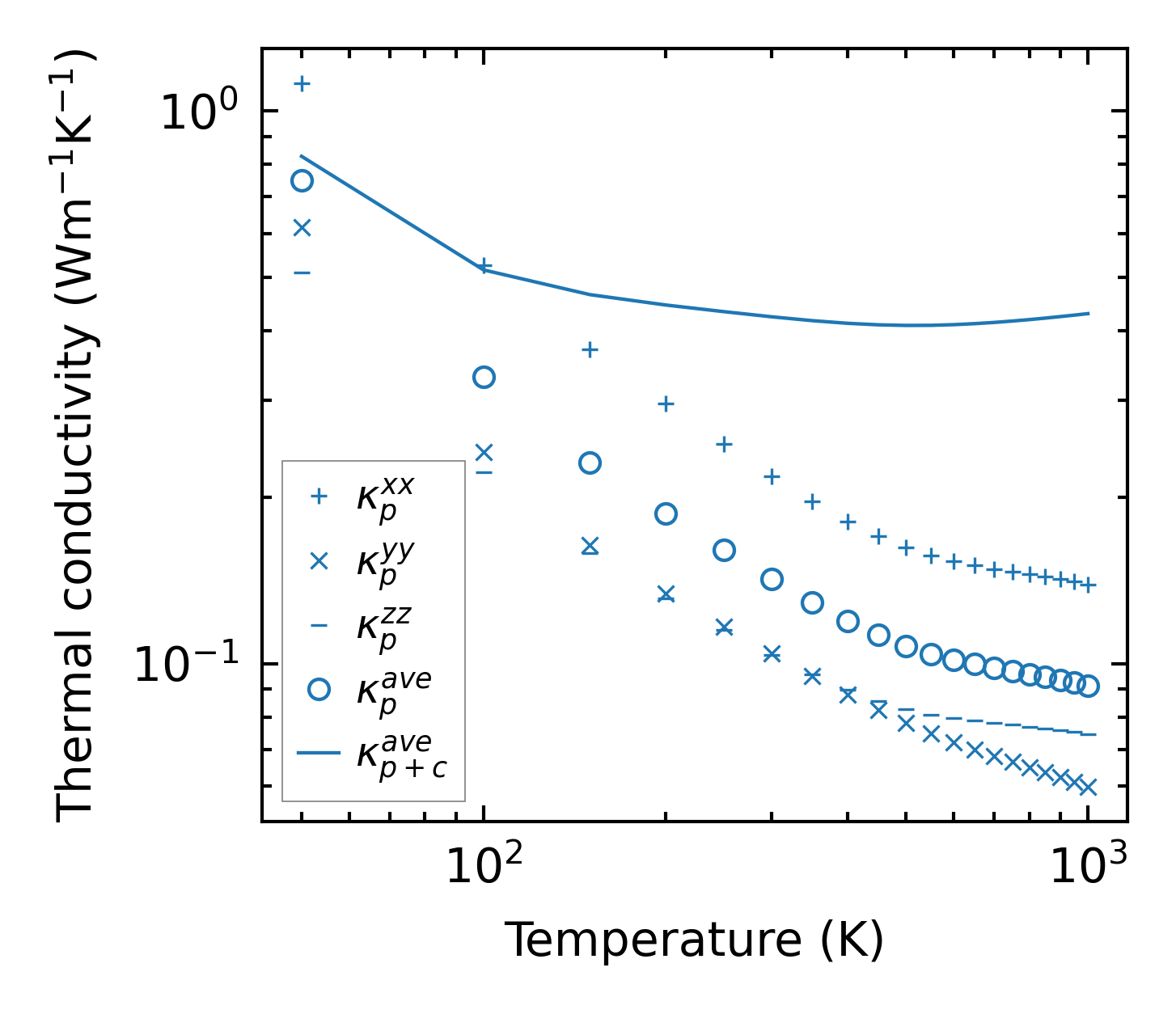

../../_images/fig_kappa5732.png — (a) Temperature-dependent lattice thermal conductivity

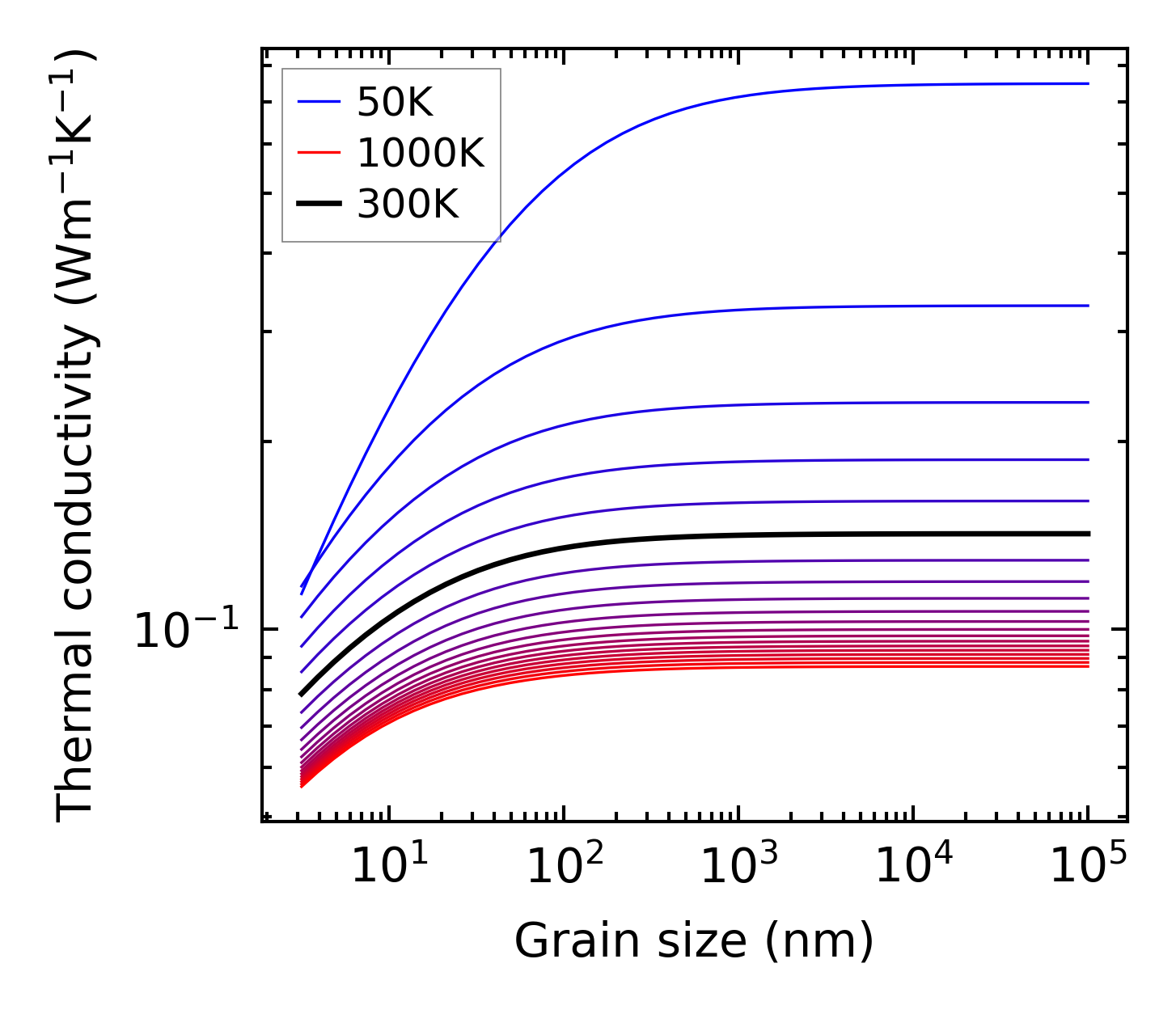

../../_images/fig_kappa_vs_grain_size3068.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

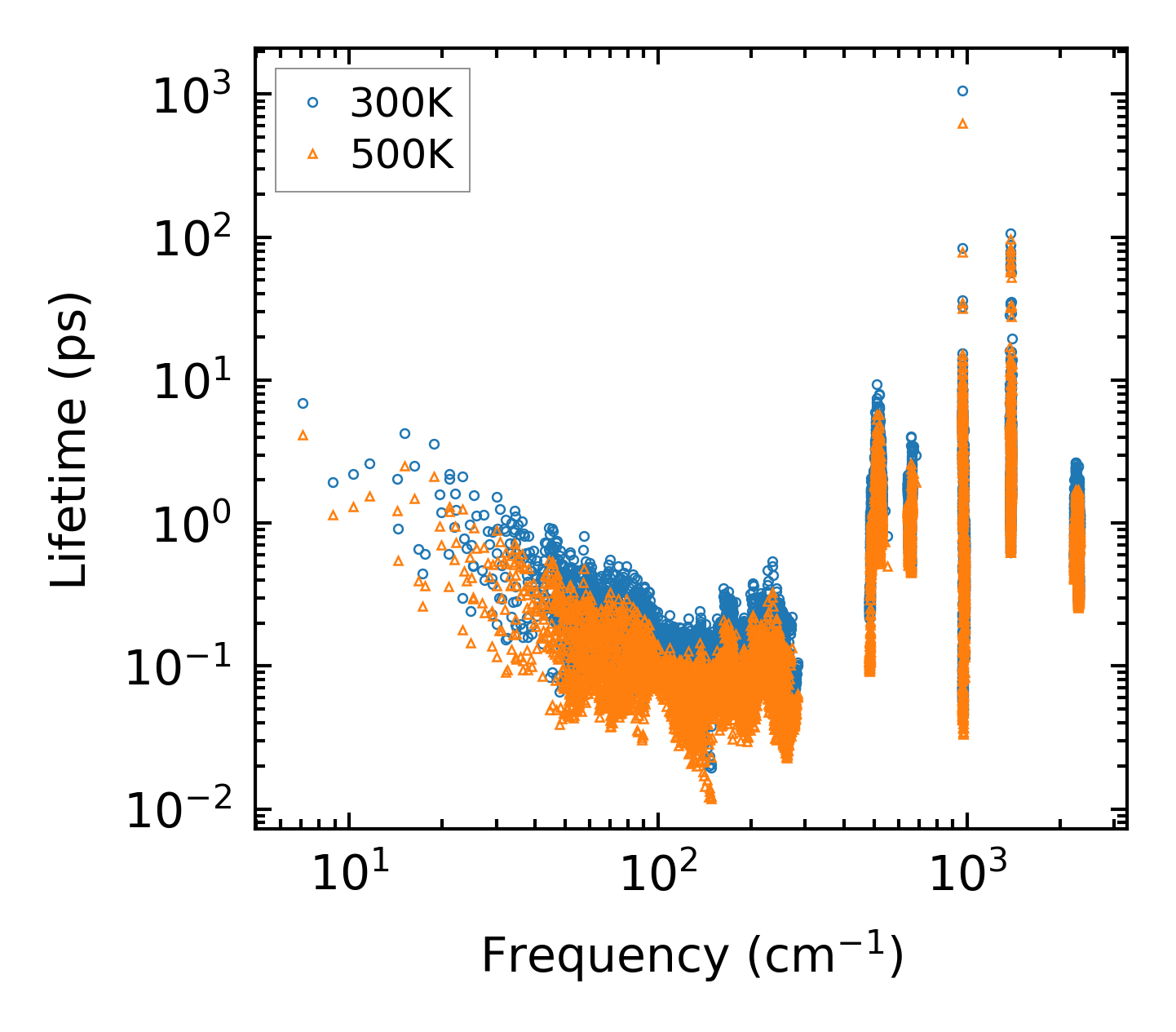

../../_images/fig_lifetime3000.png — (a) Phonon lifetime due to phonon-phonon scattering

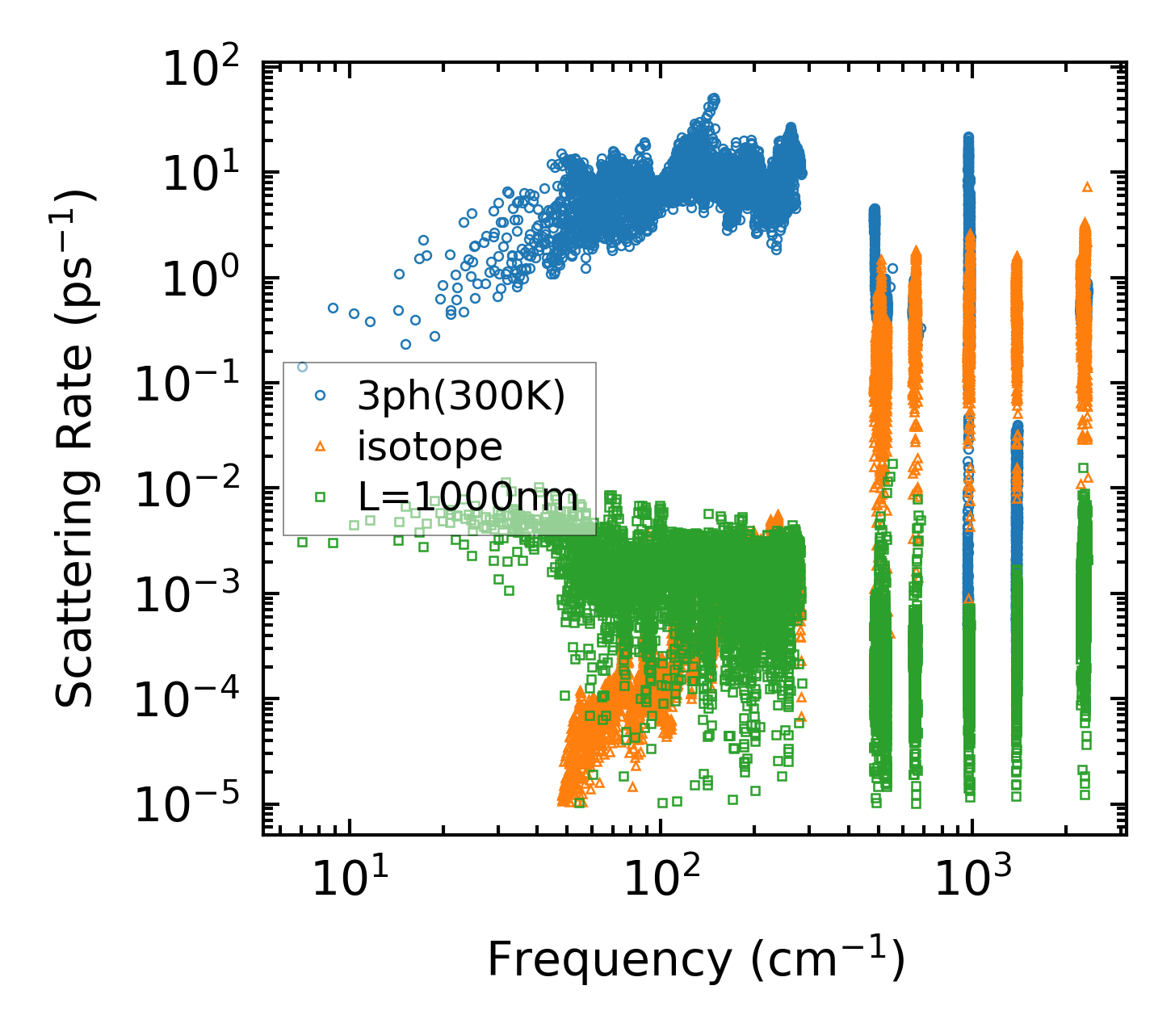

../../_images/fig_scat_rates2999.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

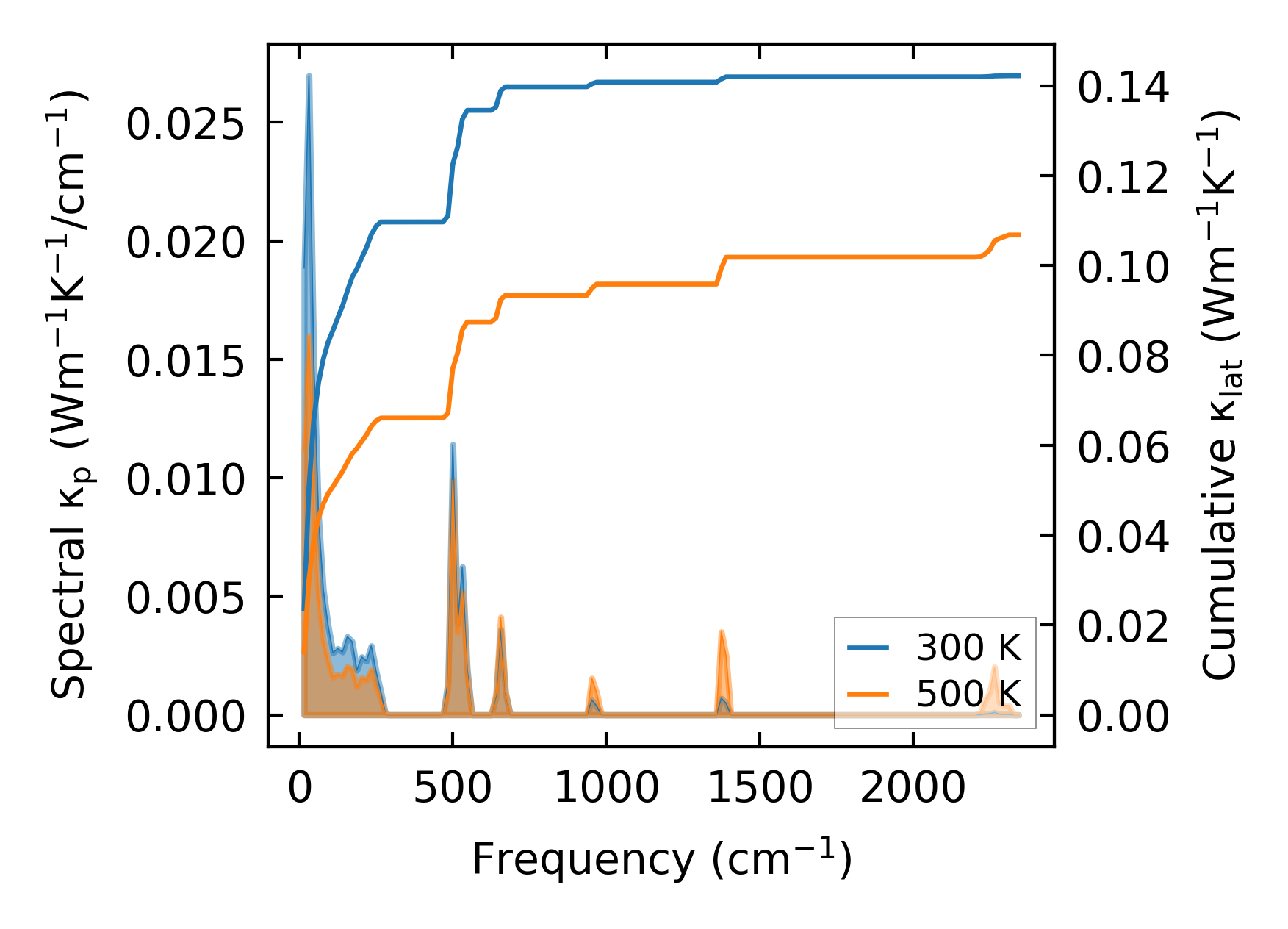

../../_images/fig_cumu_frequency3000.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

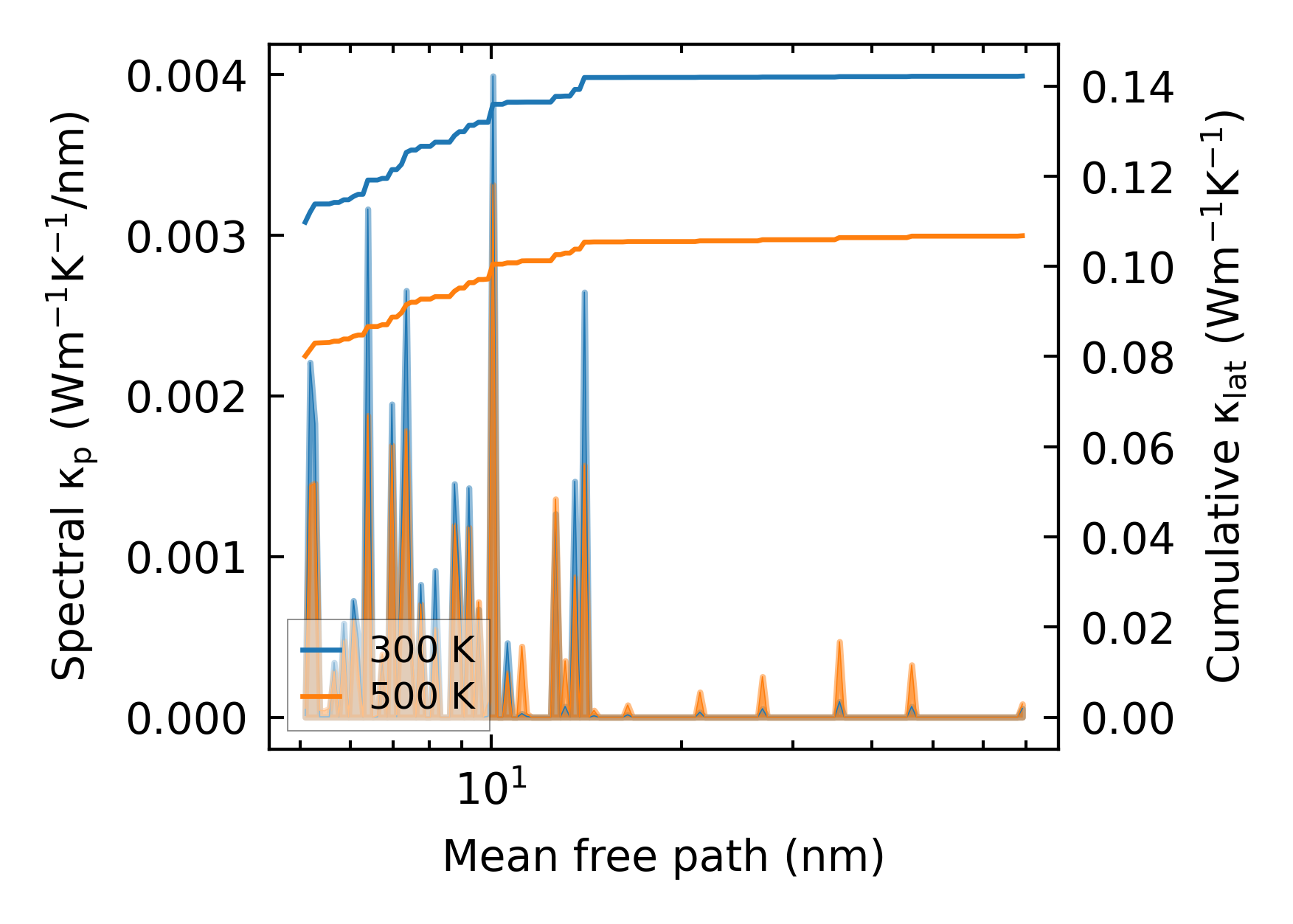

../../_images/fig_cumu_mfp2999.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

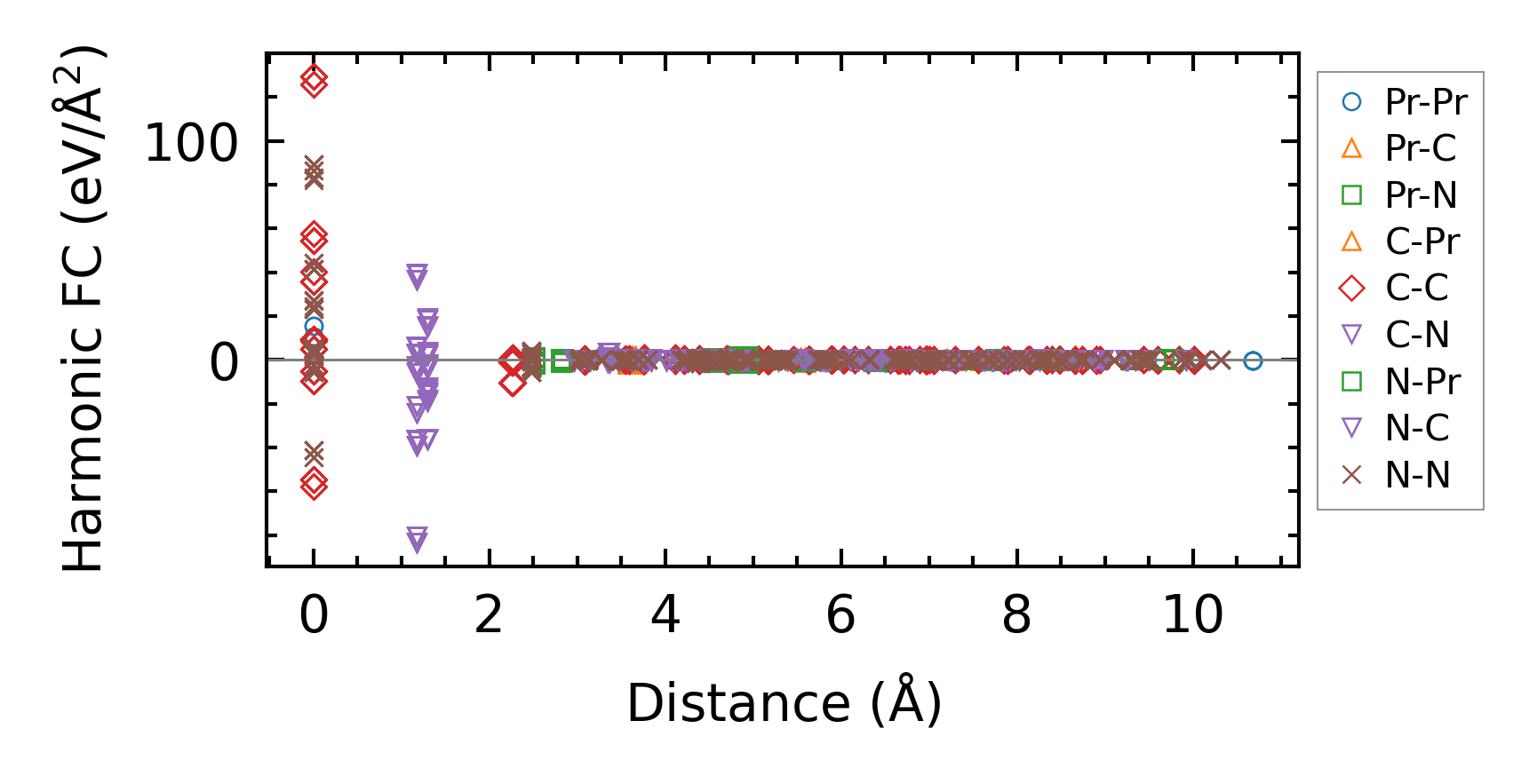

../../_images/fig_fc26971.png — (a) Force constants w.r.t atomic distance

Summary

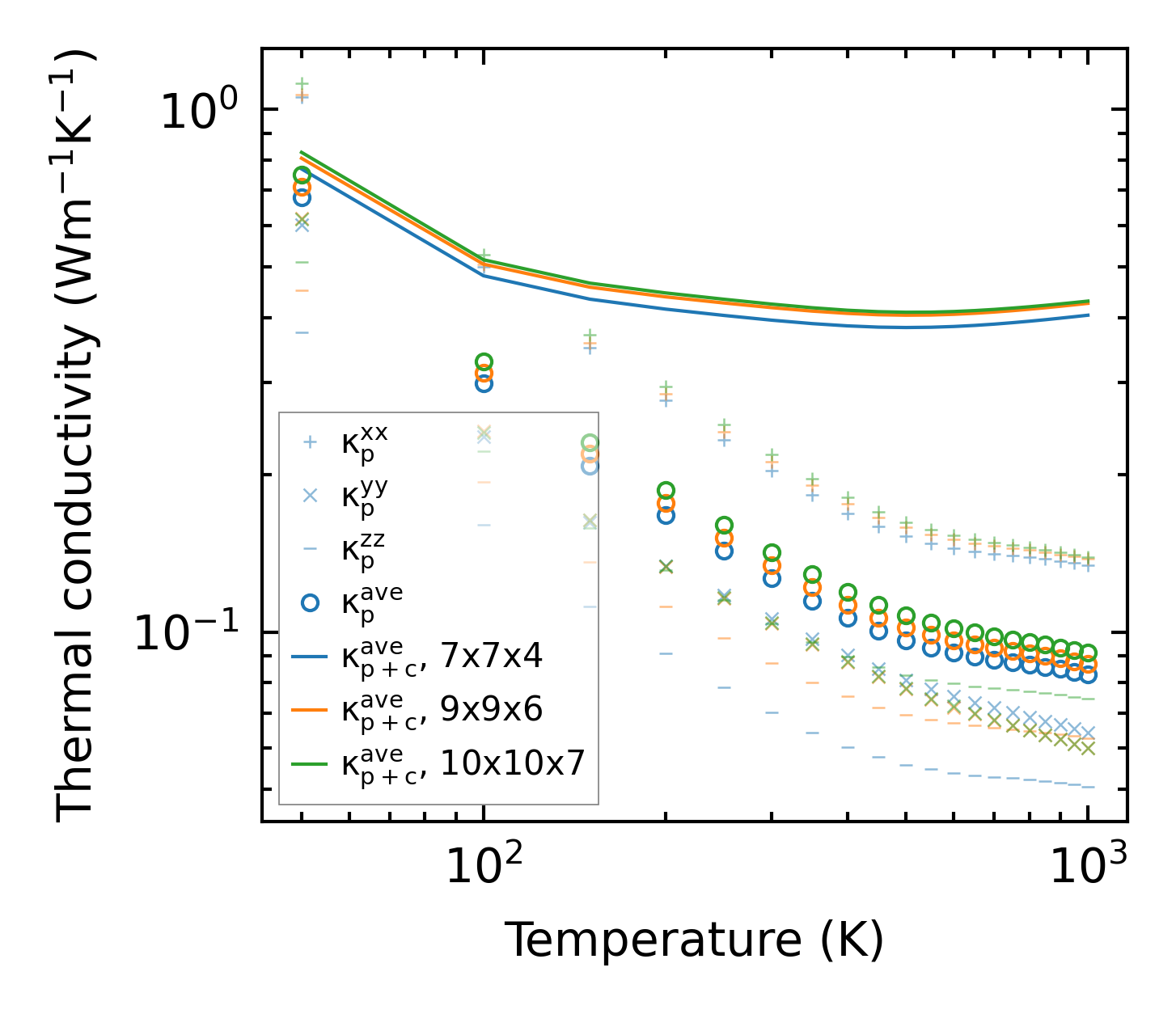

../../_images/fig_kappa5733.png — (a) Temperature-dependent lattice thermal conductivity

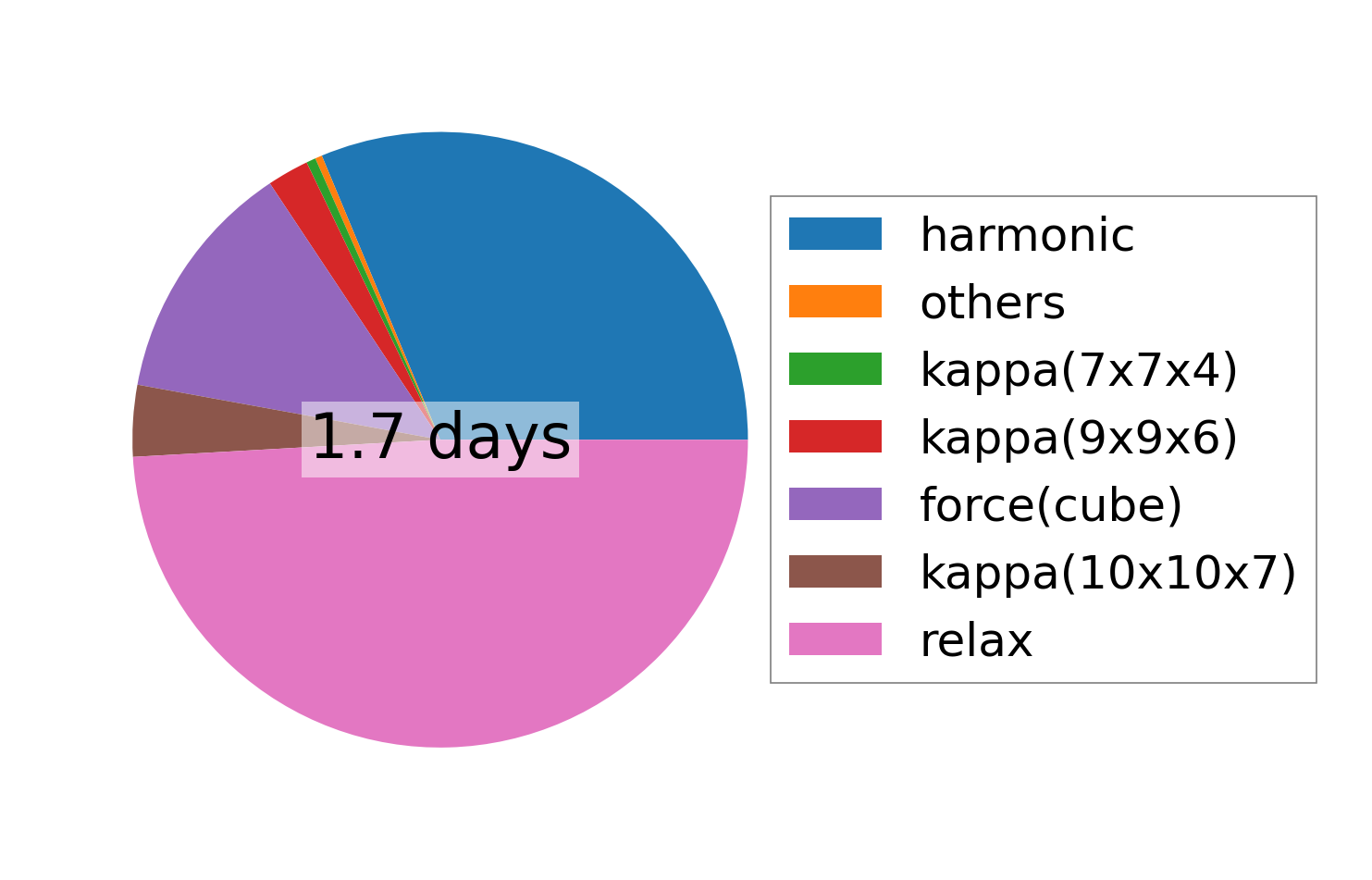

../../_images/fig_times12818.png — (b) Computation time
