mp-567371/Sr3Li4Ge2N6/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-567371.tar.gz

Harmonic properties

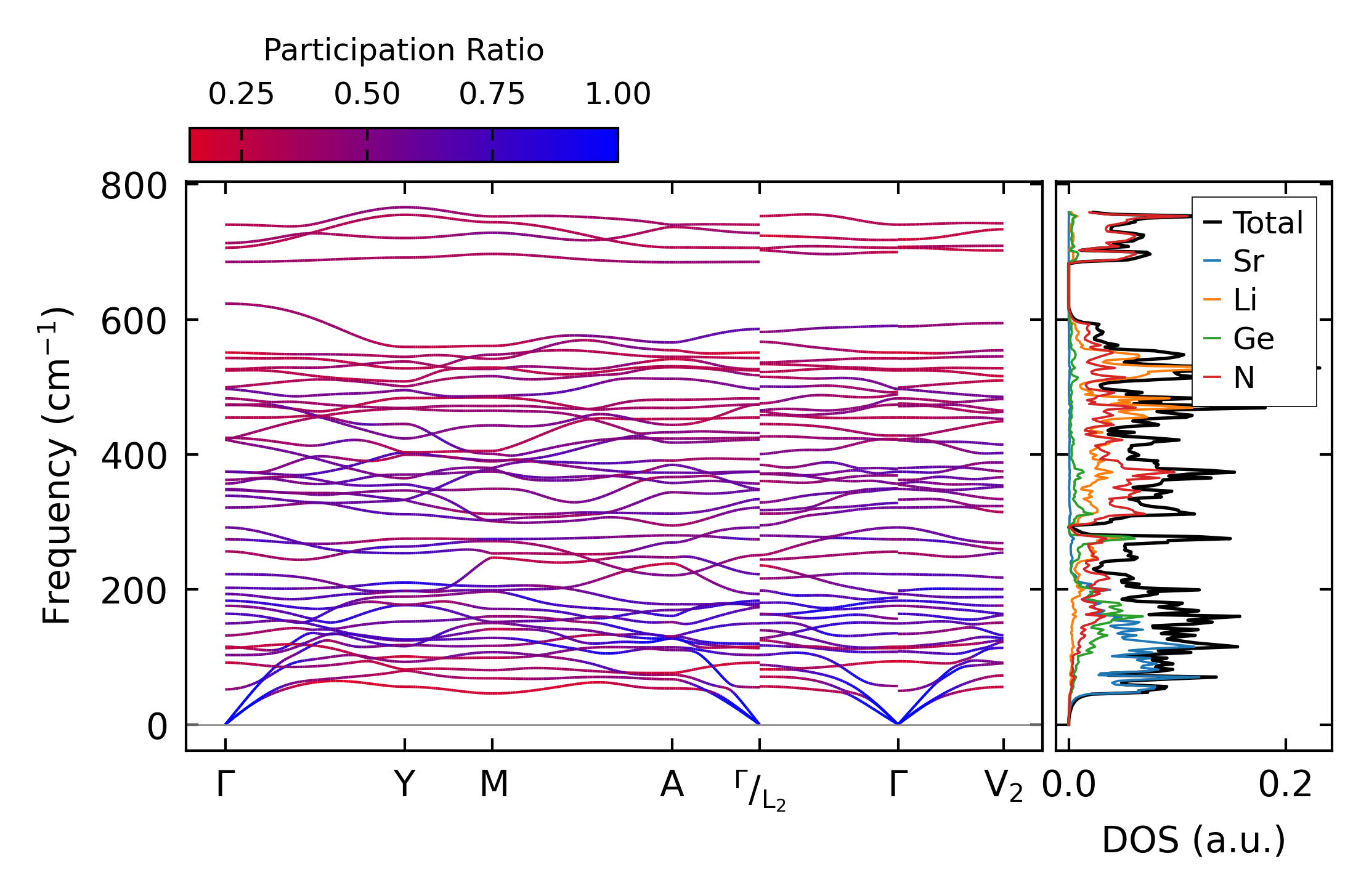

../../_images/fig_bandos_pr7158.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7158.png — (b) Thermodynamic properties

Grüneisen parameters

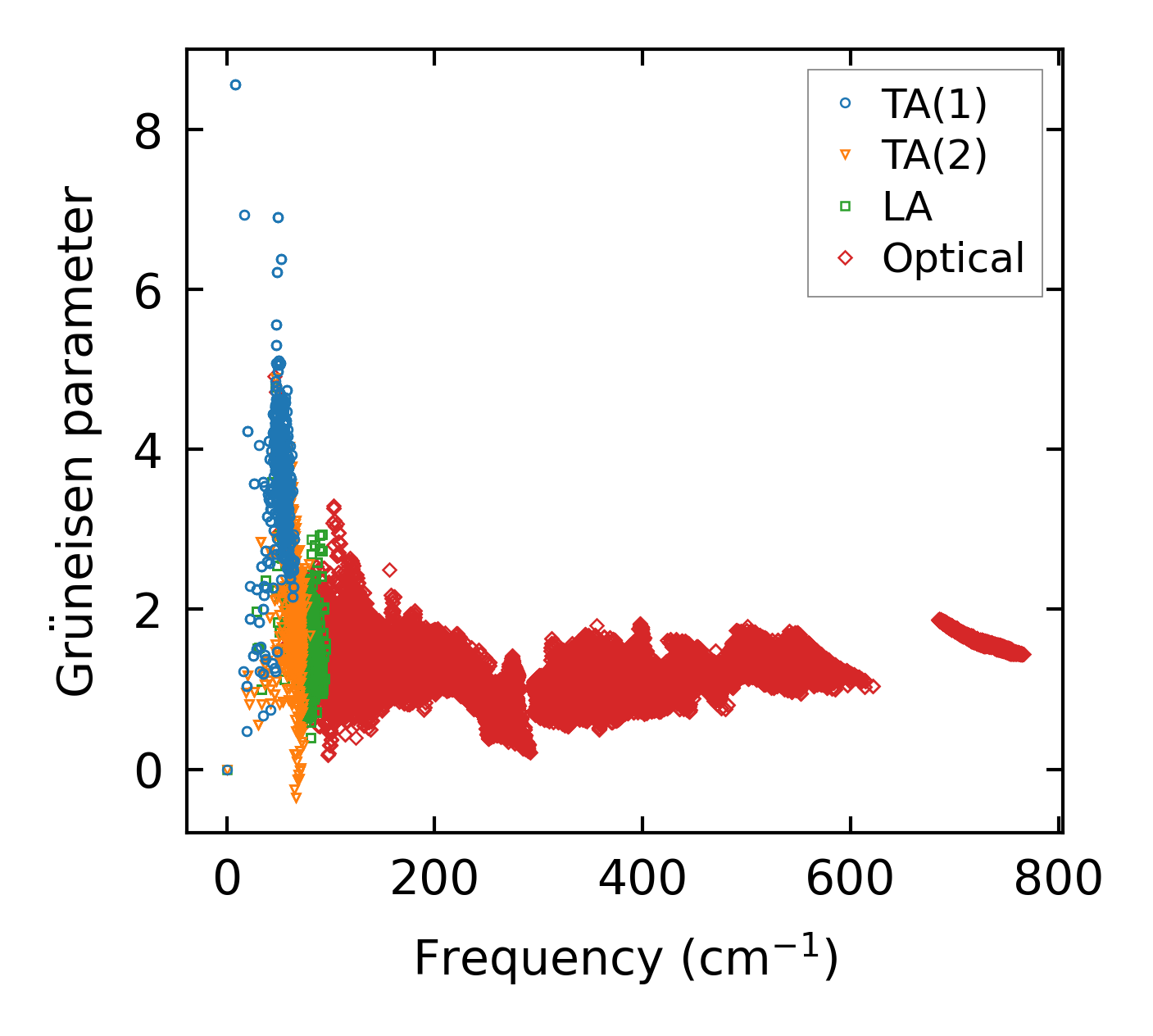

../../_images/fig_gru_all2995.png — (a) Grüneisen parameters

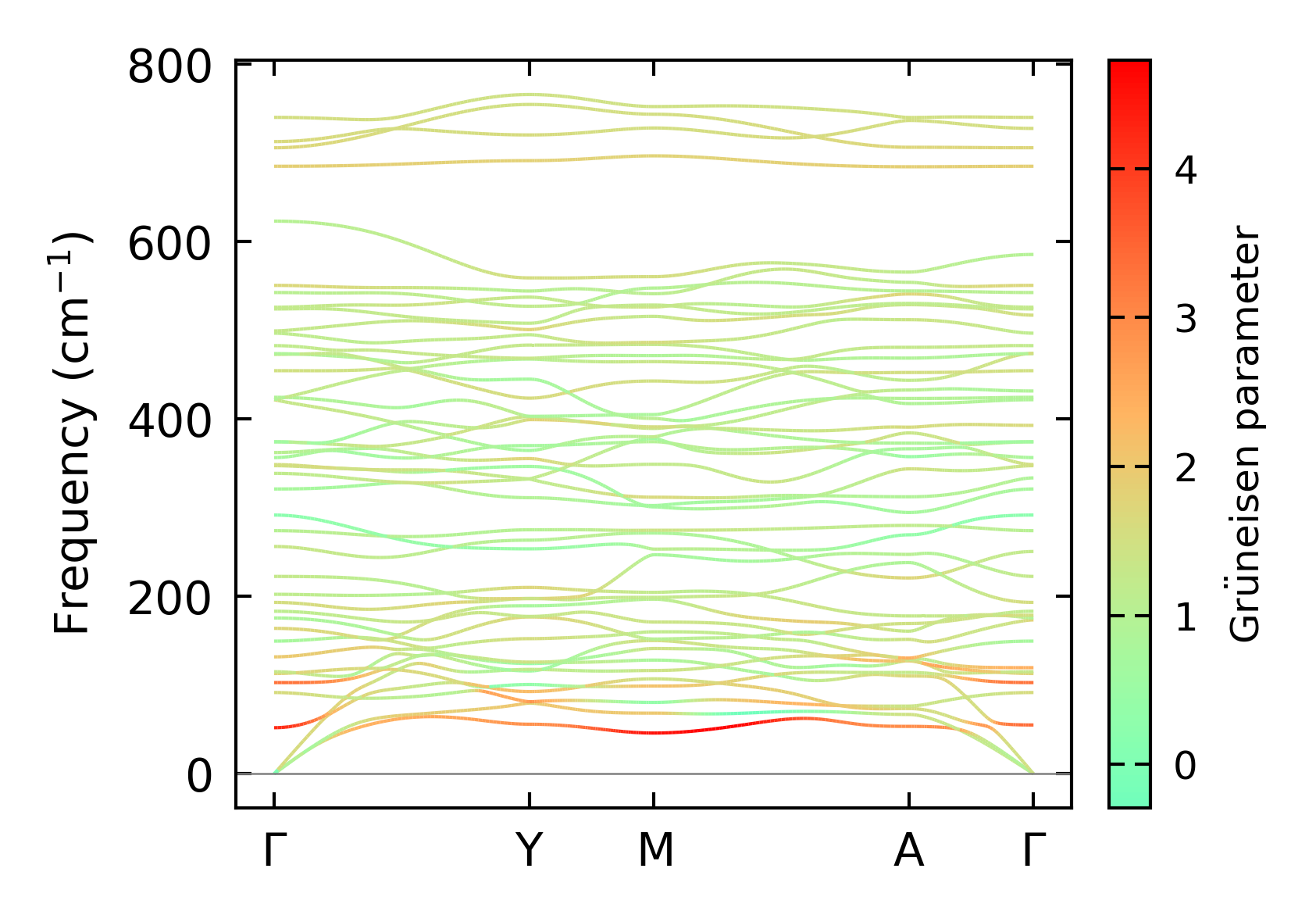

../../_images/fig_gruneisen2995.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x11, supercell: 2x1x2

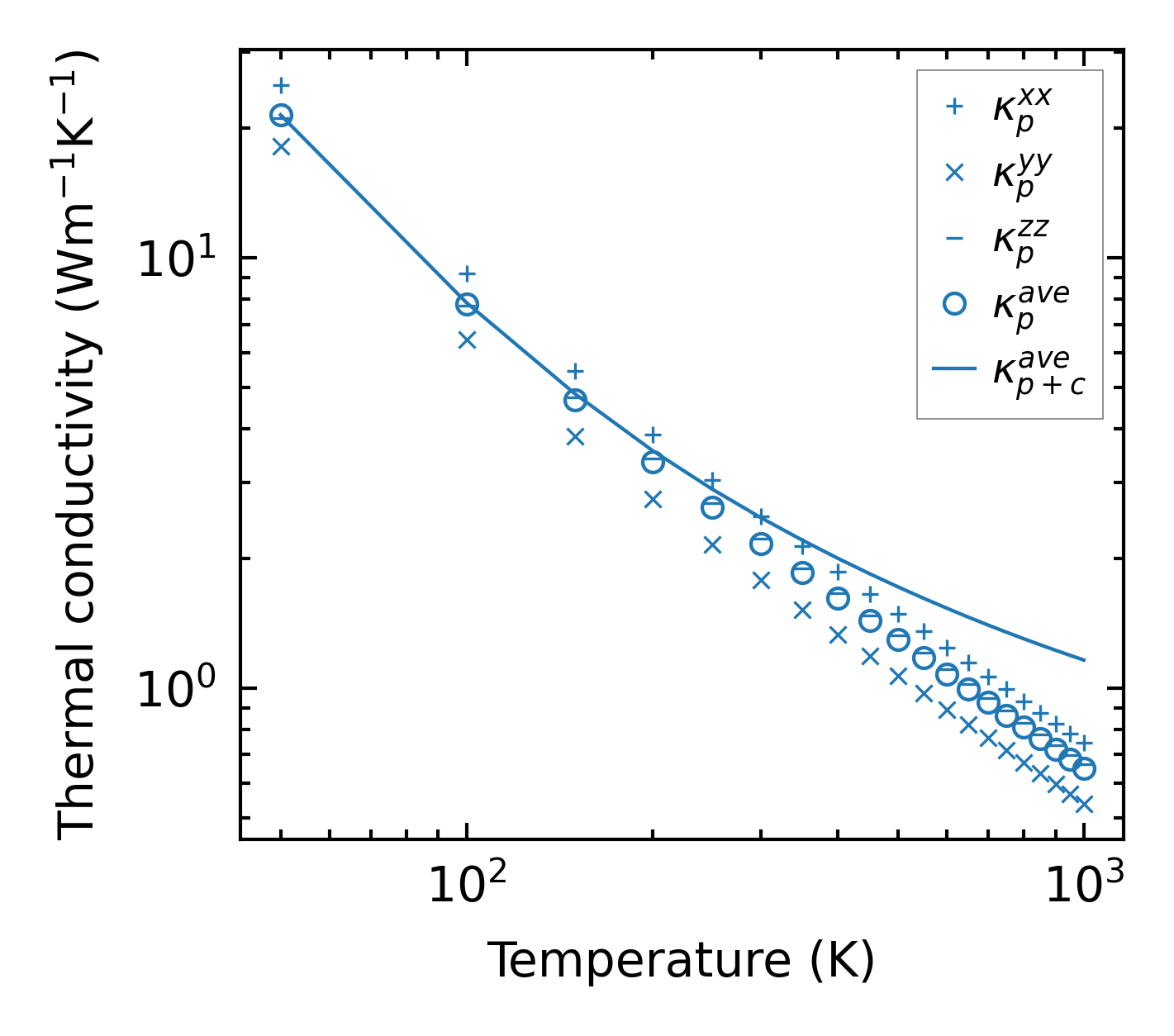

../../_images/fig_kappa5676.png — (a) Temperature-dependent lattice thermal conductivity

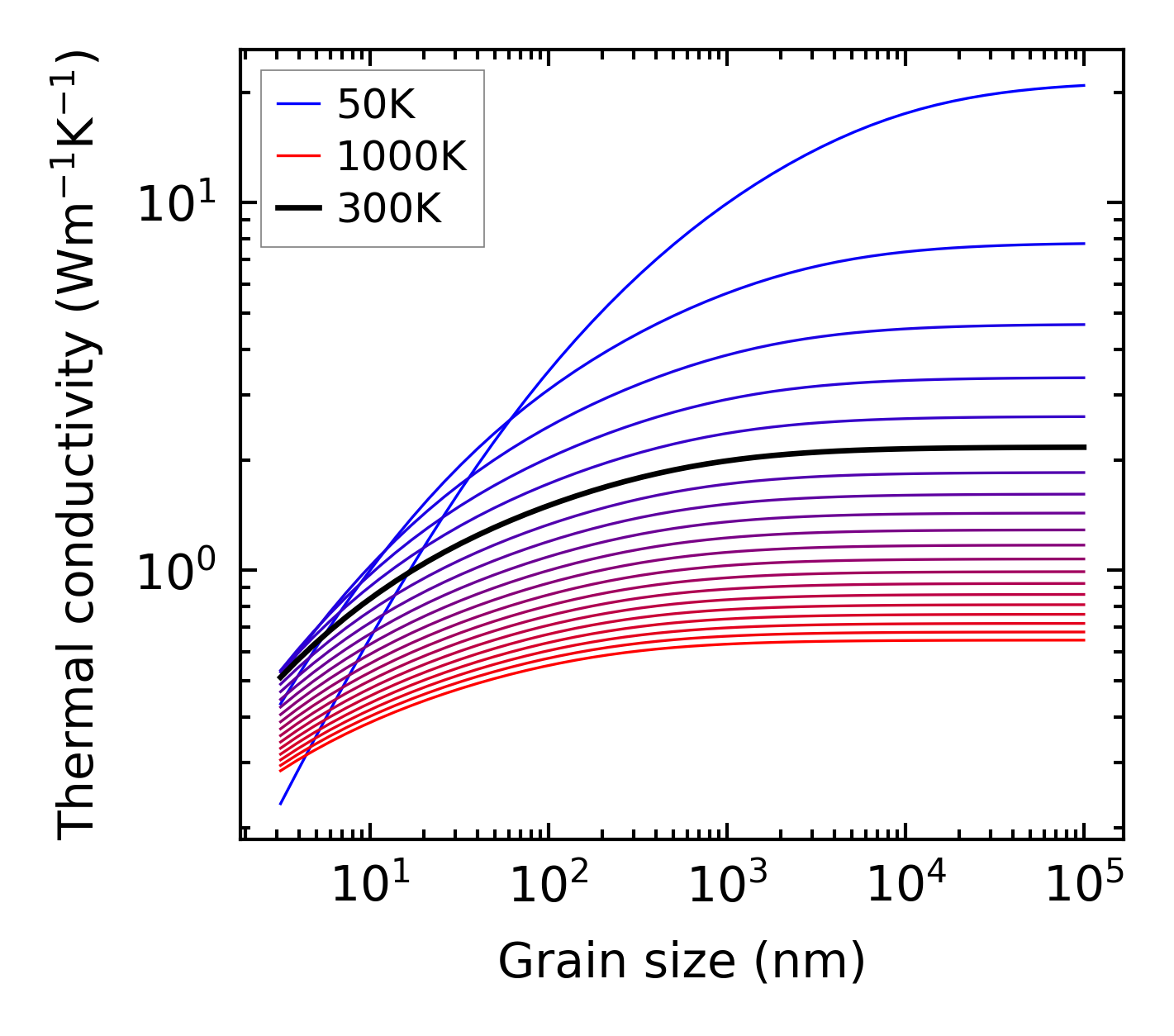

../../_images/fig_kappa_vs_grain_size3037.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

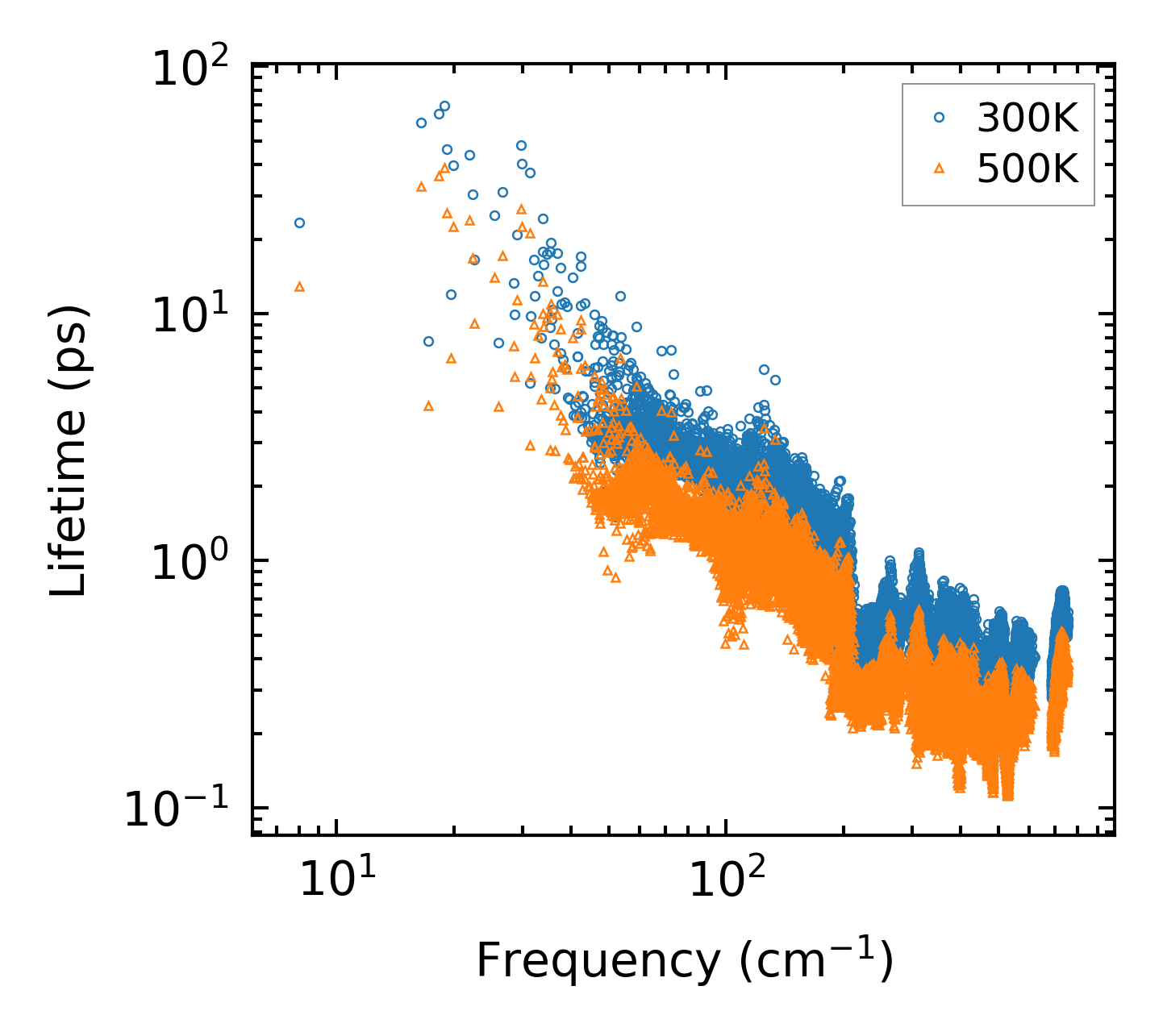

../../_images/fig_lifetime2970.png — (a) Phonon lifetime due to phonon-phonon scattering

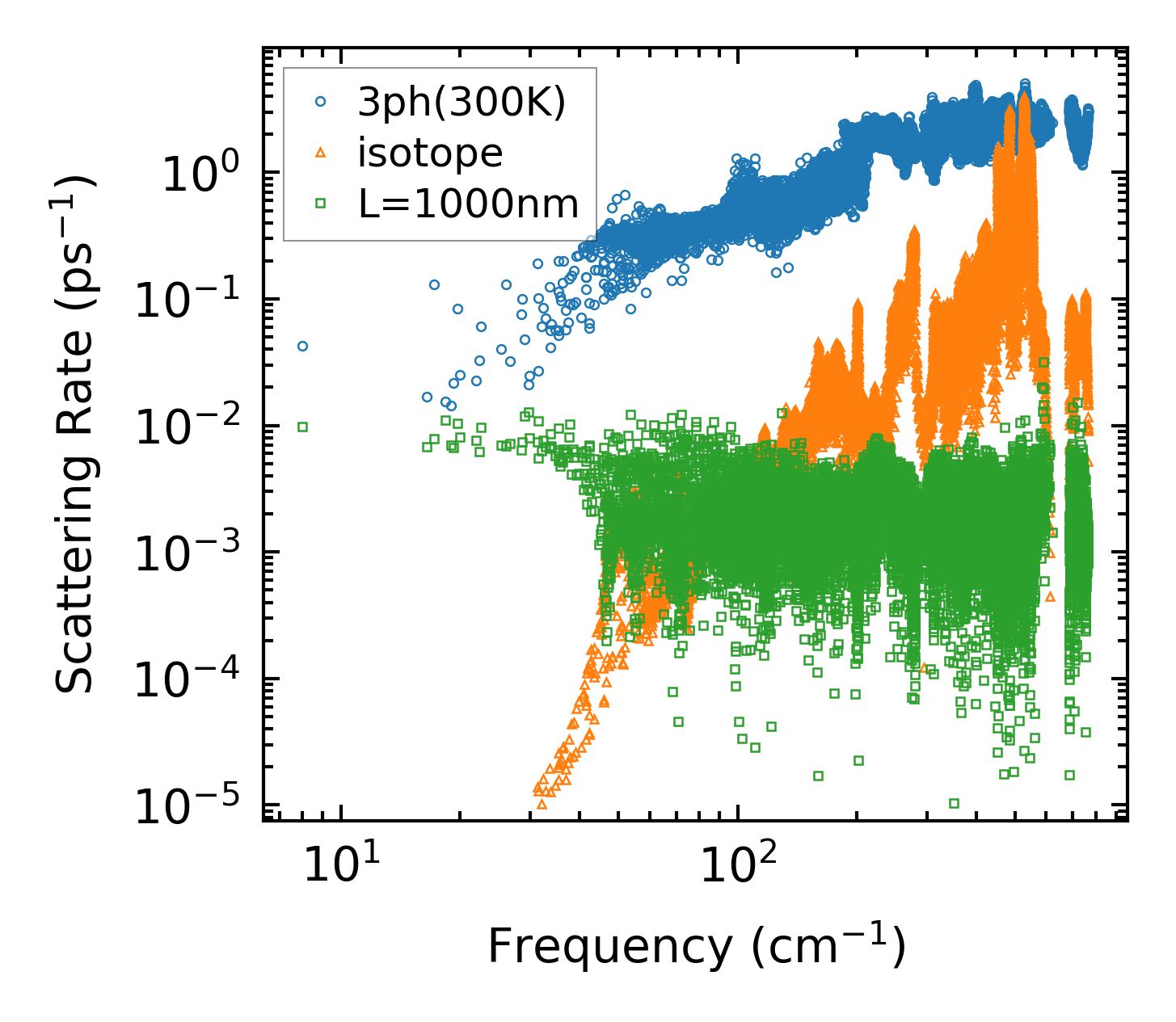

../../_images/fig_scat_rates2969.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

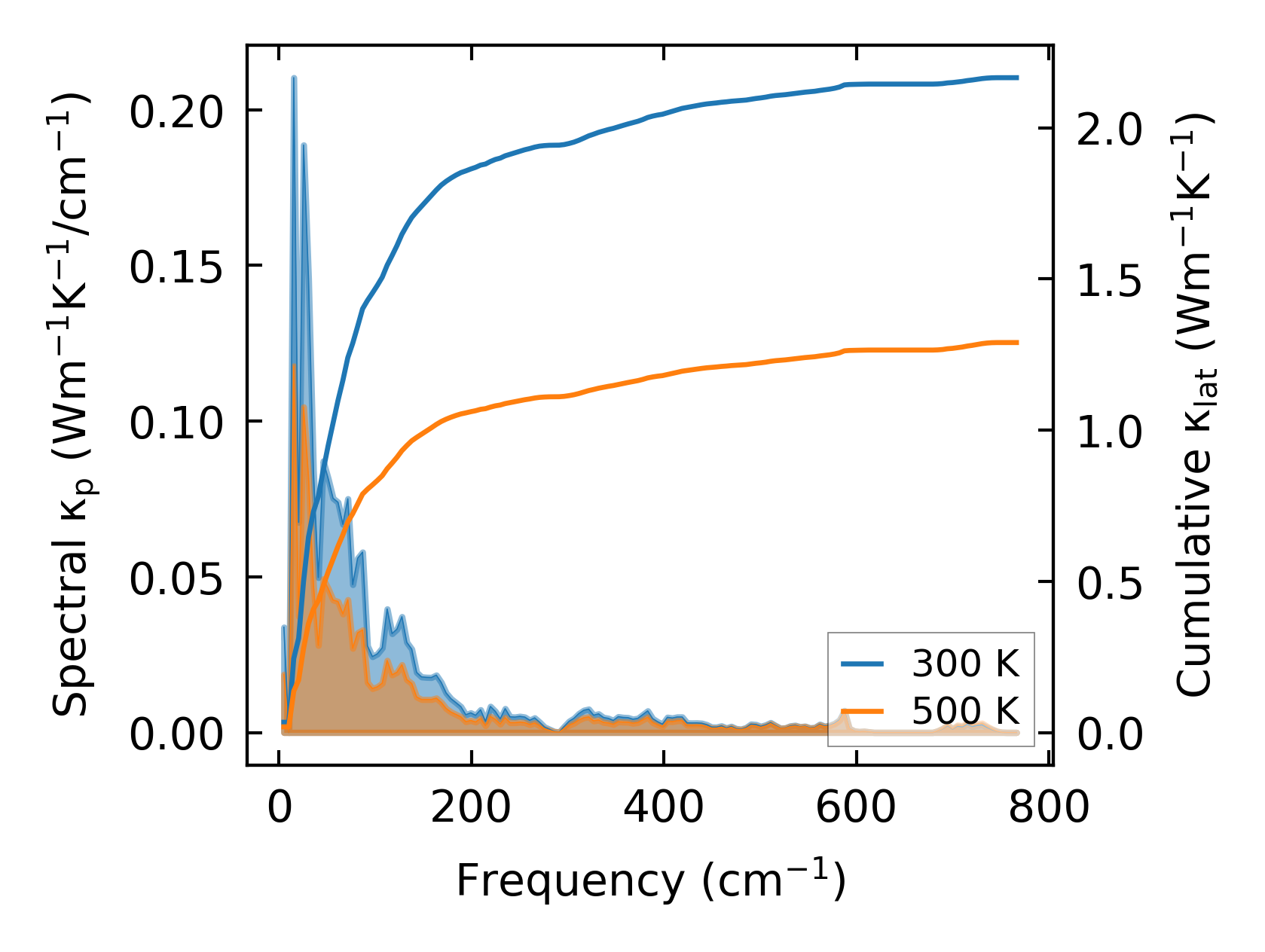

../../_images/fig_cumu_frequency2970.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

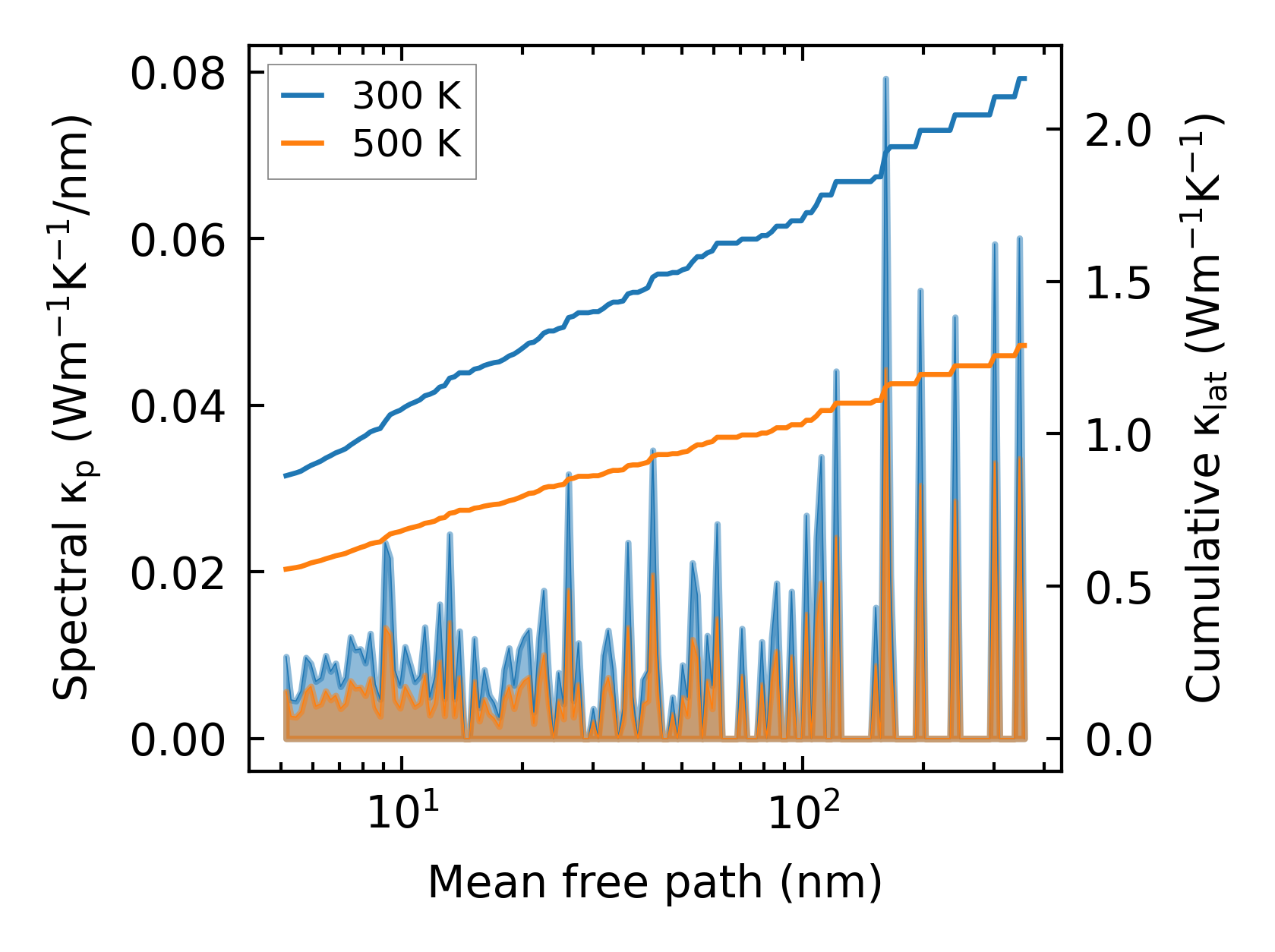

../../_images/fig_cumu_mfp2969.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

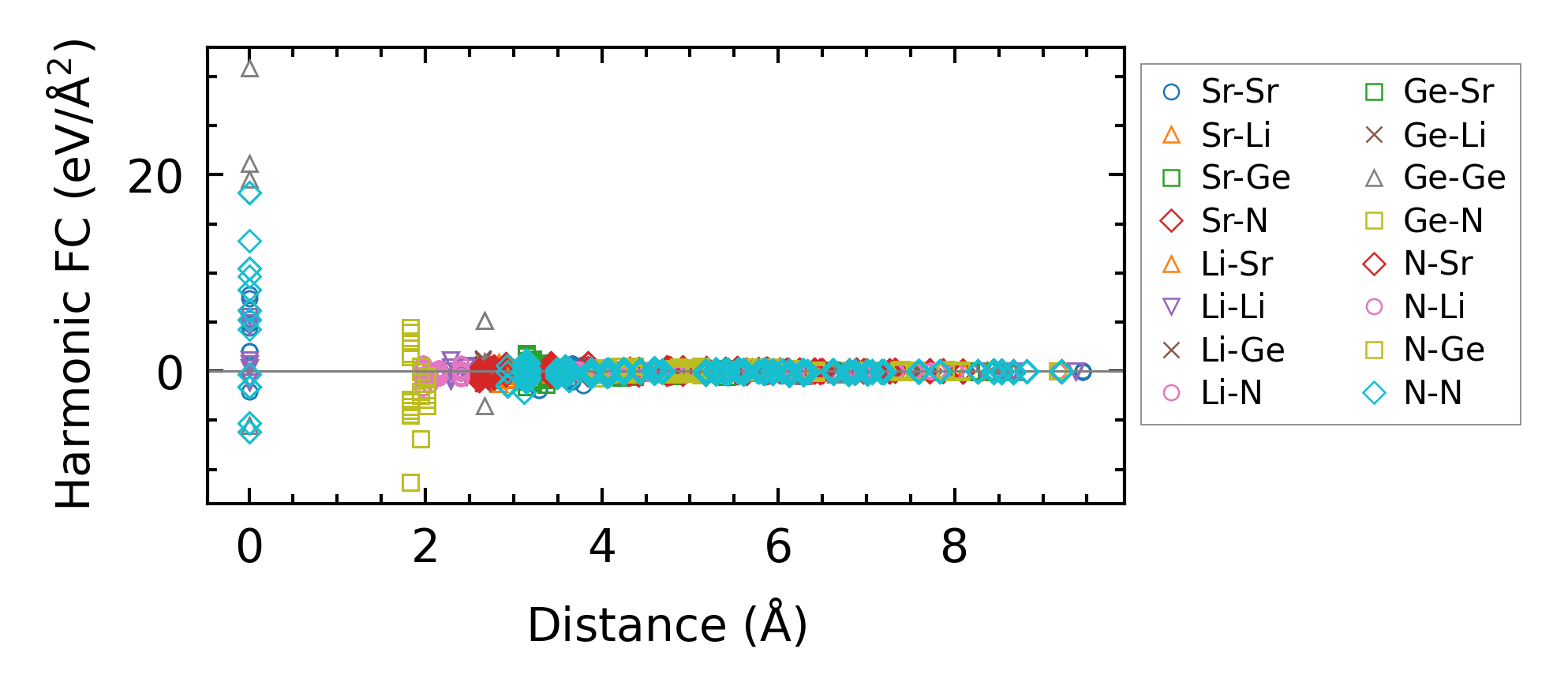

../../_images/fig_fc26929.png — (a) Force constants w.r.t atomic distance

Summary

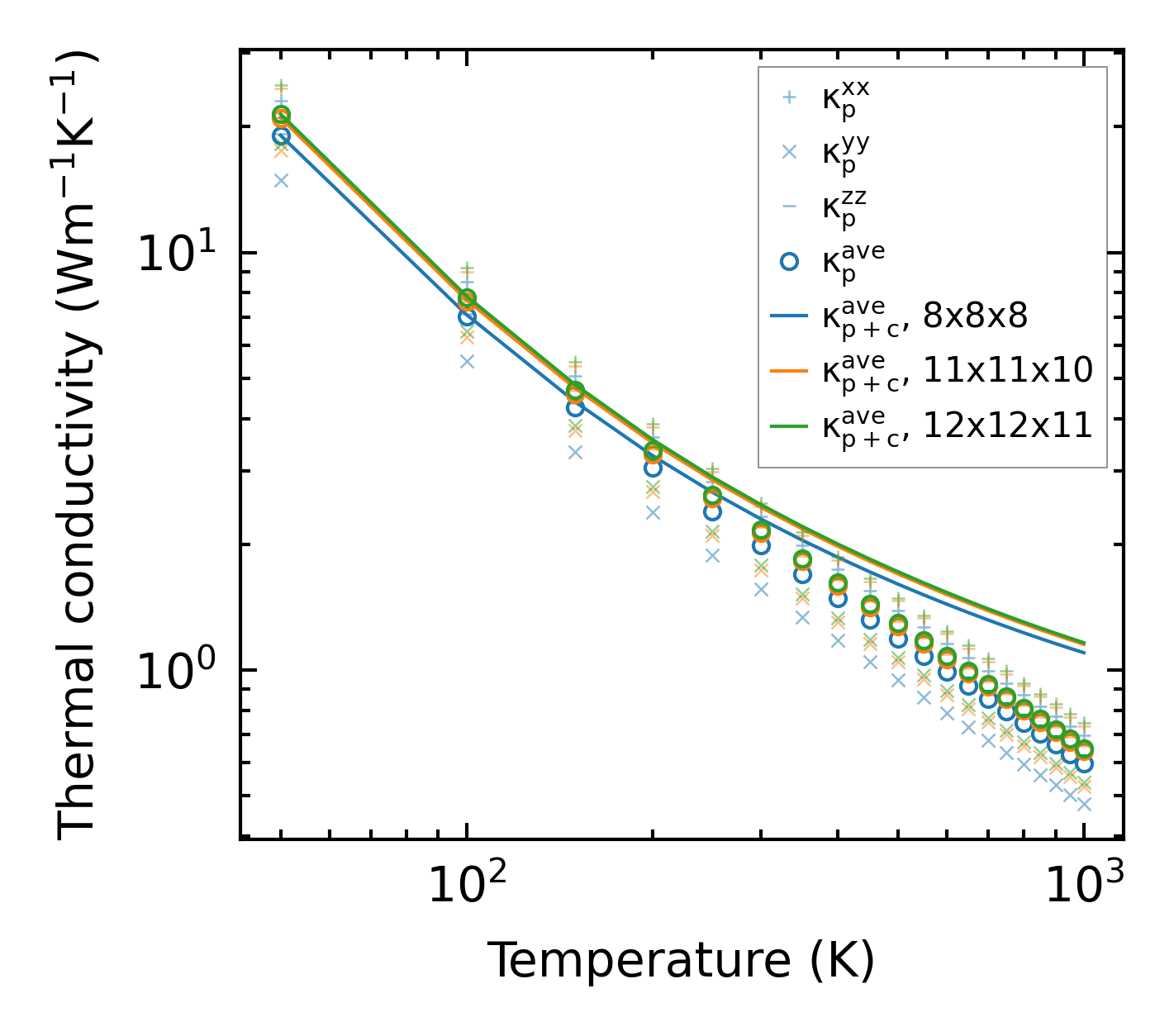

../../_images/fig_kappa5677.png — (a) Temperature-dependent lattice thermal conductivity

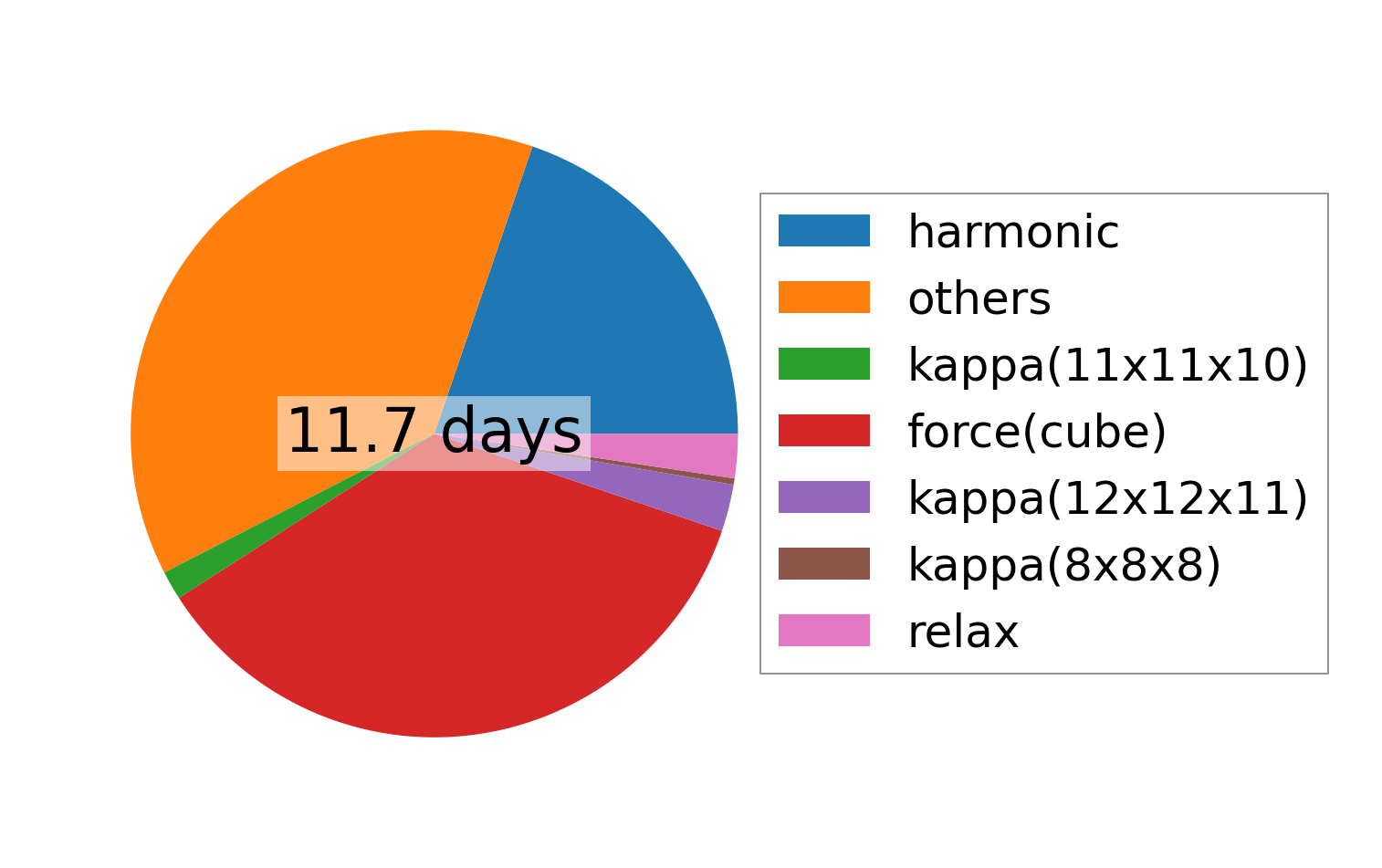

../../_images/fig_times12756.png — (b) Computation time
