mp-567503/PbI2/anharm

Space group: P6_3mc (186)
Link: Materials Project
Download: mp-567503.tar.gz

Harmonic properties

../../_images/fig_bandos_pr7174.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7174.png — (b) Thermodynamic properties

Grüneisen parameters

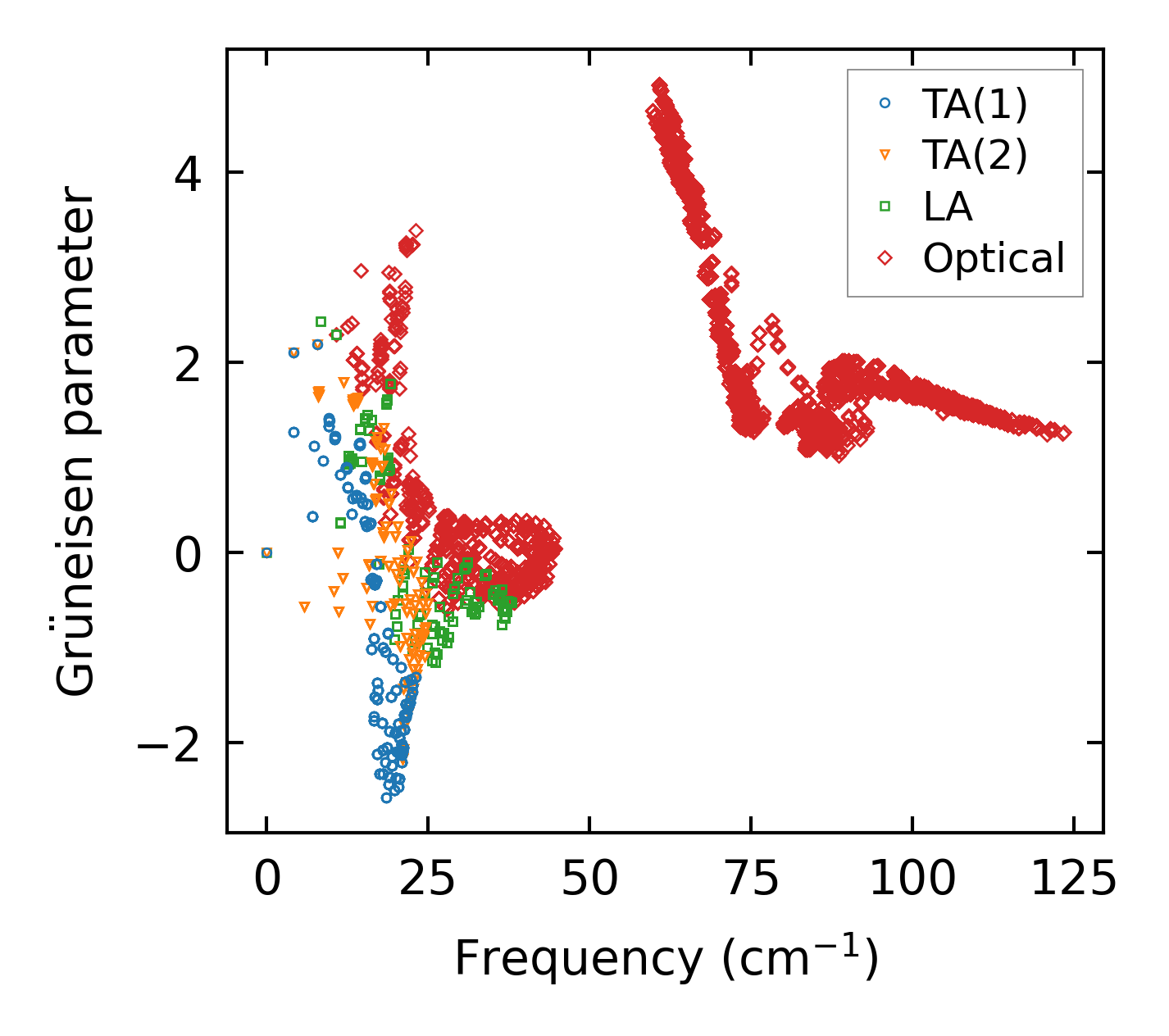

../../_images/fig_gru_all3004.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3004.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 16x16x5, supercell: 4x4x1

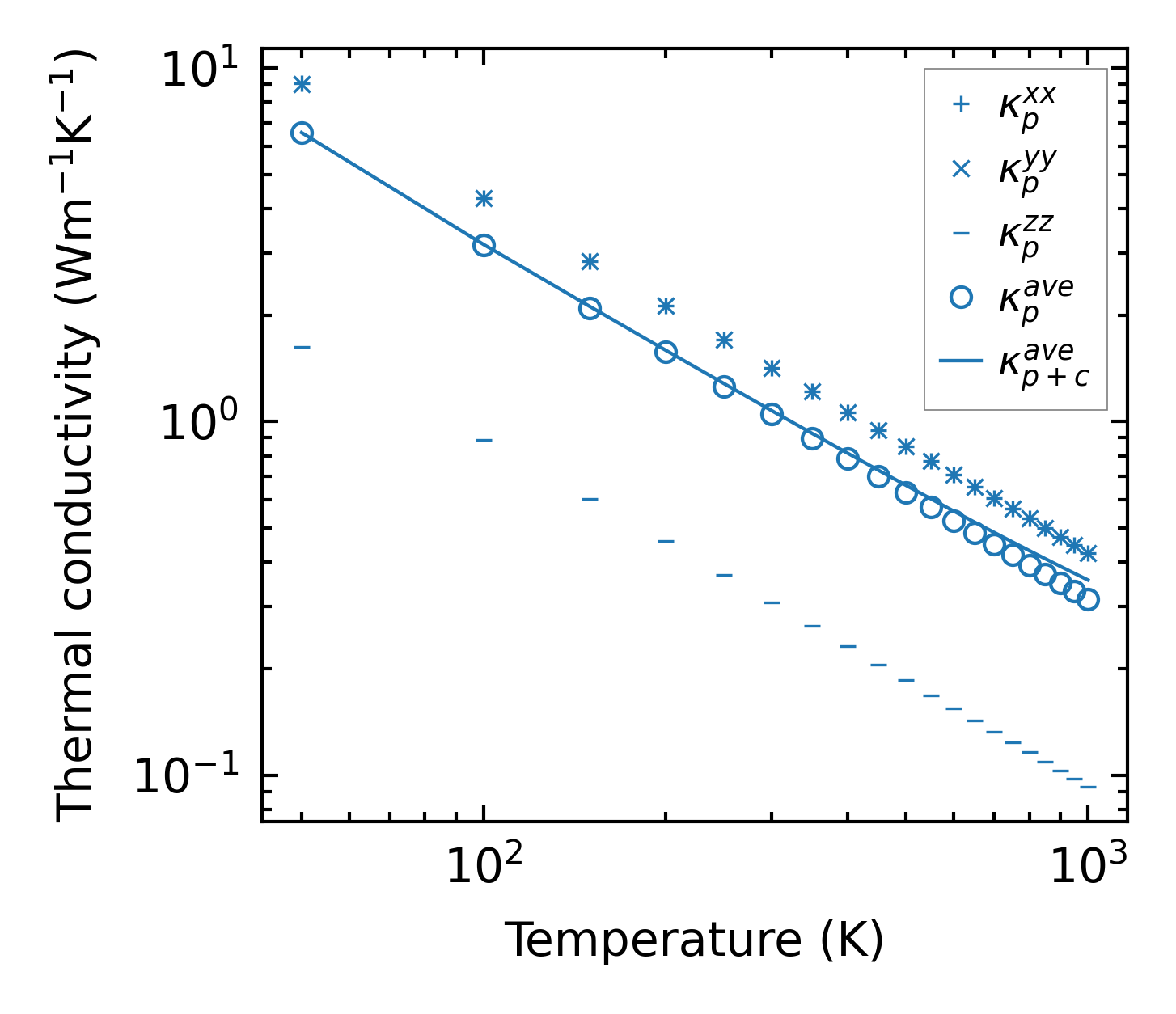

../../_images/fig_kappa5694.png — (a) Temperature-dependent lattice thermal conductivity

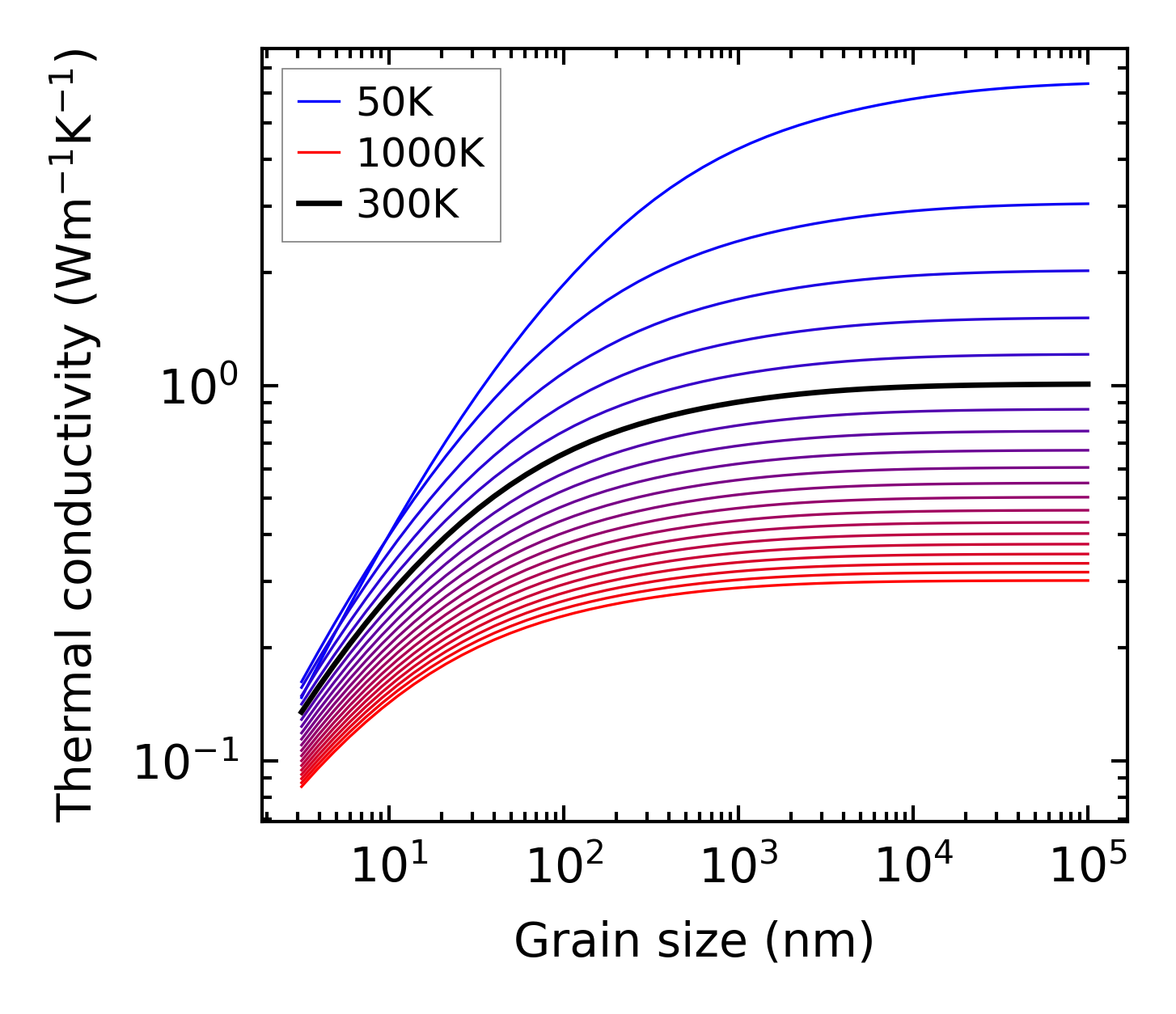

../../_images/fig_kappa_vs_grain_size3047.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2979.png — (a) Phonon lifetime due to phonon-phonon scattering

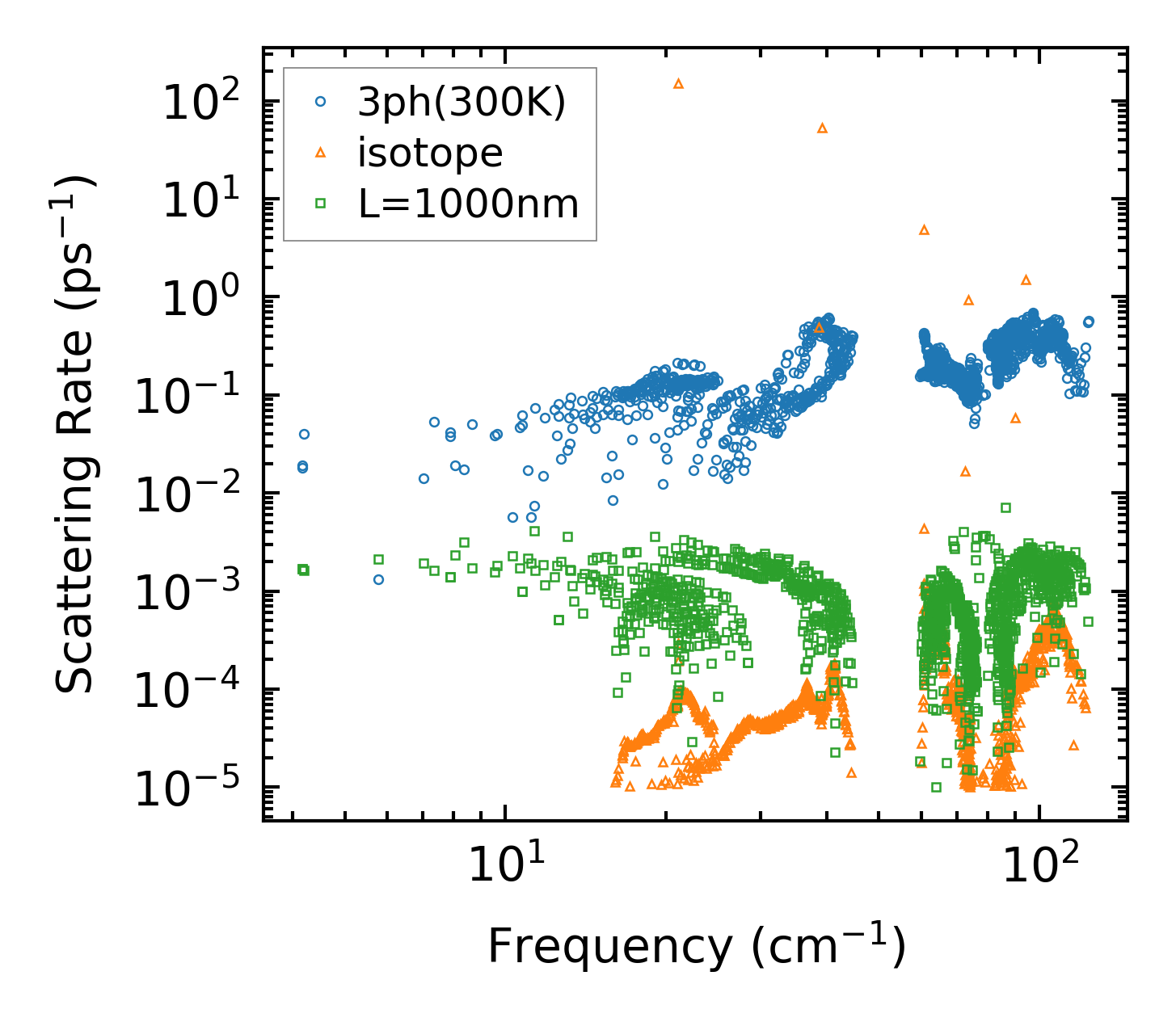

../../_images/fig_scat_rates2978.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

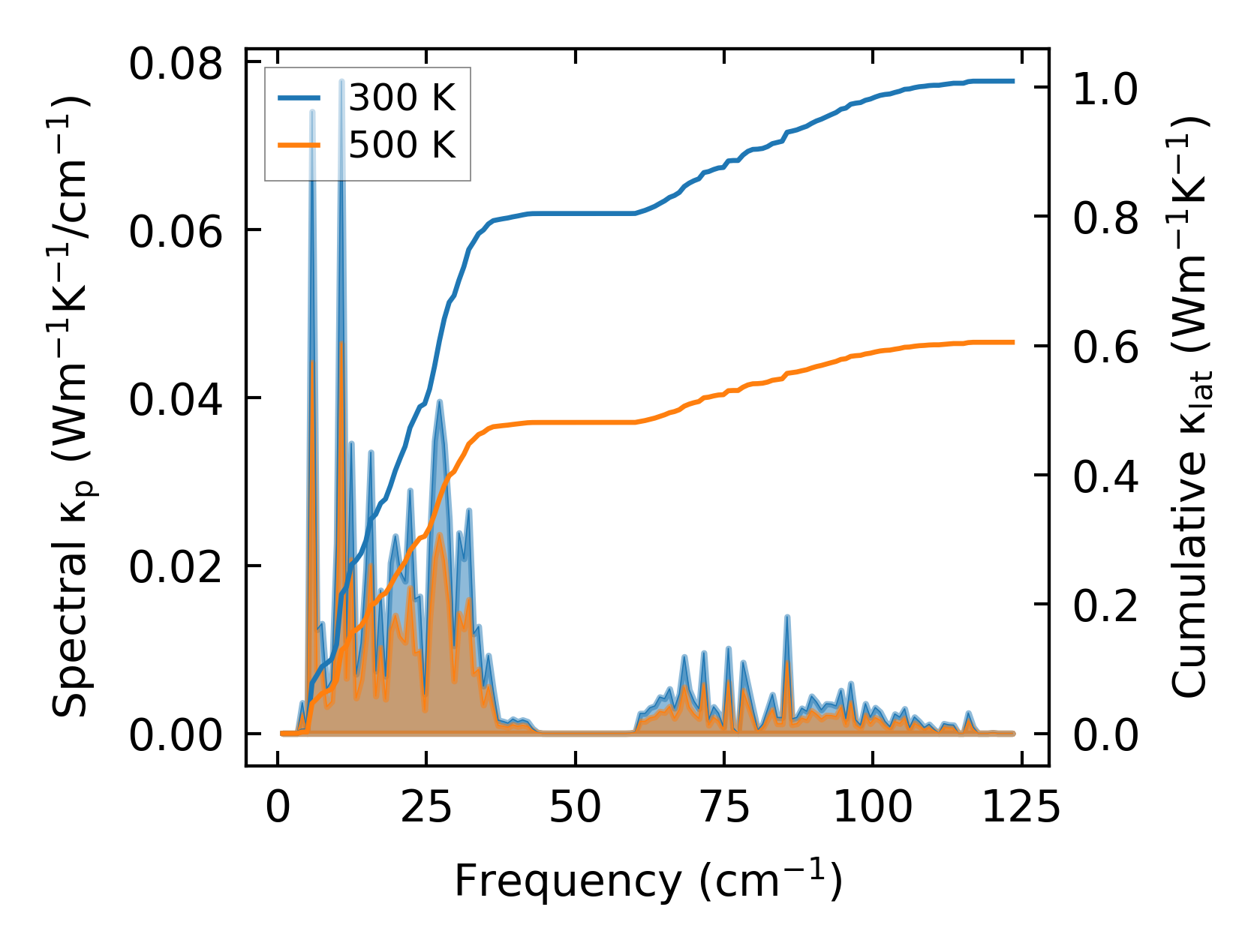

../../_images/fig_cumu_frequency2979.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

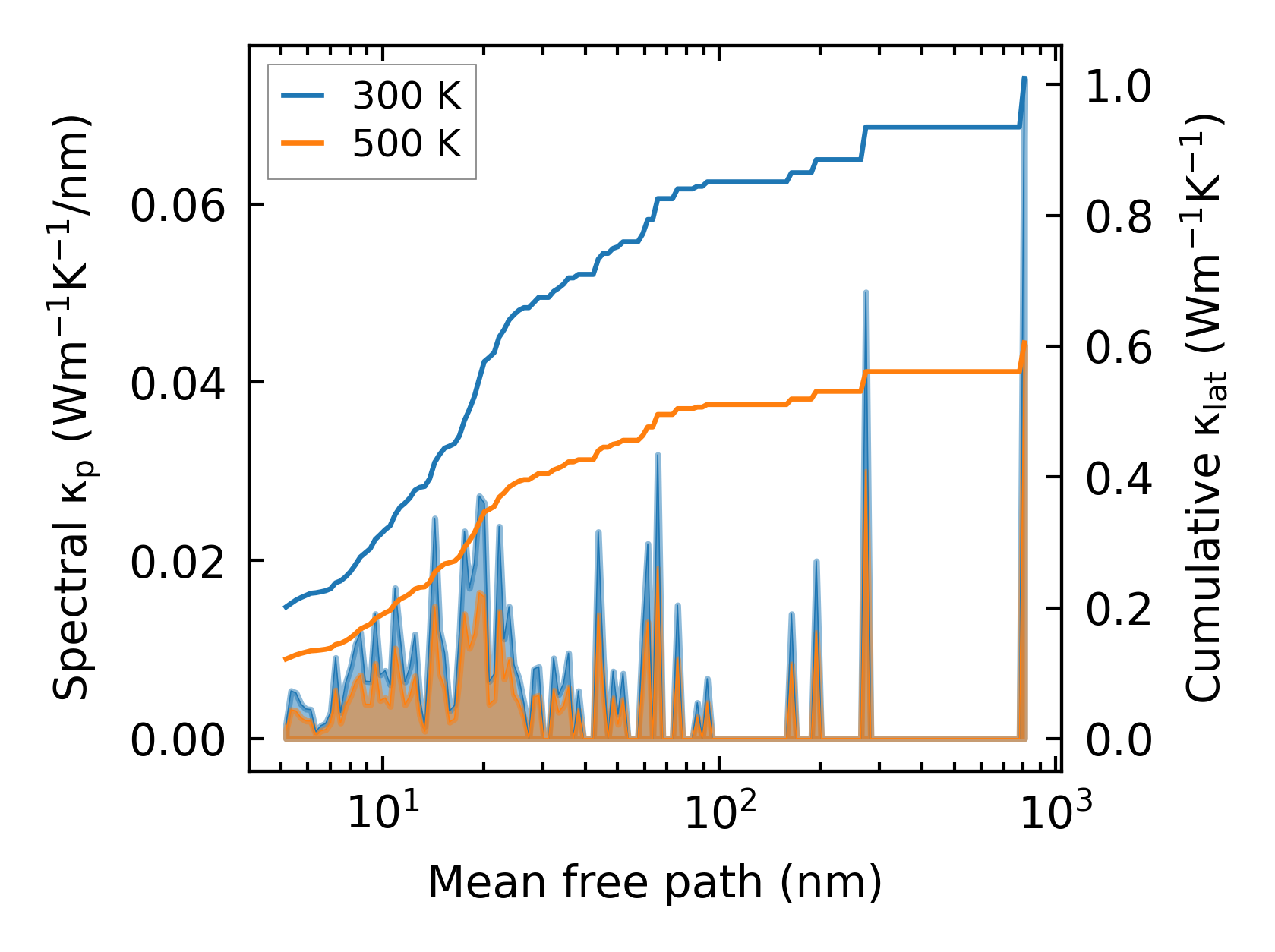

../../_images/fig_cumu_mfp2978.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

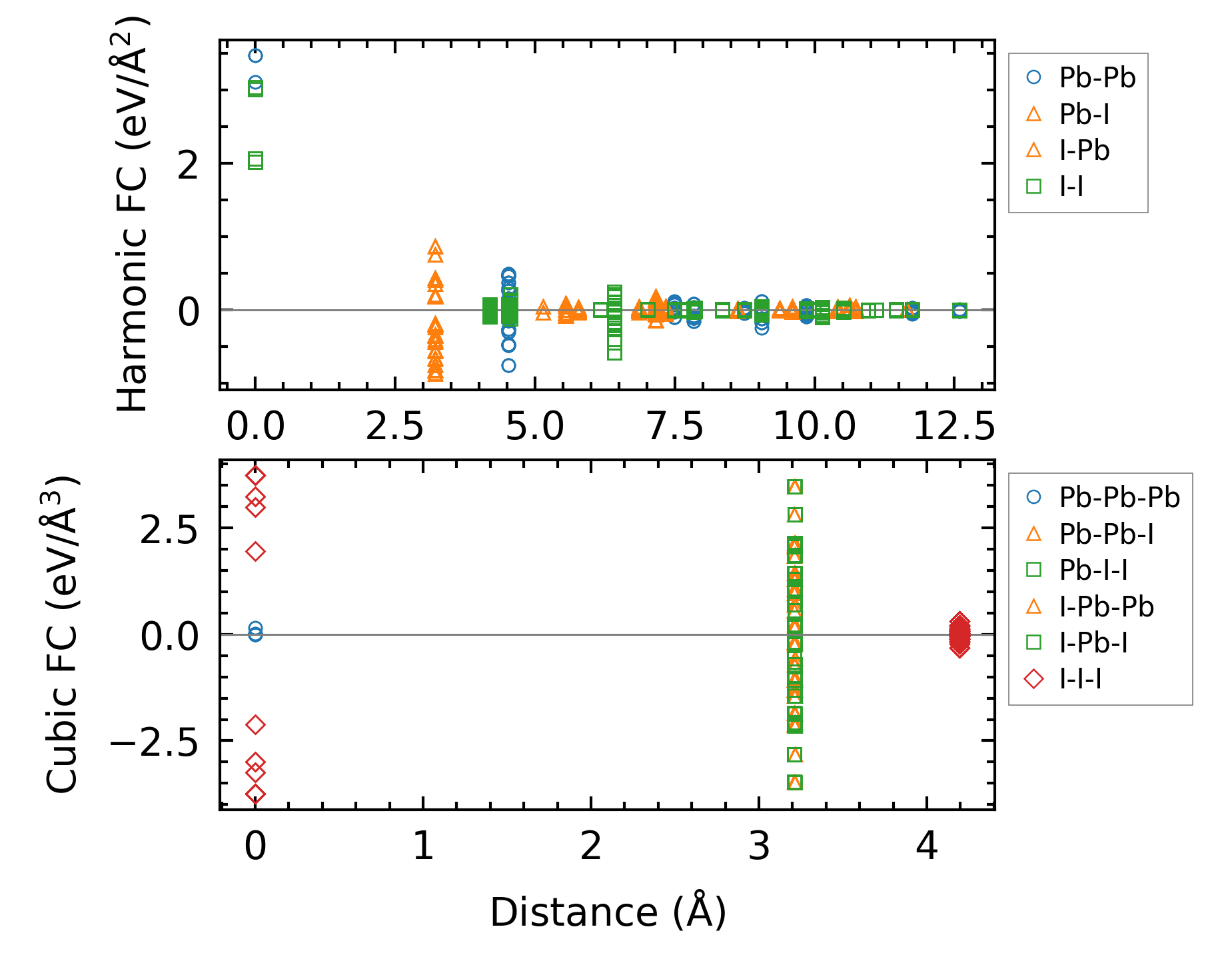

../../_images/fig_fc3229.png — (a) Force constants w.r.t atomic distance

Summary

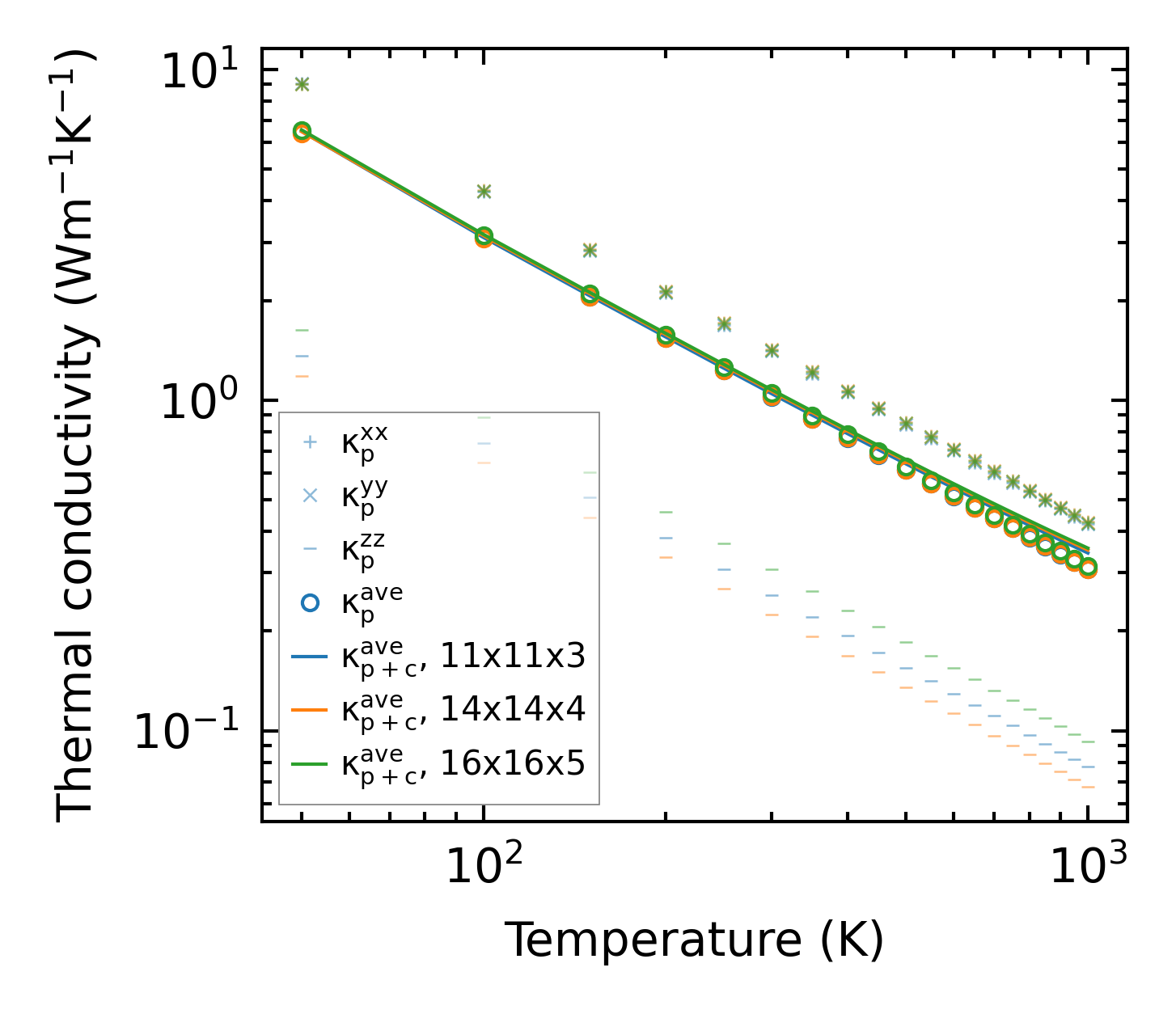

../../_images/fig_kappa5695.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times12777.png — (b) Computation time
