mp-541832/Ba2SnS4/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-541832.tar.gz

Harmonic properties

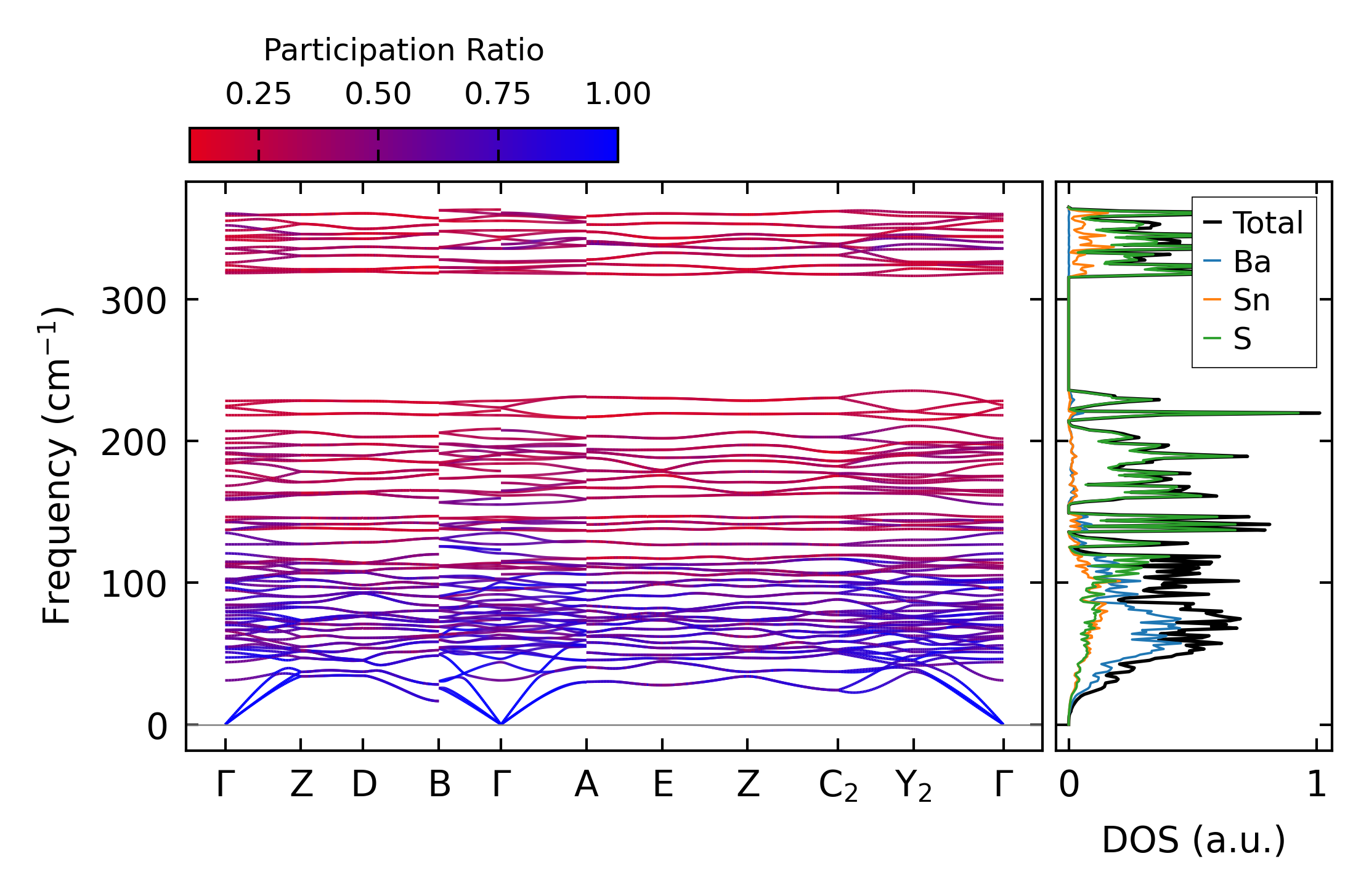

../../_images/fig_bandos_pr9571.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9571.png — (b) Thermodynamic properties

Grüneisen parameters

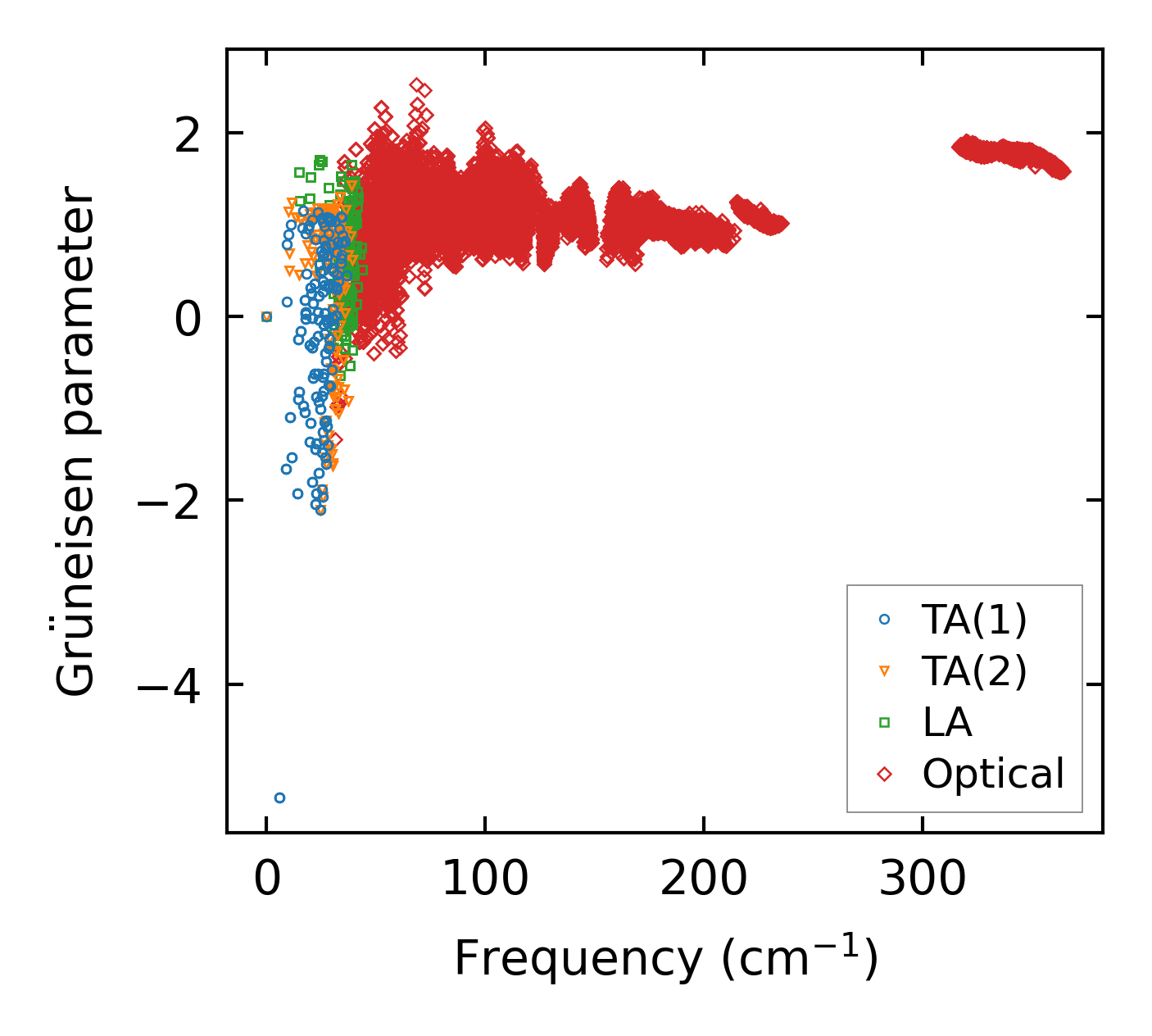

../../_images/fig_gru_all3823.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3823.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x8x6, supercell: 2x2x1

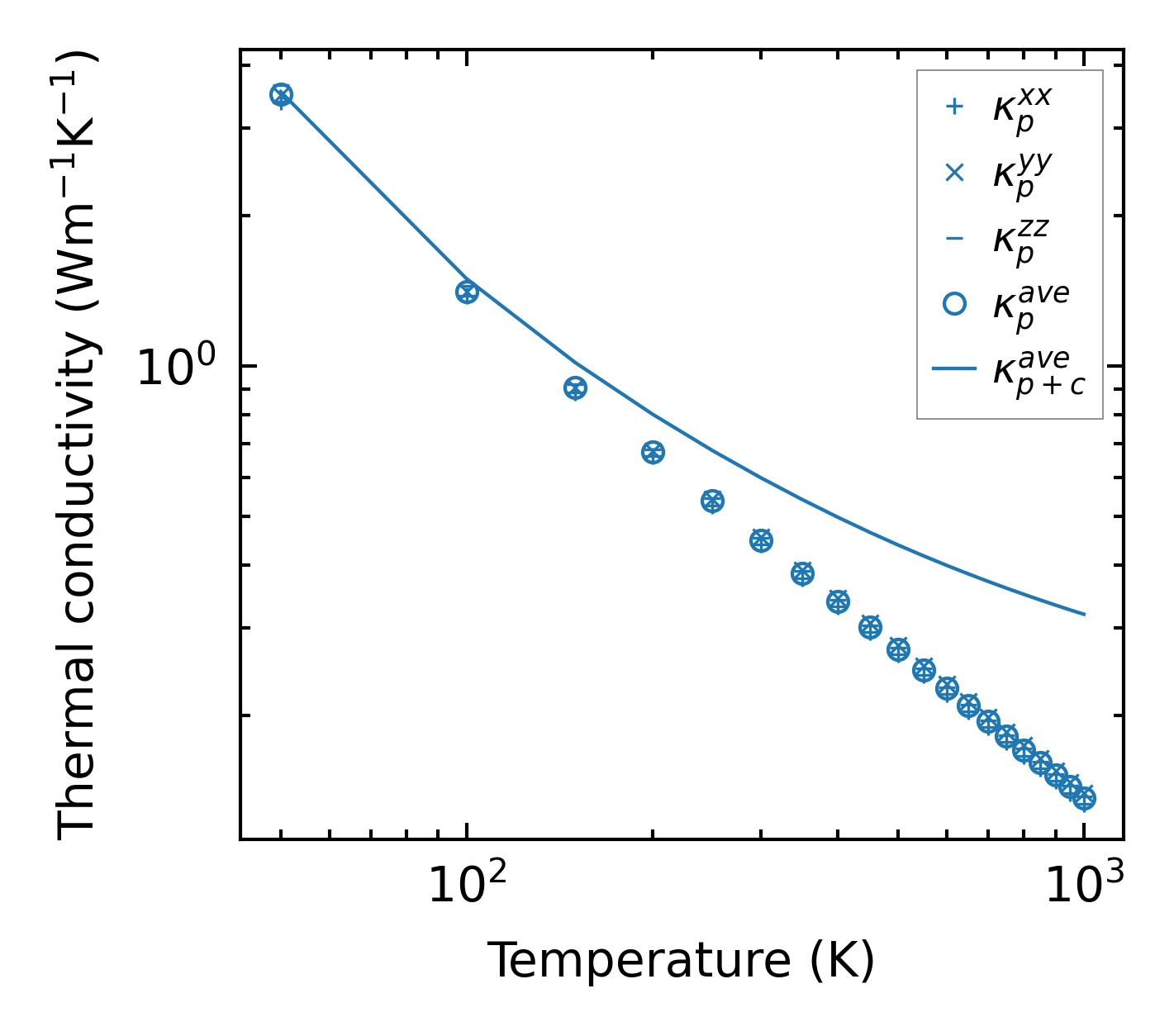

../../_images/fig_kappa7210.png — (a) Temperature-dependent lattice thermal conductivity

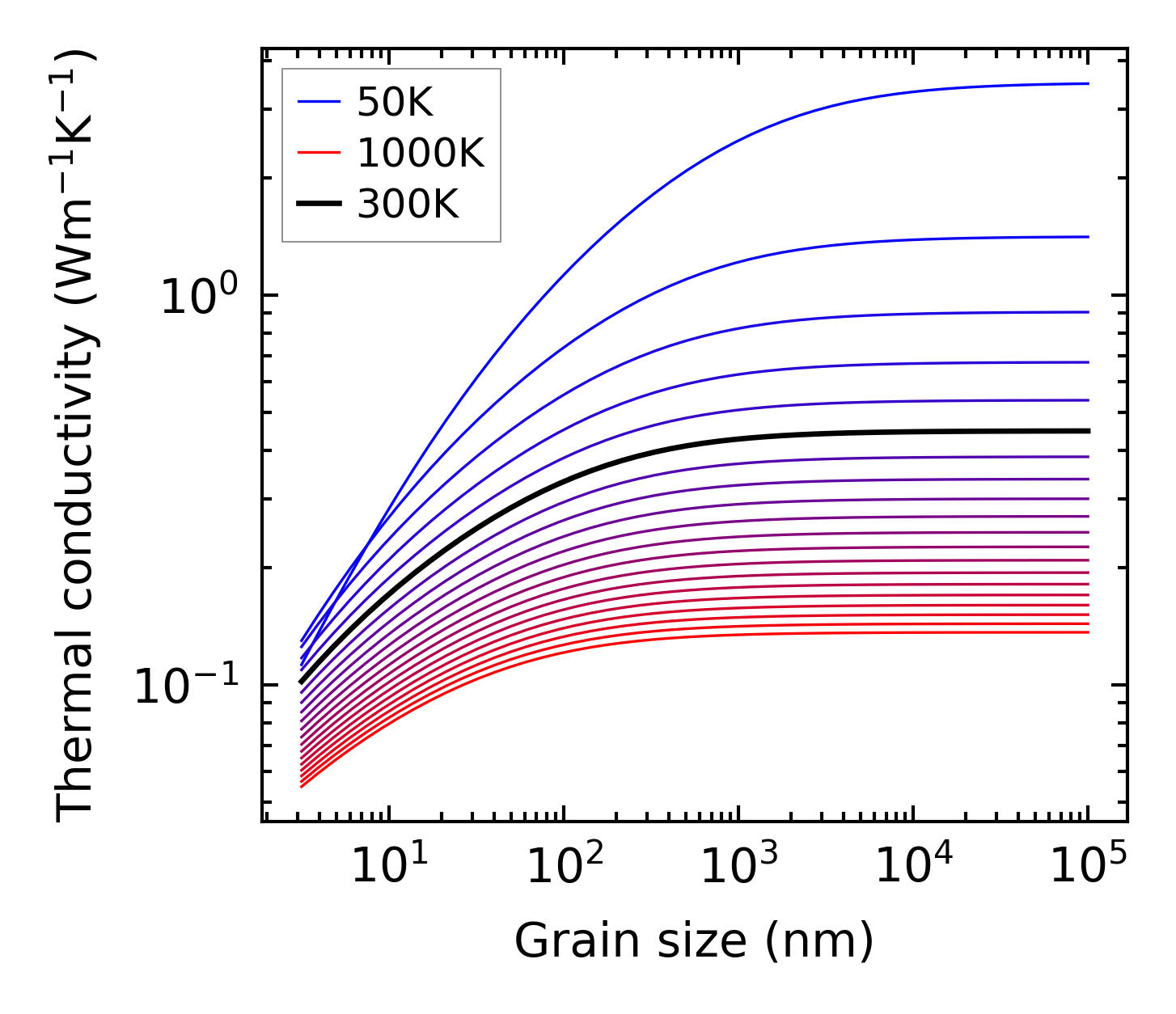

../../_images/fig_kappa_vs_grain_size3872.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3788.png — (a) Phonon lifetime due to phonon-phonon scattering

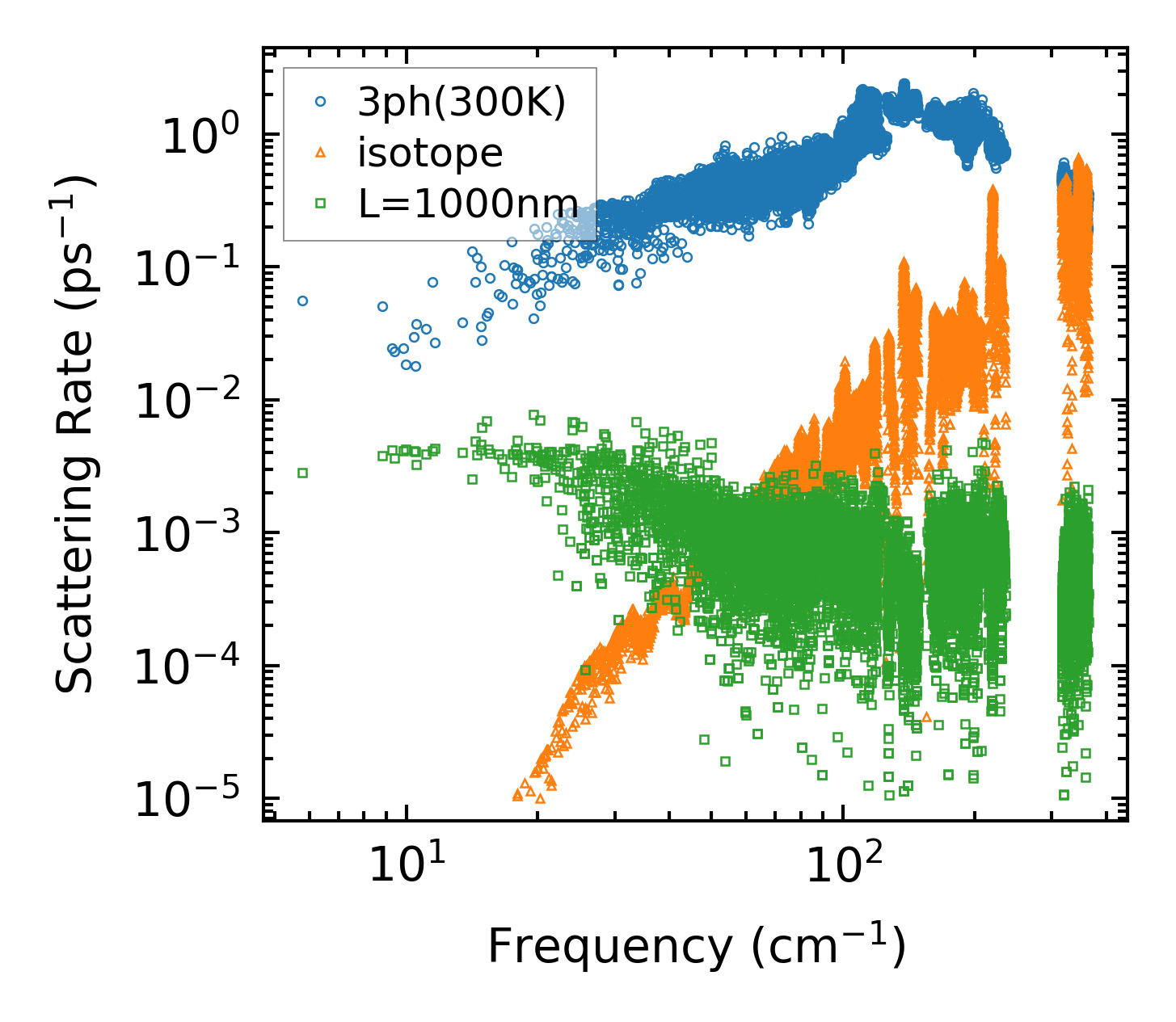

../../_images/fig_scat_rates3787.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency3788.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

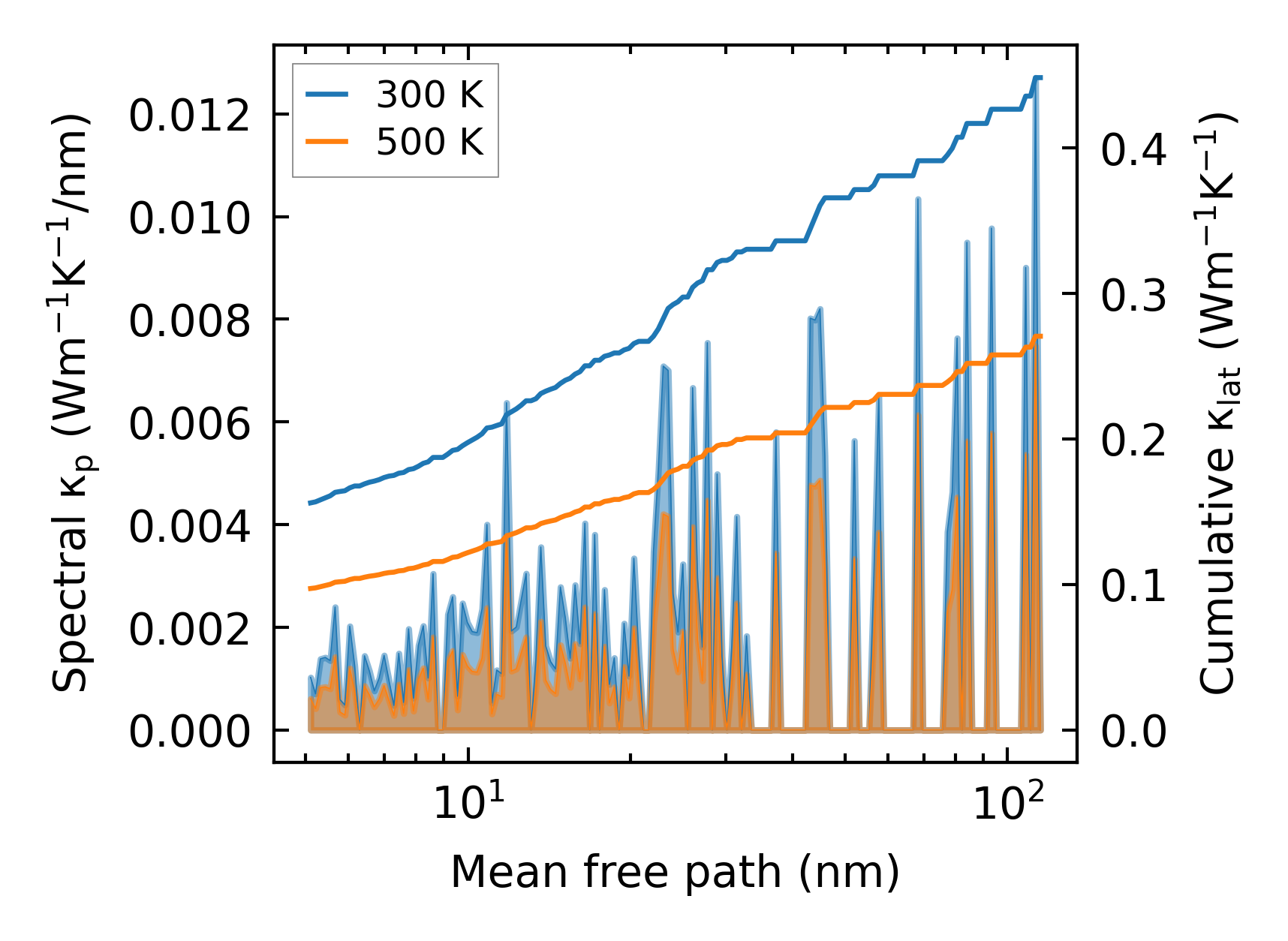

../../_images/fig_cumu_mfp3787.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

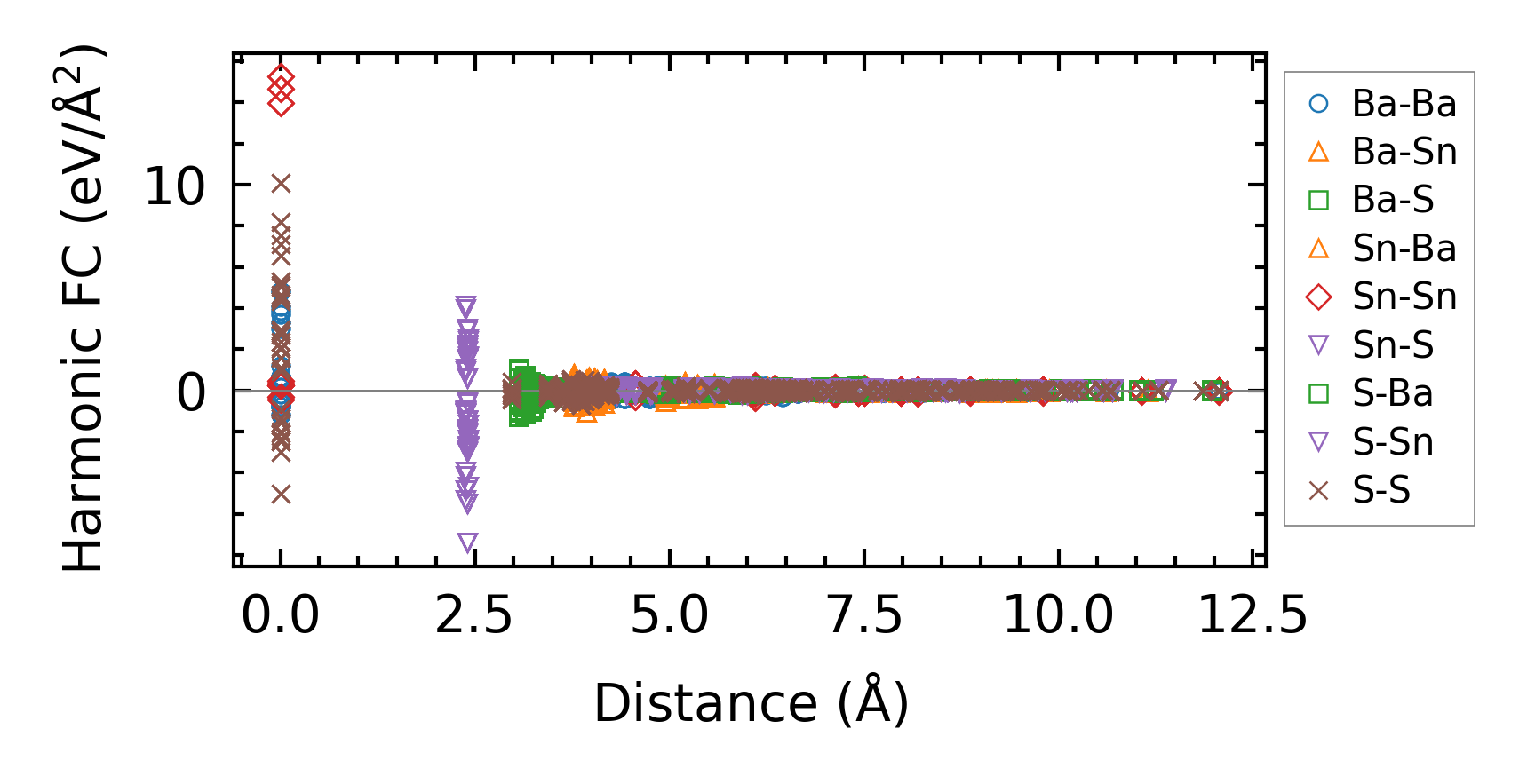

../../_images/fig_fc29332.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa7211.png — (a) Temperature-dependent lattice thermal conductivity

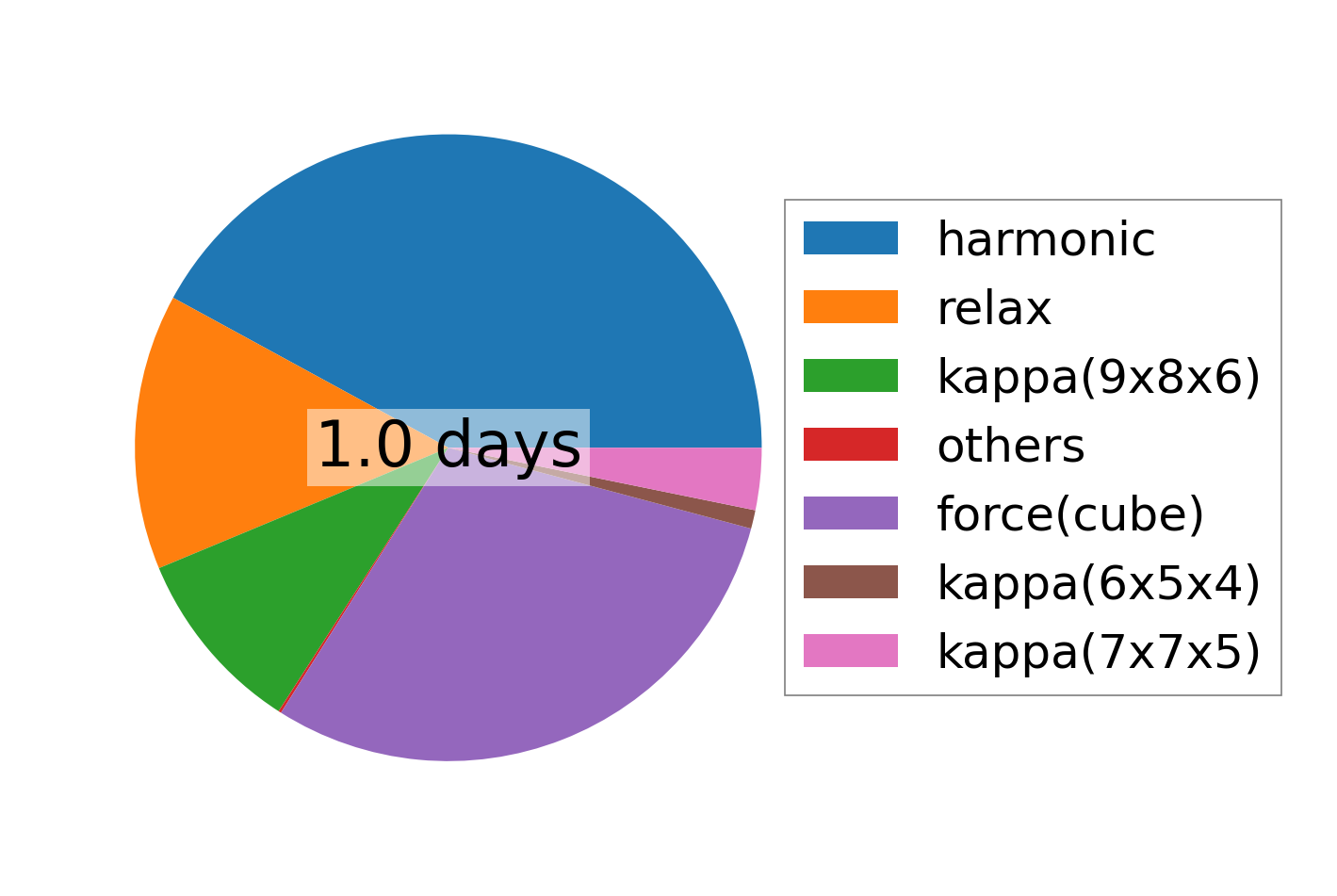

../../_images/fig_times16648.png — (b) Computation time
