mp-541487-2/TlPt2Se3/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-541487-2.tar.gz

Equation of state

../../_images/fig_bm4760.png — (a) Equation of state

Harmonic properties

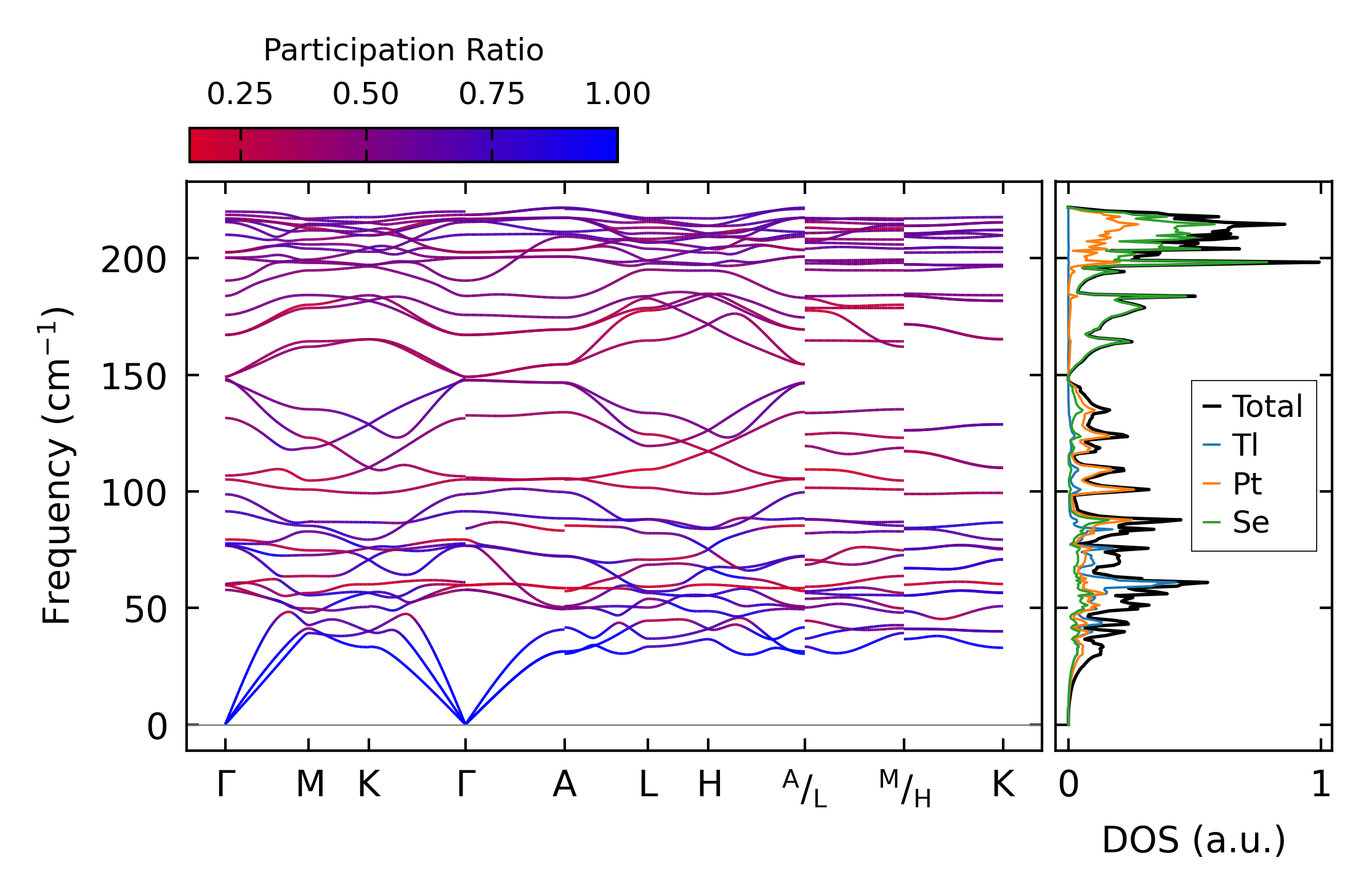

../../_images/fig_bandos_pr9517.png — (a) Phonon dispersion with participation ratio and DOS

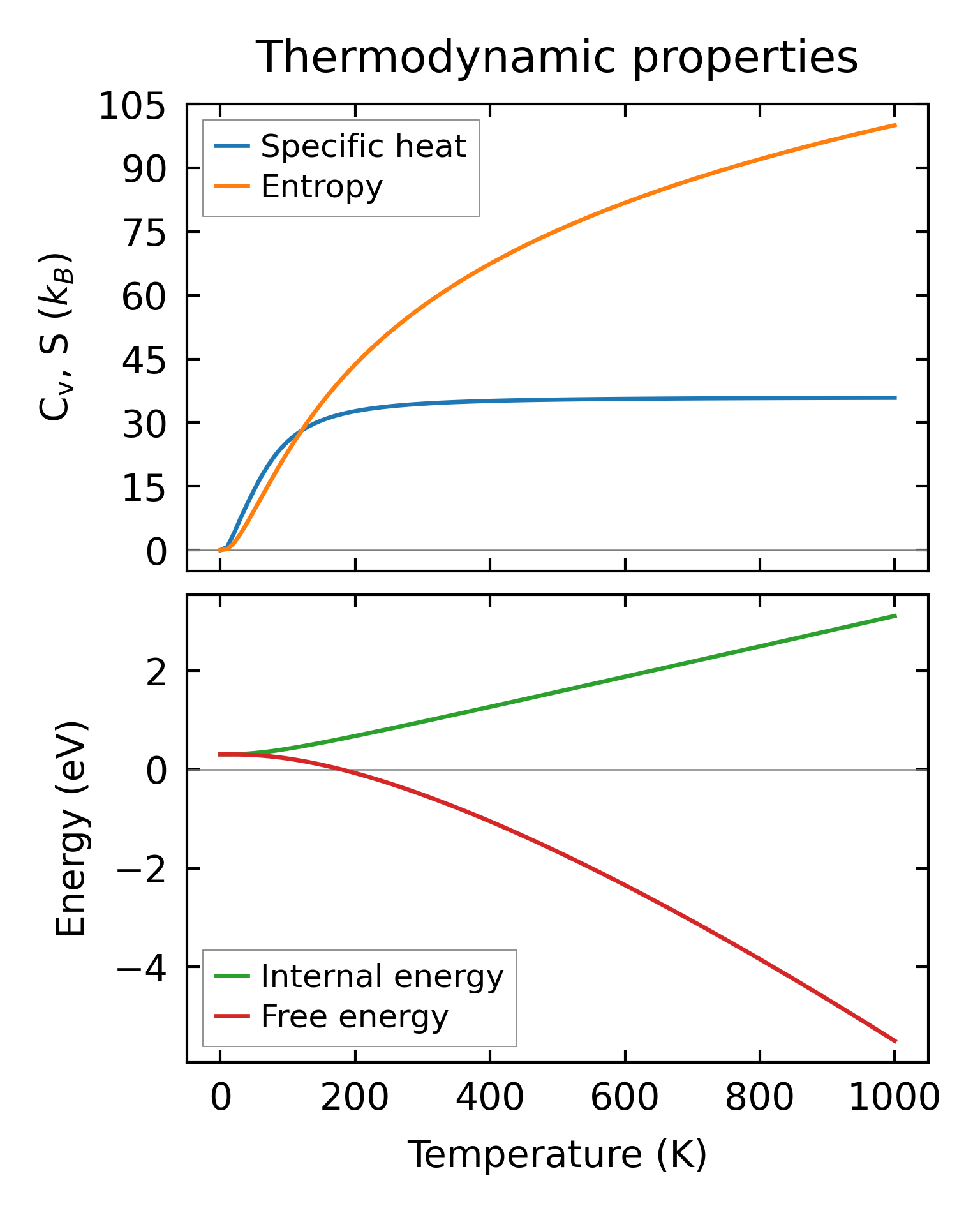

../../_images/fig_thermo9517.png — (b) Thermodynamic properties

Grüneisen parameters

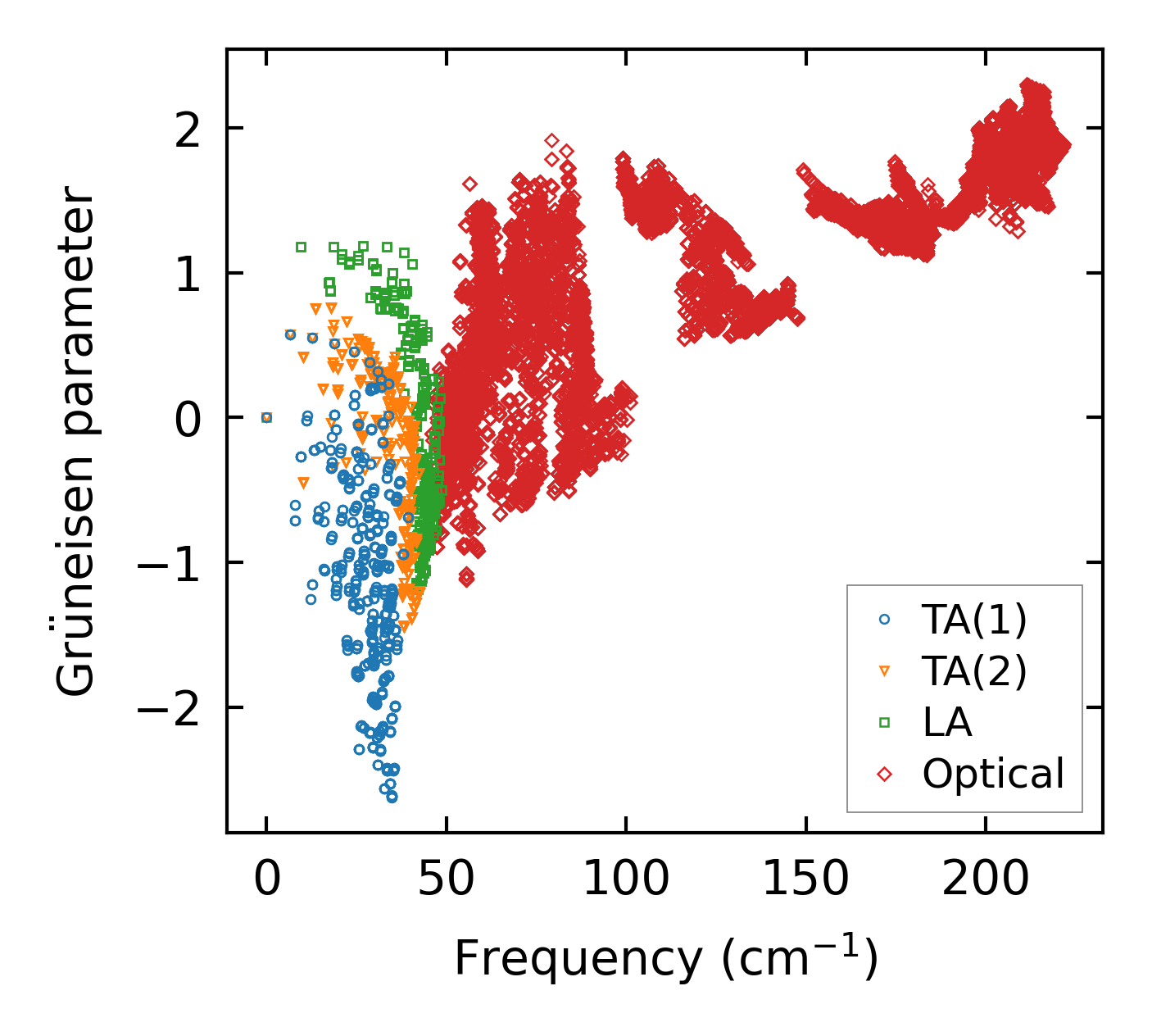

../../_images/fig_gru_all3786.png — (a) Grüneisen parameters

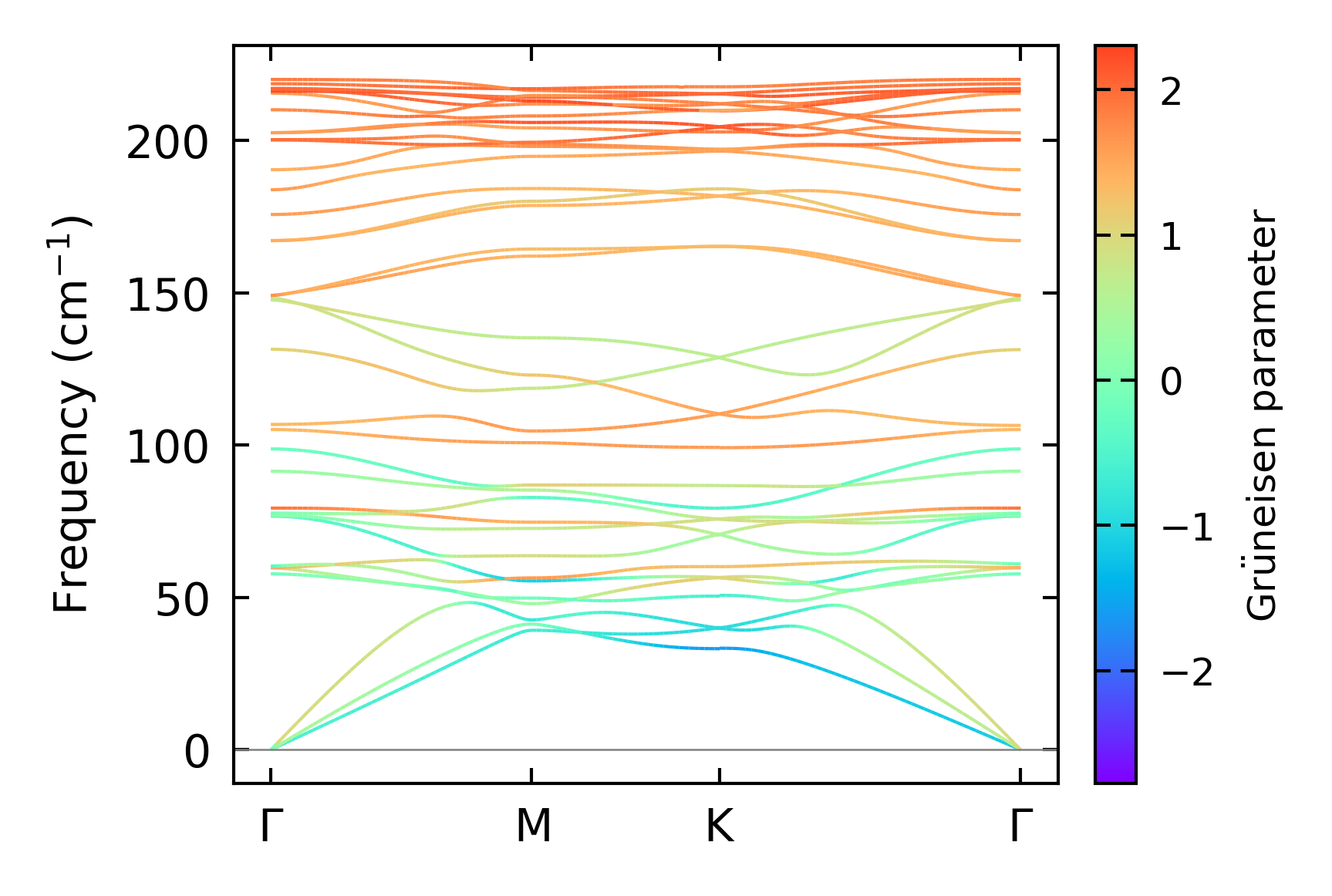

../../_images/fig_gruneisen3786.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x13, supercell: 2x2x3

../../_images/fig_kappa7139.png — (a) Temperature-dependent lattice thermal conductivity

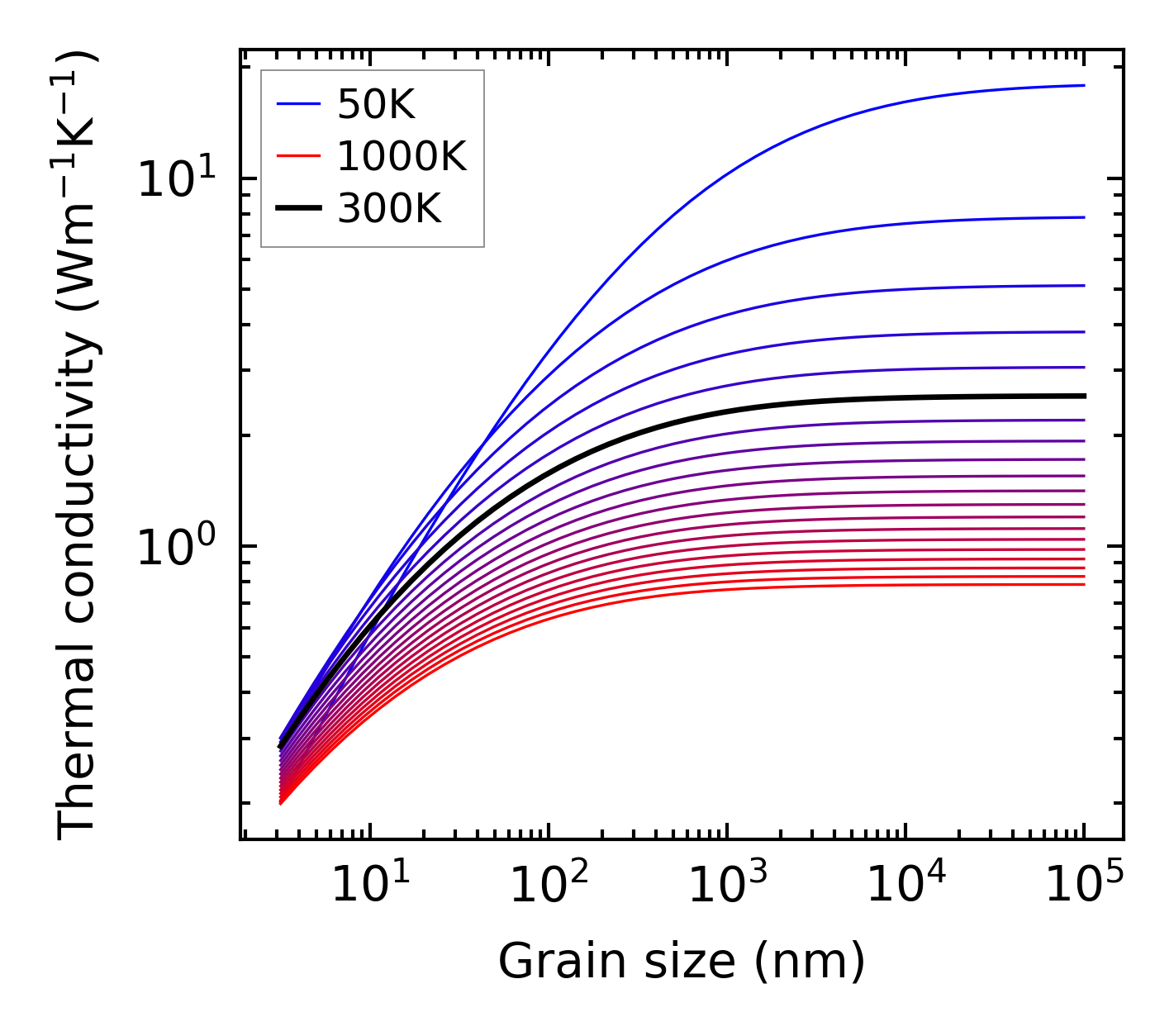

../../_images/fig_kappa_vs_grain_size3835.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3751.png — (a) Phonon lifetime due to phonon-phonon scattering

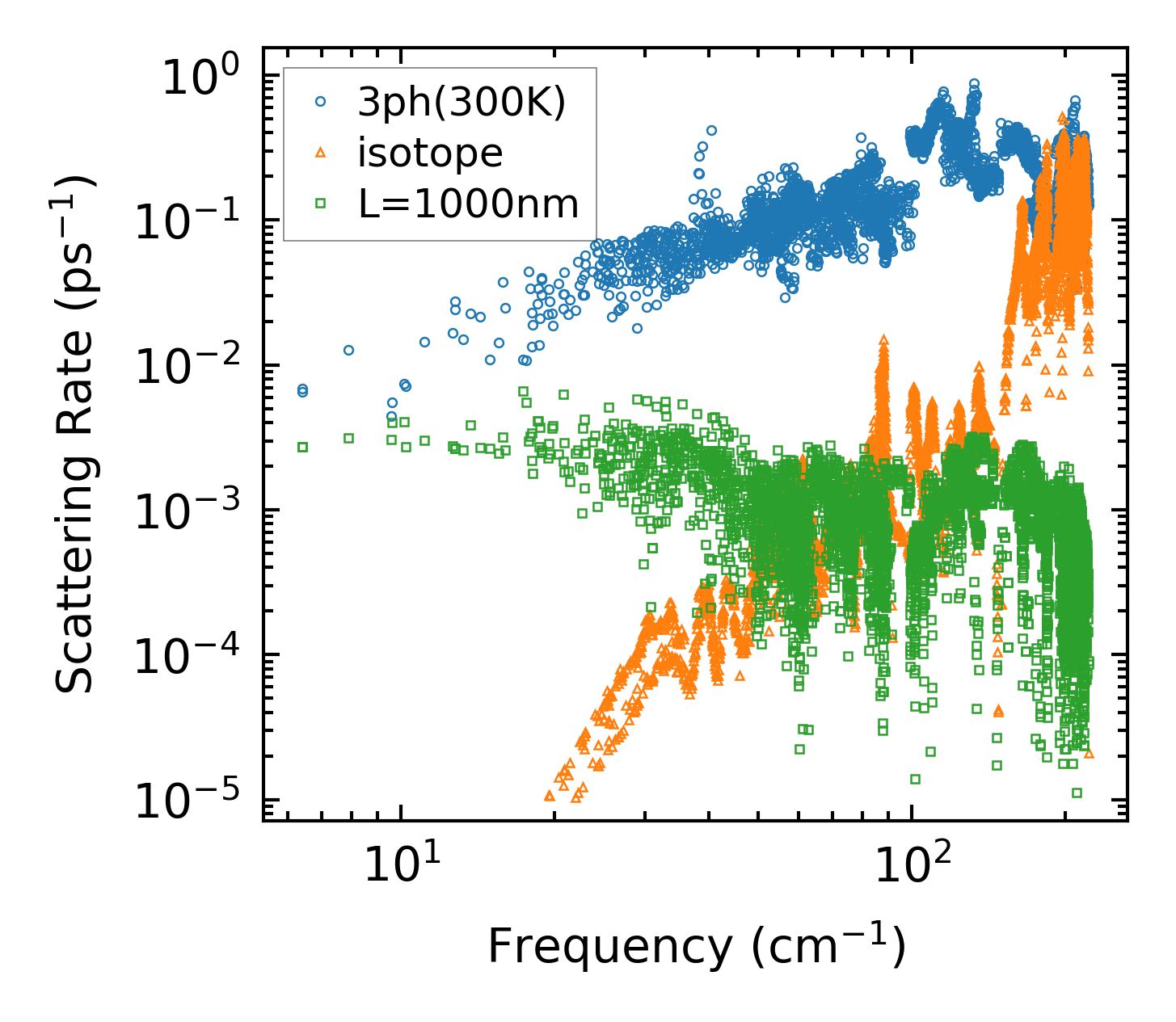

../../_images/fig_scat_rates3750.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

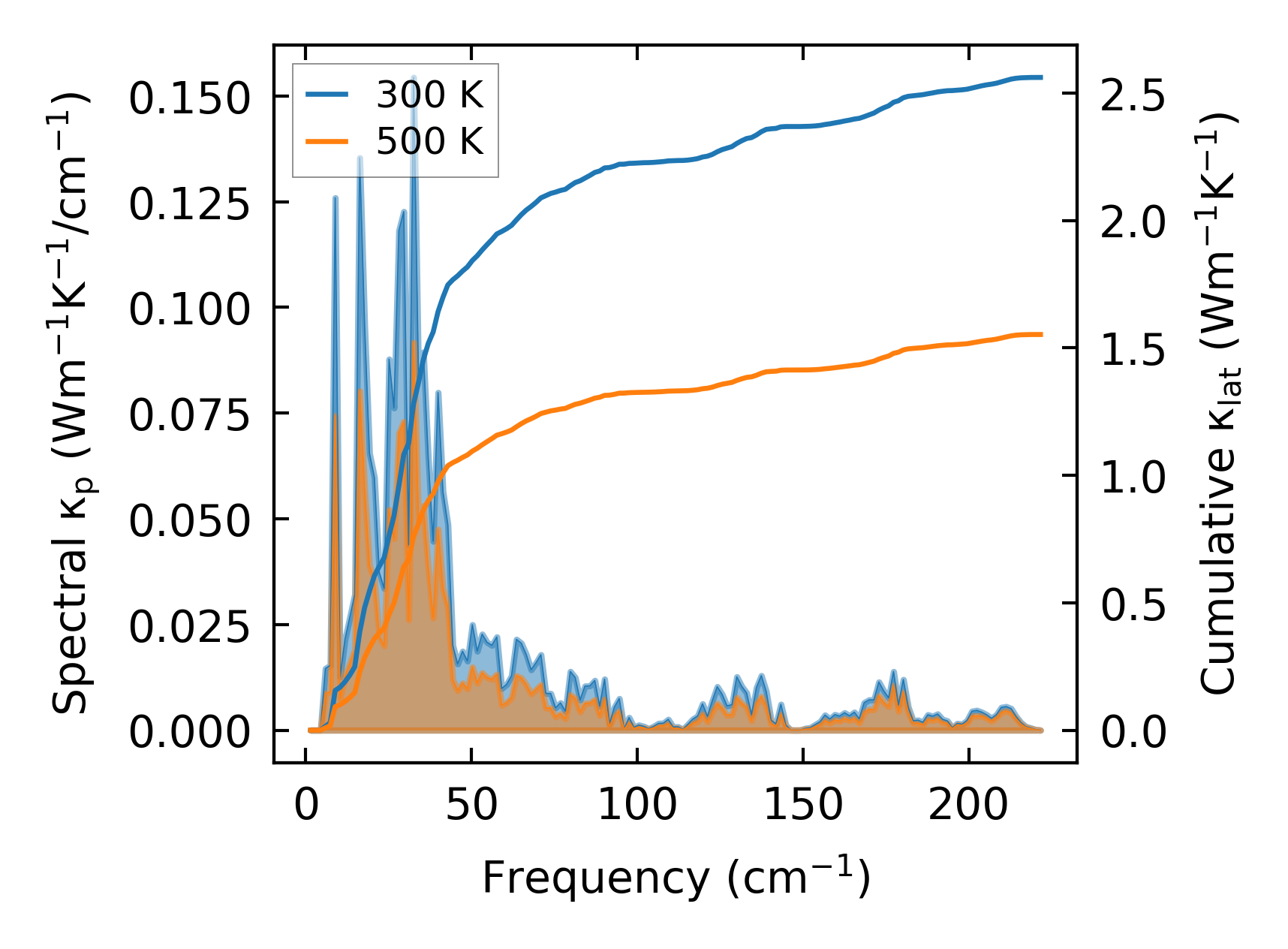

../../_images/fig_cumu_frequency3751.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3750.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

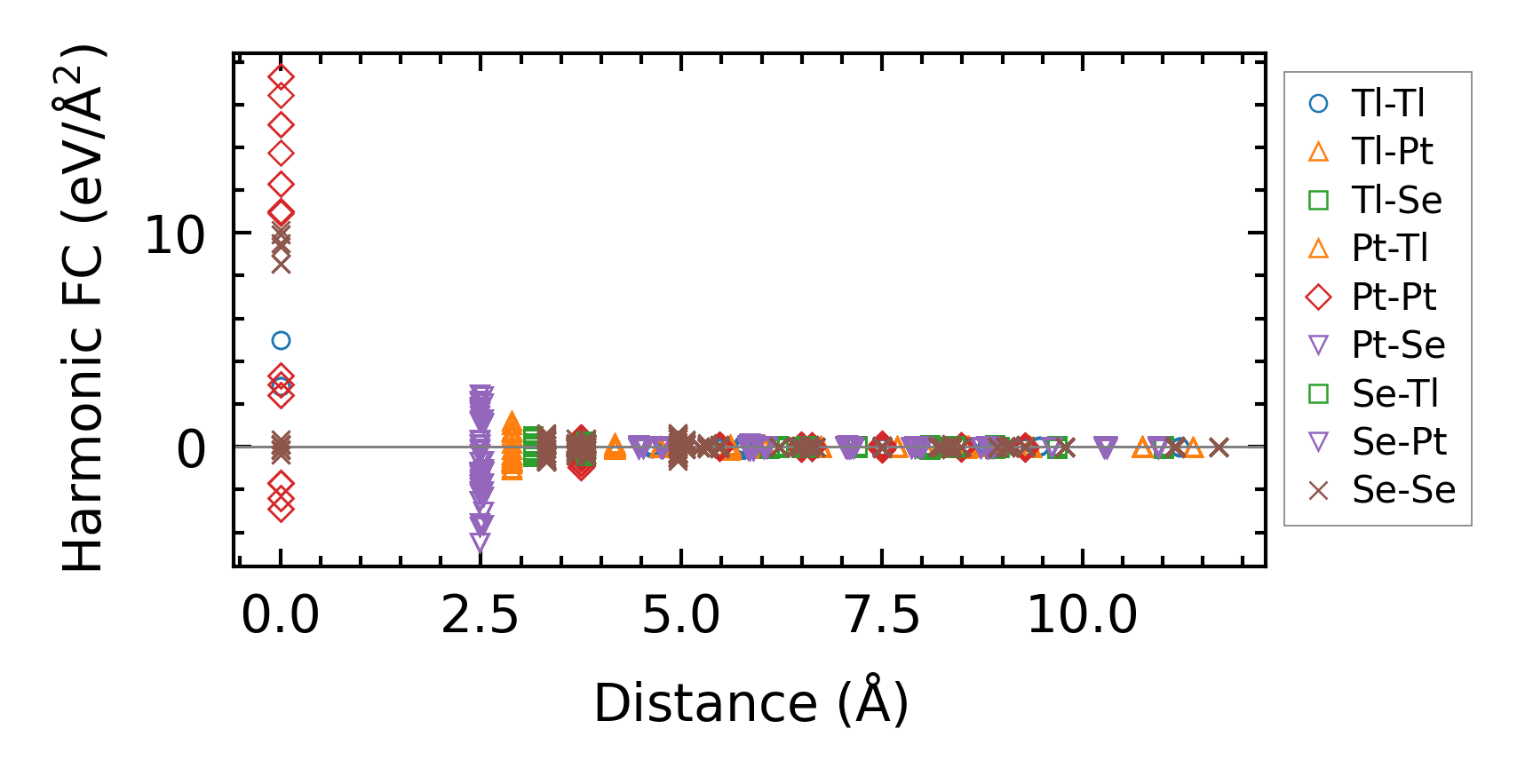

../../_images/fig_fc29278.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa7140.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times16559.png — (b) Computation time
