mp-541509-3/Ta2Ni3Se8/anharm

Space group: Pbam (55)
Link: Materials Project
Download: mp-541509-3.tar.gz

Harmonic properties

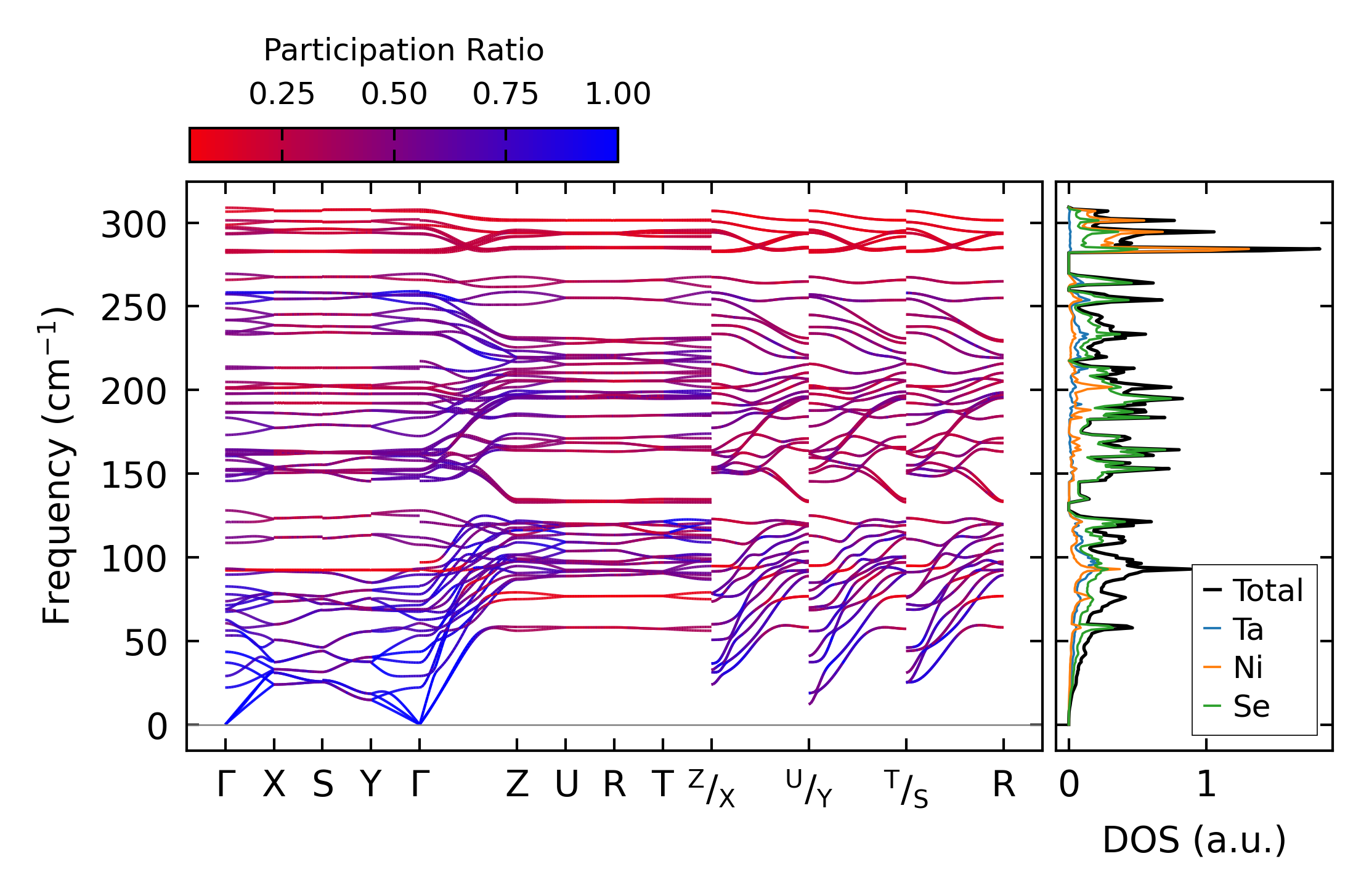

../../_images/fig_bandos_pr9522.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9522.png — (b) Thermodynamic properties

Grüneisen parameters

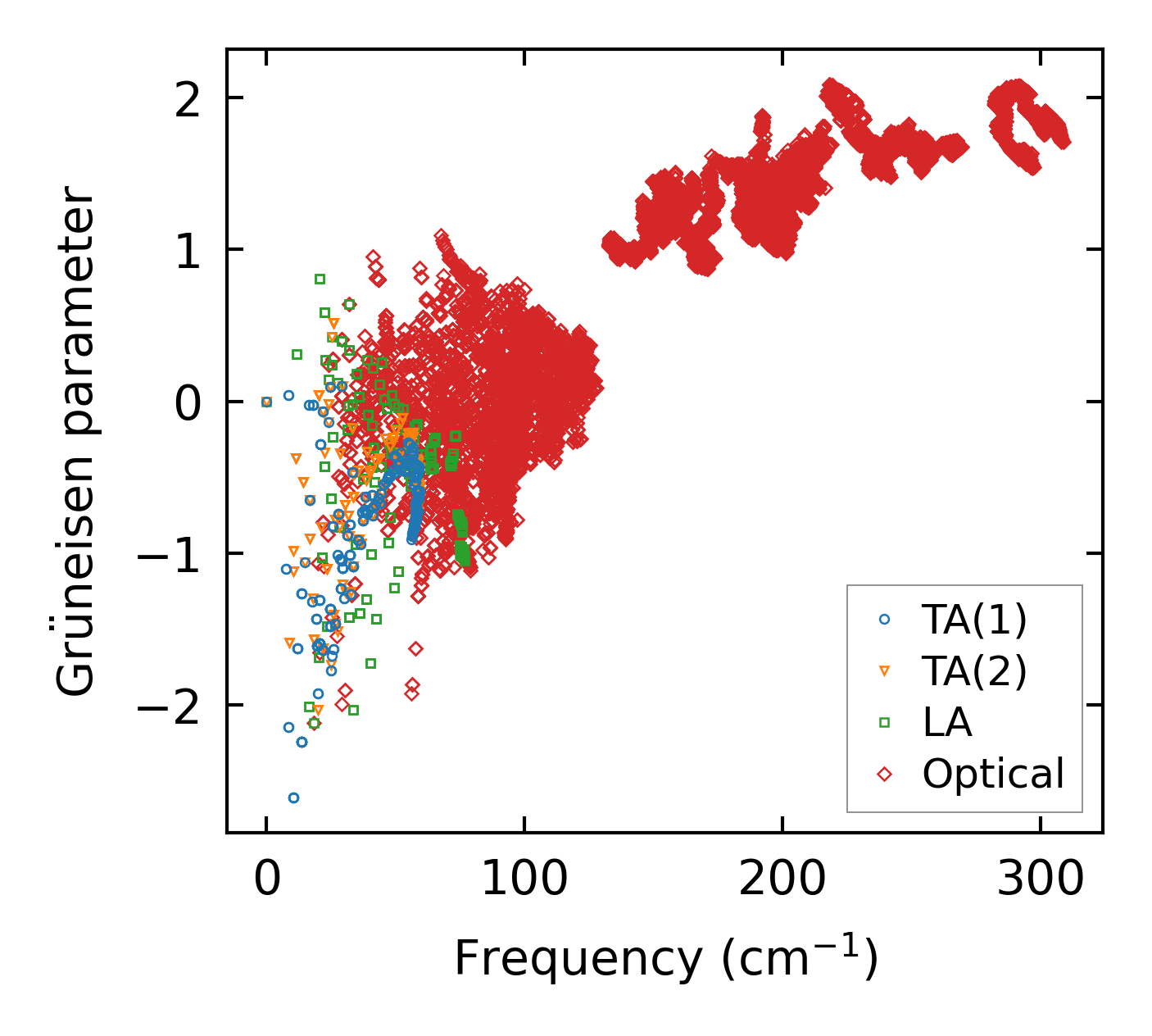

../../_images/fig_gru_all3789.png — (a) Grüneisen parameters

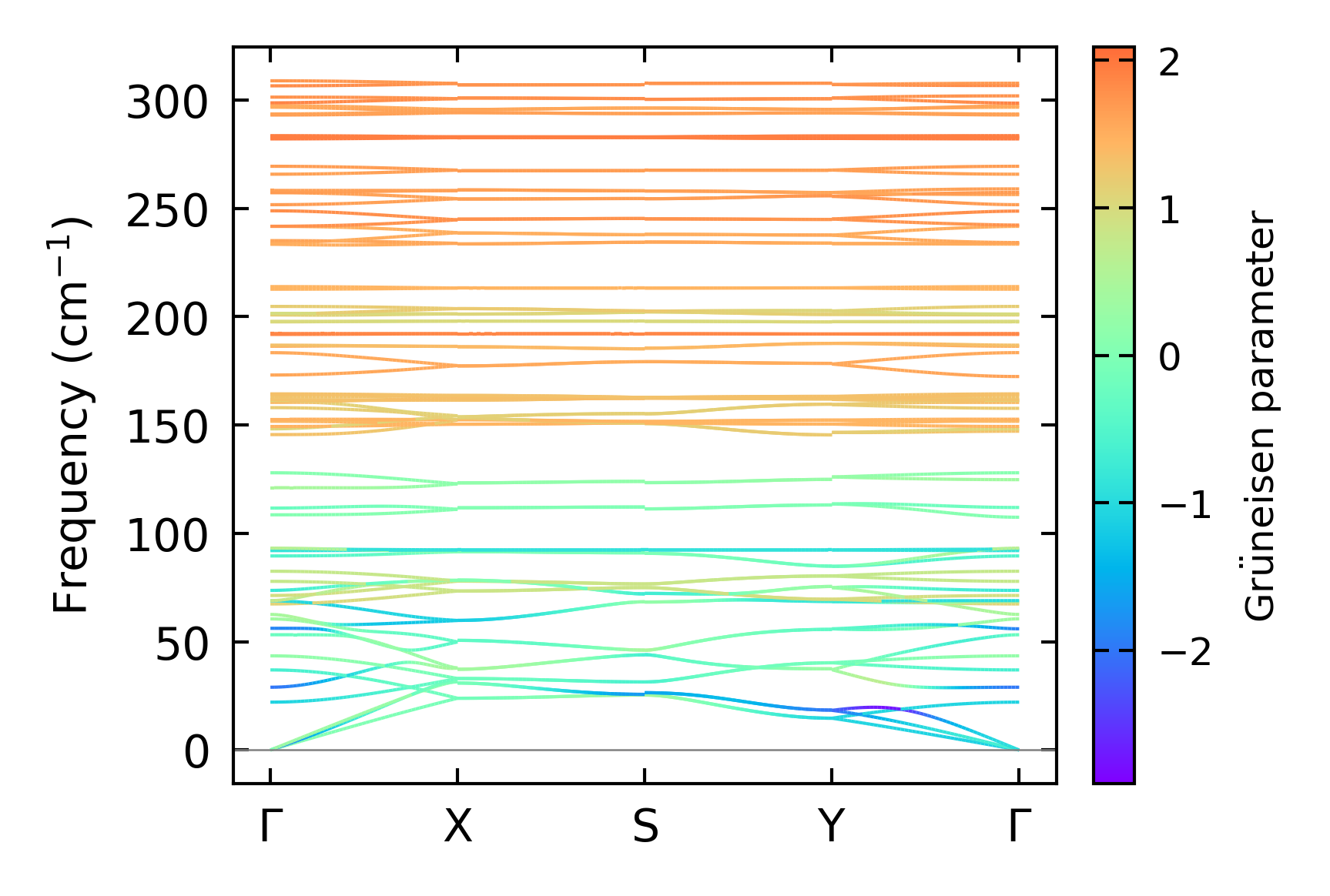

../../_images/fig_gruneisen3789.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x4x20, supercell: 1x1x4

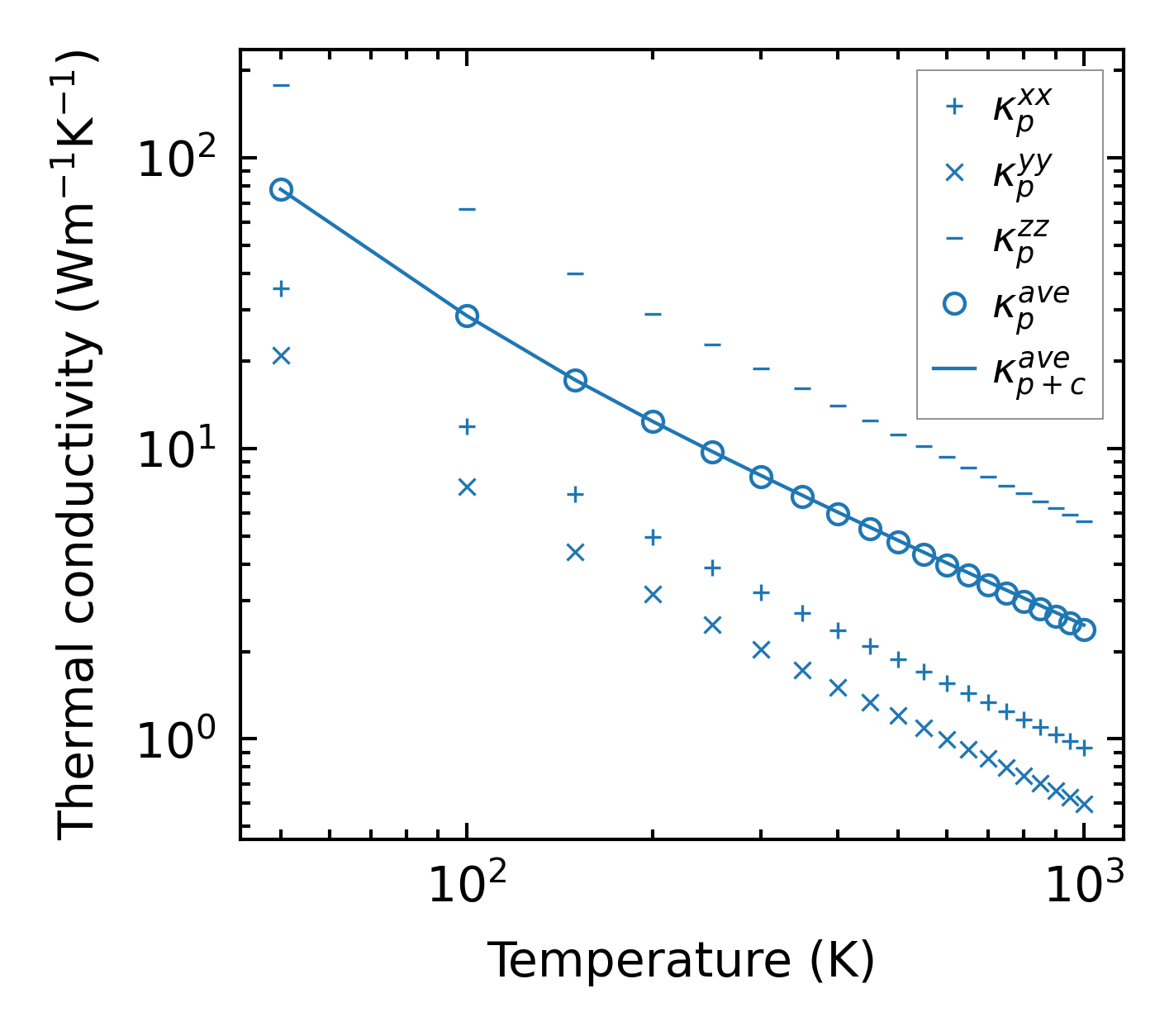

../../_images/fig_kappa7145.png — (a) Temperature-dependent lattice thermal conductivity

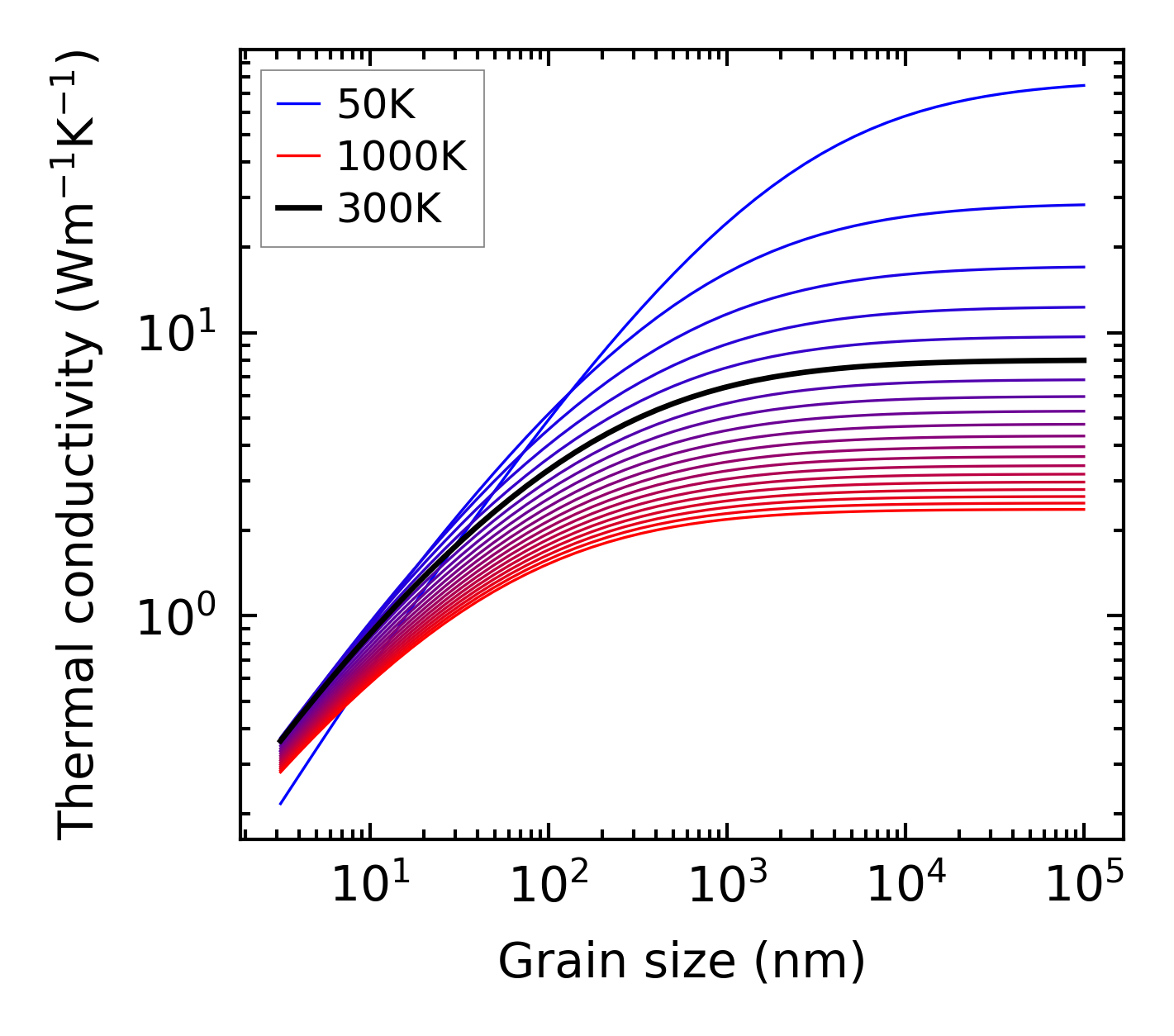

../../_images/fig_kappa_vs_grain_size3838.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

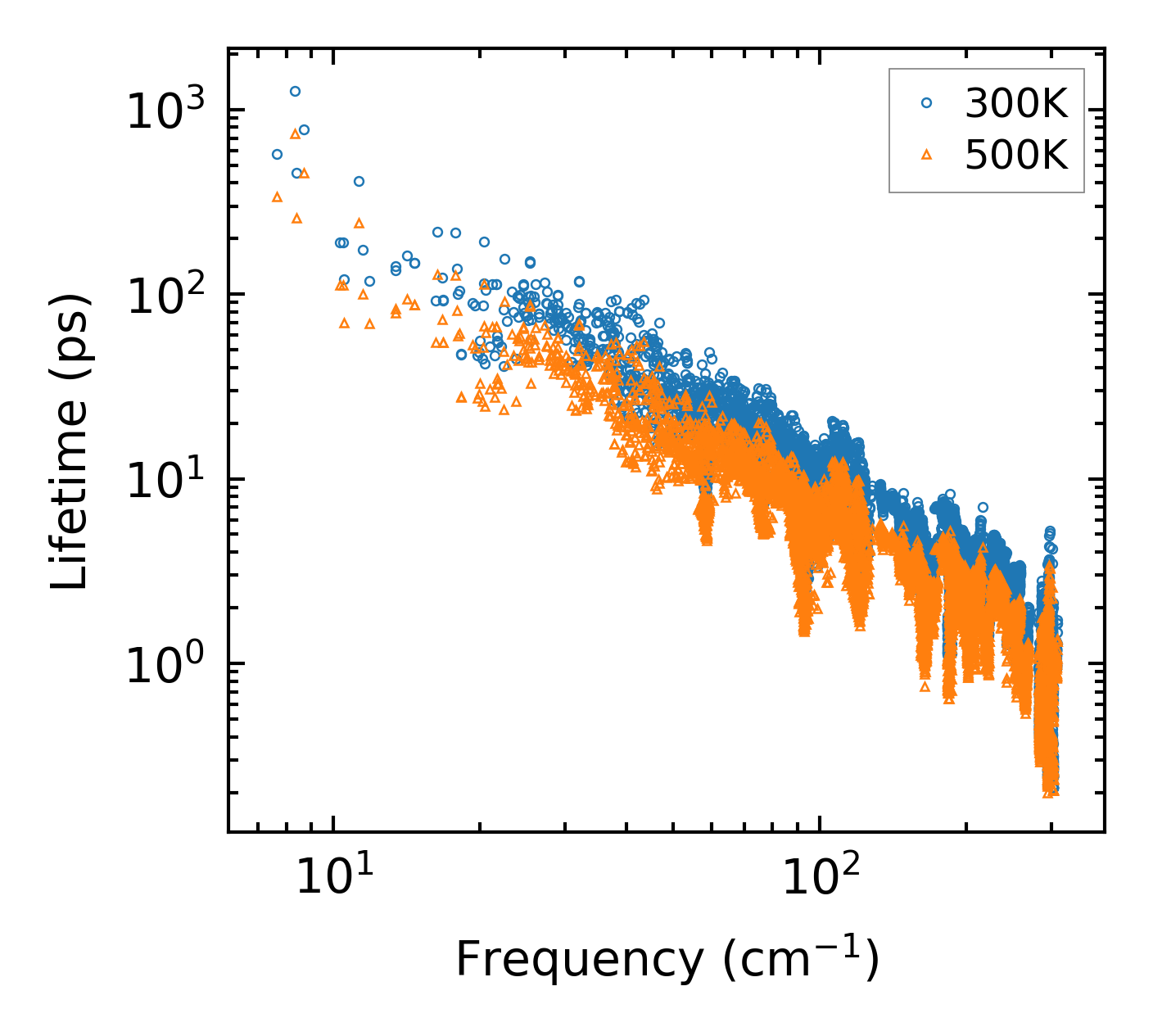

../../_images/fig_lifetime3754.png — (a) Phonon lifetime due to phonon-phonon scattering

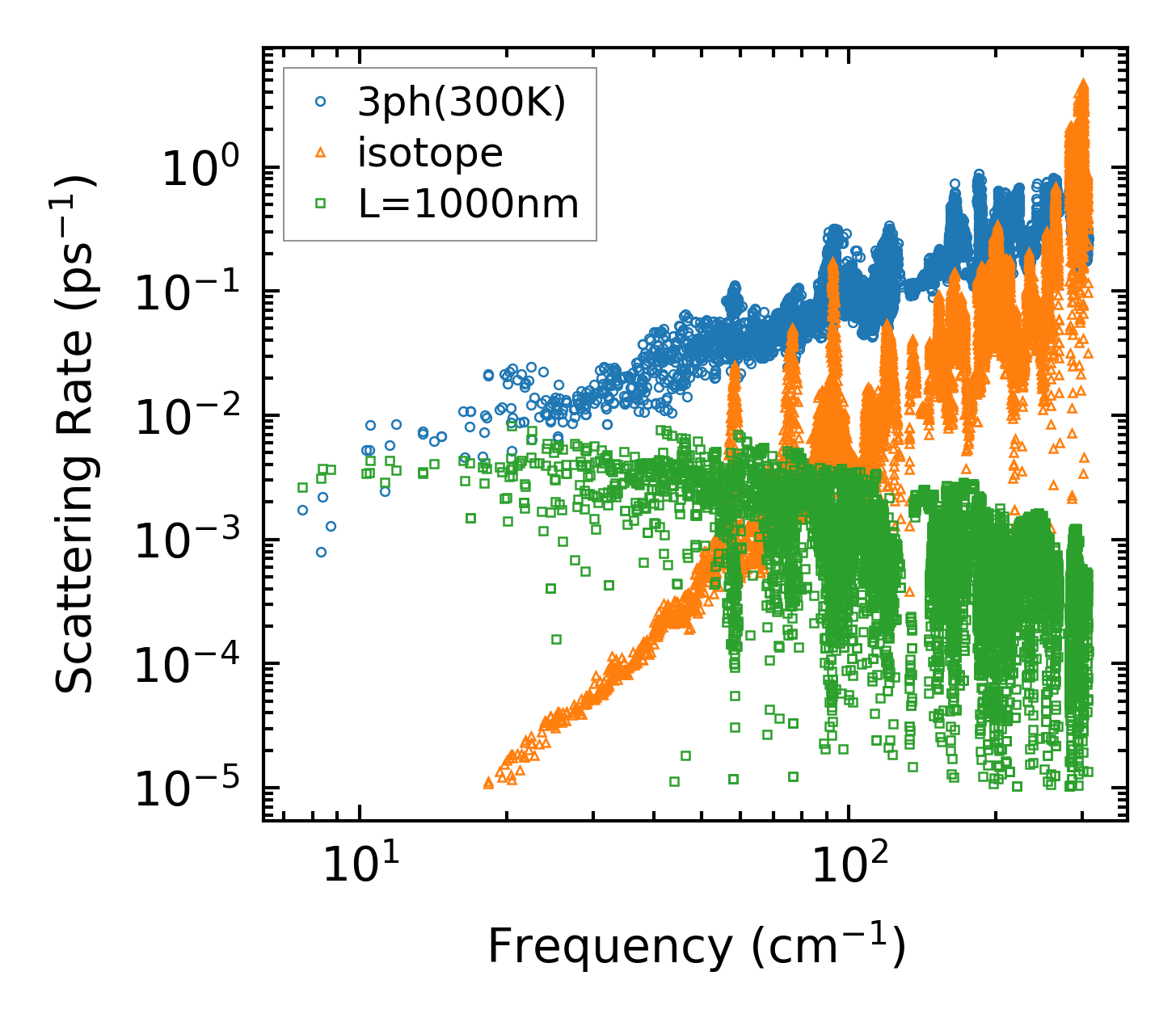

../../_images/fig_scat_rates3753.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

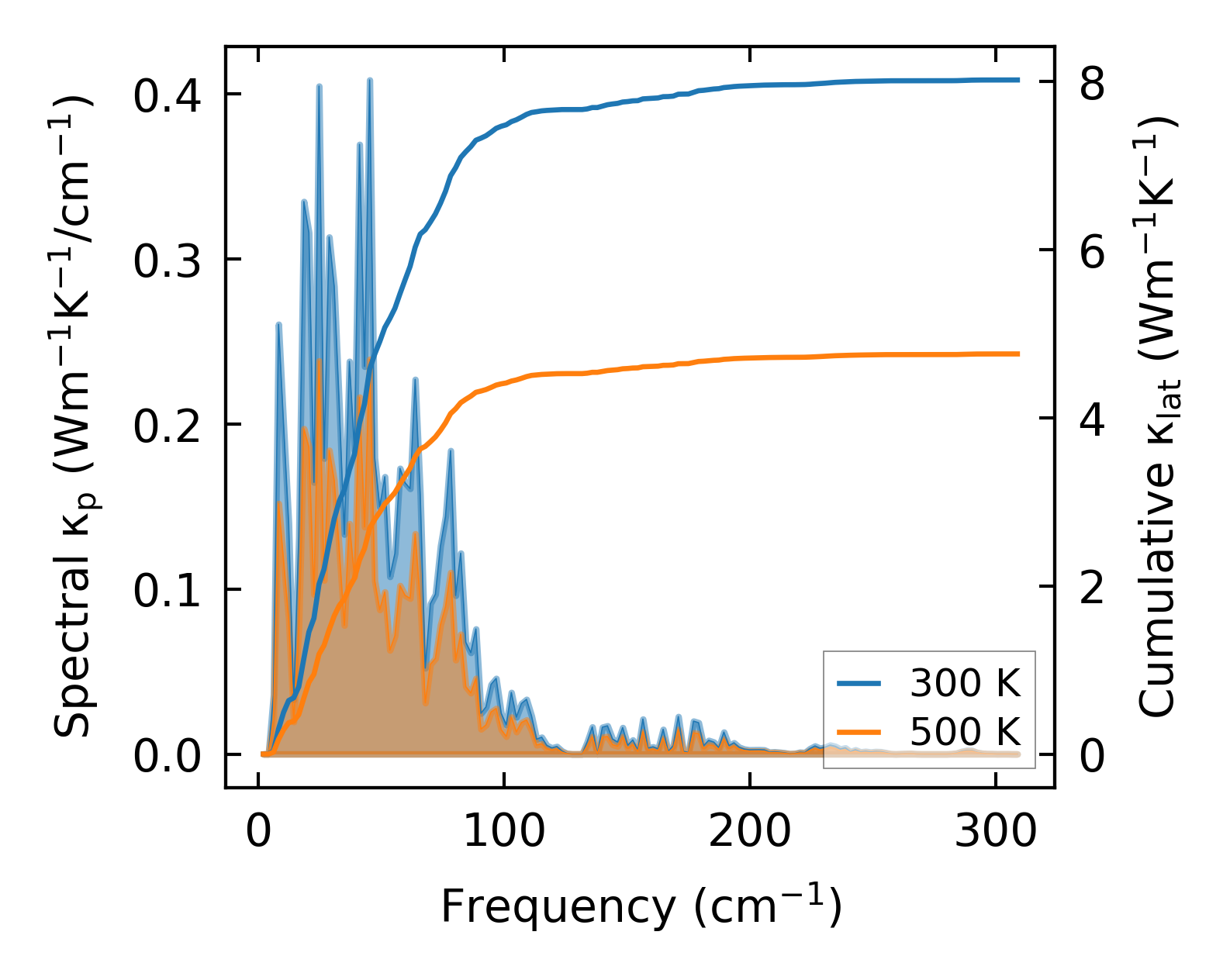

../../_images/fig_cumu_frequency3754.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

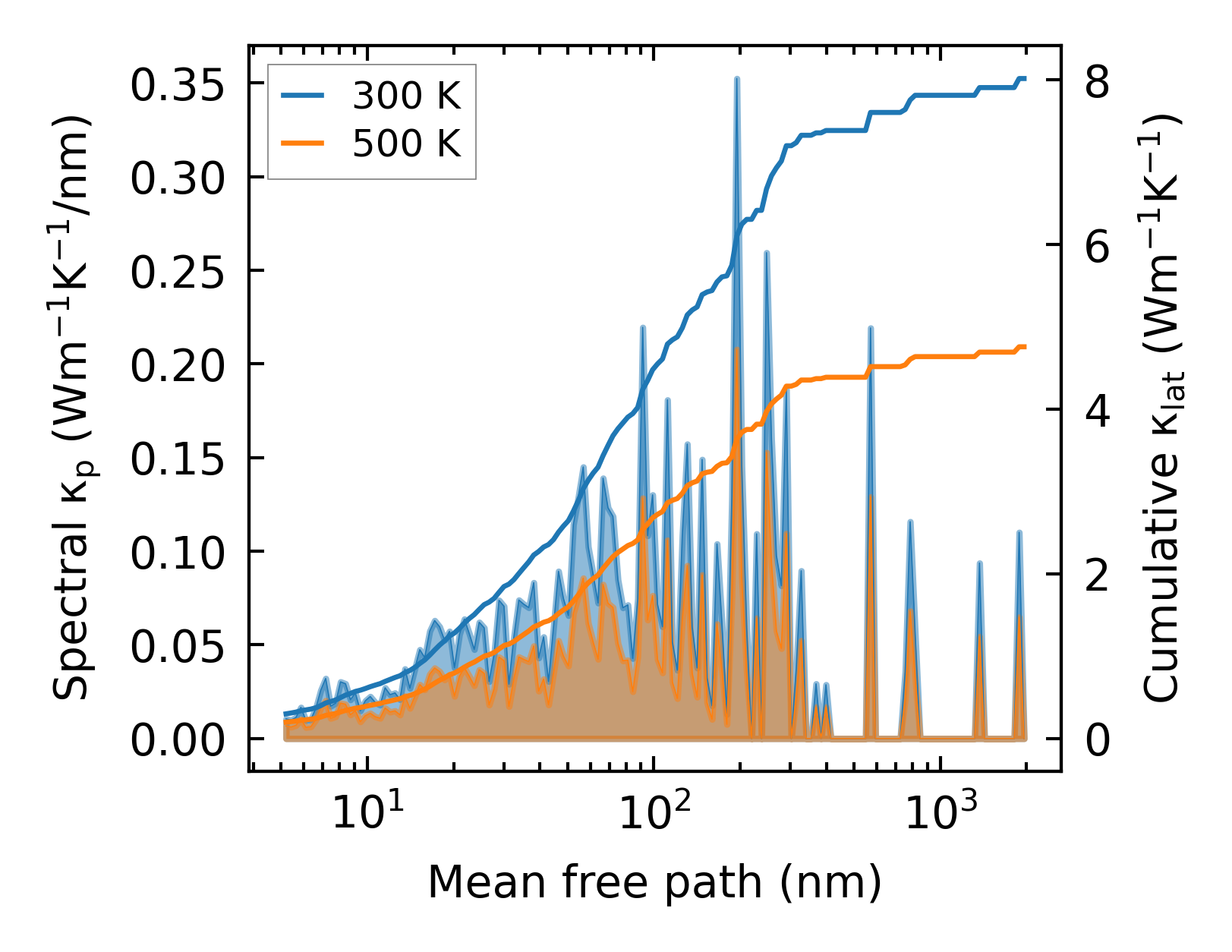

../../_images/fig_cumu_mfp3753.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

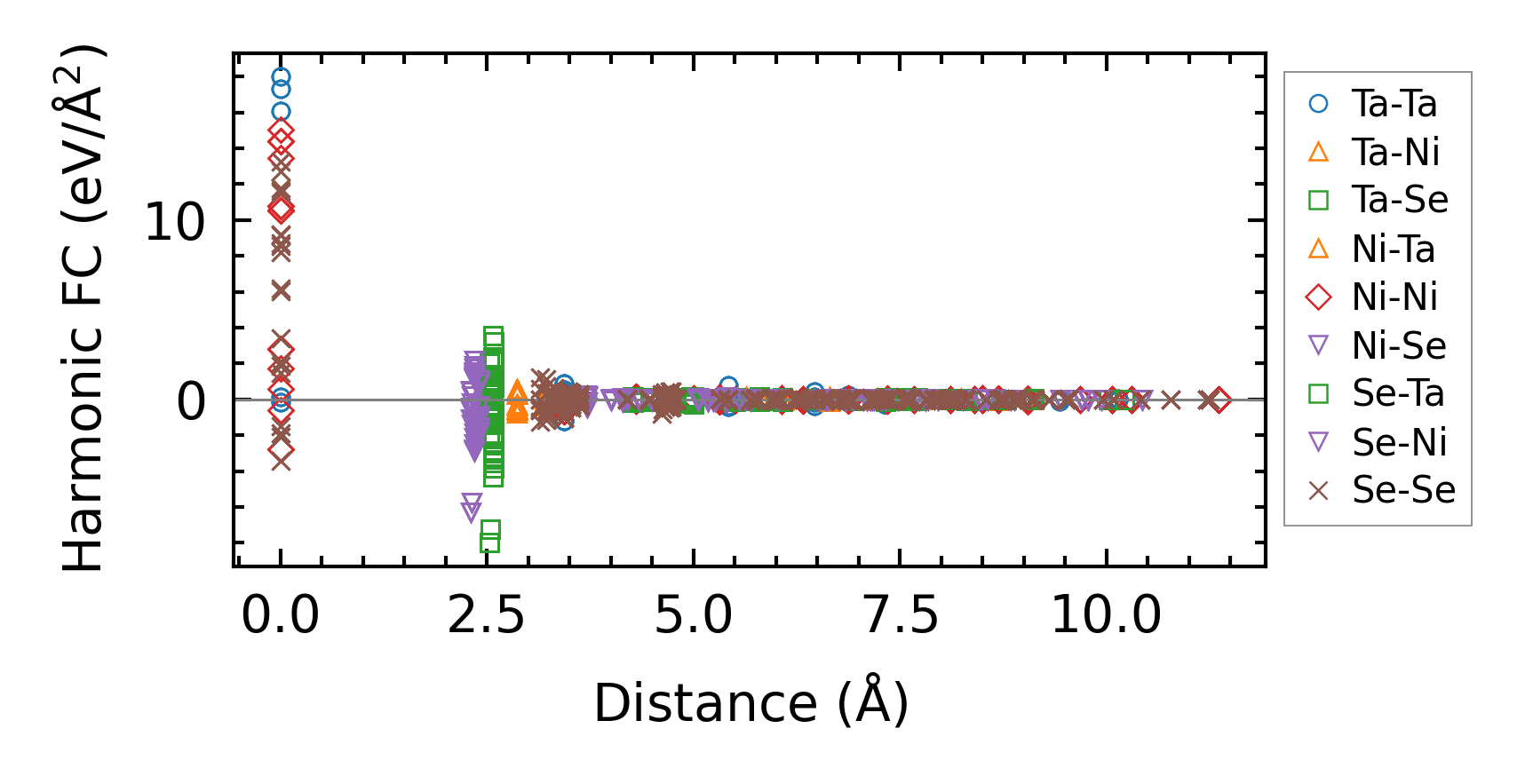

../../_images/fig_fc29283.png — (a) Force constants w.r.t atomic distance

Summary

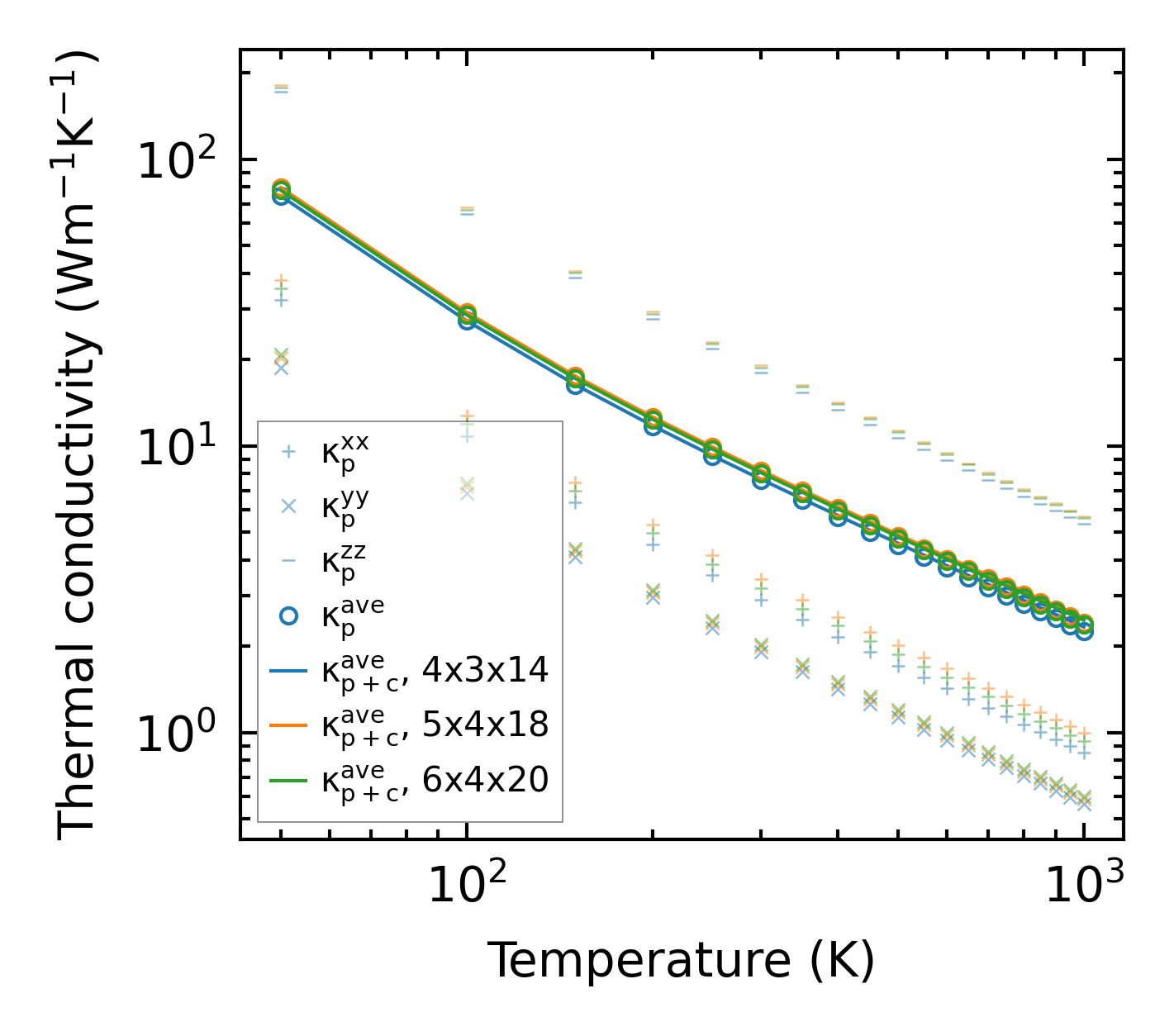

../../_images/fig_kappa7146.png — (a) Temperature-dependent lattice thermal conductivity

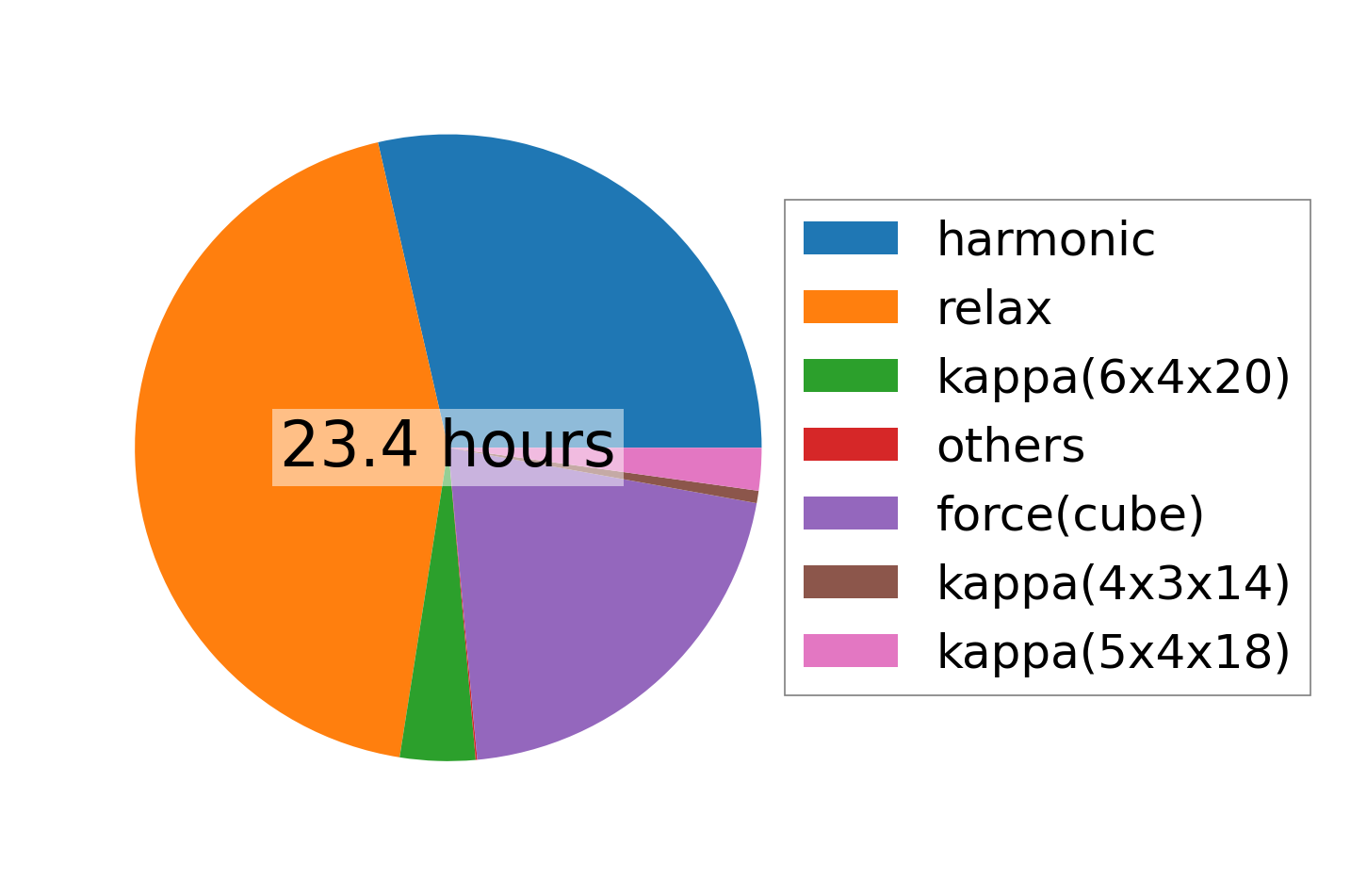

../../_images/fig_times16566.png — (b) Computation time
