mp-541687-2/K3GaSe3/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-541687-2.tar.gz

Equation of state

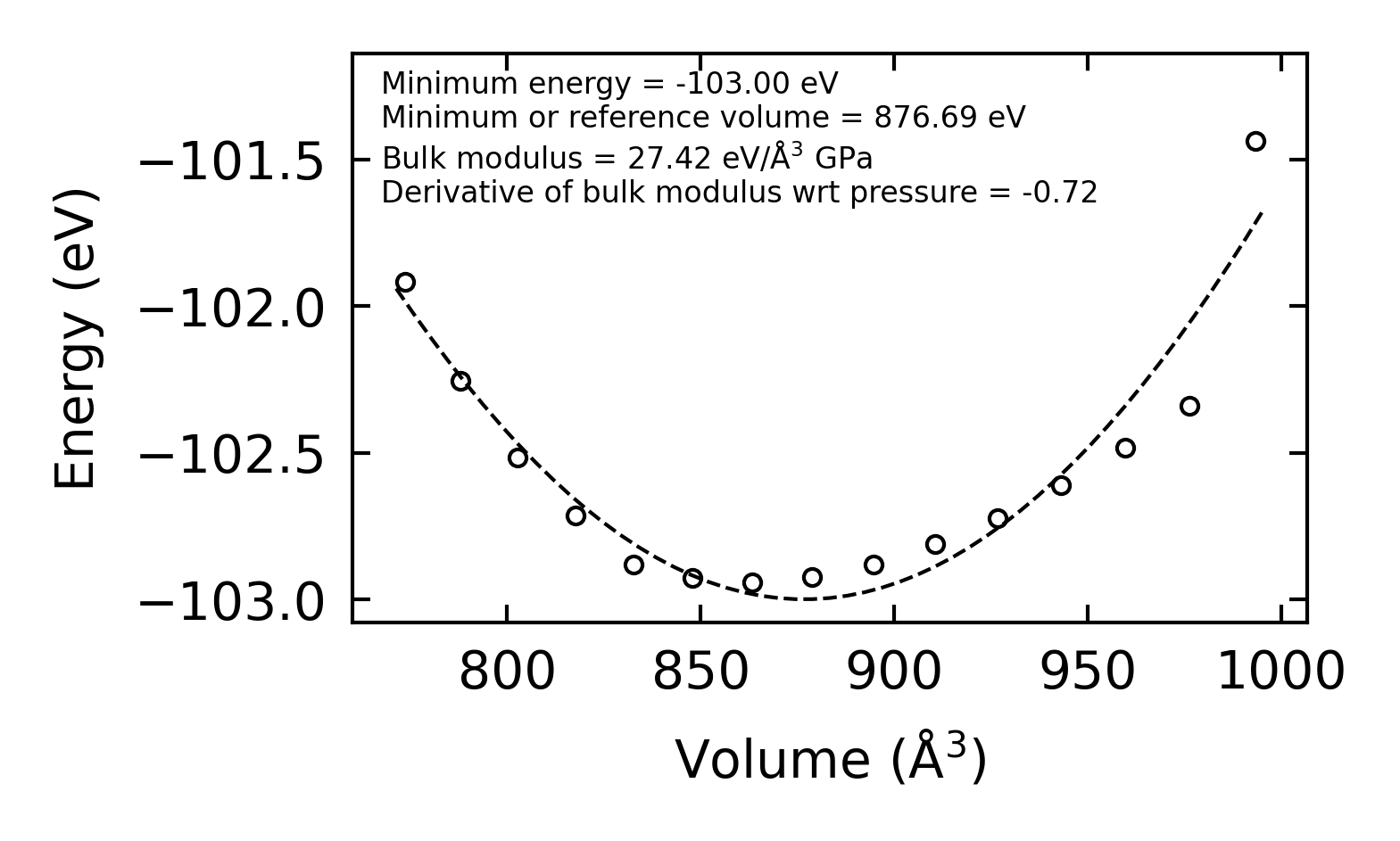

../../_images/fig_bm4774.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr9544.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9544.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all3803.png — (a) Grüneisen parameters

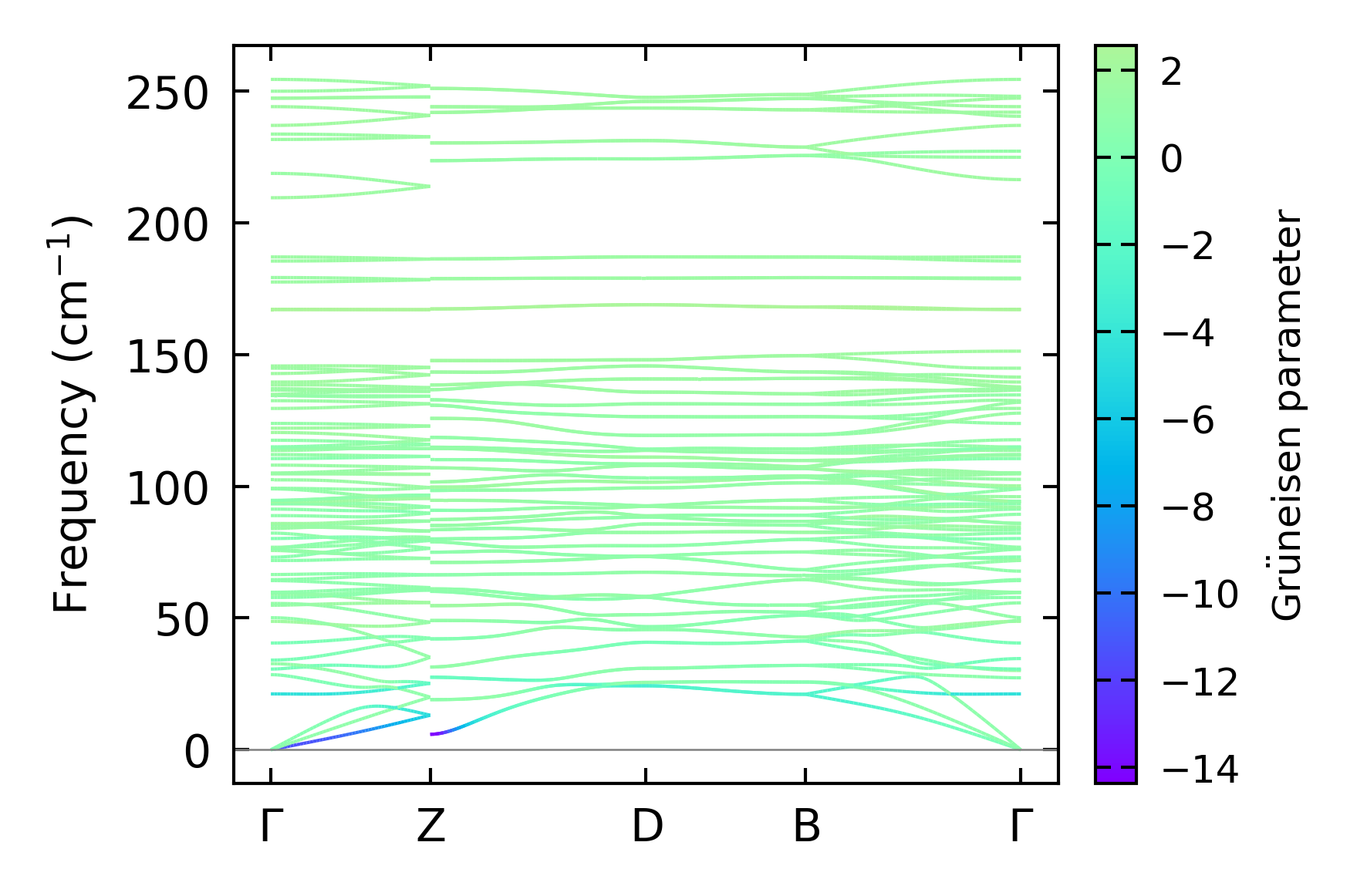

../../_images/fig_gruneisen3803.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x5x7, supercell: 2x1x2

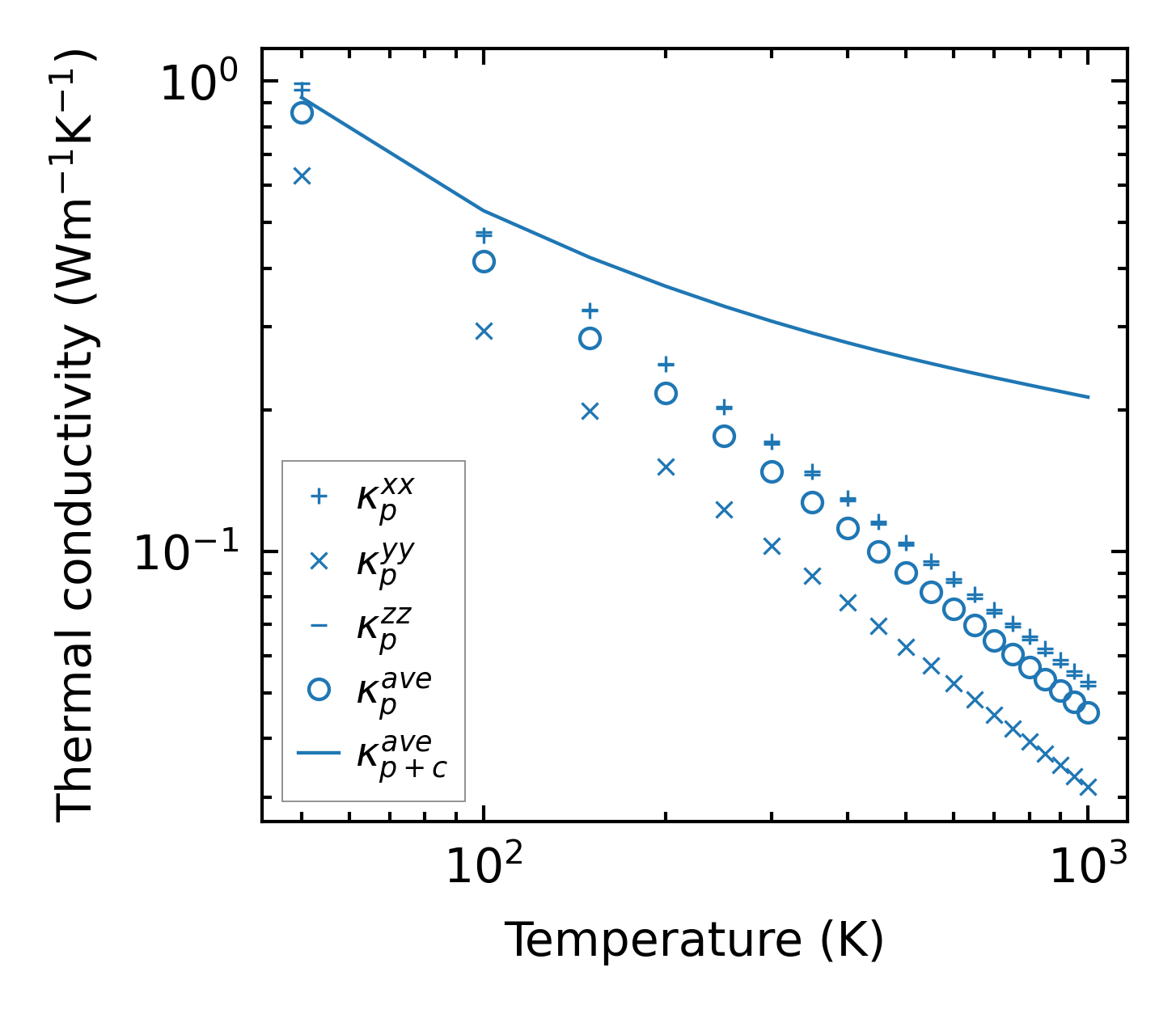

../../_images/fig_kappa7172.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3852.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

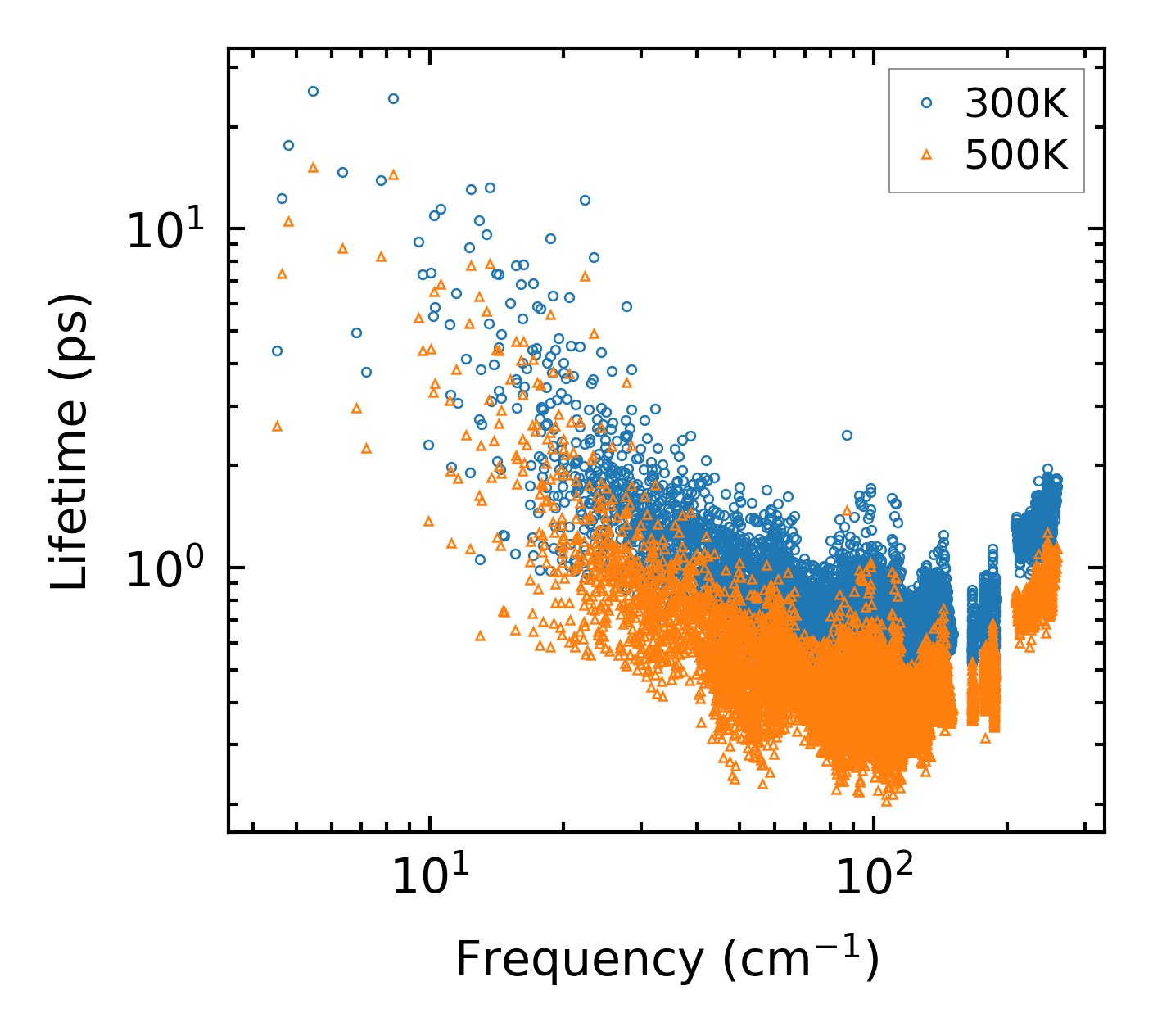

../../_images/fig_lifetime3768.png — (a) Phonon lifetime due to phonon-phonon scattering

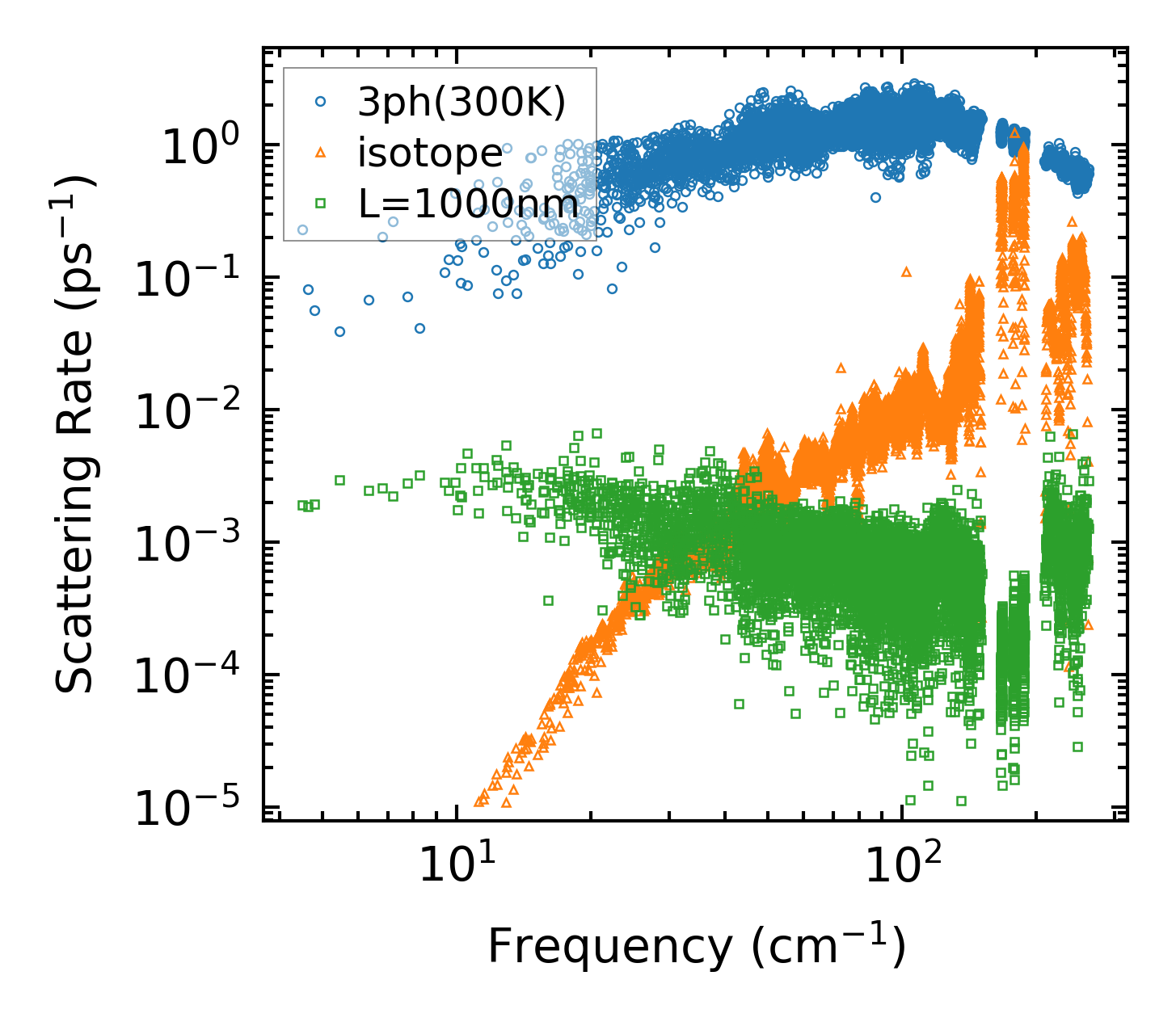

../../_images/fig_scat_rates3767.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

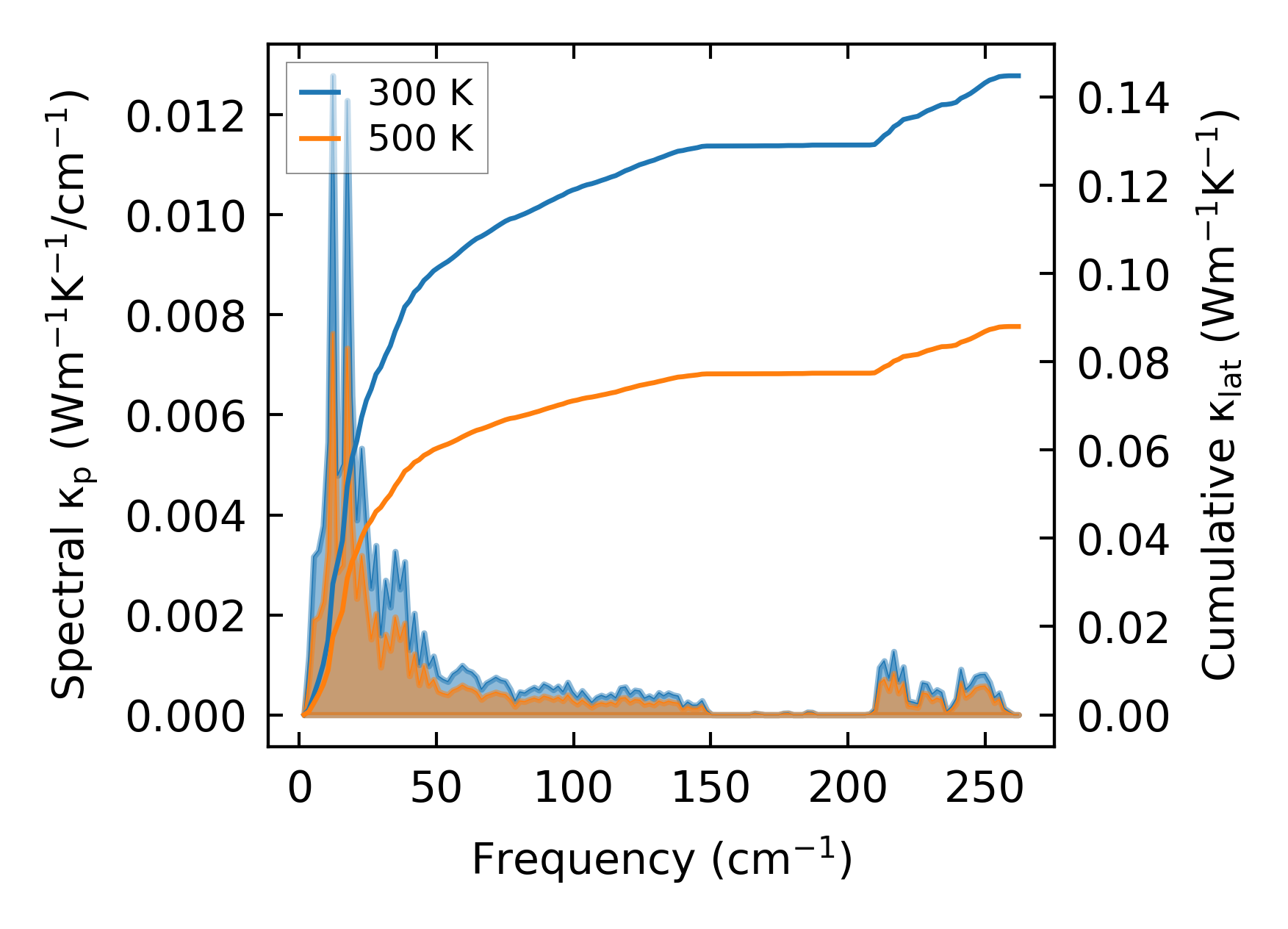

../../_images/fig_cumu_frequency3768.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

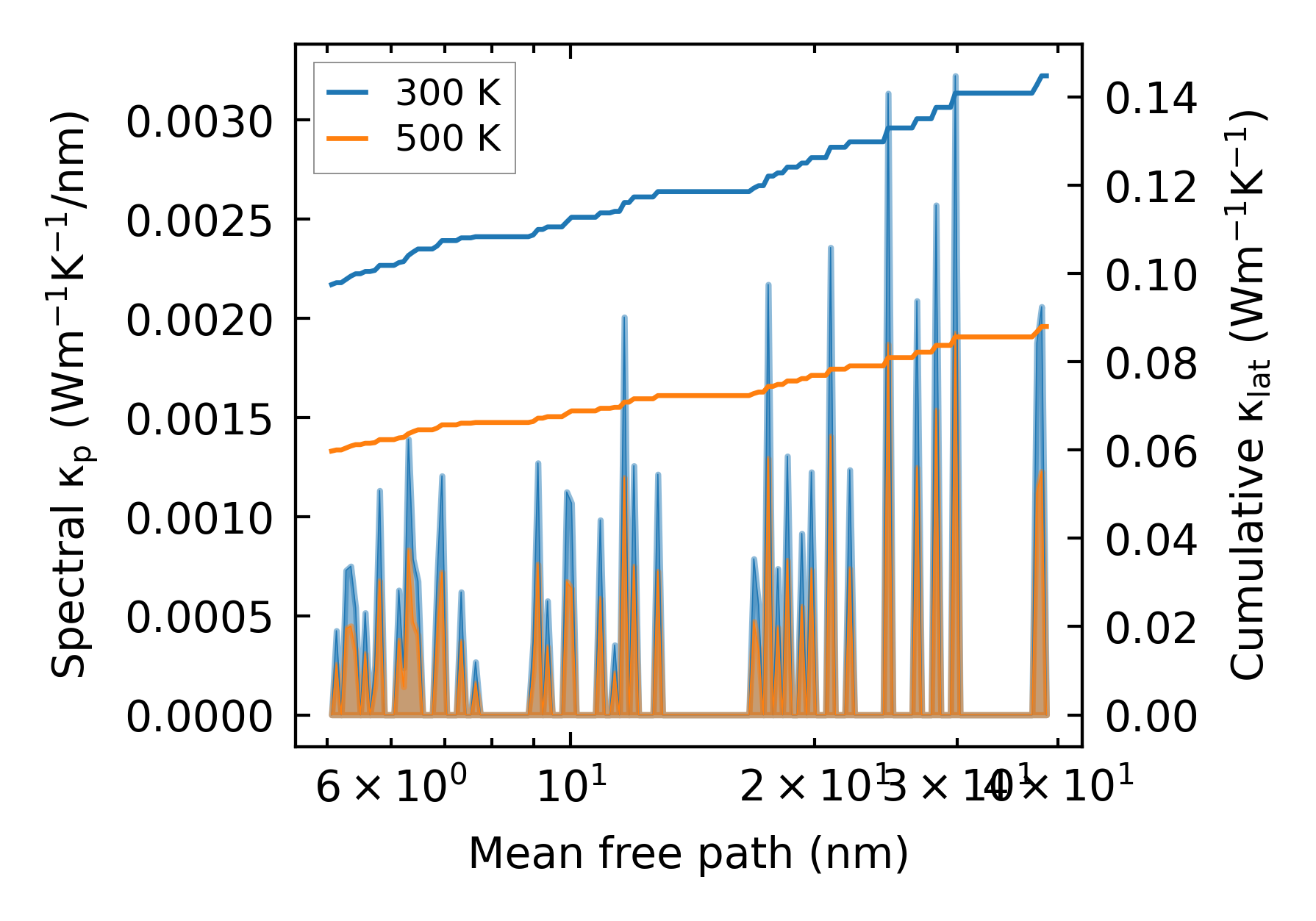

../../_images/fig_cumu_mfp3767.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

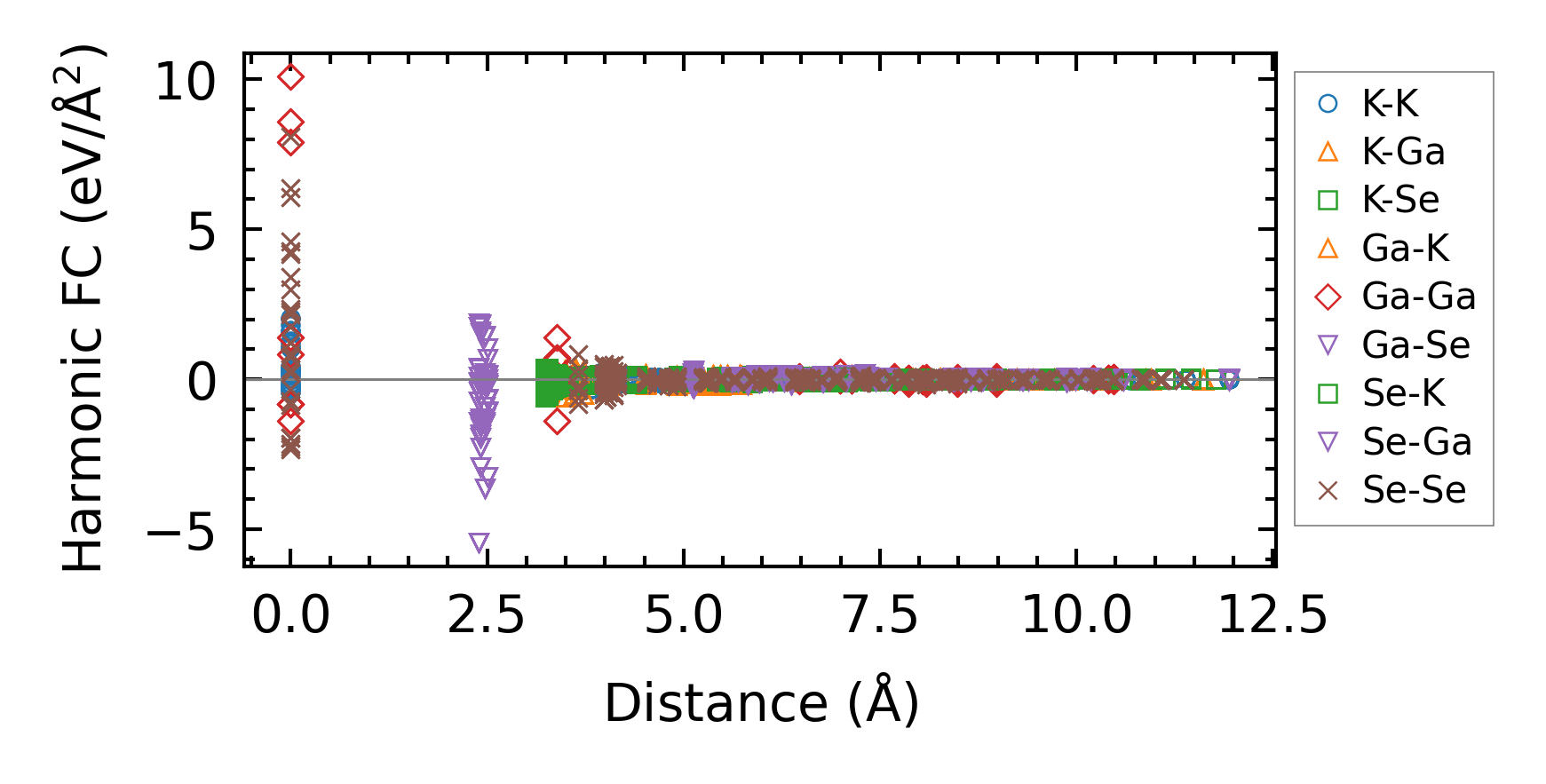

../../_images/fig_fc29305.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa7173.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times16608.png — (b) Computation time
