mp-1078849/CaGa2P2/anharm

Space group: P6_3/mmc (194)
Link: Materials Project
Download: mp-1078849.tar.gz

Harmonic properties

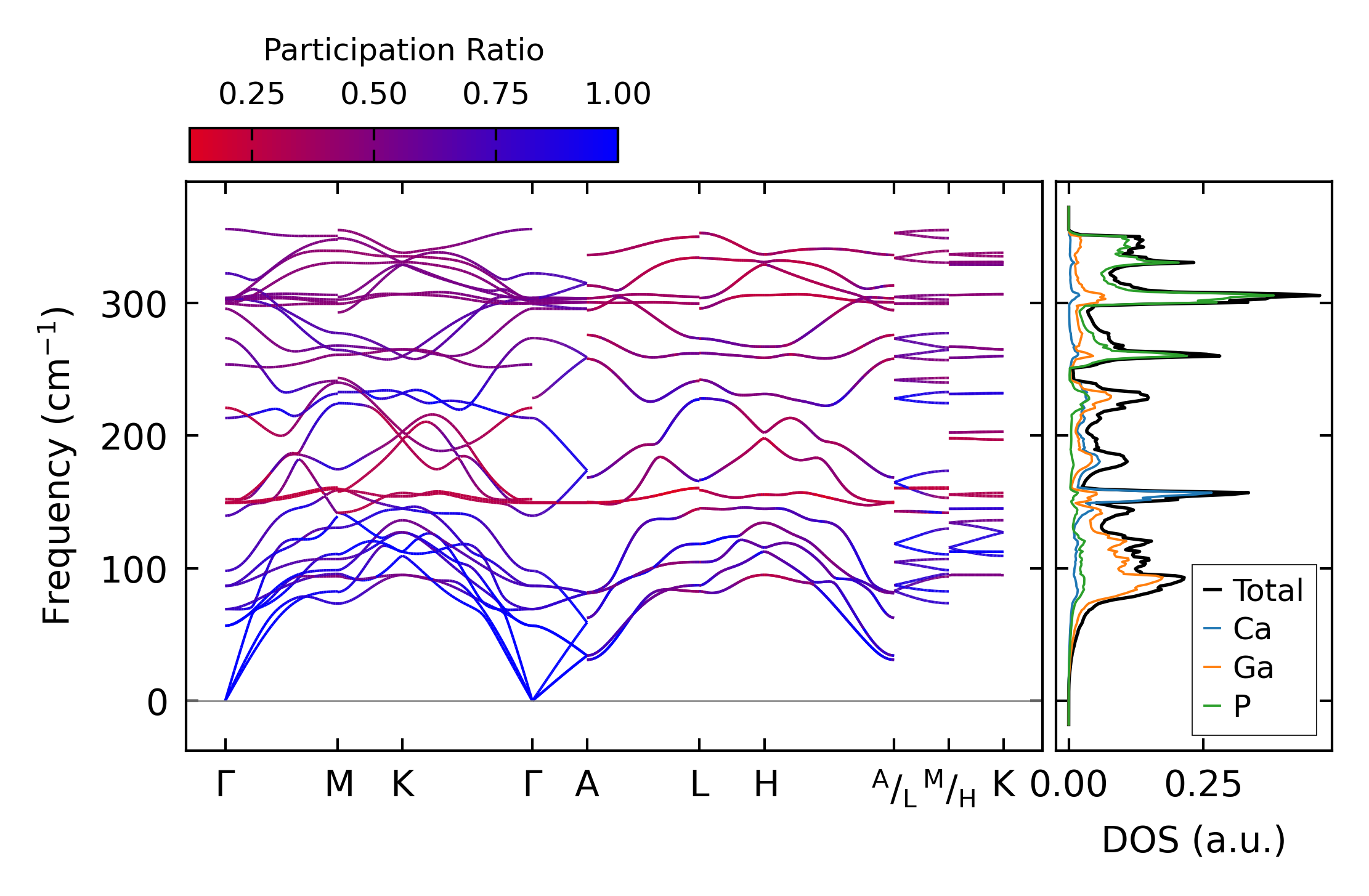

../../_images/fig_bandos_pr16902.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16901.png — (b) Thermodynamic properties

Grüneisen parameters

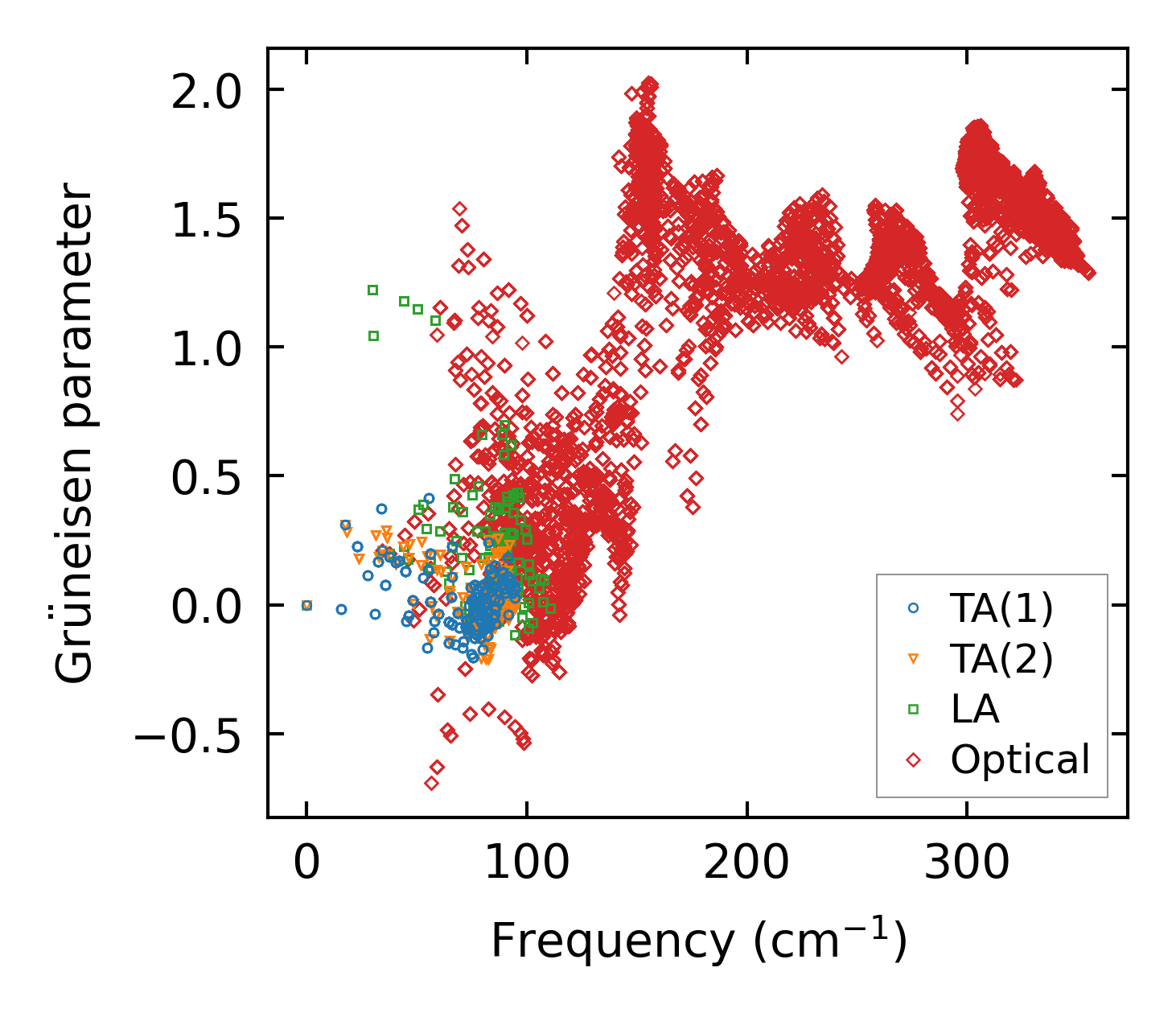

../../_images/fig_gru_all7399.png — (a) Grüneisen parameters

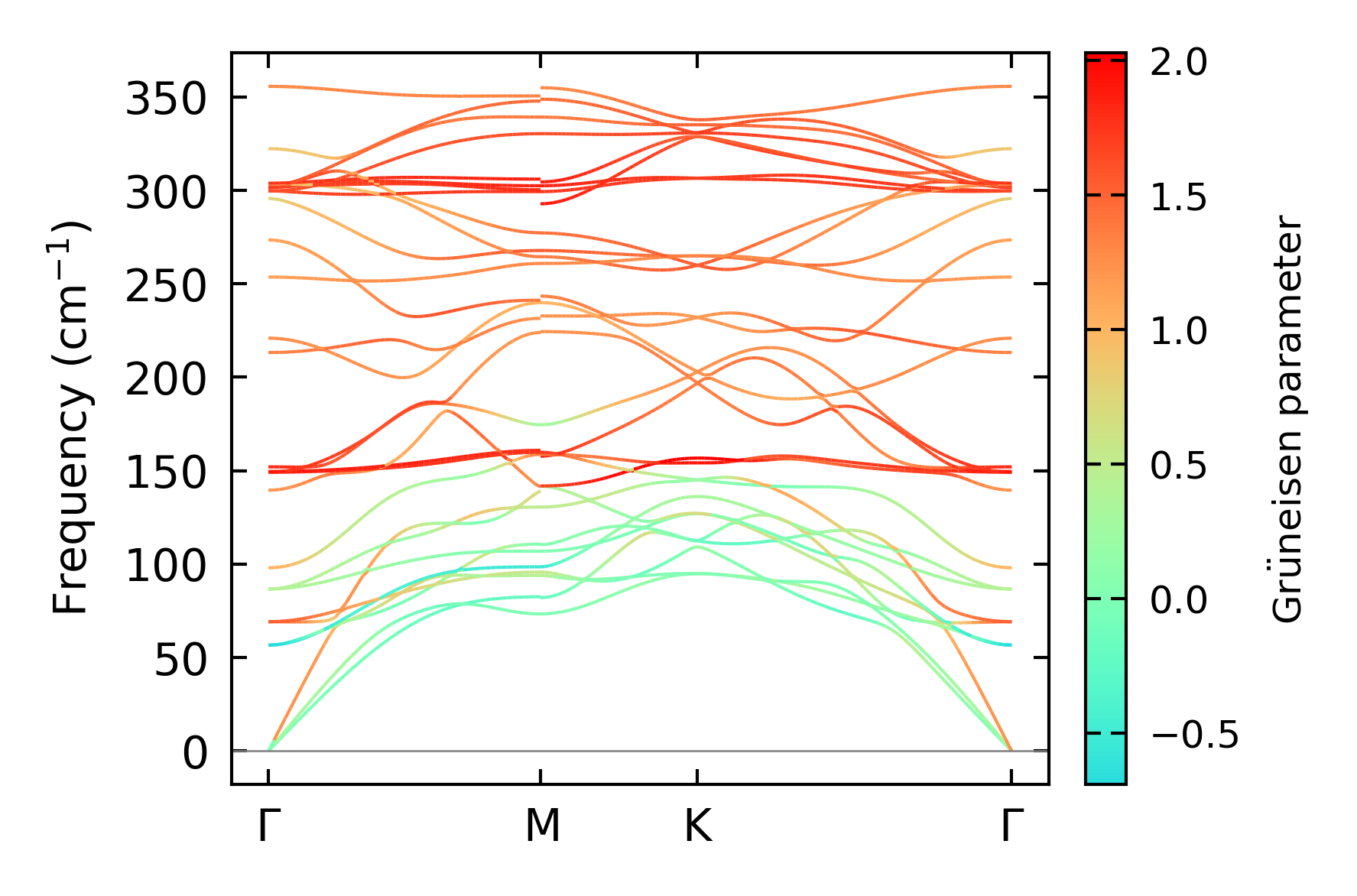

../../_images/fig_gruneisen7399.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 19x19x4, supercell: 3x3x1

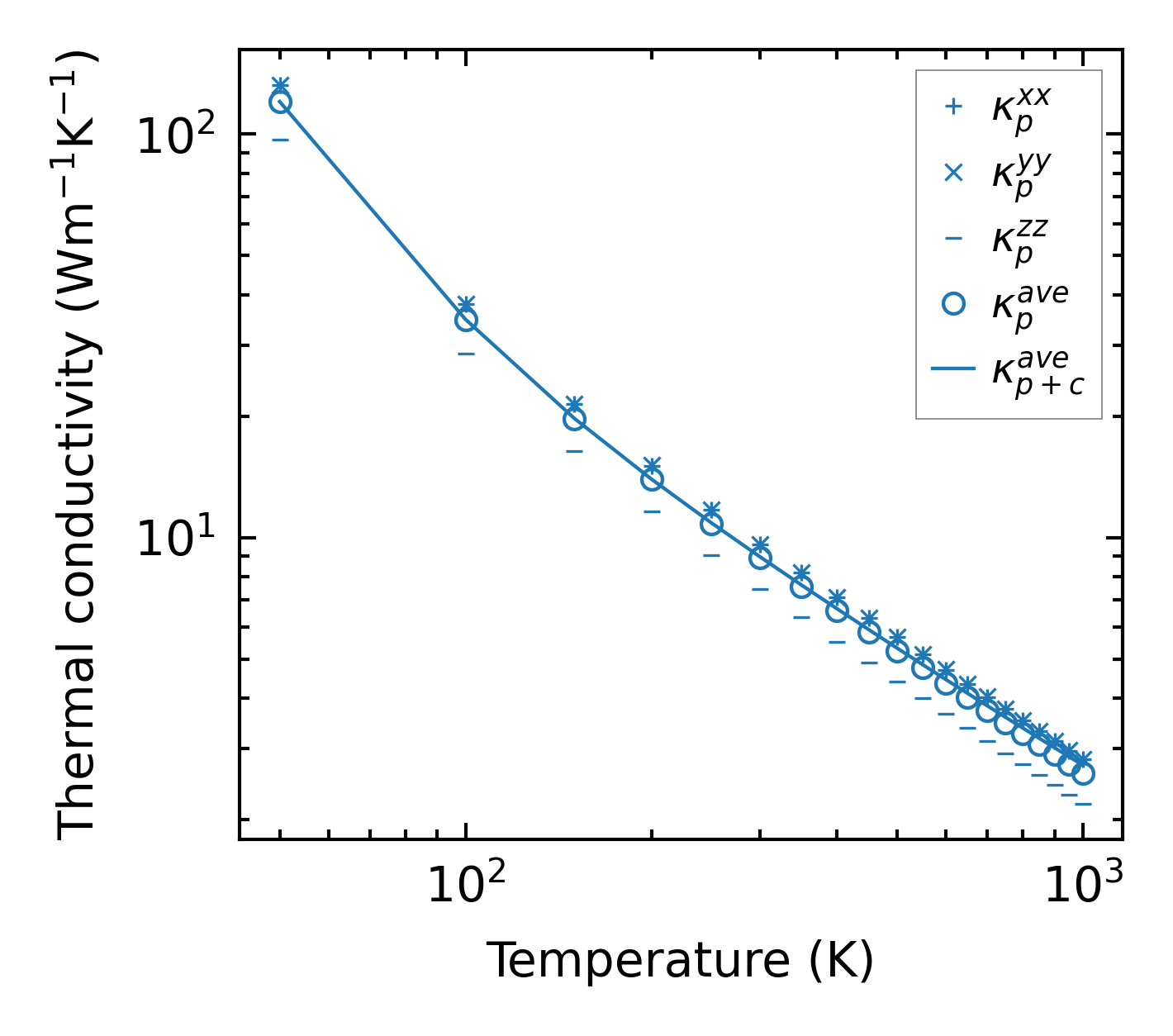

../../_images/fig_kappa13958.png — (a) Temperature-dependent lattice thermal conductivity

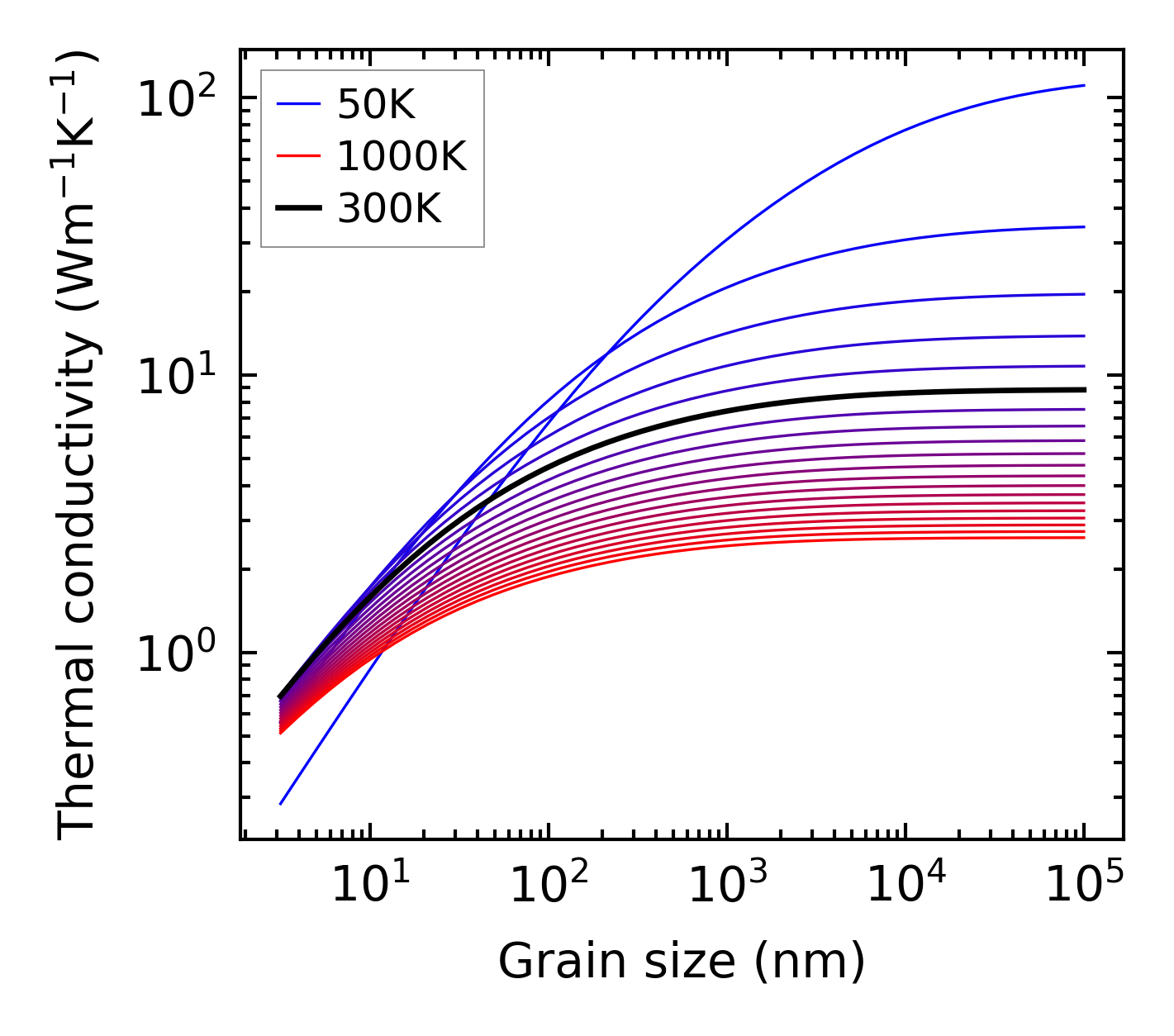

../../_images/fig_kappa_vs_grain_size7487.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

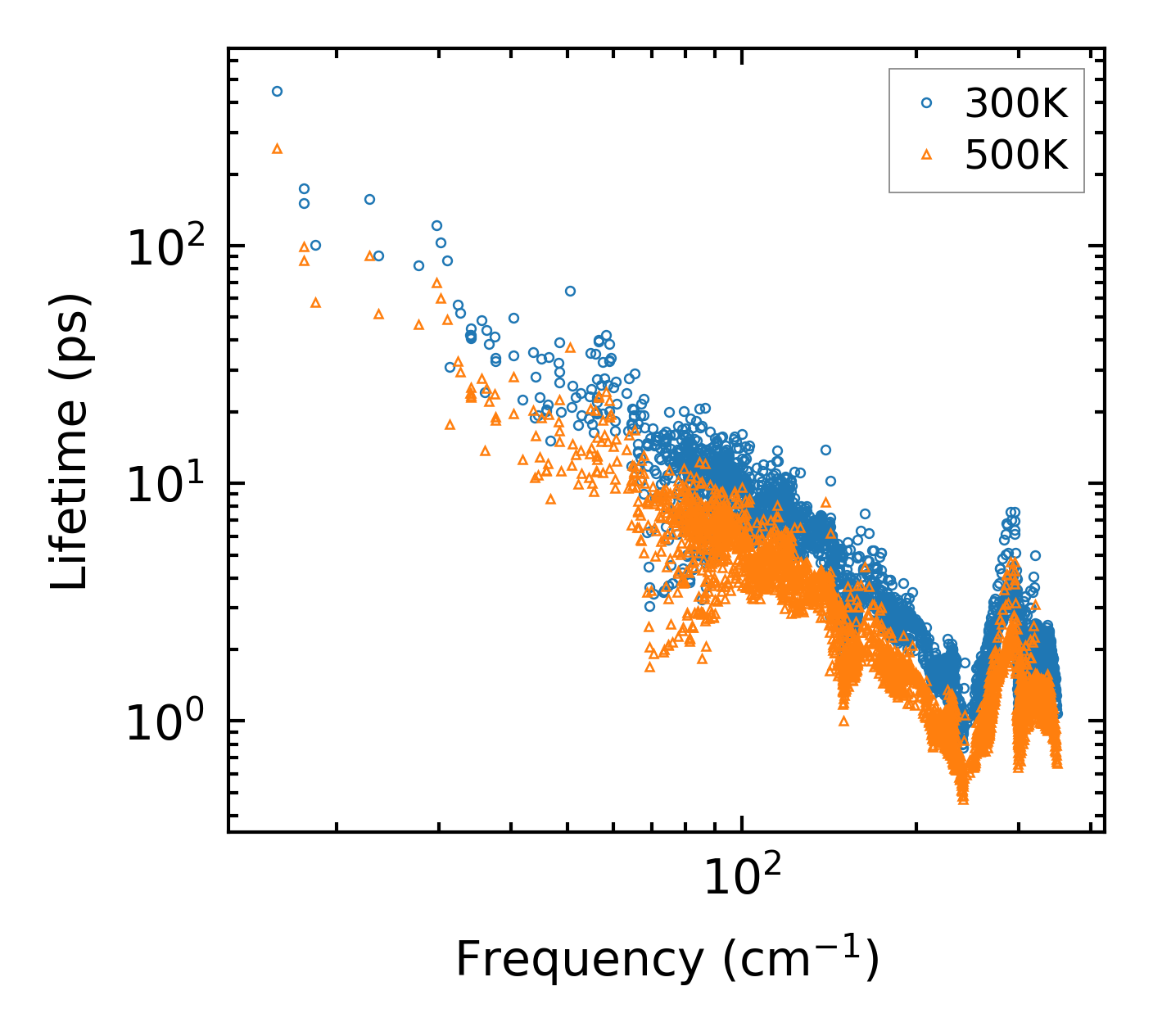

../../_images/fig_lifetime7333.png — (a) Phonon lifetime due to phonon-phonon scattering

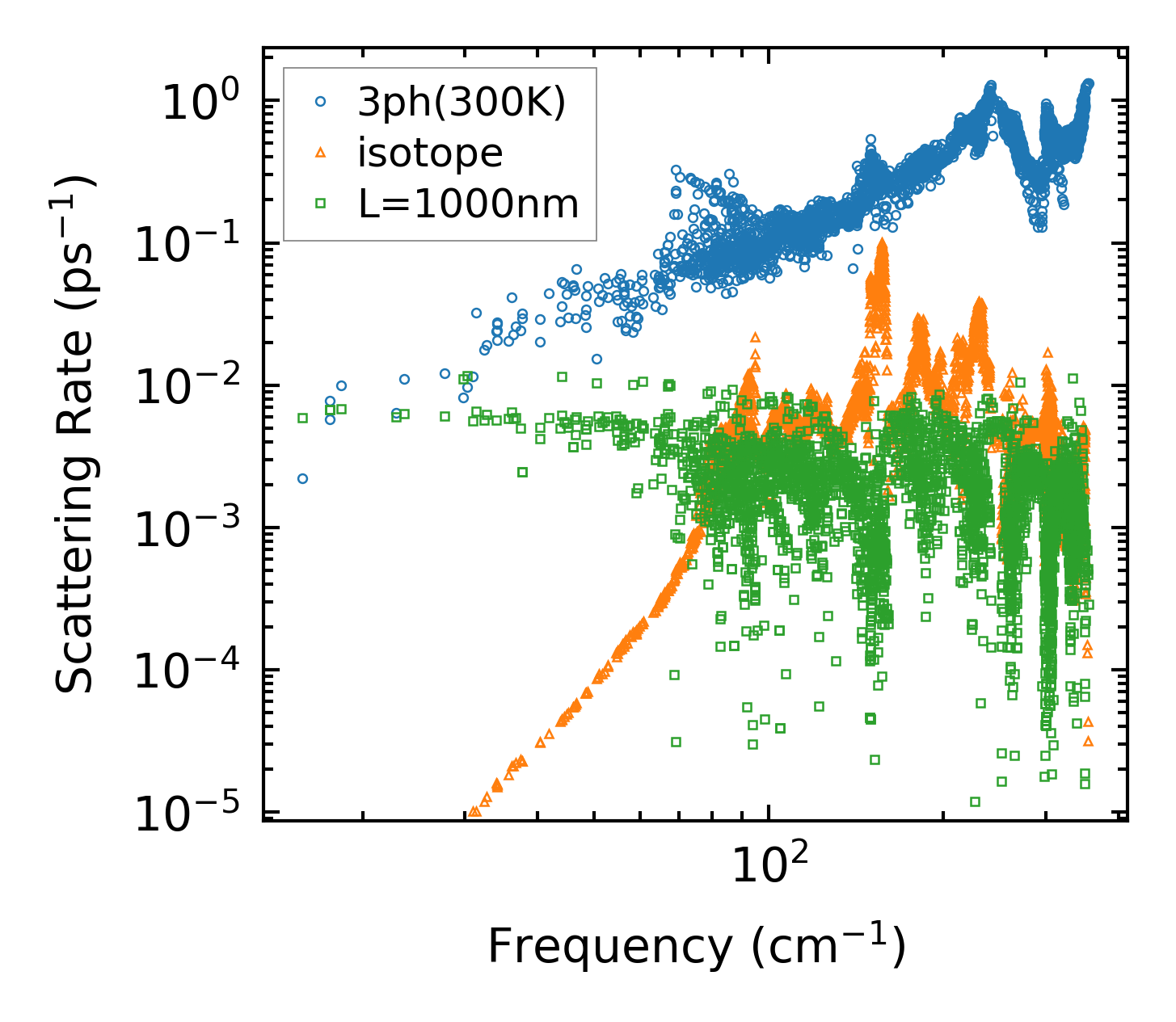

../../_images/fig_scat_rates7332.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

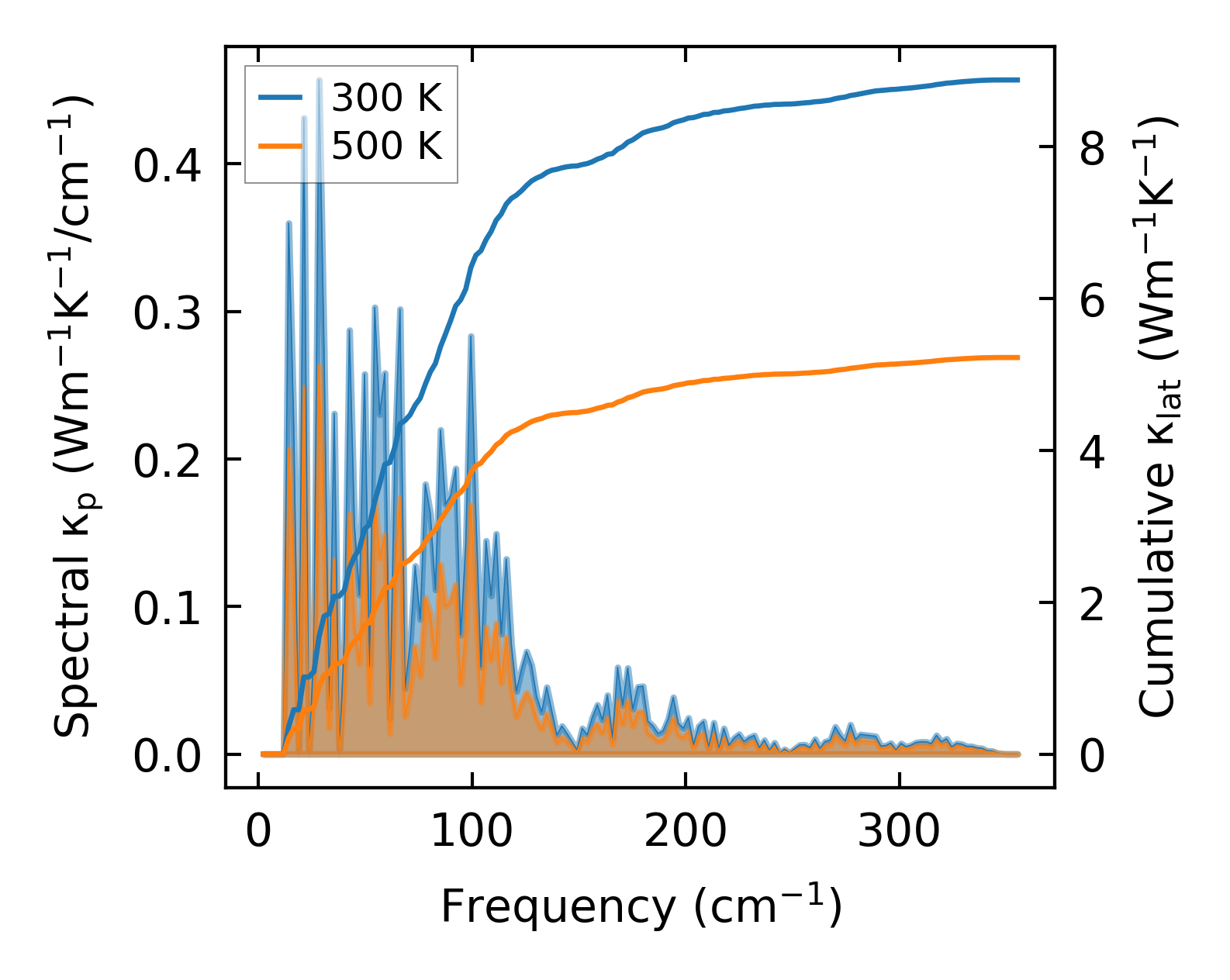

../../_images/fig_cumu_frequency7333.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

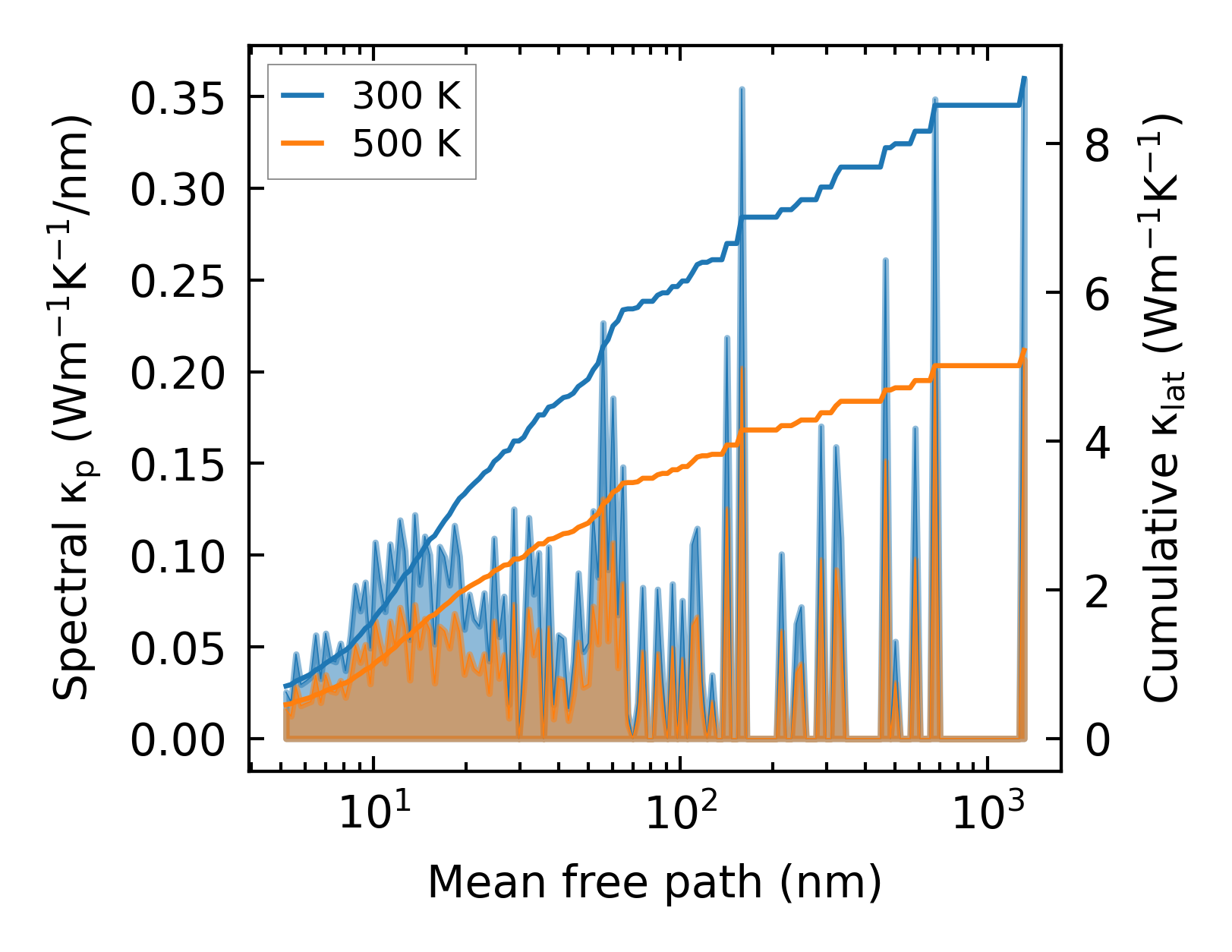

../../_images/fig_cumu_mfp7332.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

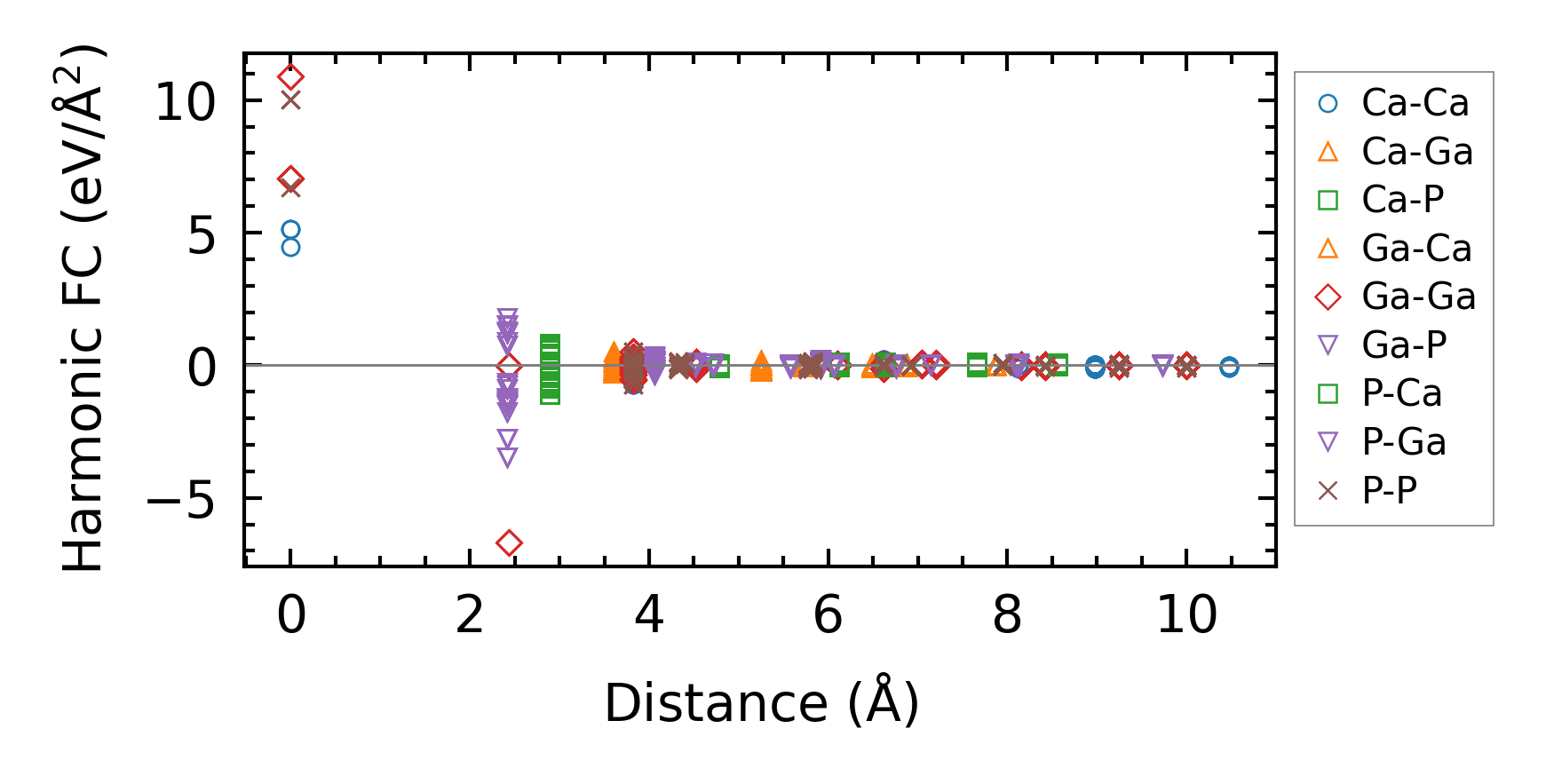

../../_images/fig_fc216455.png — (a) Force constants w.r.t atomic distance

Summary

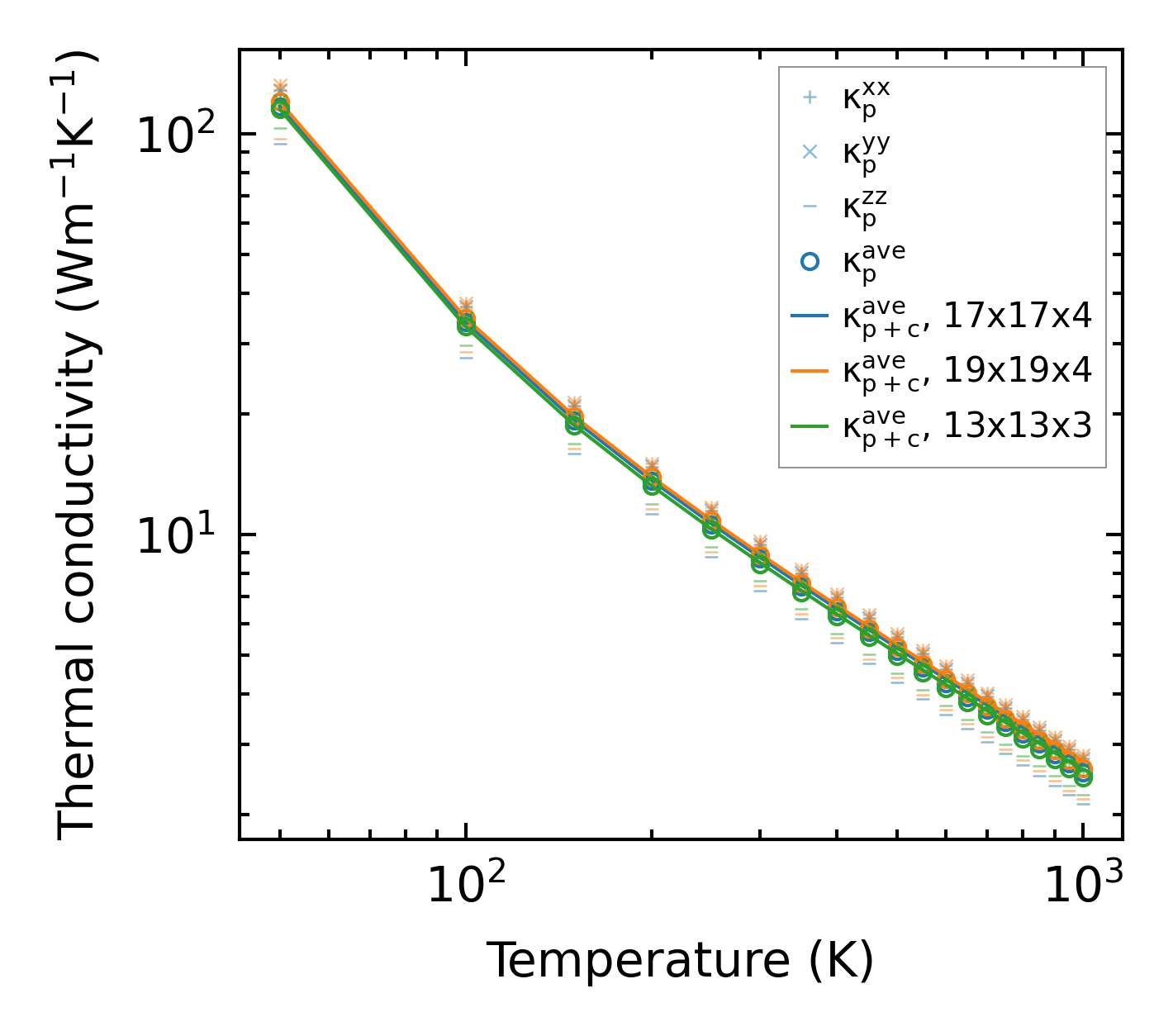

../../_images/fig_kappa13959.png — (a) Temperature-dependent lattice thermal conductivity

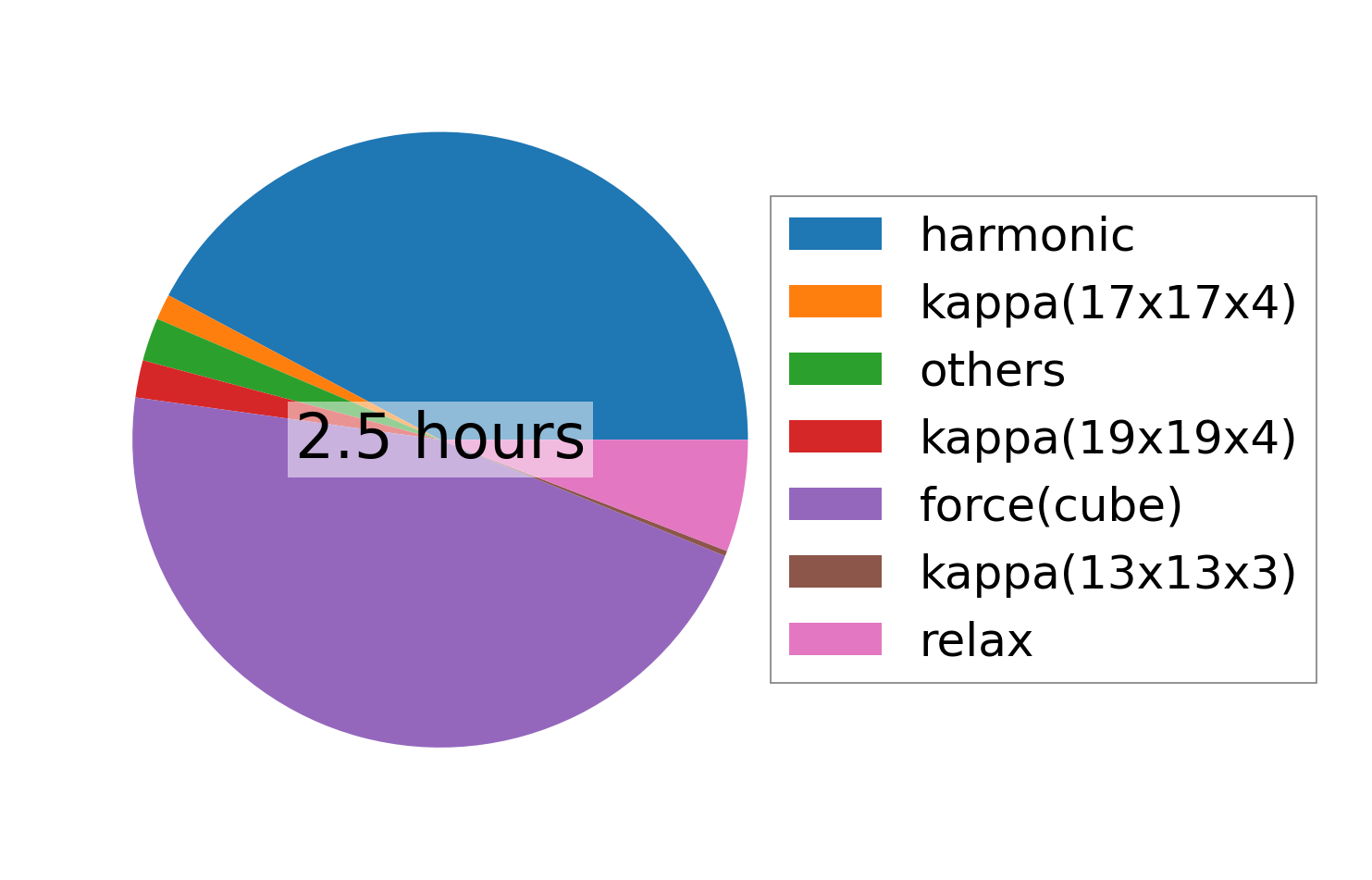

../../_images/fig_times27562.png — (b) Computation time
