mp-1078195/SiI3/anharm

Space group: R-3 (148)
Link: Materials Project
Download: mp-1078195.tar.gz

Harmonic properties

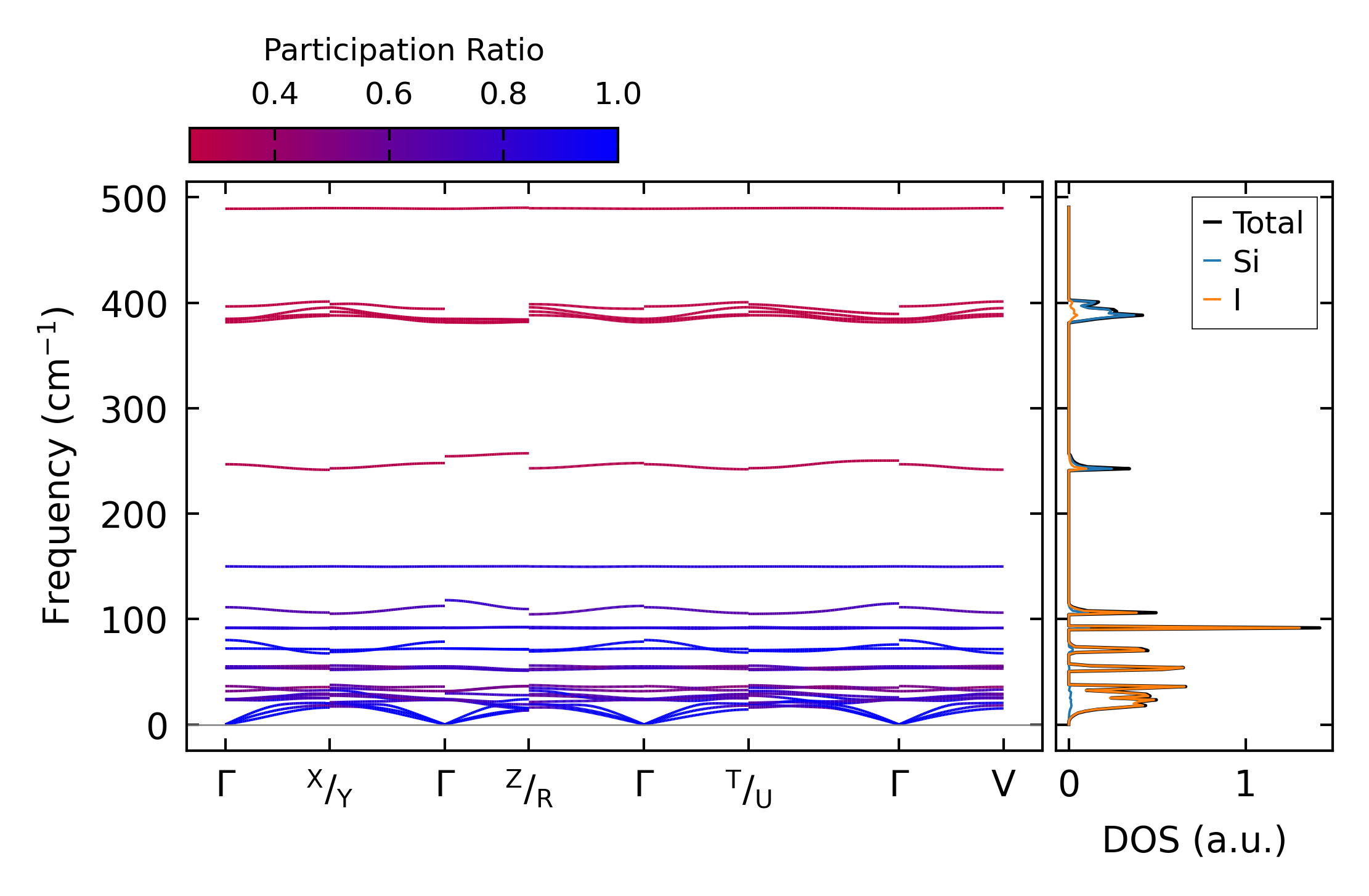

../../_images/fig_bandos_pr16855.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16854.png — (b) Thermodynamic properties

Grüneisen parameters

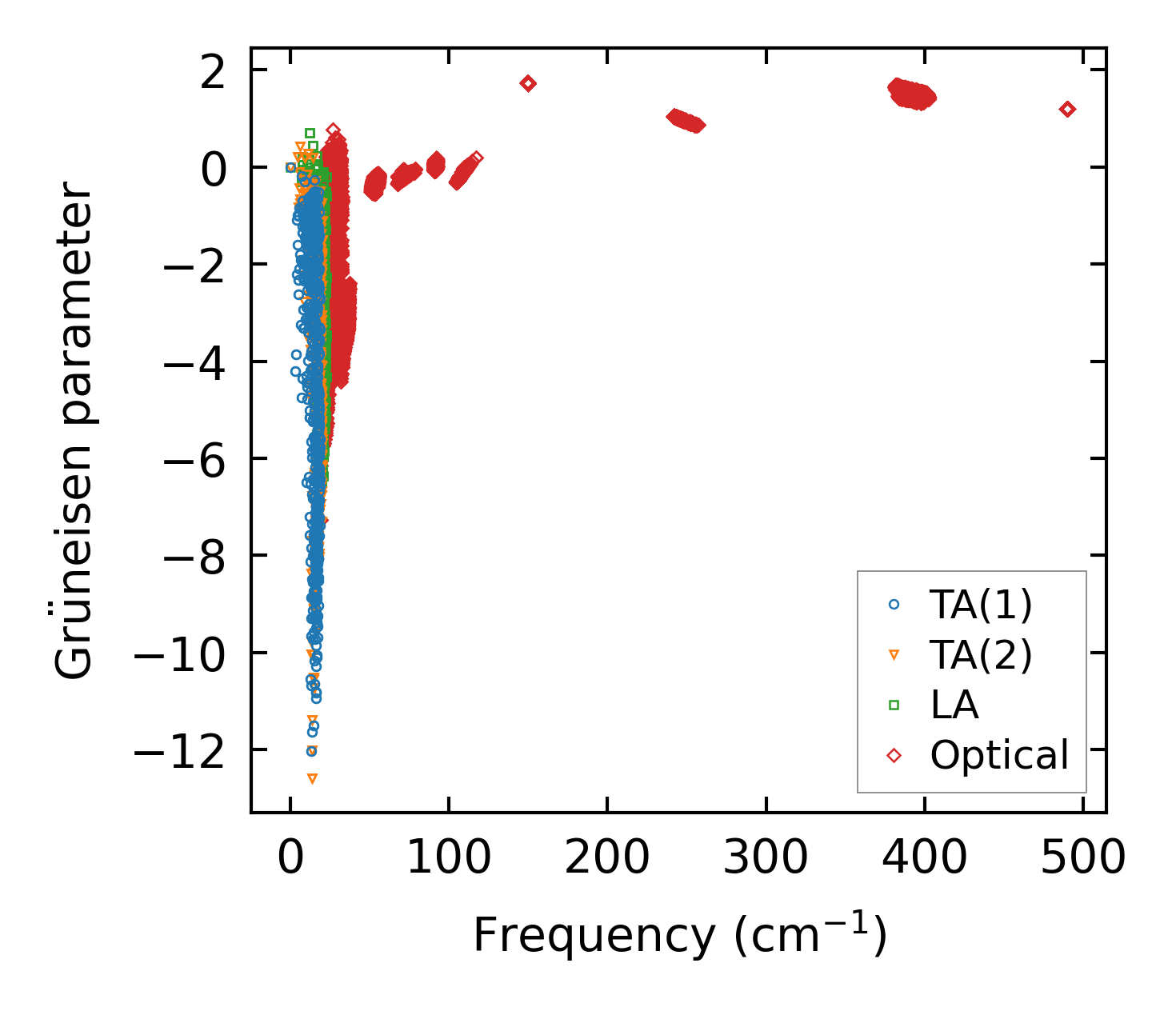

../../_images/fig_gru_all7372.png — (a) Grüneisen parameters

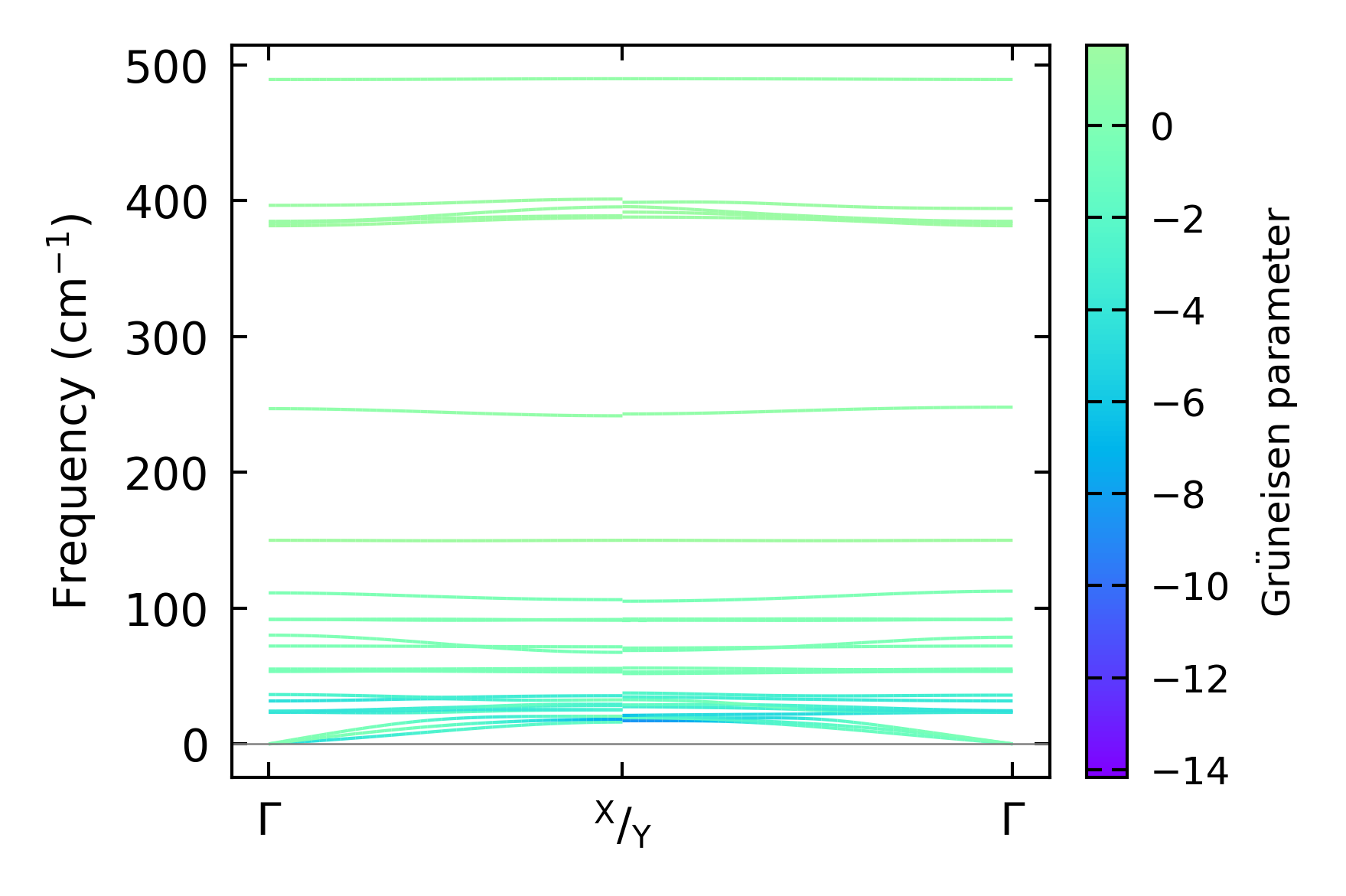

../../_images/fig_gruneisen7372.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x9, supercell: 3x3x2

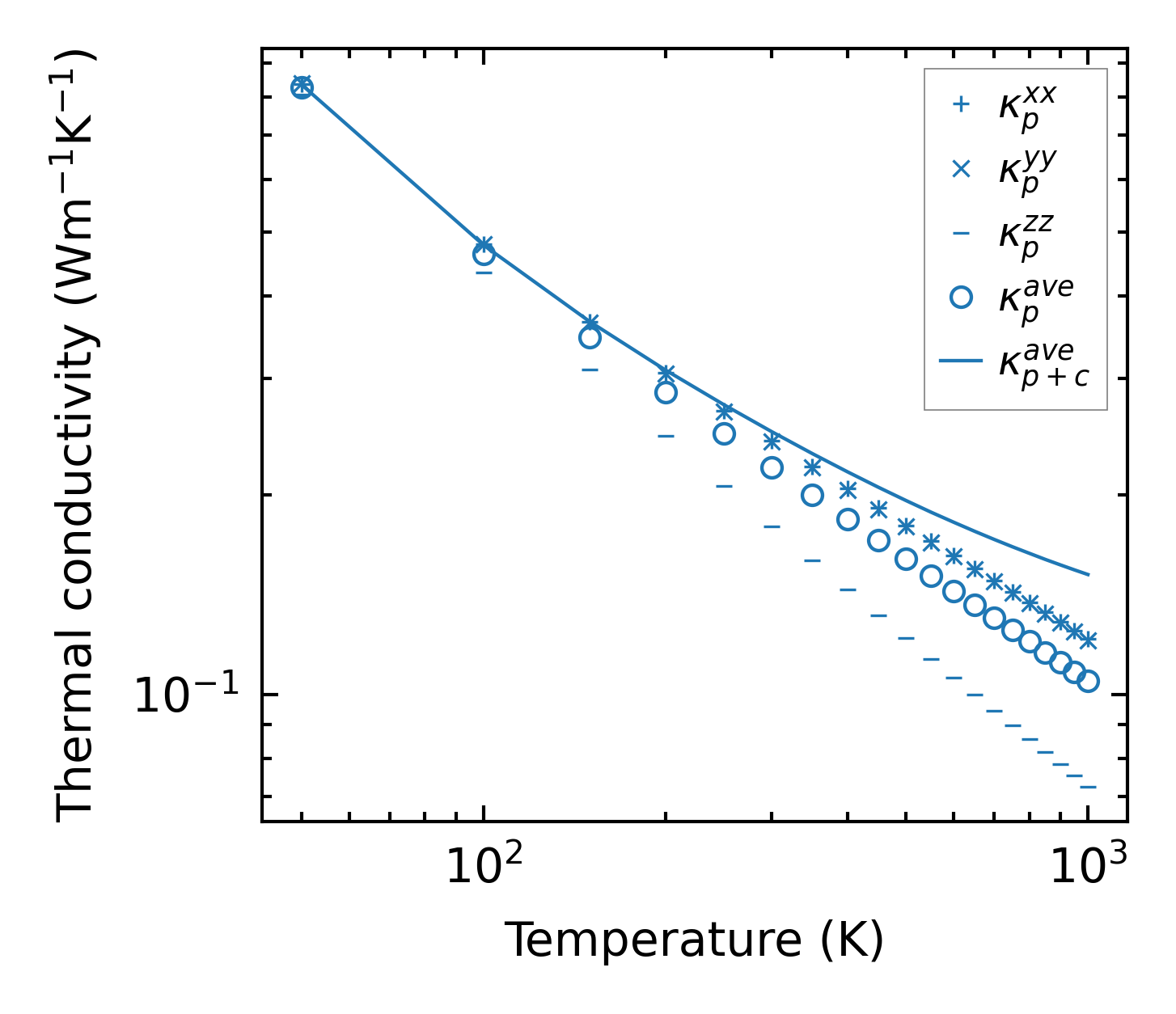

../../_images/fig_kappa13906.png — (a) Temperature-dependent lattice thermal conductivity

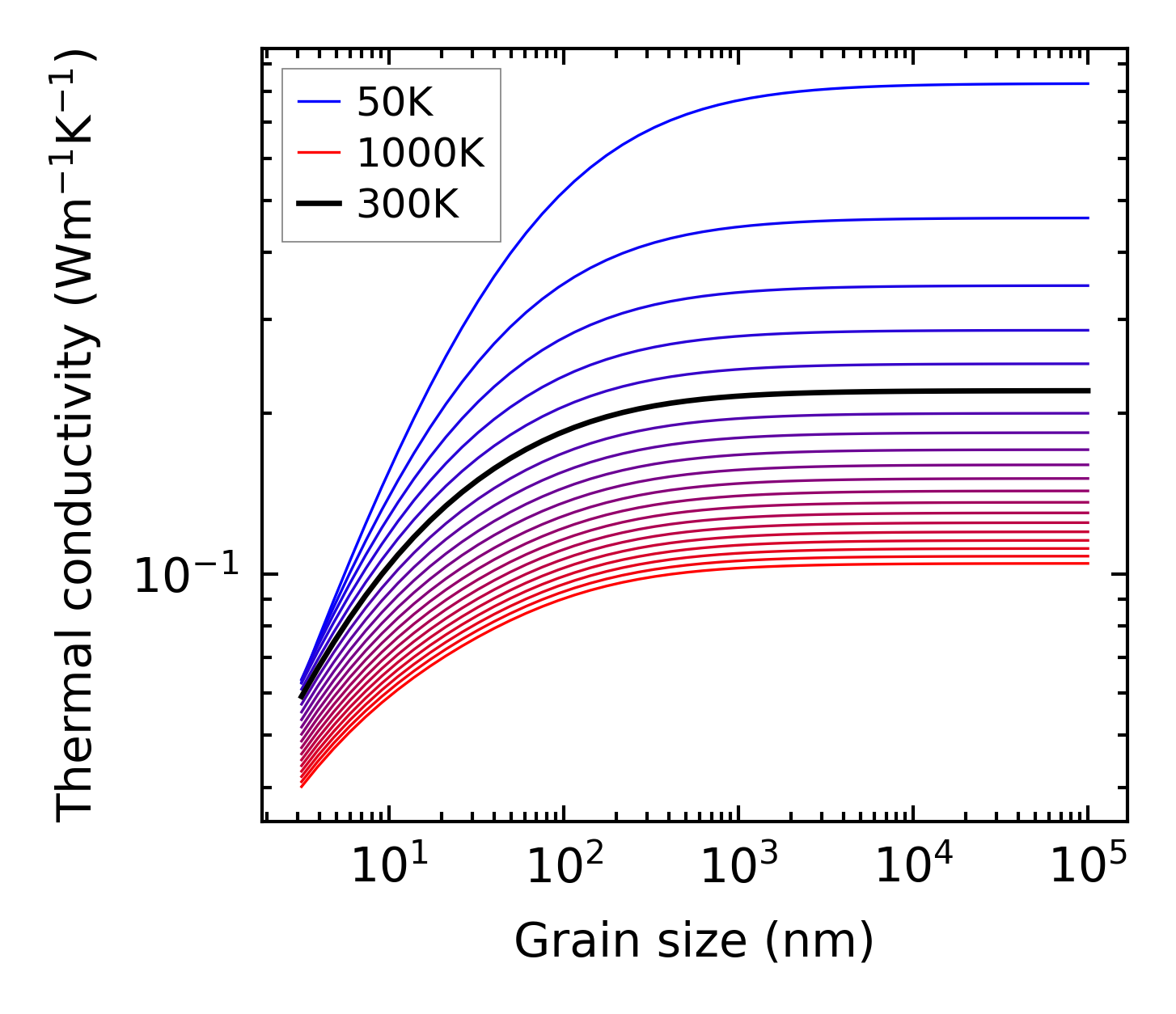

../../_images/fig_kappa_vs_grain_size7460.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime7306.png — (a) Phonon lifetime due to phonon-phonon scattering

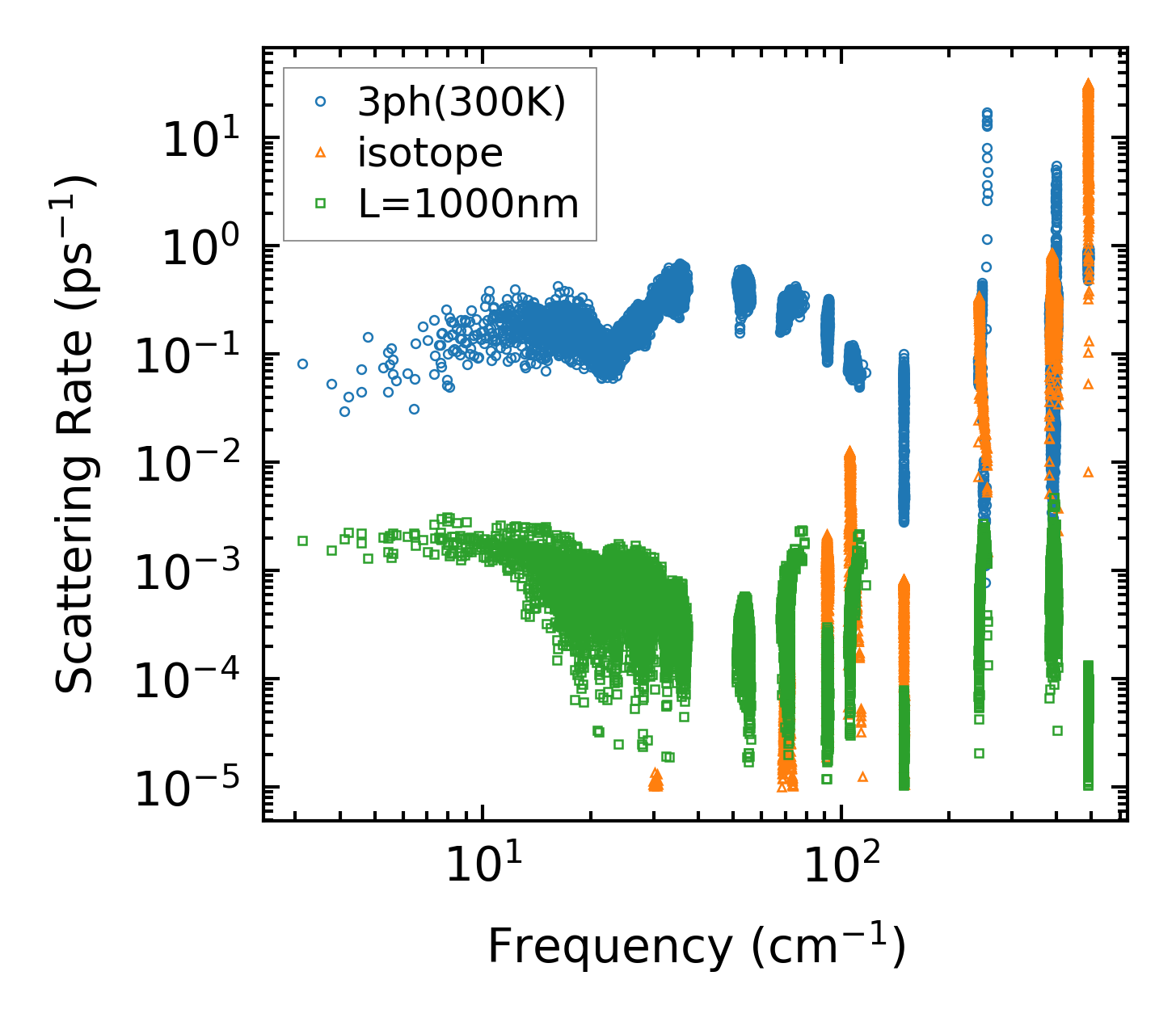

../../_images/fig_scat_rates7305.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

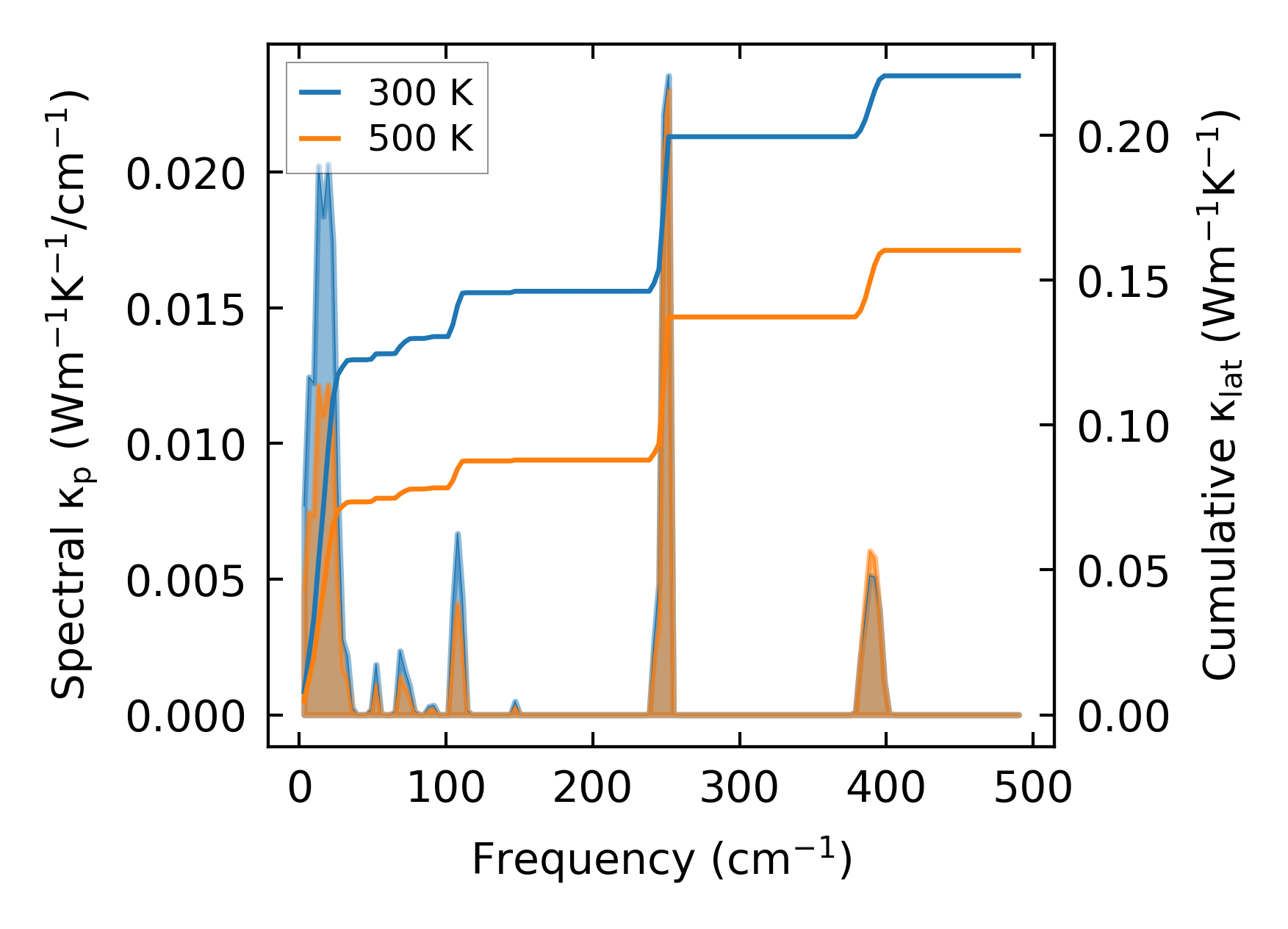

../../_images/fig_cumu_frequency7306.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp7305.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc216409.png — (a) Force constants w.r.t atomic distance

Summary

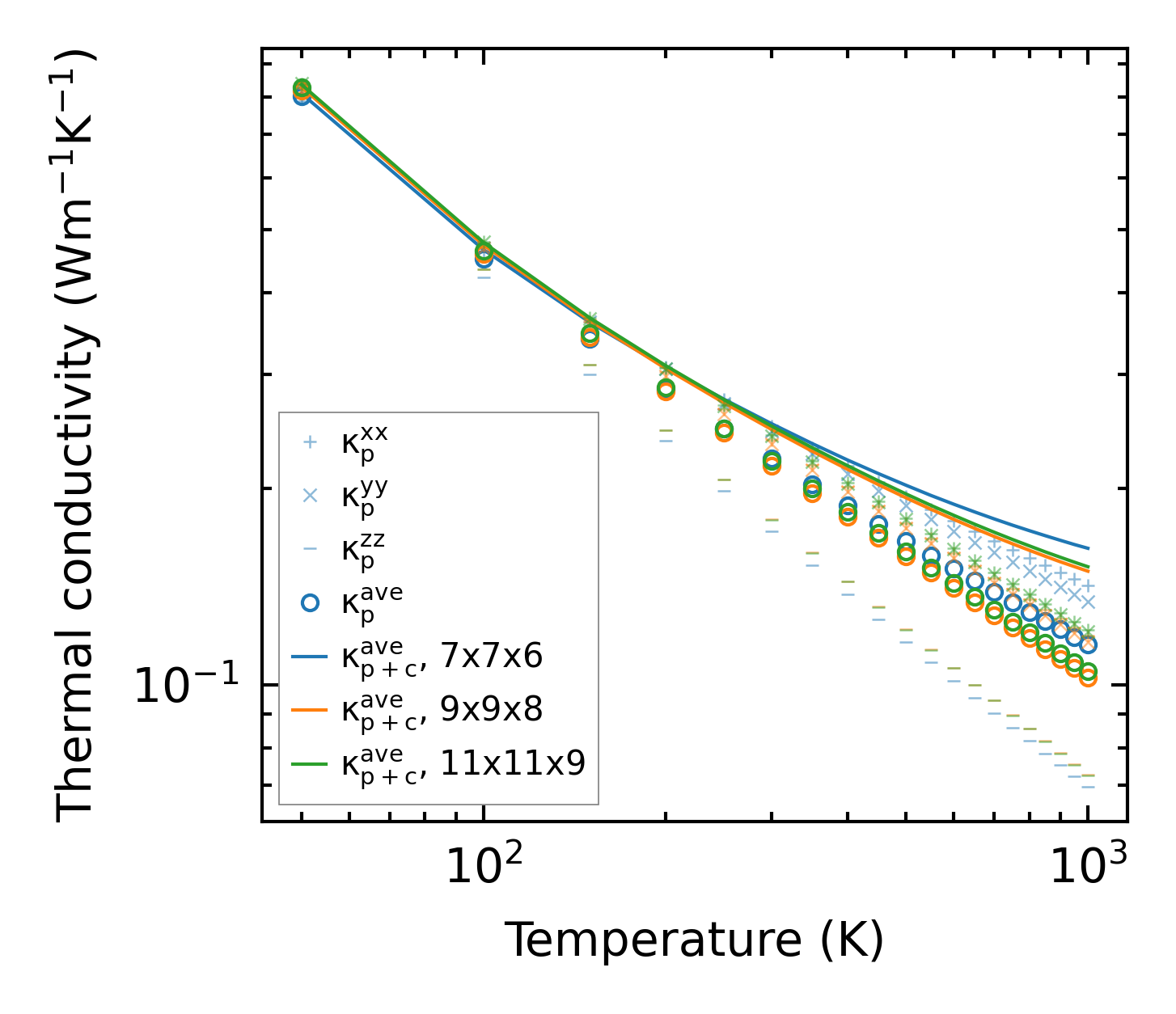

../../_images/fig_kappa13907.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times27498.png — (b) Computation time
