mp-1078630-2/Ba2ThCu2S5/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-1078630-2.tar.gz

Equation of state

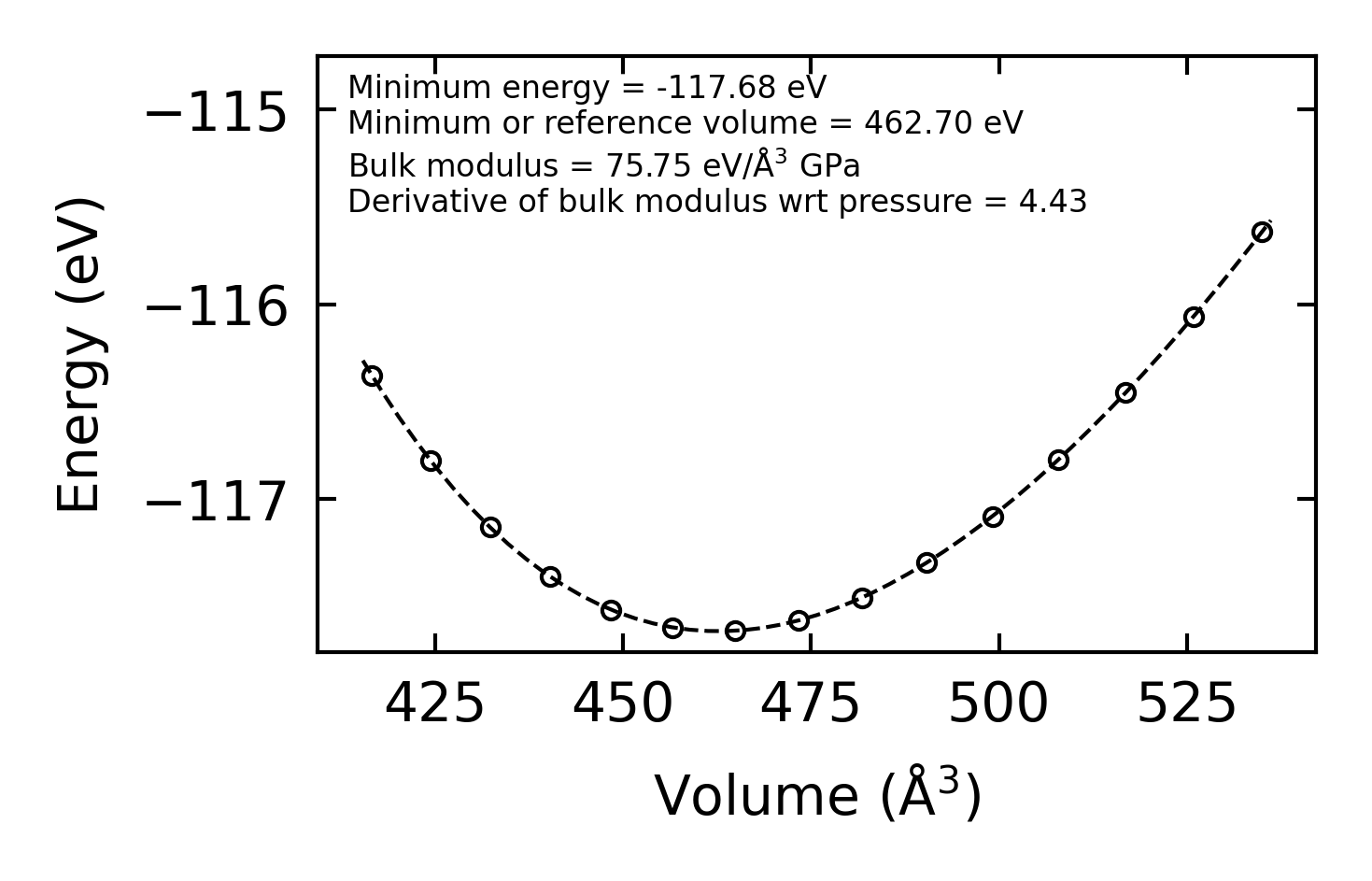

../../_images/fig_bm7797.png — (a) Equation of state

Harmonic properties

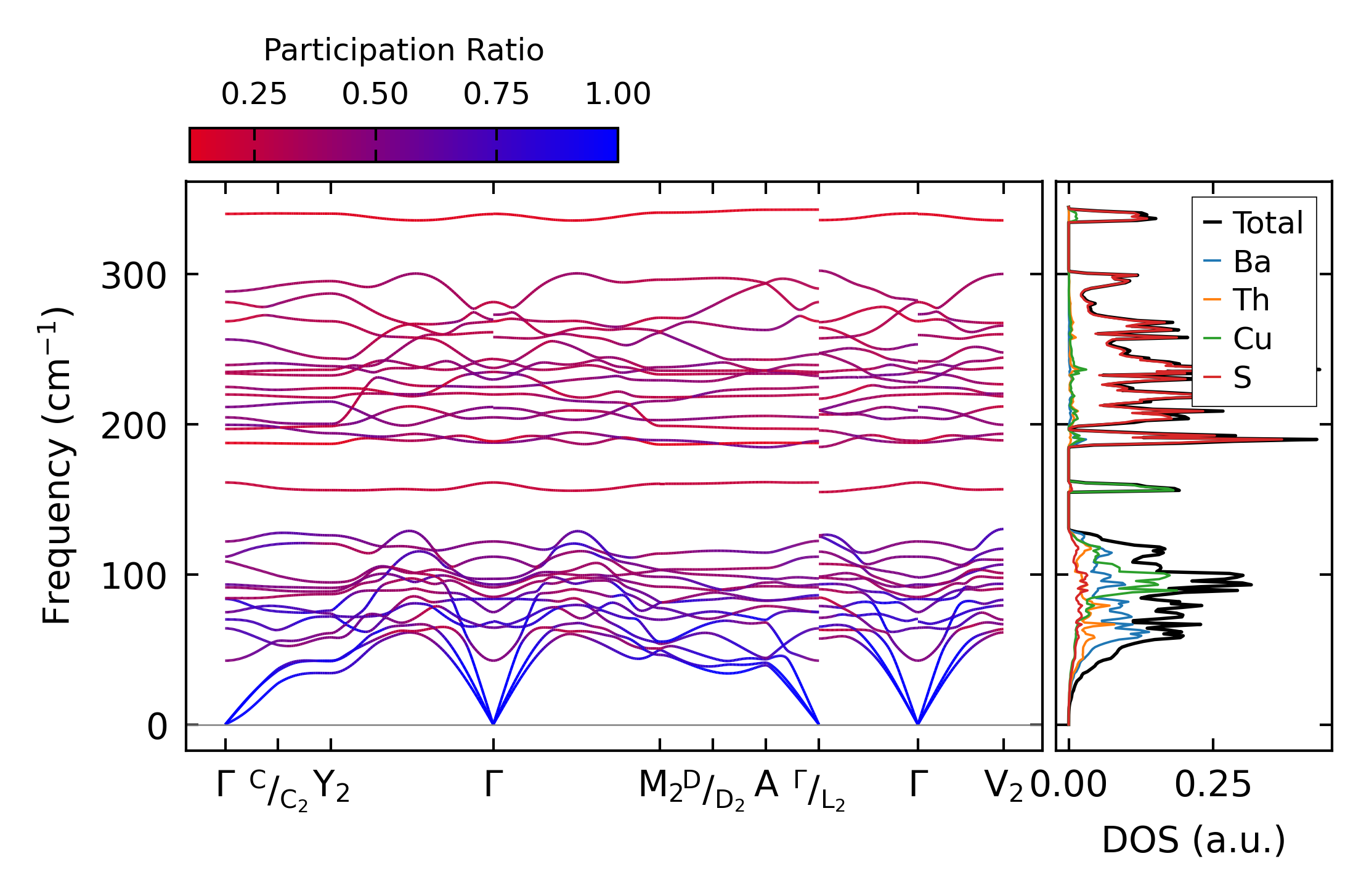

../../_images/fig_bandos_pr16886.png — (a) Phonon dispersion with participation ratio and DOS

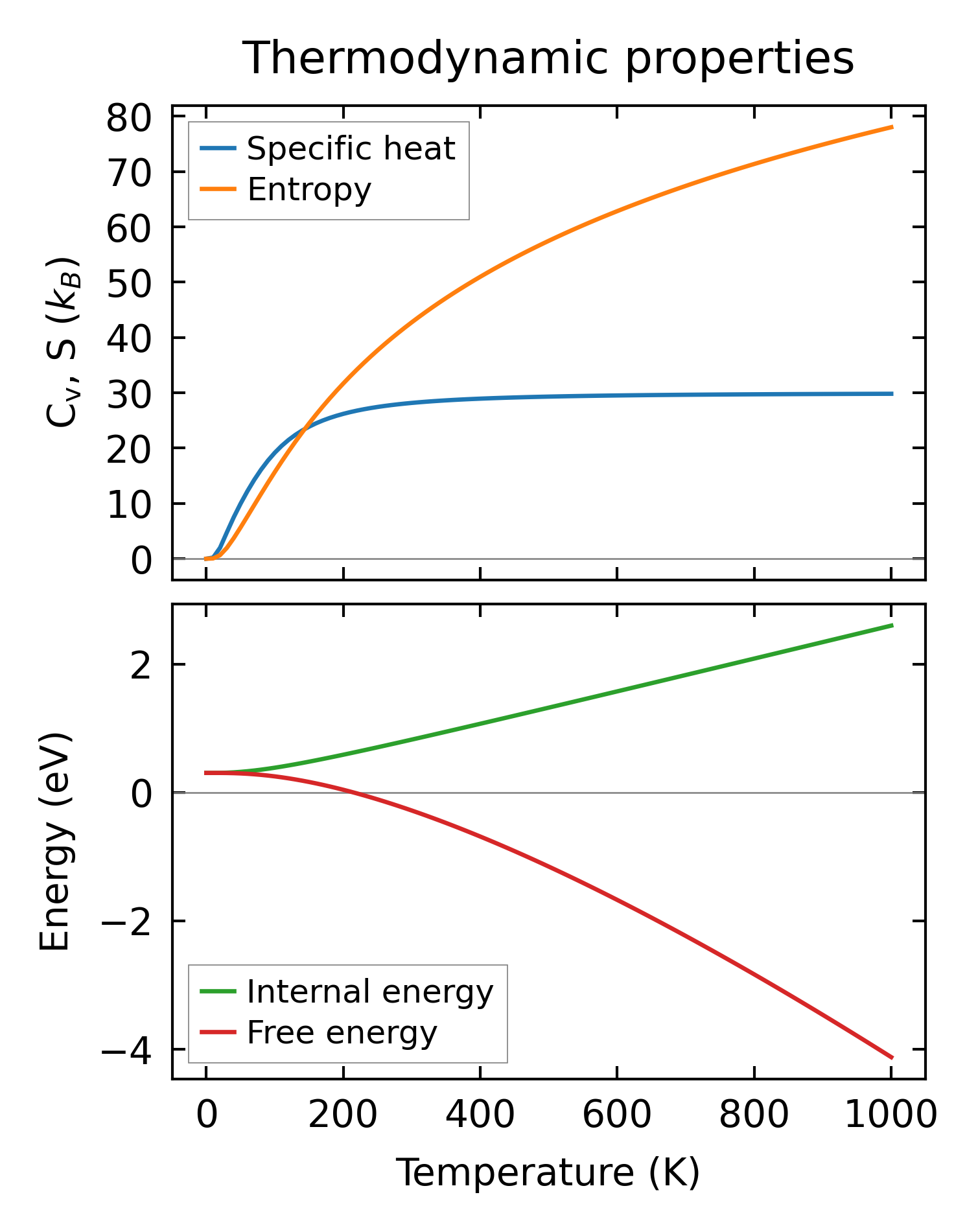

../../_images/fig_thermo16885.png — (b) Thermodynamic properties

Grüneisen parameters

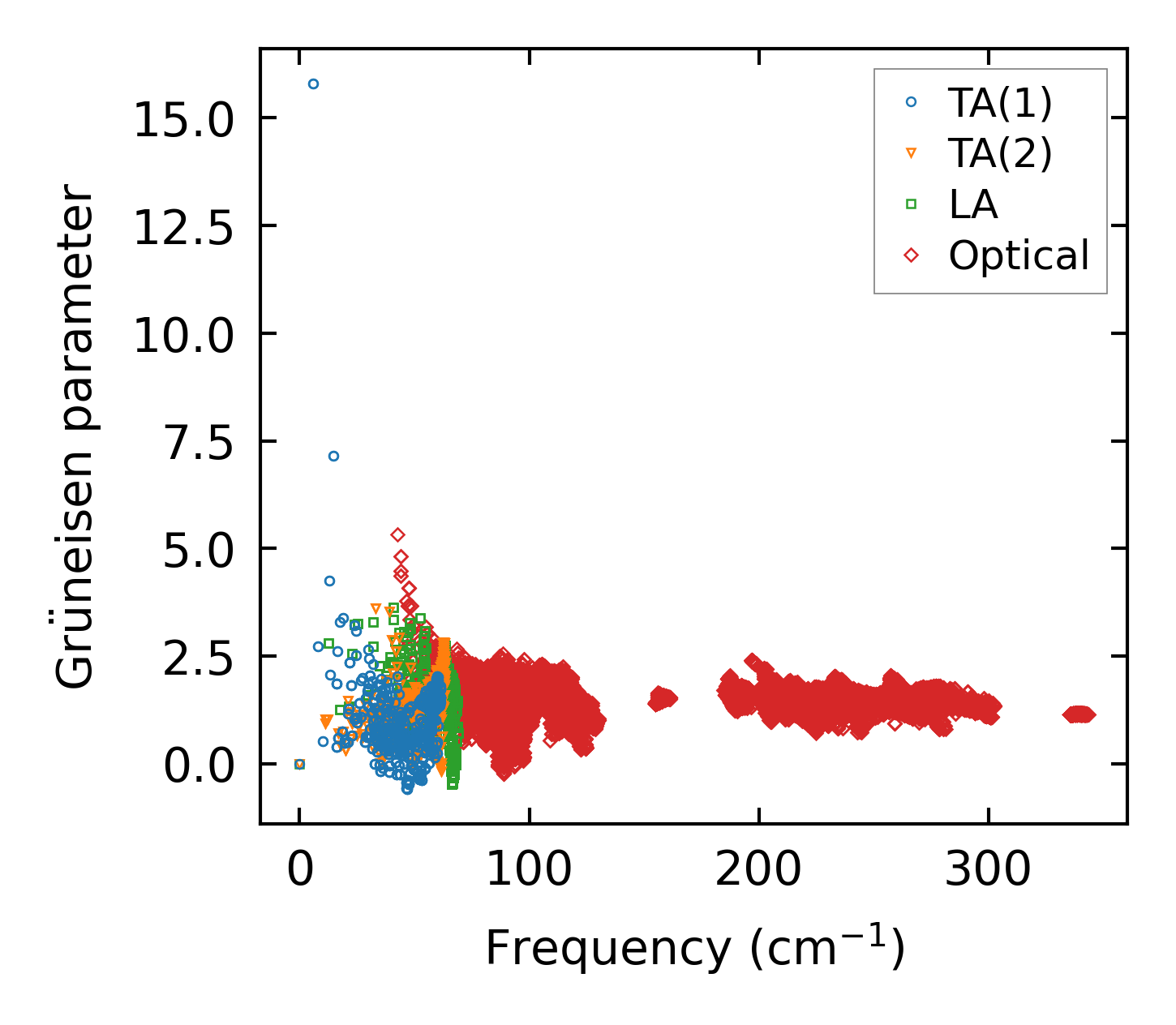

../../_images/fig_gru_all7389.png — (a) Grüneisen parameters

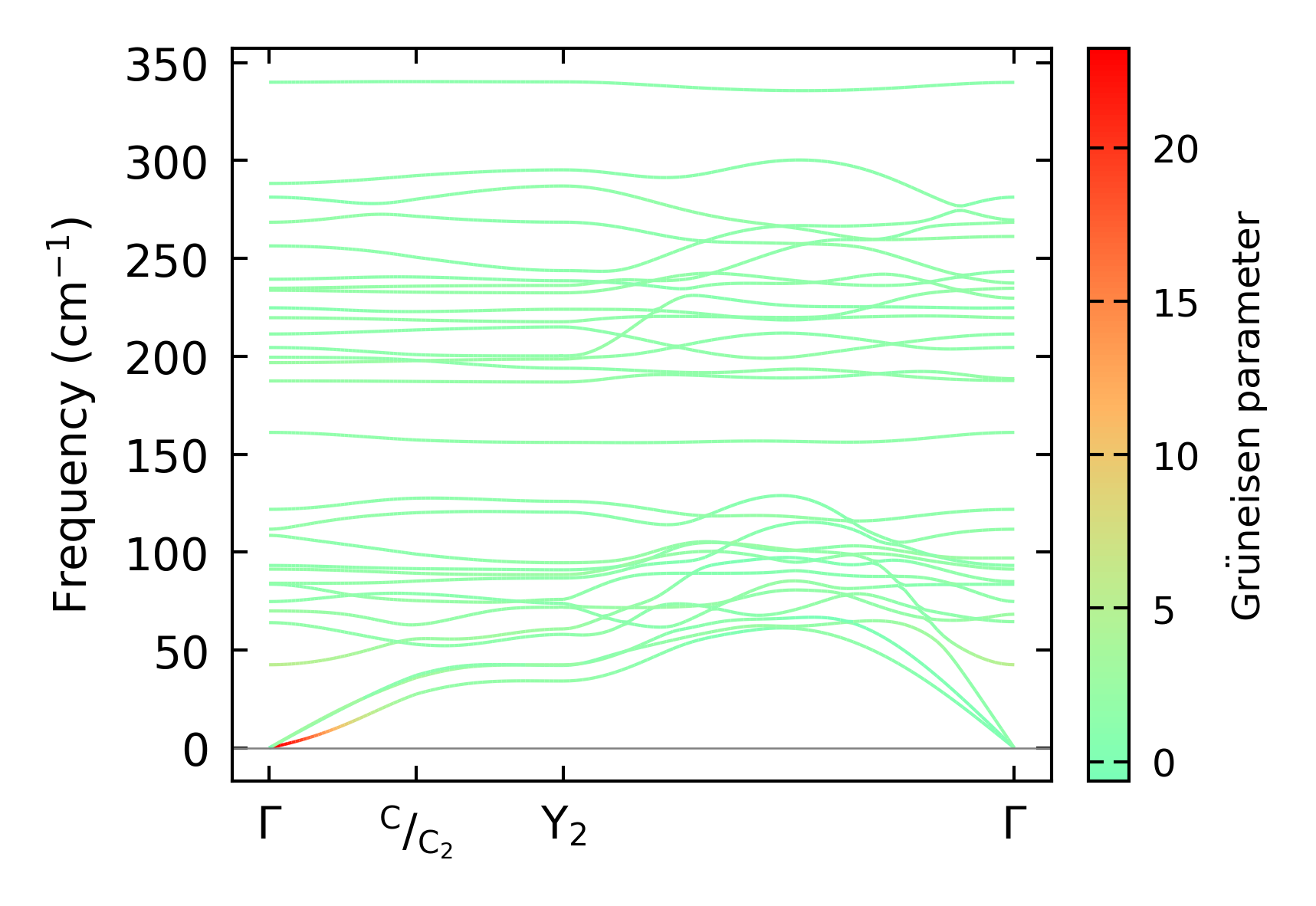

../../_images/fig_gruneisen7389.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x9, supercell: 1x3x2

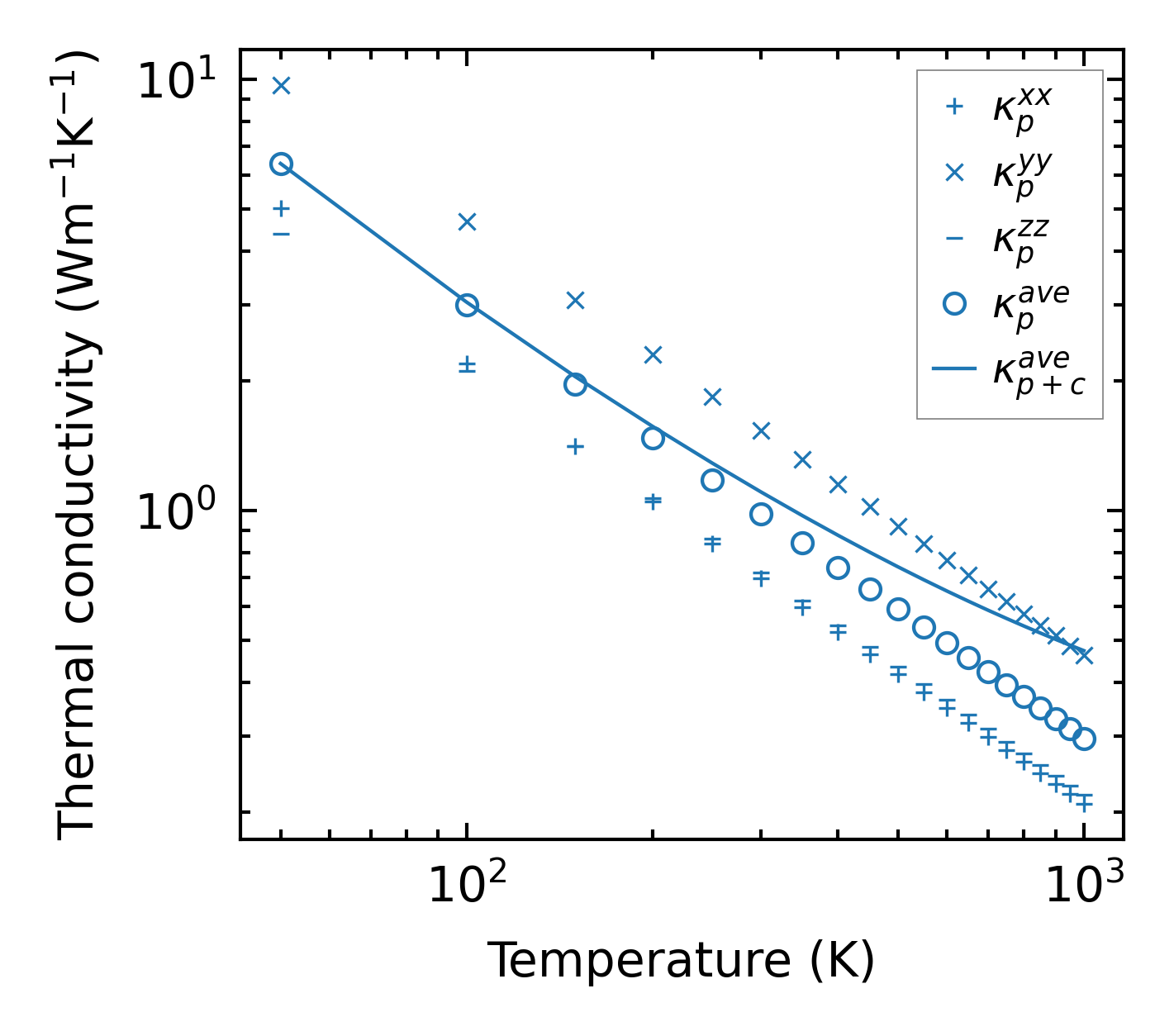

../../_images/fig_kappa13938.png — (a) Temperature-dependent lattice thermal conductivity

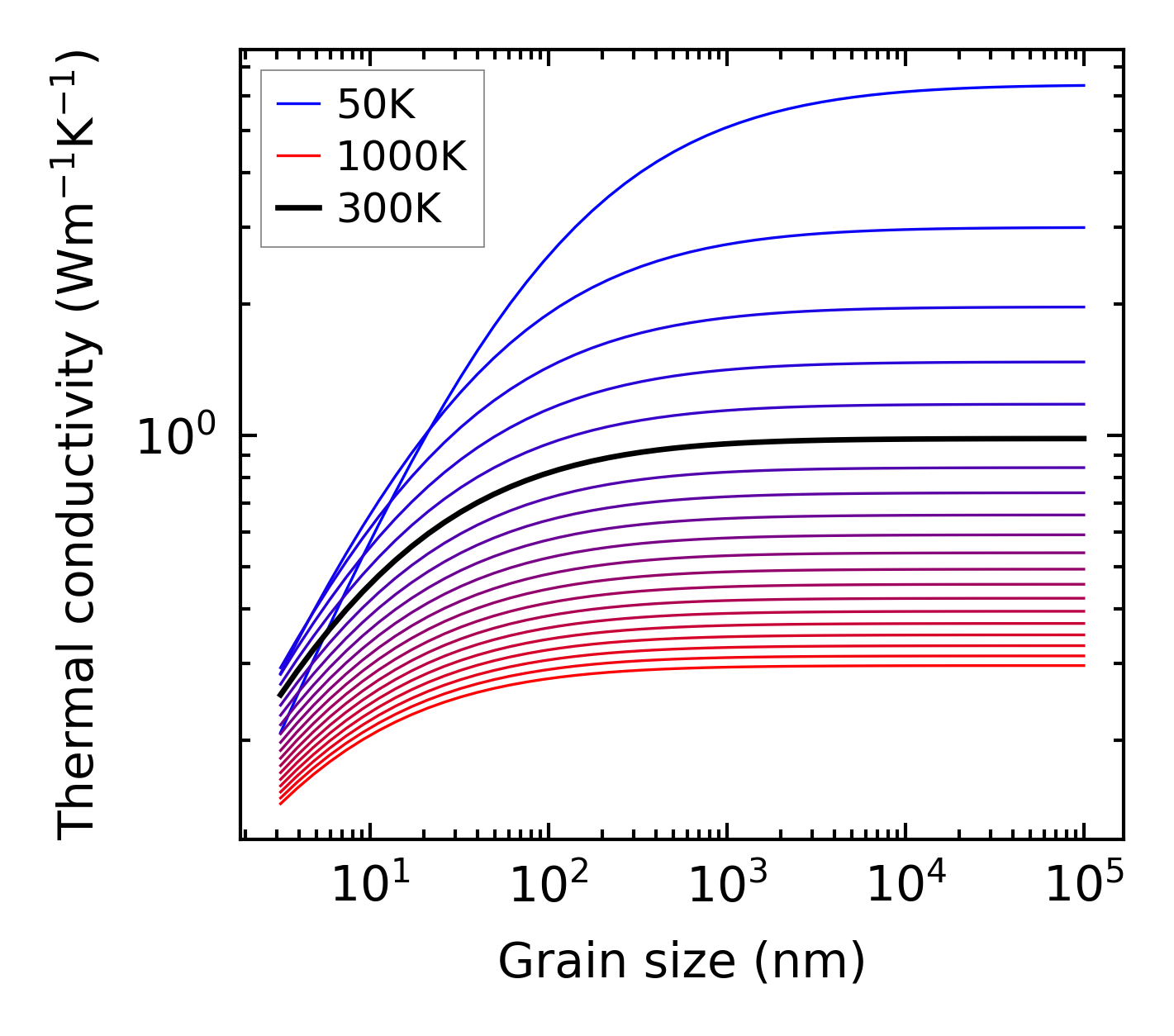

../../_images/fig_kappa_vs_grain_size7477.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

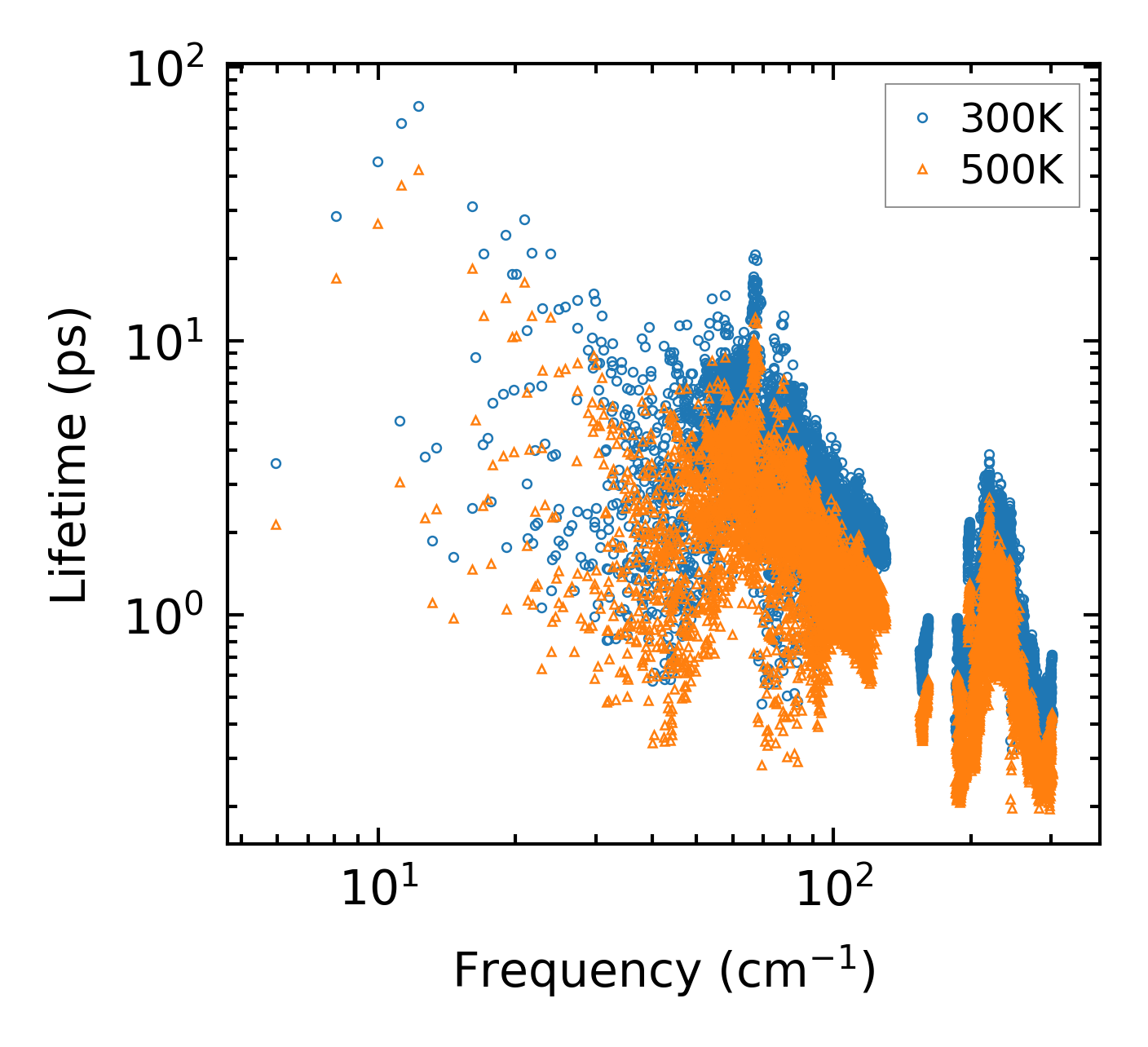

../../_images/fig_lifetime7323.png — (a) Phonon lifetime due to phonon-phonon scattering

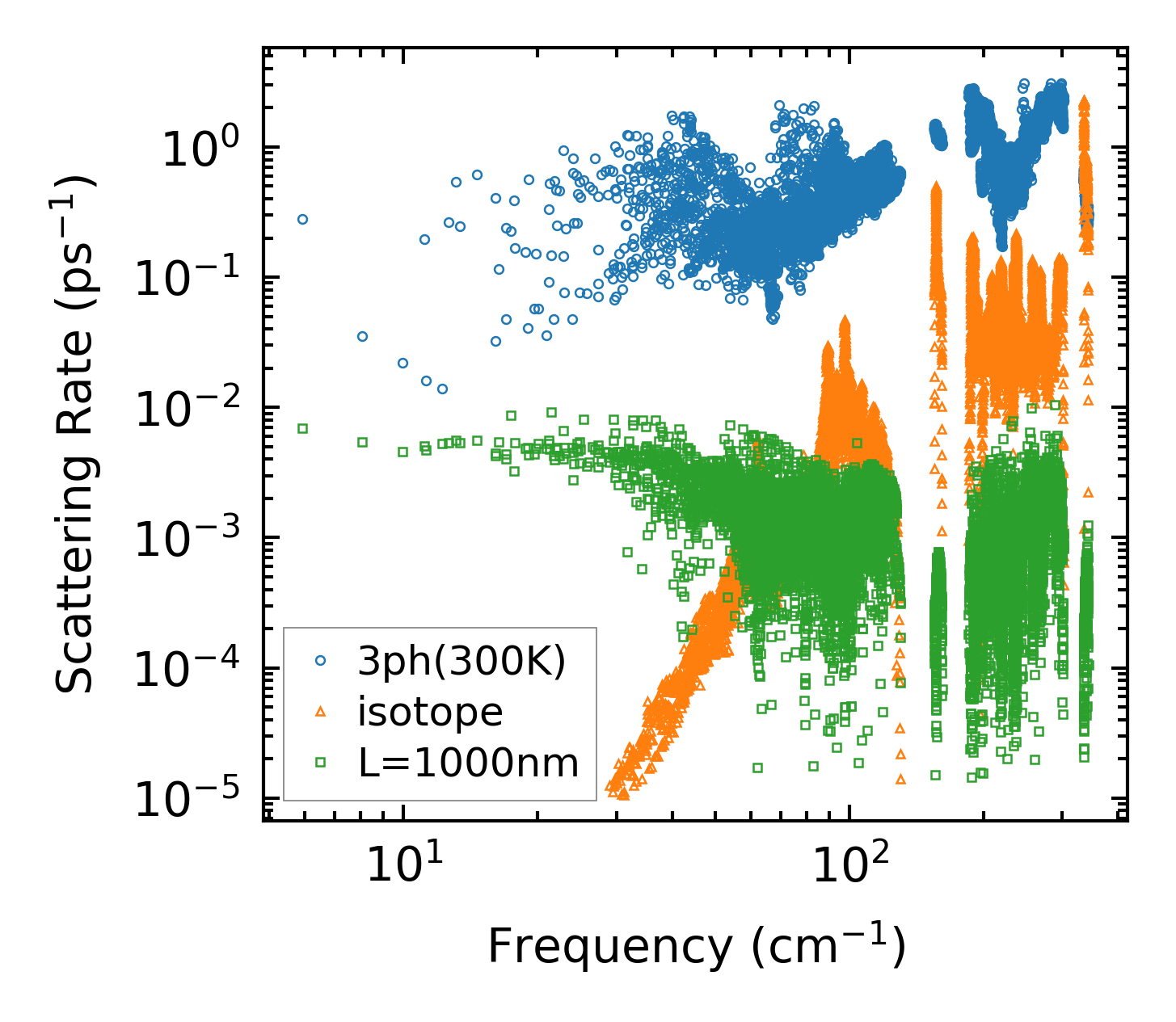

../../_images/fig_scat_rates7322.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

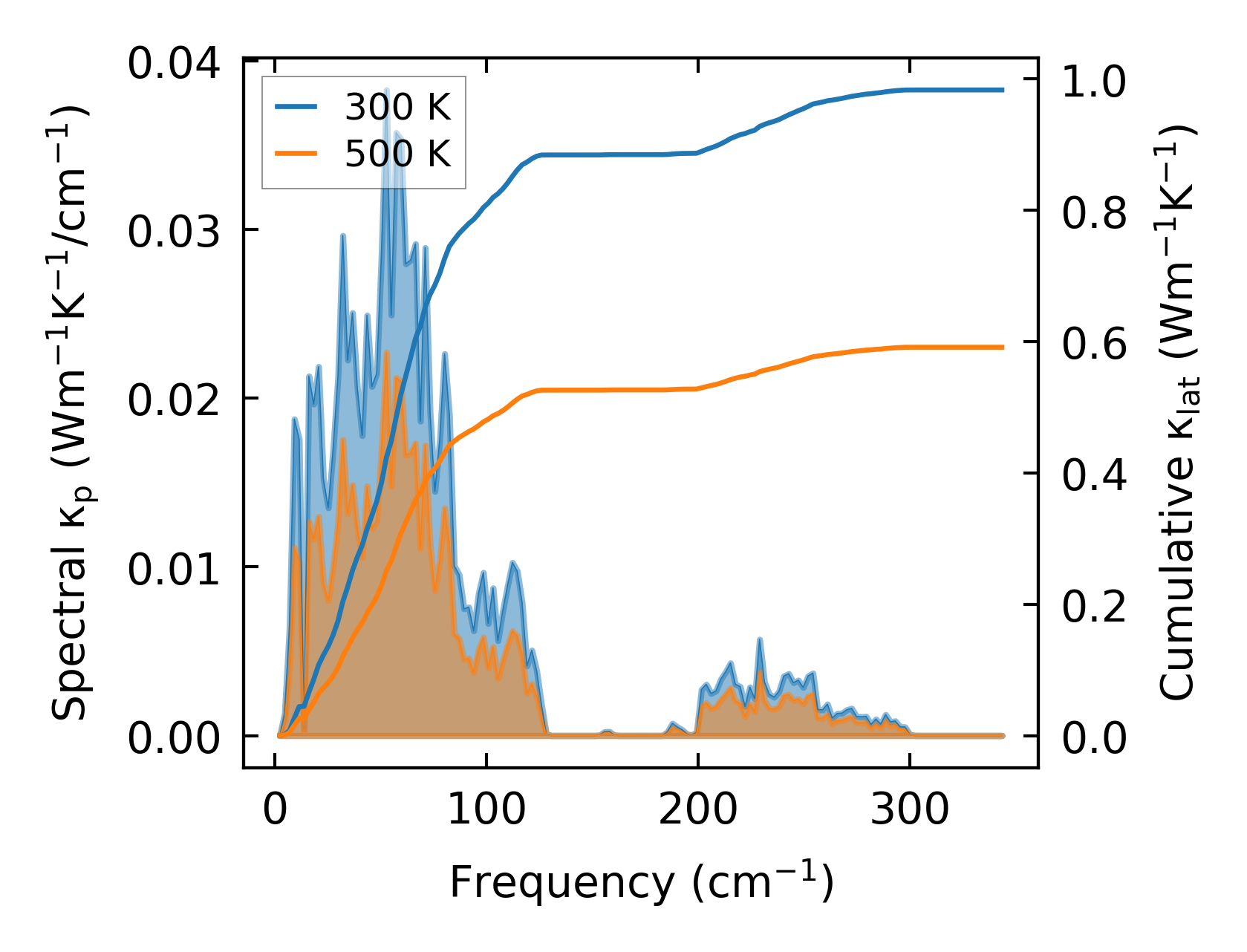

../../_images/fig_cumu_frequency7323.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

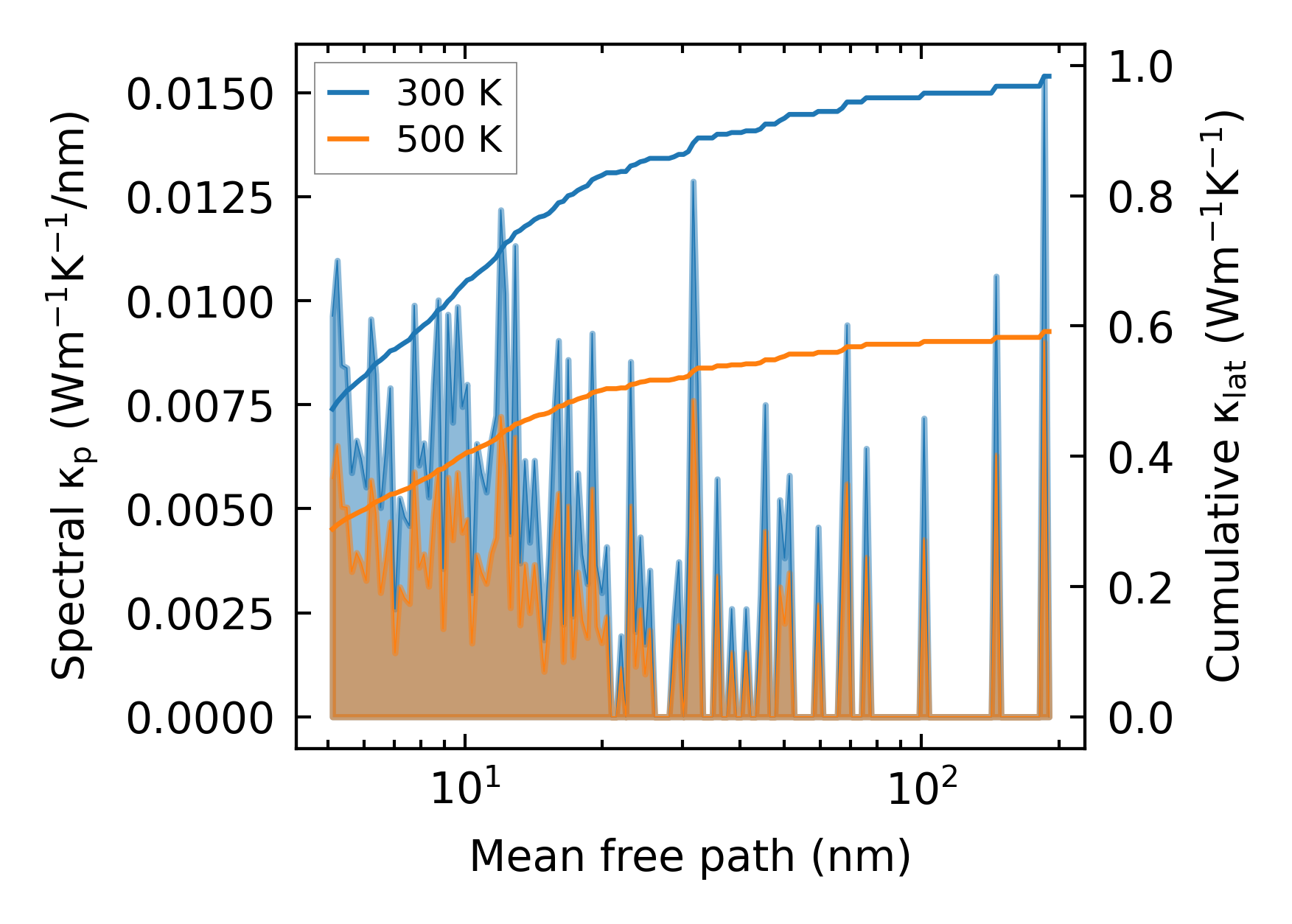

../../_images/fig_cumu_mfp7322.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

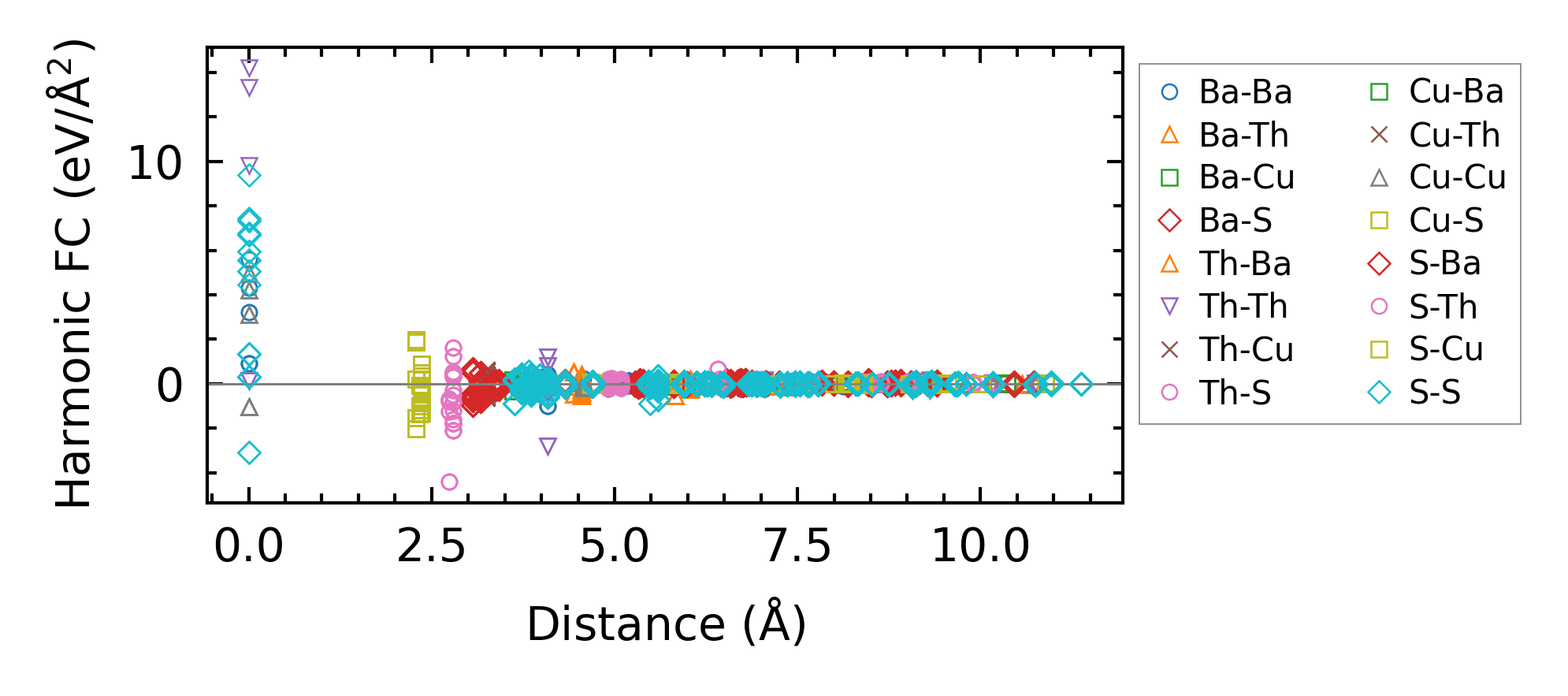

../../_images/fig_fc216440.png — (a) Force constants w.r.t atomic distance

Summary

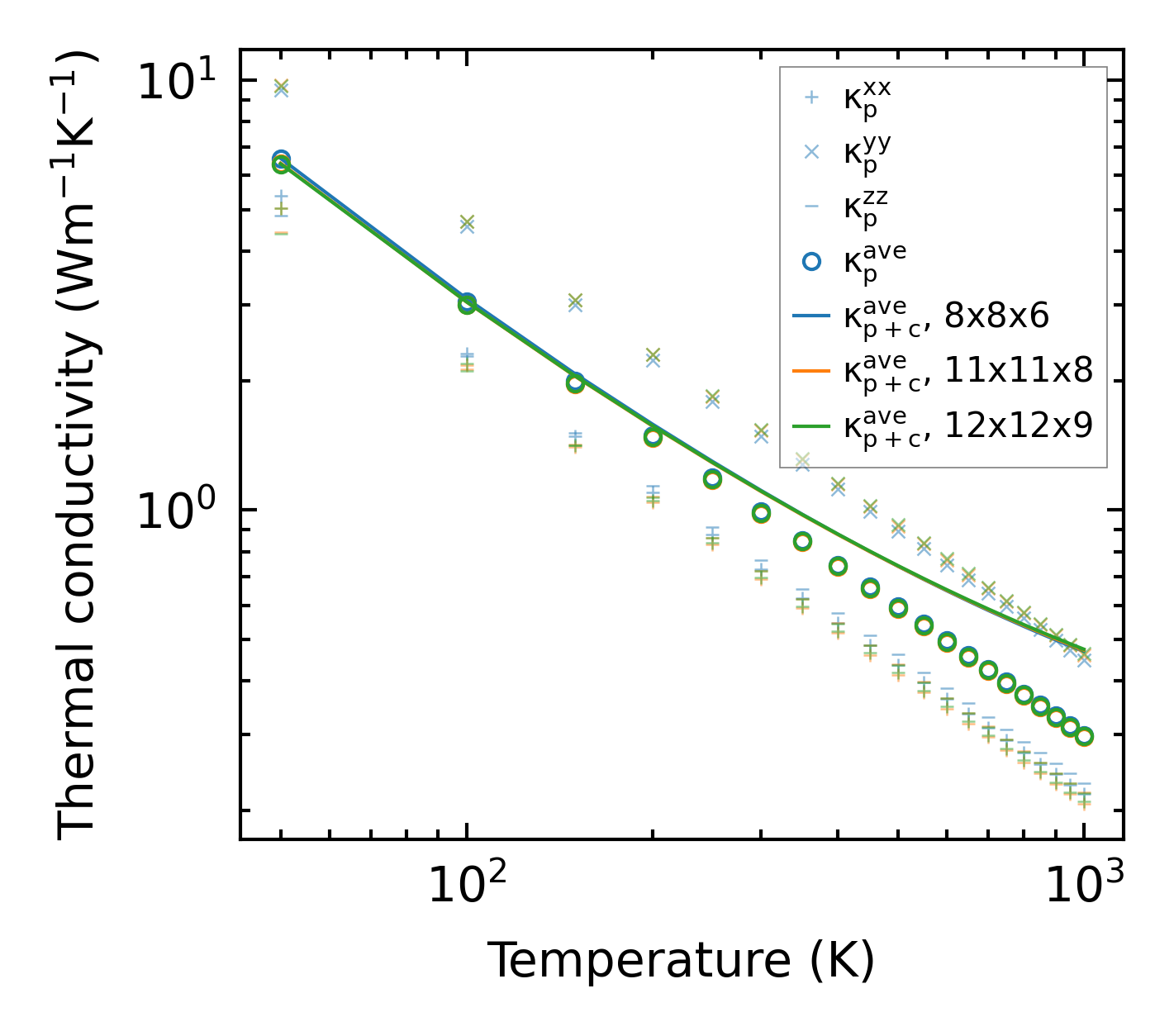

../../_images/fig_kappa13939.png — (a) Temperature-dependent lattice thermal conductivity

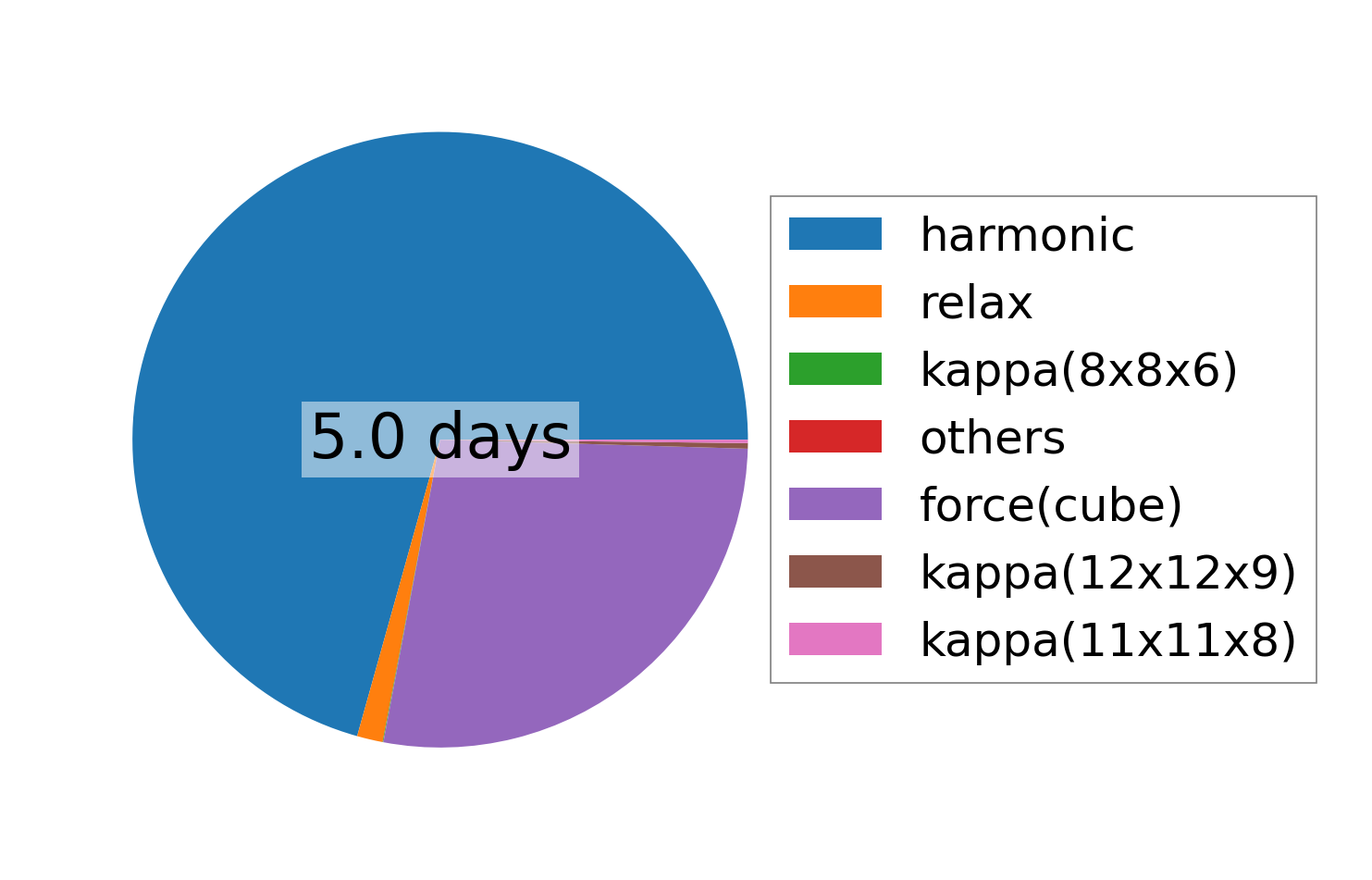

../../_images/fig_times27540.png — (b) Computation time
