mp-1078845/C/anharm

Space group: Cmmm (65)
Link: Materials Project
Download: mp-1078845.tar.gz

Harmonic properties

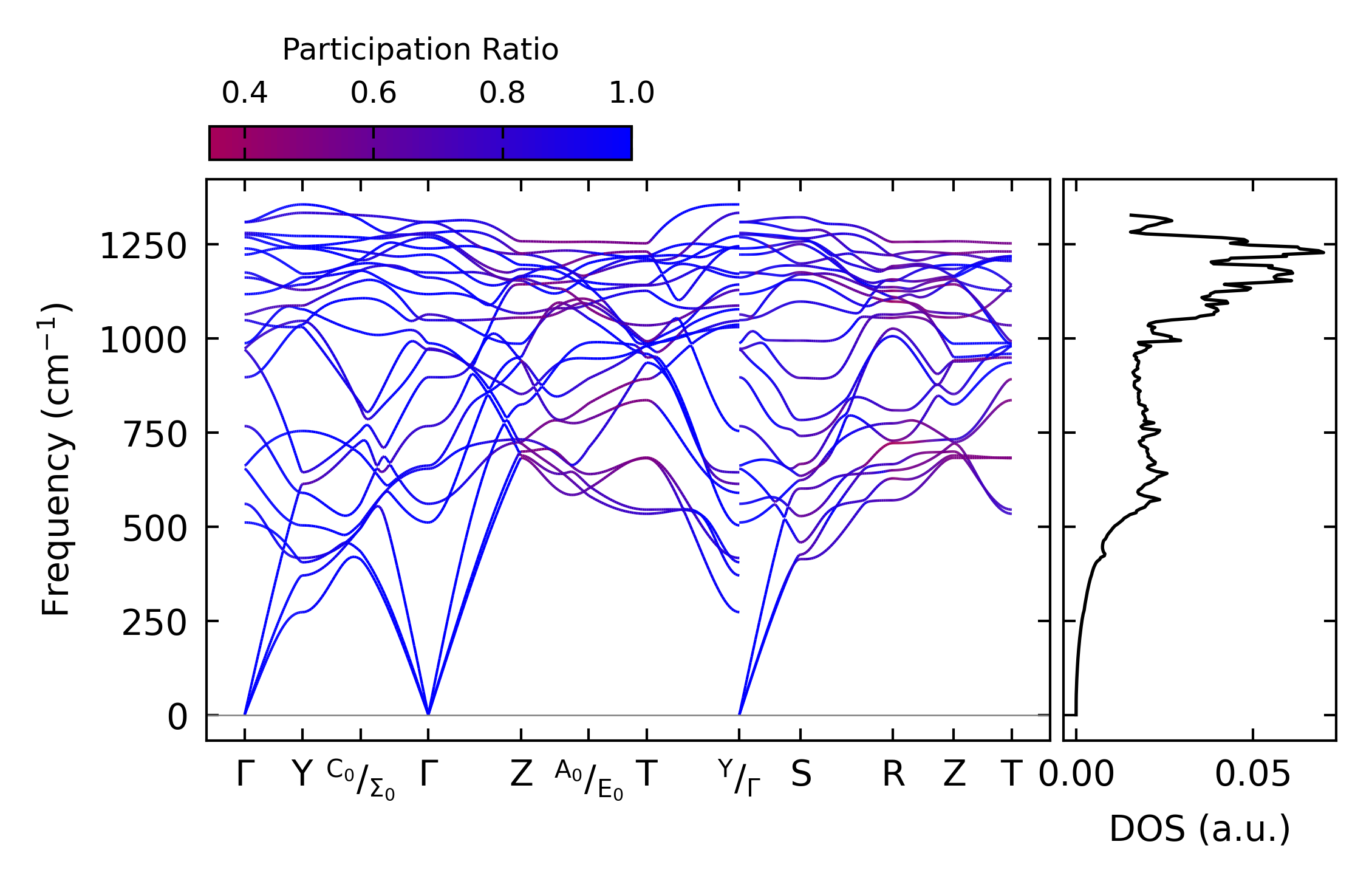

../../_images/fig_bandos_pr16901.png — (a) Phonon dispersion with participation ratio and DOS

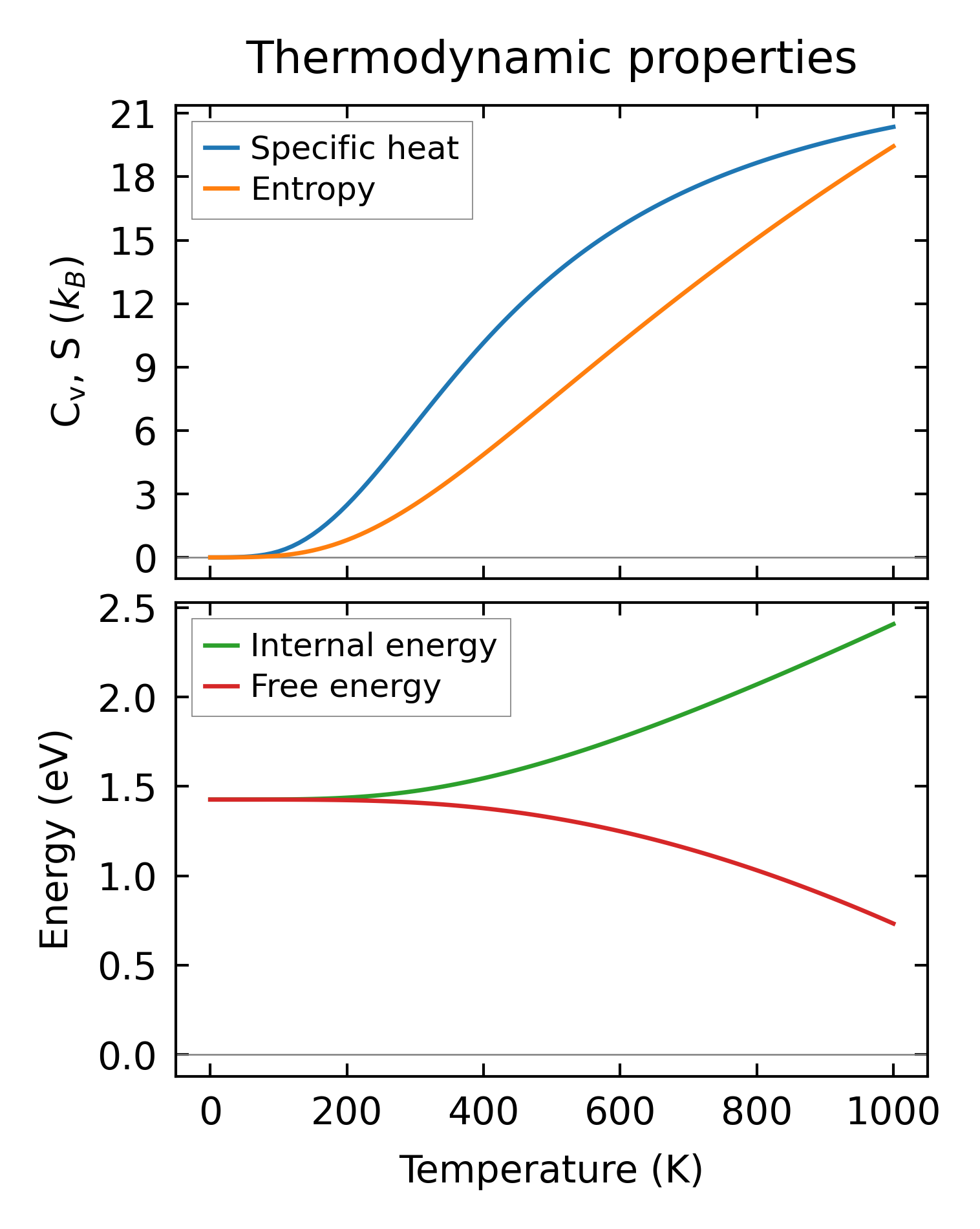

../../_images/fig_thermo16900.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all7398.png — (a) Grüneisen parameters

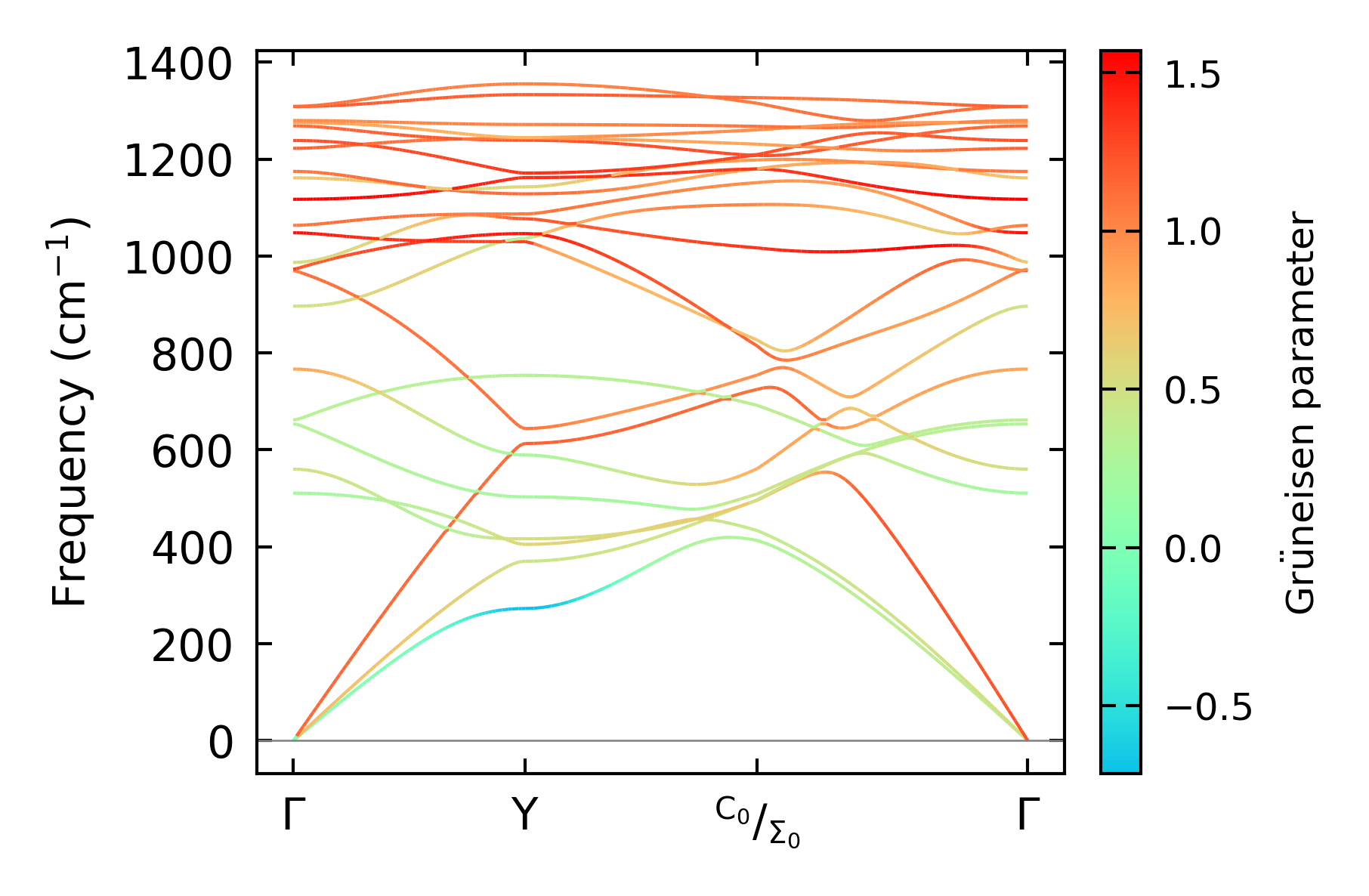

../../_images/fig_gruneisen7398.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 16x16x31, supercell: 2x1x4

../../_images/fig_kappa13956.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7486.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

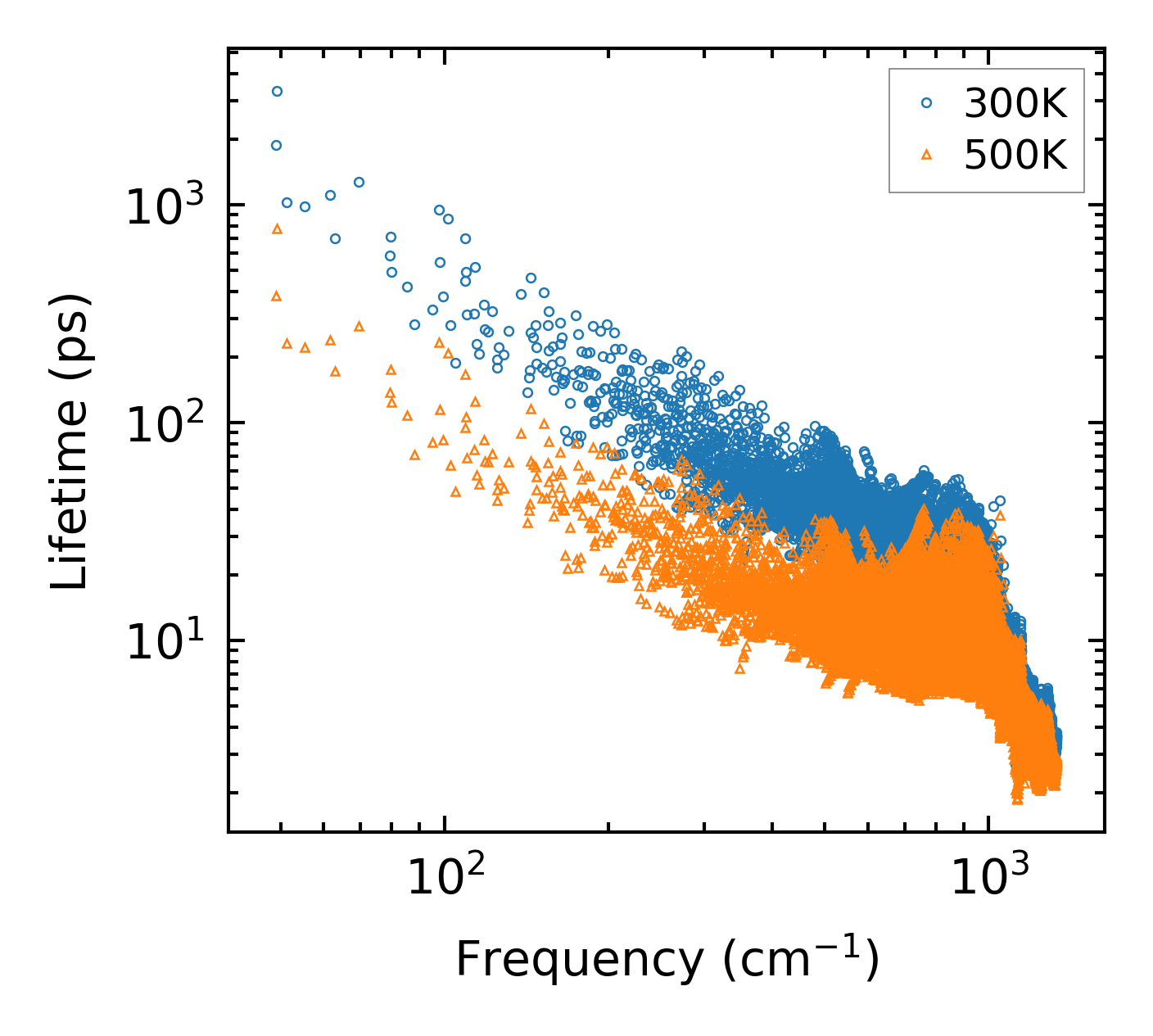

../../_images/fig_lifetime7332.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates7331.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency7332.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

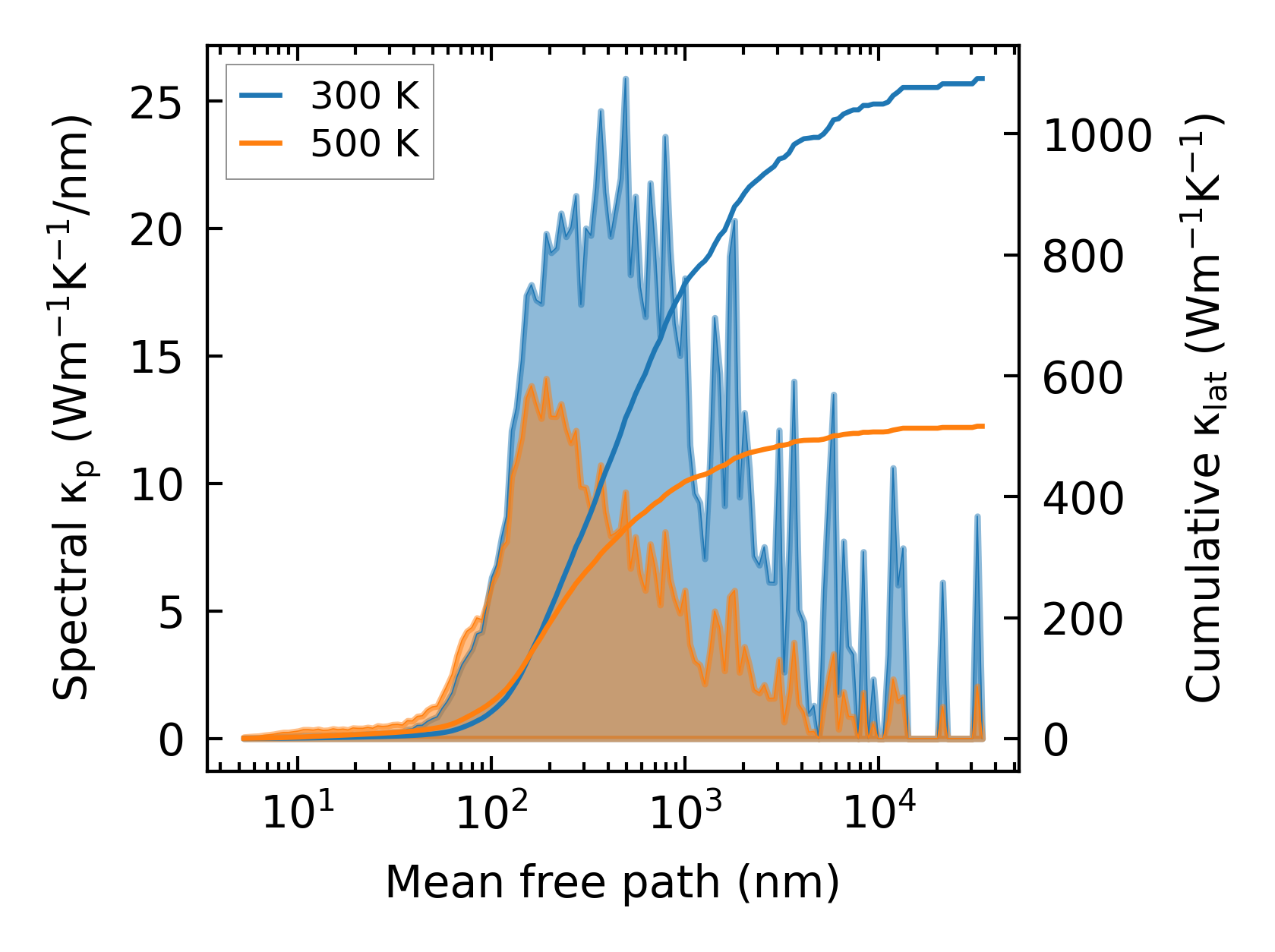

../../_images/fig_cumu_mfp7331.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

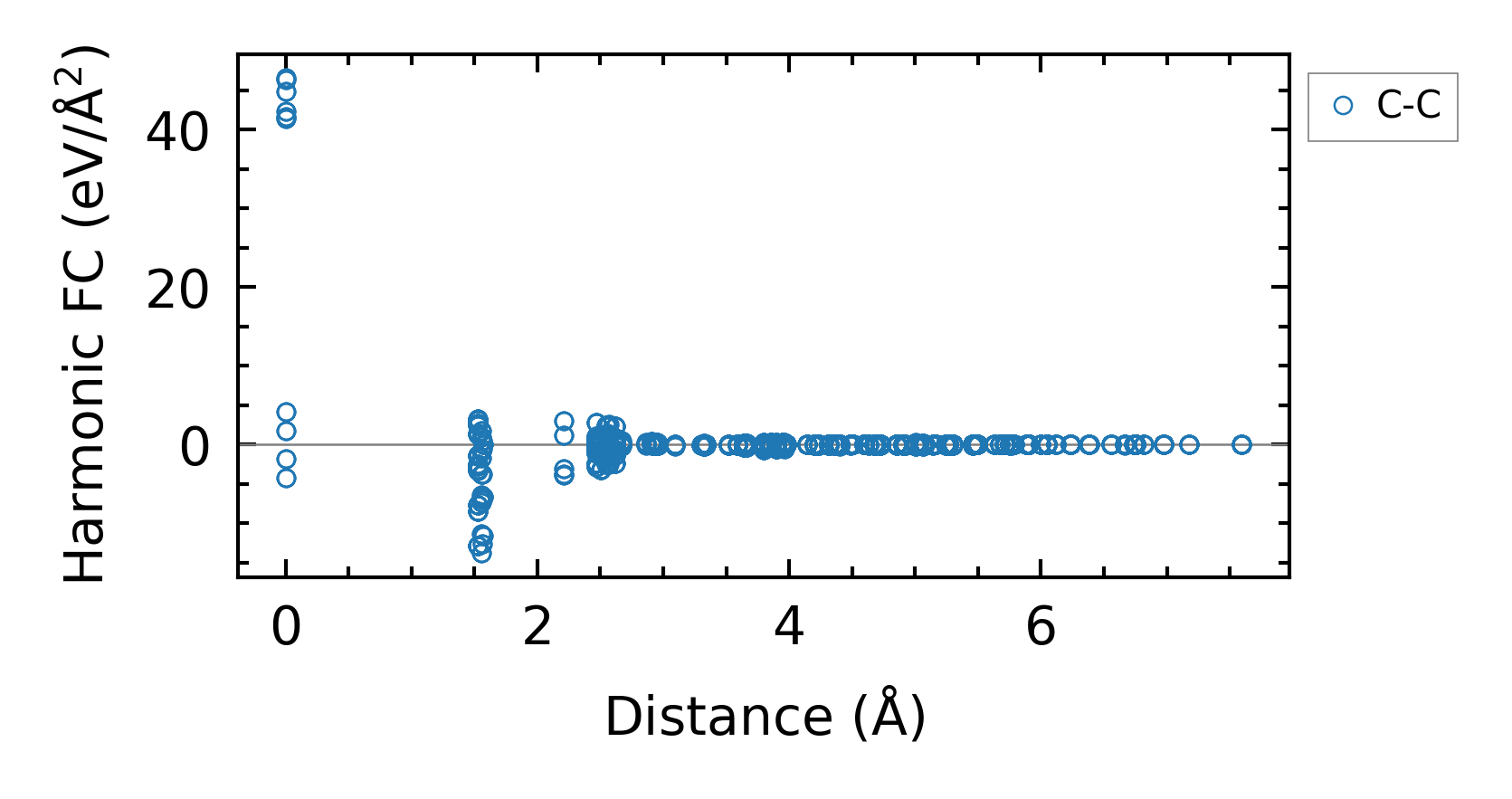

../../_images/fig_fc216454.png — (a) Force constants w.r.t atomic distance

Summary

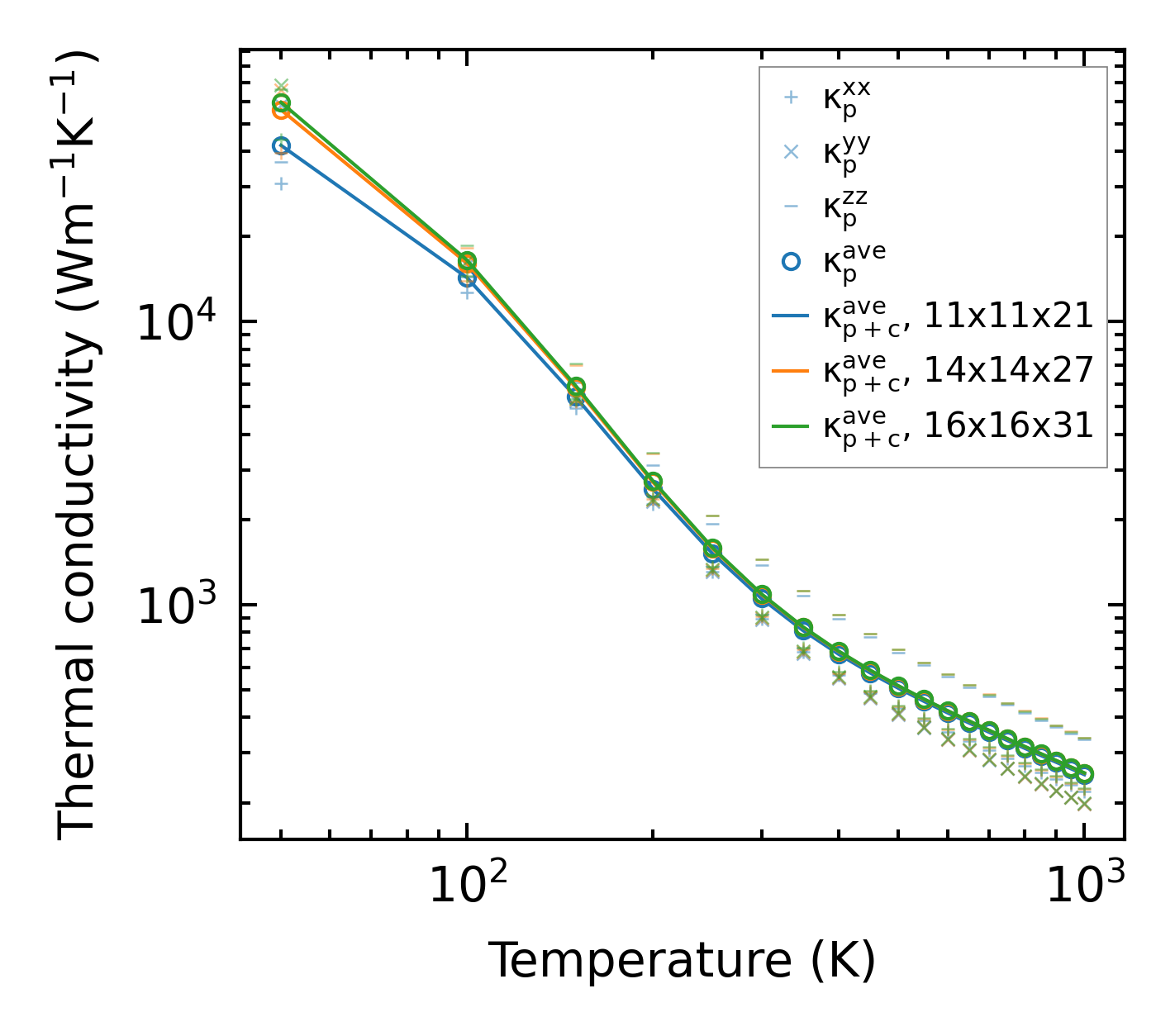

../../_images/fig_kappa13957.png — (a) Temperature-dependent lattice thermal conductivity

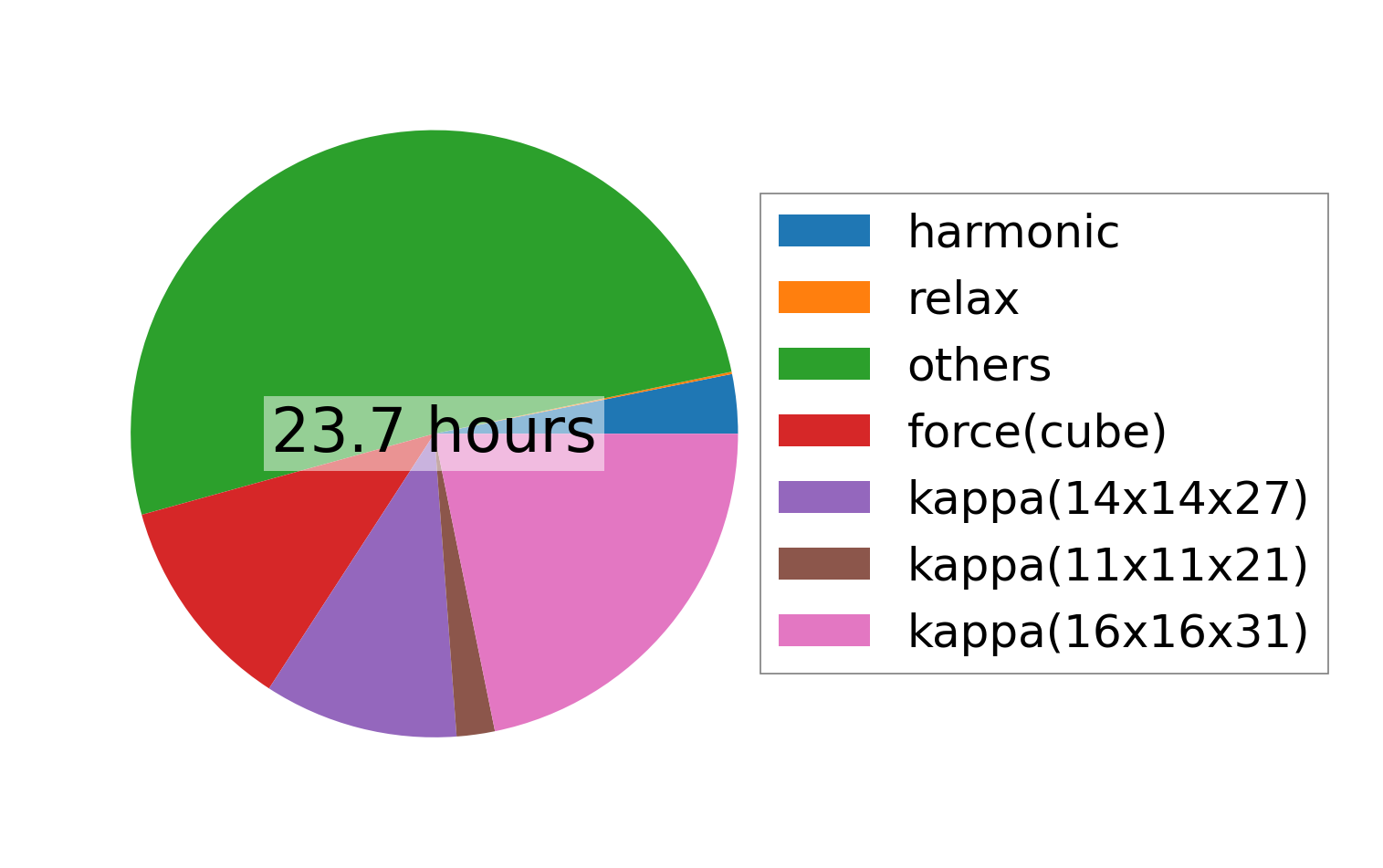

../../_images/fig_times27561.png — (b) Computation time
