mp-1078379/FeBiS2Br/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-1078379.tar.gz

Harmonic properties

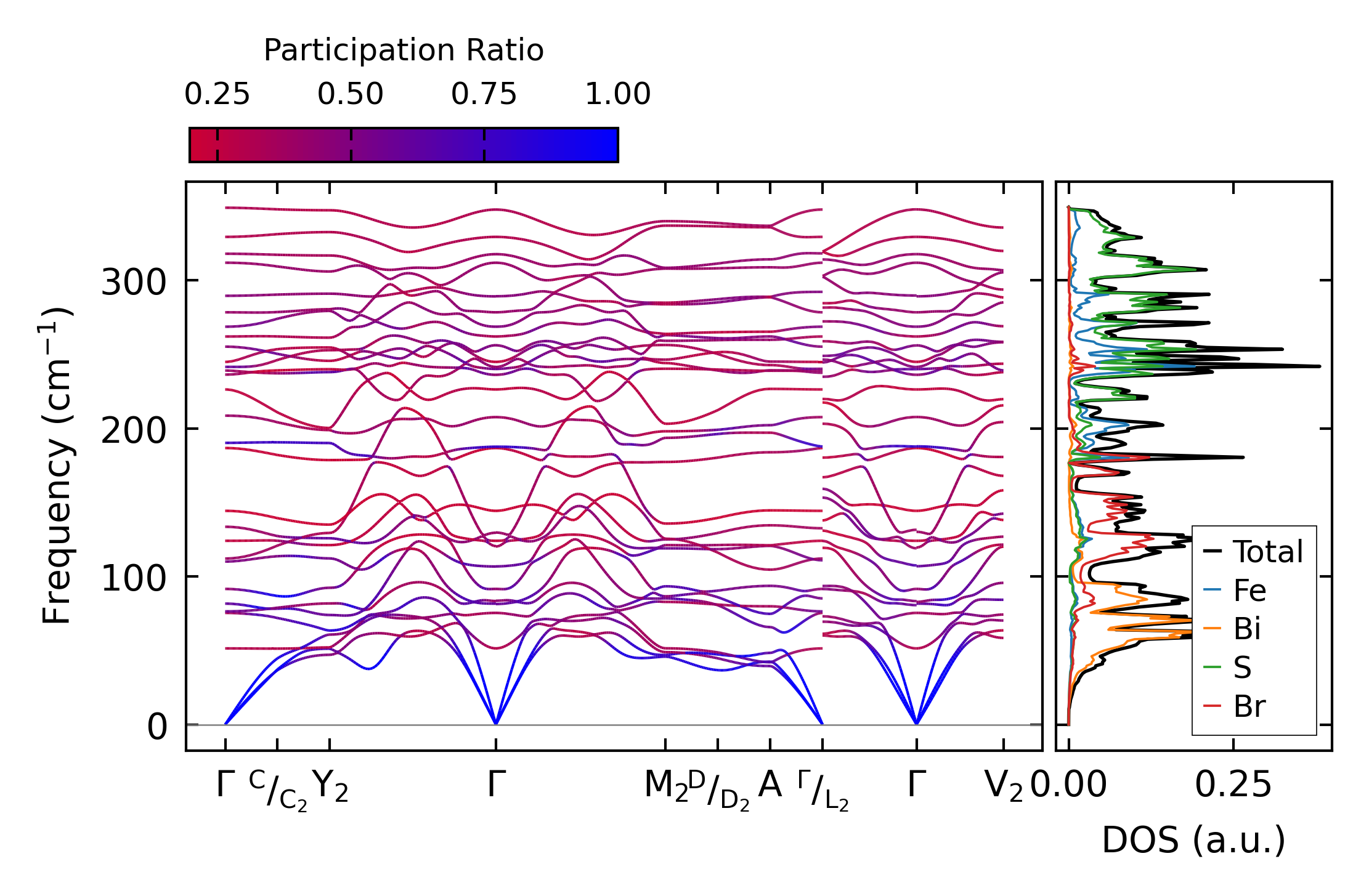

../../_images/fig_bandos_pr16866.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16865.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all7377.png — (a) Grüneisen parameters

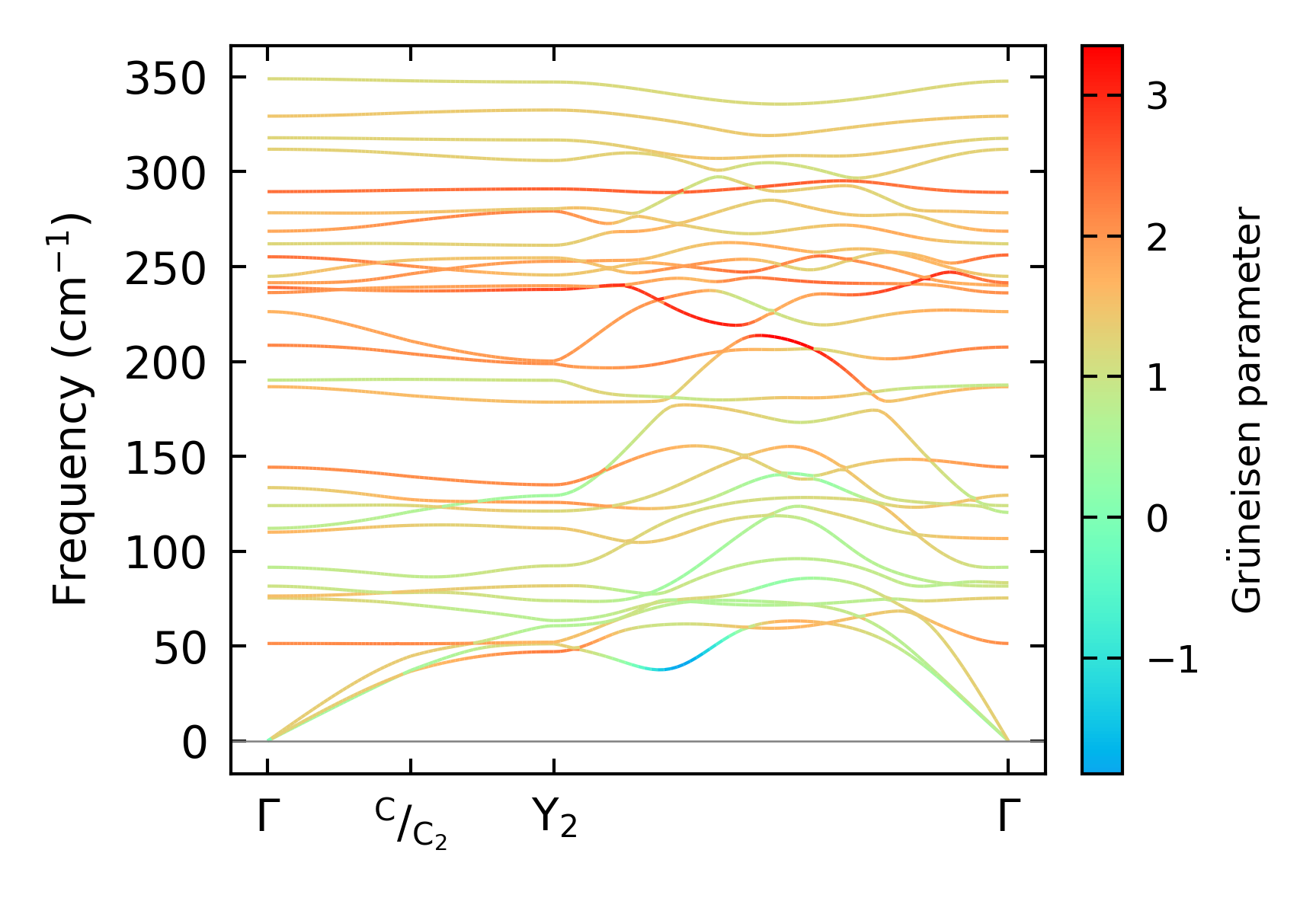

../../_images/fig_gruneisen7377.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x10, supercell: 1x3x2

../../_images/fig_kappa13916.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7465.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

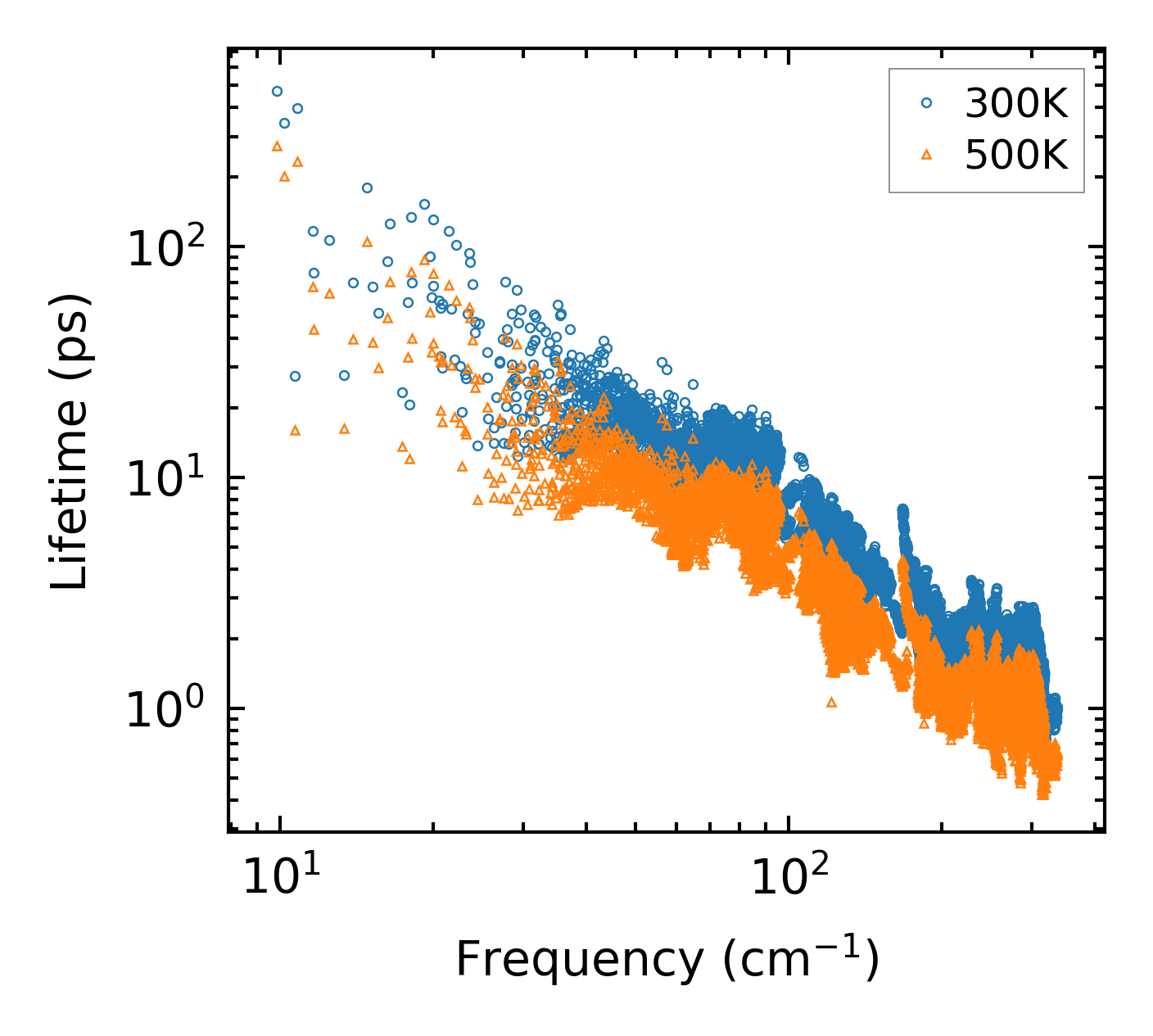

../../_images/fig_lifetime7311.png — (a) Phonon lifetime due to phonon-phonon scattering

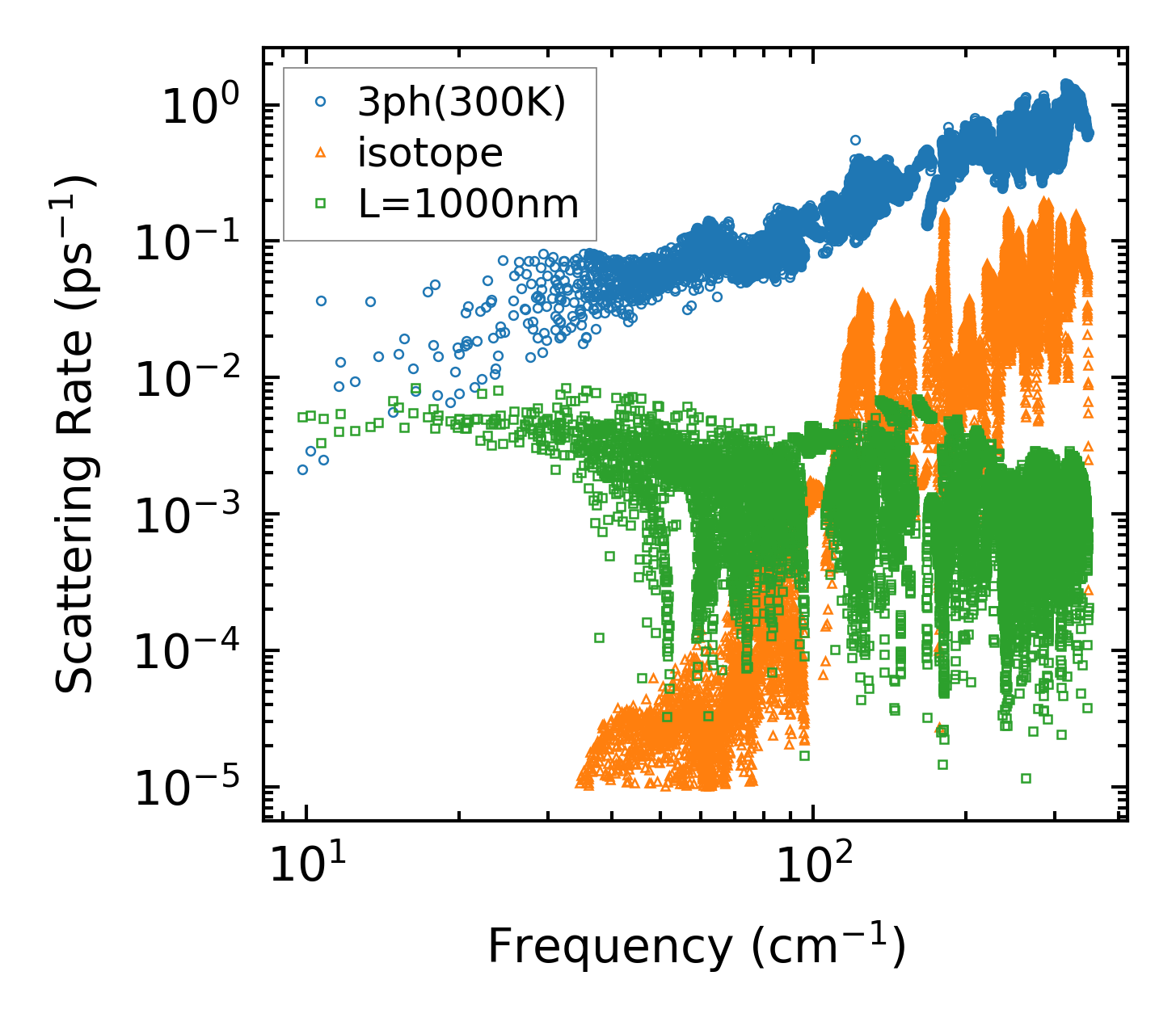

../../_images/fig_scat_rates7310.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

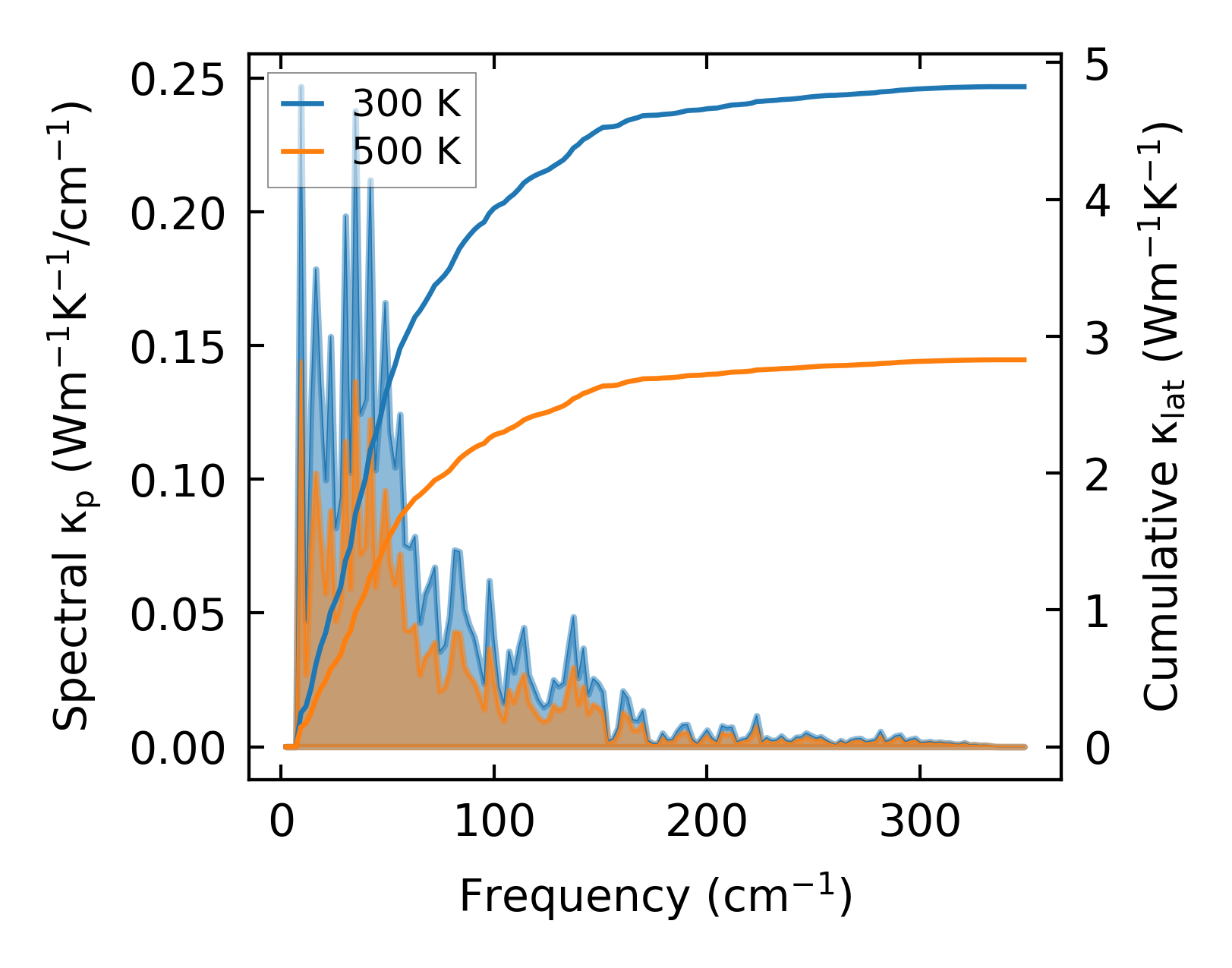

../../_images/fig_cumu_frequency7311.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

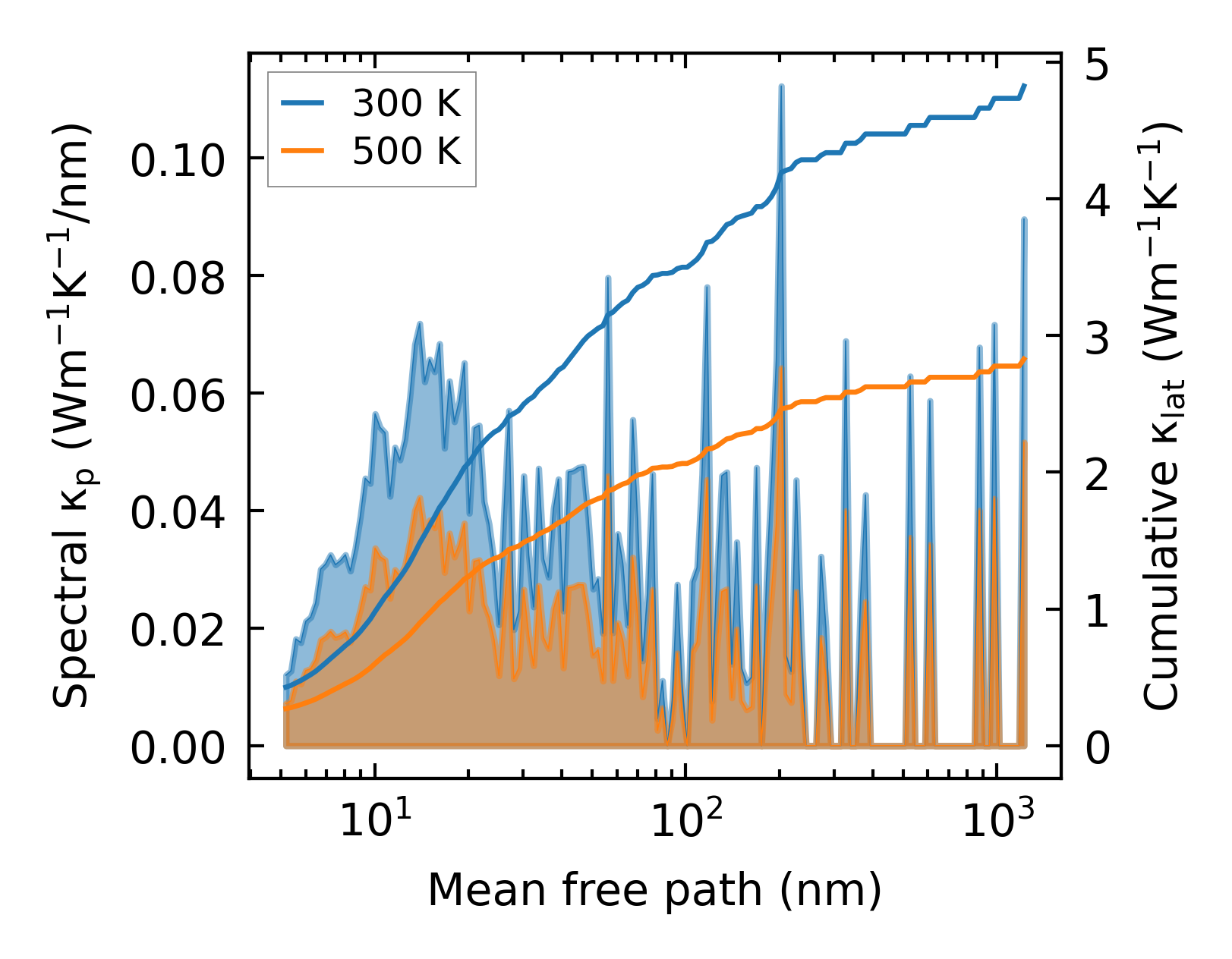

../../_images/fig_cumu_mfp7310.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc216420.png — (a) Force constants w.r.t atomic distance

Summary

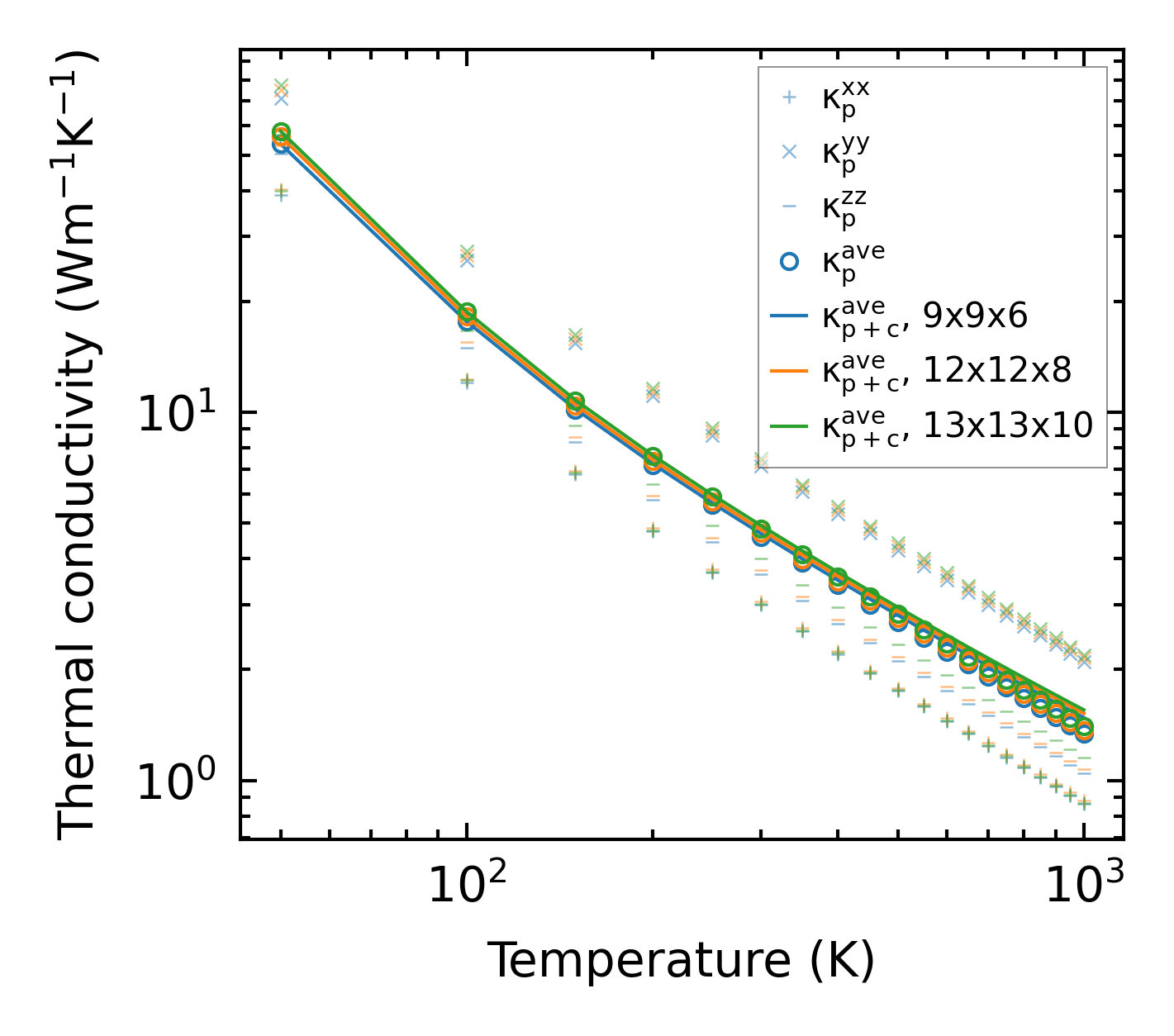

../../_images/fig_kappa13917.png — (a) Temperature-dependent lattice thermal conductivity

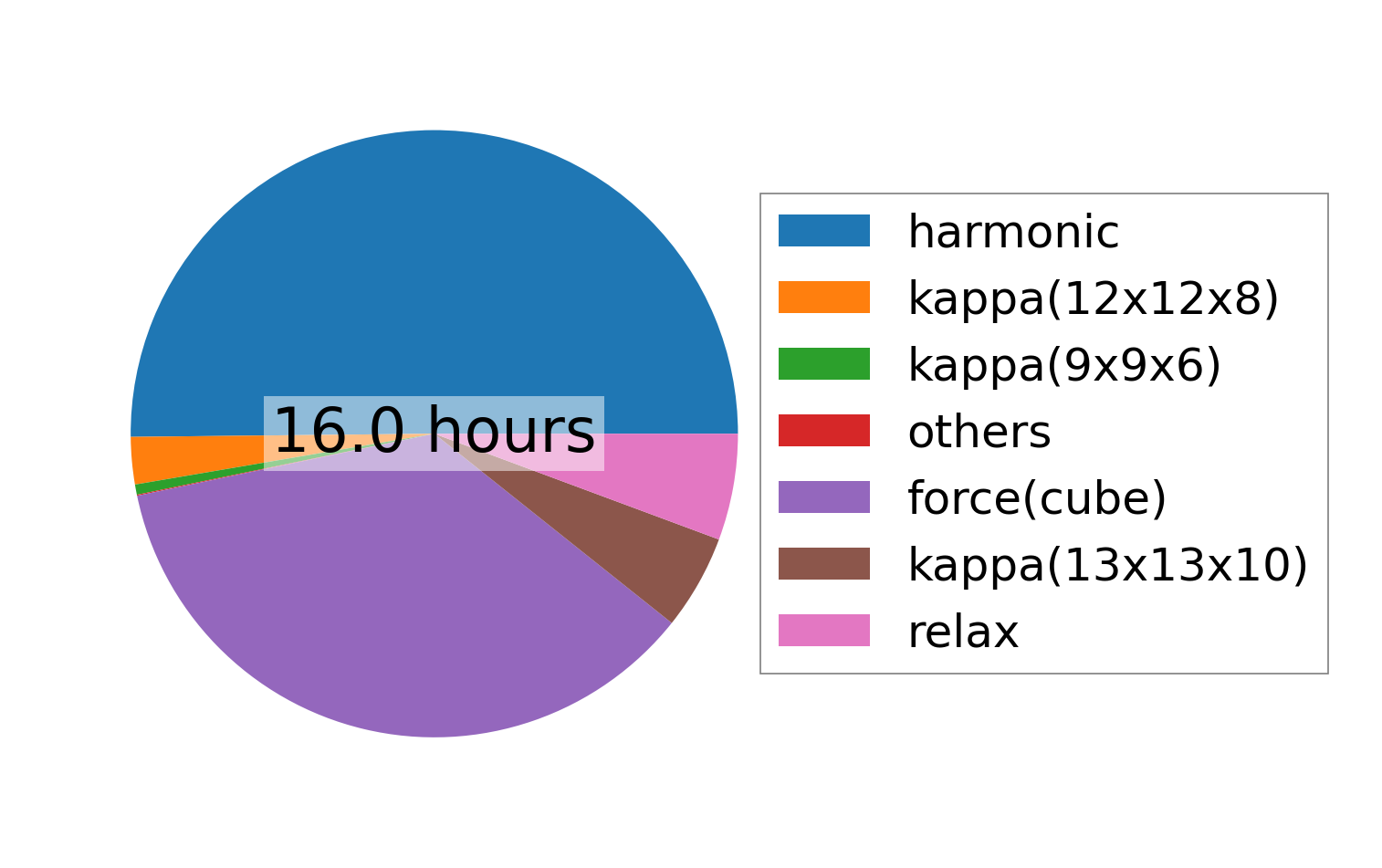

../../_images/fig_times27512.png — (b) Computation time
