mp-1078780/ZnCd3S4/anharm

Space group: P-43m (215)
Link: Materials Project
Download: mp-1078780.tar.gz

Harmonic properties

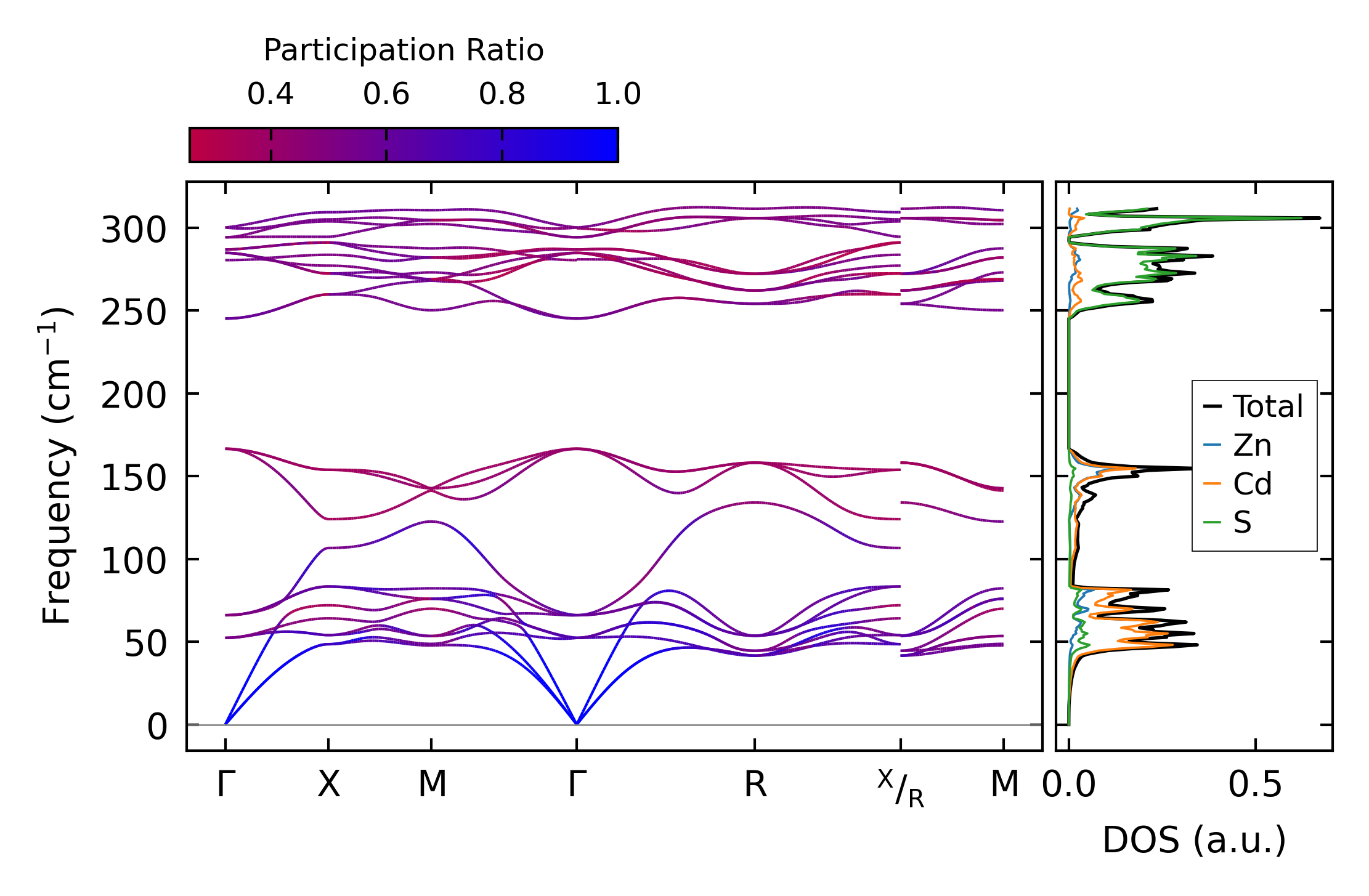

../../_images/fig_bandos_pr16898.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16897.png — (b) Thermodynamic properties

Grüneisen parameters

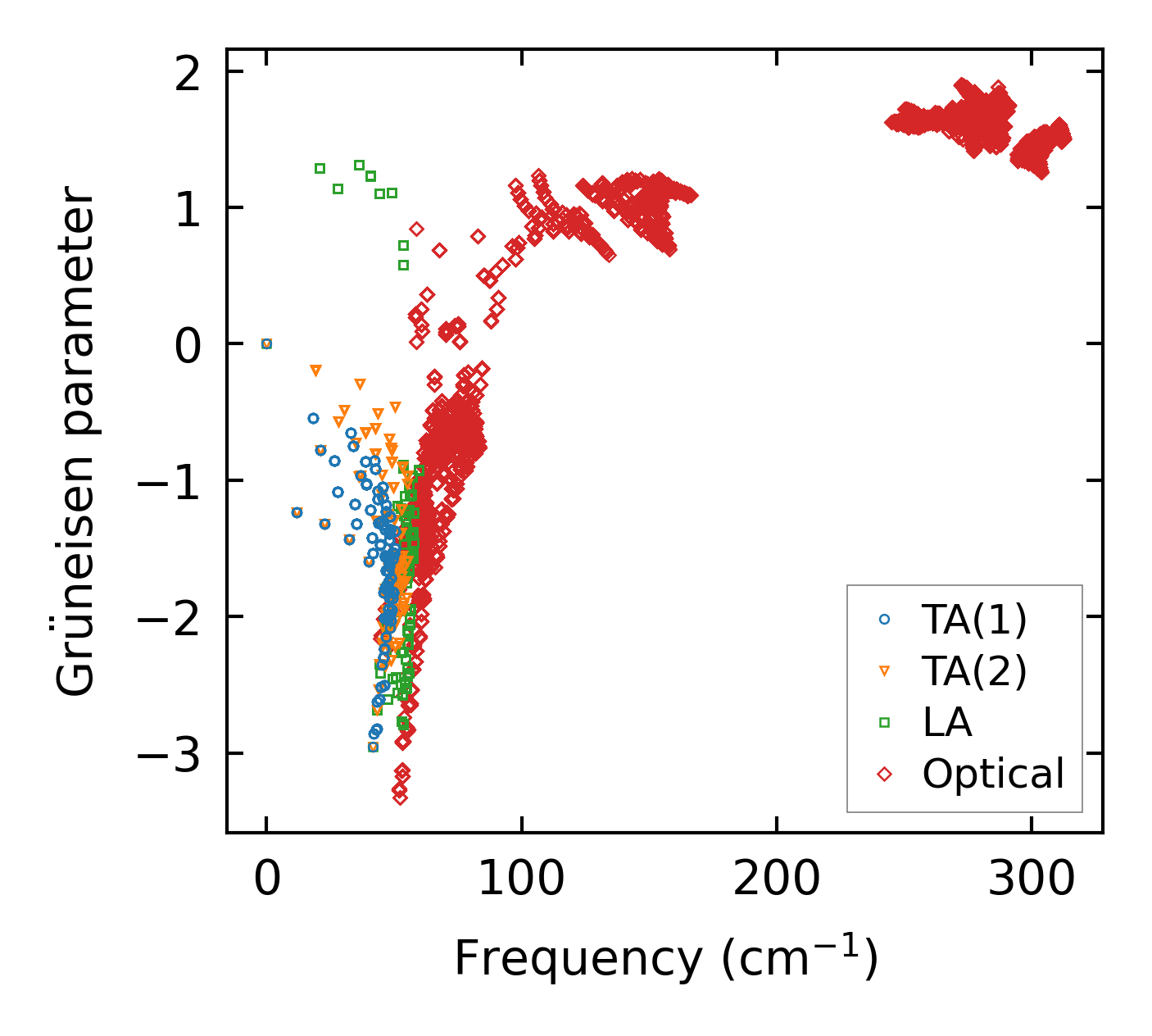

../../_images/fig_gru_all7396.png — (a) Grüneisen parameters

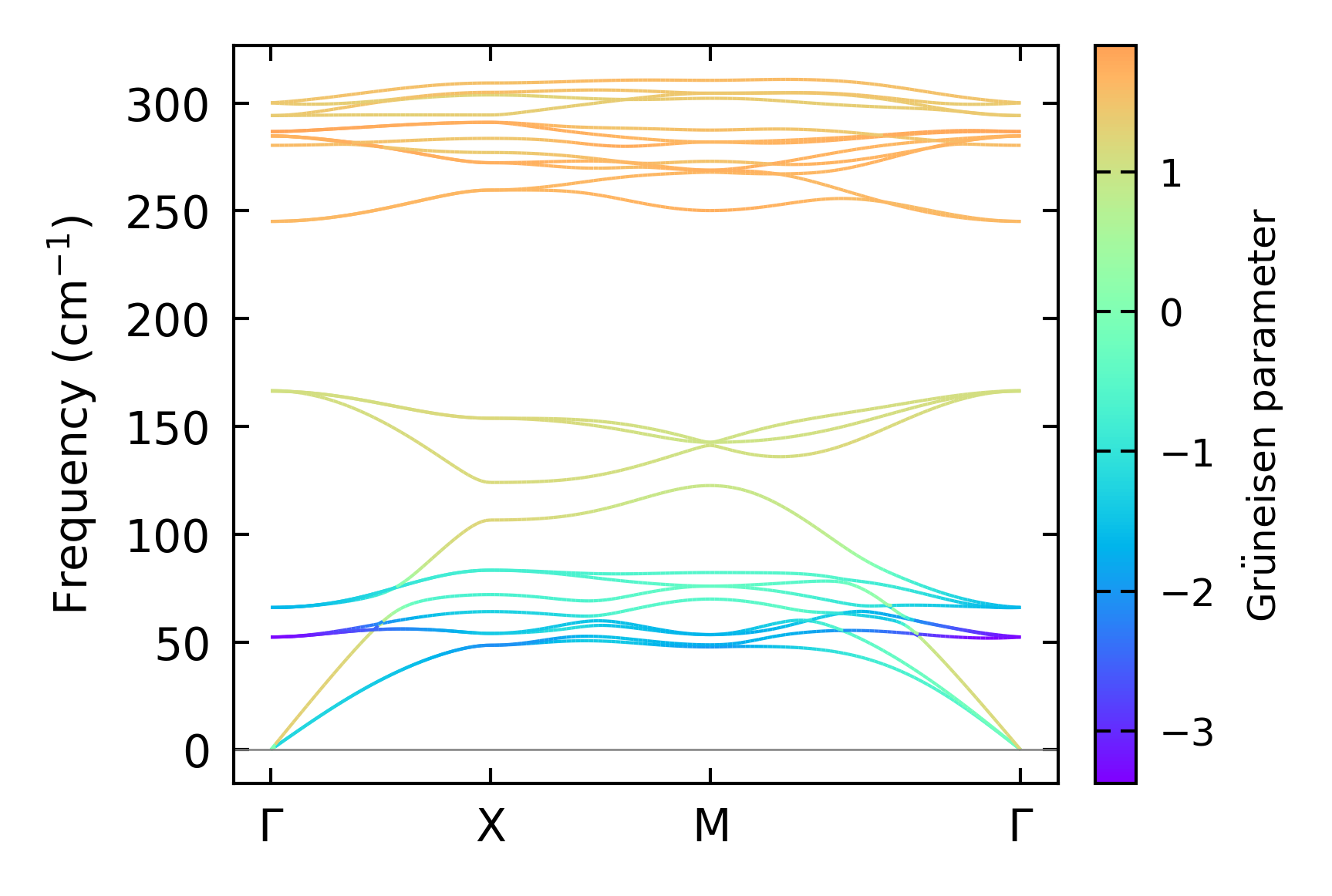

../../_images/fig_gruneisen7396.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x12, supercell: 2x2x2

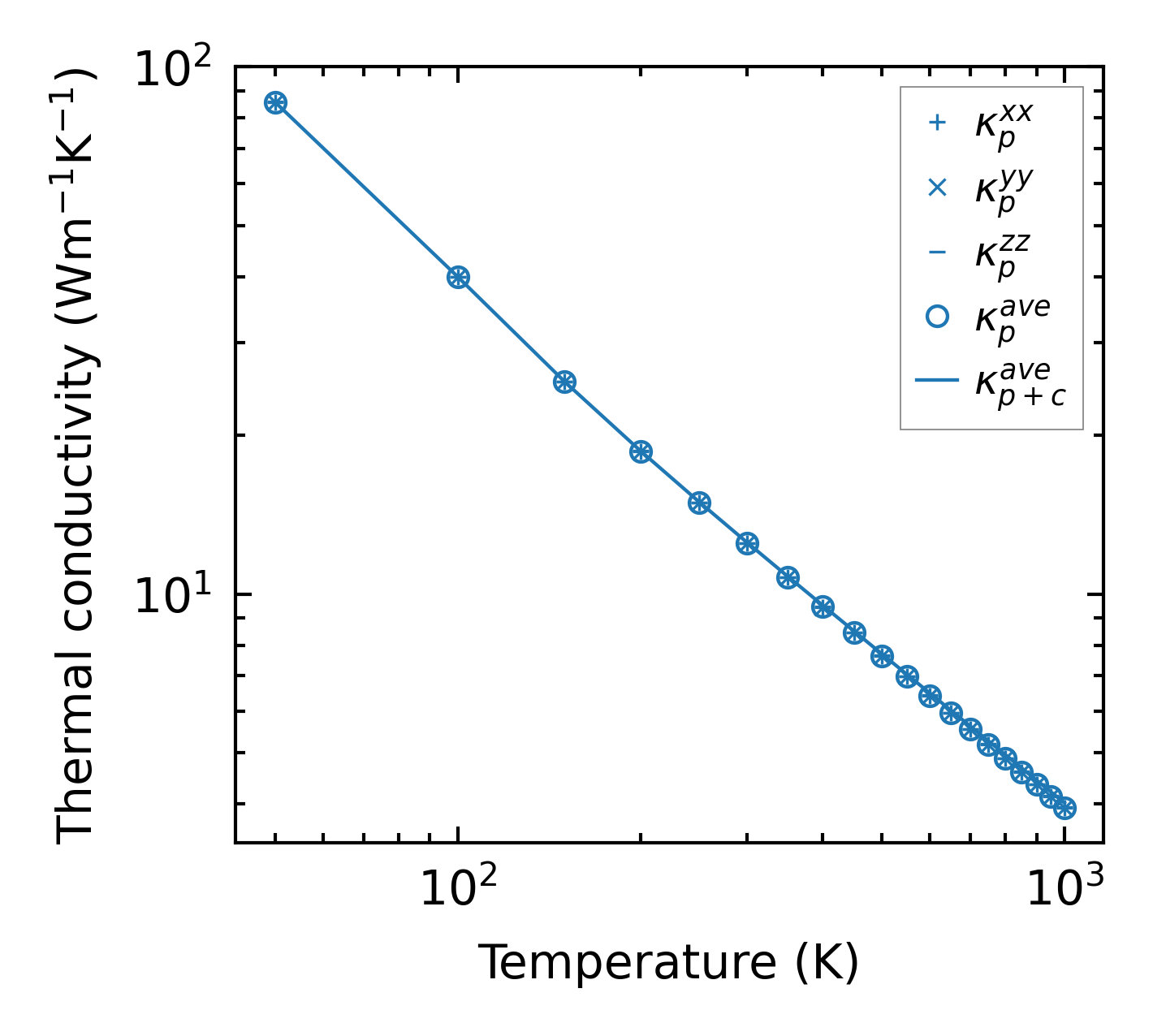

../../_images/fig_kappa13952.png — (a) Temperature-dependent lattice thermal conductivity

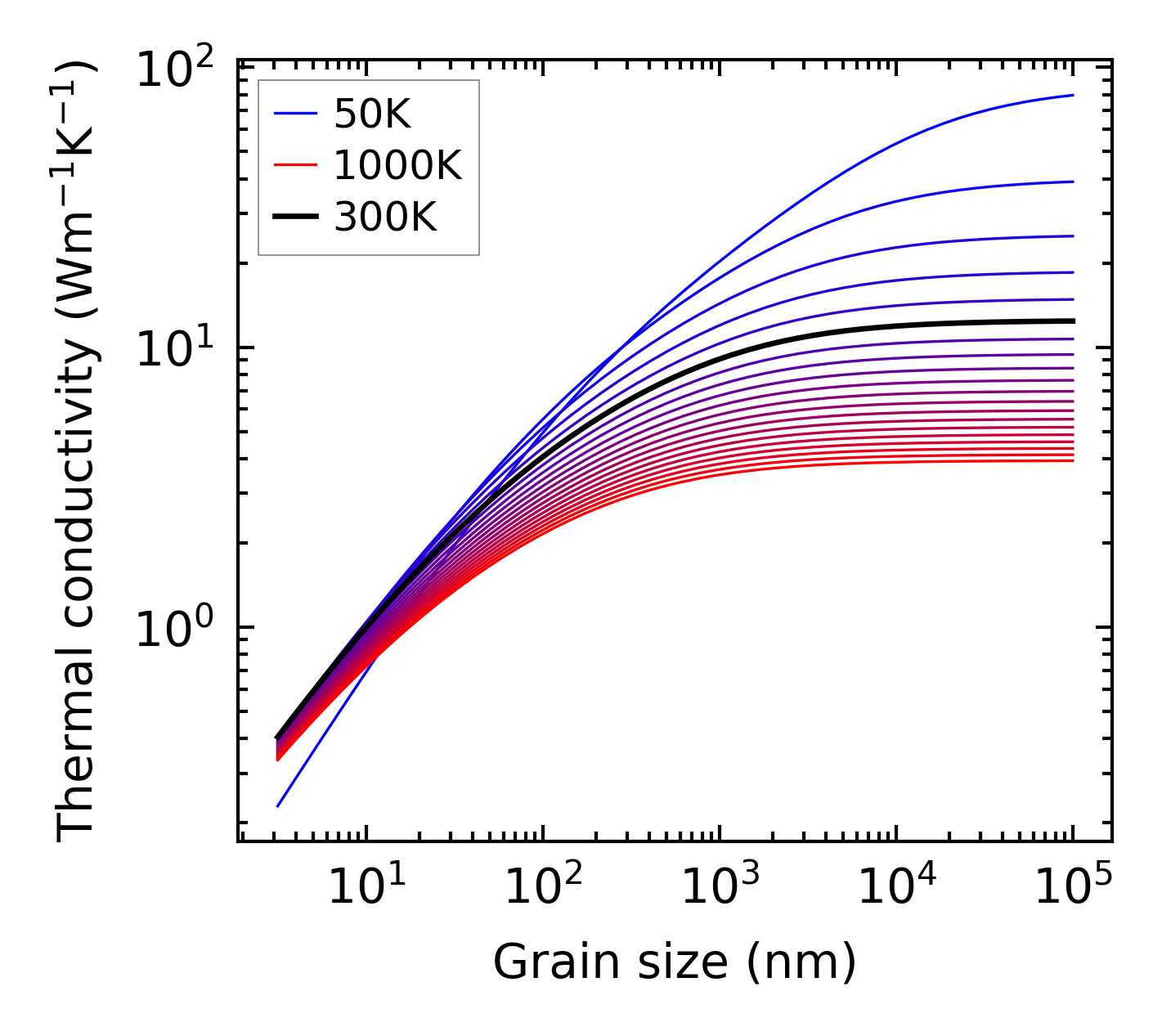

../../_images/fig_kappa_vs_grain_size7484.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

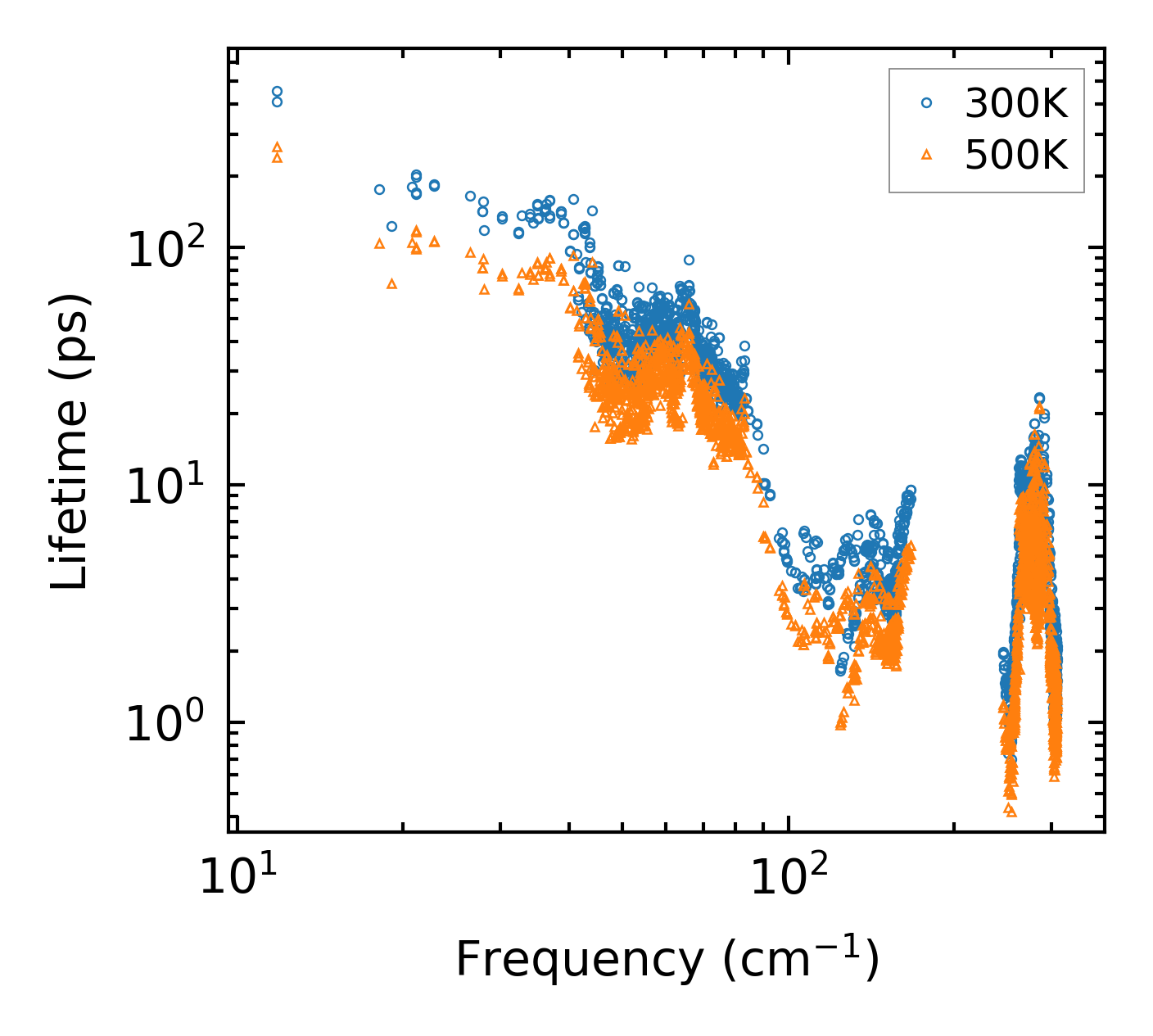

../../_images/fig_lifetime7330.png — (a) Phonon lifetime due to phonon-phonon scattering

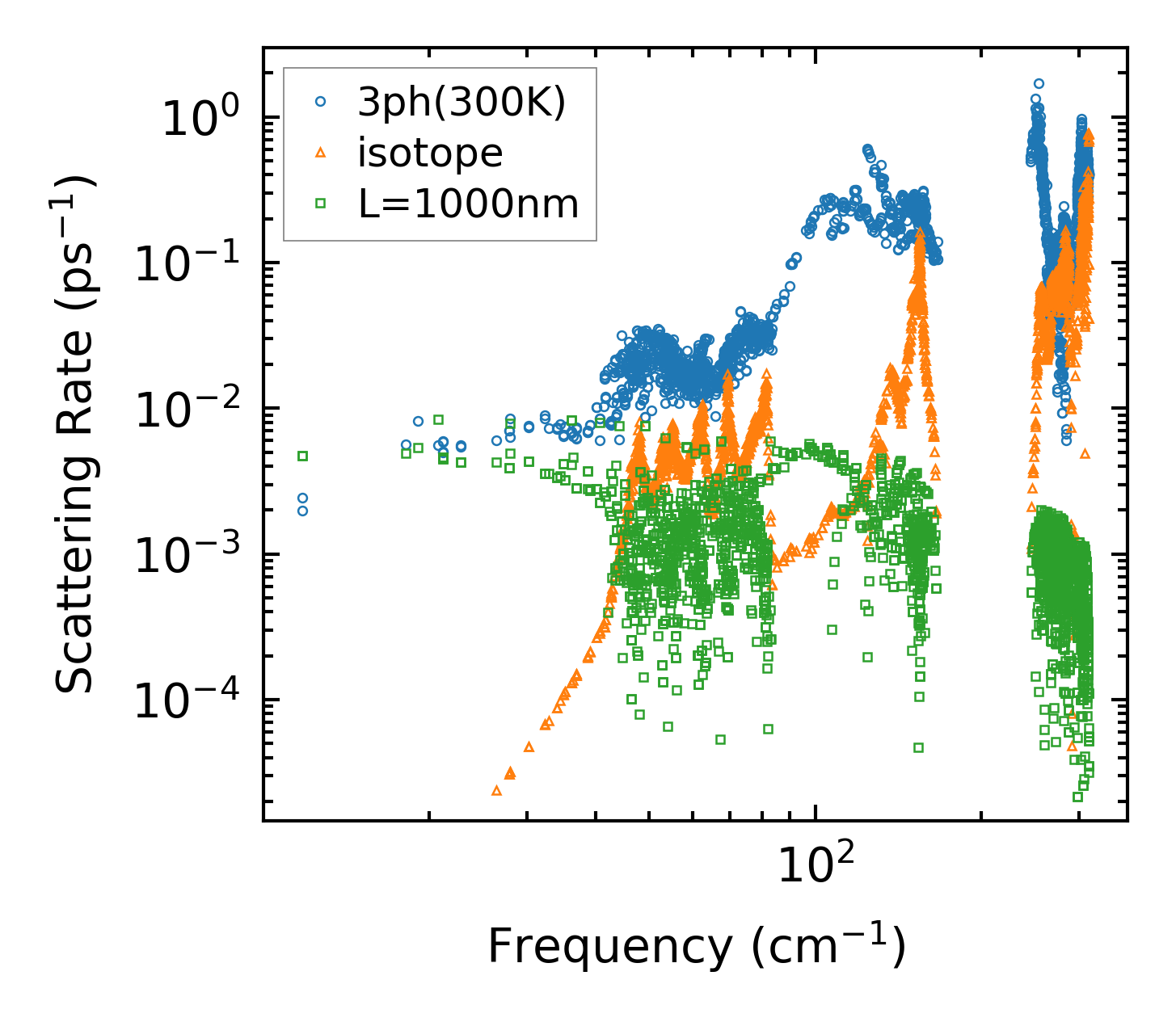

../../_images/fig_scat_rates7329.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

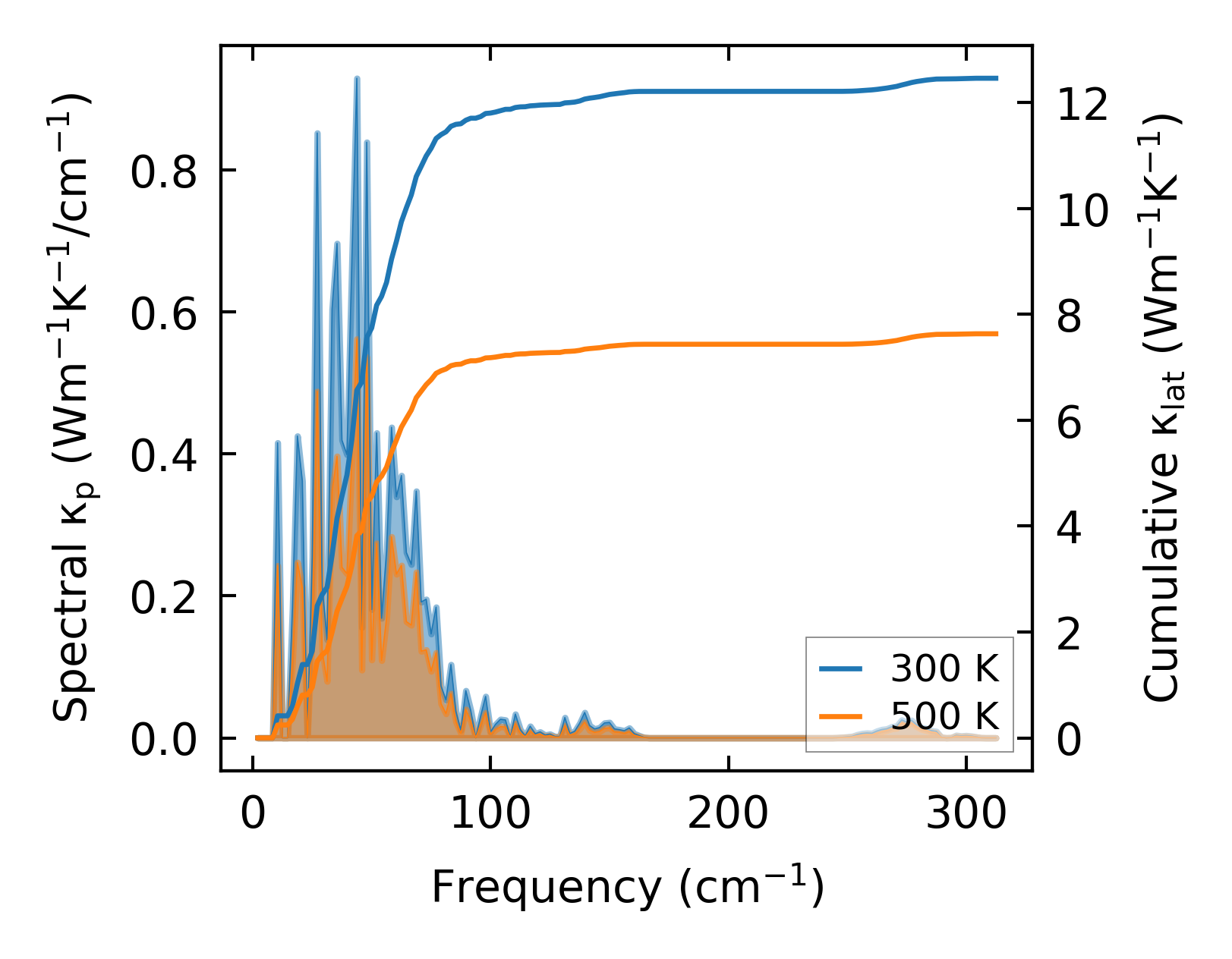

../../_images/fig_cumu_frequency7330.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

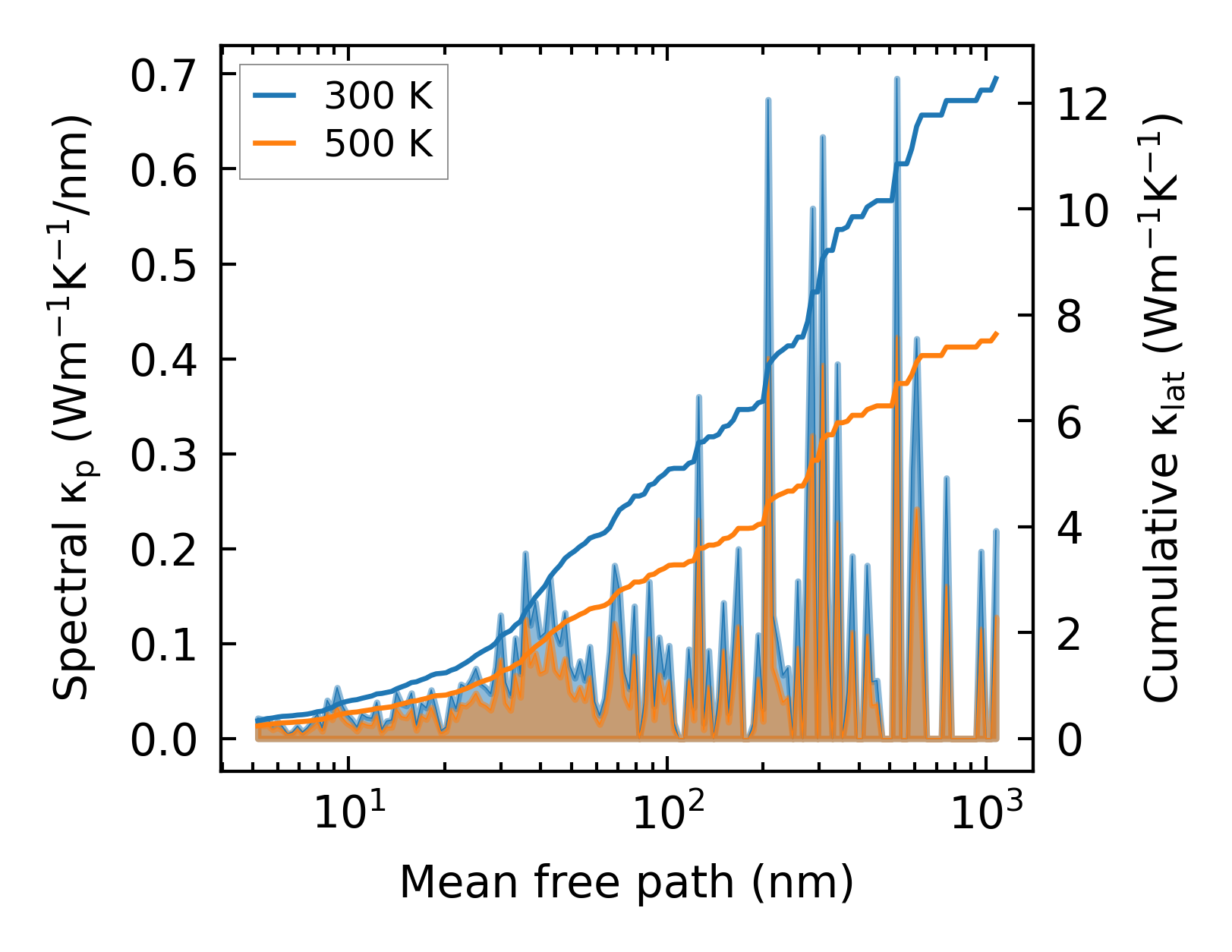

../../_images/fig_cumu_mfp7329.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

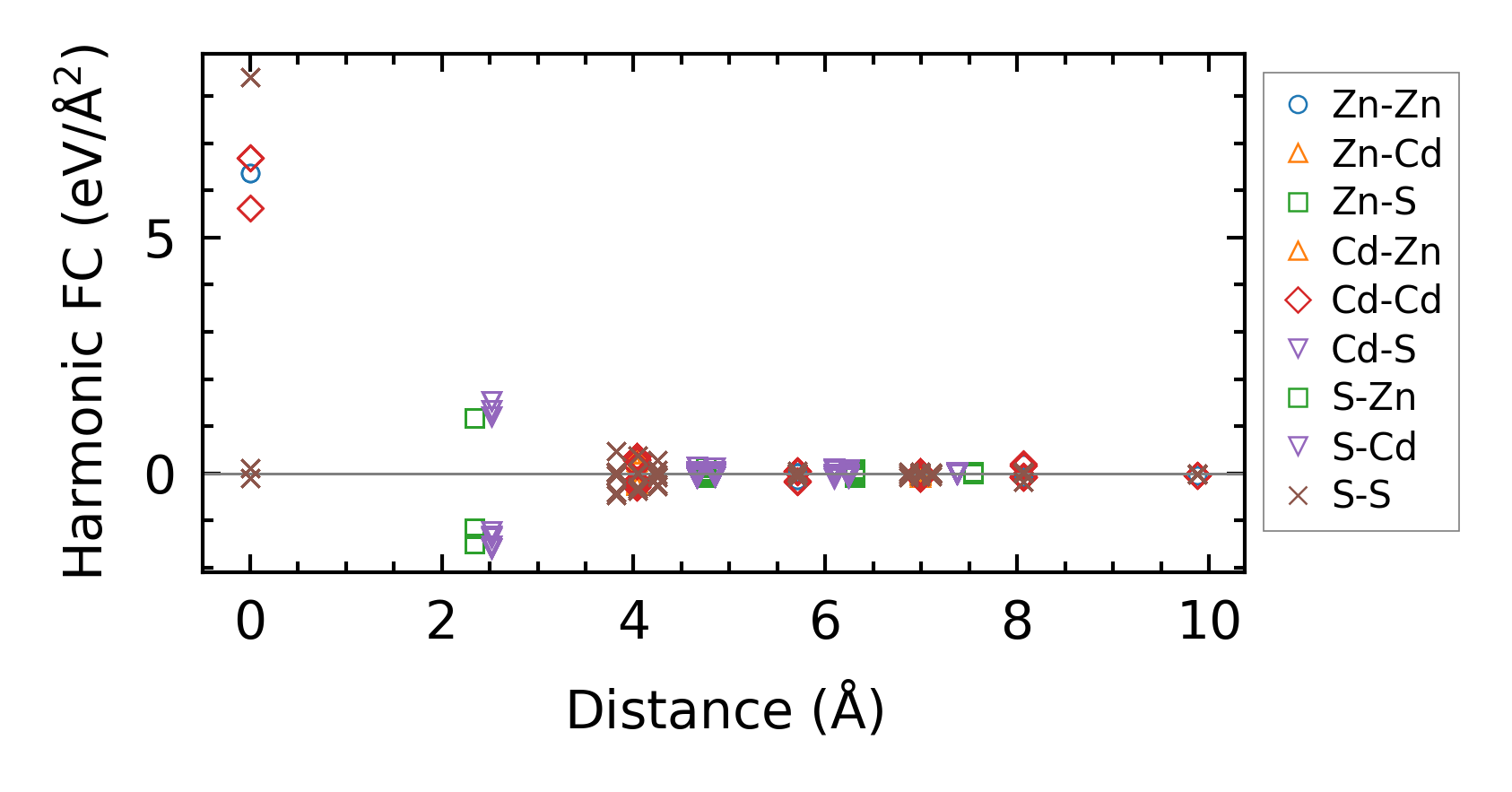

../../_images/fig_fc216452.png — (a) Force constants w.r.t atomic distance

Summary

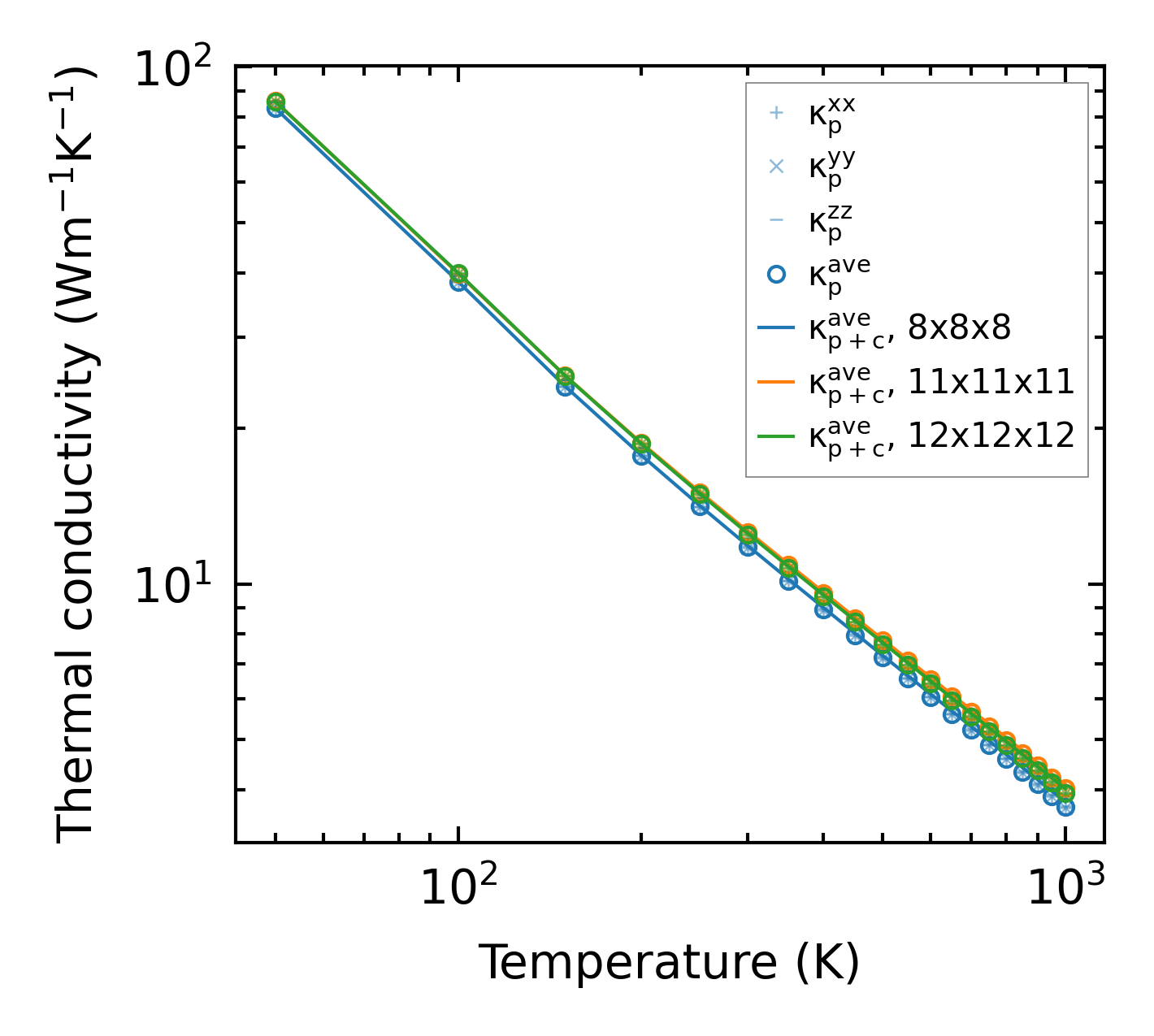

../../_images/fig_kappa13953.png — (a) Temperature-dependent lattice thermal conductivity

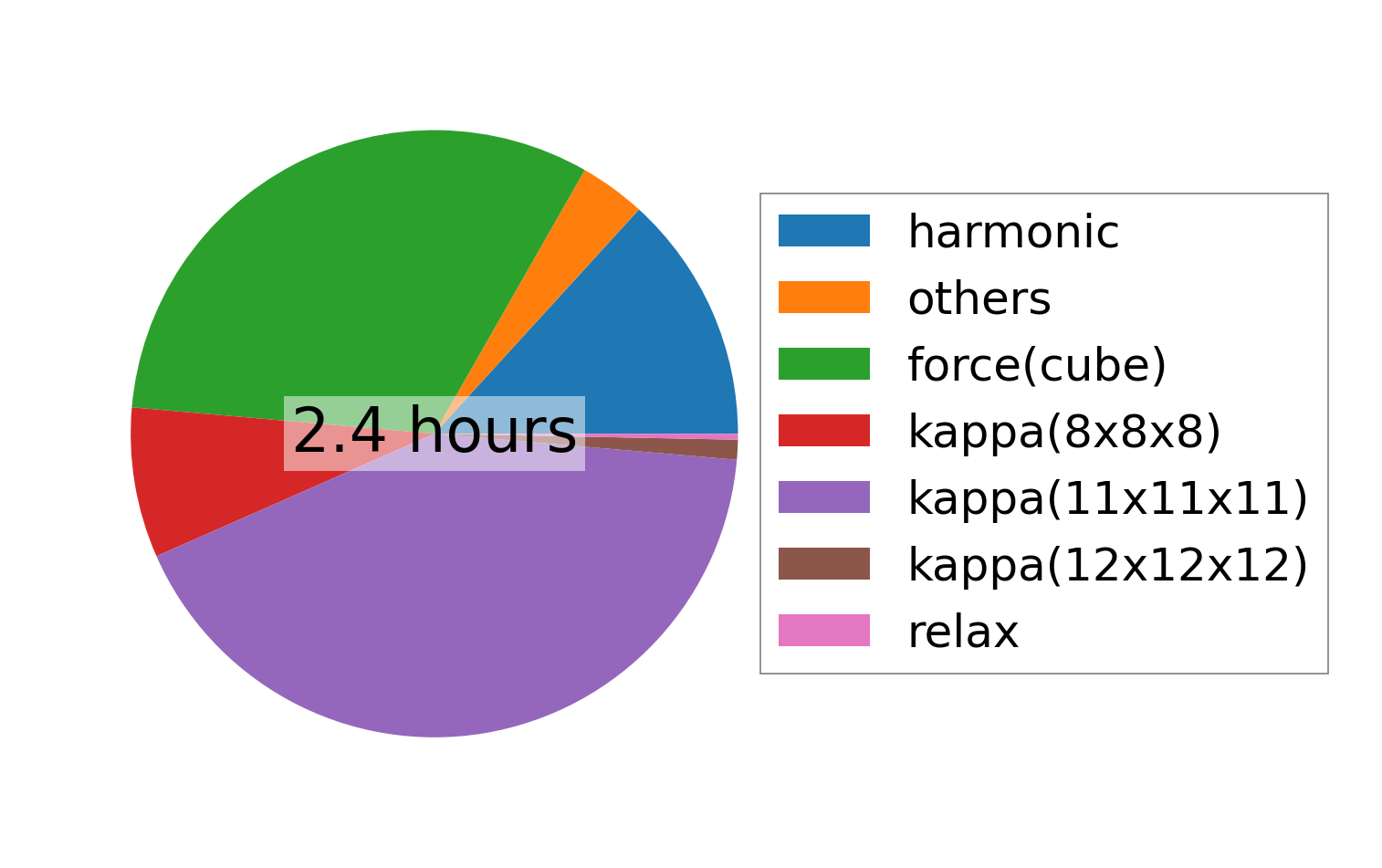

../../_images/fig_times27558.png — (b) Computation time
