mp-1078410/Ba2ZnTeO6/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-1078410.tar.gz

Harmonic properties

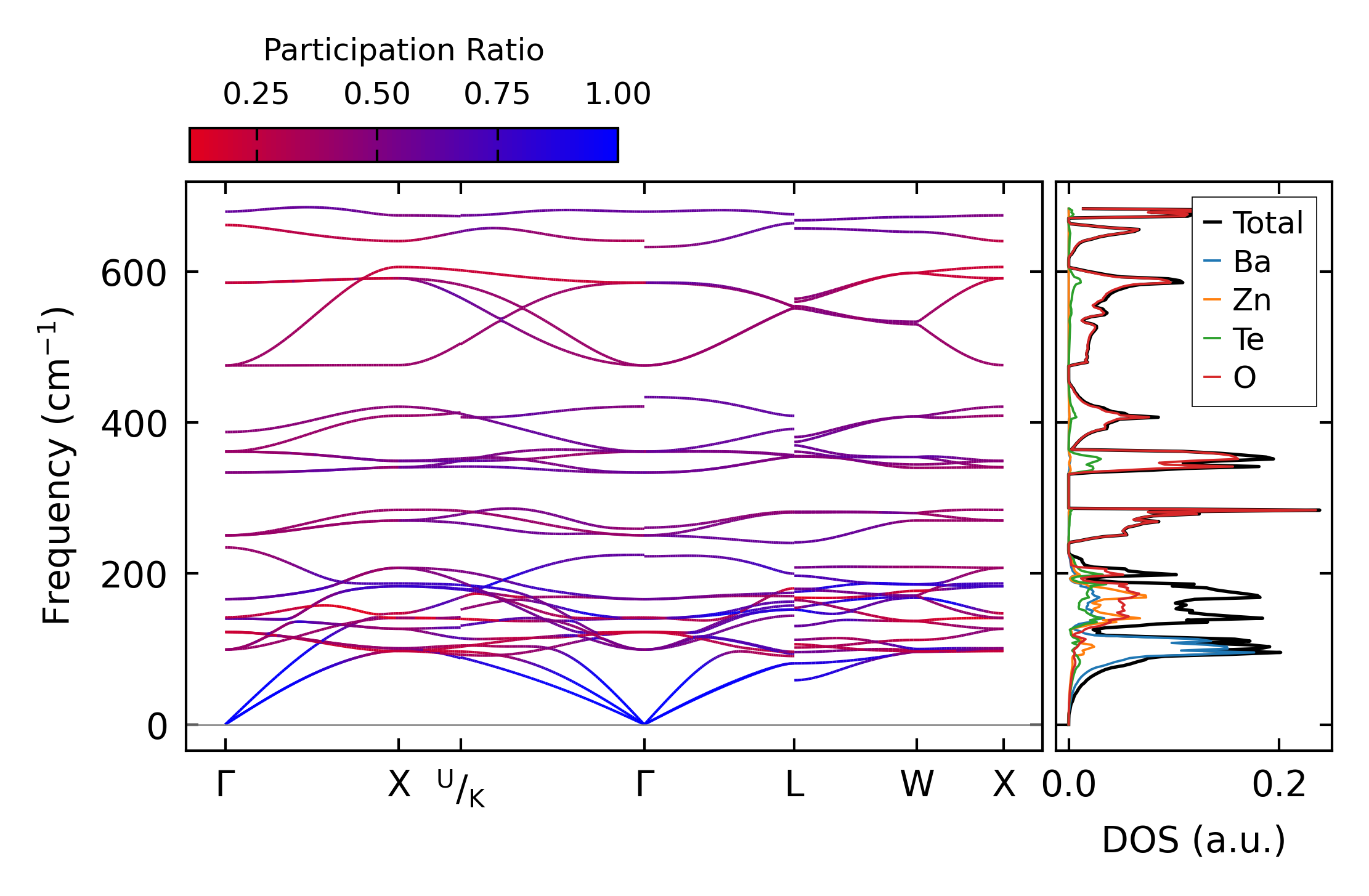

../../_images/fig_bandos_pr16871.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16870.png — (b) Thermodynamic properties

Grüneisen parameters

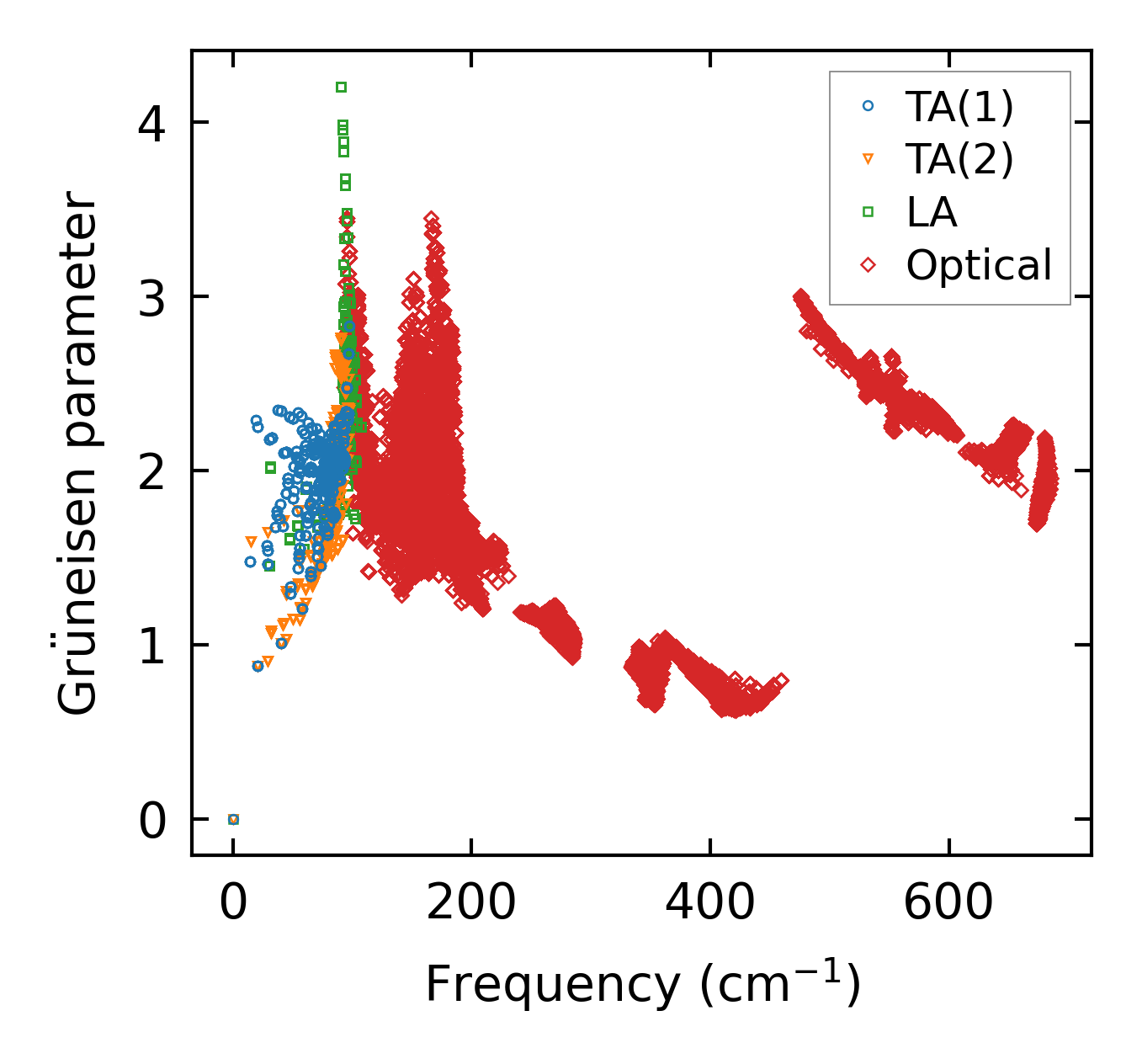

../../_images/fig_gru_all7380.png — (a) Grüneisen parameters

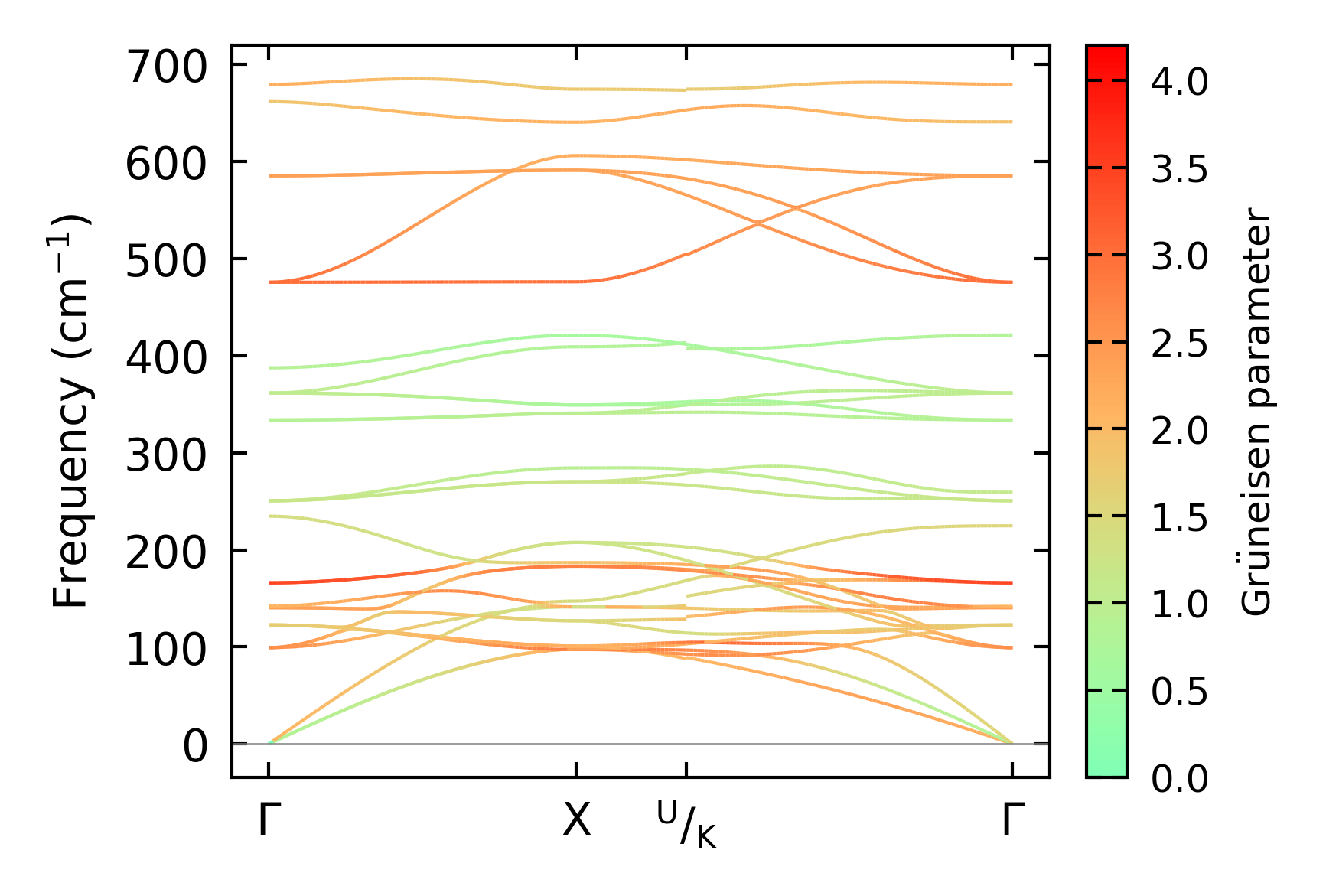

../../_images/fig_gruneisen7380.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x14, supercell: 1x1x1

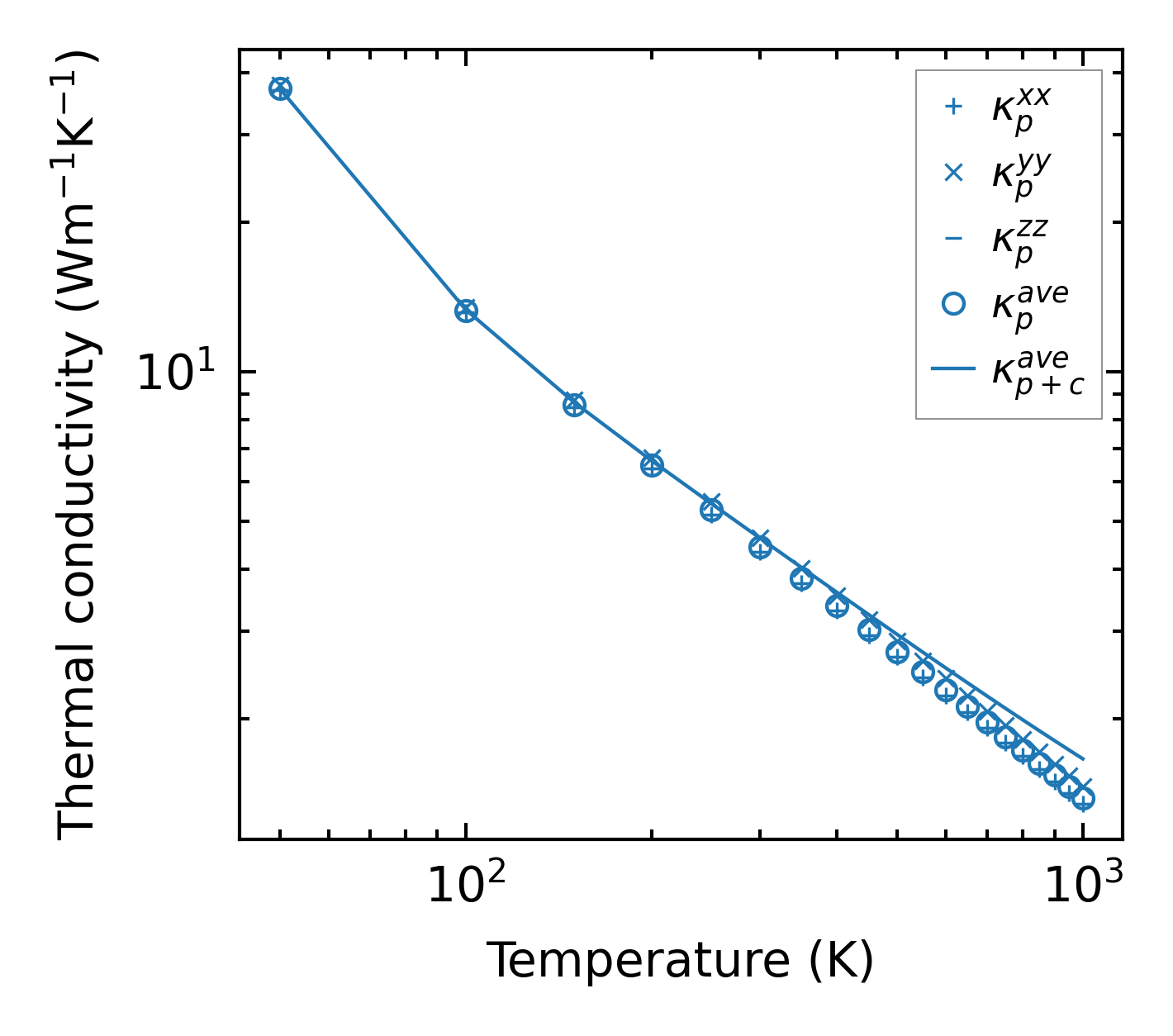

../../_images/fig_kappa13922.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7468.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

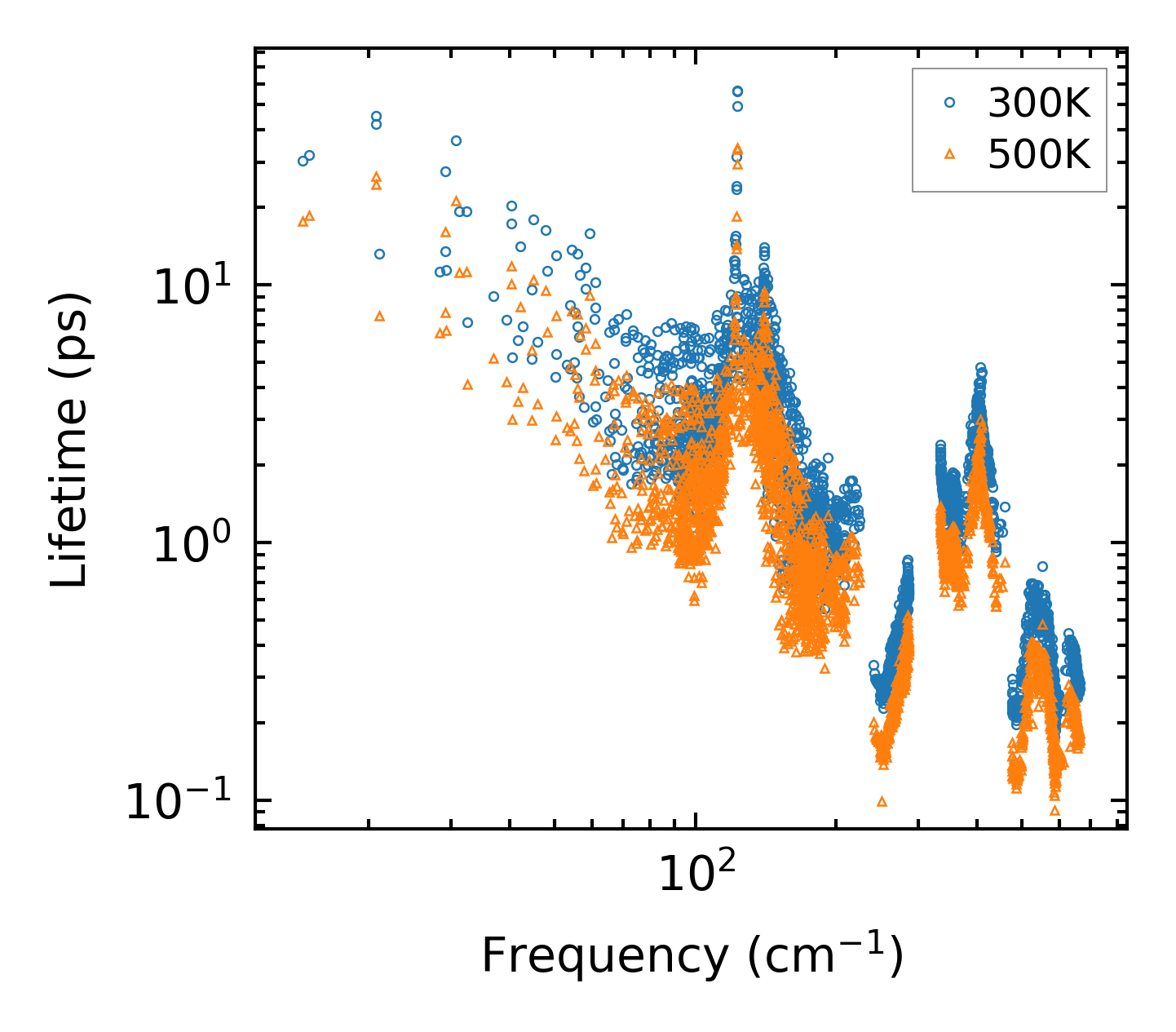

../../_images/fig_lifetime7314.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates7313.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

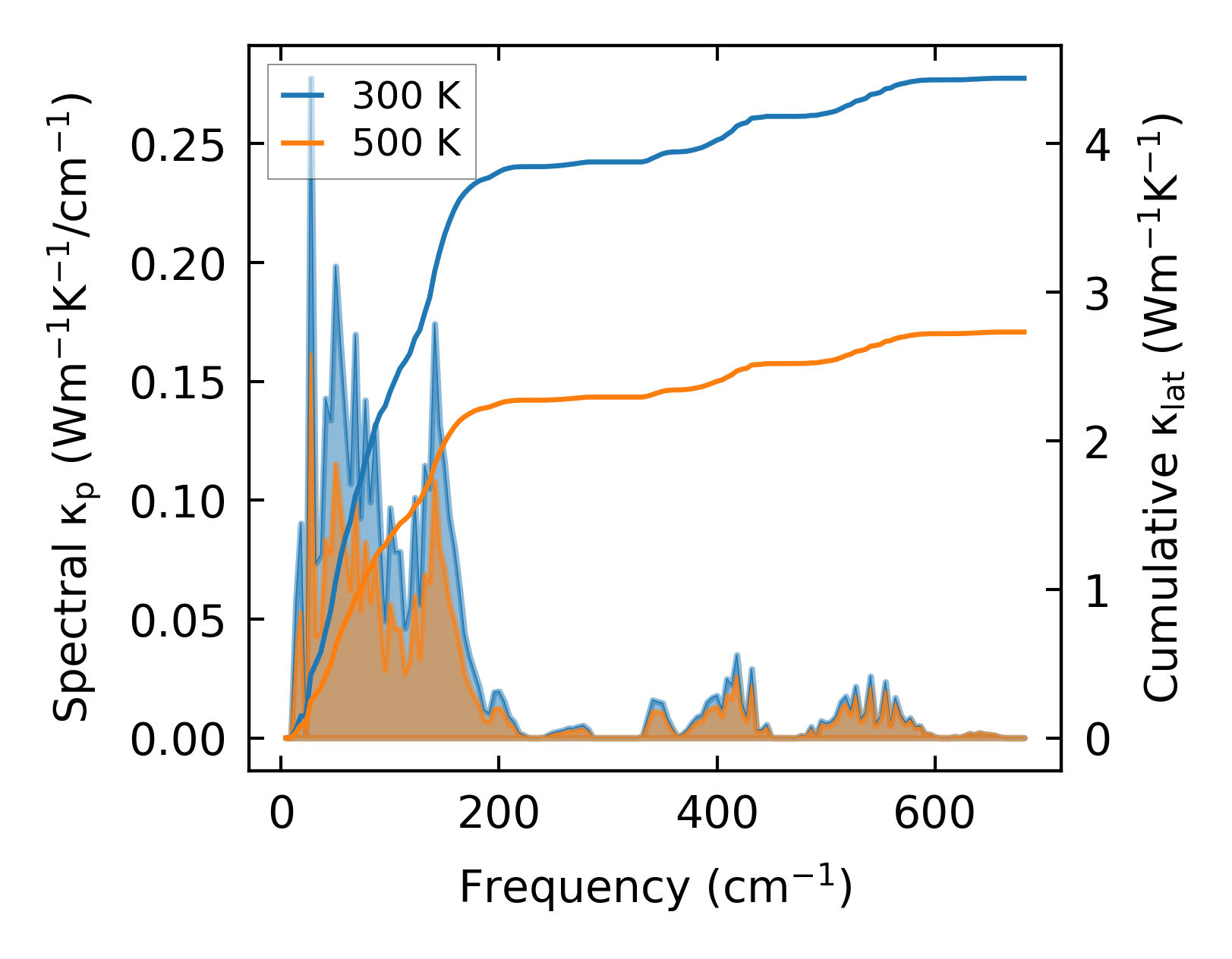

../../_images/fig_cumu_frequency7314.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp7313.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc216425.png — (a) Force constants w.r.t atomic distance

Summary

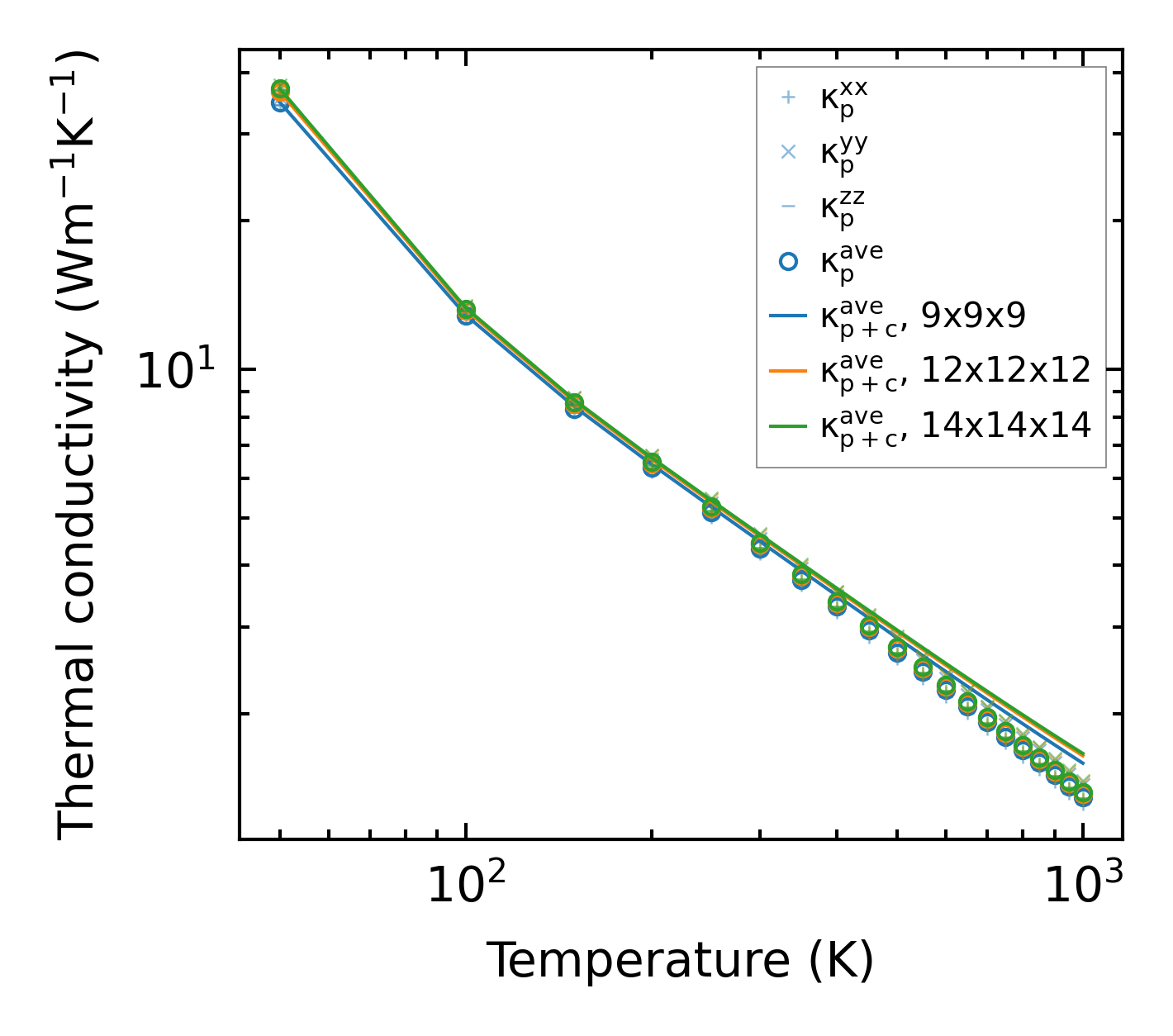

../../_images/fig_kappa13923.png — (a) Temperature-dependent lattice thermal conductivity

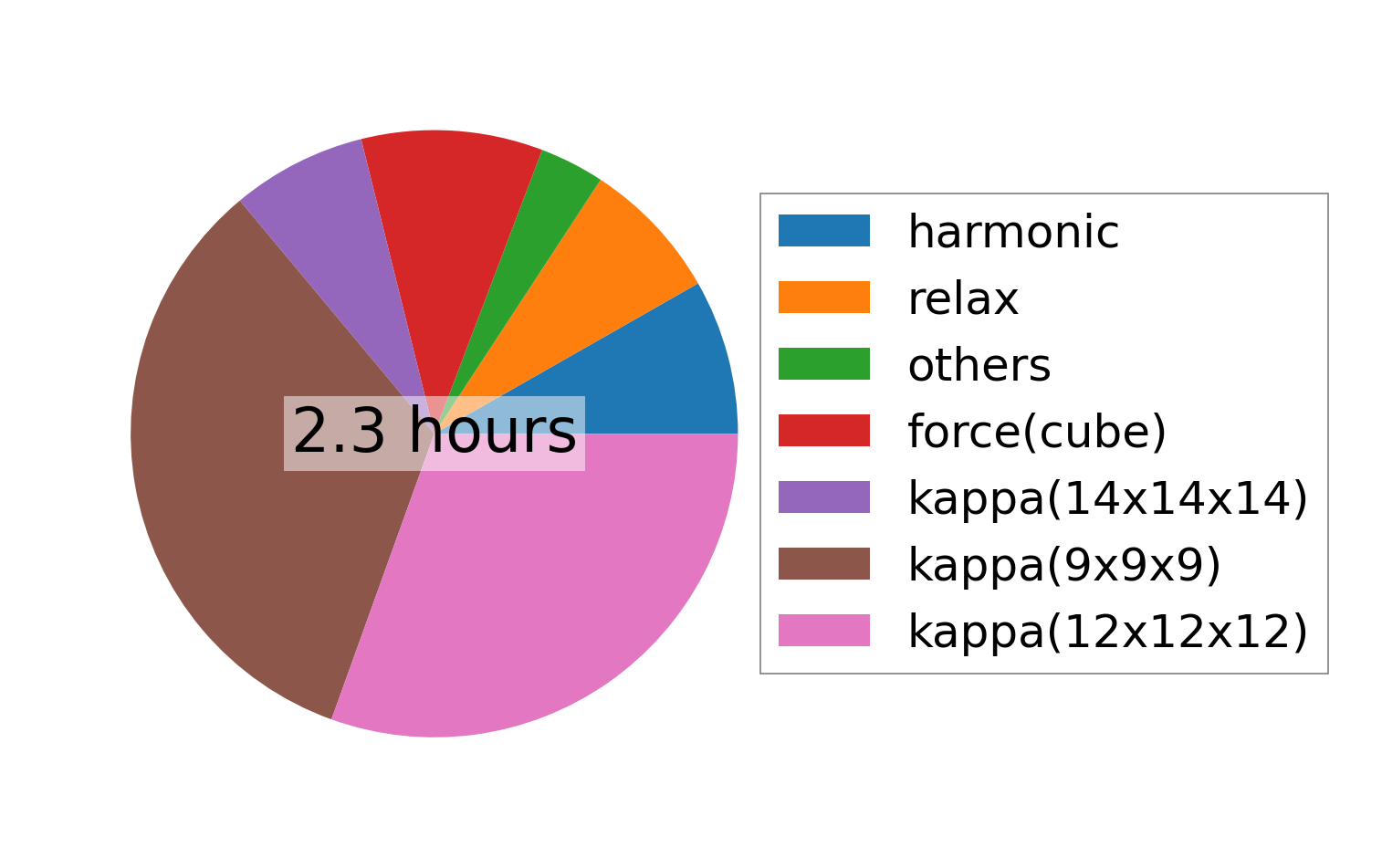

../../_images/fig_times27519.png — (b) Computation time
