mp-1078750/NaCaH3/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-1078750.tar.gz

Harmonic properties

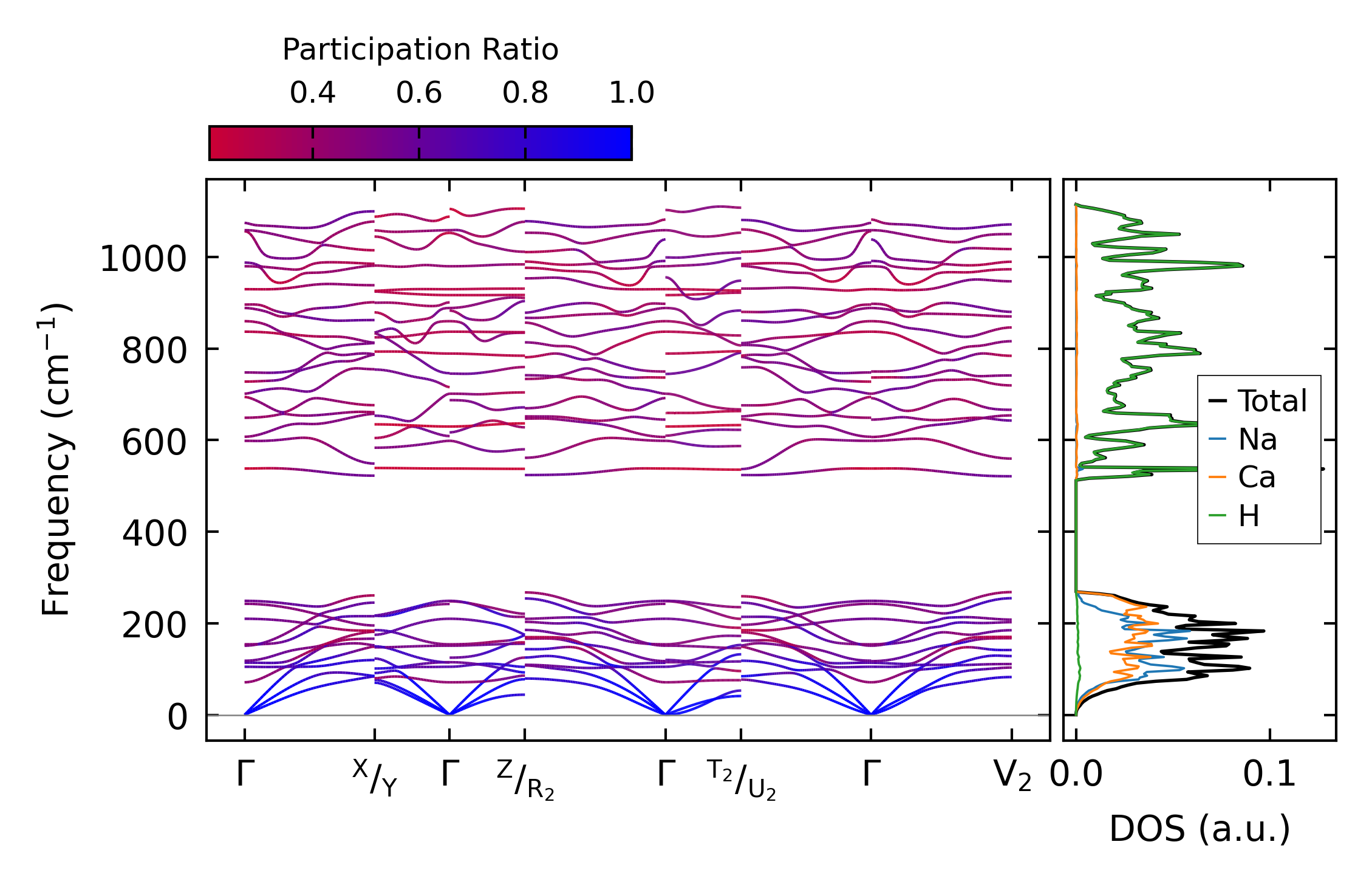

../../_images/fig_bandos_pr16896.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16895.png — (b) Thermodynamic properties

Grüneisen parameters

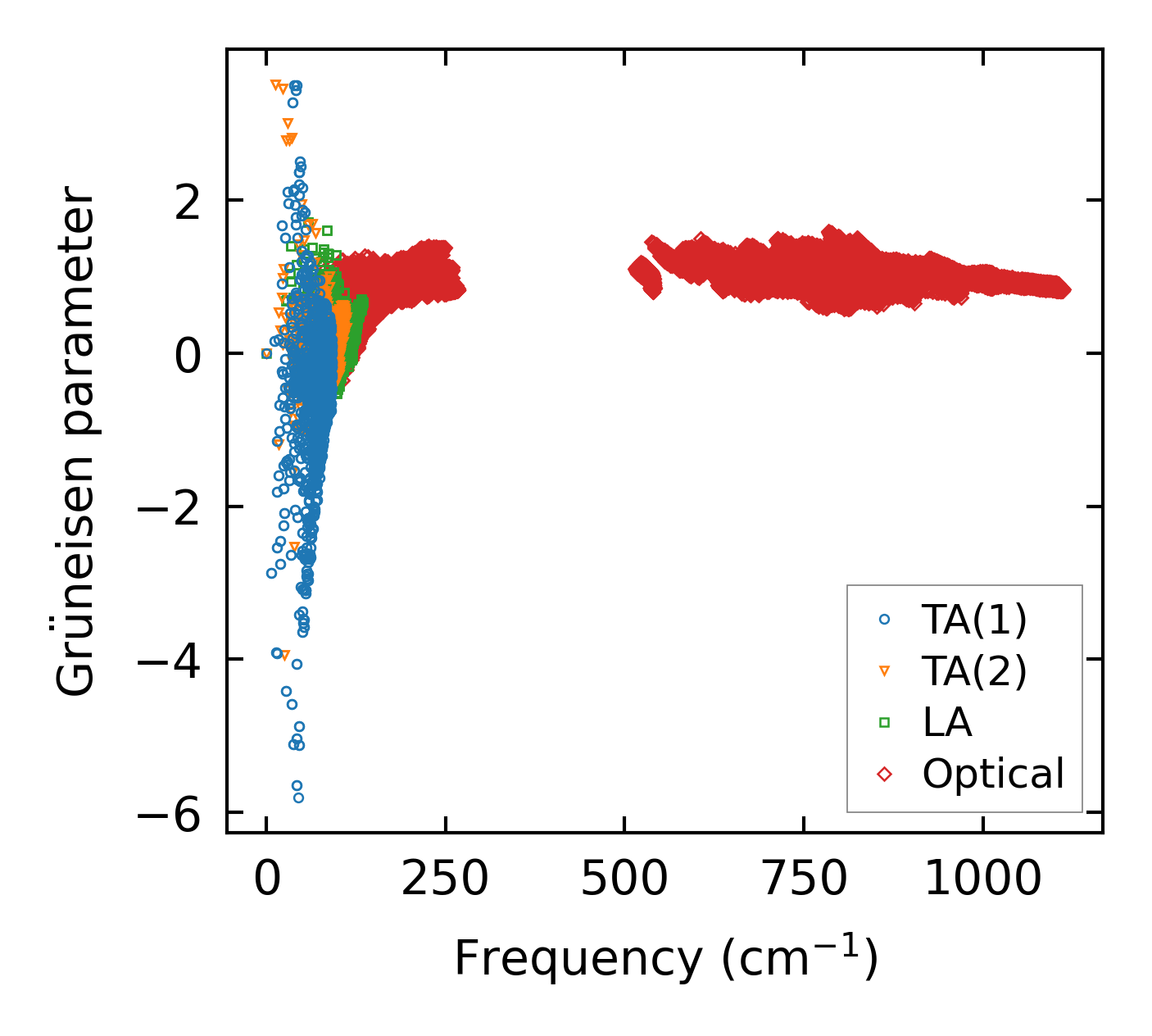

../../_images/fig_gru_all7394.png — (a) Grüneisen parameters

../../_images/fig_gruneisen7394.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 21x11x10, supercell: 3x2x2

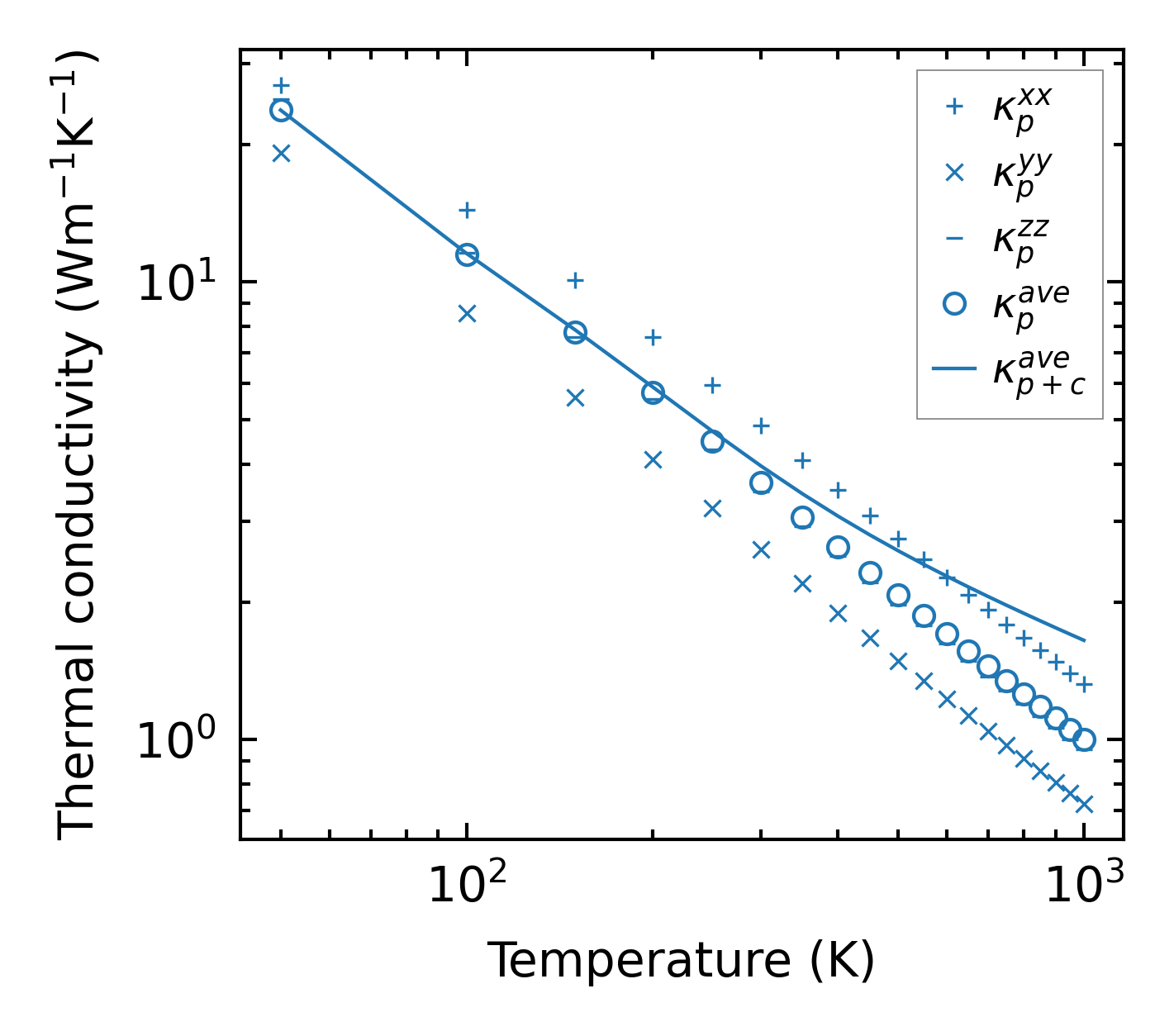

../../_images/fig_kappa13948.png — (a) Temperature-dependent lattice thermal conductivity

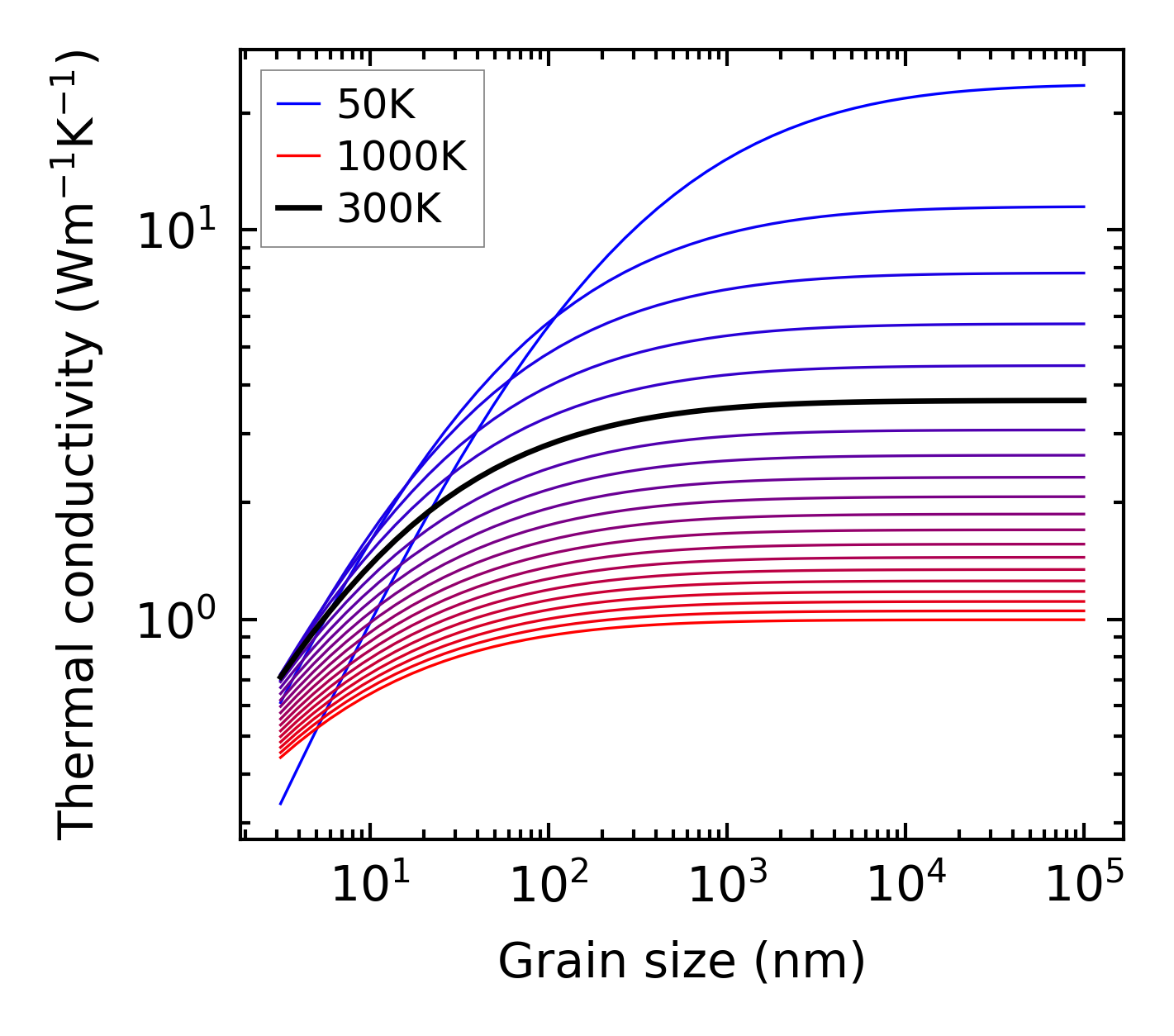

../../_images/fig_kappa_vs_grain_size7482.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime7328.png — (a) Phonon lifetime due to phonon-phonon scattering

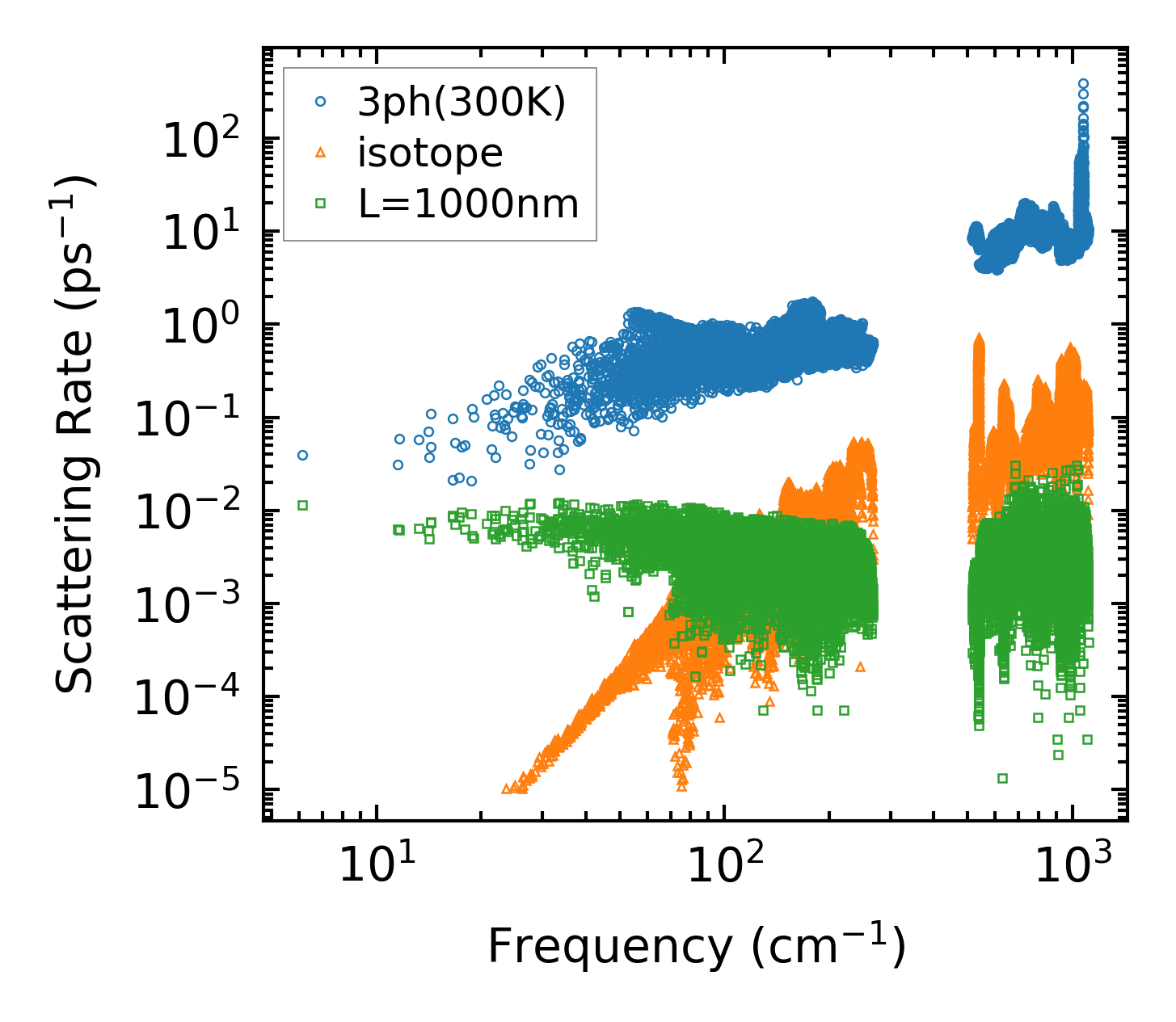

../../_images/fig_scat_rates7327.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

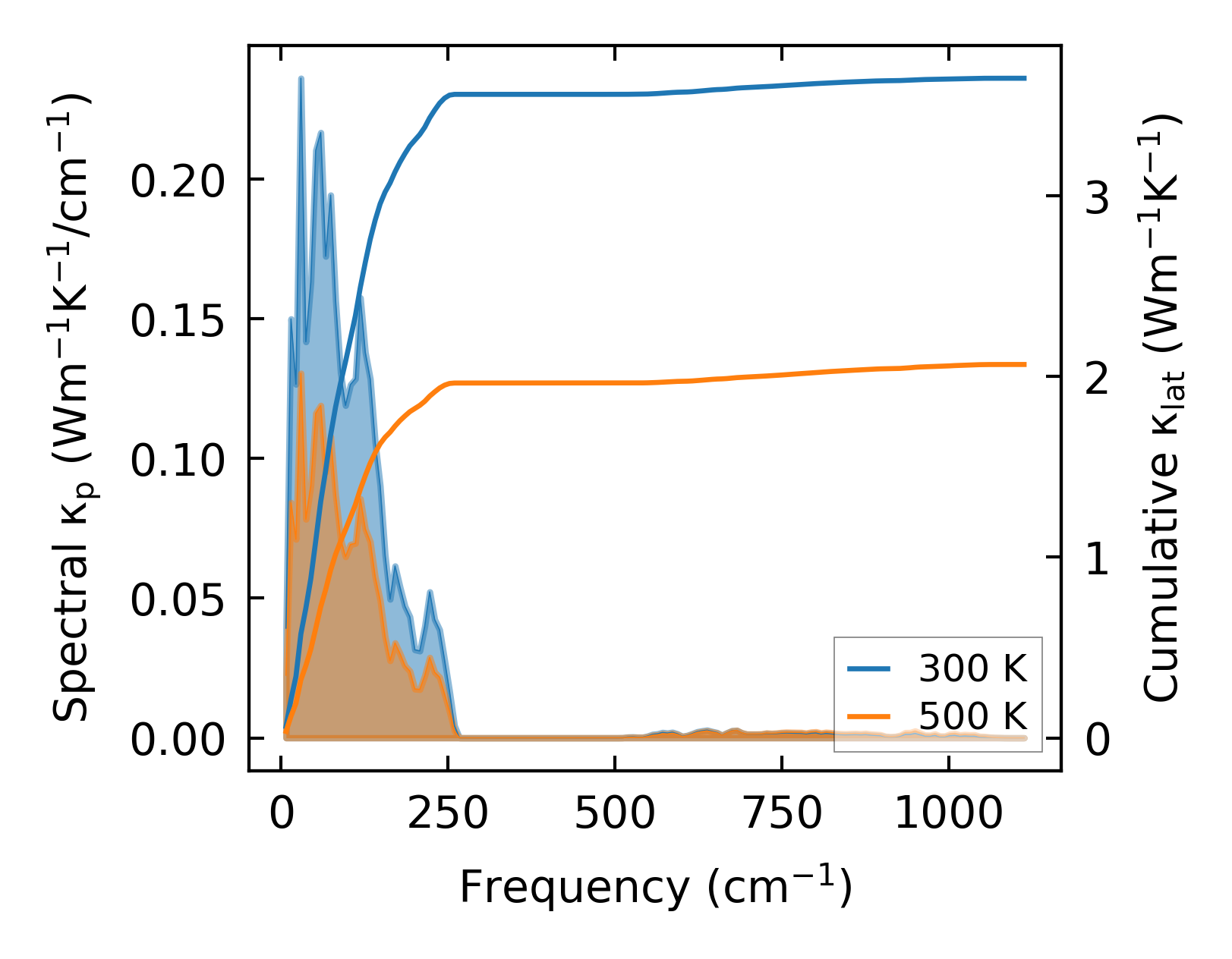

../../_images/fig_cumu_frequency7328.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

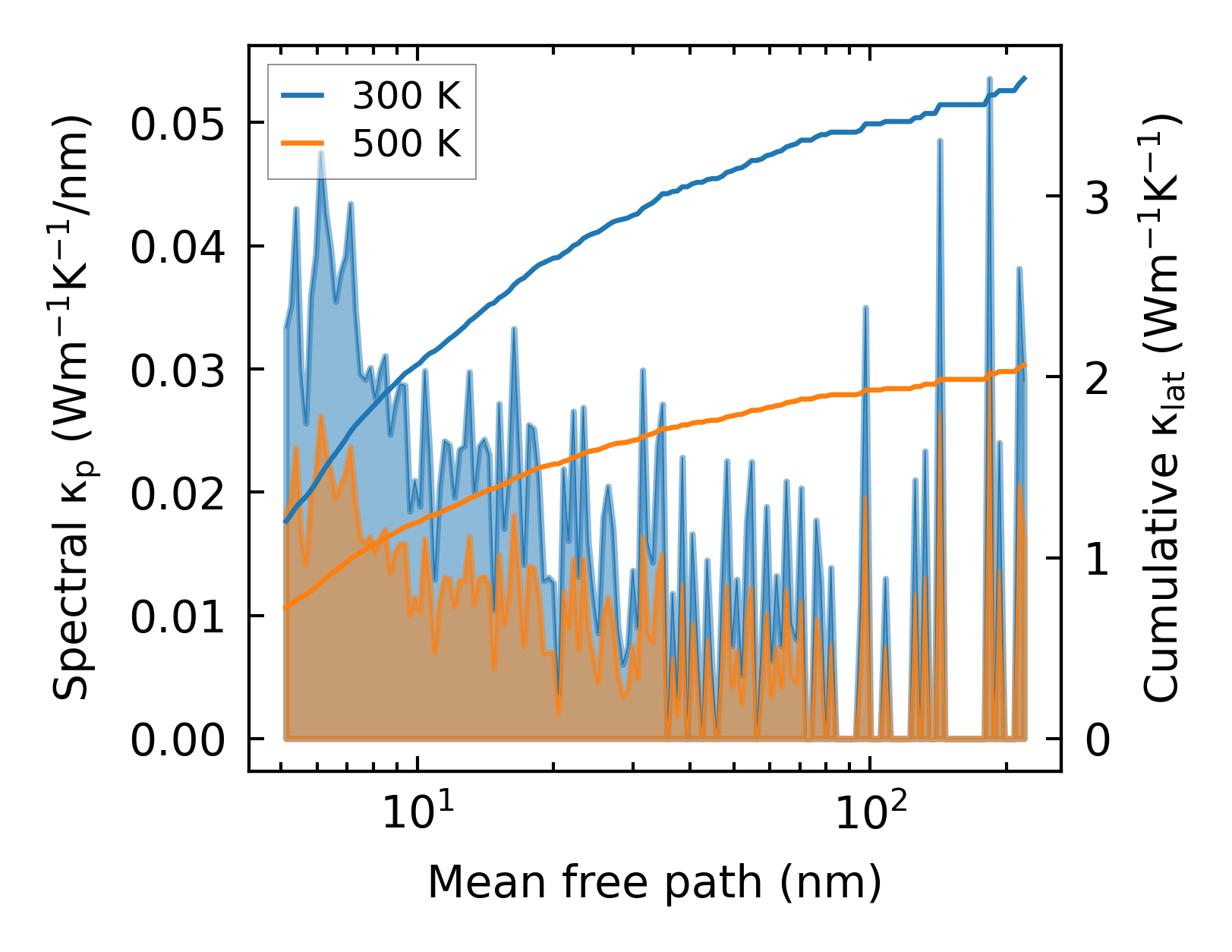

../../_images/fig_cumu_mfp7327.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc216450.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa13949.png — (a) Temperature-dependent lattice thermal conductivity

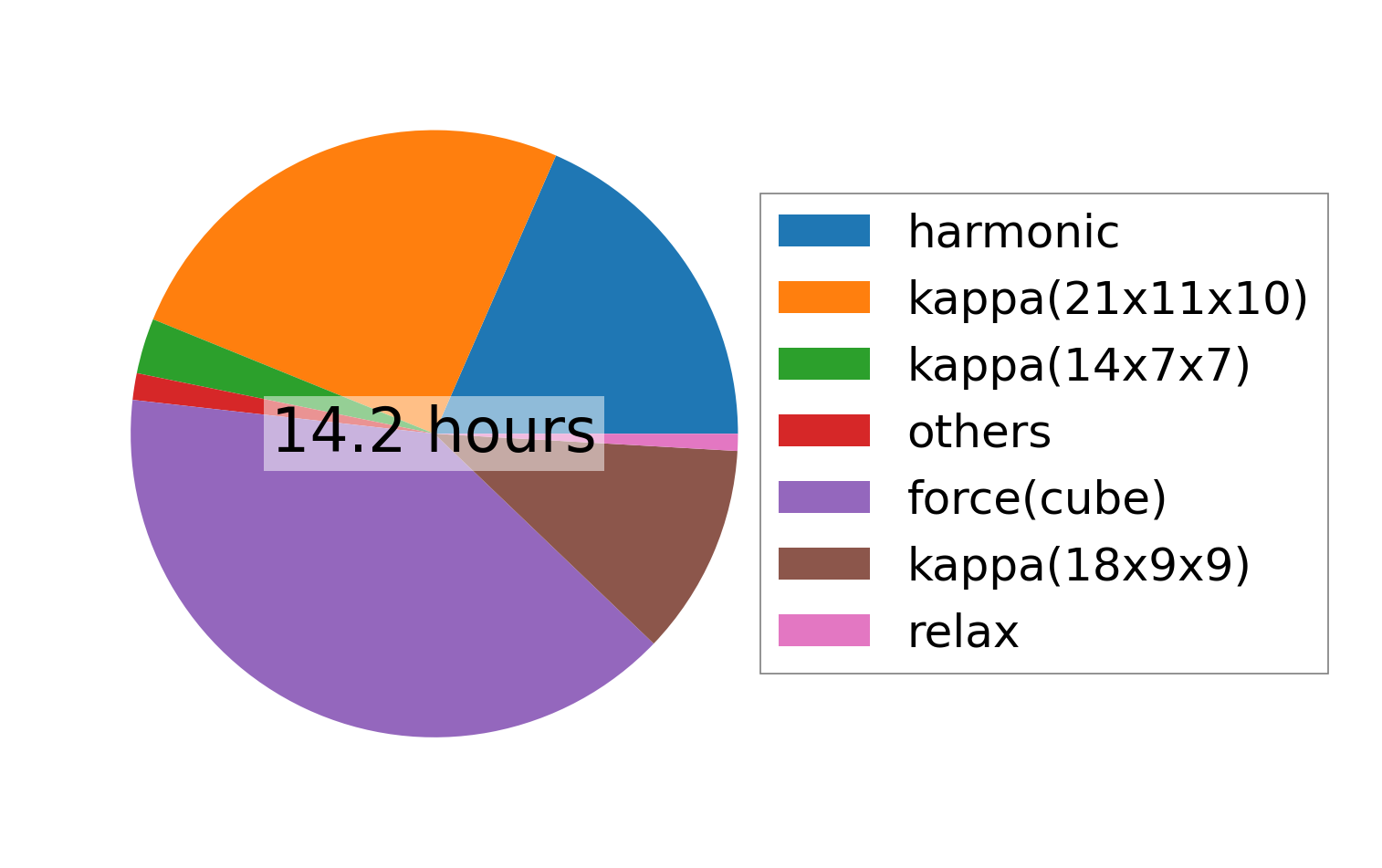

../../_images/fig_times27555.png — (b) Computation time
