mp-1078726/CsHoS2/anharm

Space group: P6_3/mmc (194)
Link: Materials Project
Download: mp-1078726.tar.gz

Harmonic properties

../../_images/fig_bandos_pr16893.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16892.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all7392.png — (a) Grüneisen parameters

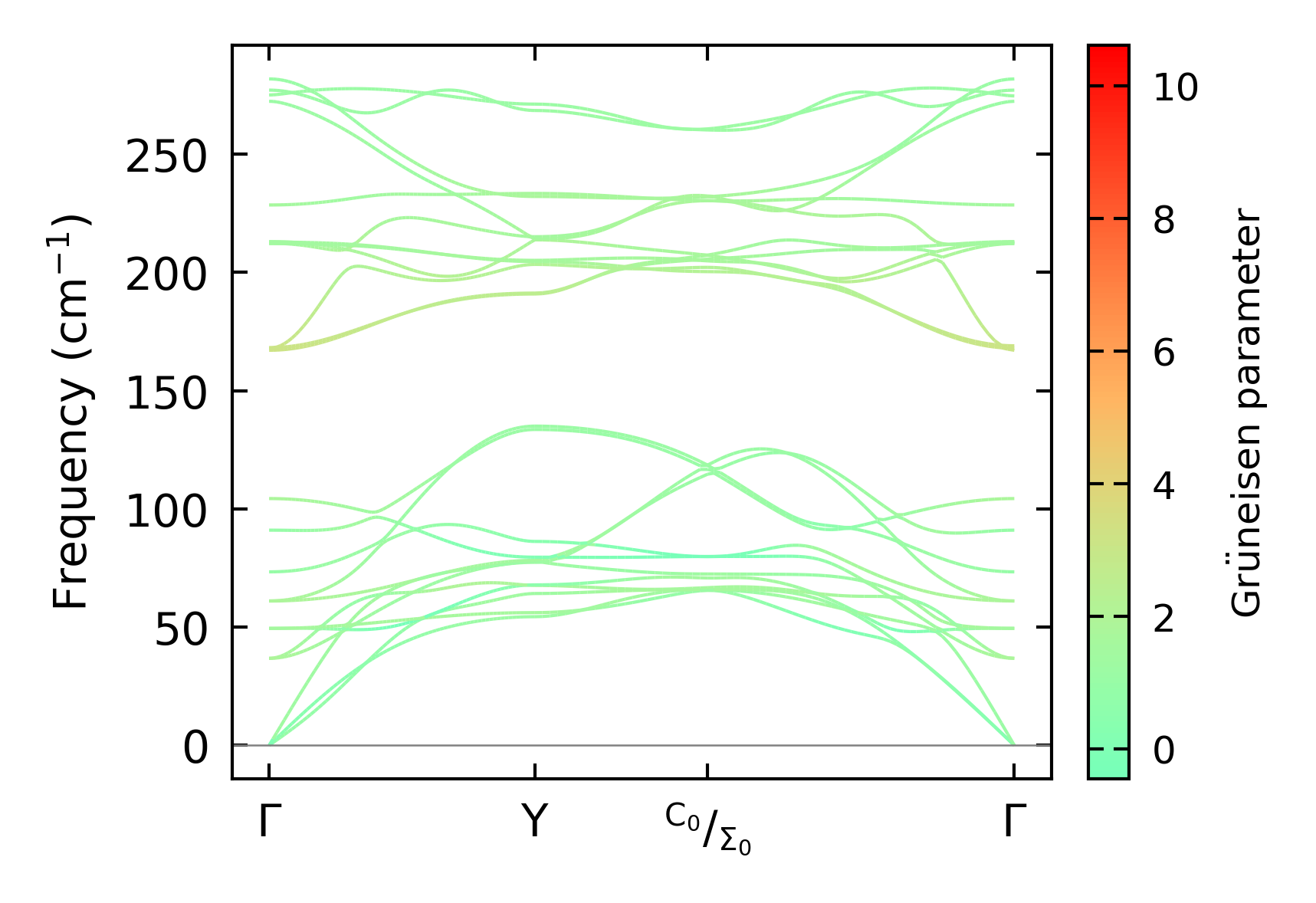

../../_images/fig_gruneisen7392.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 18x18x4, supercell: 4x2x1

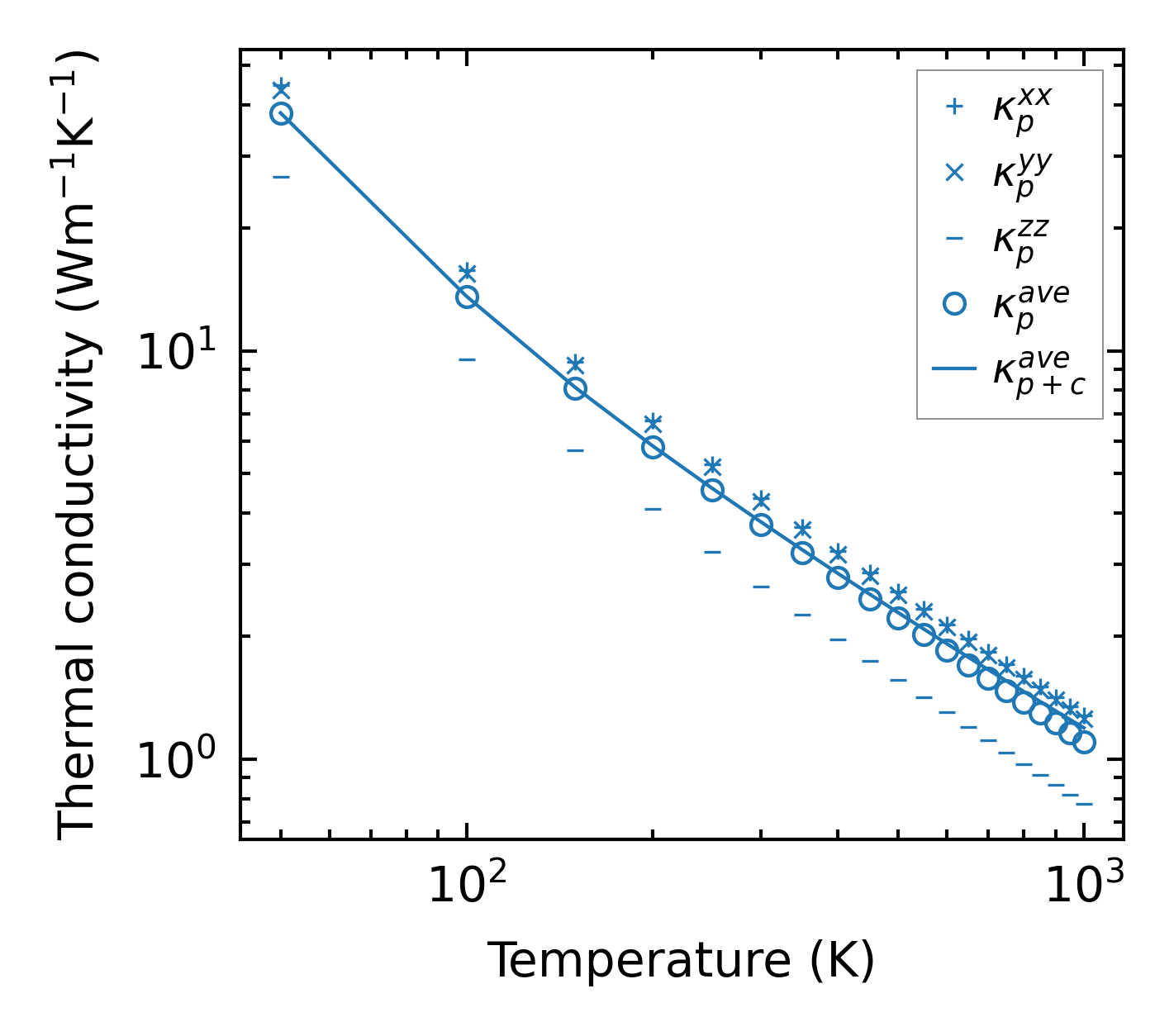

../../_images/fig_kappa13944.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7480.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime7326.png — (a) Phonon lifetime due to phonon-phonon scattering

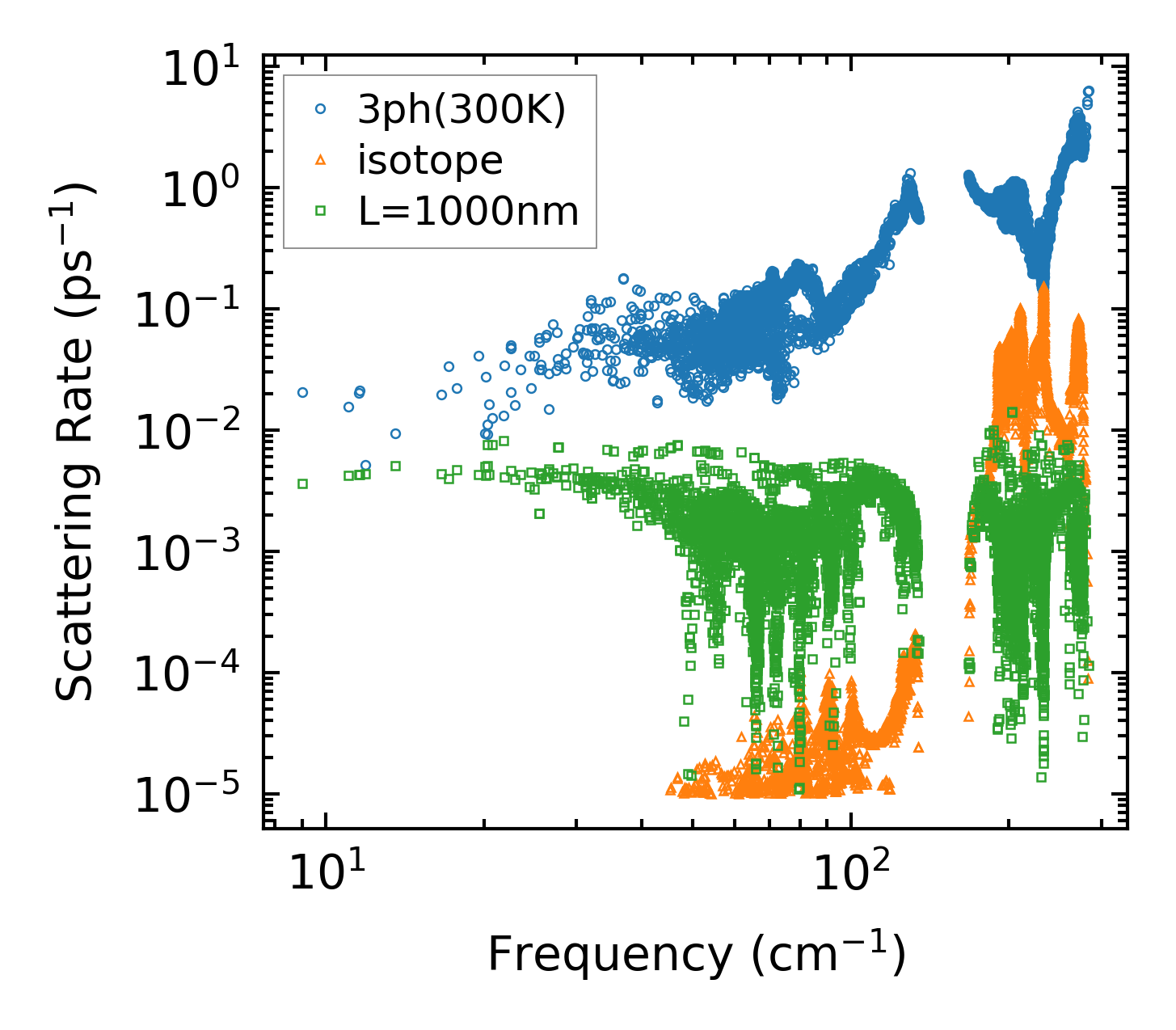

../../_images/fig_scat_rates7325.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

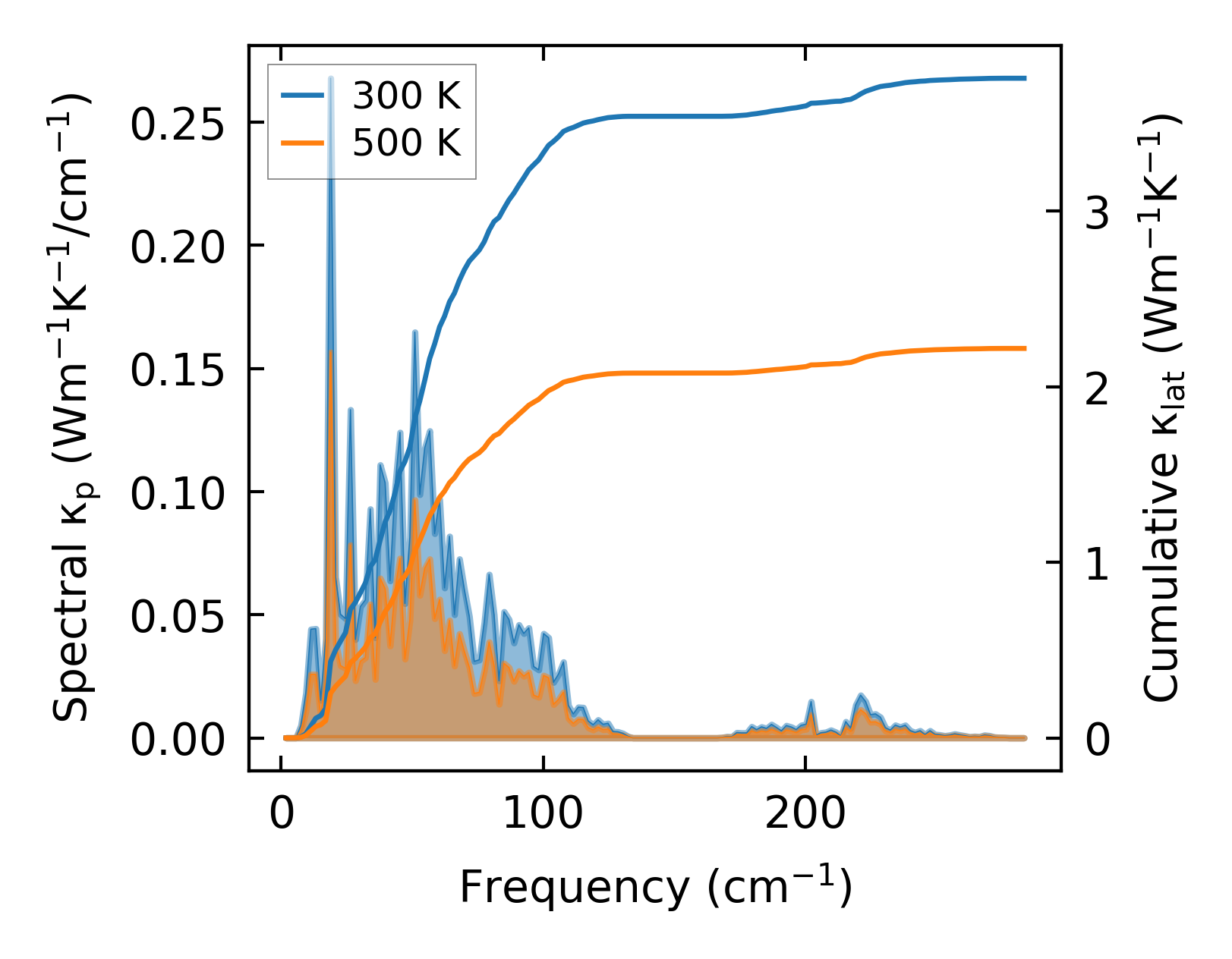

../../_images/fig_cumu_frequency7326.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

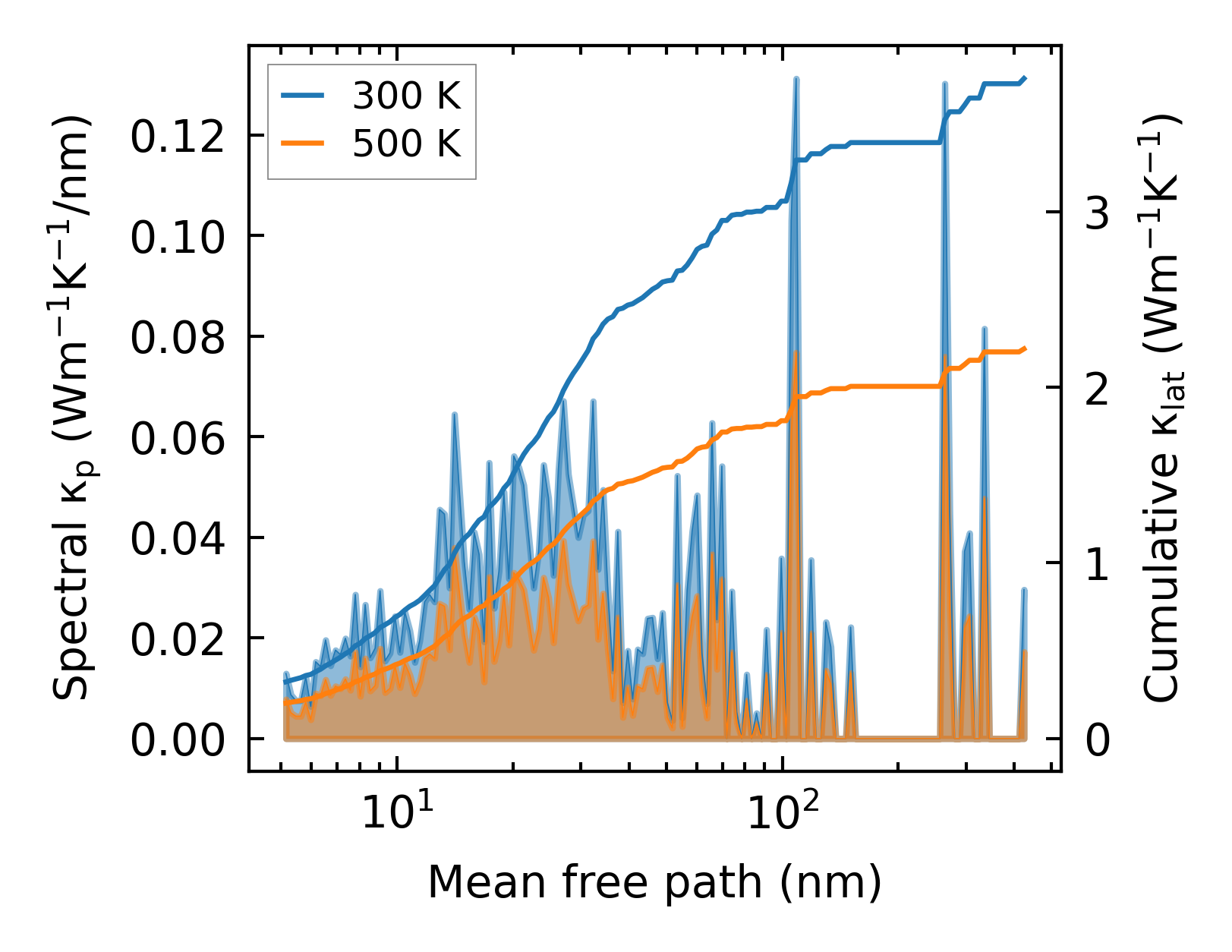

../../_images/fig_cumu_mfp7325.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc216447.png — (a) Force constants w.r.t atomic distance

Summary

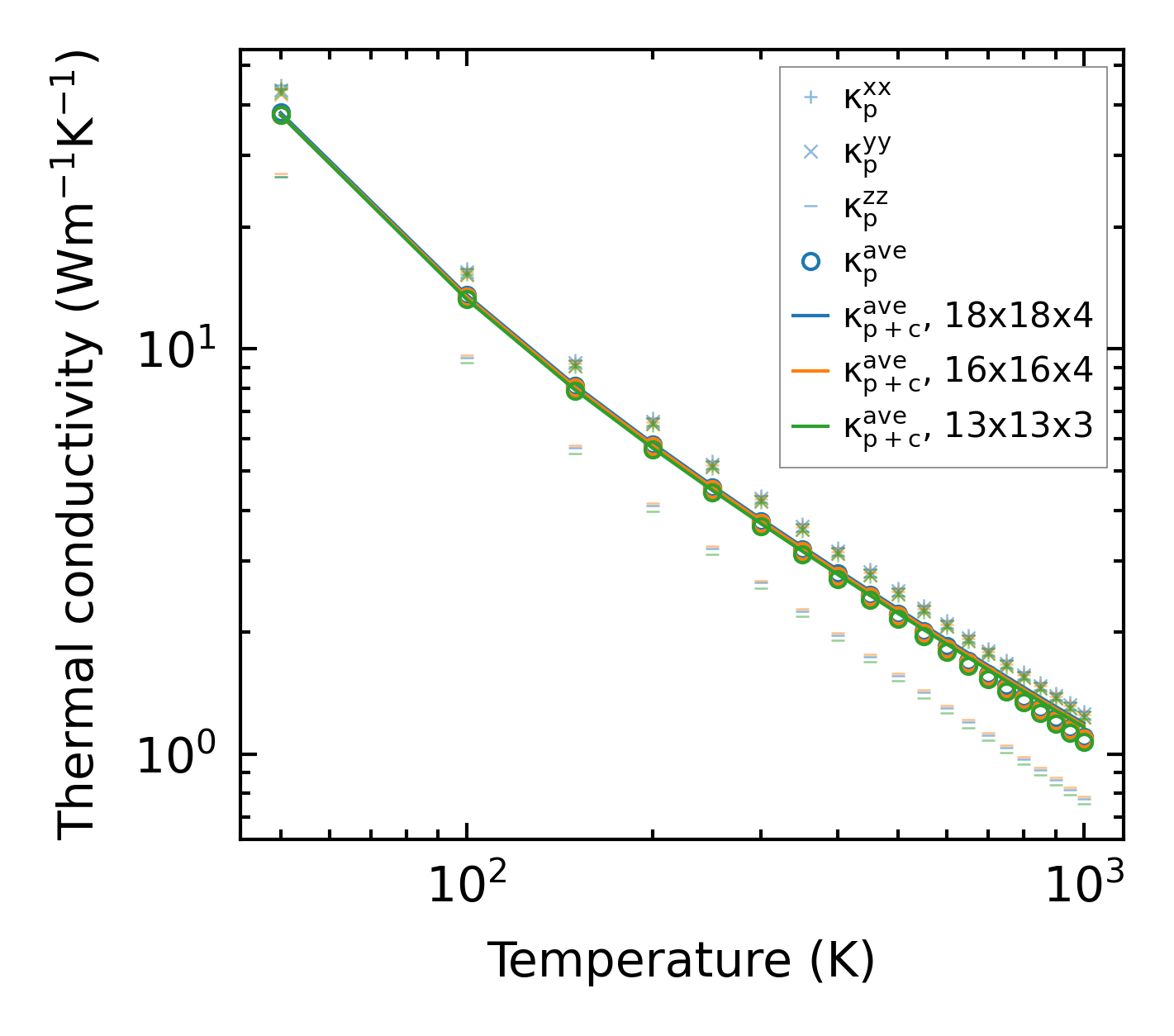

../../_images/fig_kappa13945.png — (a) Temperature-dependent lattice thermal conductivity

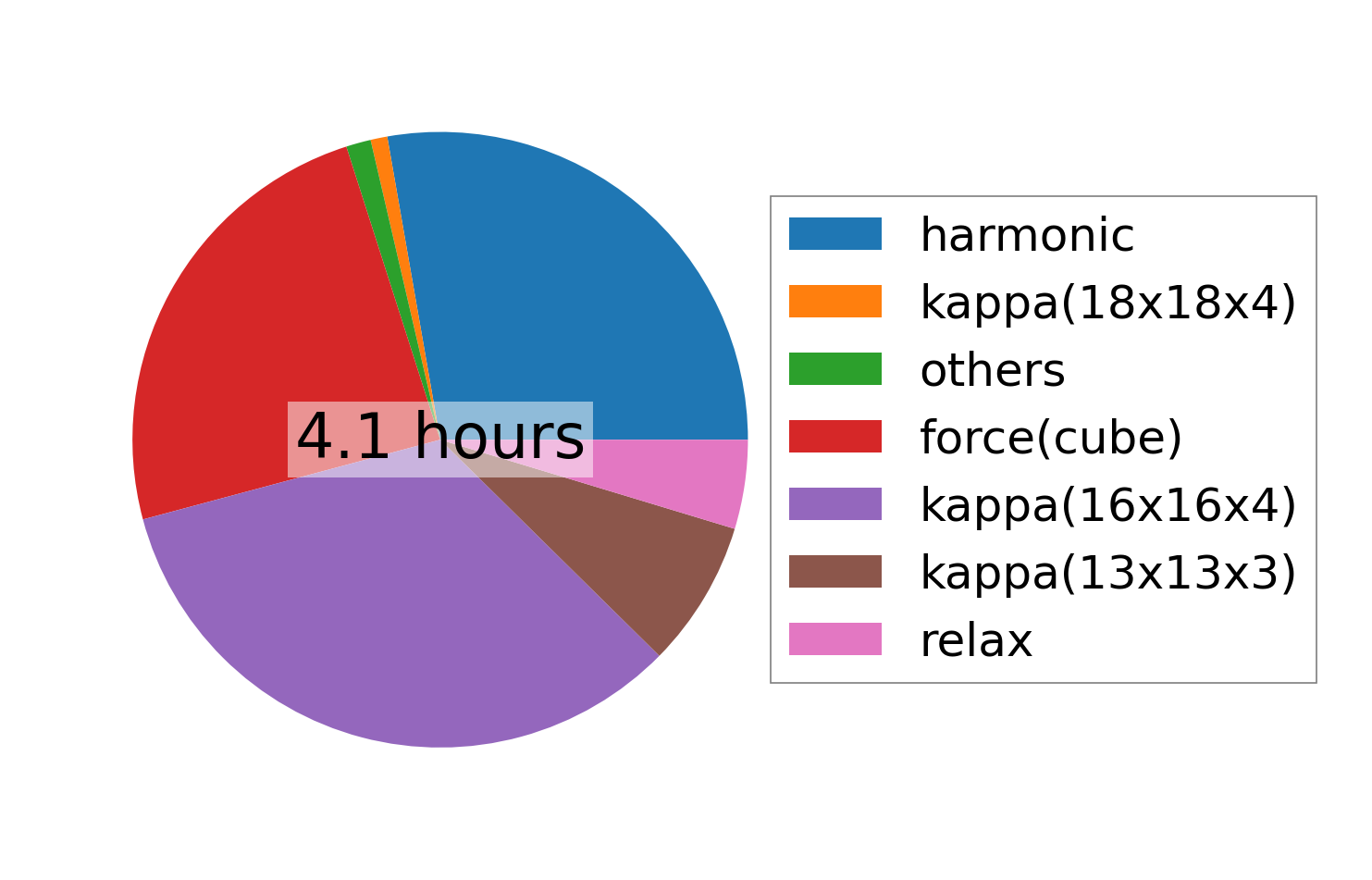

../../_images/fig_times27552.png — (b) Computation time
