mp-1078300/ScF3/anharm

Space group: Pm-3m (221)
Link: Materials Project
Download: mp-1078300.tar.gz

Harmonic properties

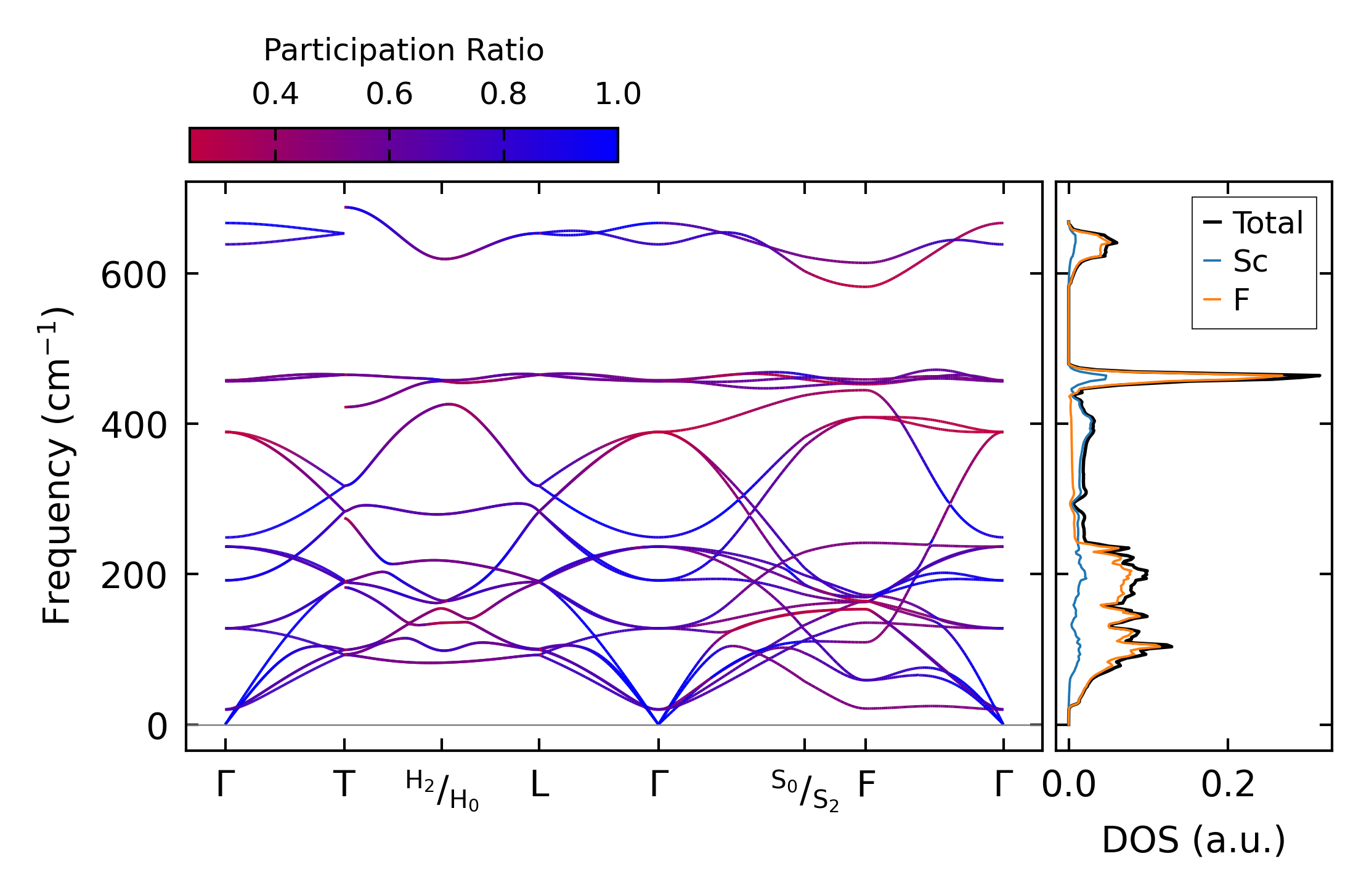

../../_images/fig_bandos_pr16865.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16864.png — (b) Thermodynamic properties

Grüneisen parameters

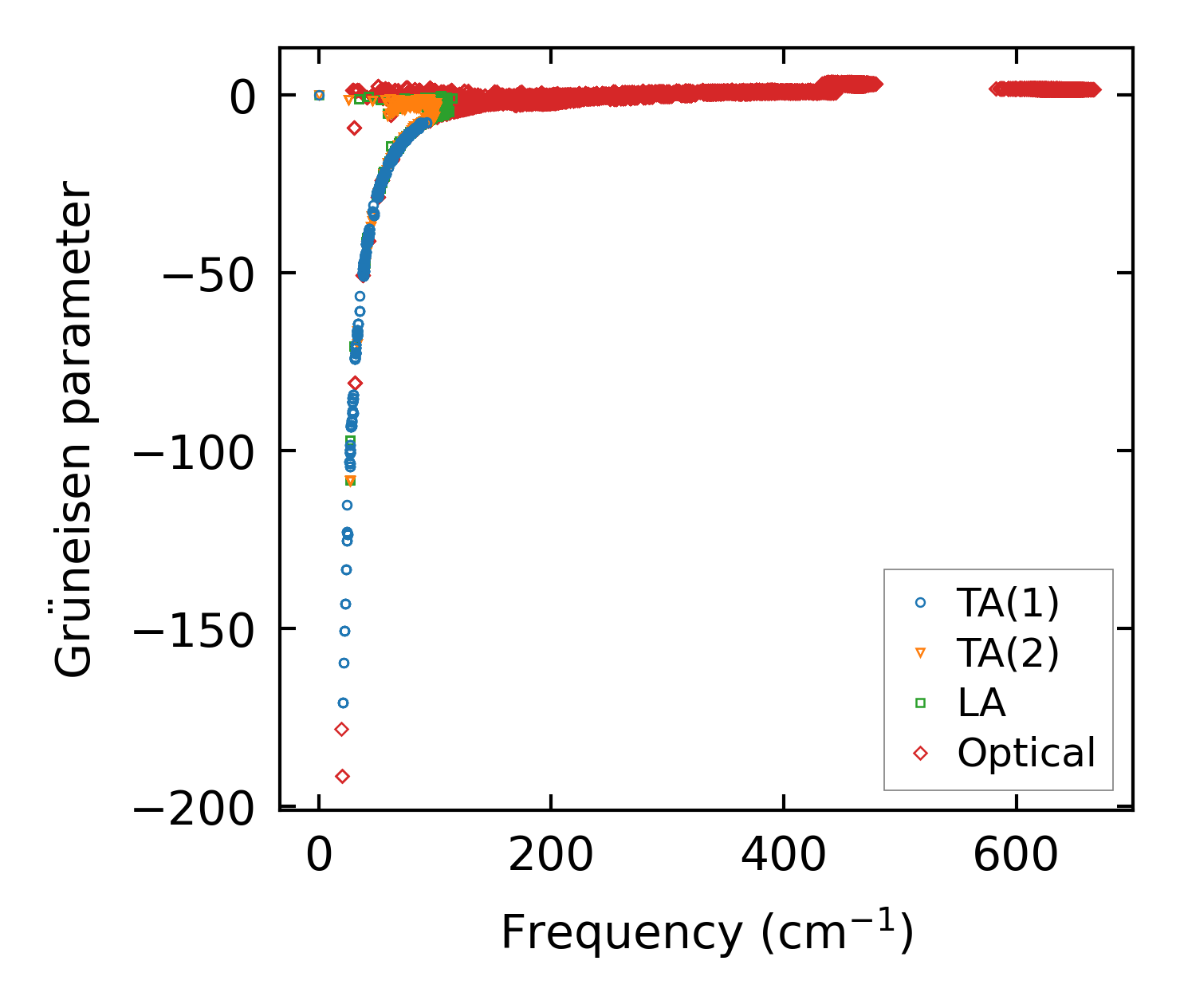

../../_images/fig_gru_all7376.png — (a) Grüneisen parameters

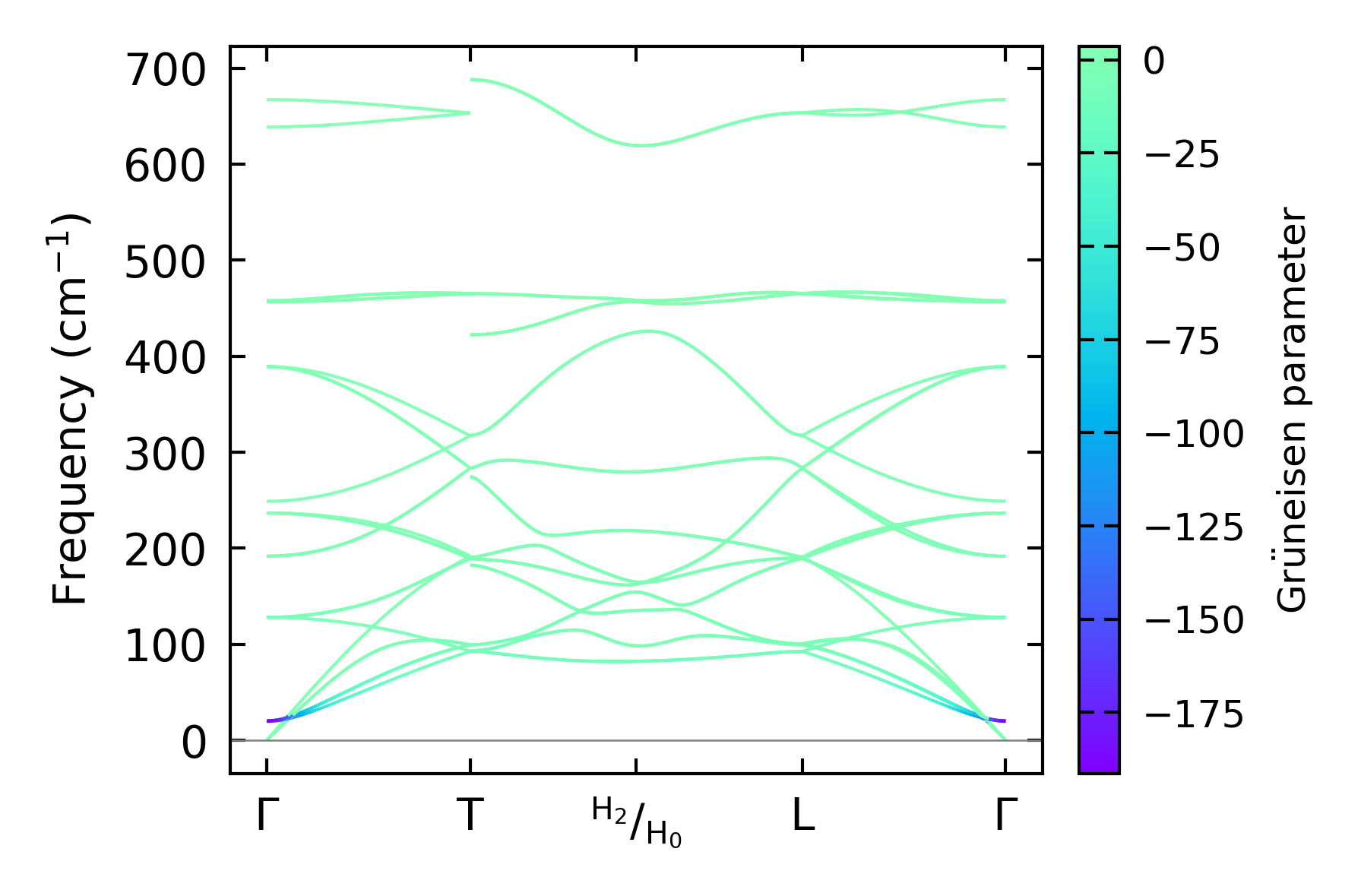

../../_images/fig_gruneisen7376.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x14, supercell: 2x2x1

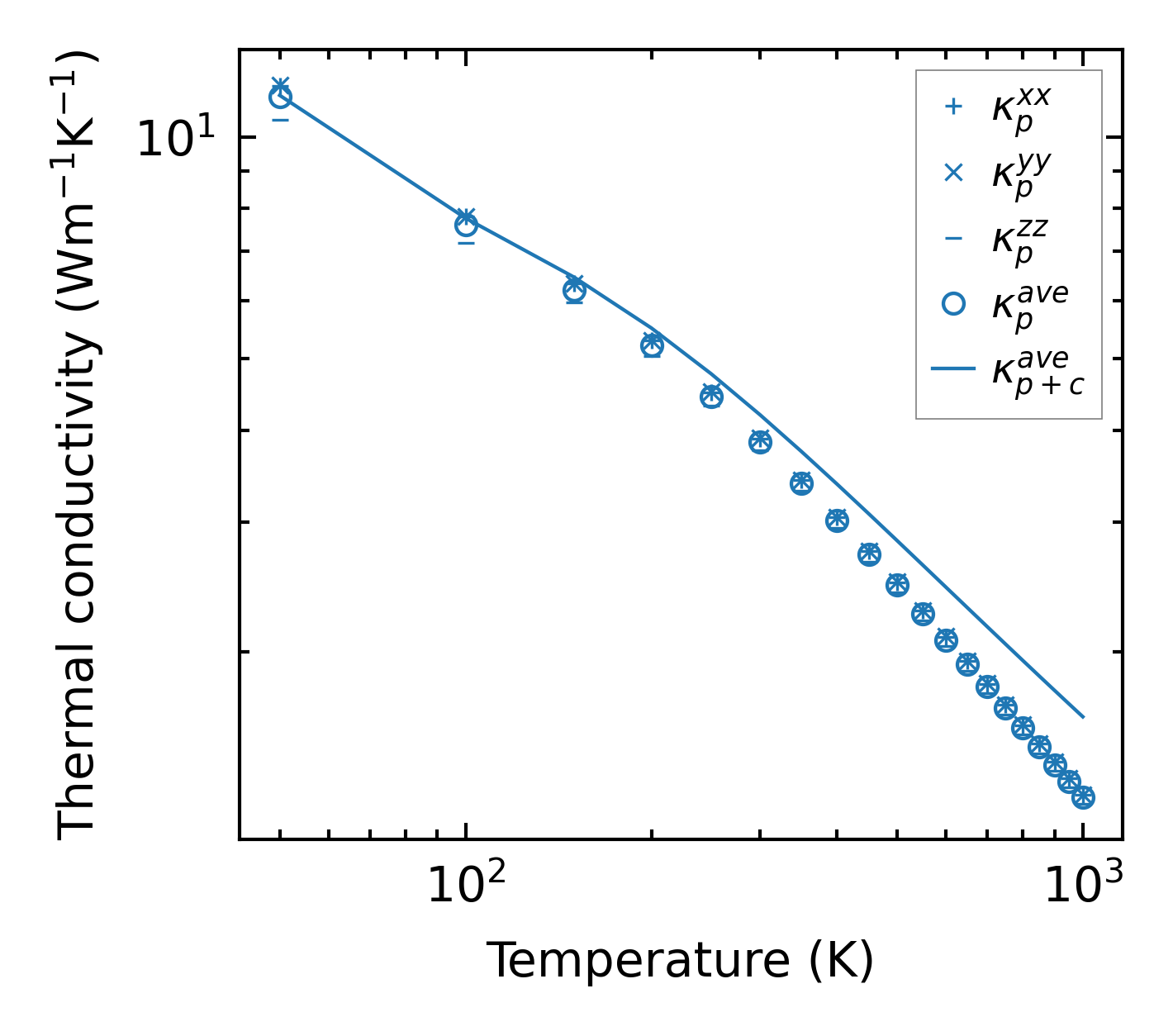

../../_images/fig_kappa13914.png — (a) Temperature-dependent lattice thermal conductivity

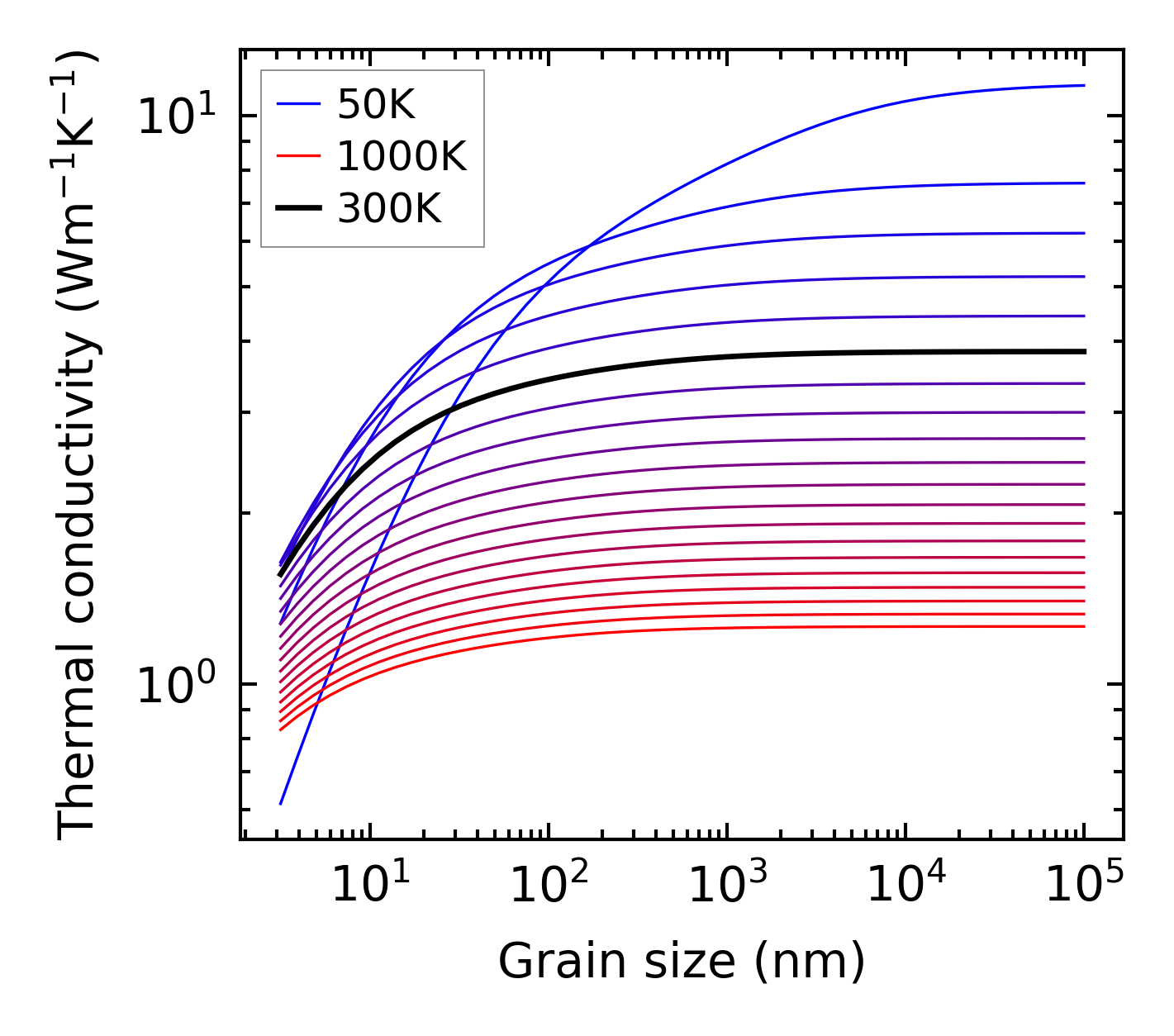

../../_images/fig_kappa_vs_grain_size7464.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime7310.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates7309.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency7310.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp7309.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

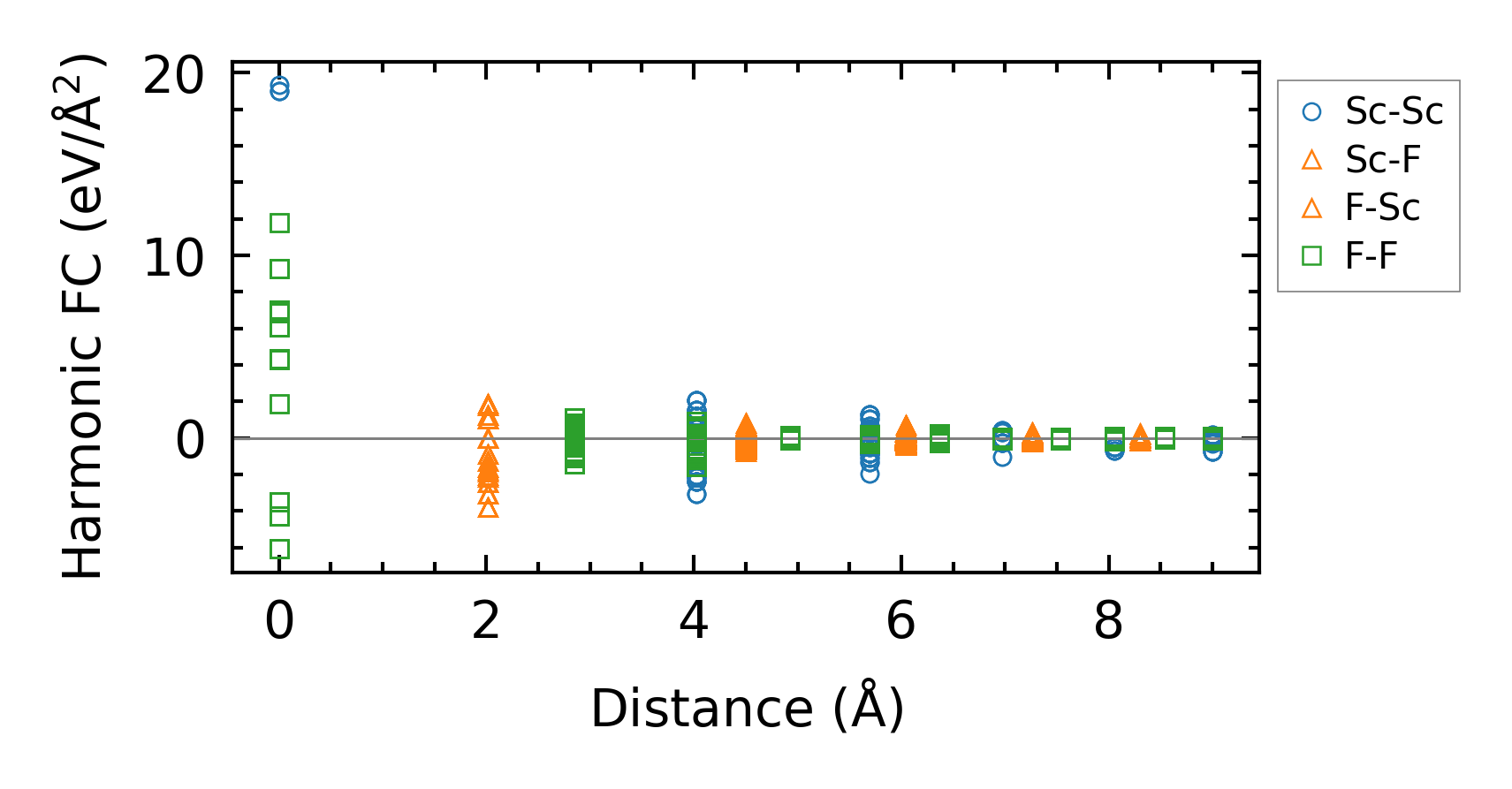

../../_images/fig_fc216419.png — (a) Force constants w.r.t atomic distance

Summary

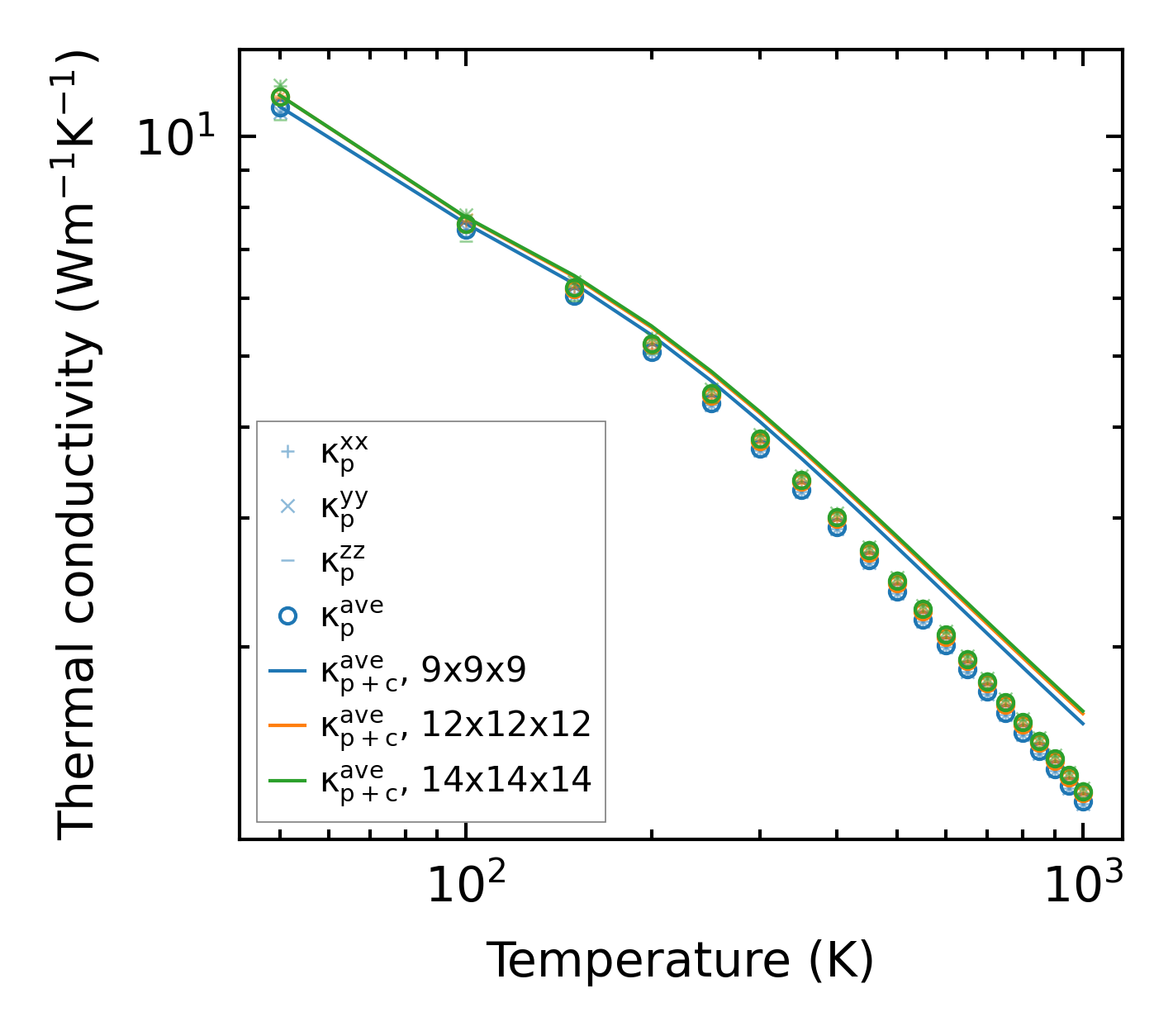

../../_images/fig_kappa13915.png — (a) Temperature-dependent lattice thermal conductivity

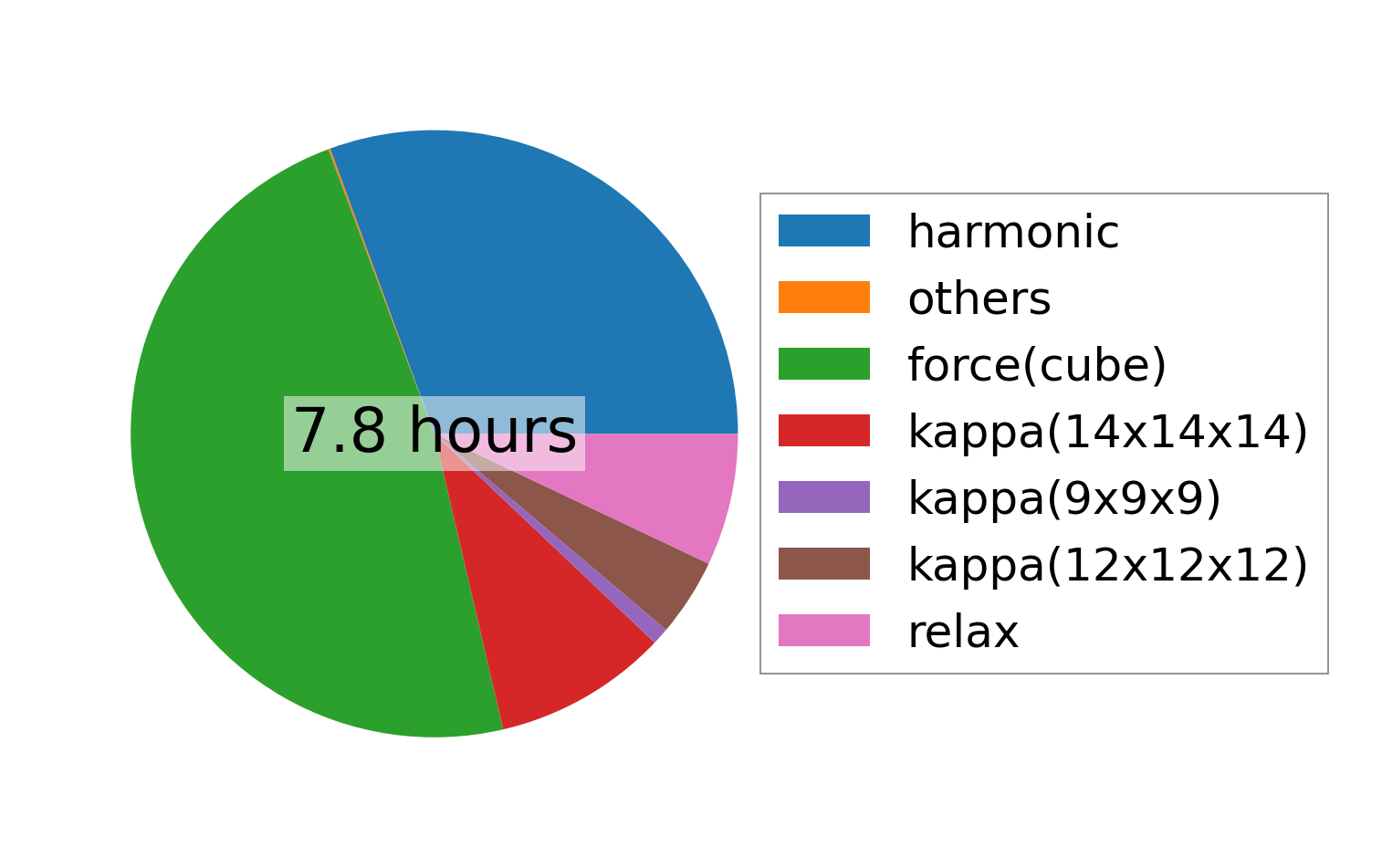

../../_images/fig_times27509.png — (b) Computation time
