mp-1078049/ZnGa2S4/anharm

Space group: P-42m (111)
Link: Materials Project
Download: mp-1078049.tar.gz

Harmonic properties

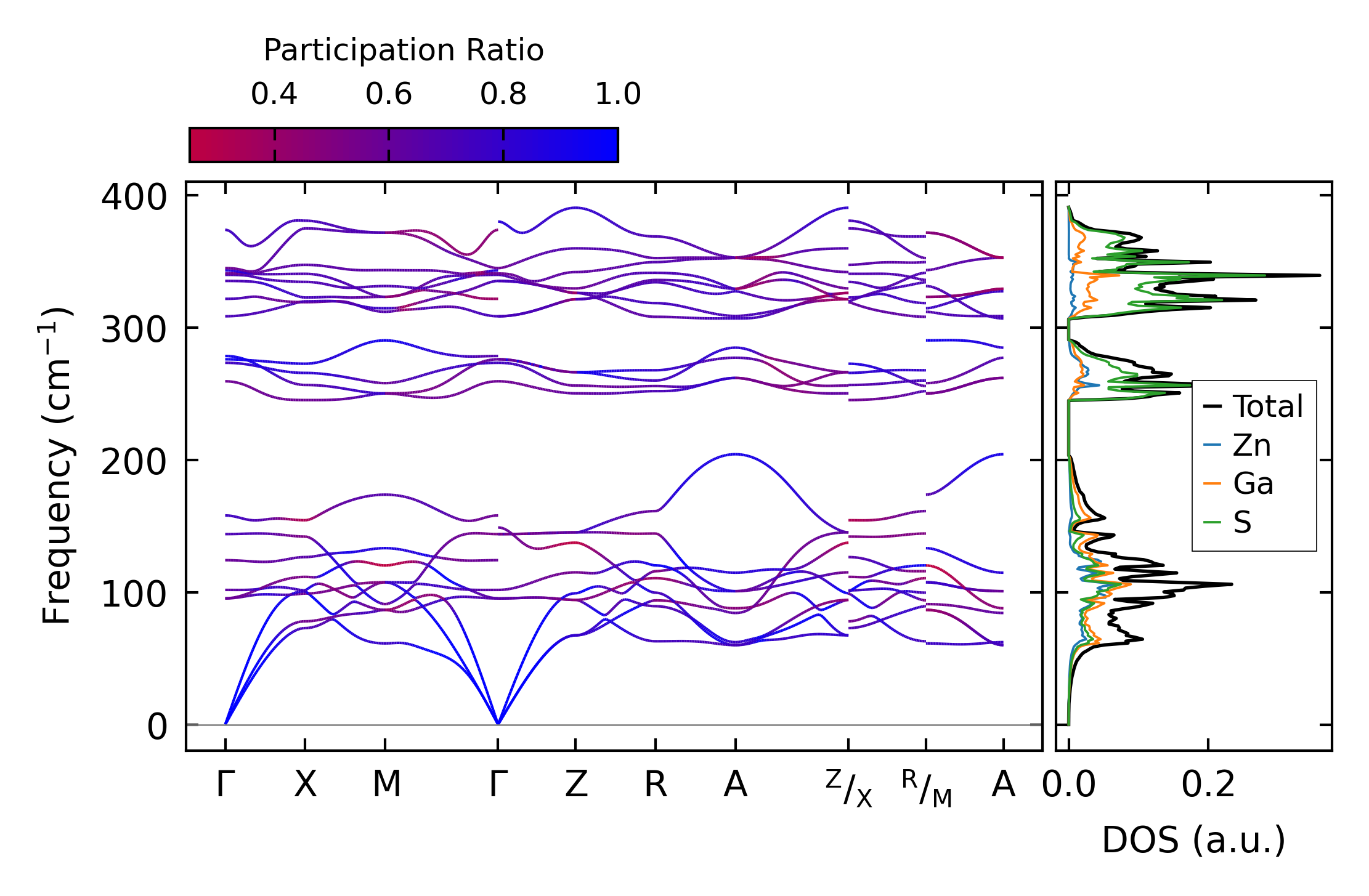

../../_images/fig_bandos_pr16849.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16848.png — (b) Thermodynamic properties

Grüneisen parameters

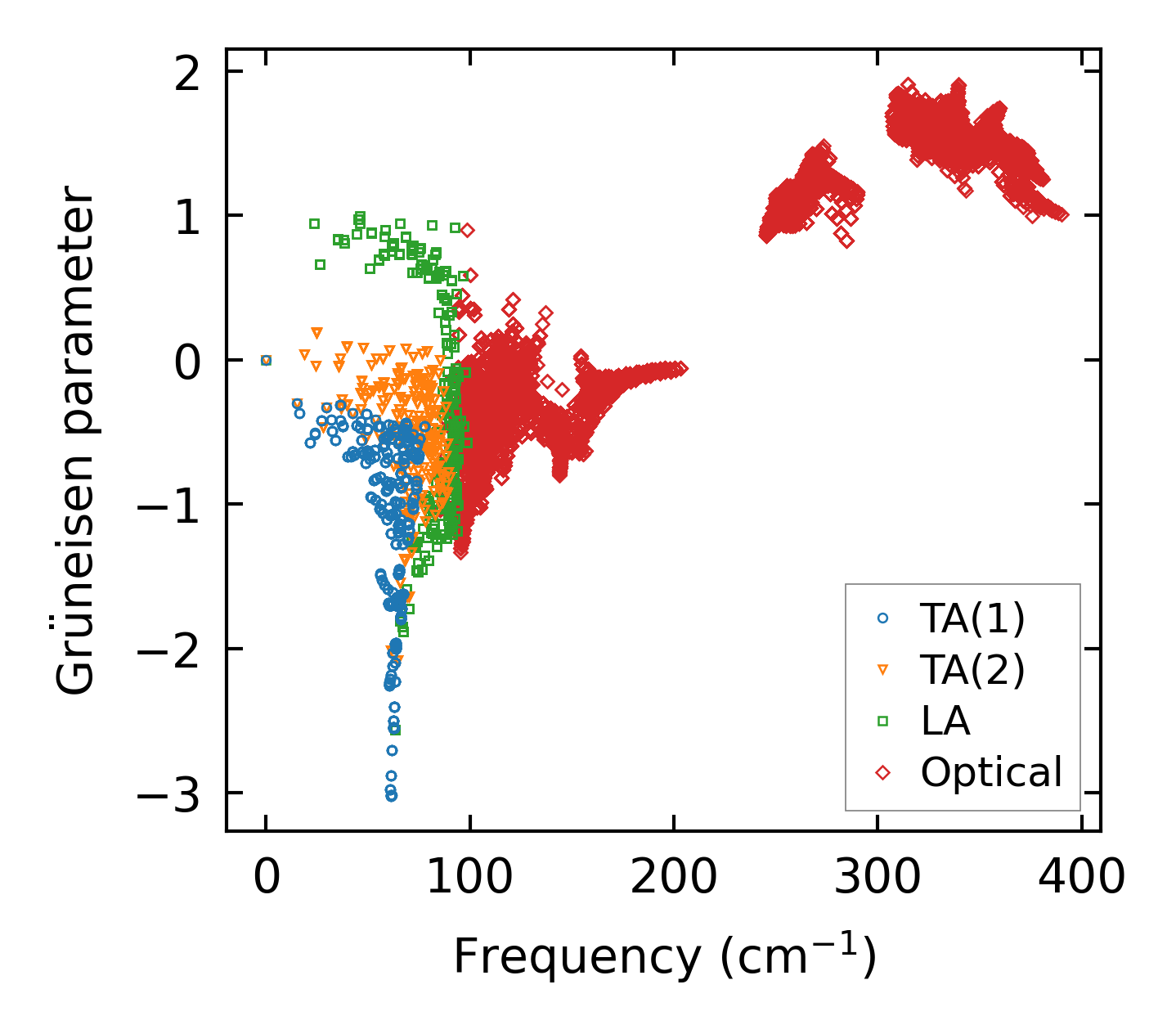

../../_images/fig_gru_all7368.png — (a) Grüneisen parameters

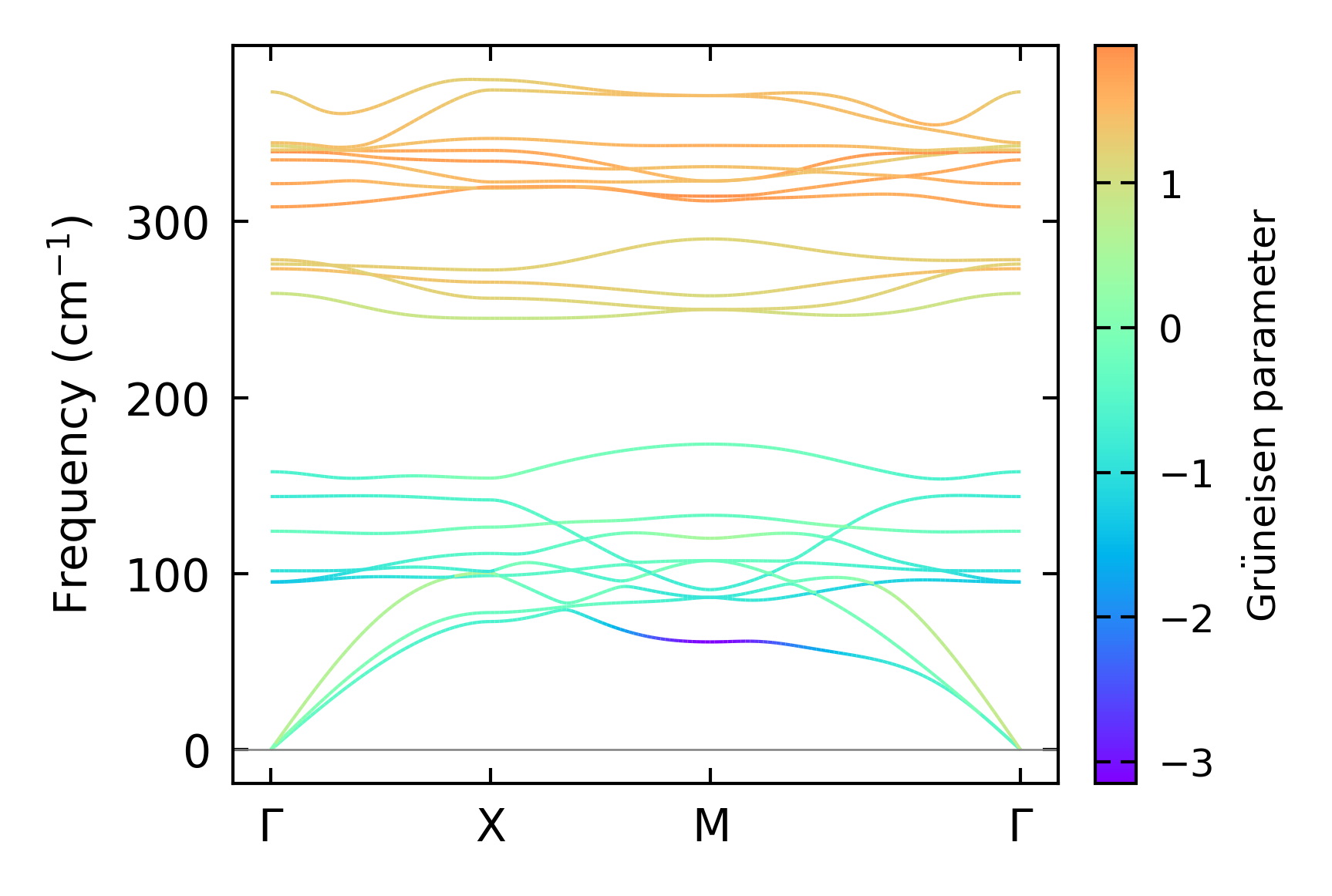

../../_images/fig_gruneisen7368.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 3x3x2

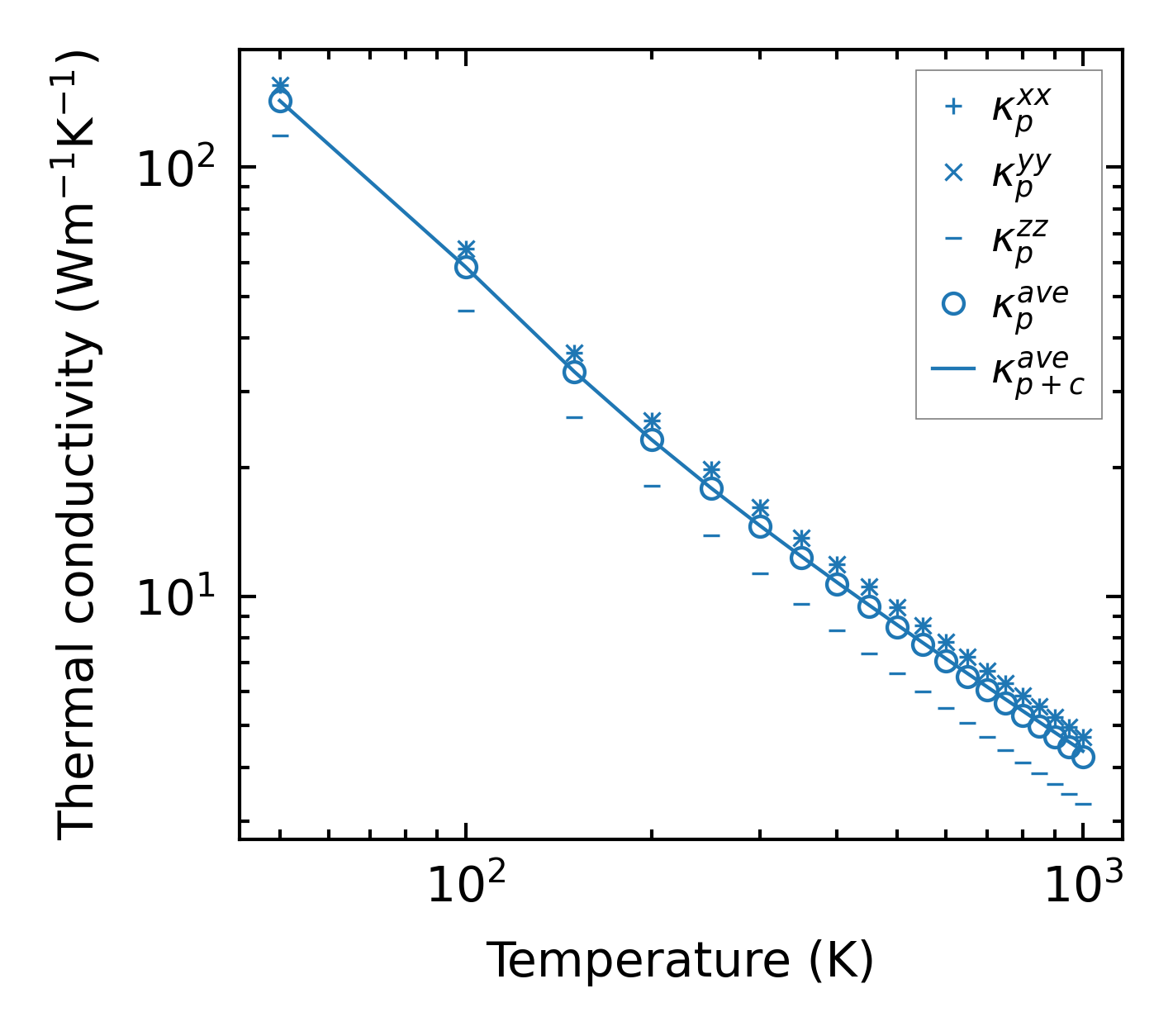

../../_images/fig_kappa13898.png — (a) Temperature-dependent lattice thermal conductivity

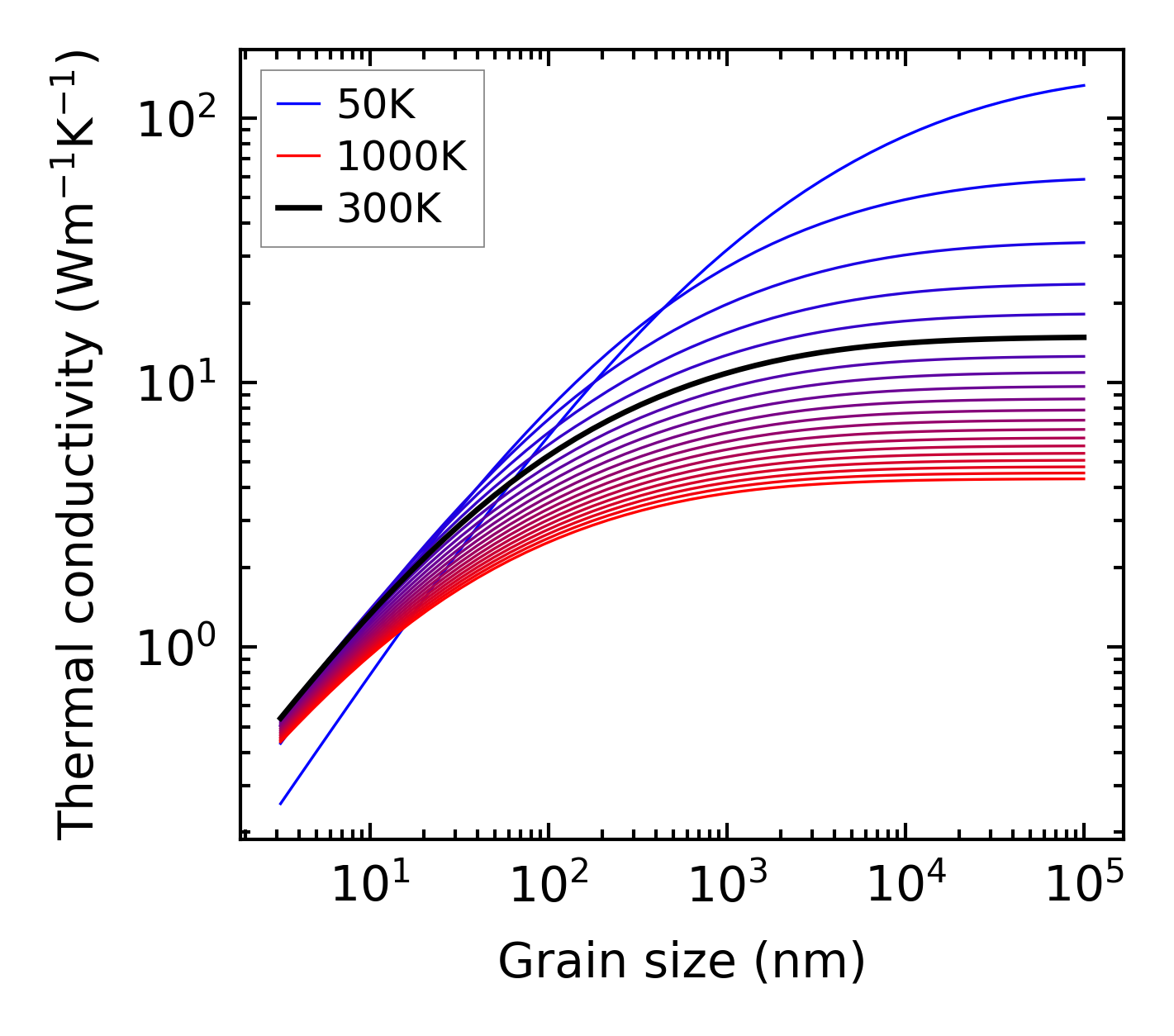

../../_images/fig_kappa_vs_grain_size7456.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

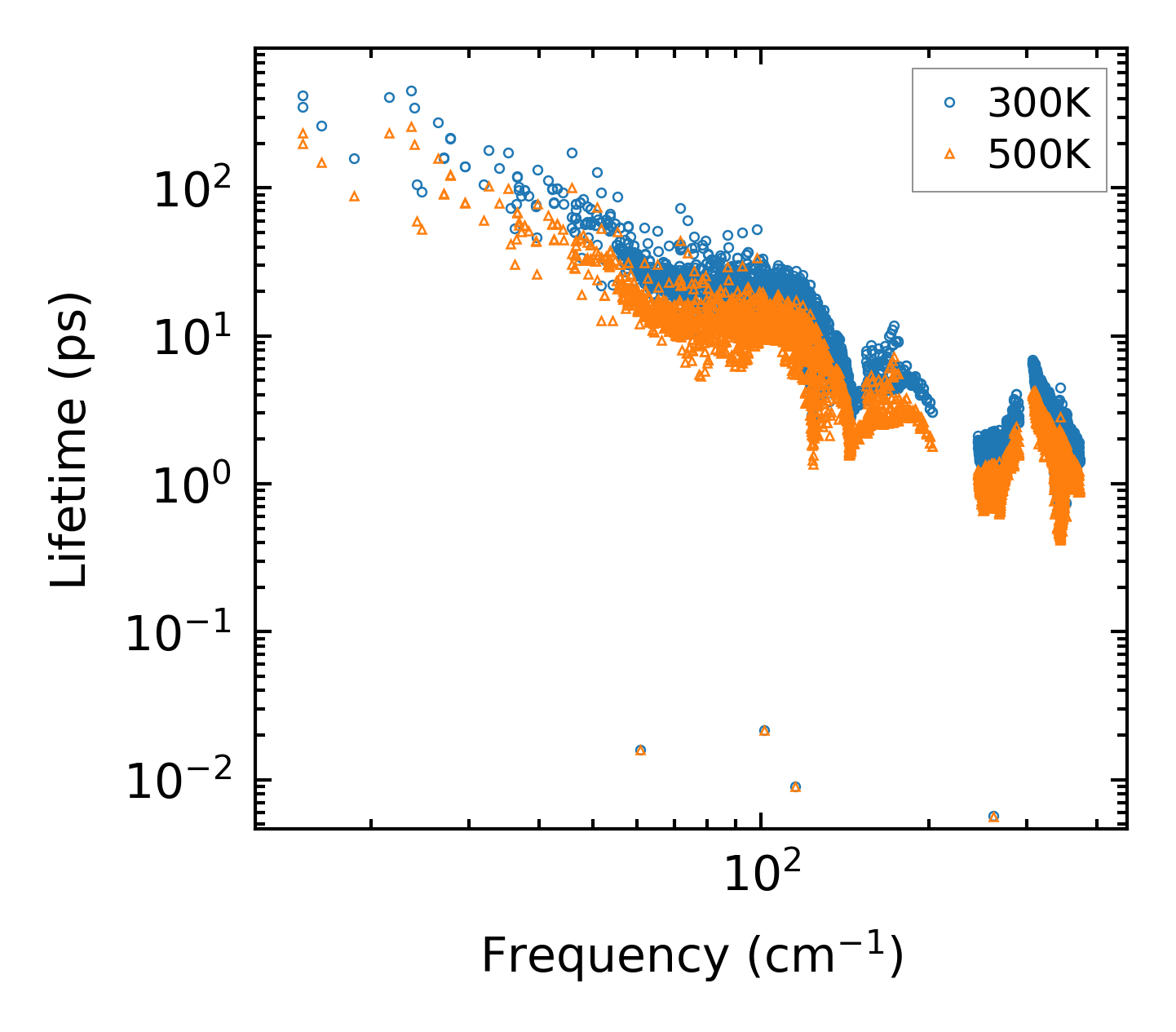

../../_images/fig_lifetime7302.png — (a) Phonon lifetime due to phonon-phonon scattering

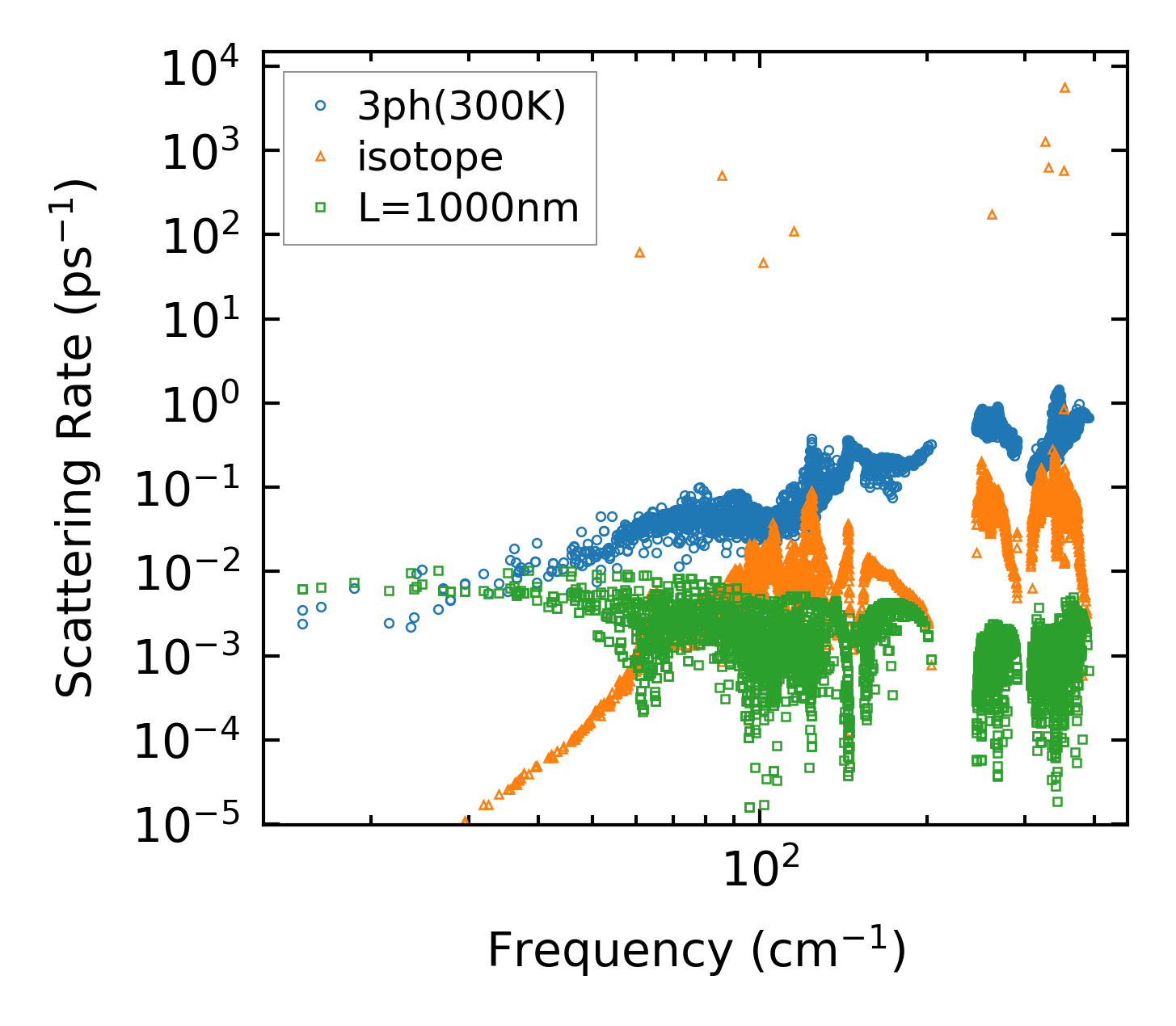

../../_images/fig_scat_rates7301.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

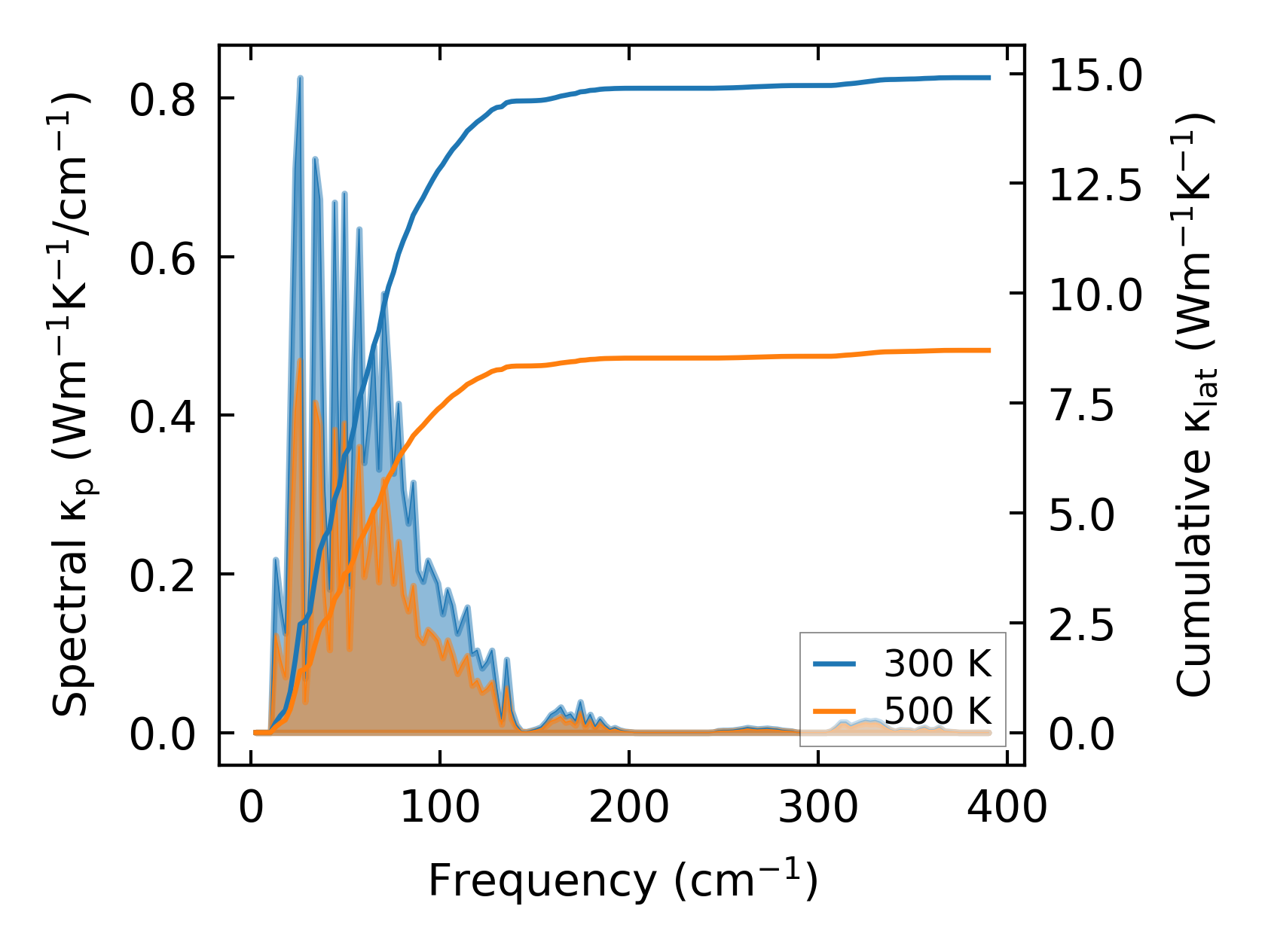

../../_images/fig_cumu_frequency7302.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

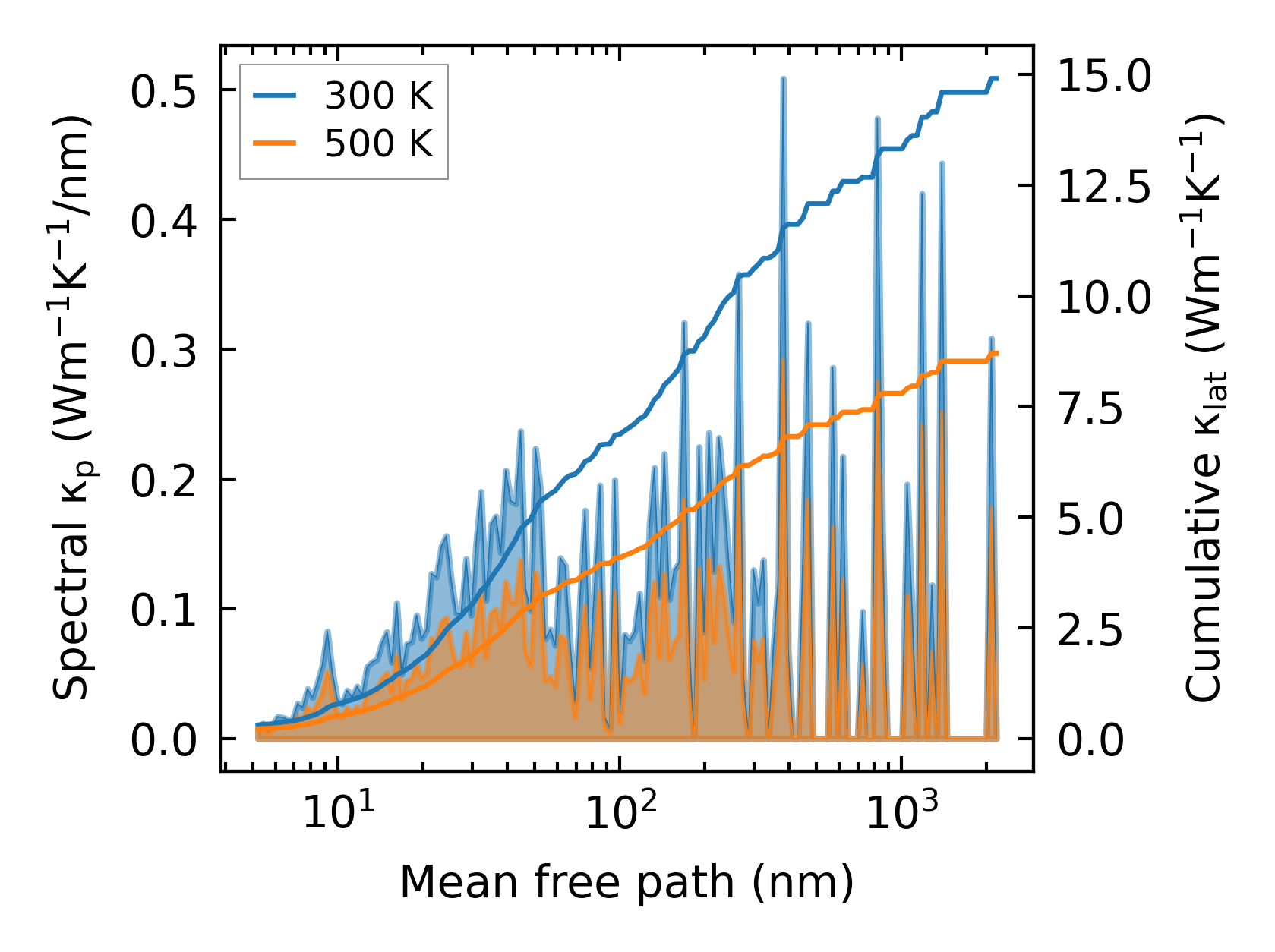

../../_images/fig_cumu_mfp7301.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

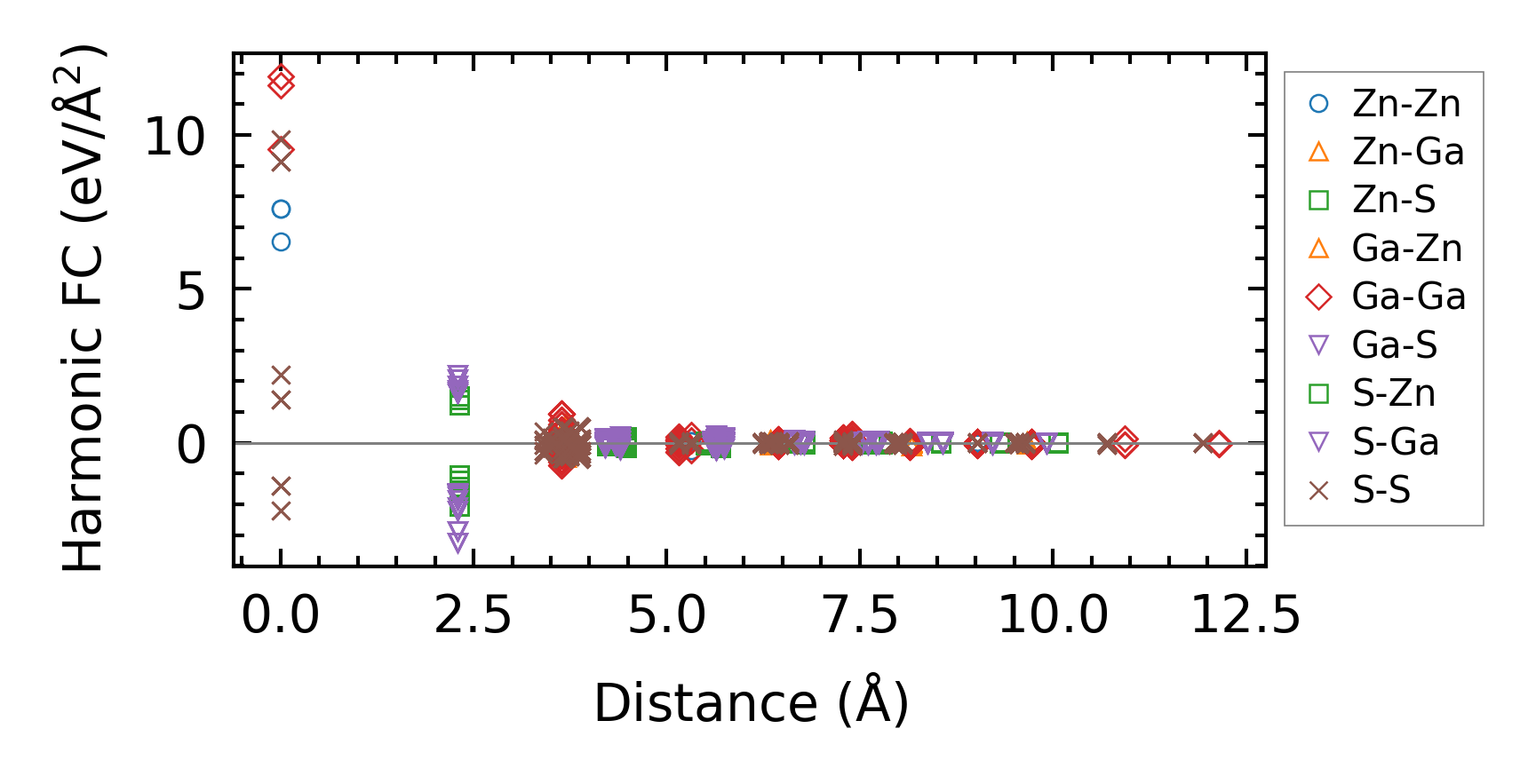

../../_images/fig_fc216404.png — (a) Force constants w.r.t atomic distance

Summary

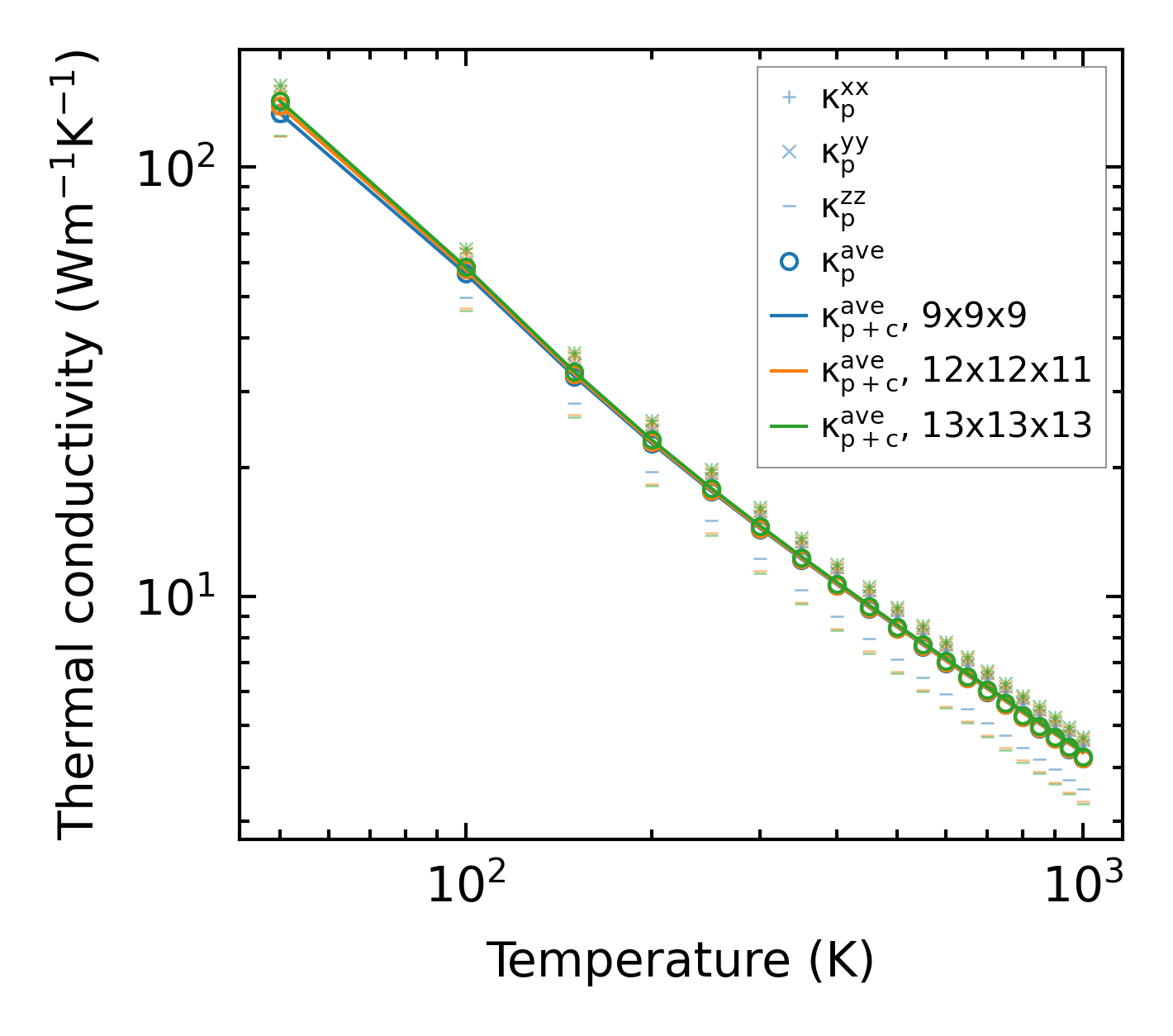

../../_images/fig_kappa13899.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times27492.png — (b) Computation time
