mp-768967/Li5BO4/anharm

Space group: Pbca (61)
Link: Materials Project
Download: mp-768967.tar.gz

Harmonic properties

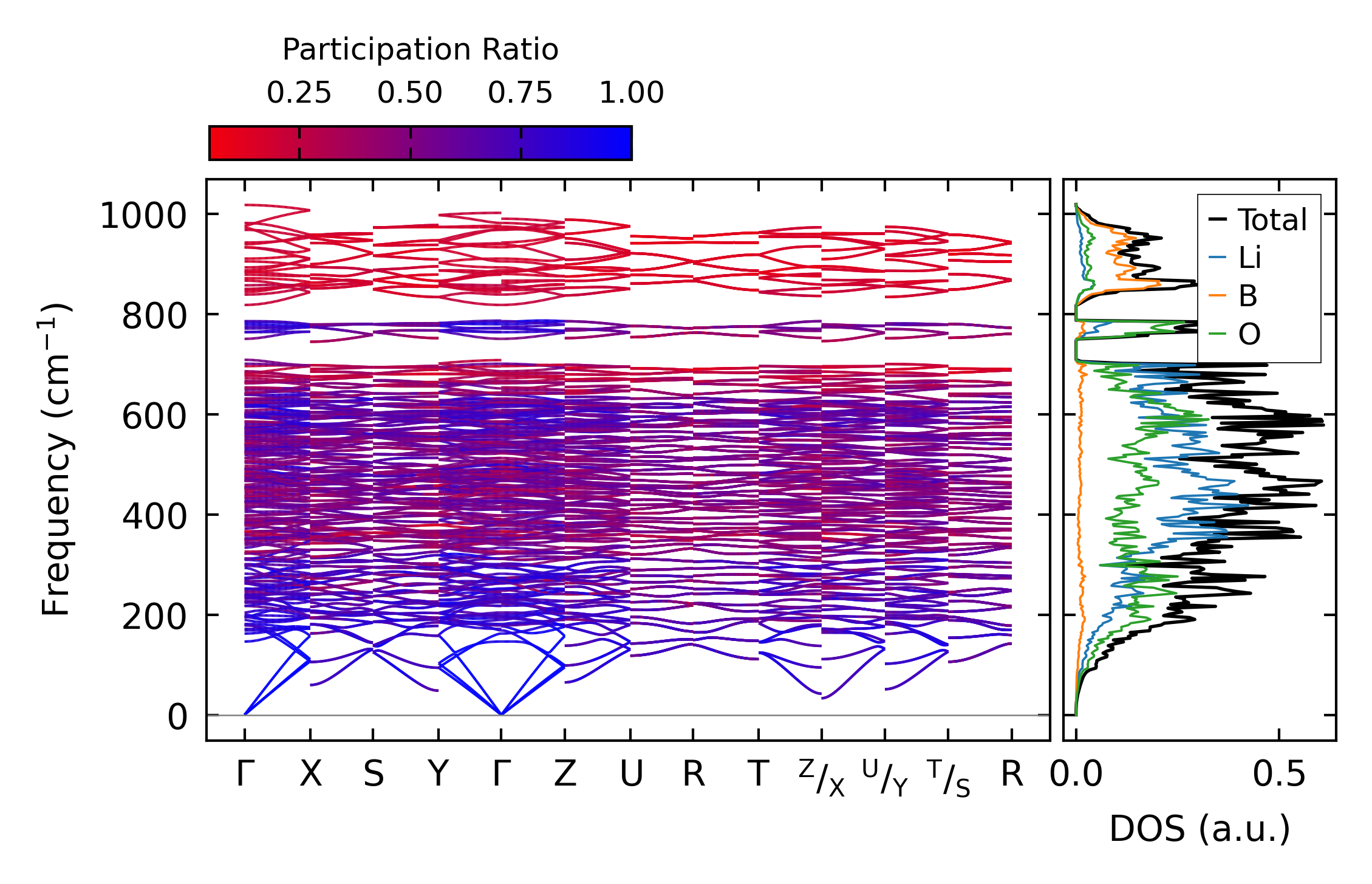

../../_images/fig_bandos_pr2620.png — (a) Phonon dispersion with participation ratio and DOS

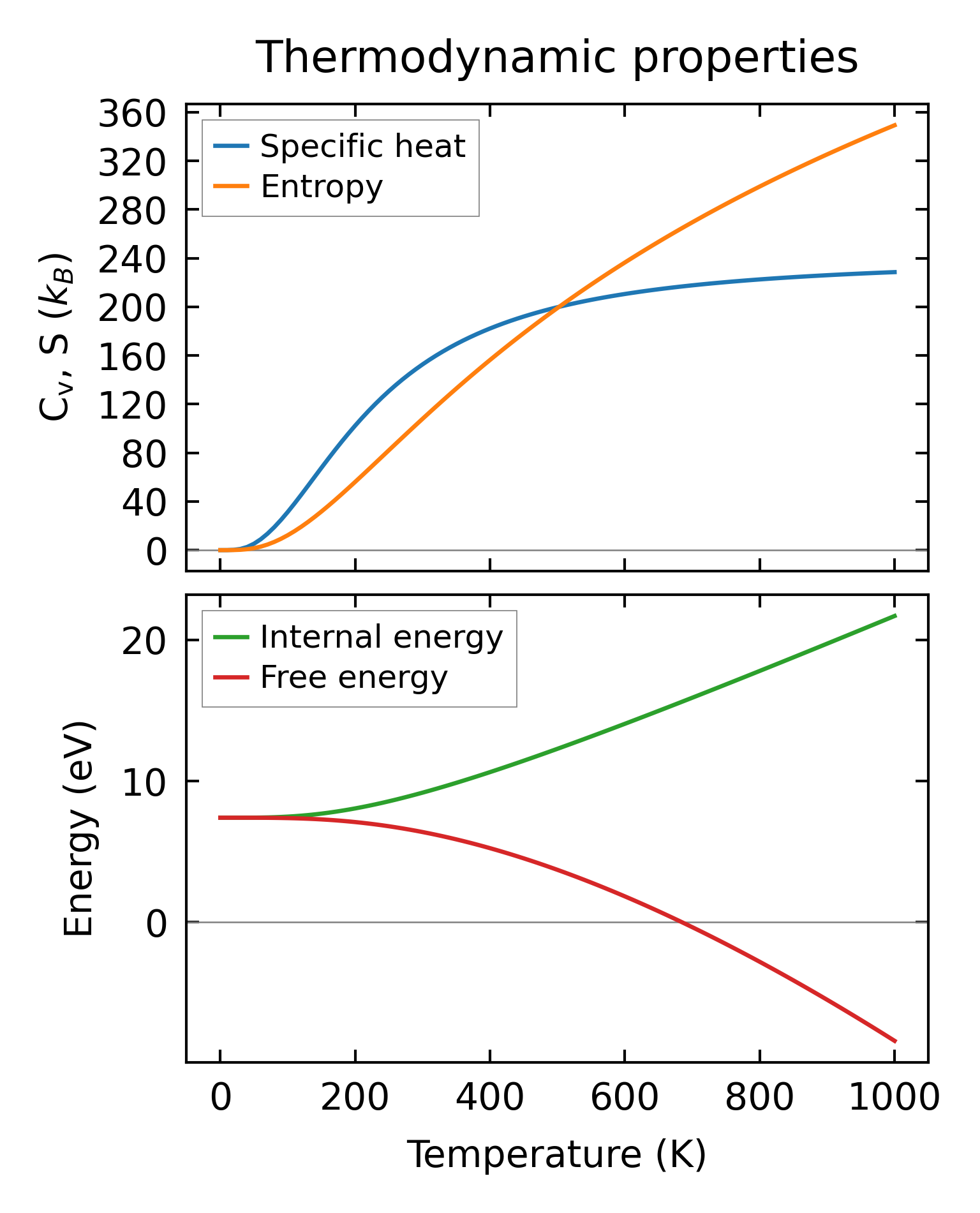

../../_images/fig_thermo2620.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1332.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1332.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x8, supercell: 1x1x1

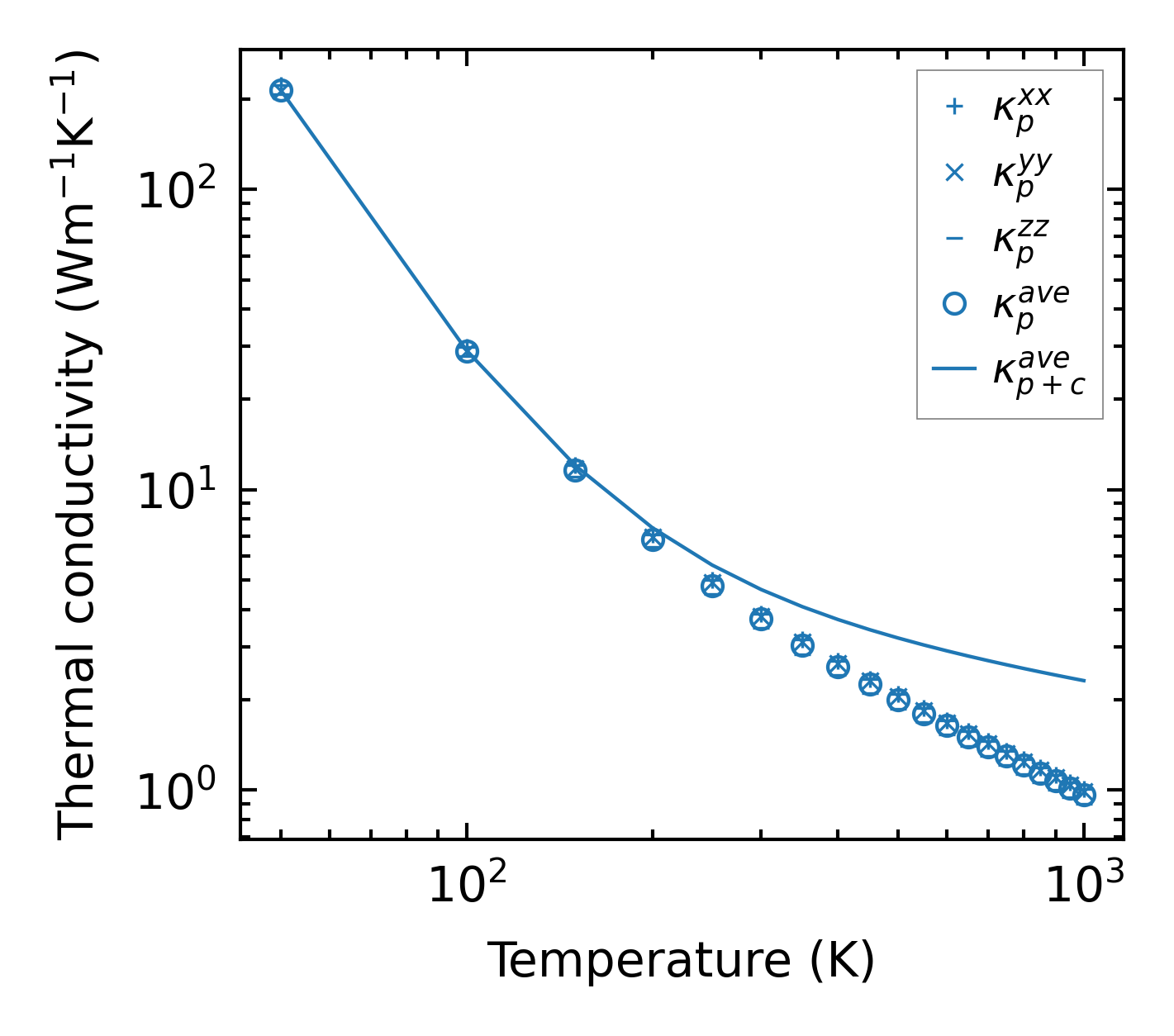

../../_images/fig_kappa2565.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1348.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

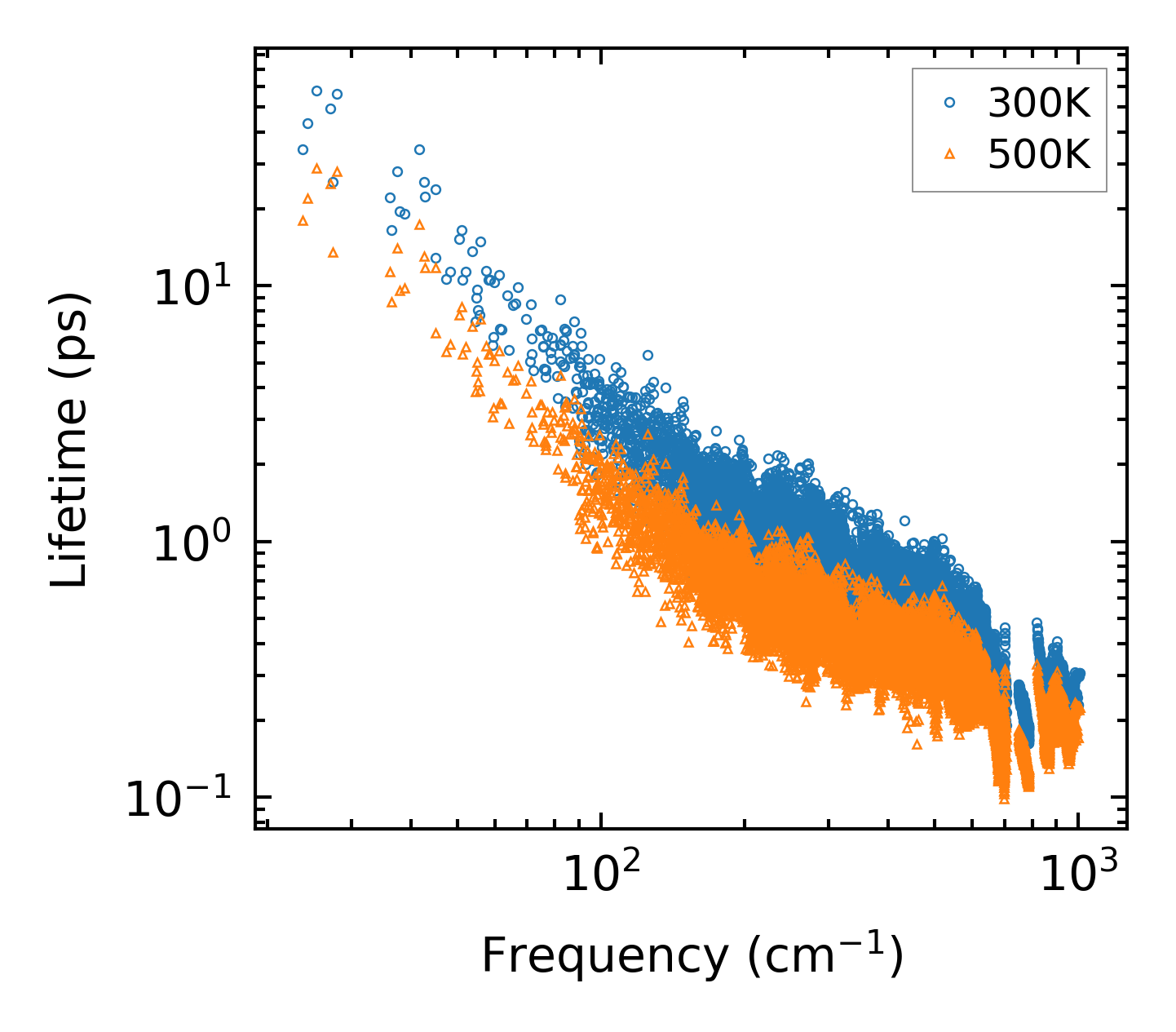

../../_images/fig_lifetime1322.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1321.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

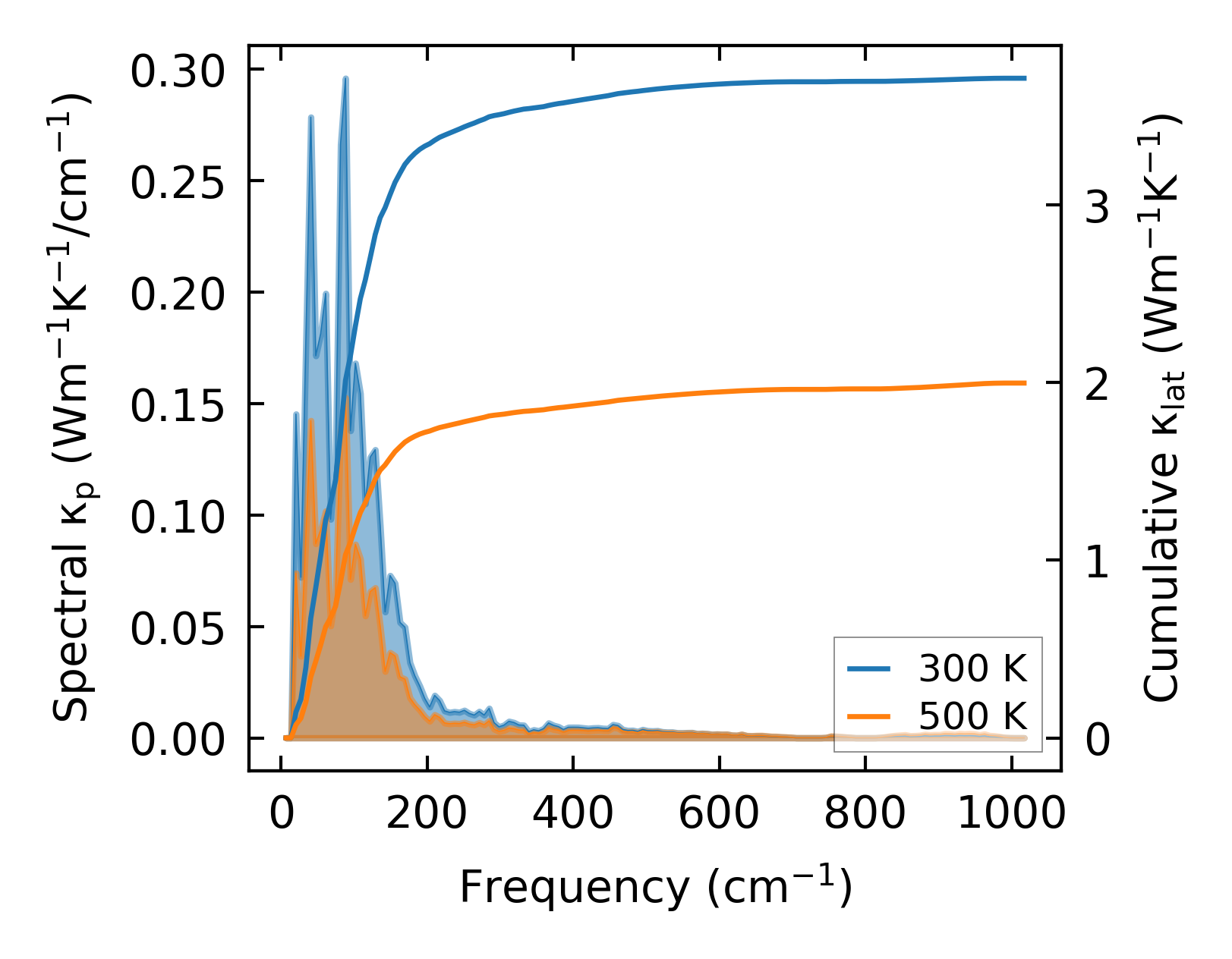

../../_images/fig_cumu_frequency1322.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

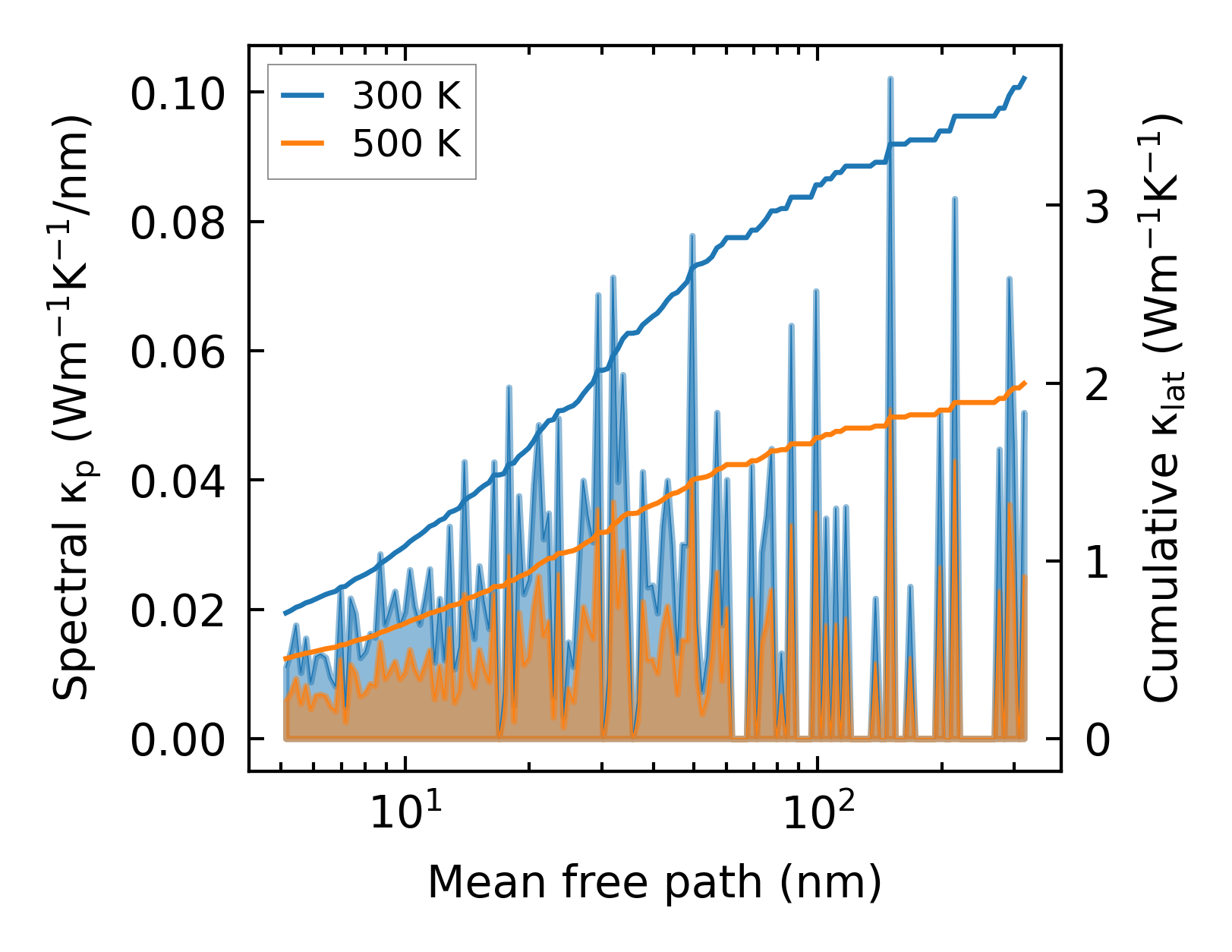

../../_images/fig_cumu_mfp1322.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc22441.png — (a) Force constants w.r.t atomic distance

Summary

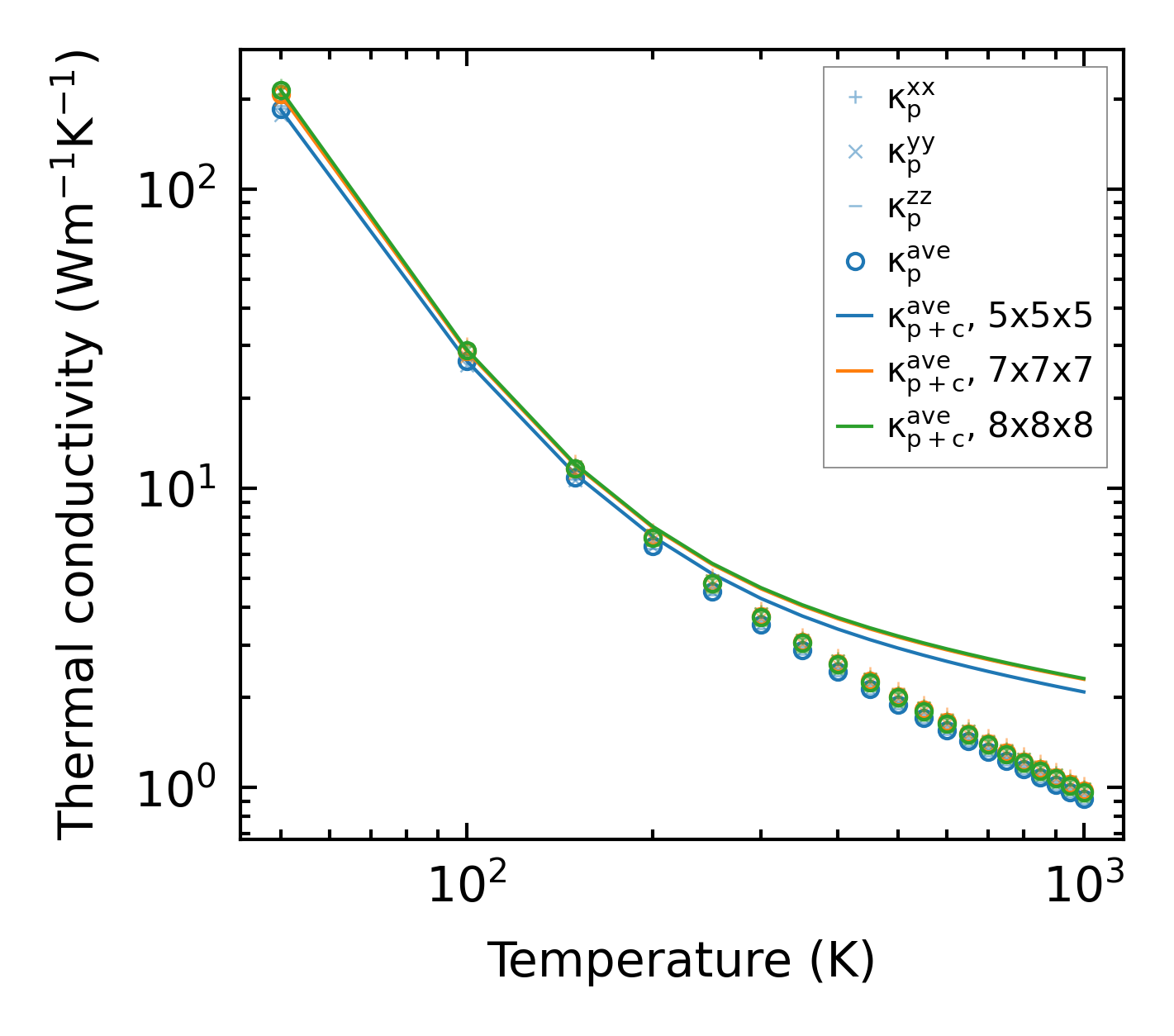

../../_images/fig_kappa2566.png — (a) Temperature-dependent lattice thermal conductivity

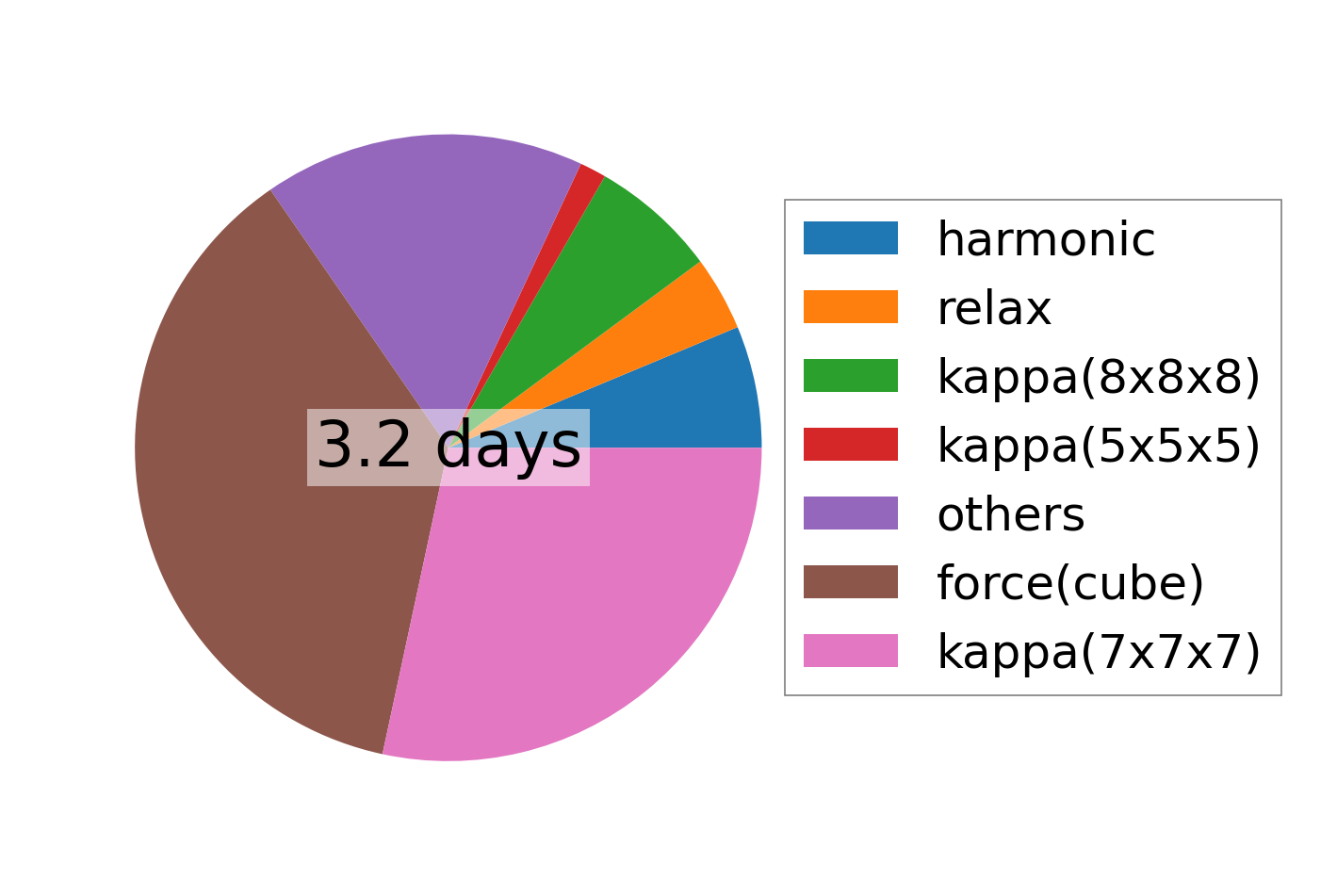

../../_images/fig_times4365.png — (b) Computation time
