mp-768469/TmGaO3/anharm

Space group: P6_3cm (185)
Link: Materials Project
Download: mp-768469.tar.gz

Harmonic properties

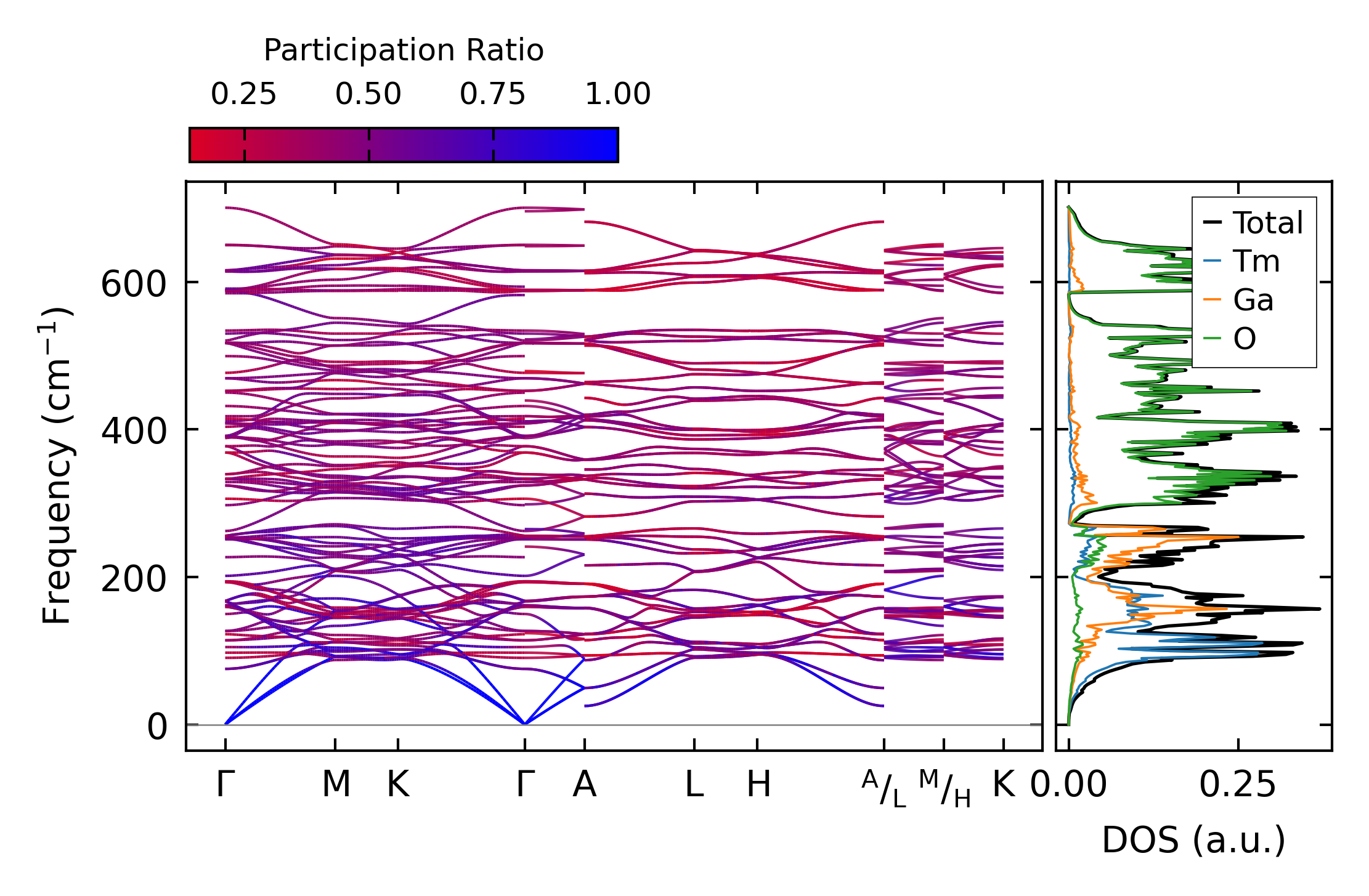

../../_images/fig_bandos_pr2850.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2850.png — (b) Thermodynamic properties

Grüneisen parameters

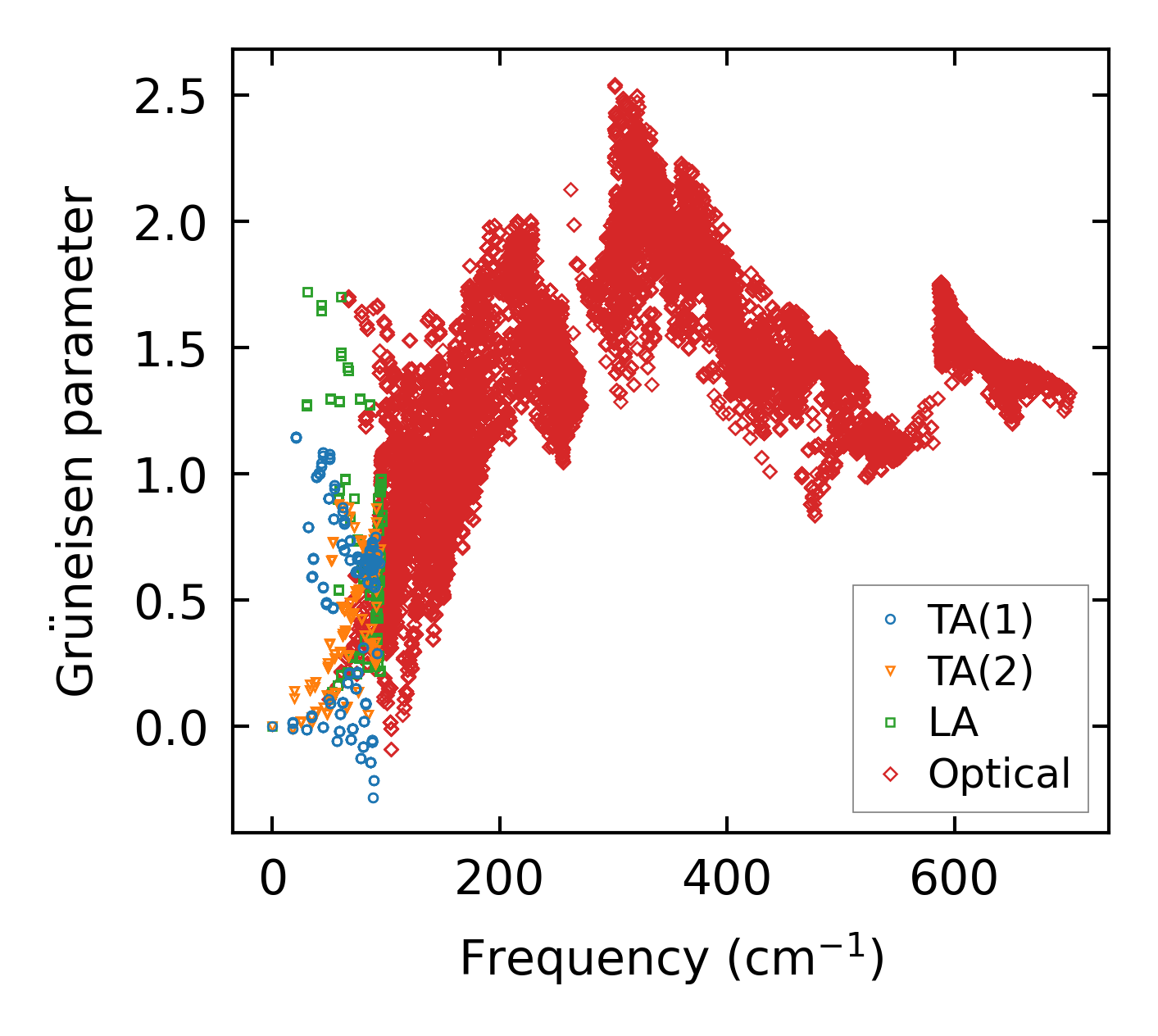

../../_images/fig_gru_all1406.png — (a) Grüneisen parameters

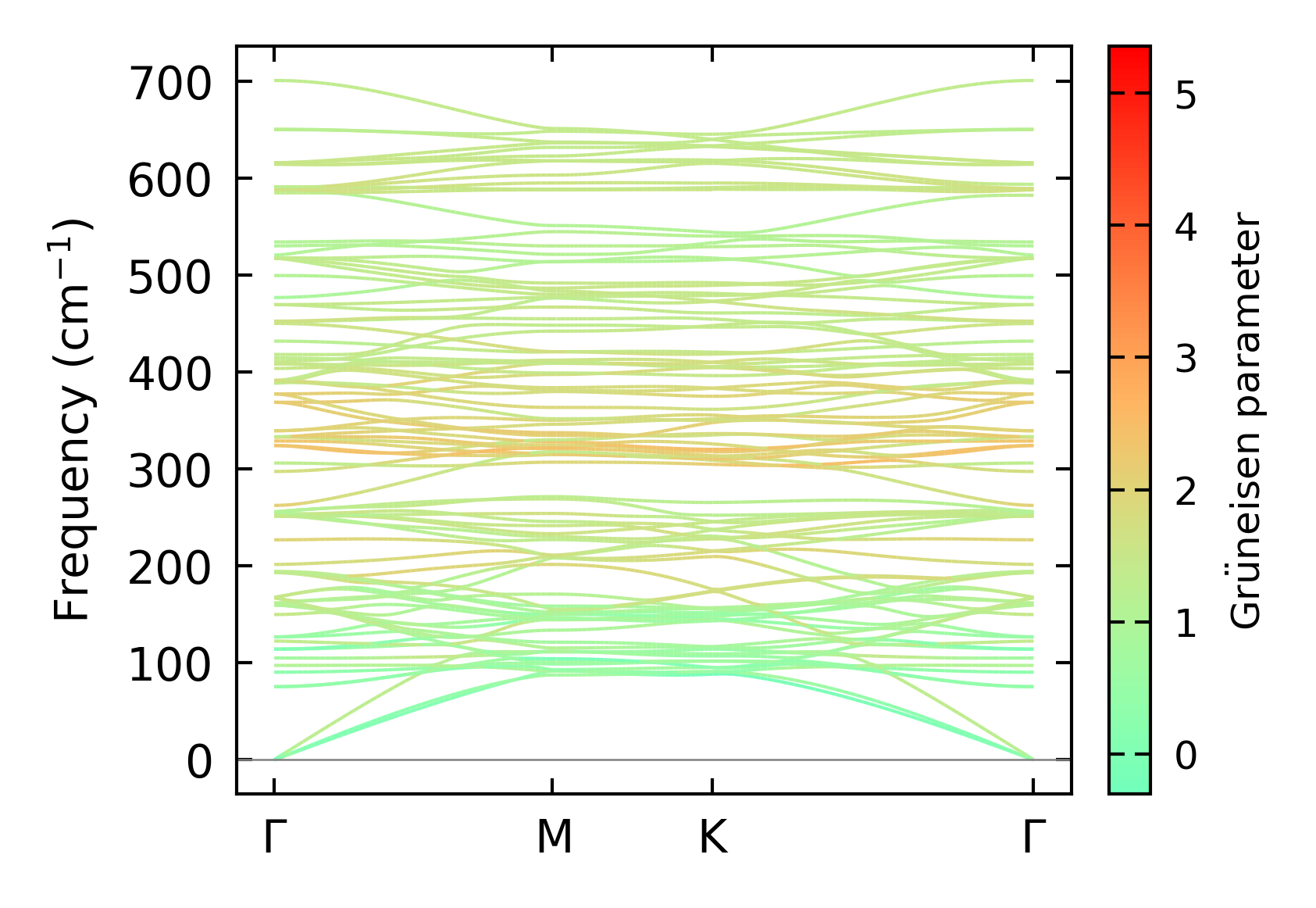

../../_images/fig_gruneisen1406.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x6, supercell: 2x2x1

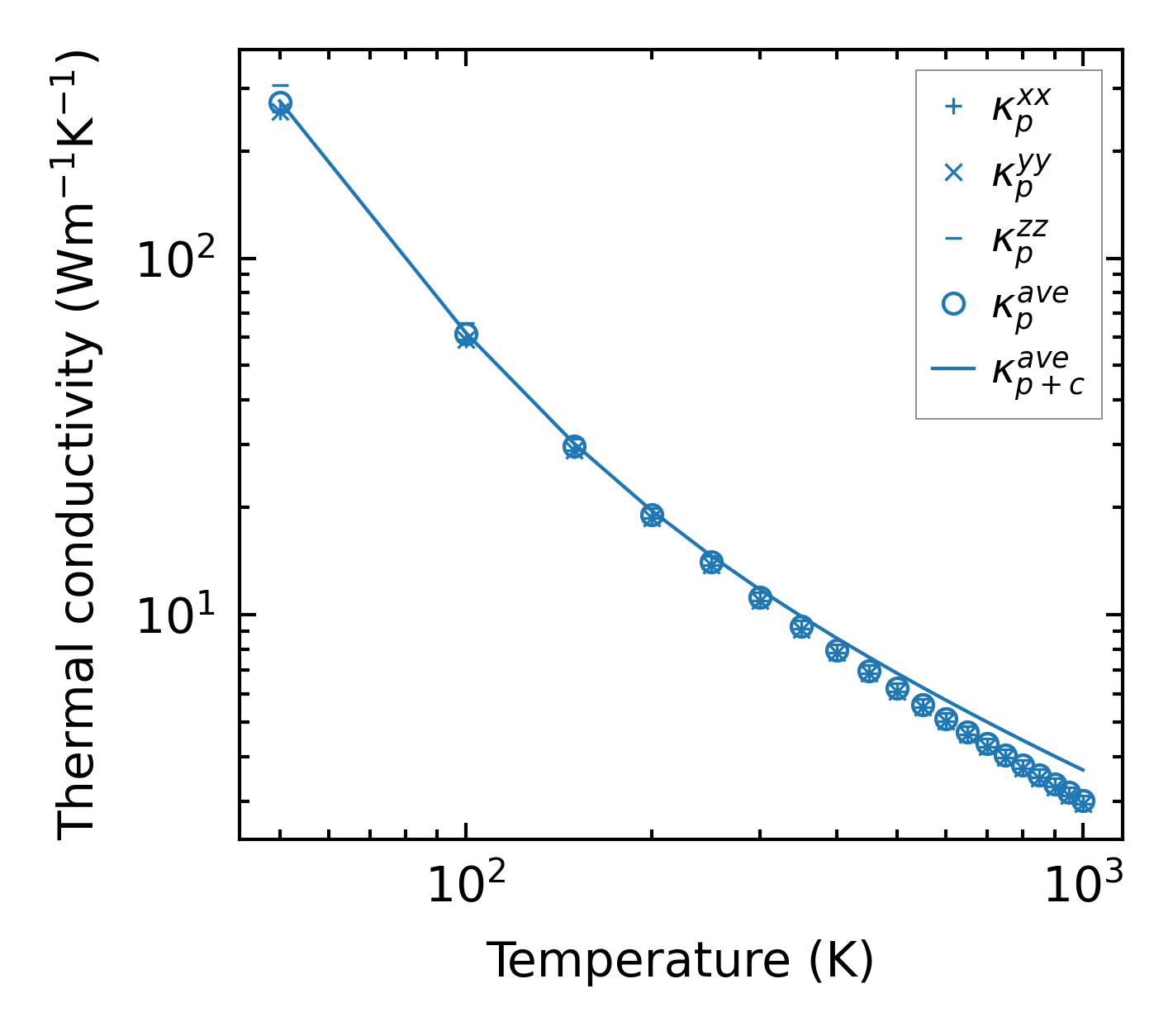

../../_images/fig_kappa2713.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1422.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime1396.png — (a) Phonon lifetime due to phonon-phonon scattering

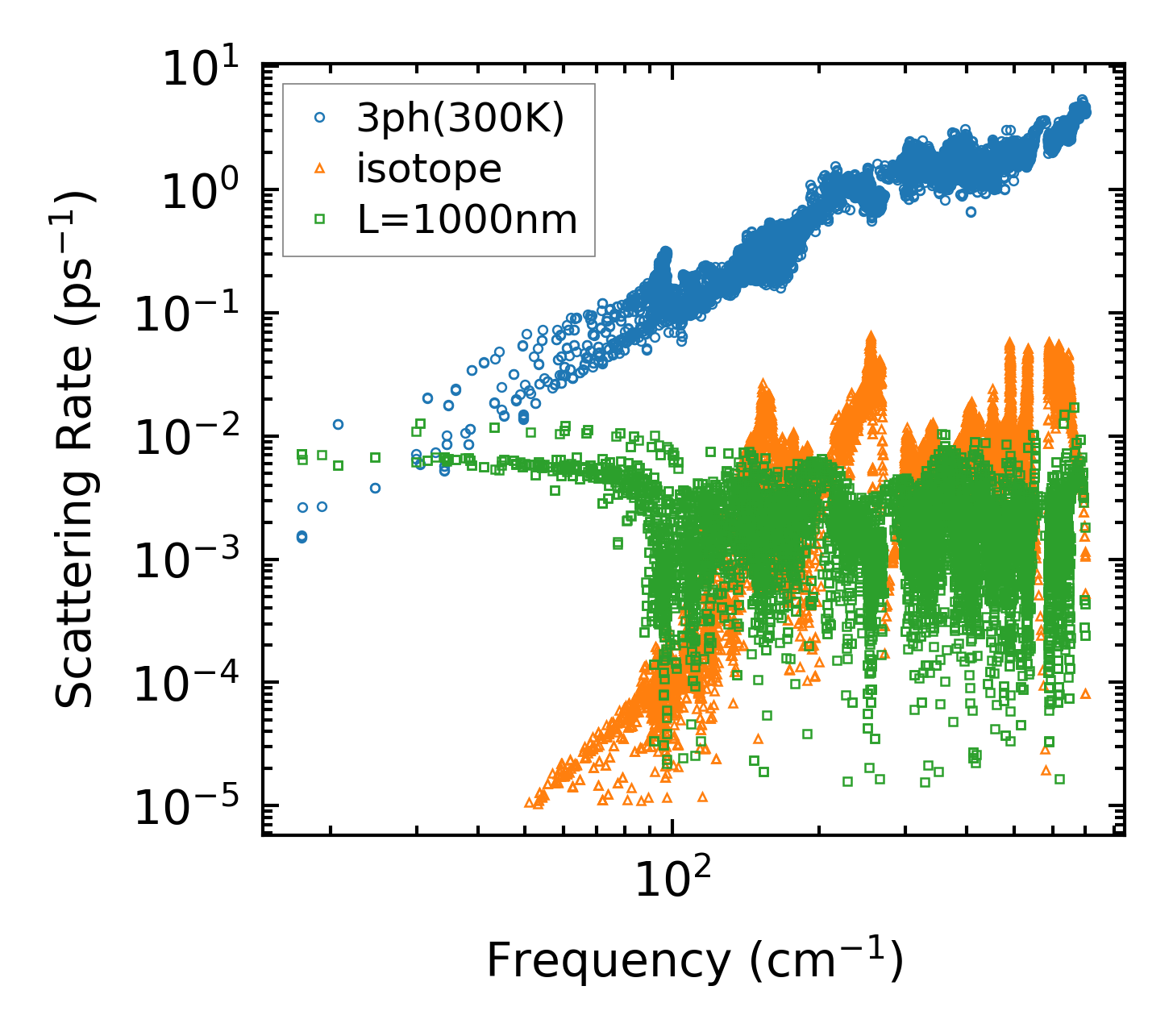

../../_images/fig_scat_rates1395.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

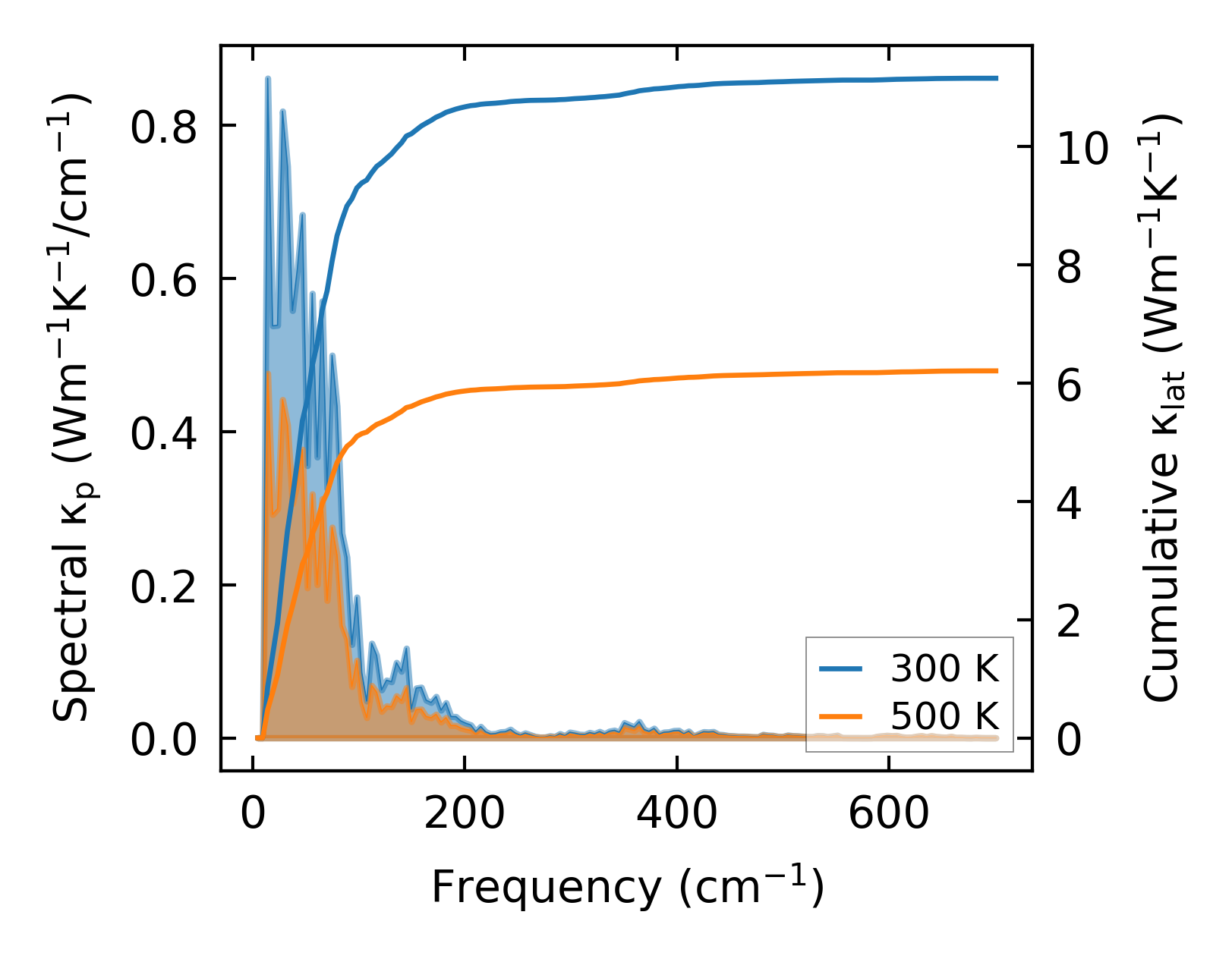

../../_images/fig_cumu_frequency1396.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

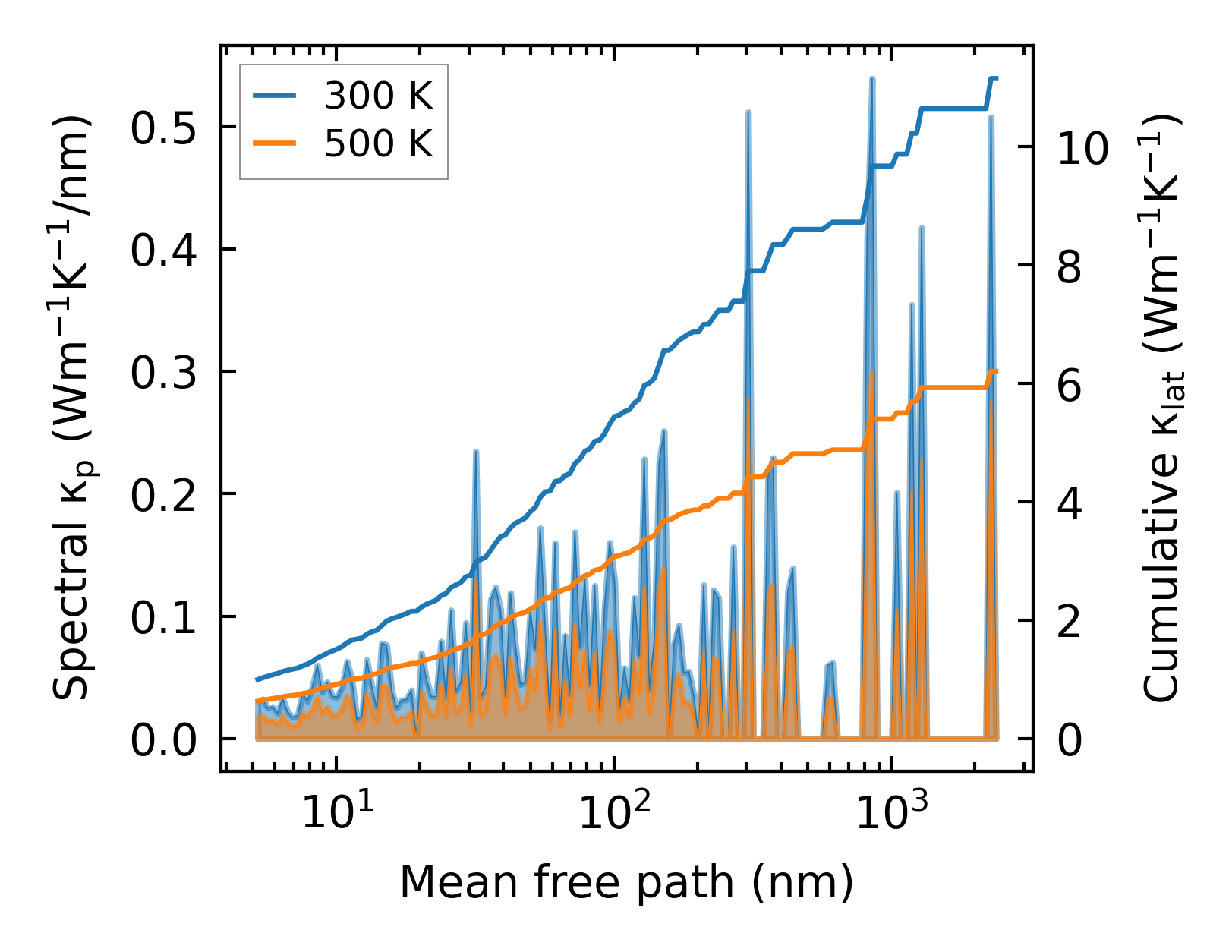

../../_images/fig_cumu_mfp1396.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

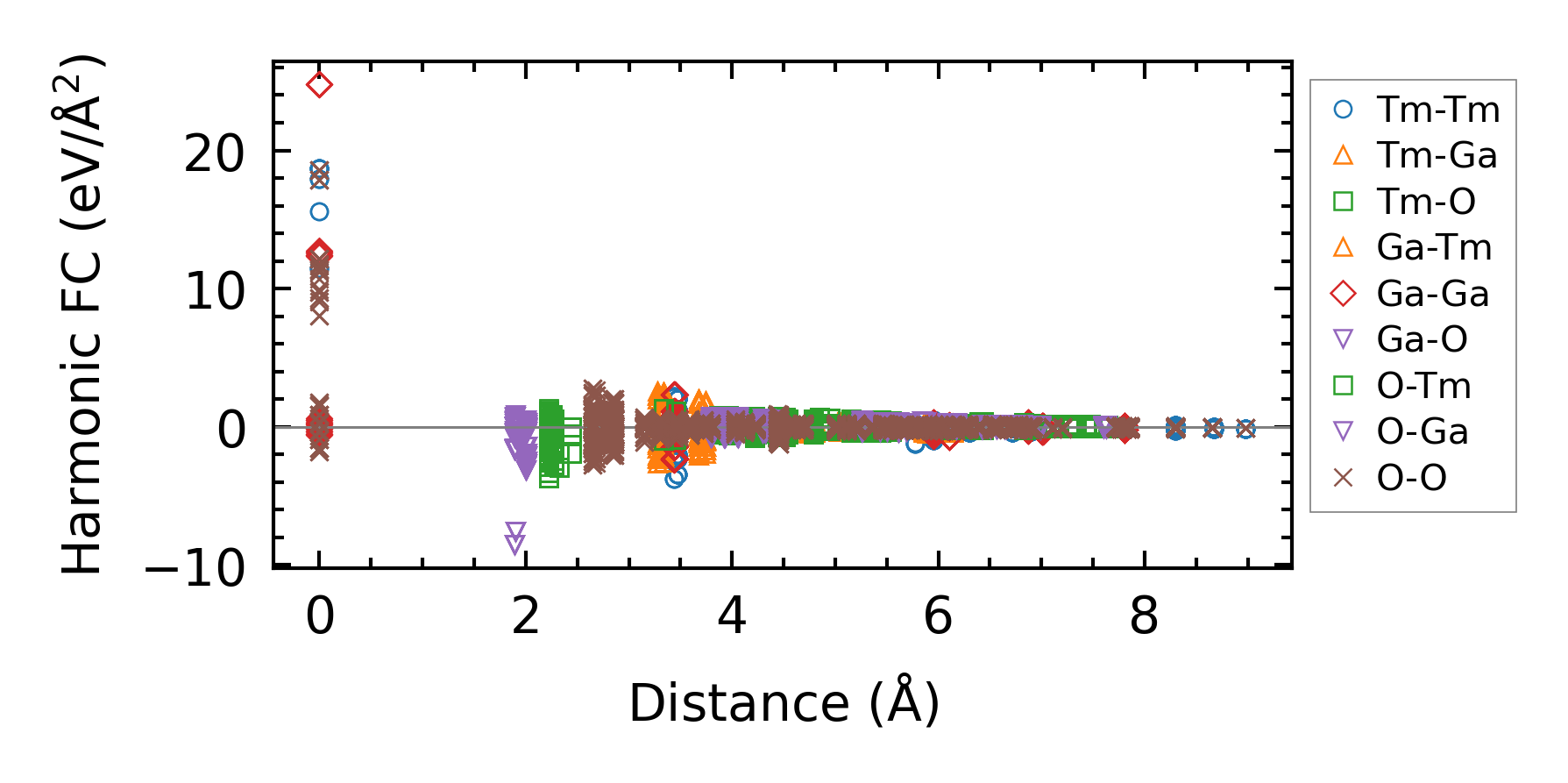

../../_images/fig_fc22671.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa2714.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times4804.png — (b) Computation time
