mp-768810-3/Sr4Br6O/anharm

Space group: P4_2/nmc (137)
Link: Materials Project
Download: mp-768810-3.tar.gz

Harmonic properties

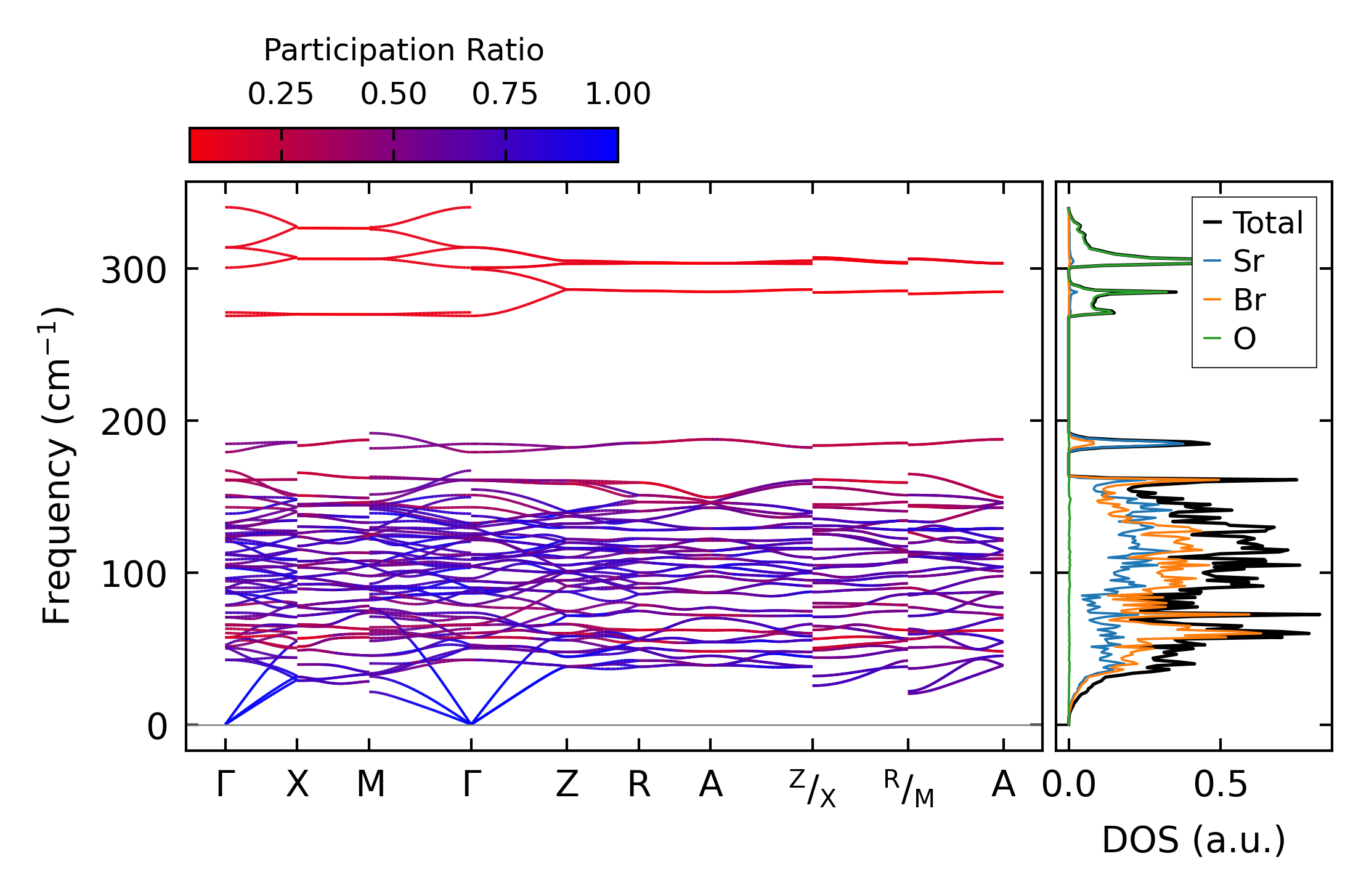

../../_images/fig_bandos_pr2601.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2601.png — (b) Thermodynamic properties

Grüneisen parameters

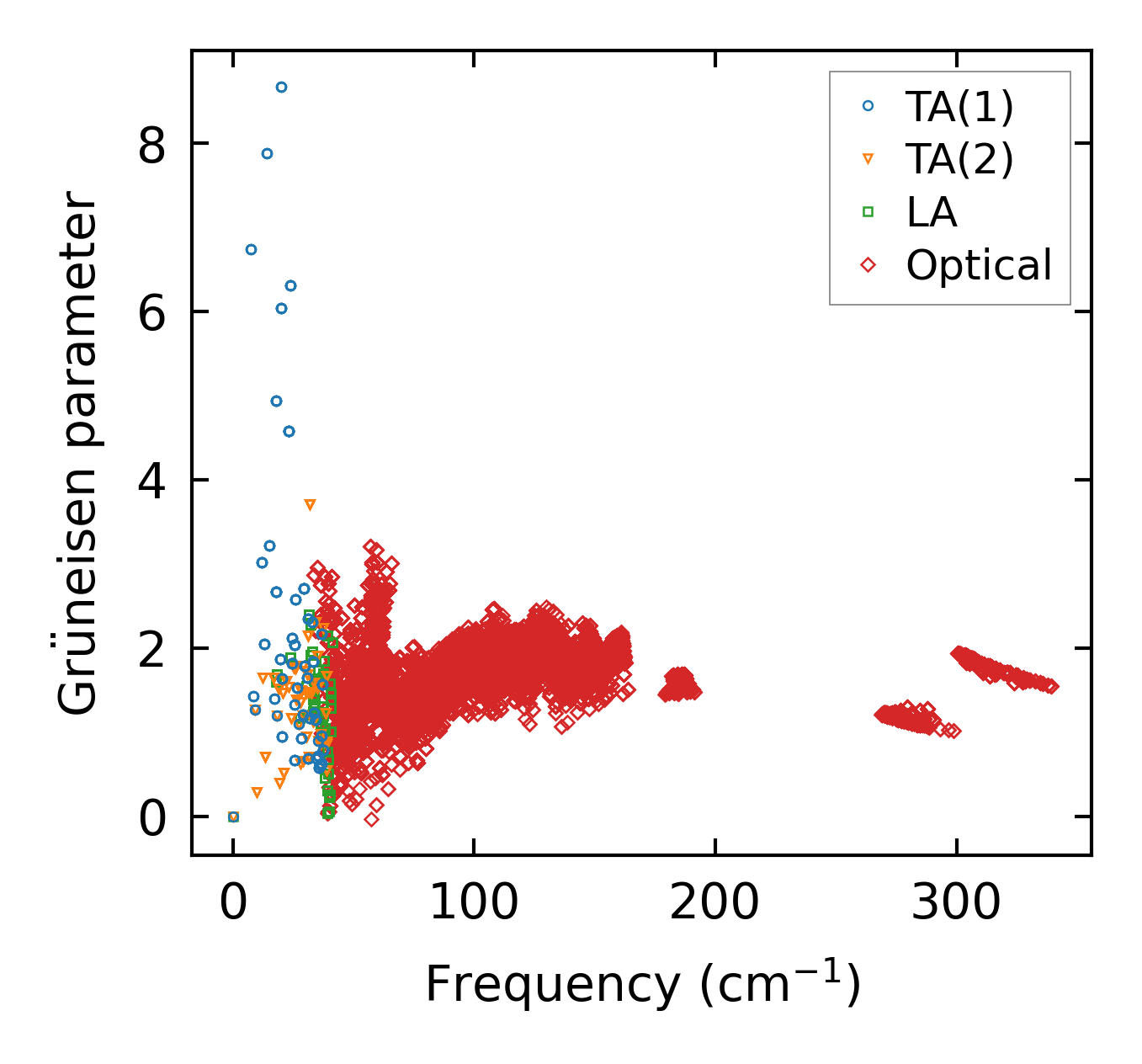

../../_images/fig_gru_all1323.png — (a) Grüneisen parameters

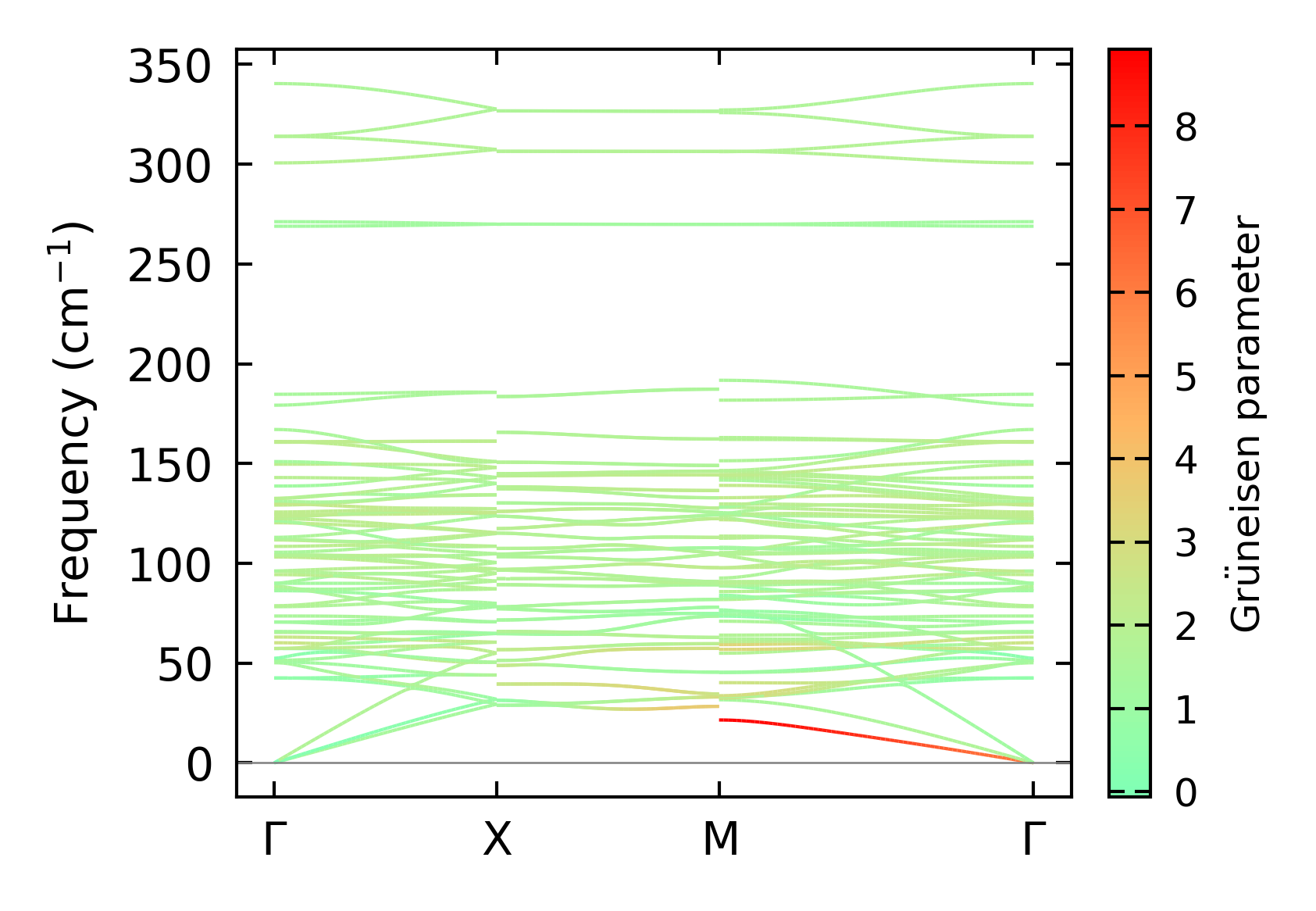

../../_images/fig_gruneisen1323.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x7x9, supercell: 1x1x2

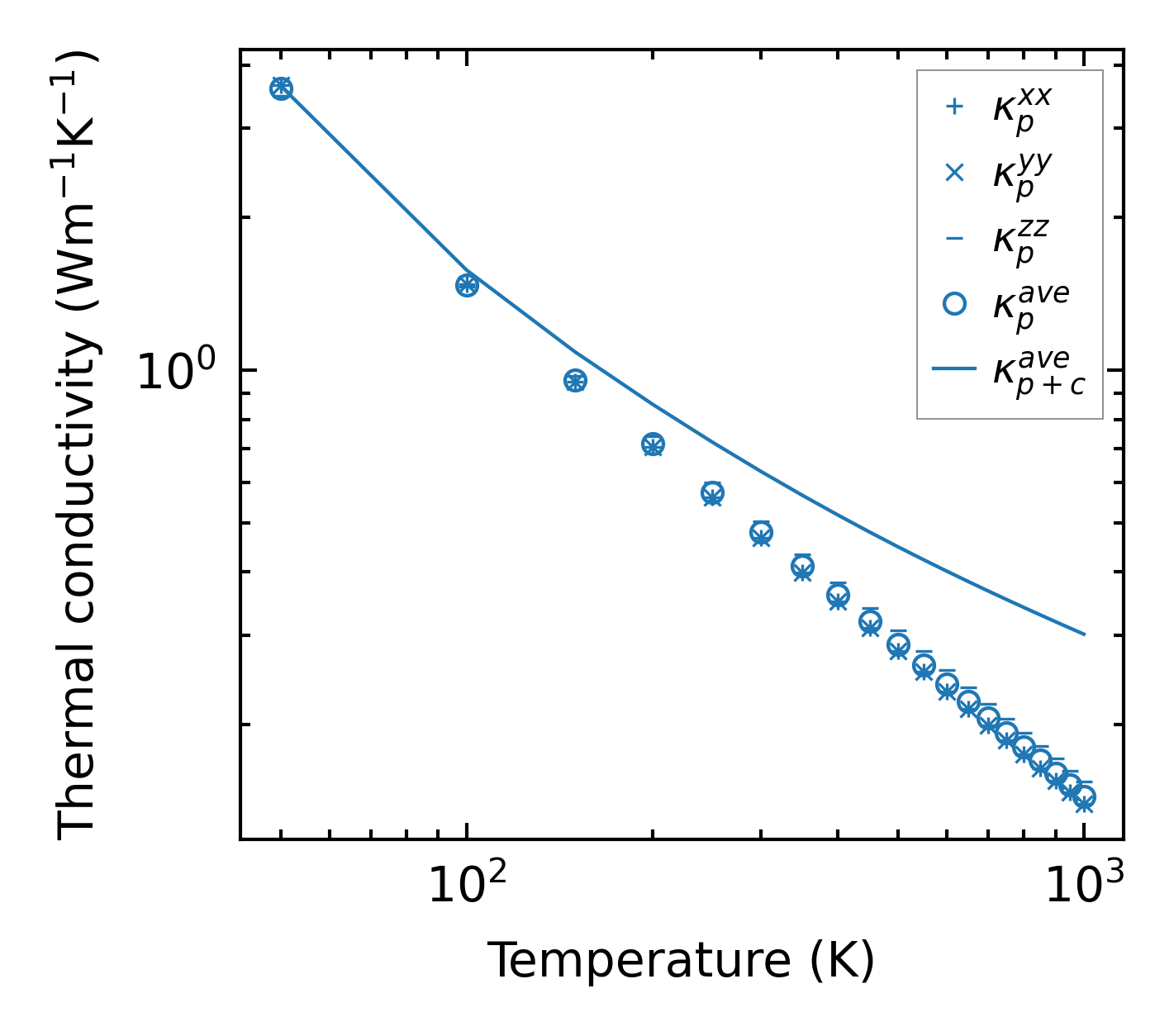

../../_images/fig_kappa2547.png — (a) Temperature-dependent lattice thermal conductivity

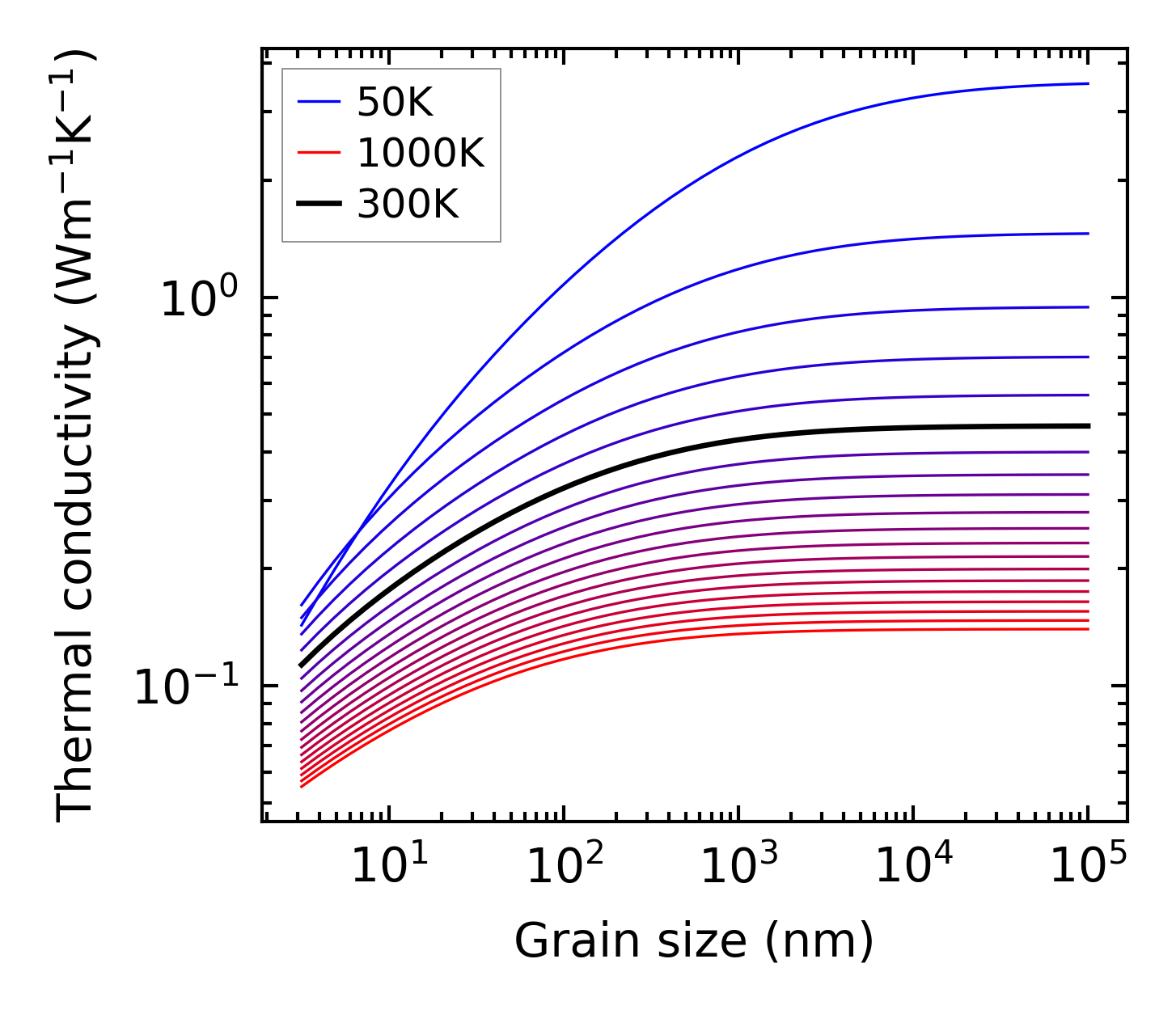

../../_images/fig_kappa_vs_grain_size1339.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

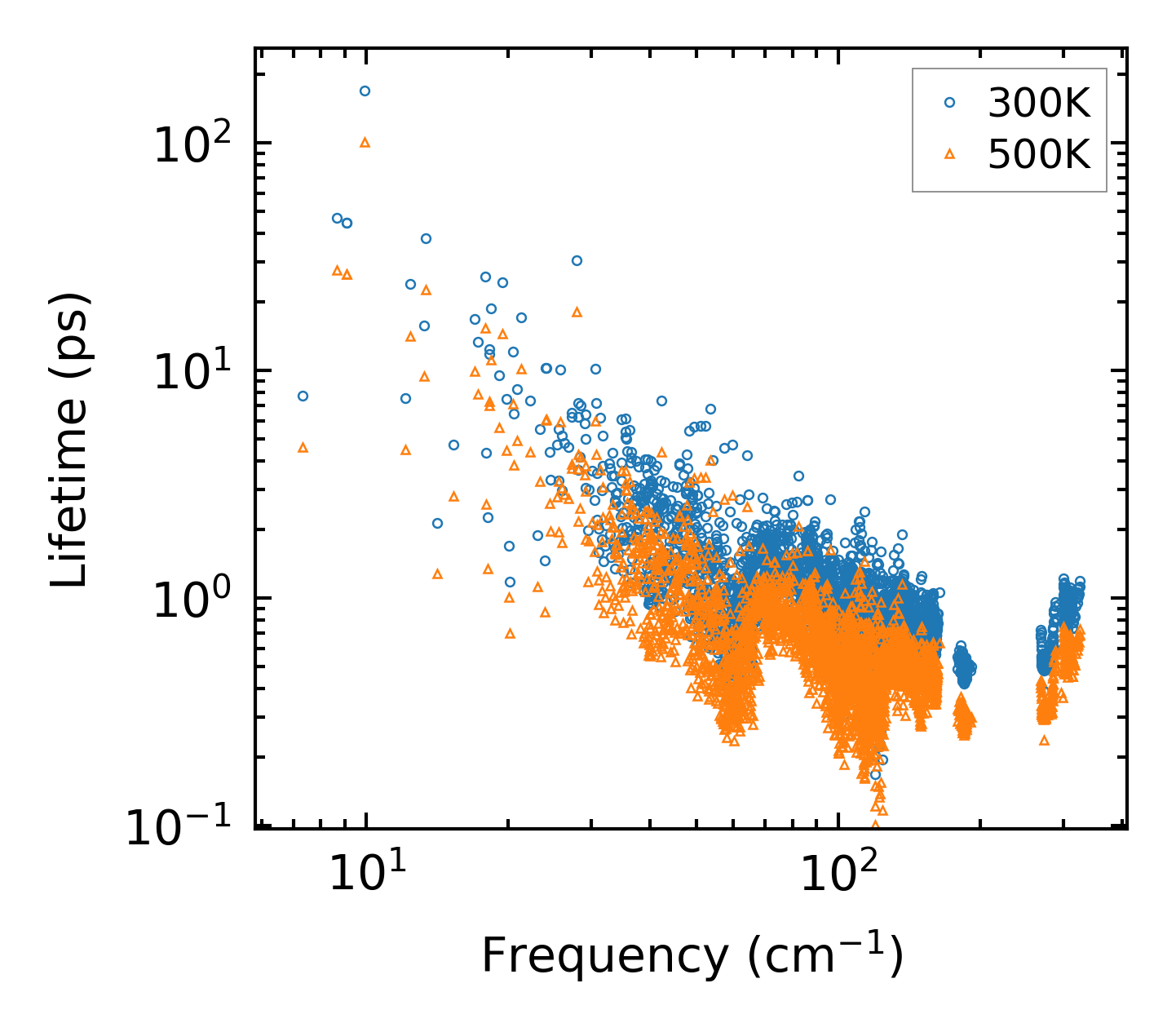

../../_images/fig_lifetime1313.png — (a) Phonon lifetime due to phonon-phonon scattering

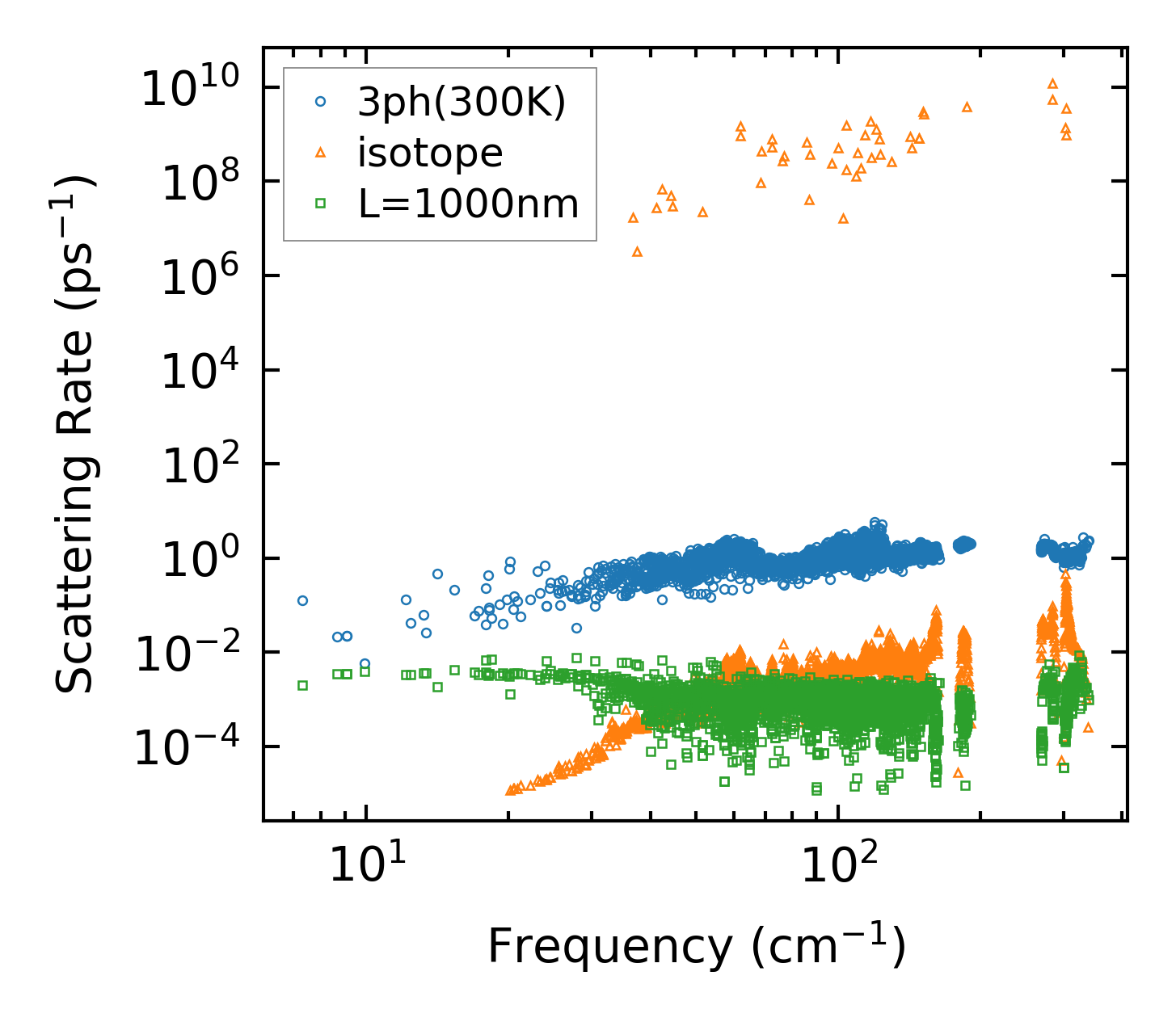

../../_images/fig_scat_rates1312.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

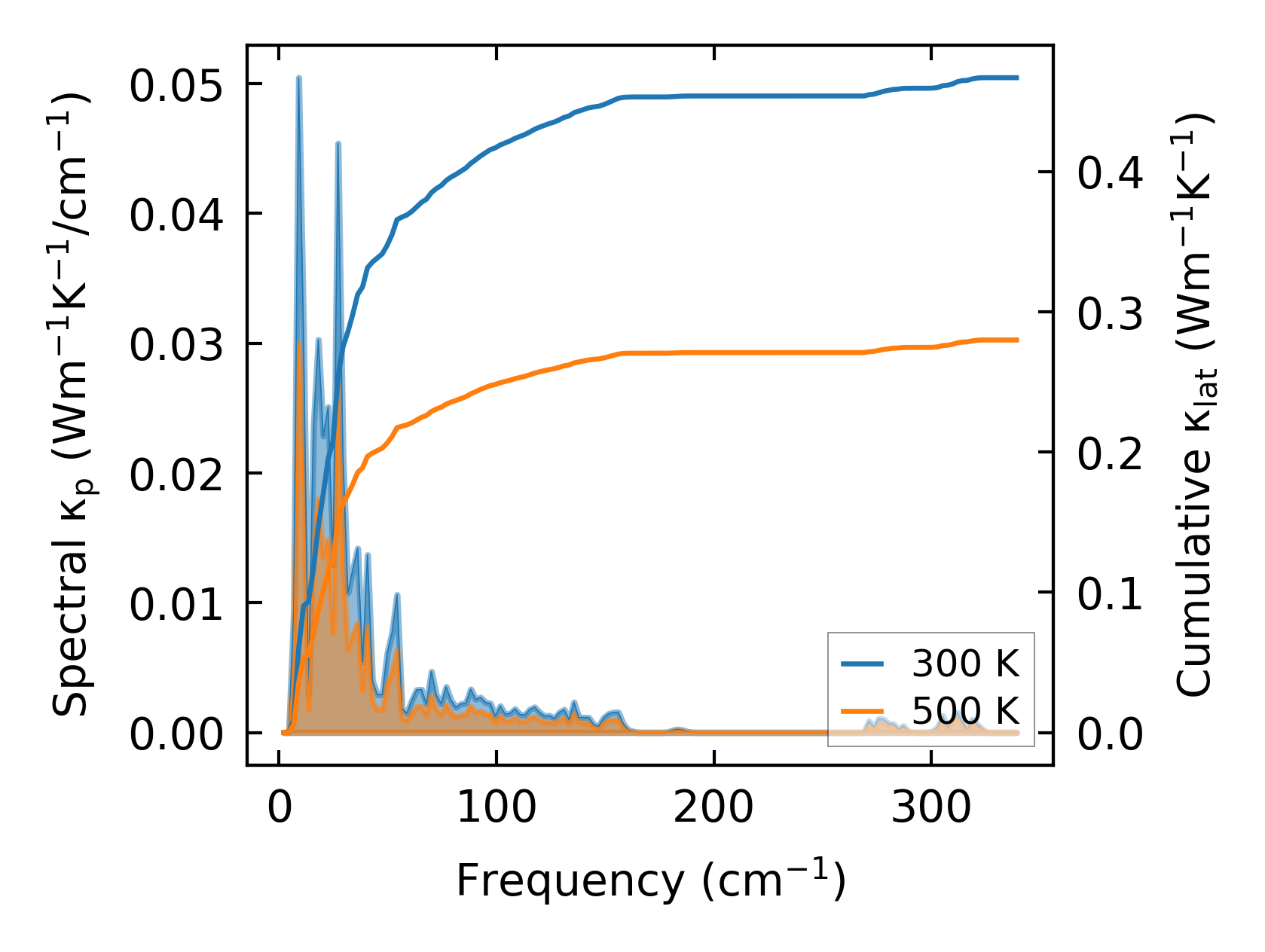

../../_images/fig_cumu_frequency1313.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

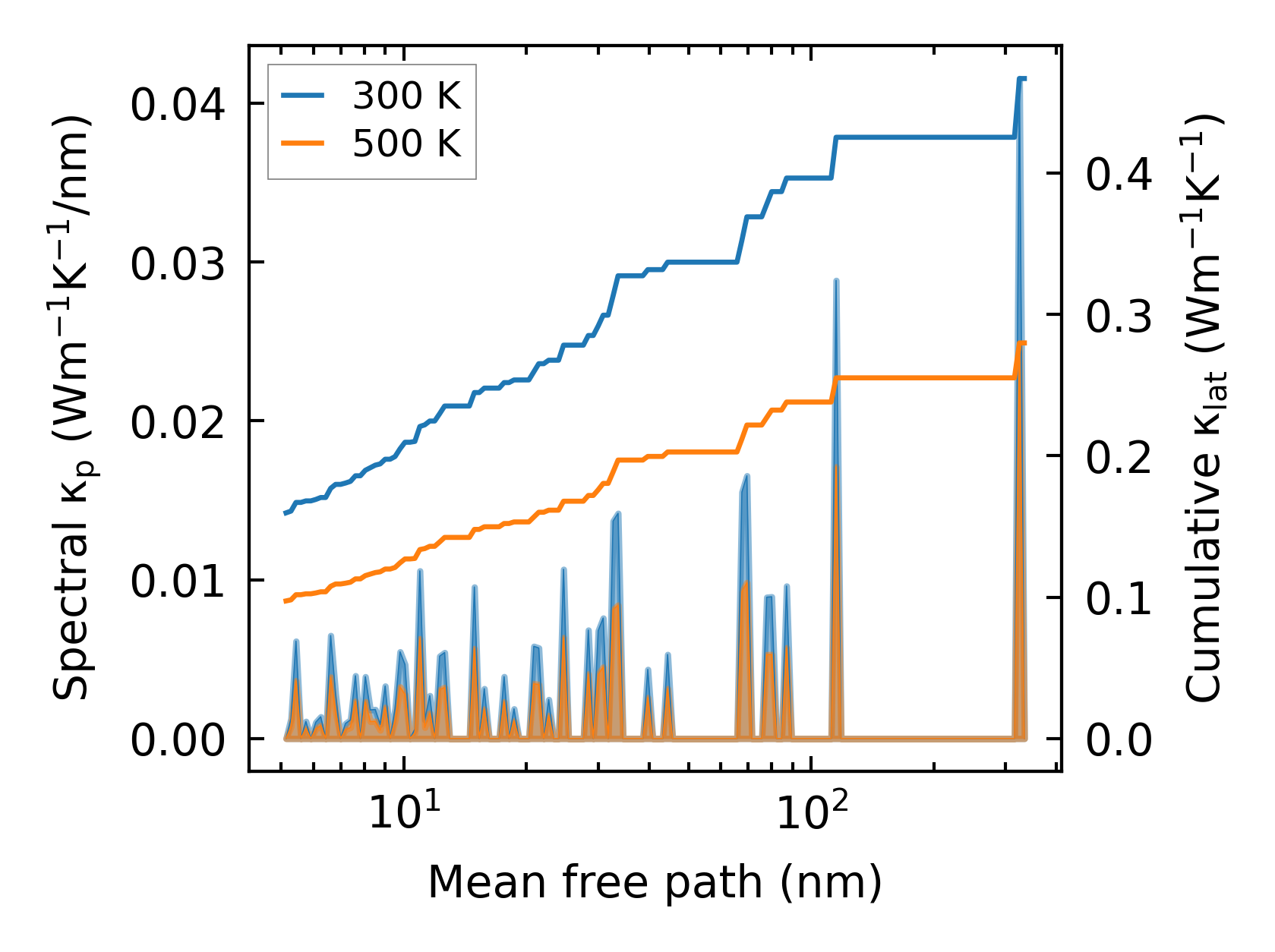

../../_images/fig_cumu_mfp1313.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

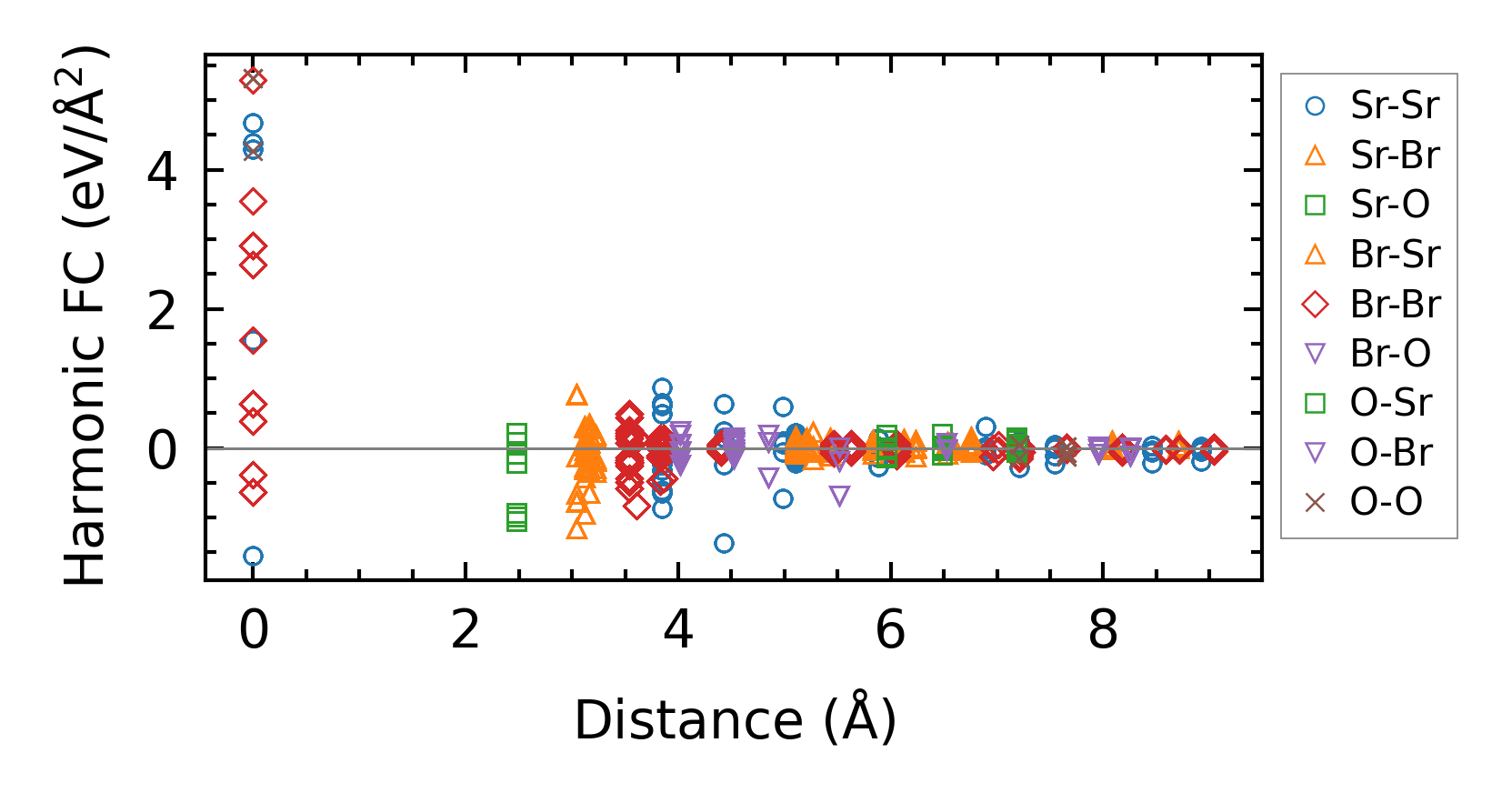

../../_images/fig_fc22422.png — (a) Force constants w.r.t atomic distance

Summary

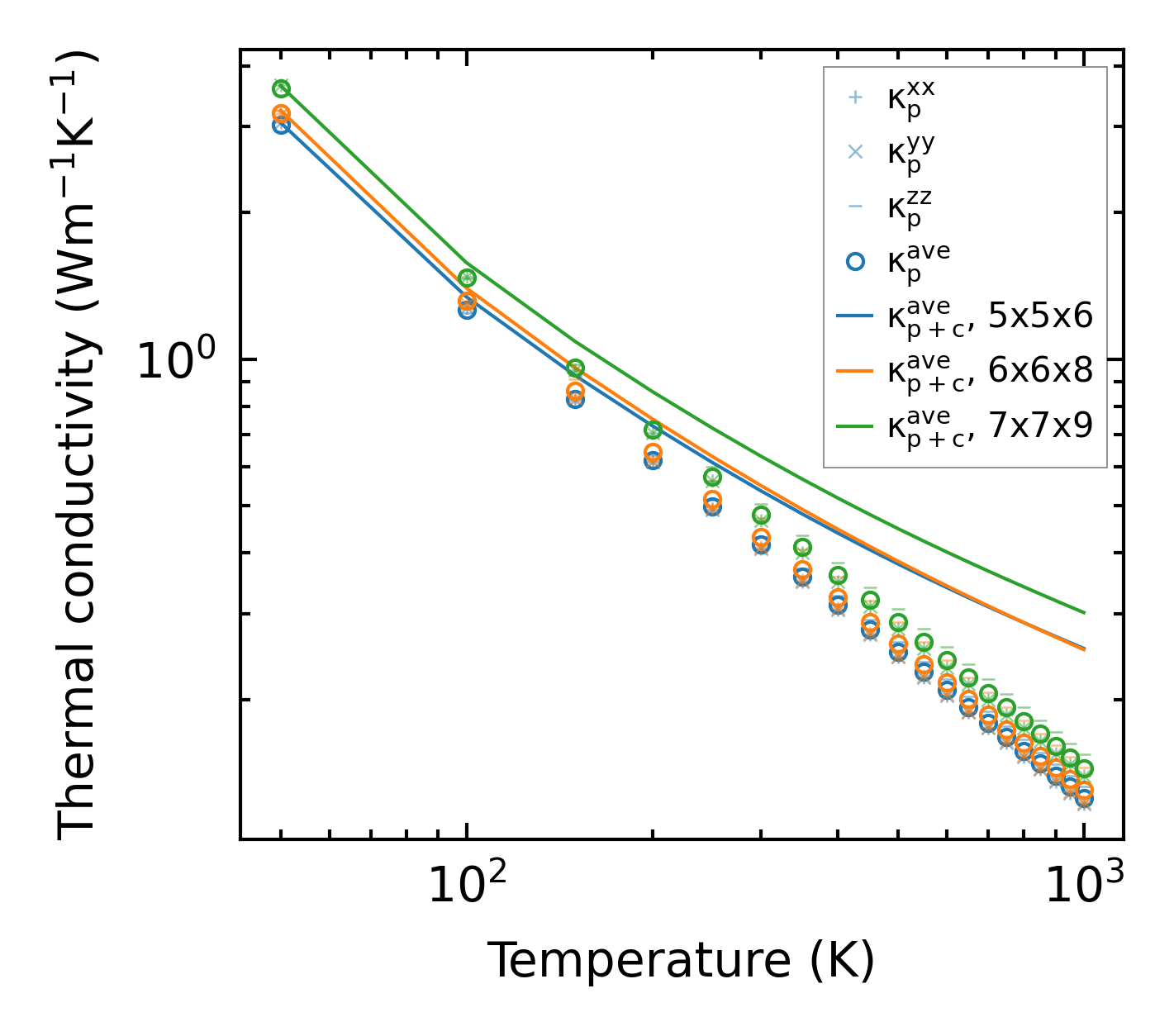

../../_images/fig_kappa2548.png — (a) Temperature-dependent lattice thermal conductivity

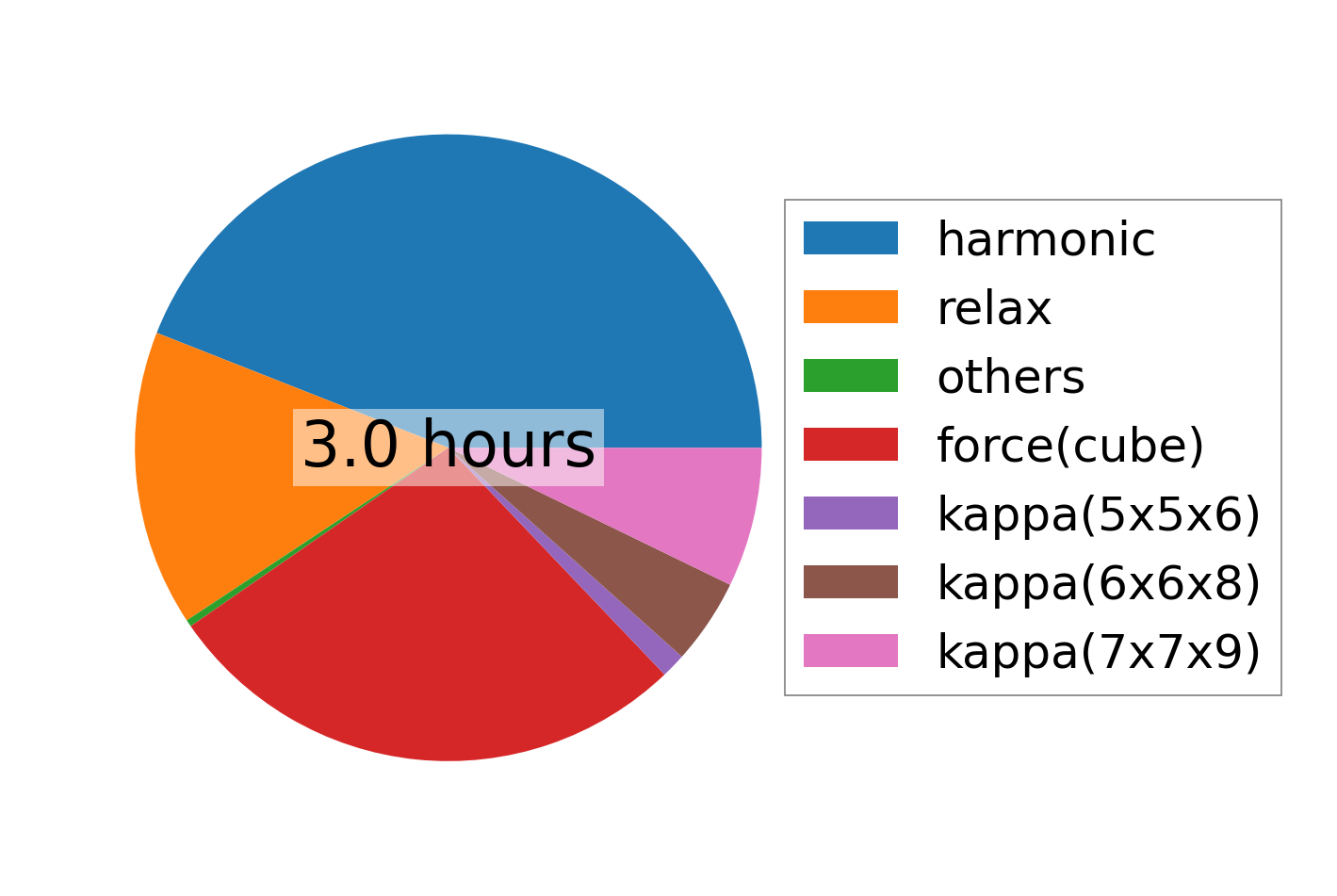

../../_images/fig_times4330.png — (b) Computation time
