mp-768240/BaY2F8/anharm

Space group: C2/m (12)
Link: Materials Project
Download: mp-768240.tar.gz

Harmonic properties

../../_images/fig_bandos_pr2818.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2818.png — (b) Thermodynamic properties

Grüneisen parameters

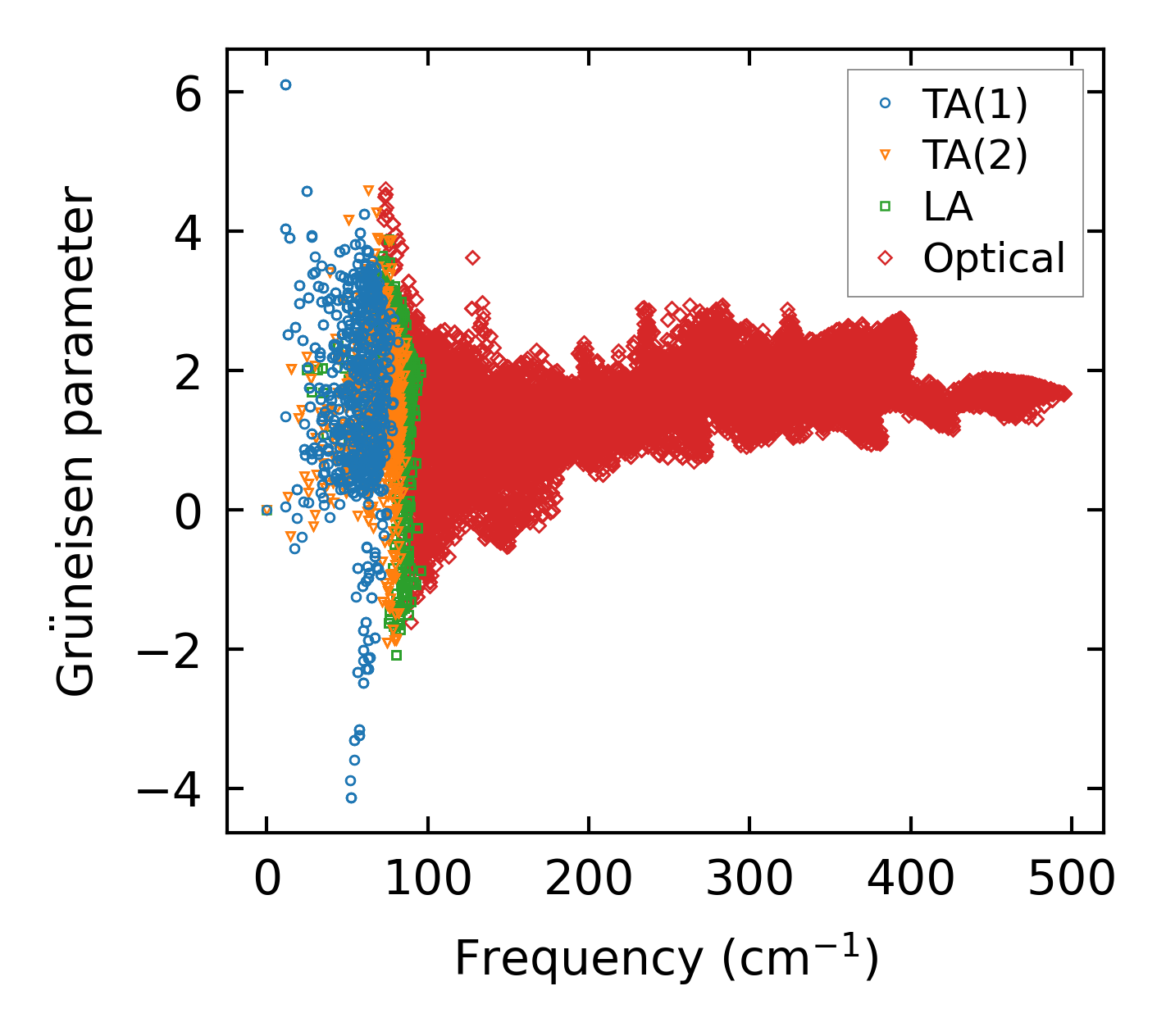

../../_images/fig_gru_all1390.png — (a) Grüneisen parameters

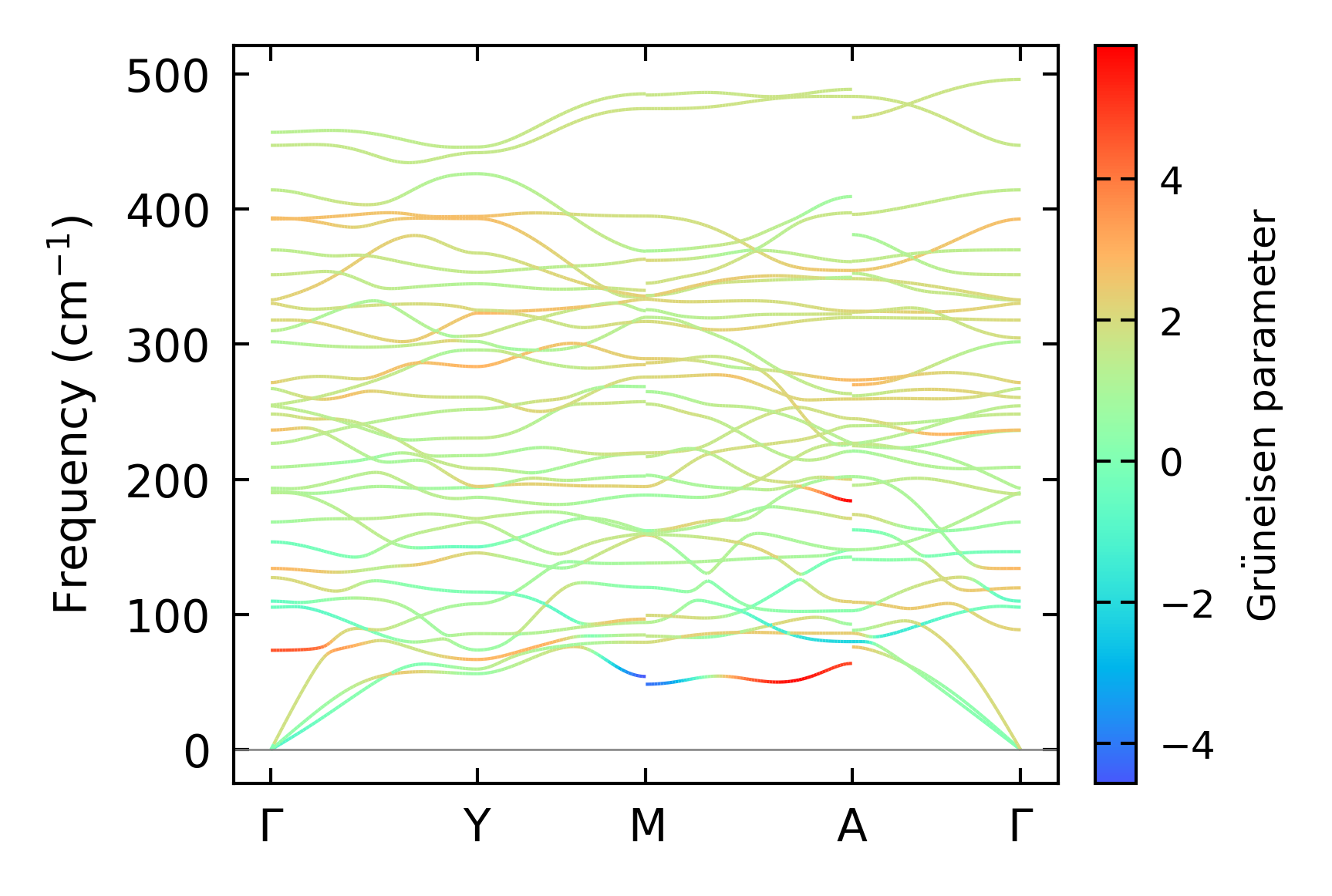

../../_images/fig_gruneisen1390.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x17, supercell: 2x1x3

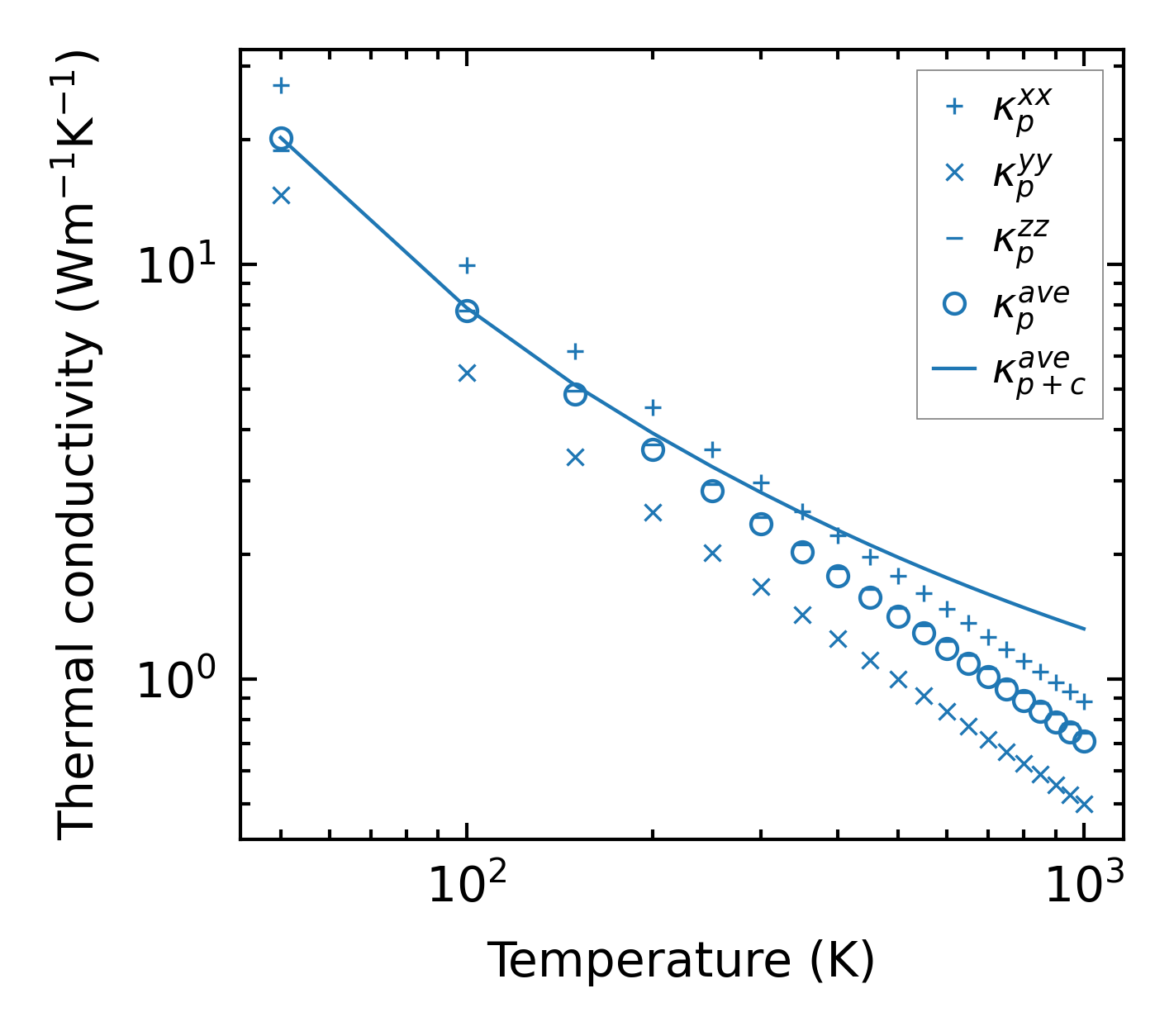

../../_images/fig_kappa2681.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1406.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime1380.png — (a) Phonon lifetime due to phonon-phonon scattering

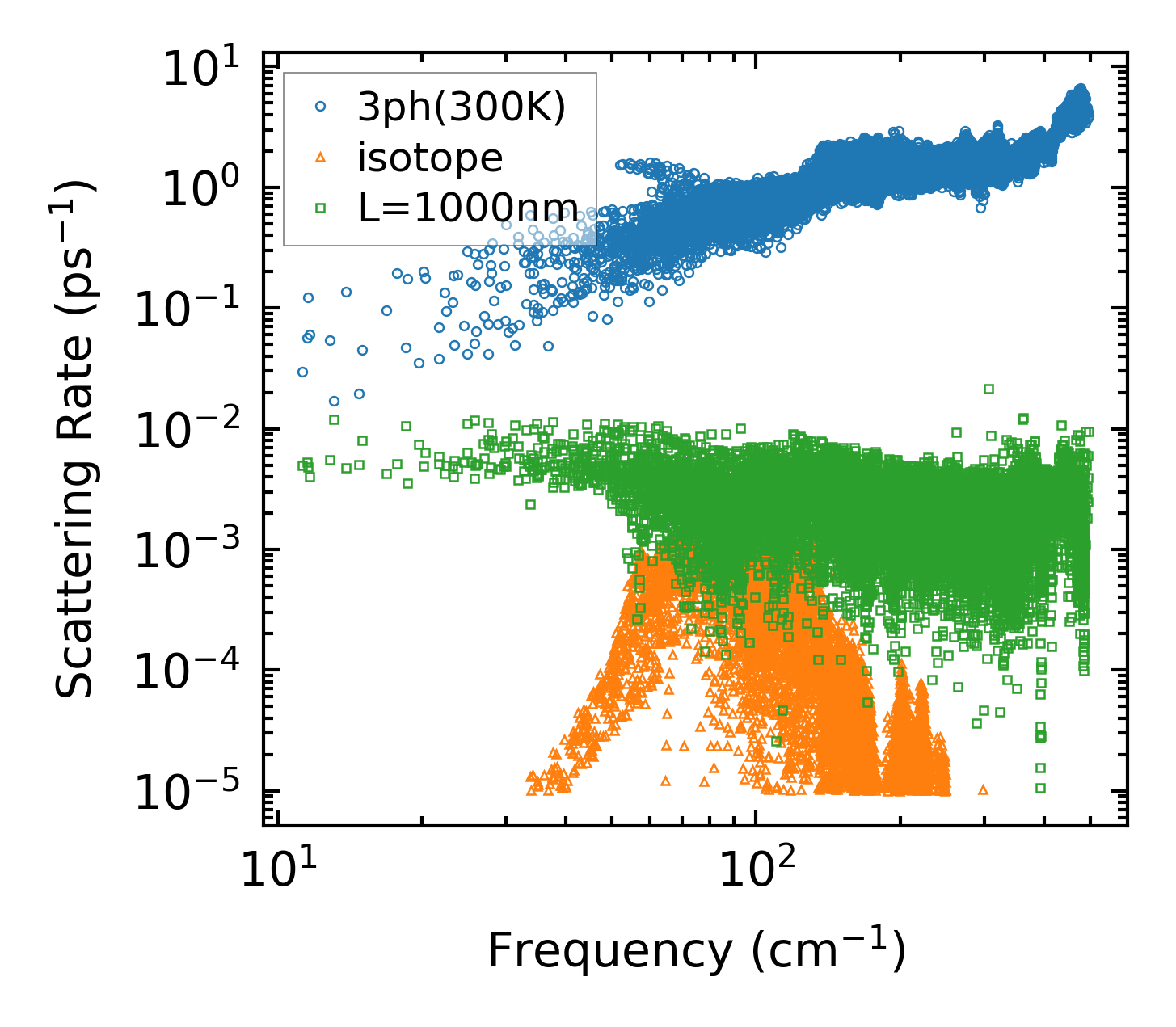

../../_images/fig_scat_rates1379.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

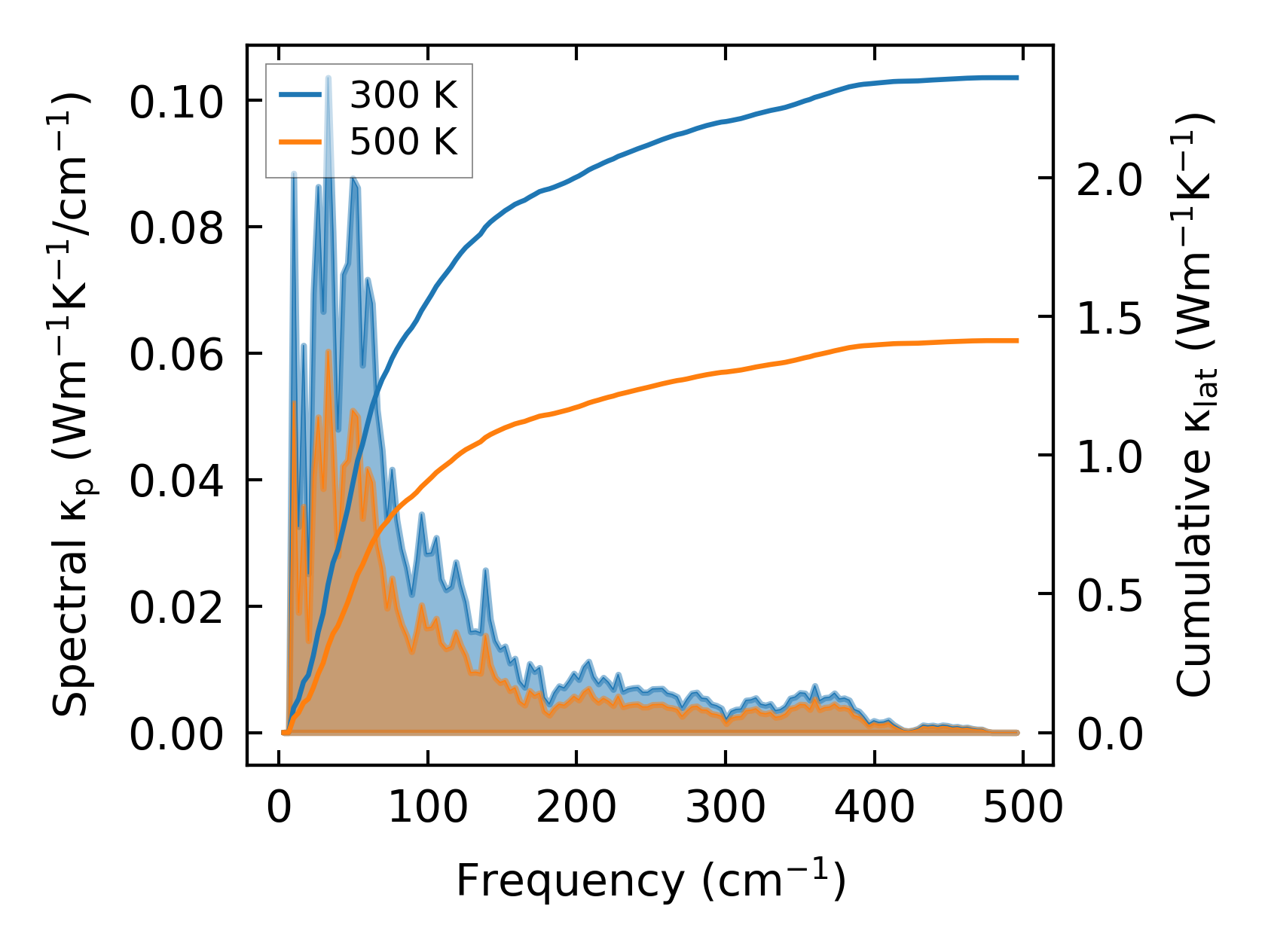

../../_images/fig_cumu_frequency1380.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

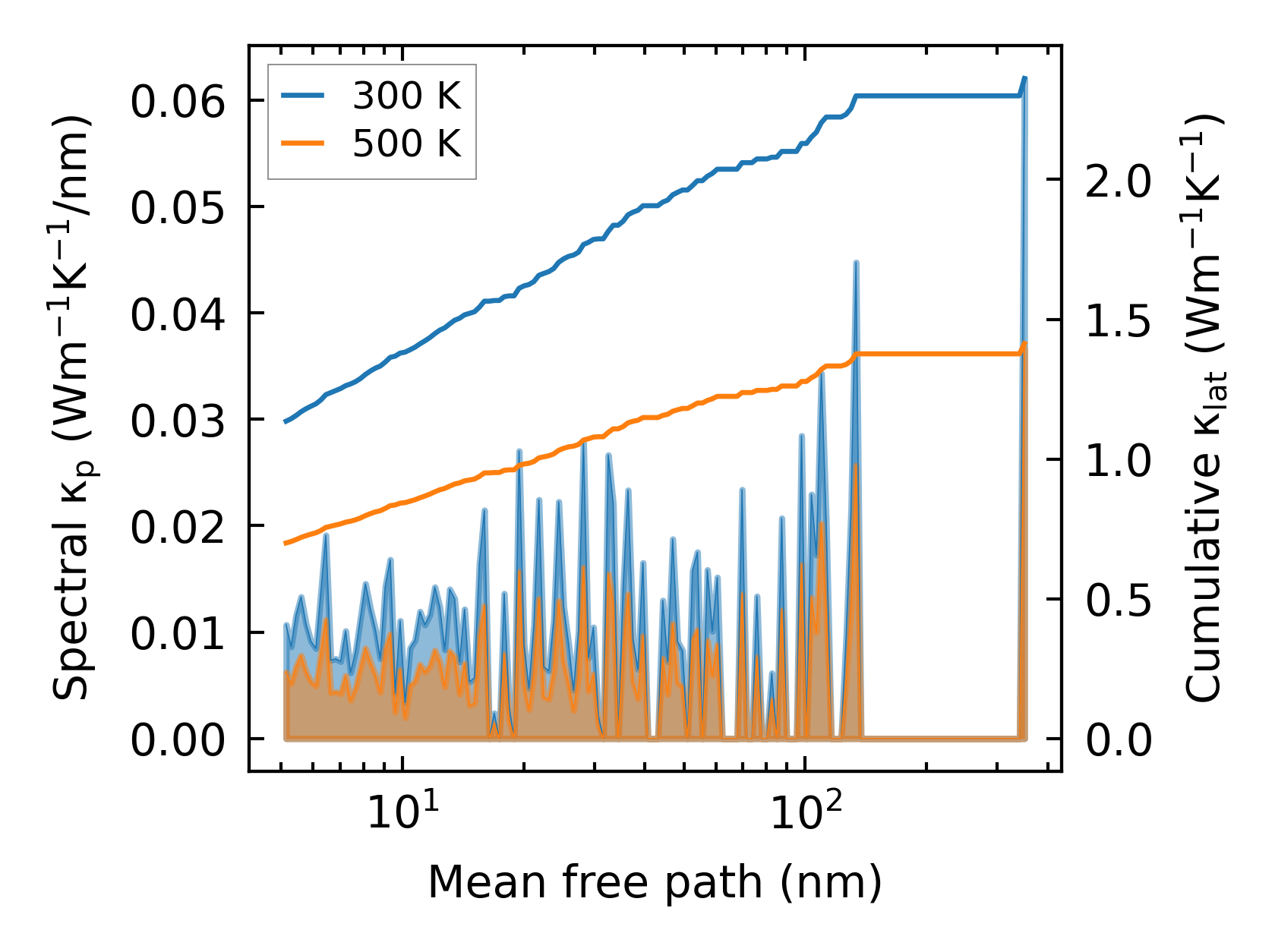

../../_images/fig_cumu_mfp1380.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc22639.png — (a) Force constants w.r.t atomic distance

Summary

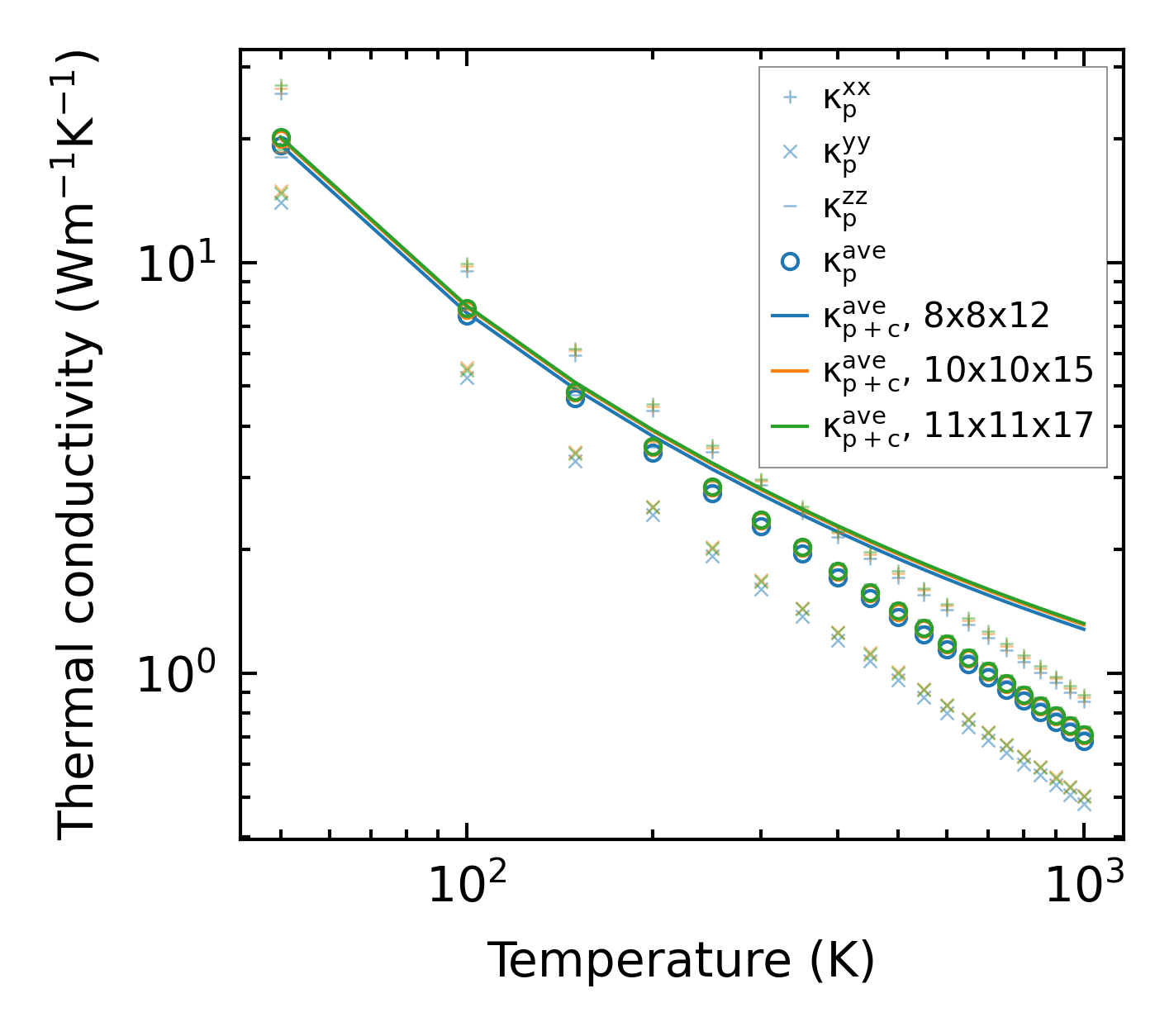

../../_images/fig_kappa2682.png — (a) Temperature-dependent lattice thermal conductivity

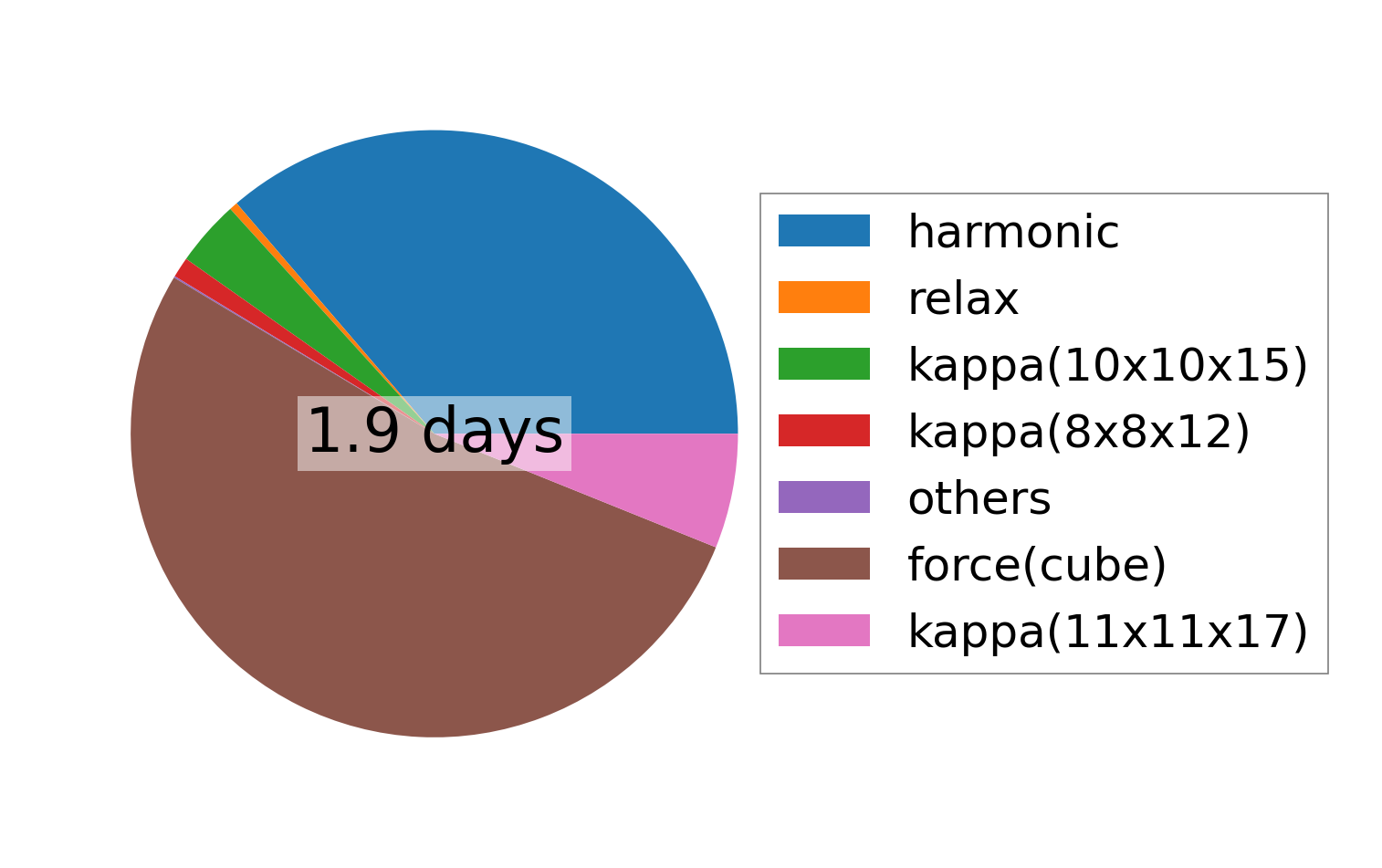

../../_images/fig_times4750.png — (b) Computation time
