mp-768865/Lu2GeO5/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-768865.tar.gz

Harmonic properties

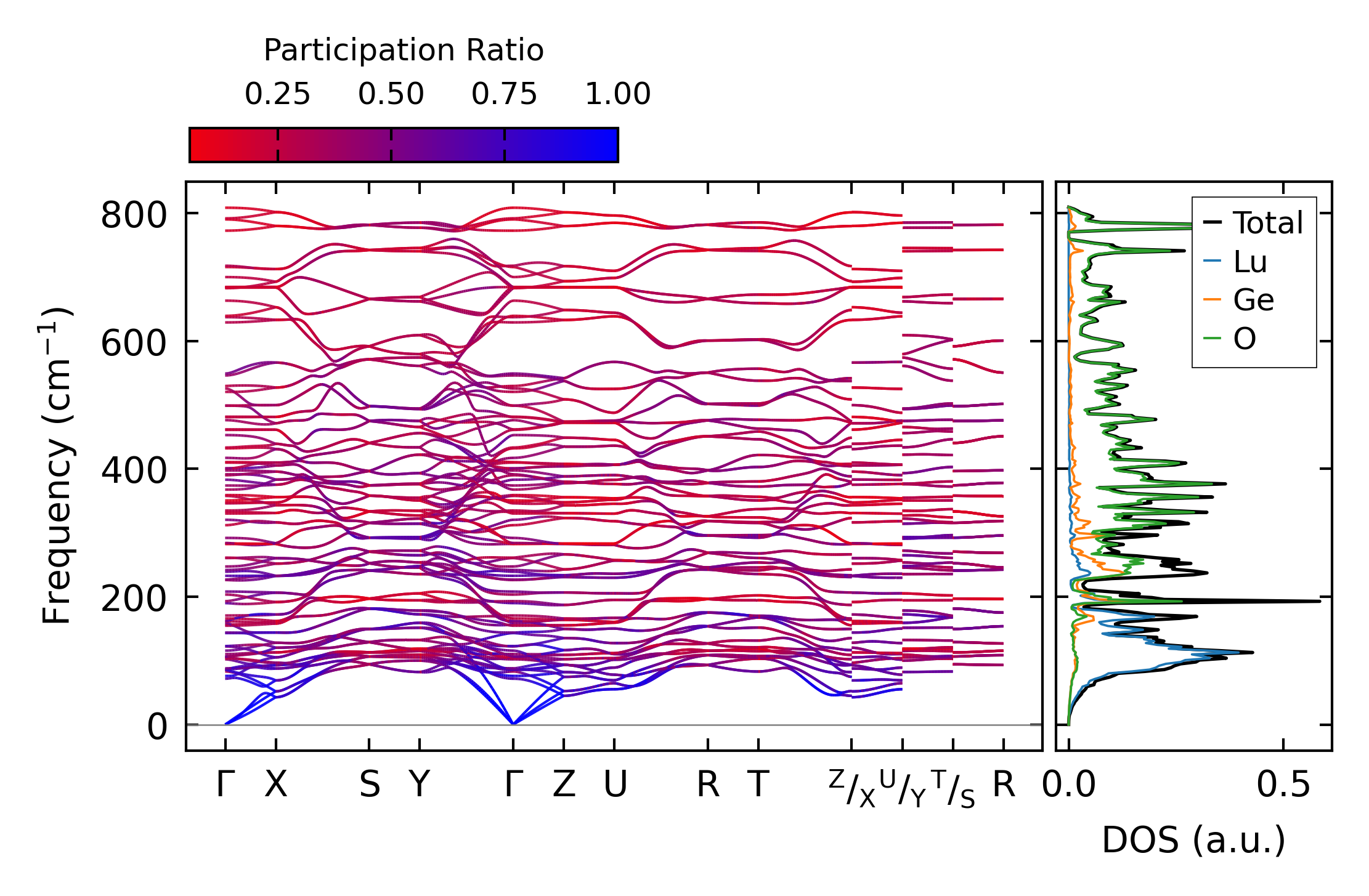

../../_images/fig_bandos_pr2608.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2608.png — (b) Thermodynamic properties

Grüneisen parameters

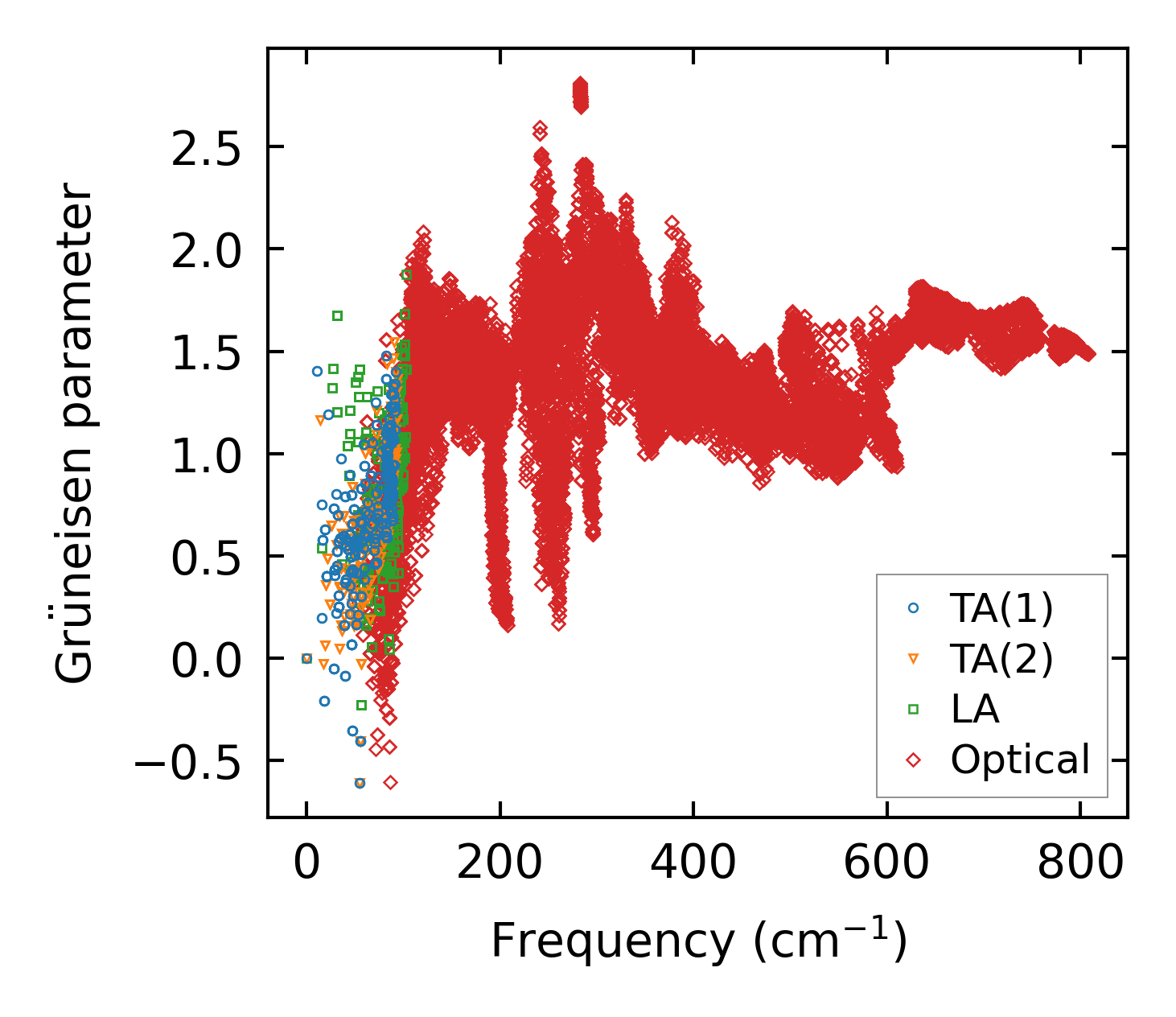

../../_images/fig_gru_all1327.png — (a) Grüneisen parameters

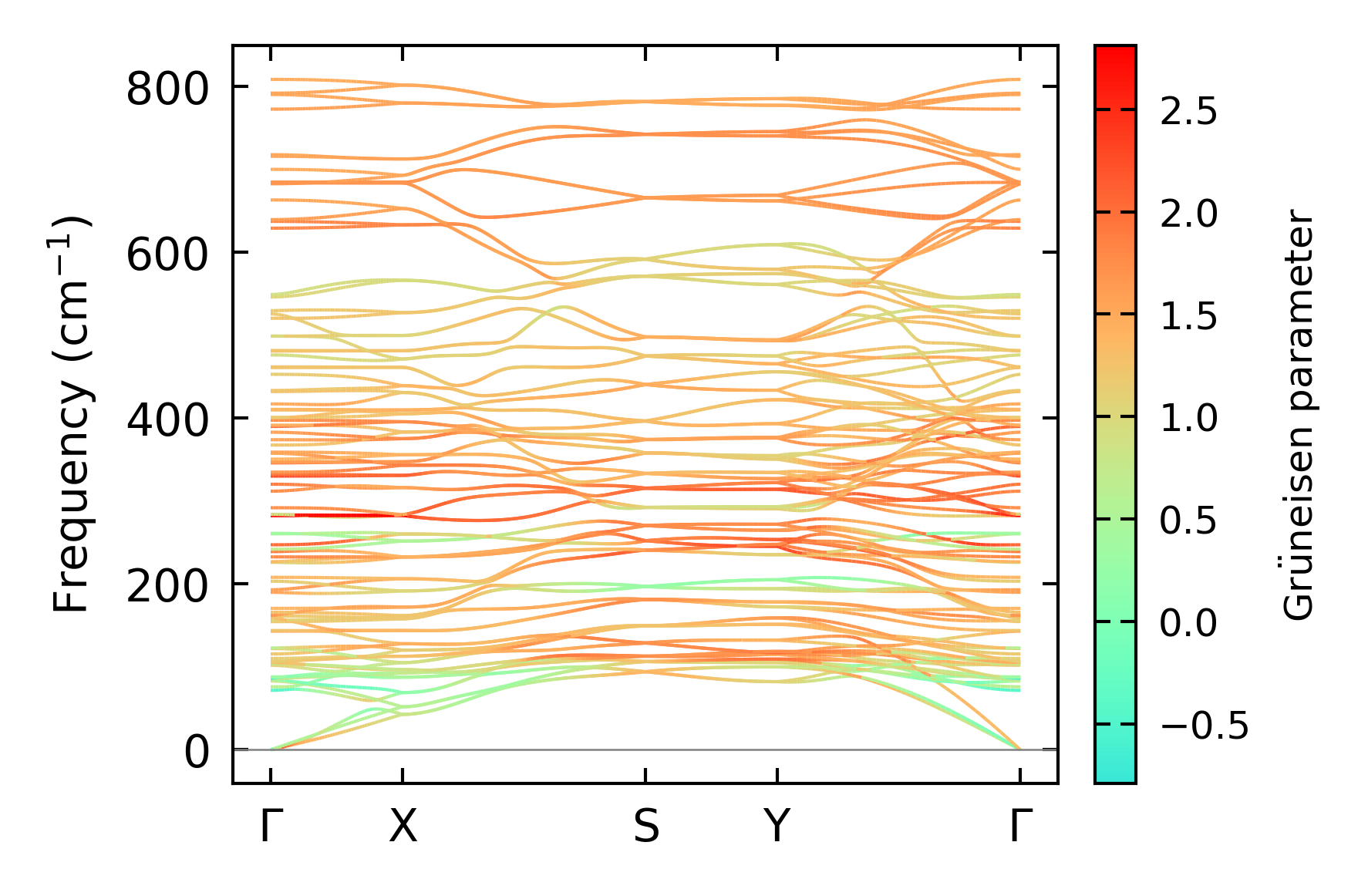

../../_images/fig_gruneisen1327.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x20x6, supercell: 1x3x1

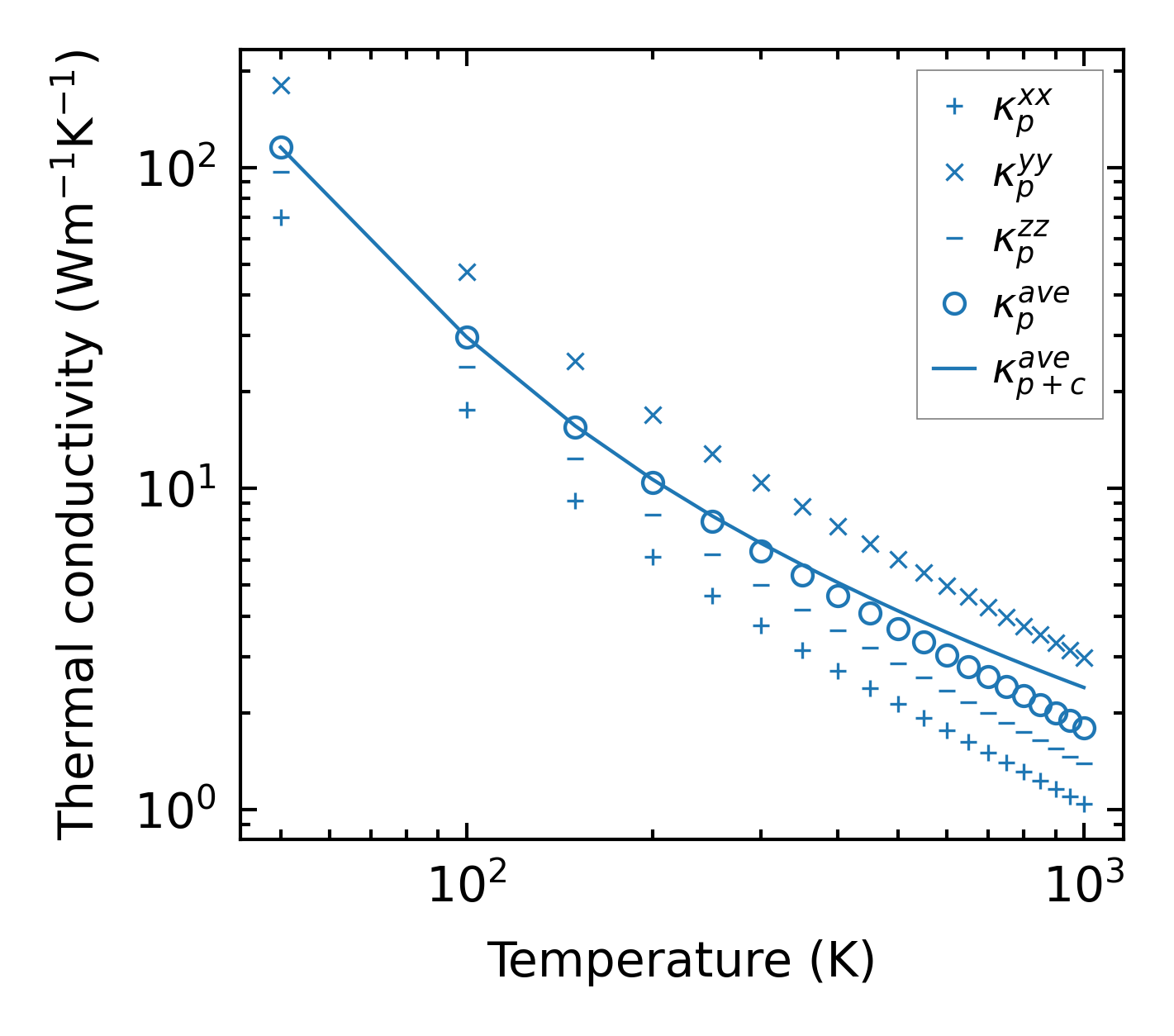

../../_images/fig_kappa2555.png — (a) Temperature-dependent lattice thermal conductivity

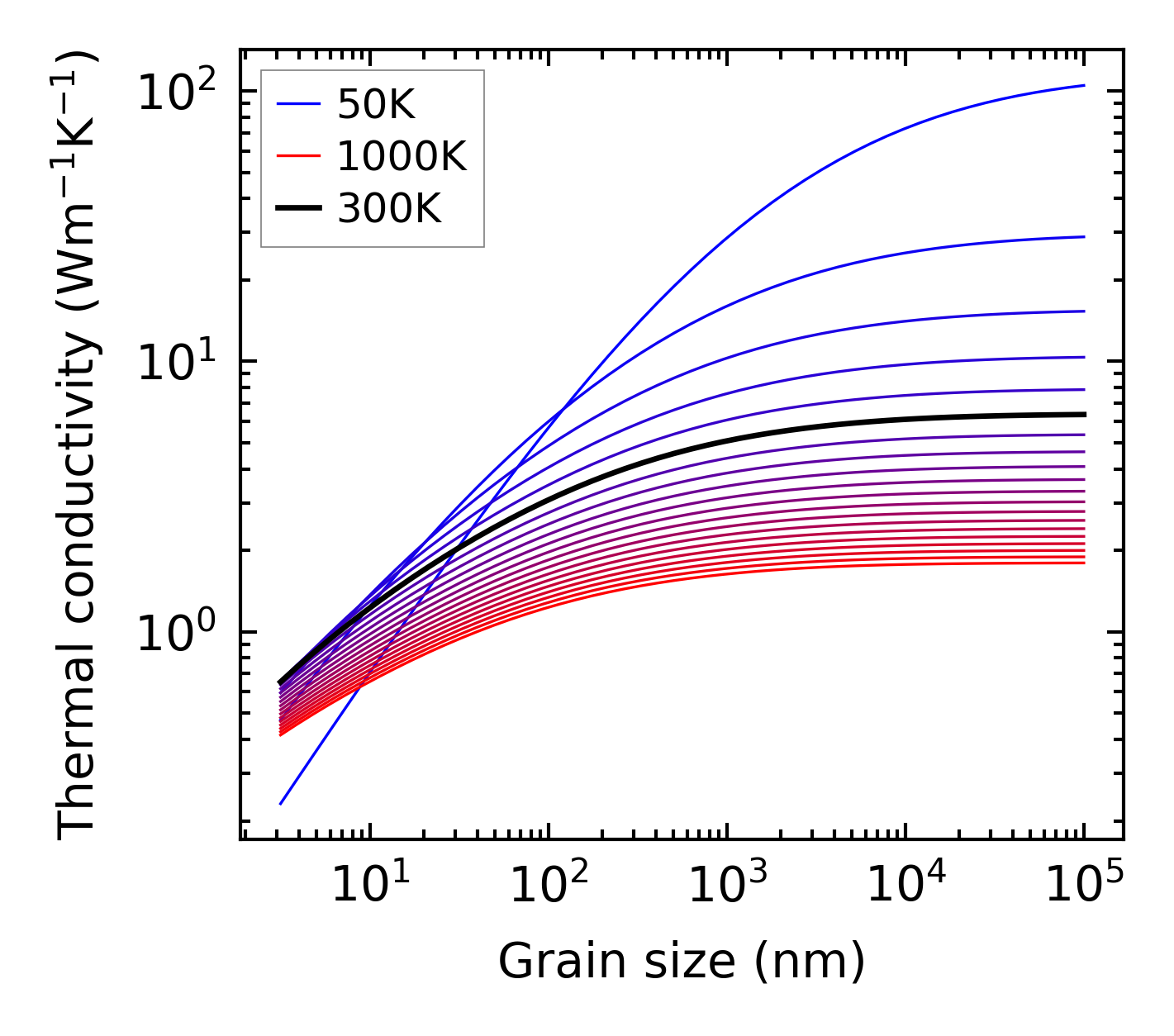

../../_images/fig_kappa_vs_grain_size1343.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime1317.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1316.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

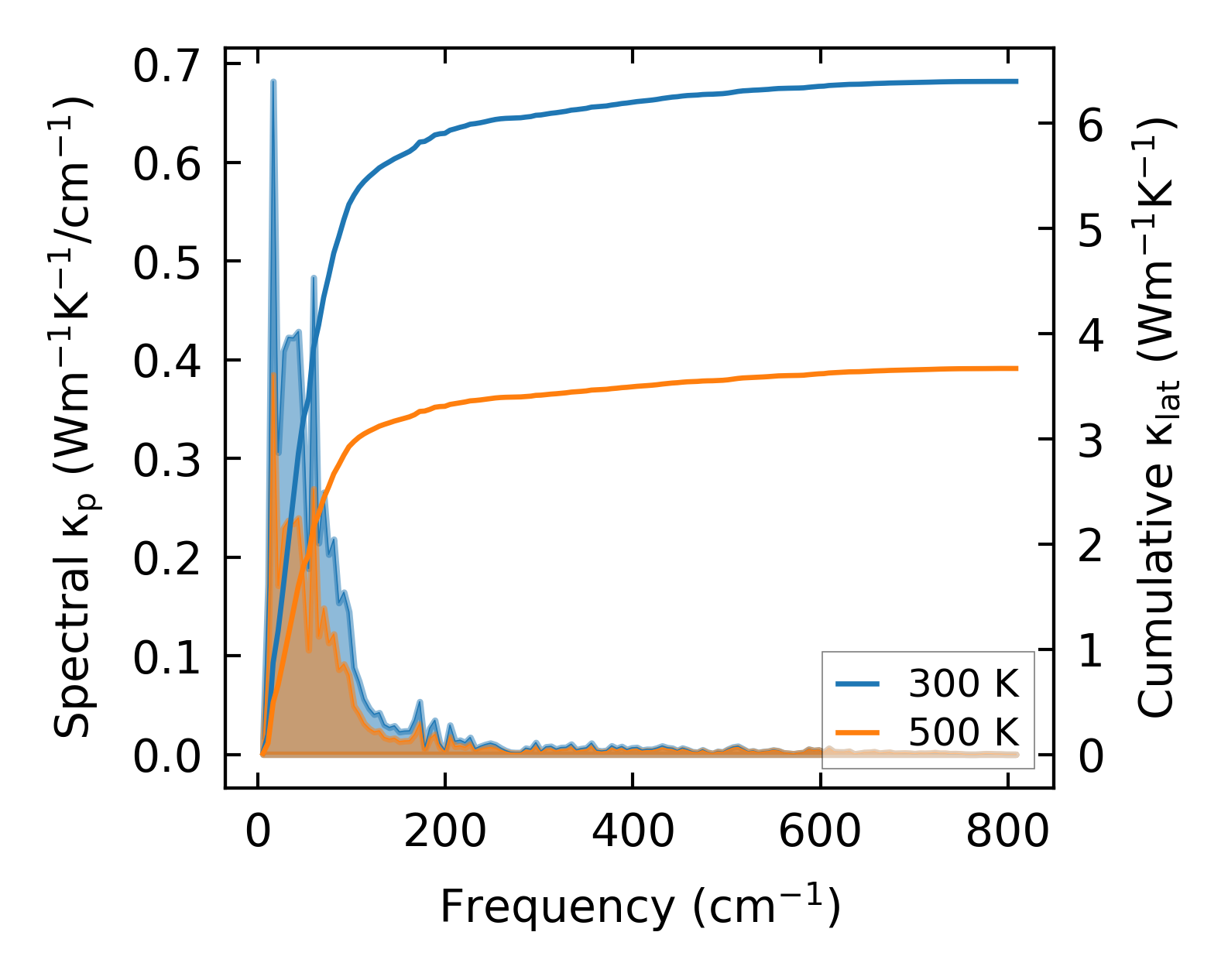

../../_images/fig_cumu_frequency1317.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

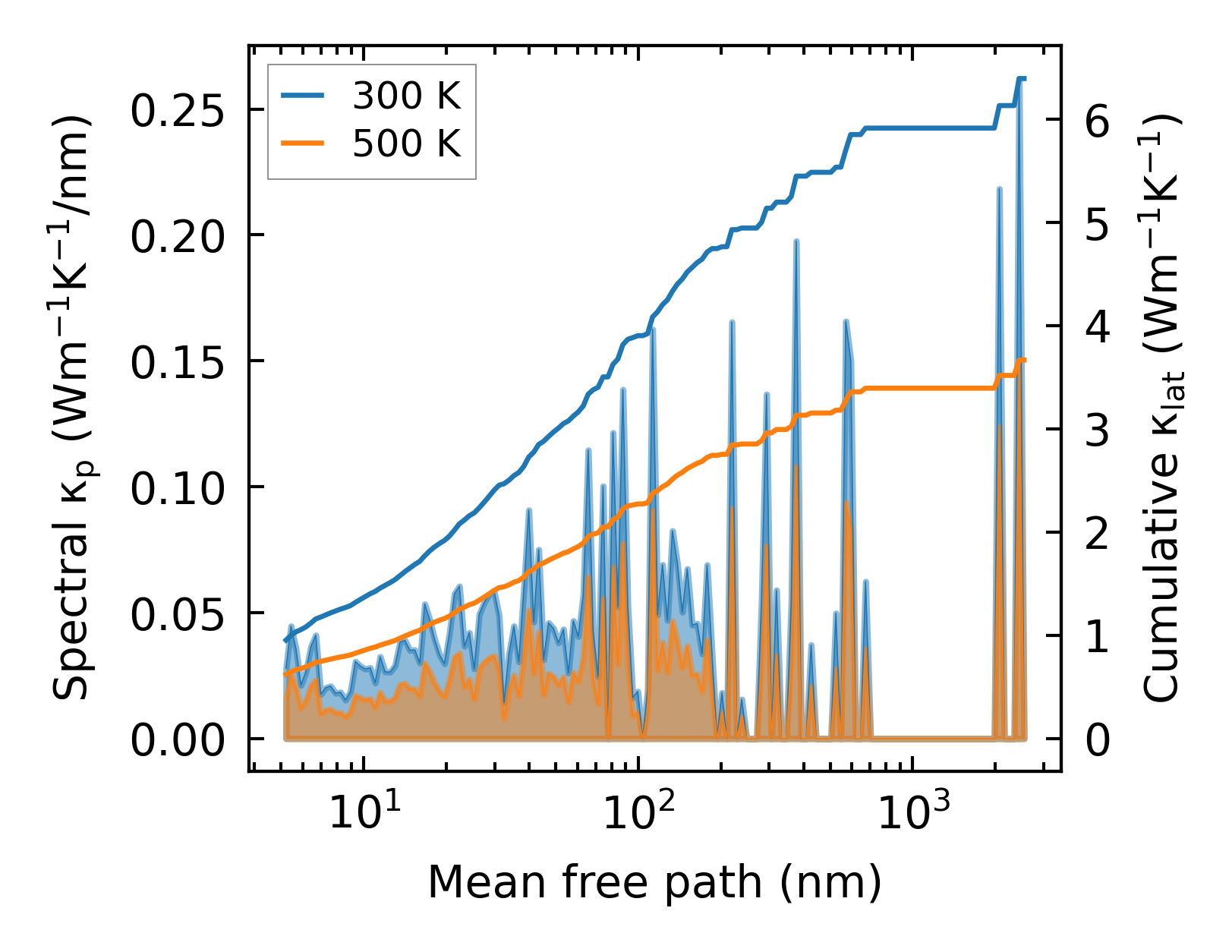

../../_images/fig_cumu_mfp1317.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc22429.png — (a) Force constants w.r.t atomic distance

Summary

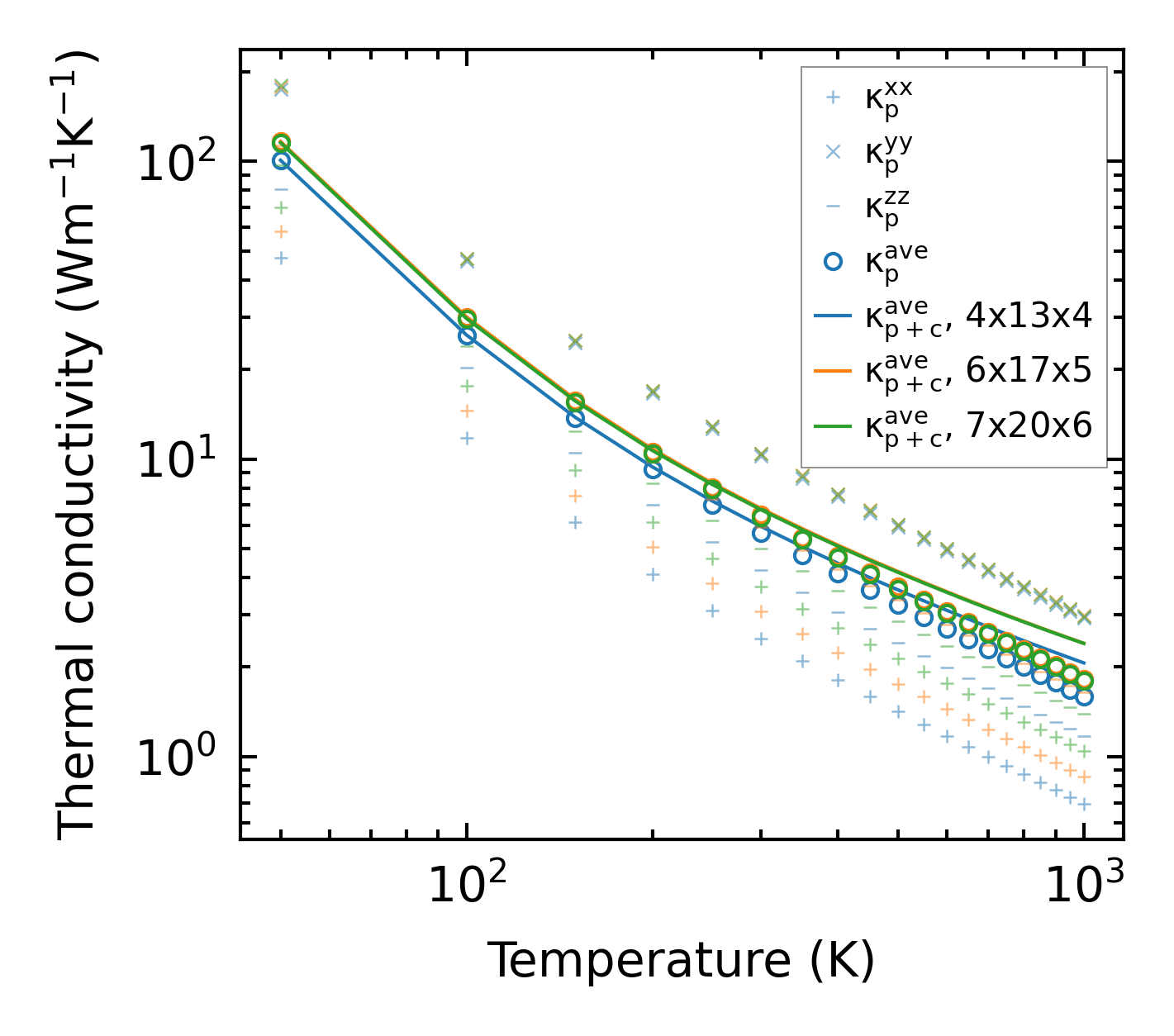

../../_images/fig_kappa2556.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times4337.png — (b) Computation time
